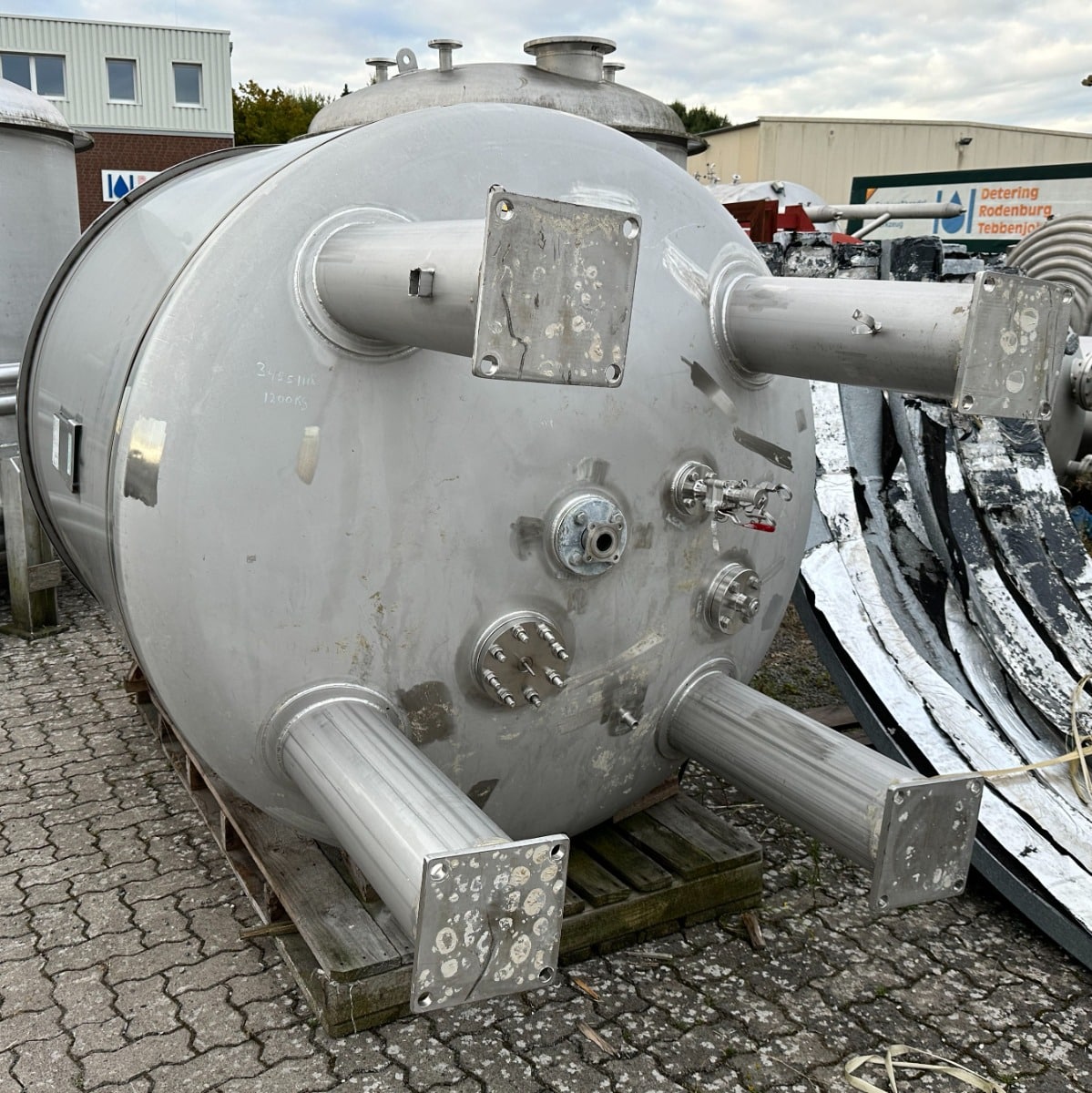

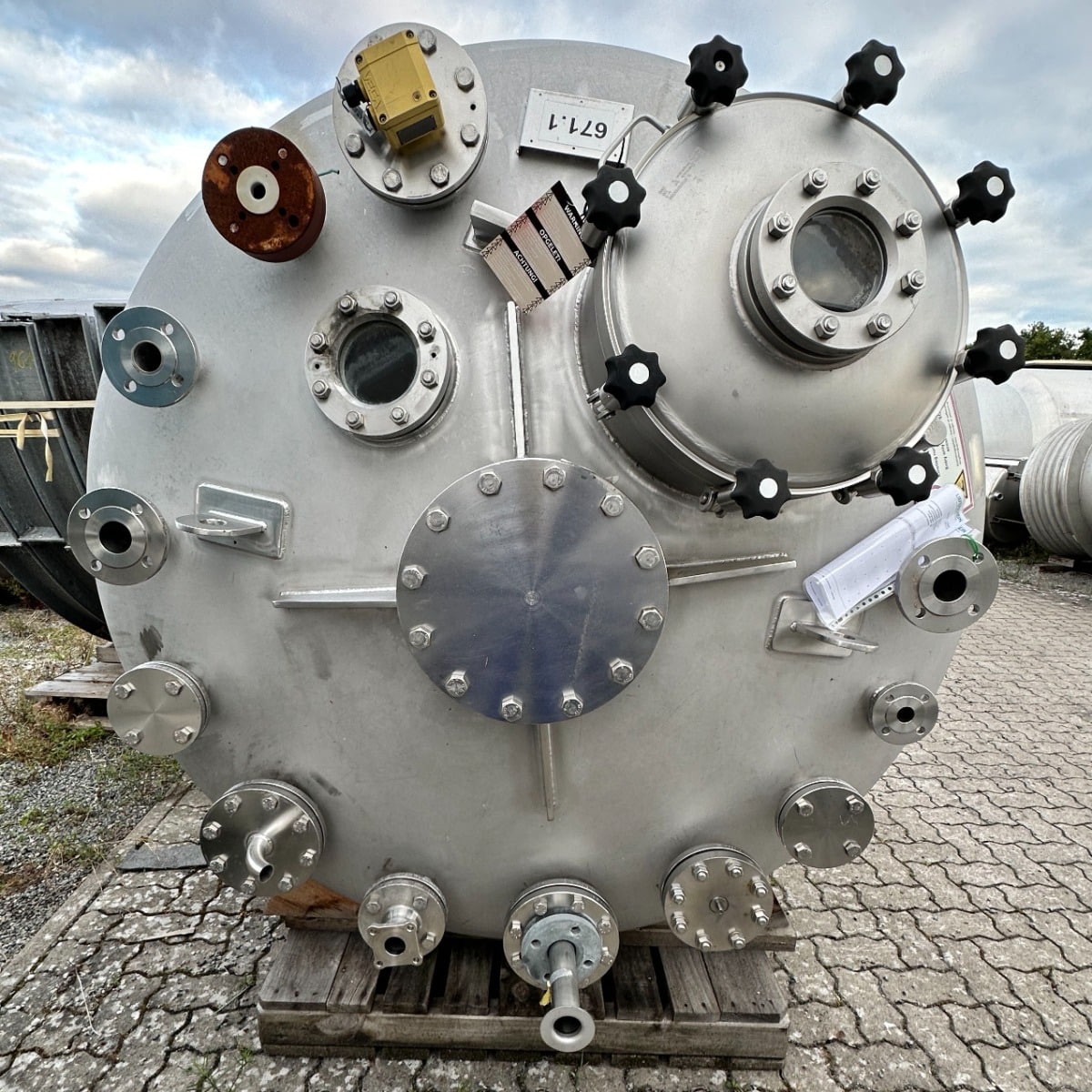

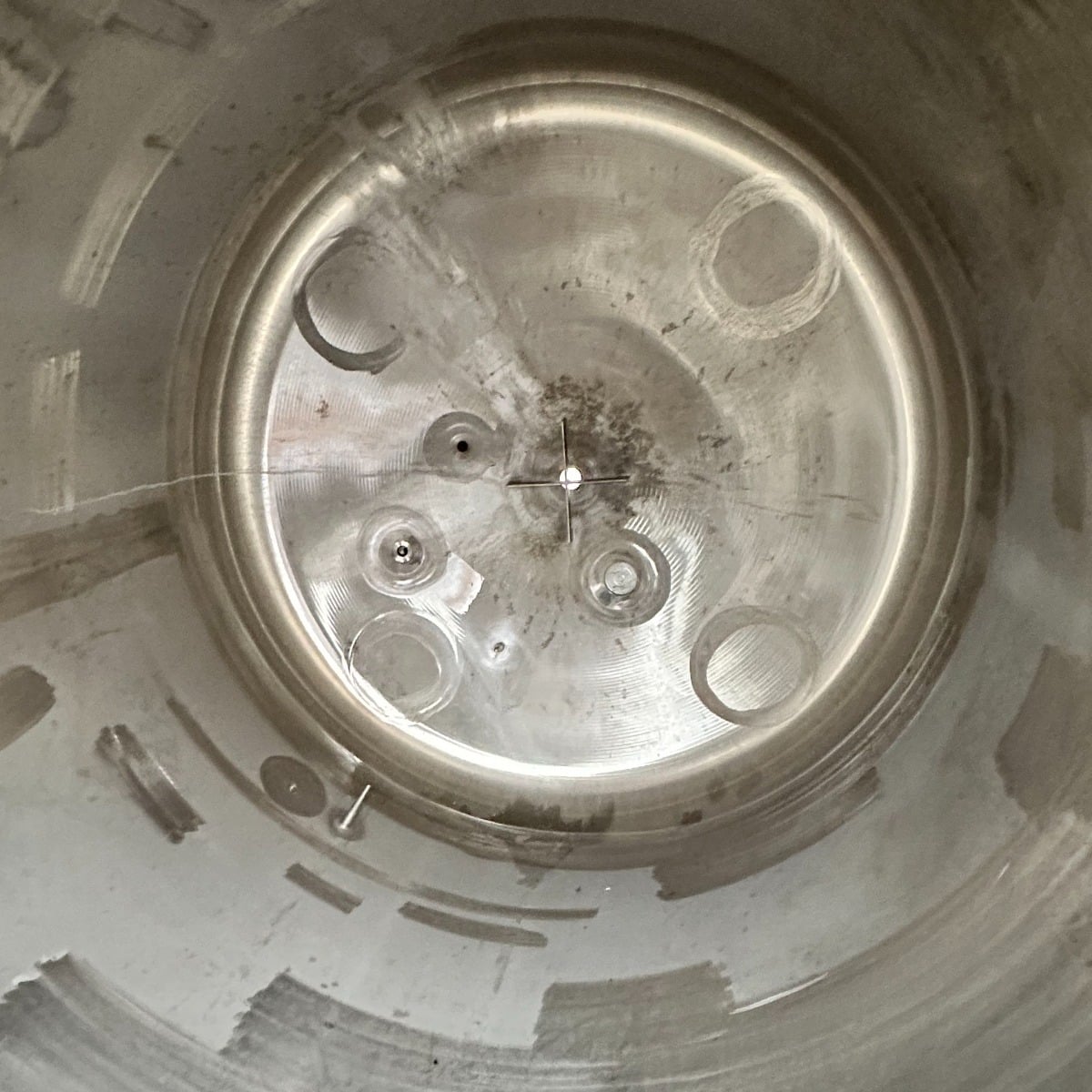

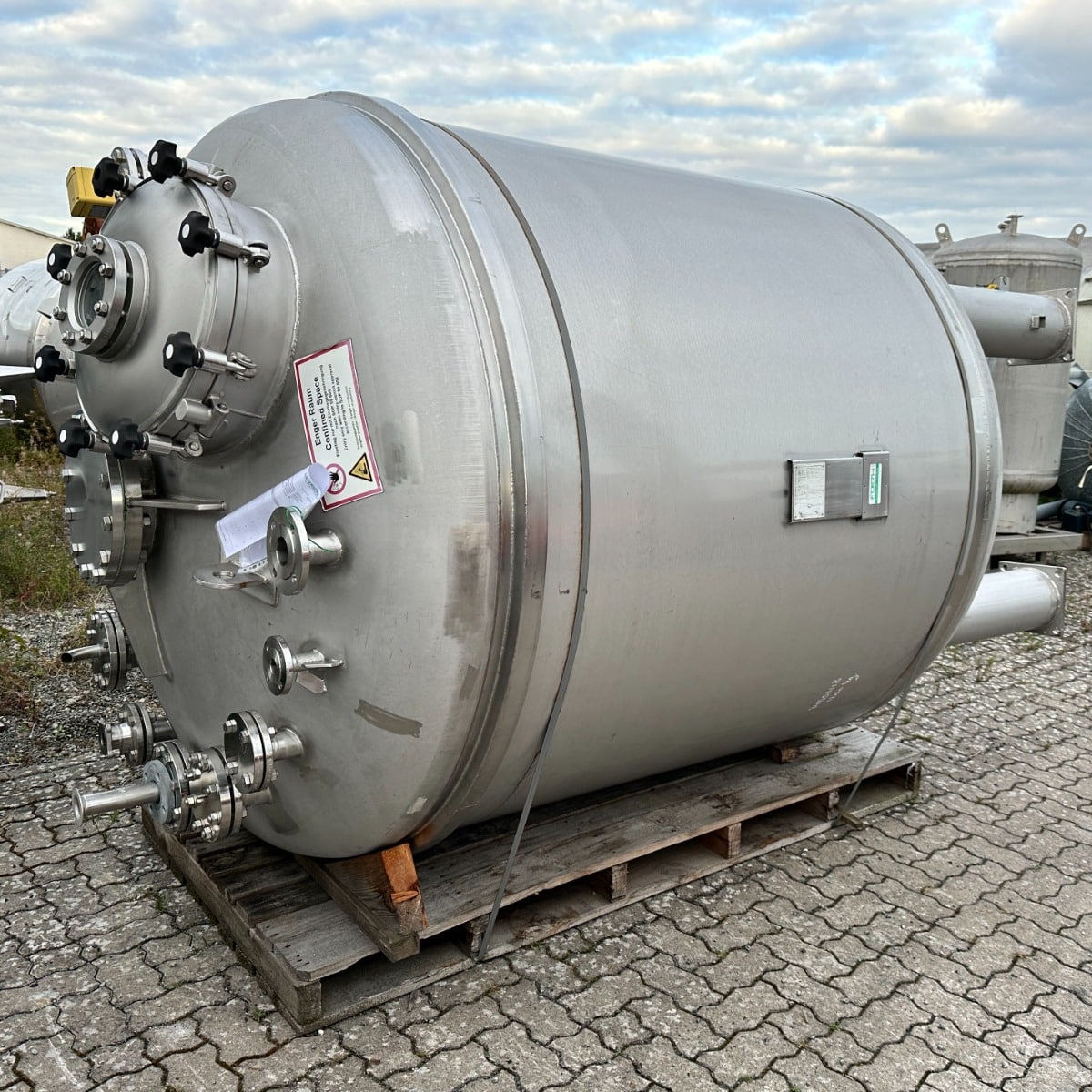

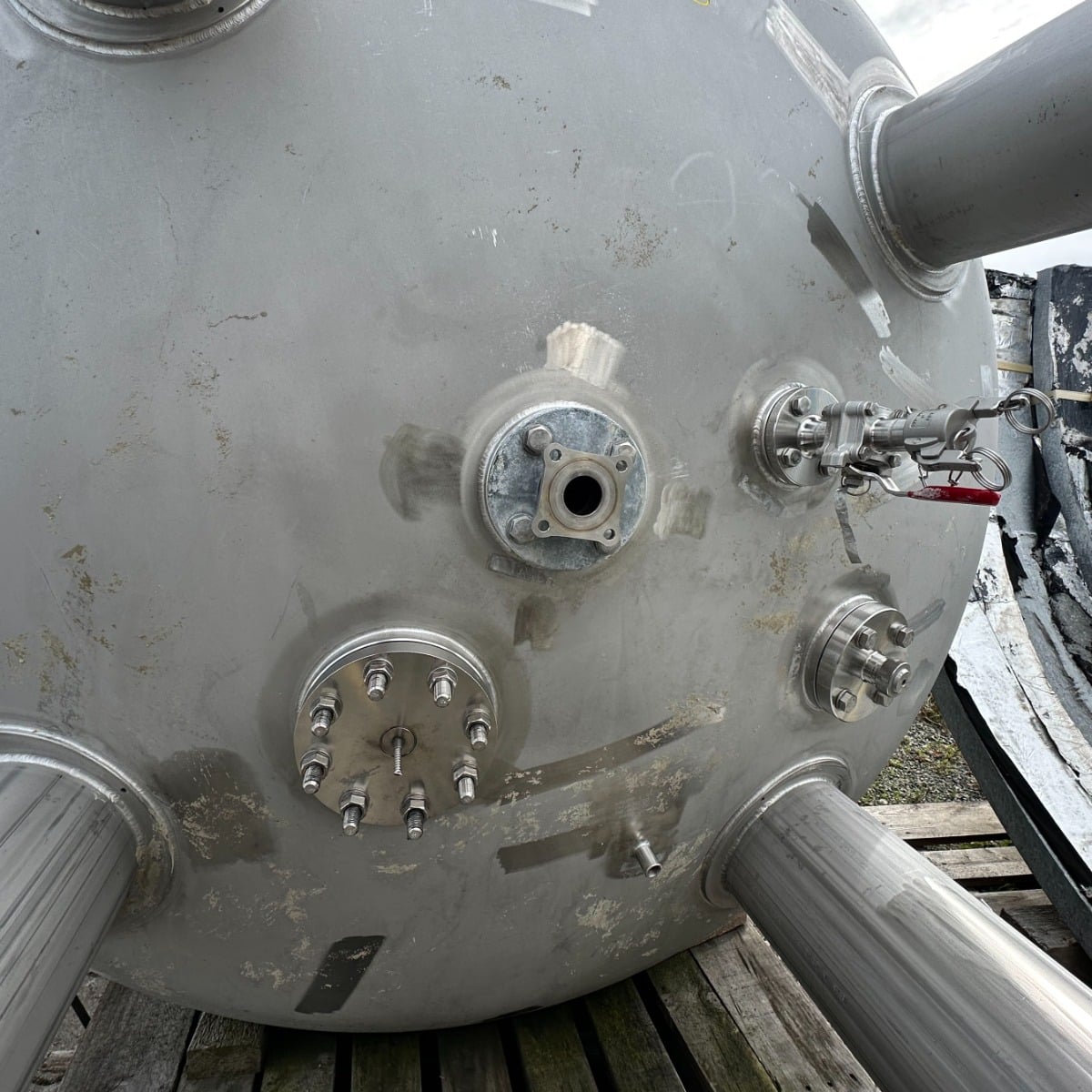

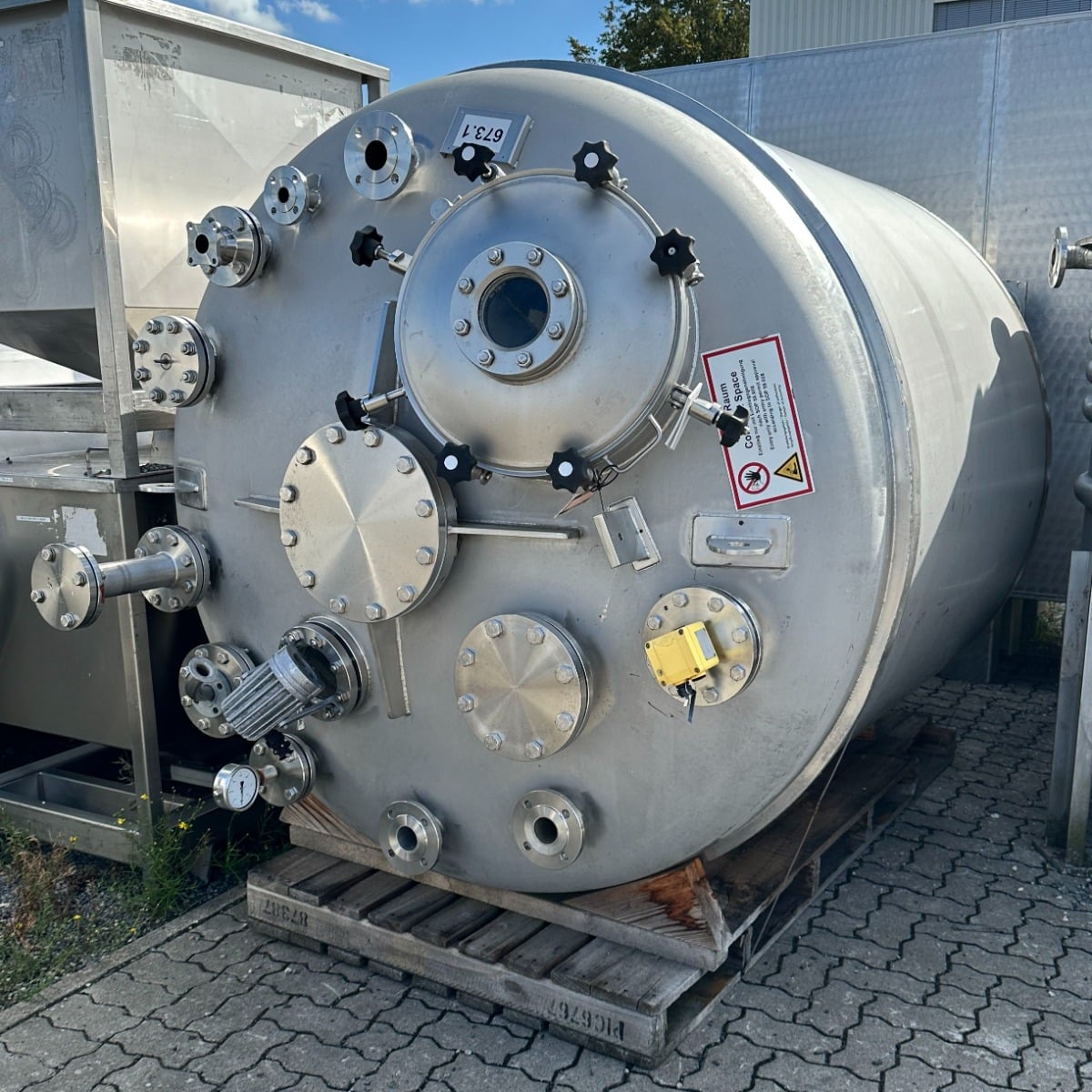

5380 liter tank i Syrafast 316

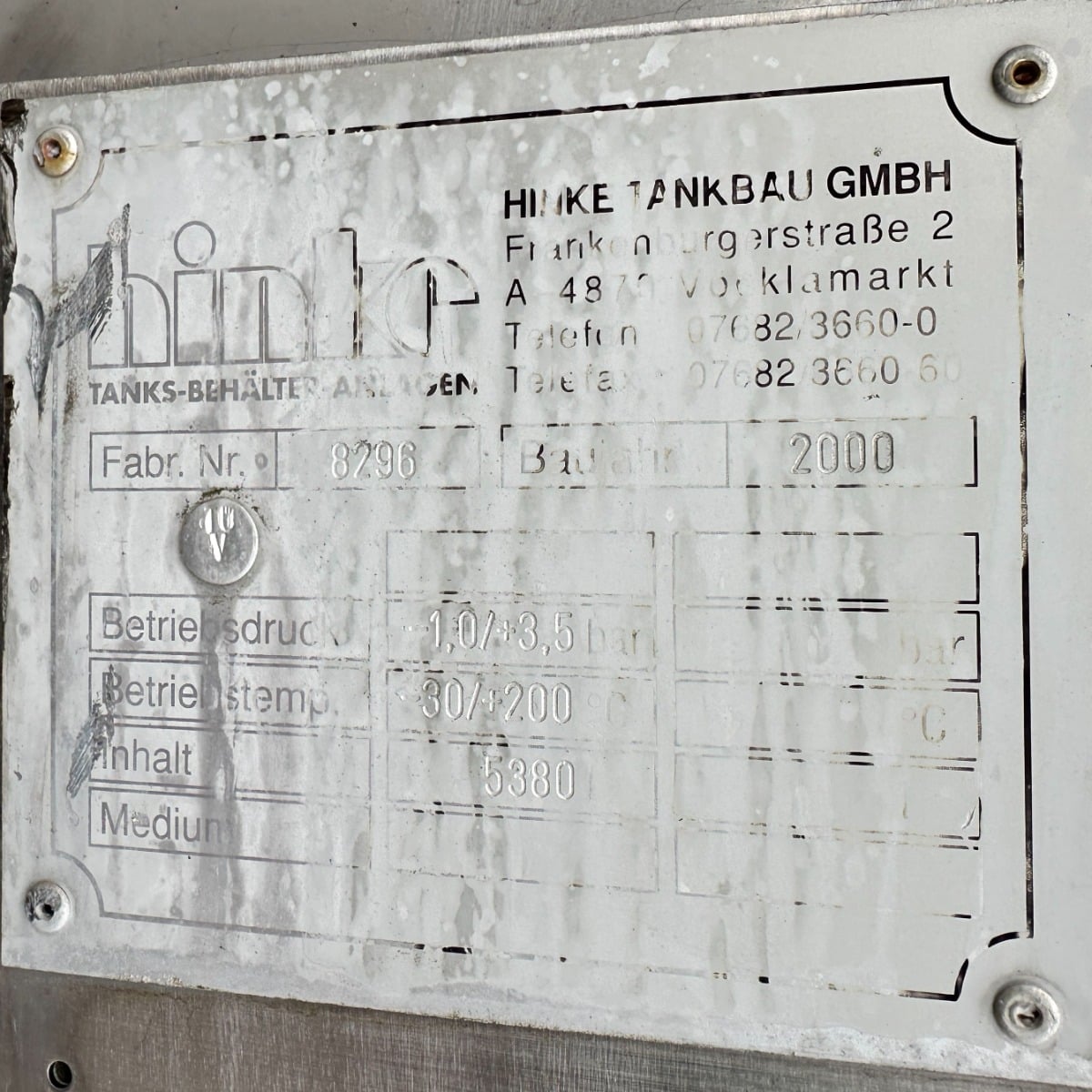

Volumetric volume (L): 5.380 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,50 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: yes Position of manway: headside Outlet of tank: flange Top: 6 mm Cylinder: 8 mm Bottom: 8 mm Internal diameter tank: 1.794 mm Cylinder height: 1.600 mm Total height of tank: 3.140 mm Empty weight tank: 1.200
