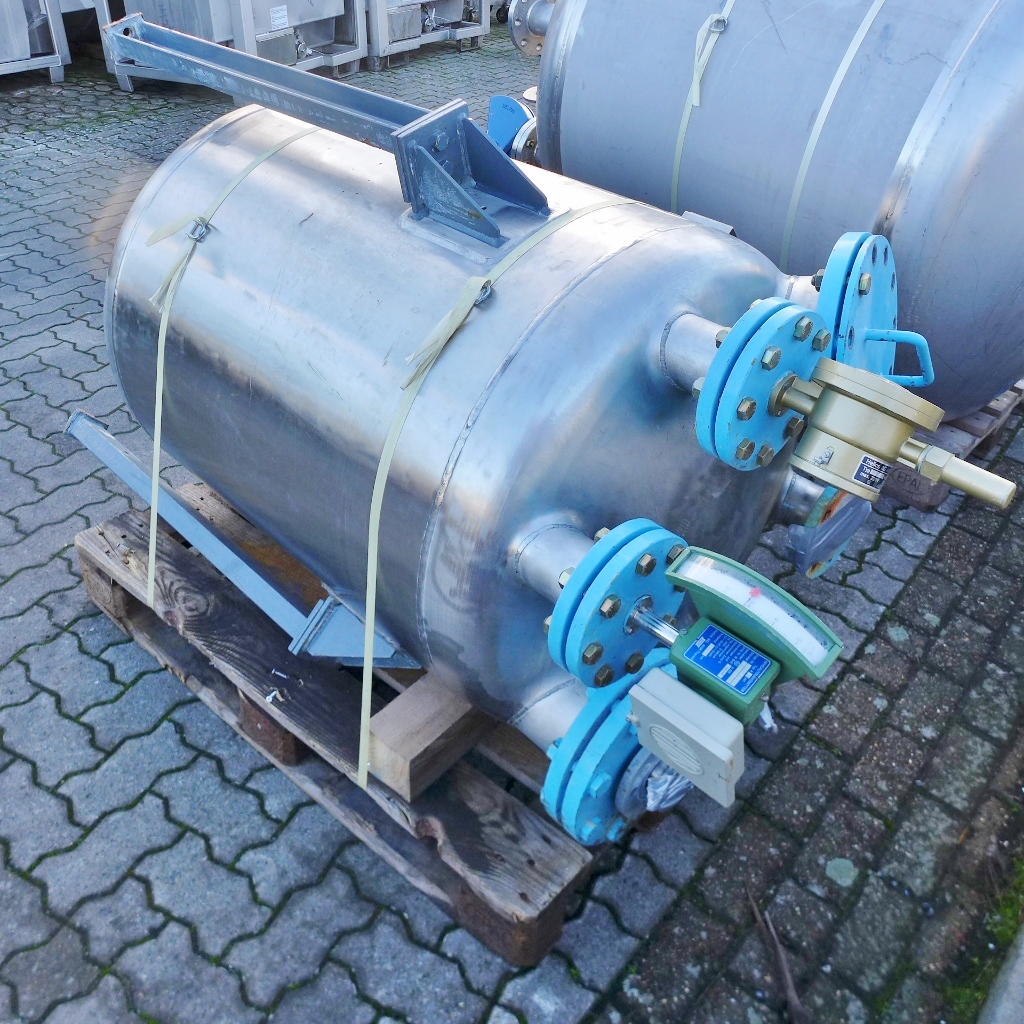

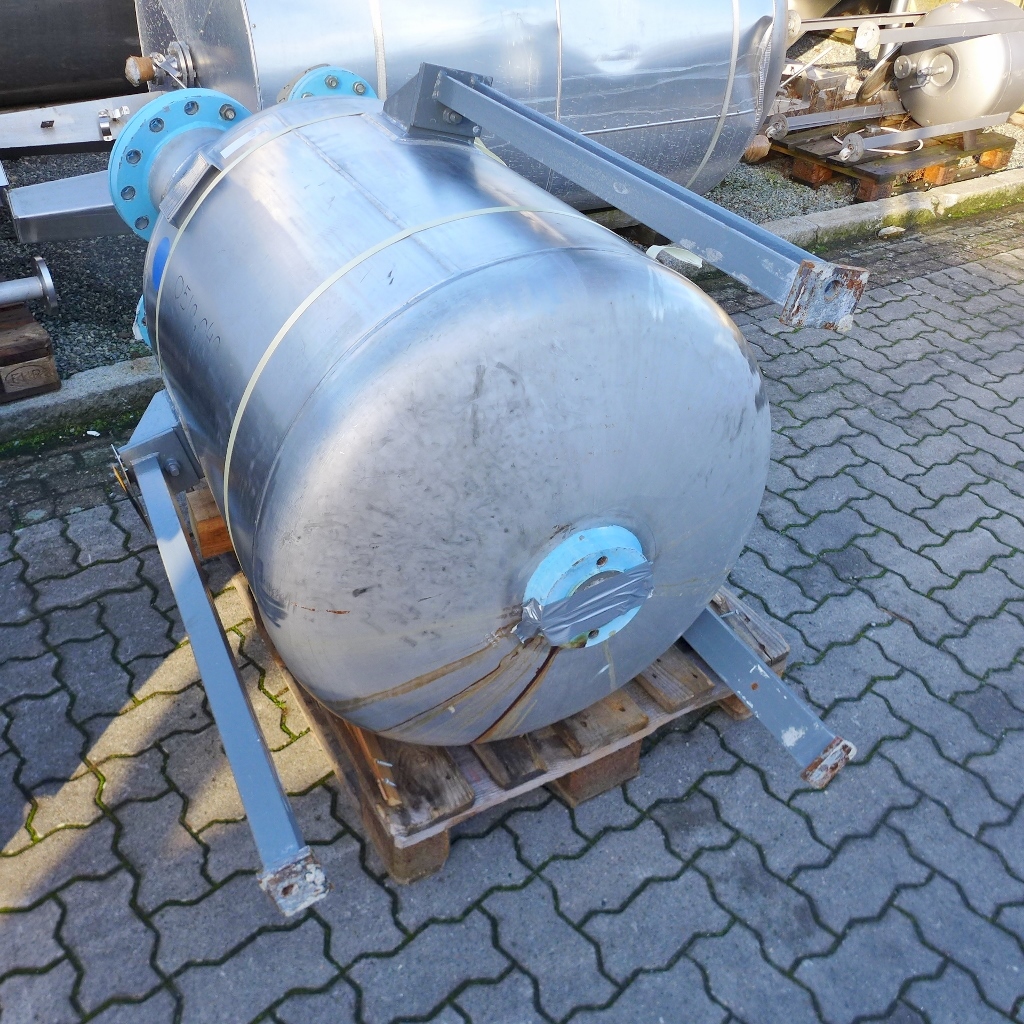

530 liter tank i Syrafast 316

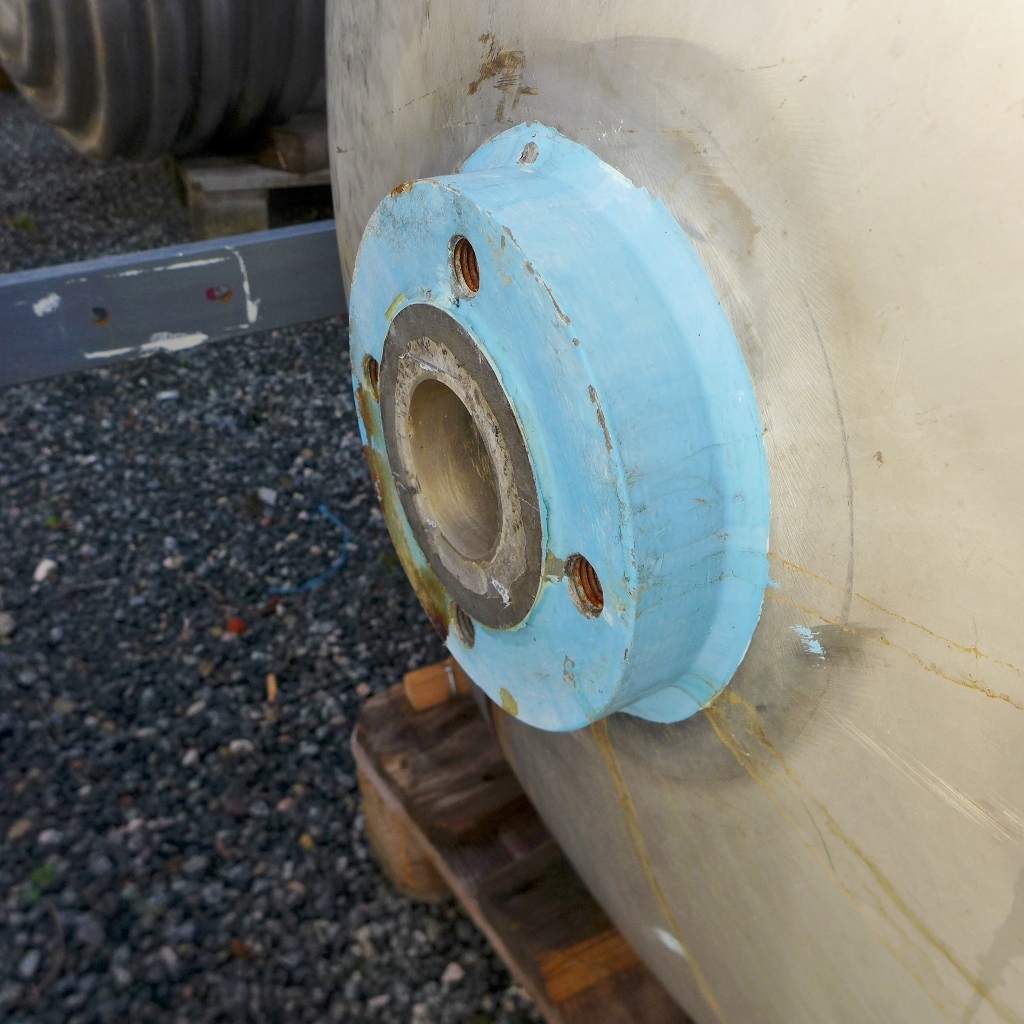

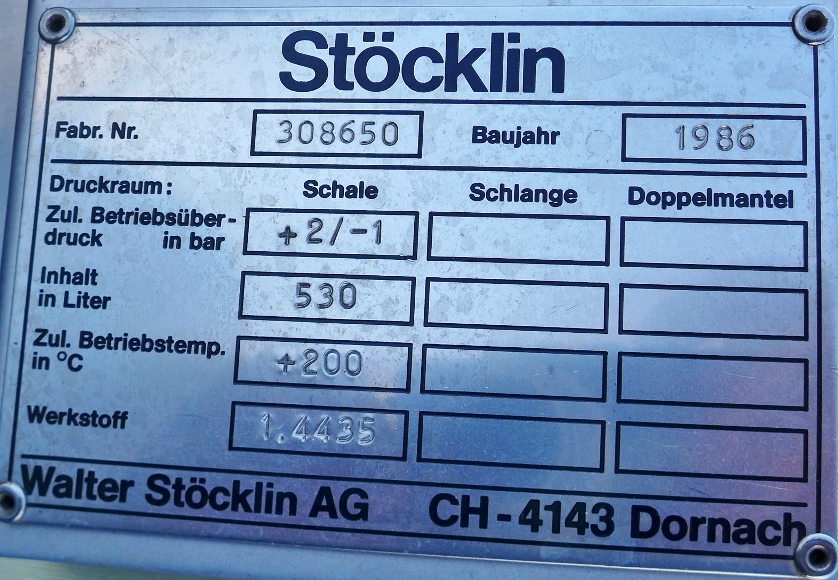

Additional information: Pharmaceutical Chemistry; Standard drawing available; 3 feet, Fe screwed to support brackets, Fe; Hand hole NW 200 (hand hole cover plated); some residues of previous content Volumetric volume (L): 530 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 2 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: flange DN50 Top: 6 mm Cylinder: 5 mm Bottom: 5 mm Internal diameter tank: 800 mm Cylinder height: 840 mm Total height of tank: 1.750 mm
