5200 liter i Syrafast 316

Vi erbjuder finansiering via:

Art.nr: 53703

Lagersaldo: 1st

Mer information

Volym i liter

5200

Nytillverkad/Begagnad

Nytillverkad

Livsmedelsklassad

Ja

Modell

Vertikal

Material

Syrafast 316

Omrörare

Nej

Uppvärmning/kylning

Ja

Isolerad

Ja

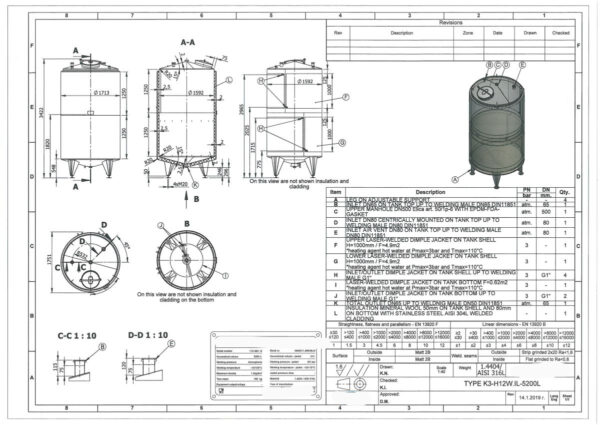

Ritning

Öppna

item available on order

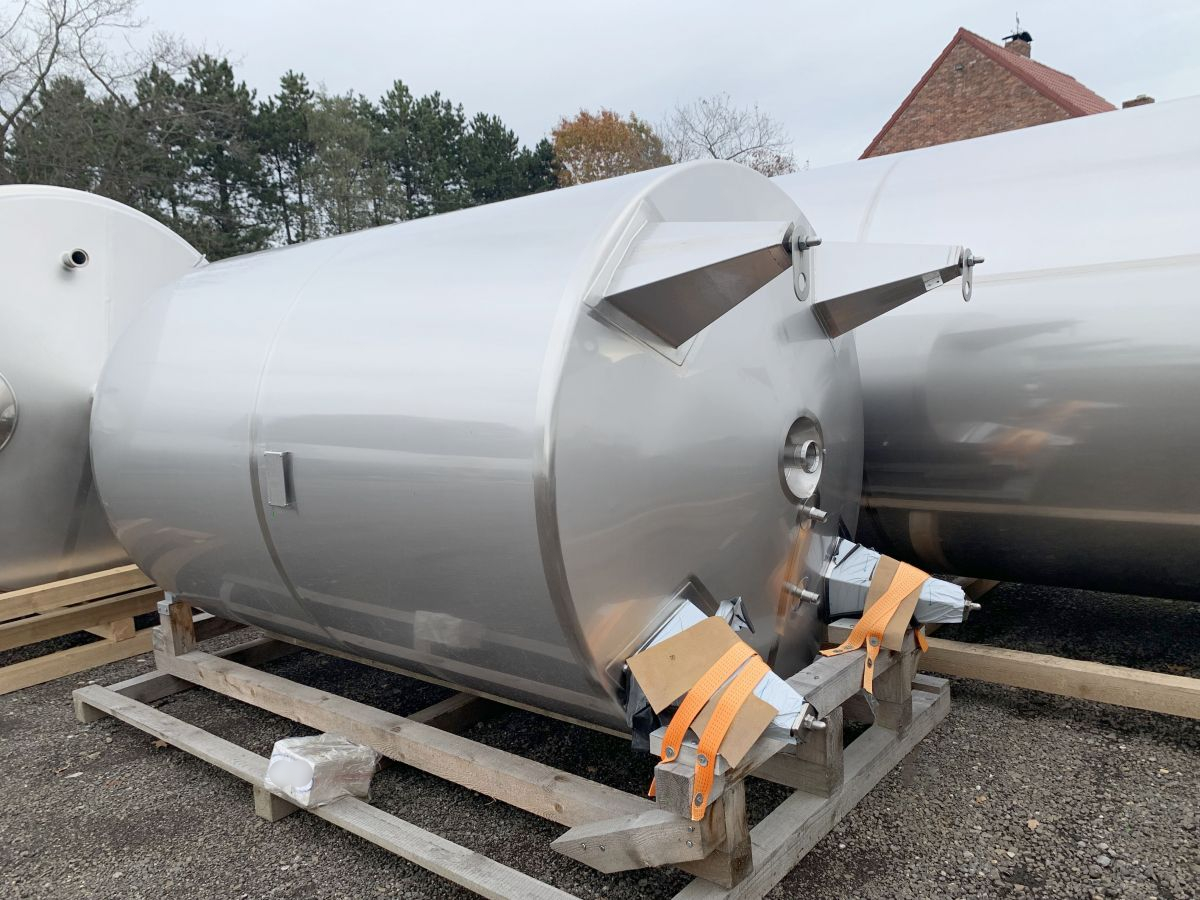

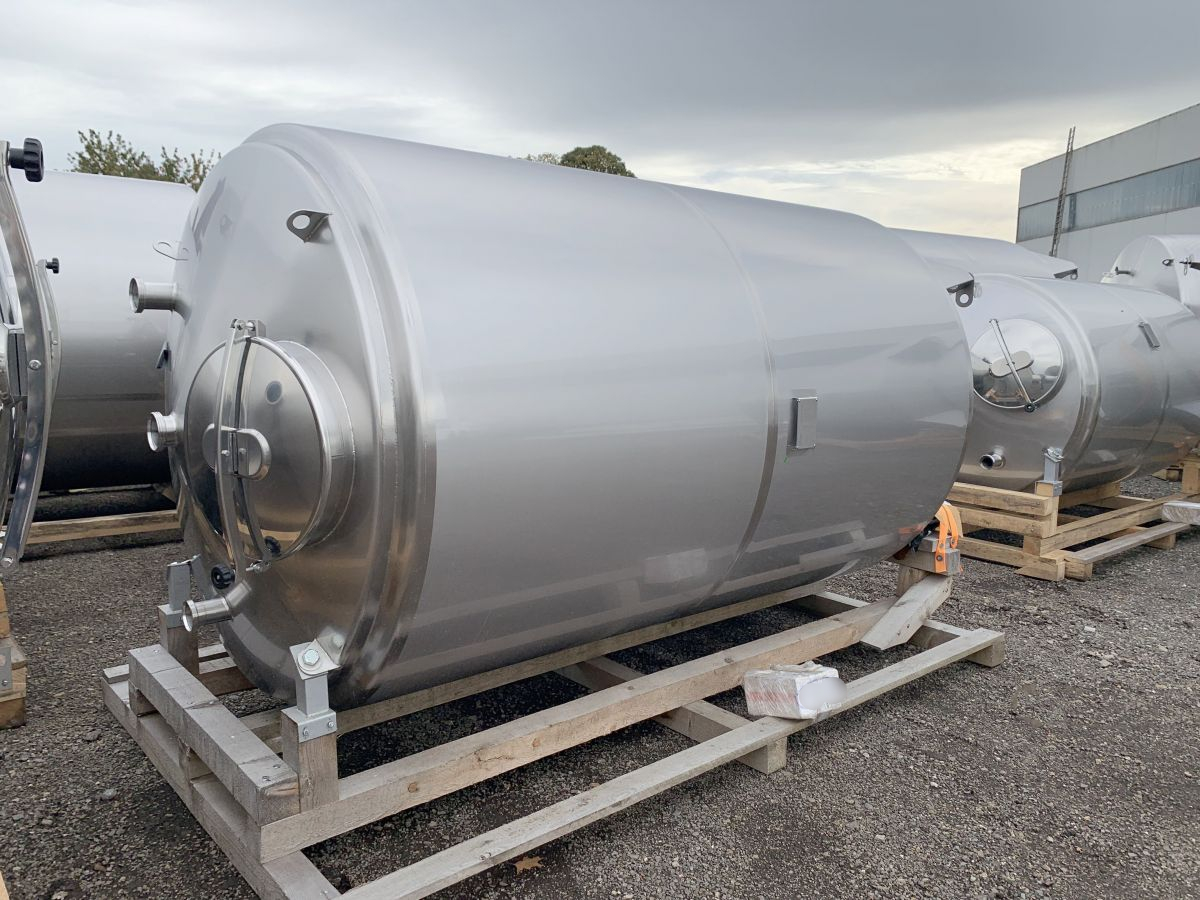

Article type: brand new storage tank – type K3-H12W.IL
Capacity: 5.200 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Finish stainless steel: 2b

Working pressure in tank: ATM – atmosferic
Max. working temperature: 130 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical

Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Agitator: yes, optional
Mobile tank: no

Top type: conical 15 °
Shape of tank: cylindrical

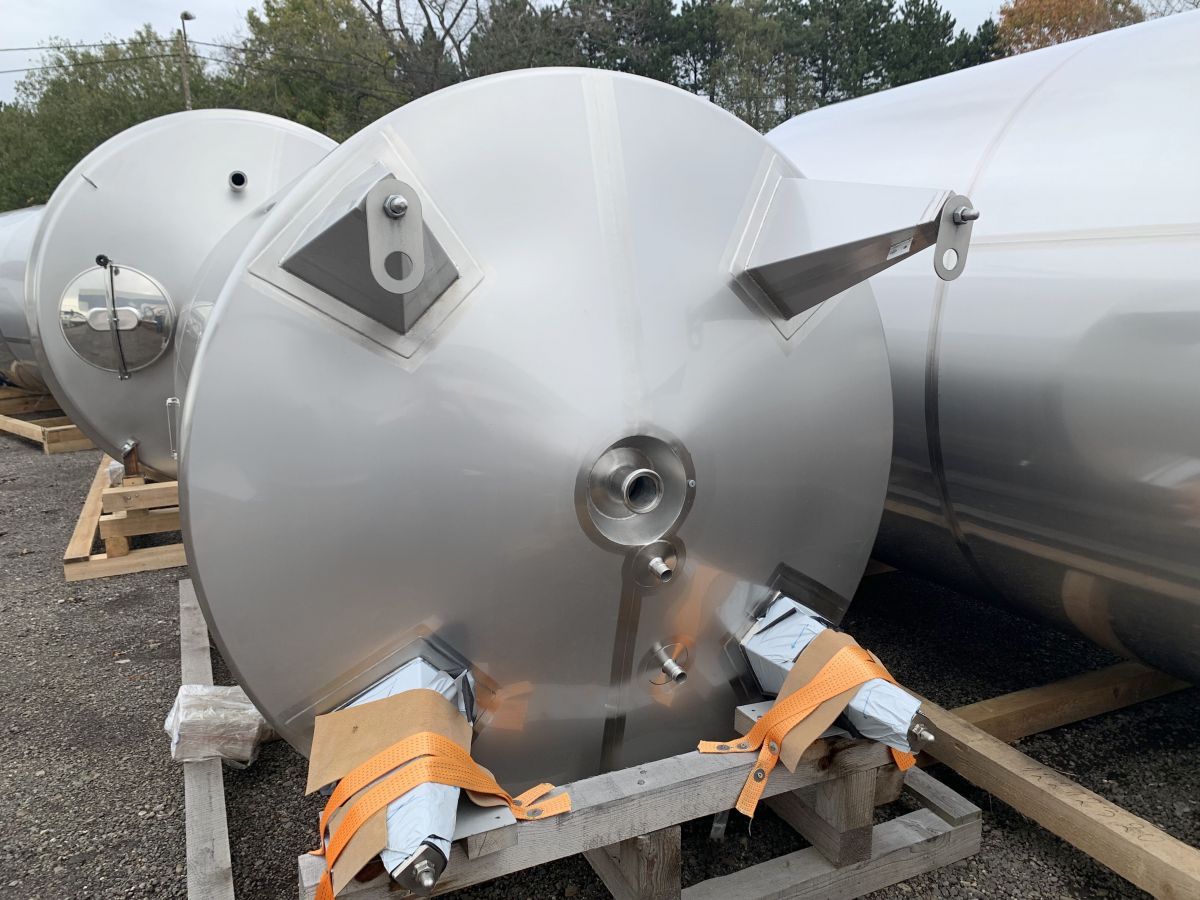

Bottom type: conical 15 °
Total discharge: yes
Fixation points: 4 adjustable feet

Legs: Set of baseplates and adjusting pieces included
Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Number of sections: 2
Water pressure HE: 3 Bar

Steam pressure HE: 0,50 Bar
Contact surface cylinder: 9 m²
Connection HE: 1″ BSP
Working temperature HE cylinder: 110 °C
Type of HE on the bottom: dimple-jacket

Connection of the bottom to the cylinder: buiten isolatie
Water pressure HE: 3 Bar
Steam pressure HE: 0,50 Bar
Connection HE: 1″ BSP
Working temperature HE bottom: 110 °C

Heat exchanger: RVS – 304 with rockwool insulation
Insulation material: Rockwool
Outer jacket (ornamental wall): RVS 304L
Manway(s): RVS 316
Gasket manway(s): EPDM

Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional

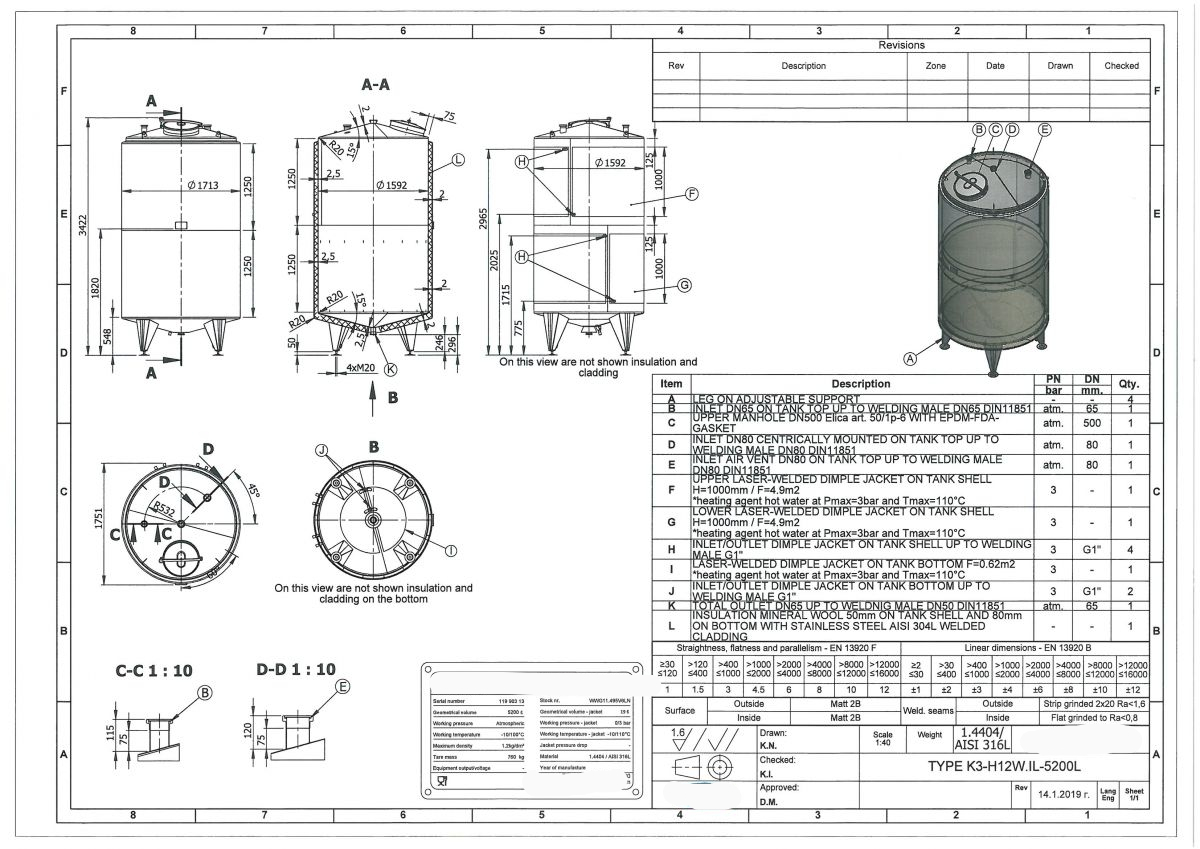

Technical drawing included: yes
Registration plate on the tank: yes

with inspection of: TUV
Flange for agitator: no
Number of manways: 1
Position manway: at the top
Manway 1: 500 mm

Spray ball: yes, optional
Tank outlet: inside Ø 65 mm
Outlet type: DIN11851 male
Total outlet valve: yes, optional
Top: 2 mm

Cylinder: 2 mm
Bottom: 2 mm
Cylinder: 2
Insulation body: yes
Bottom: 2

Insulation bottom/sides: yes
finish of the outer jacket: welded
Insulation thickness: 50
Internal diameter tank: 1.592 mm
Distance from outlet to ground: 296 mm

Outer diameter tank: 1.706 mm
Cylinder height: 2.500 mm
Feet height: 548 mm
Total height of tank: 3.420 mm
Empty weight tank: 760
