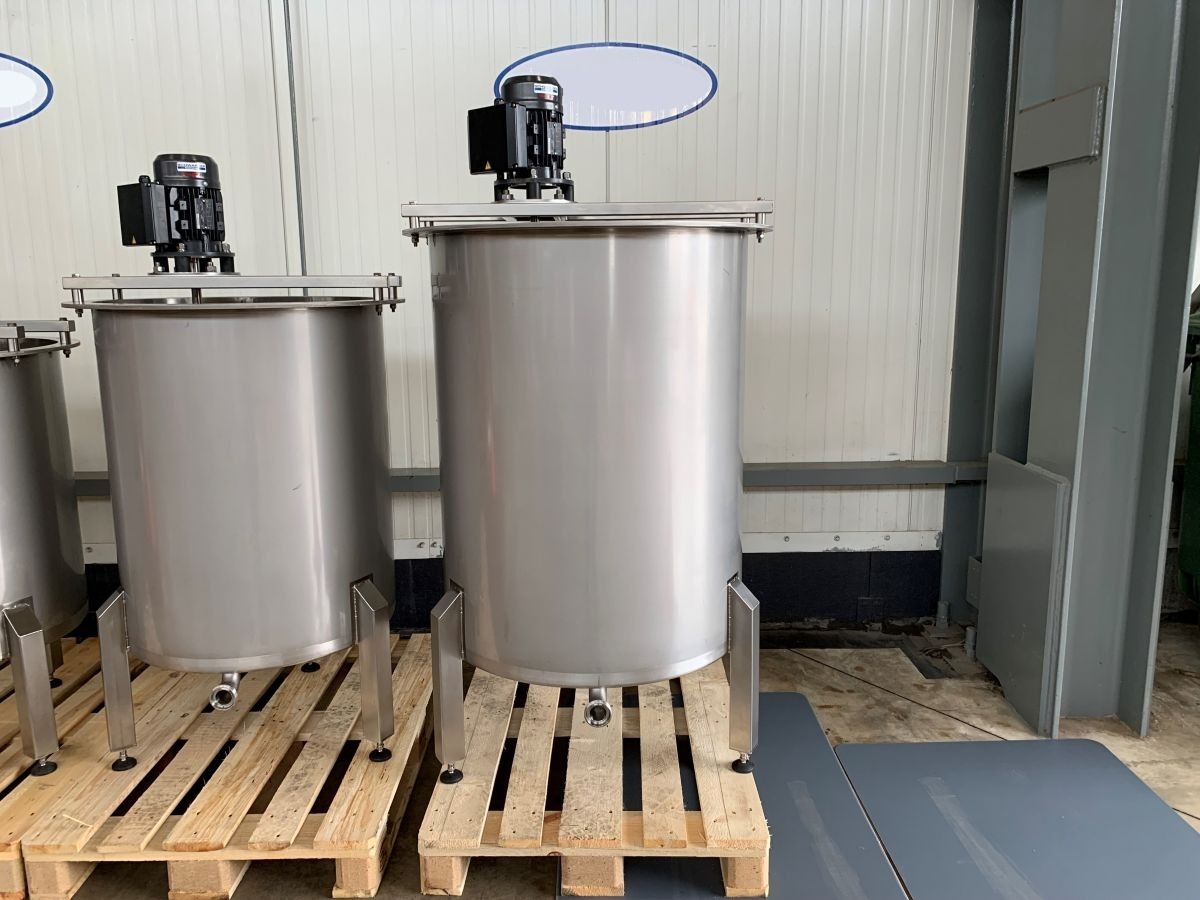

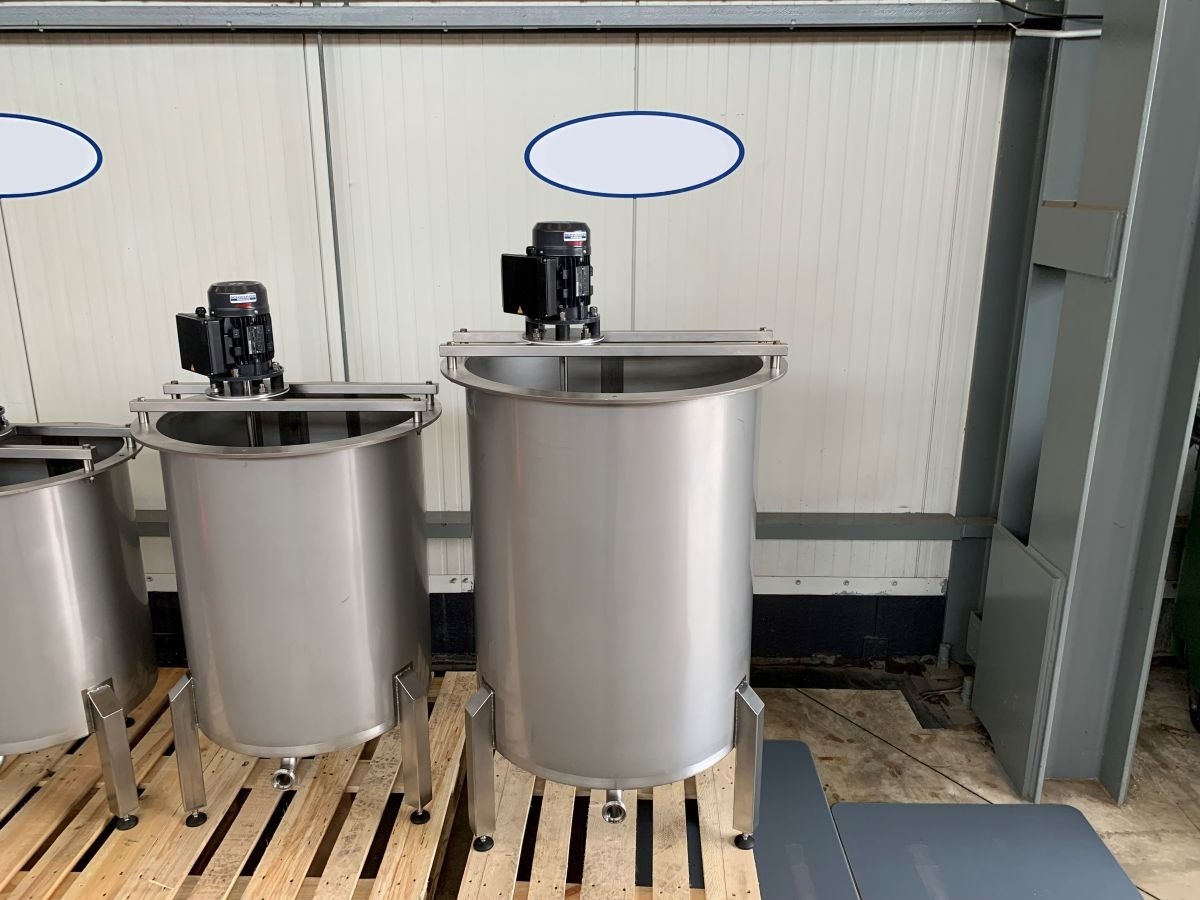

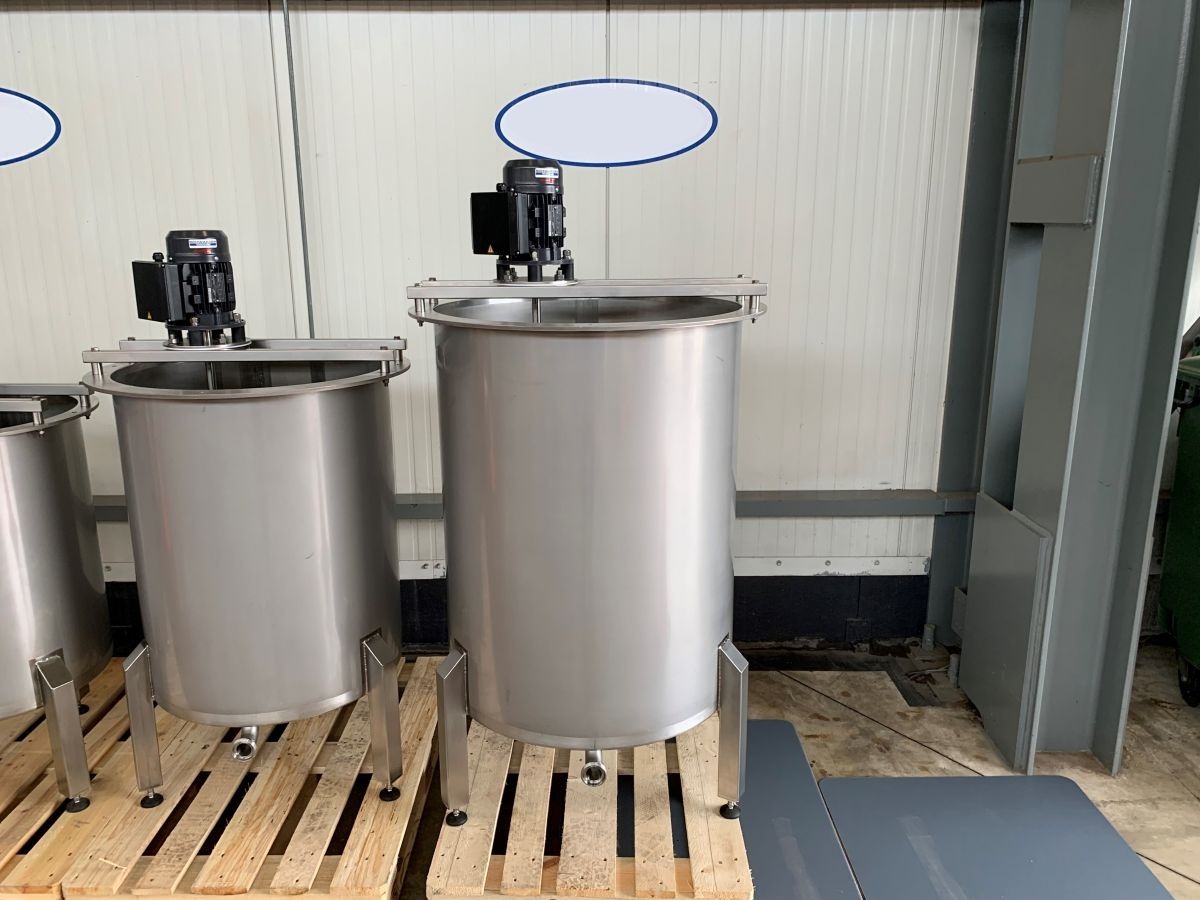

520 liter tank i Syrafast 316
Art.nr: 84693
62,000,00 kr /st exkl moms
Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:
Lagersaldo:
Slut i lager
520 liter tank i Syrafast 316
Article type: second-hand mixing tank
Additional information: The tank has never been used, in absolute new condition, New agitator.; we can’t give any guarantees about the agitator
Volumetric volume (L): 520 L
Ra inner weld: 0,80
Finish stainless steel: 2B
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Shape of tank: cylindrical
Bottom type: flat
Total discharge: yes

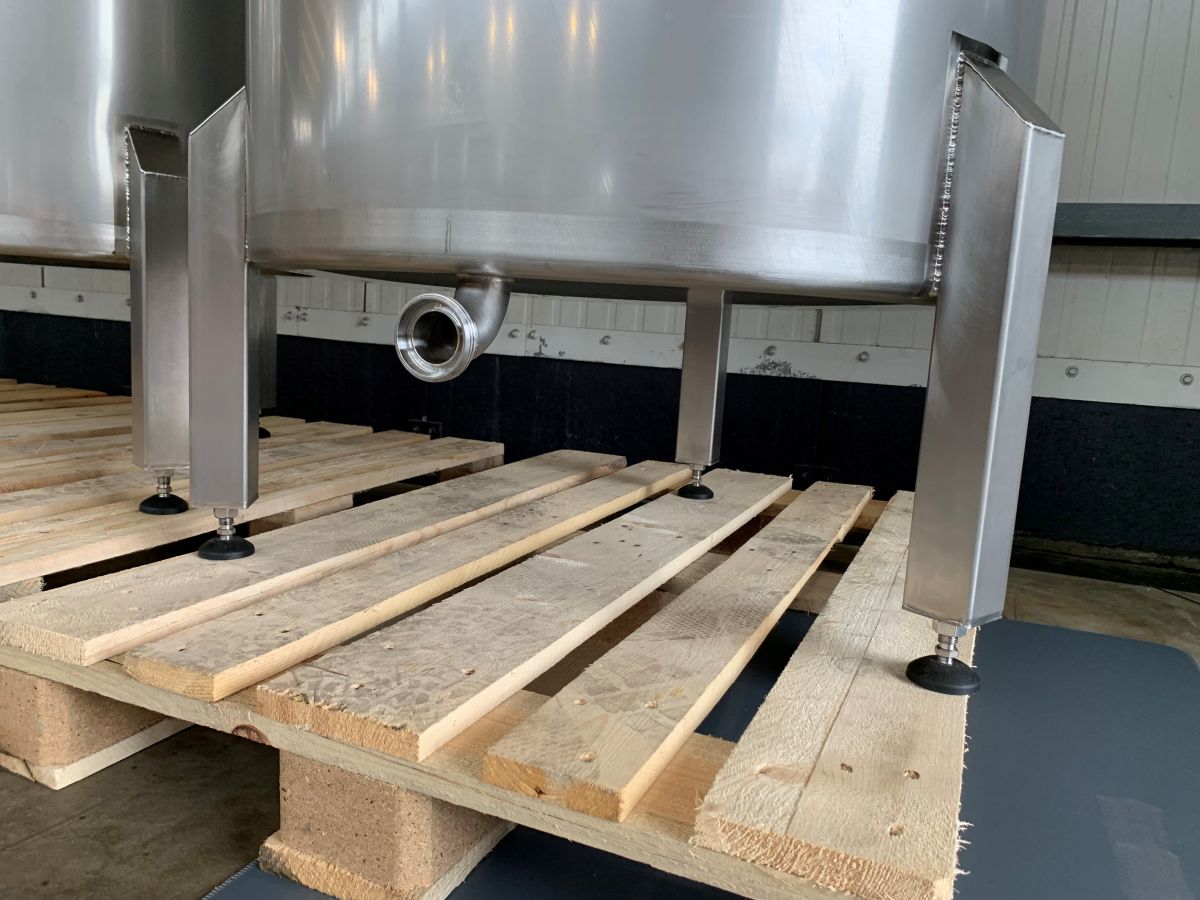

Fixation points: 3 adjustable feet
Fixation point(s): RVS 304L
Wet parts agitator(s): SS AISI 316L (V4A)
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no

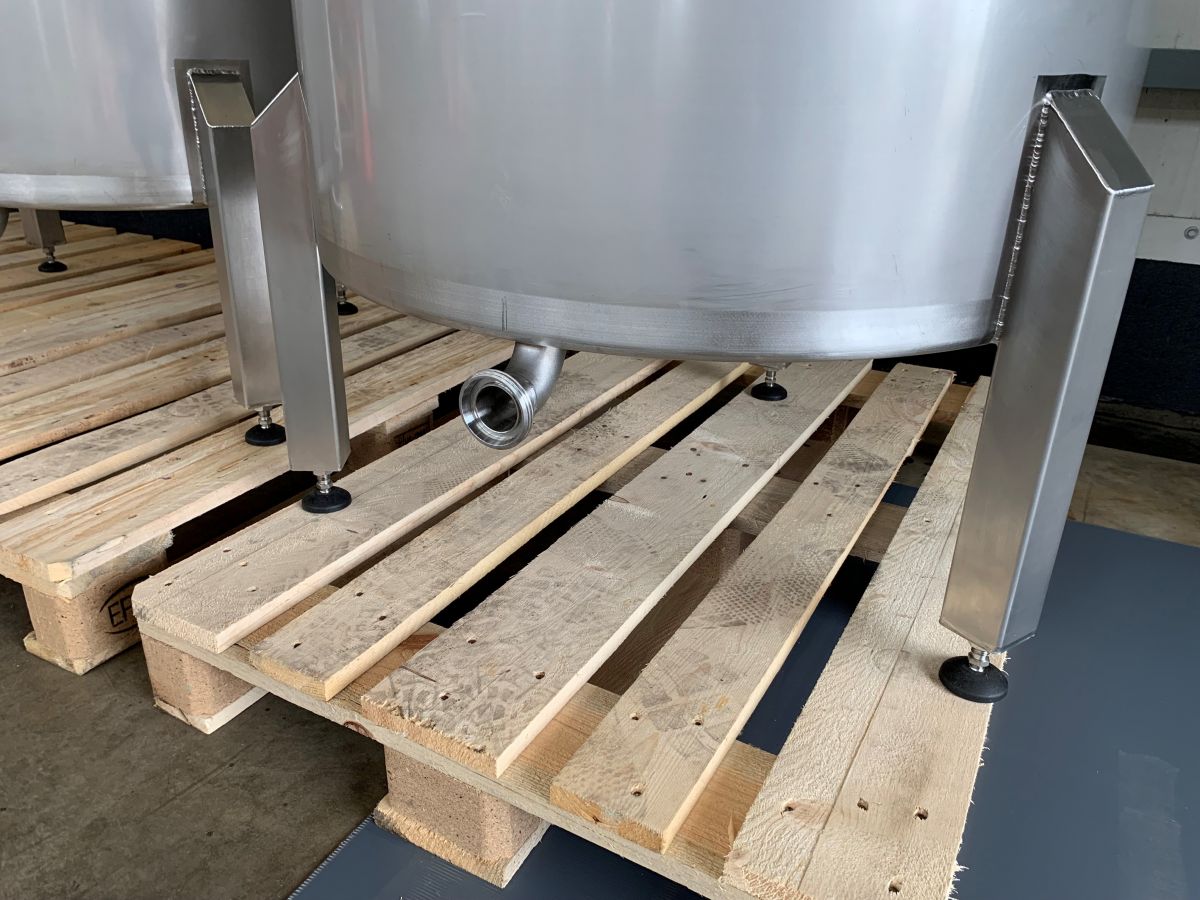

Tank outlet: inside Ø 40 mm
Outlet type: DIN11851
Total outlet valve: no, optional

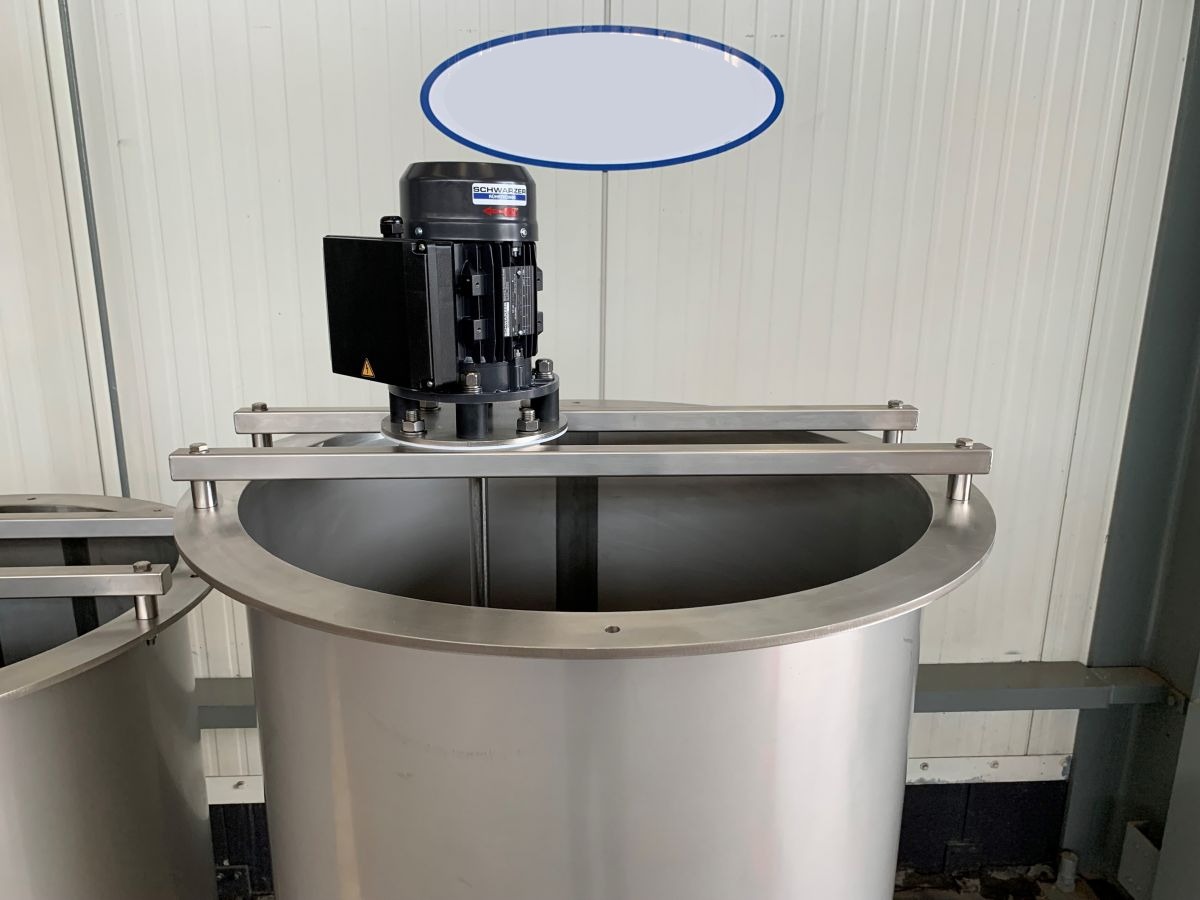

Agitator: yes

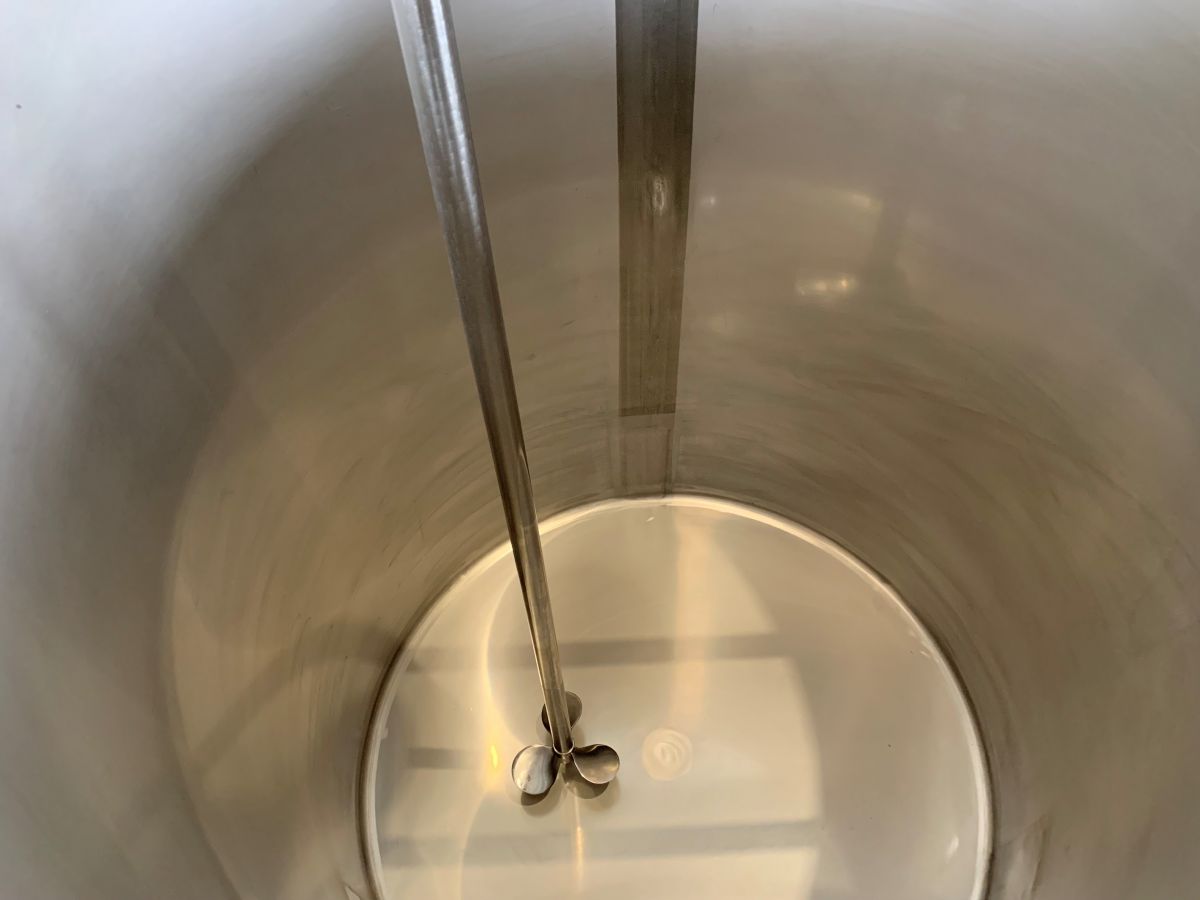

Agitator type: propeller agitator

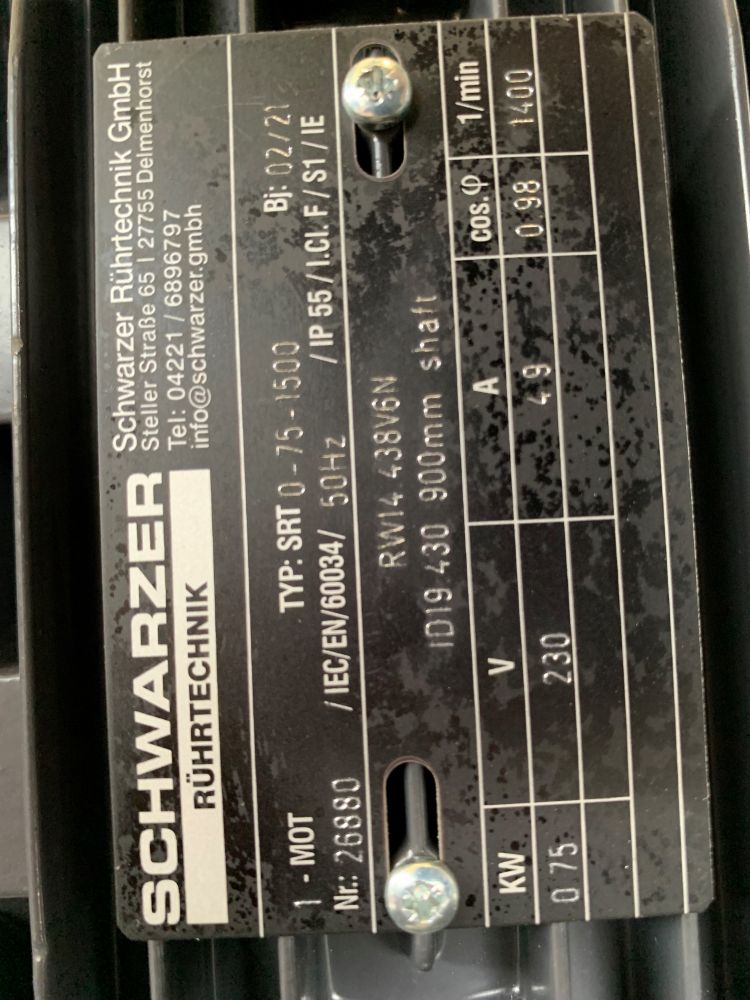

Position engine: at the top
Number of revolutions: 1.400
Power: 0,75
Voltage: mono
Cylinder: 2 mm
Bottom: 2 mm
Internal diameter tank: 795 mm
Distance from outlet to ground: 260 mm
Outer diameter tank: 905 mm
Cylinder height: 1.050 mm
Total height of tank: 1.750 mm
Empty weight tank: 90
