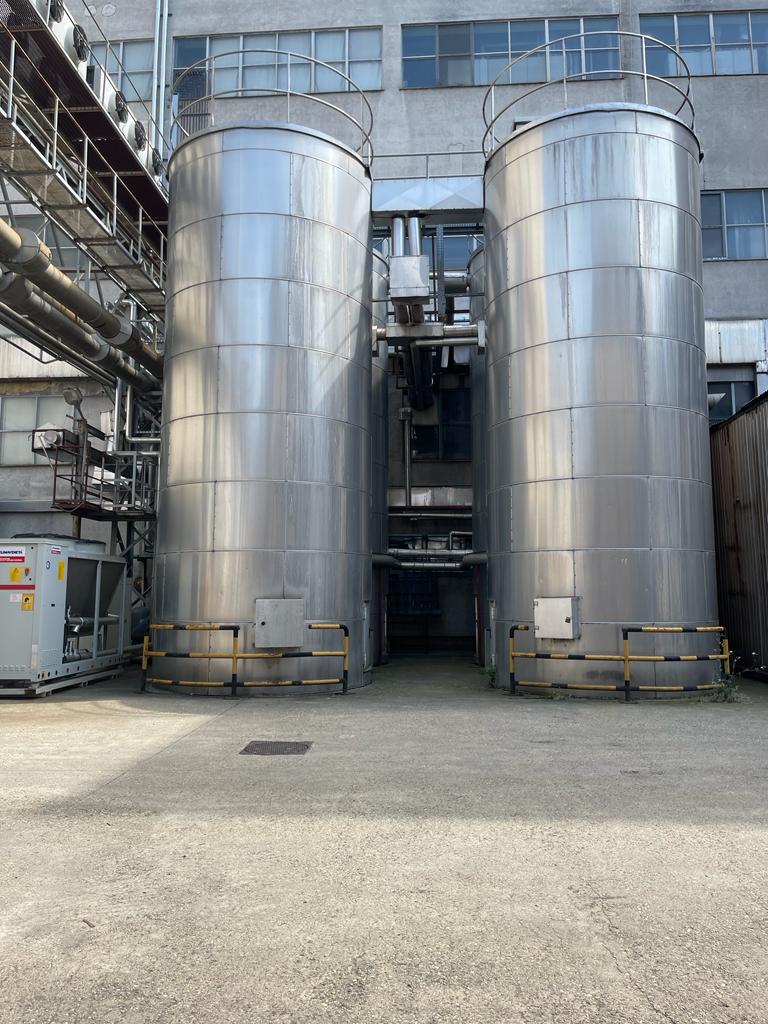

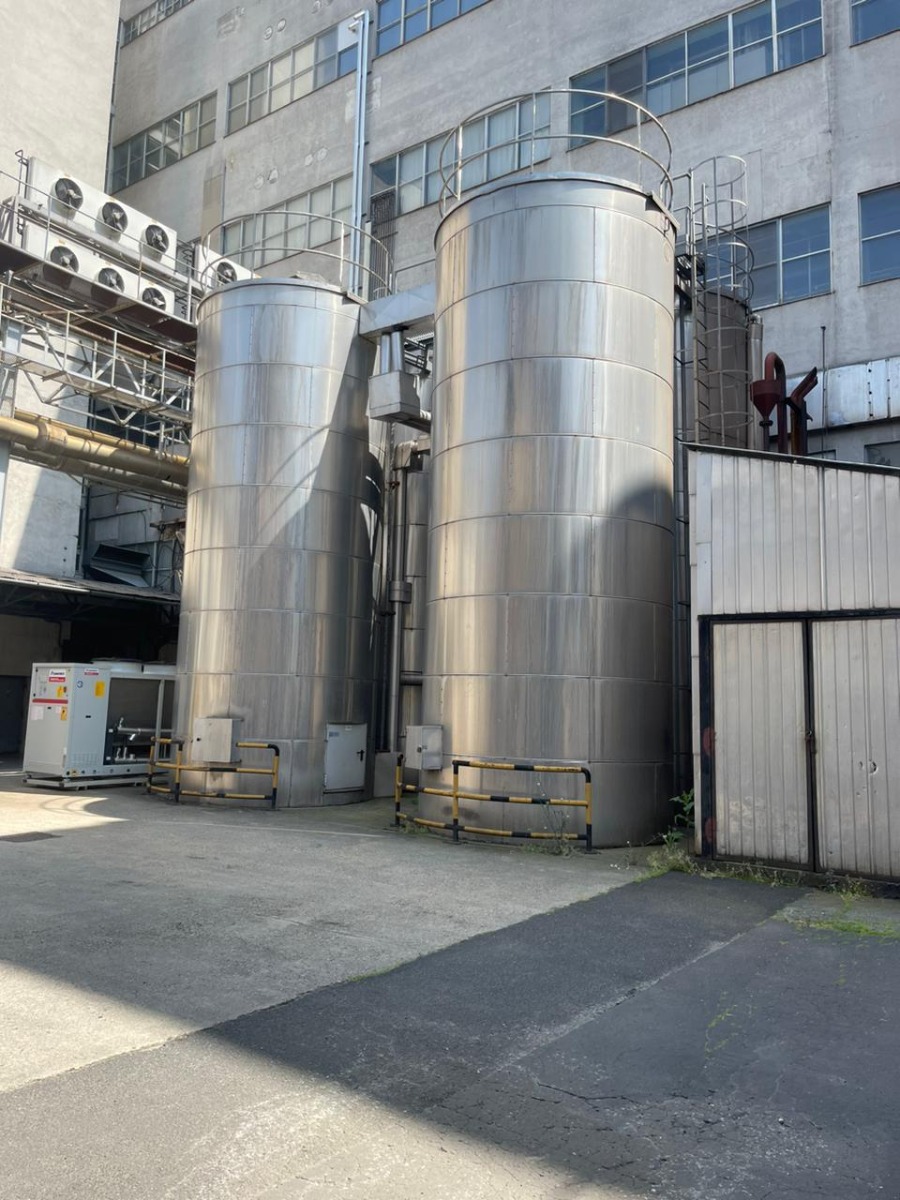

50000 liter tank i Rostfritt 304

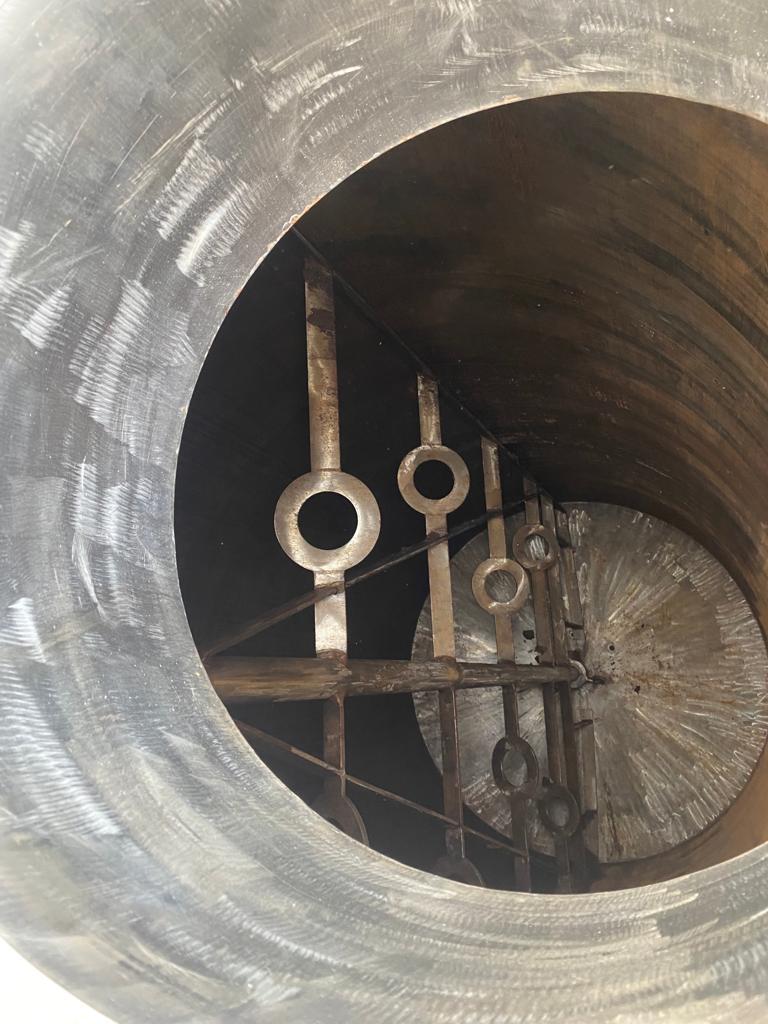

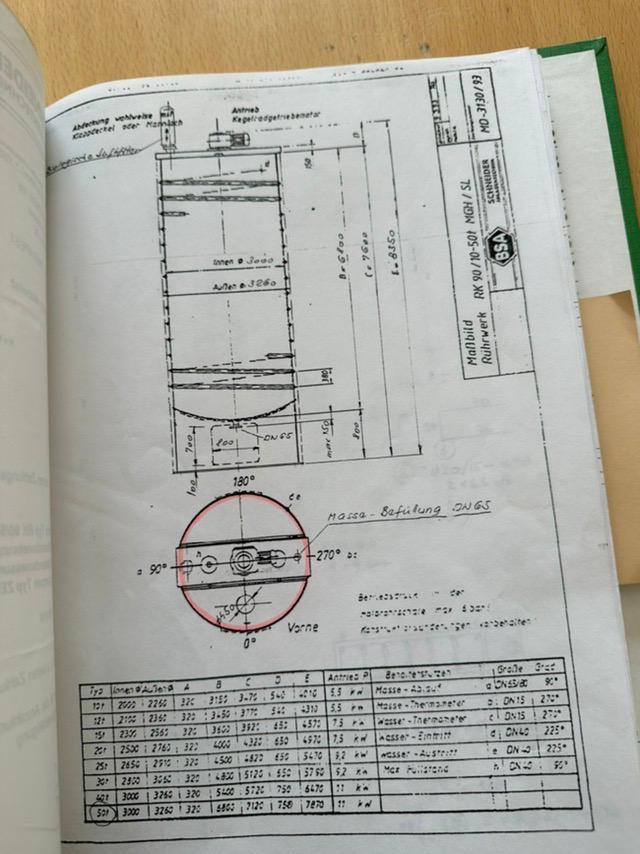

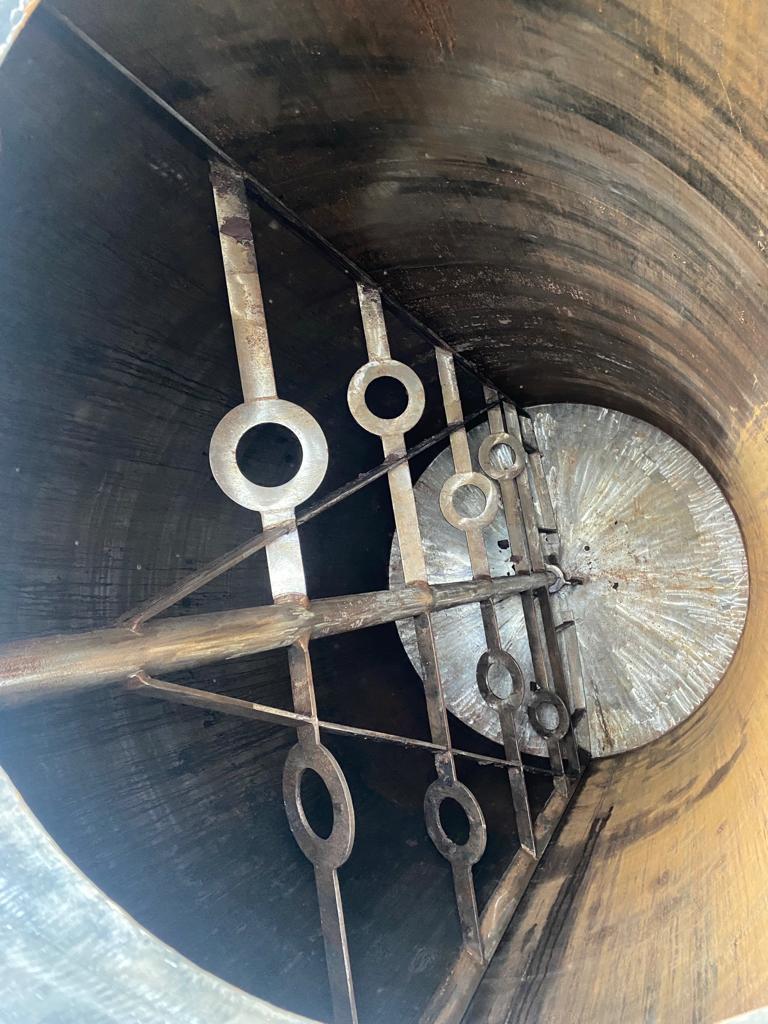

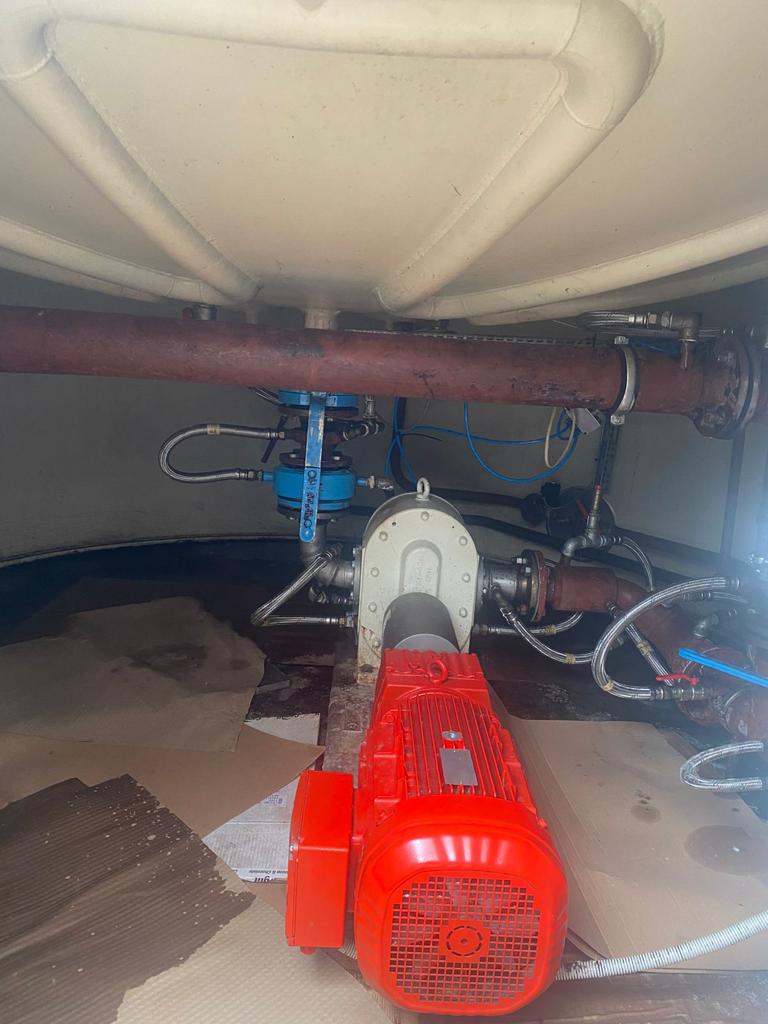

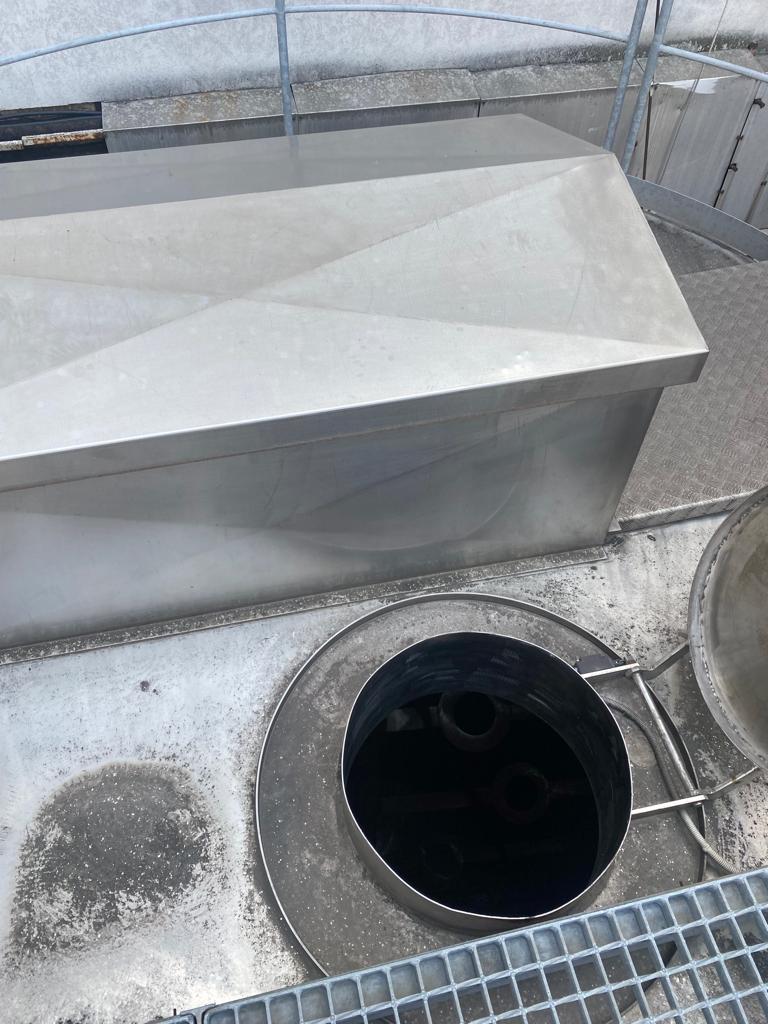

Additional information: Chocolate; some residues of previous content Volumetric volume (L): 50.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: in the bottom Outlet of tank: DN65 DIN 11851 Agitator: yes Internal diameter tank: 3.000 mm Outer diameter tank: 3.260 mm Cylinder height: 6.800 mm Total height of tank: 8.350 mm Empty weight tank: 4.900
