50000 liter i Syrafast 316
224,000.00 SEK/st exkl moms
Mer information
Volym i liter | 50000 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Ritning 50m3 i 316
Öppnaitem available on order

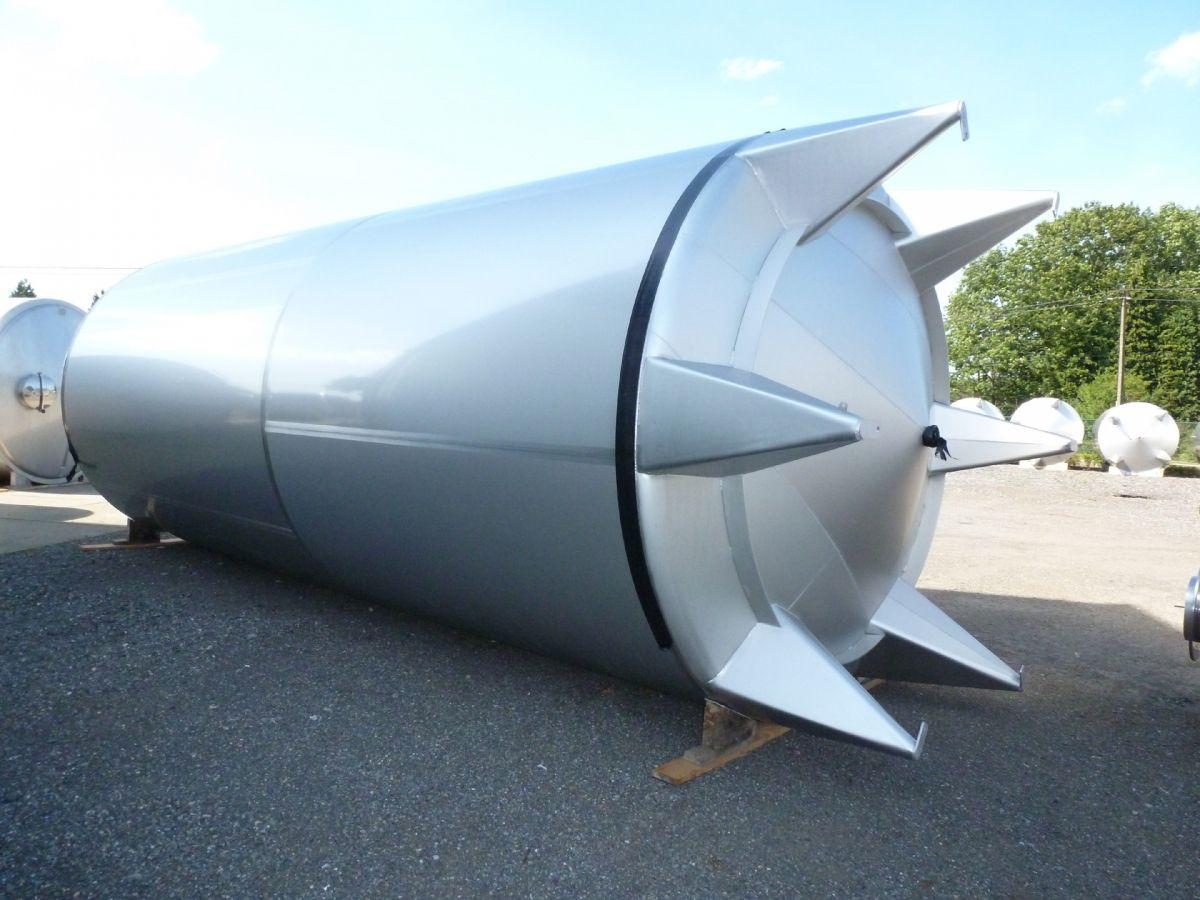

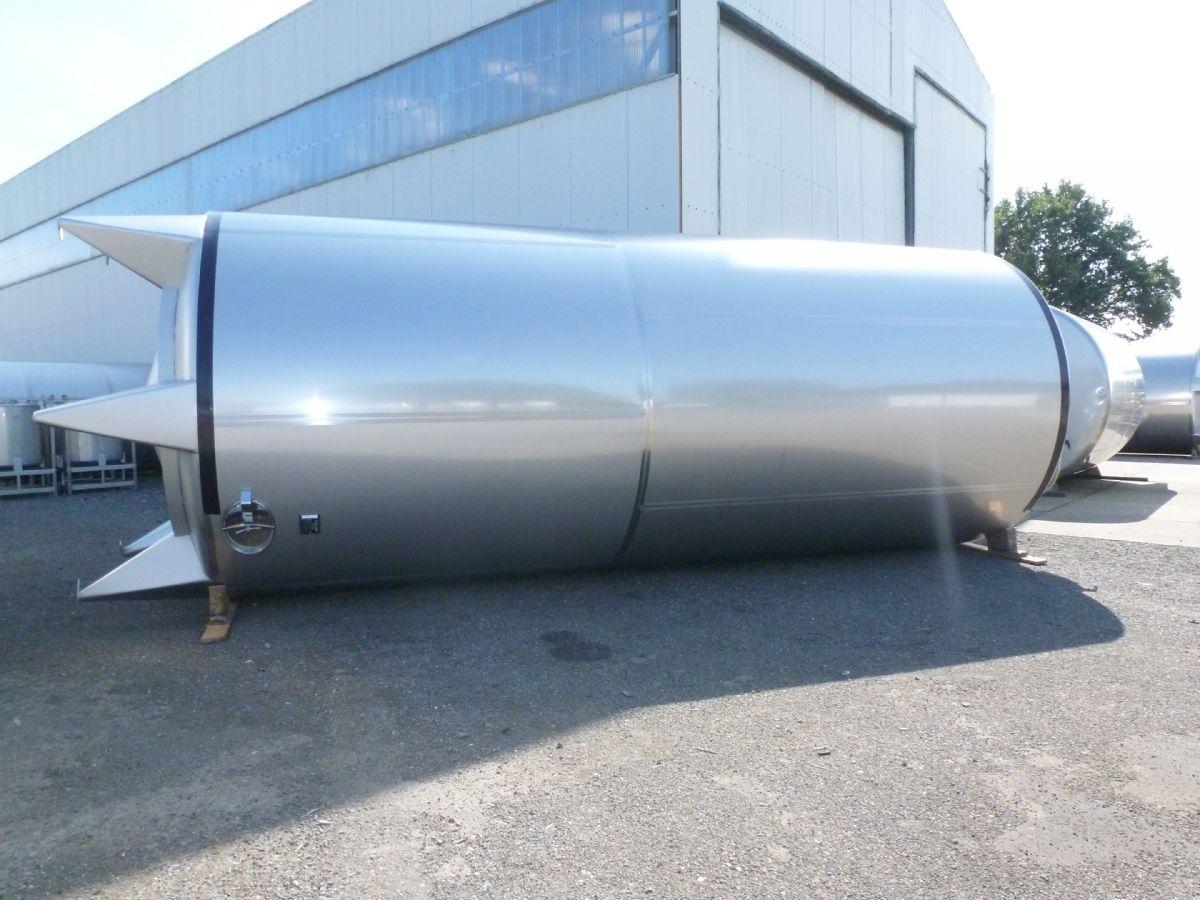

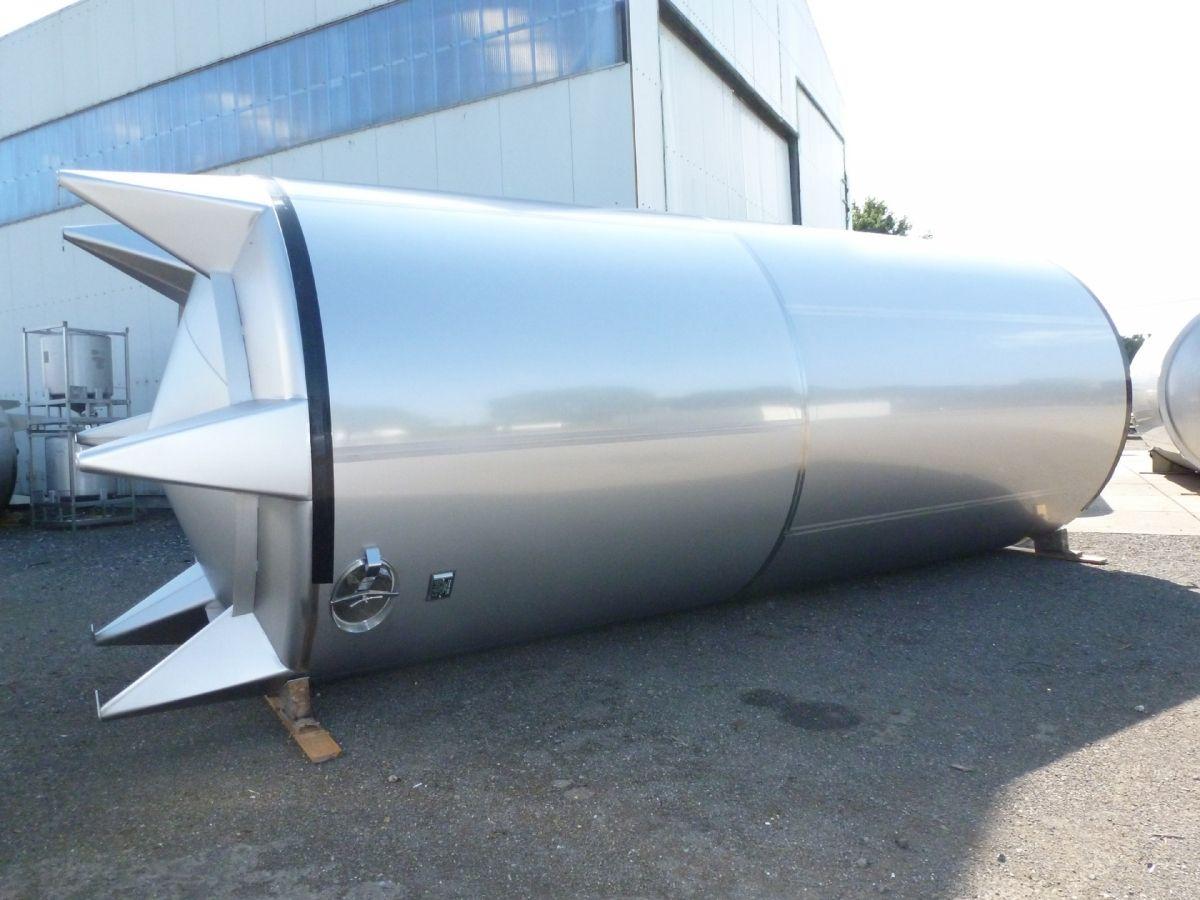

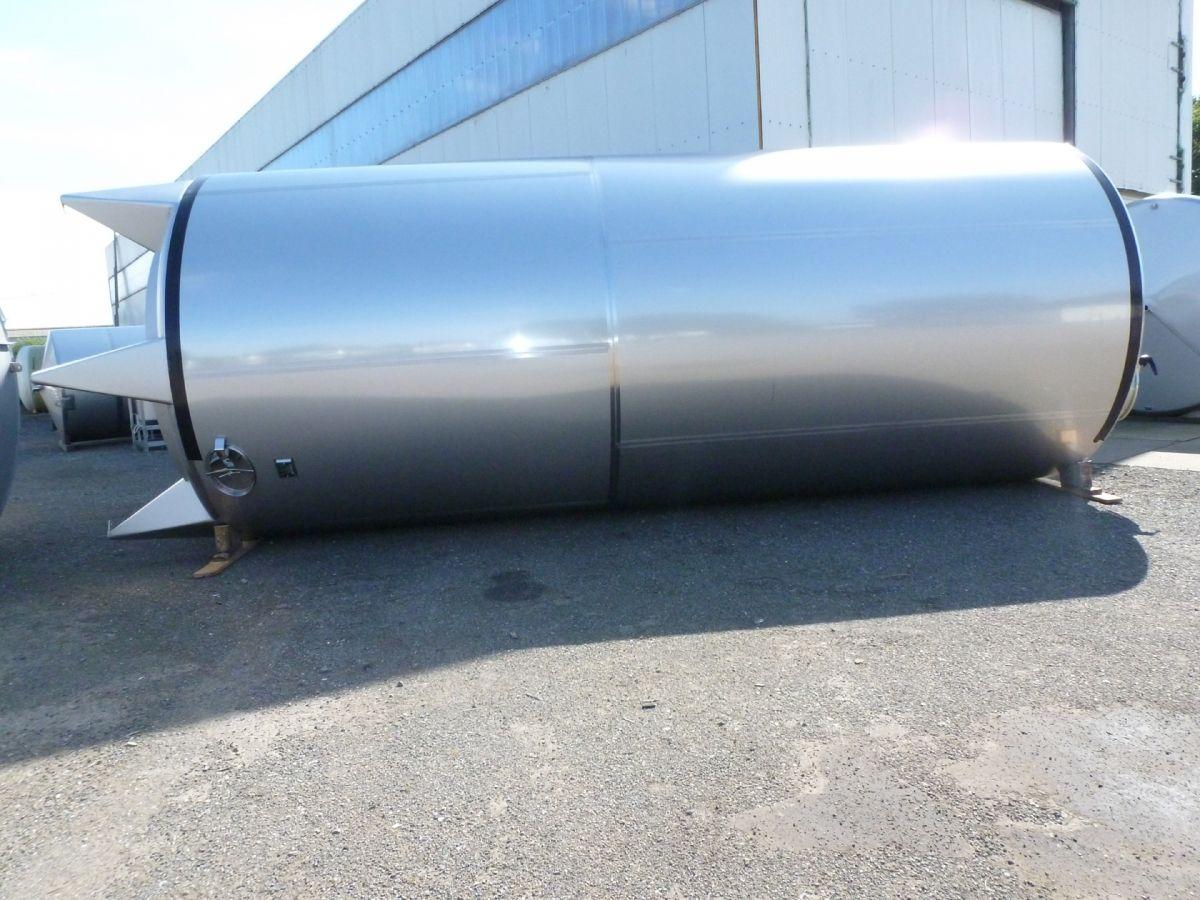

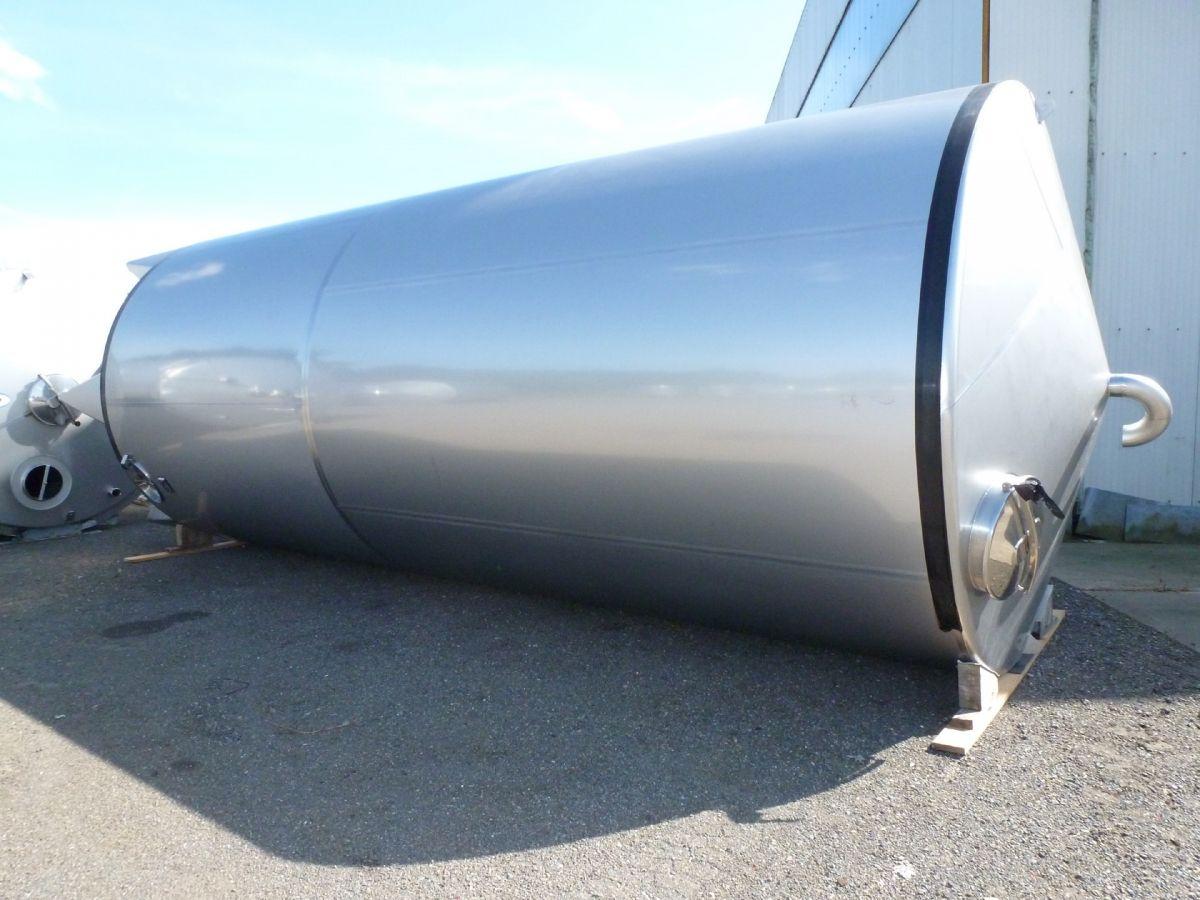

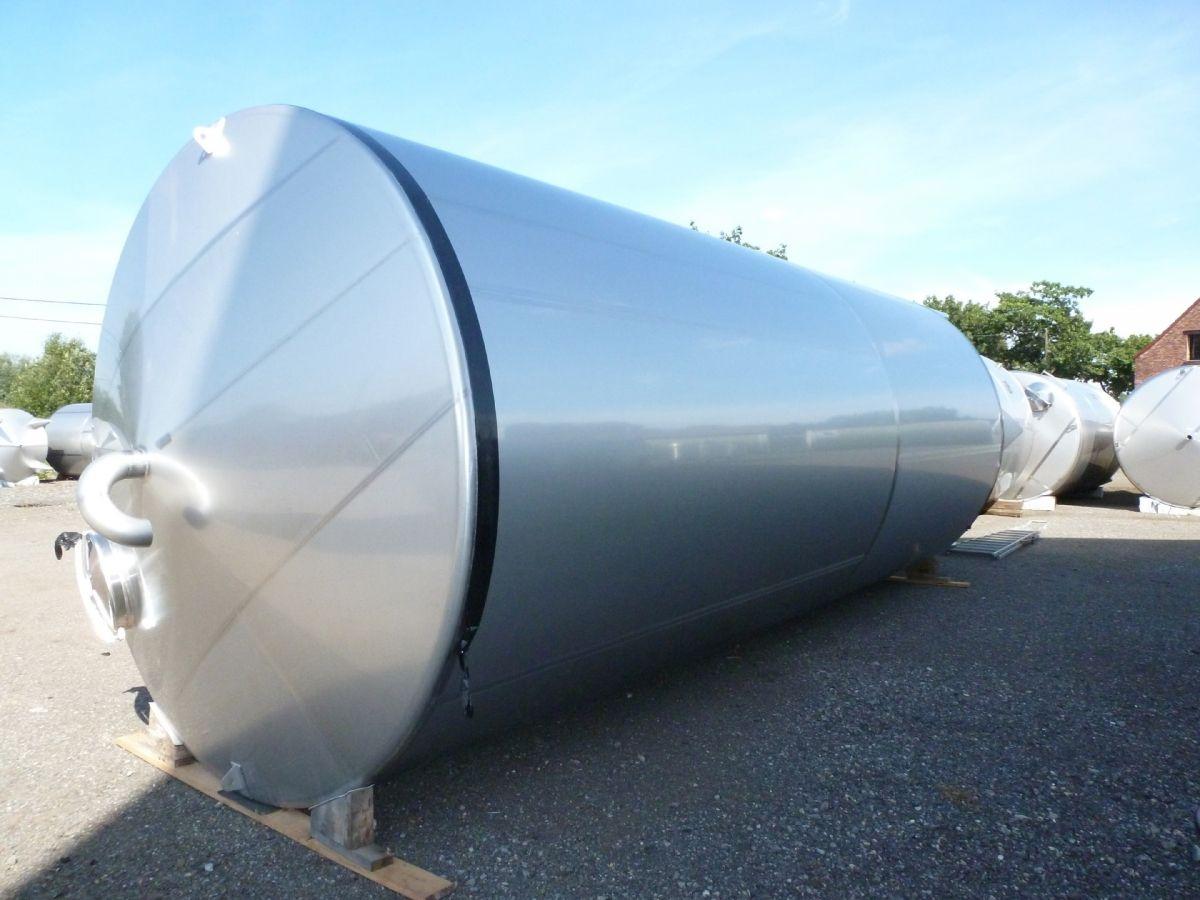

Article type: brand new storage tank – type TZN-SL
Capacity: 50.000 L
Maximal density of the product: 1.000
Working pressure in tank: ATM – atmosferic
Max. working temperature: 40 °C
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: no
Mobile tank: no

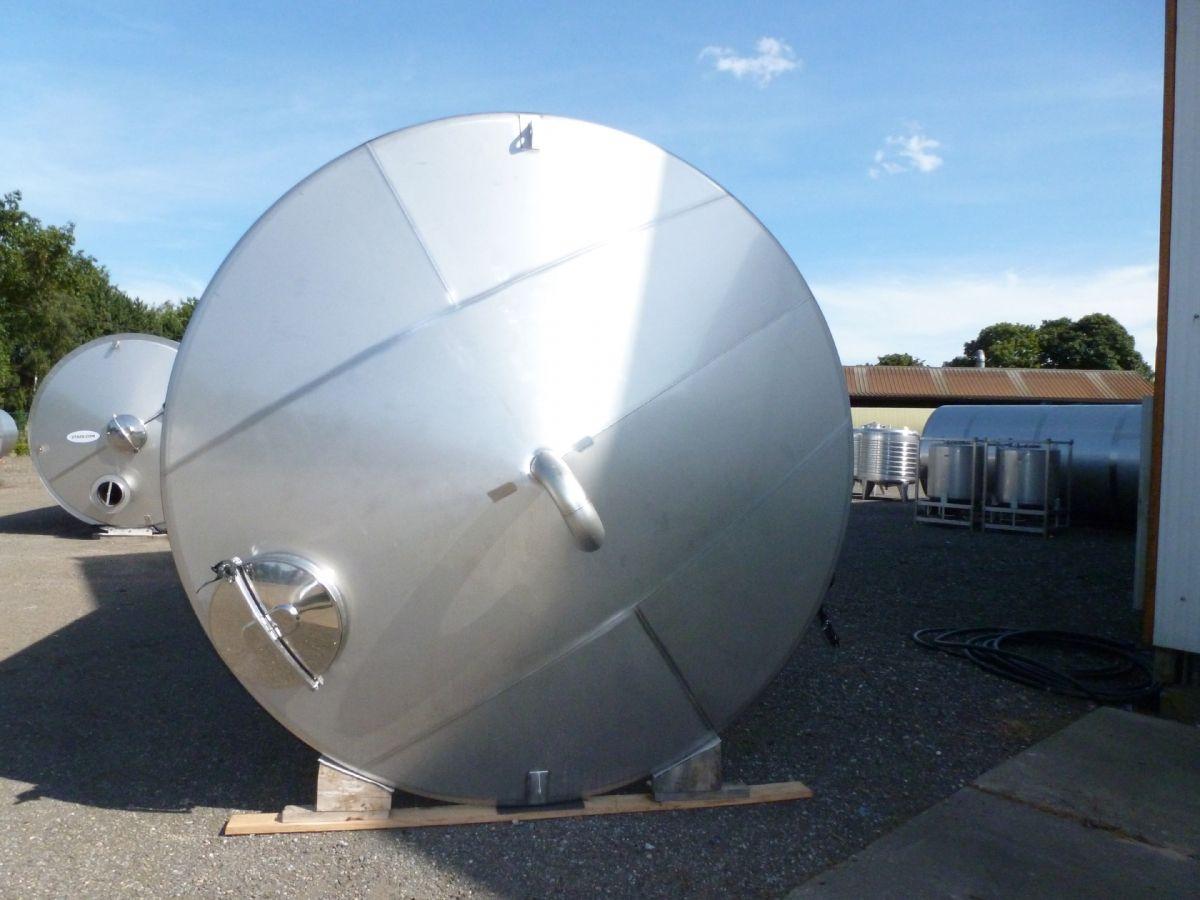

Top type: conical 15 °
Shape of tank: cylindrical

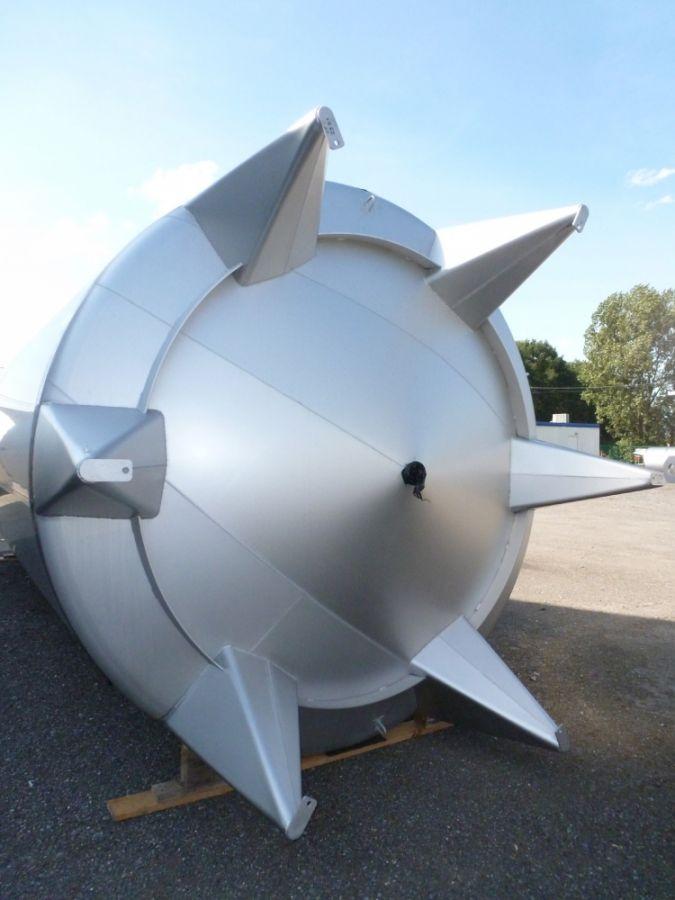

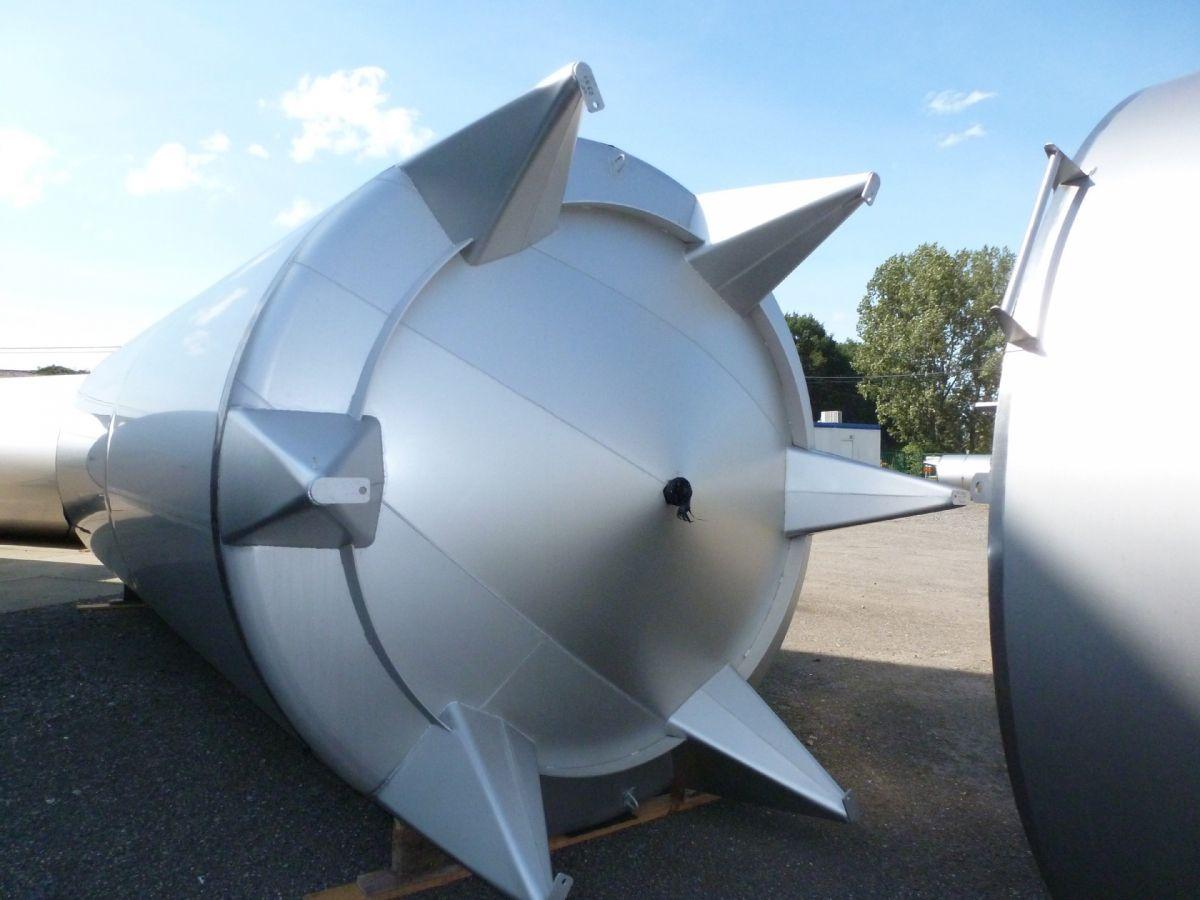

Bottom type: conical 20 °
Total discharge: yes

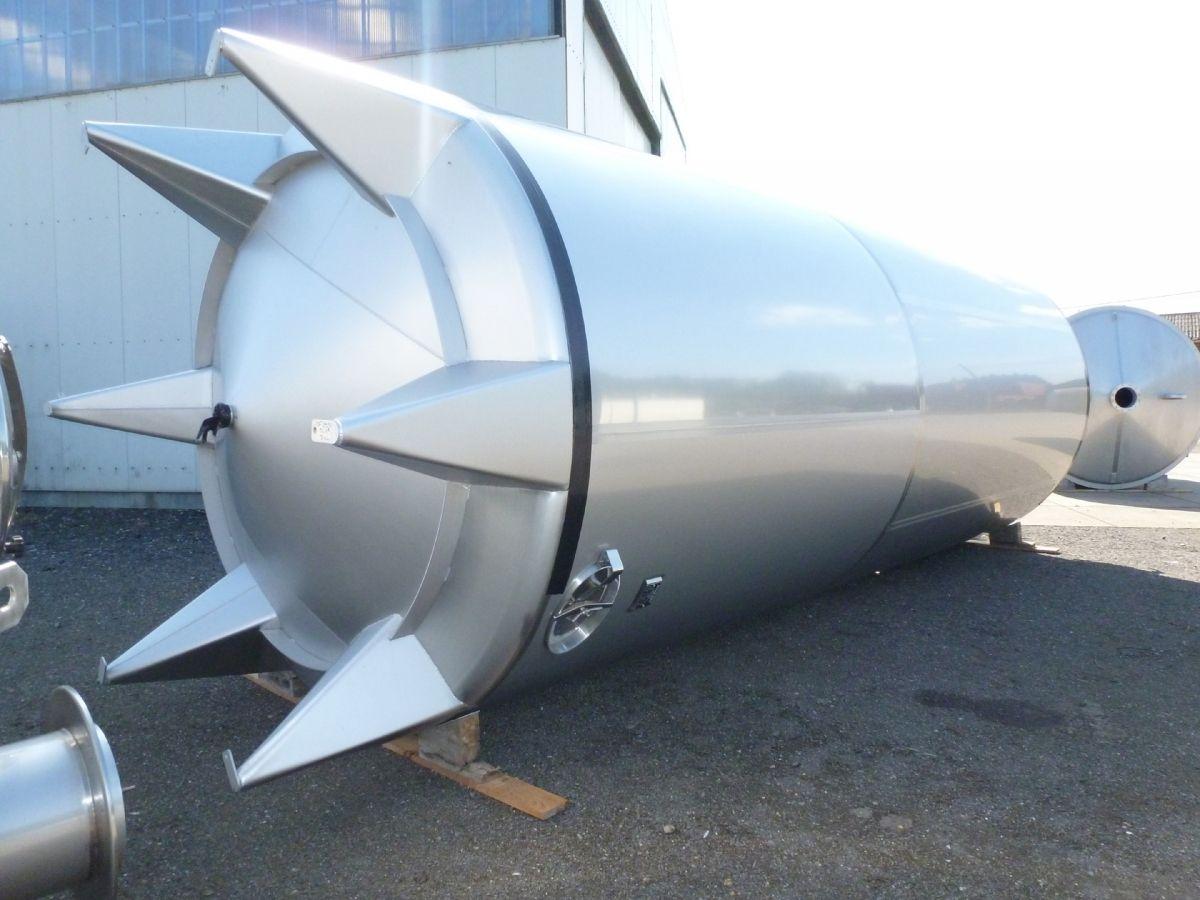

Fixation points: 6 non adjustable feet
Manway(s): RVS 316
Gasket manway(s): EPDM
Valve: RVS 316L
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no
Number of manways: 2
Position manway: headside

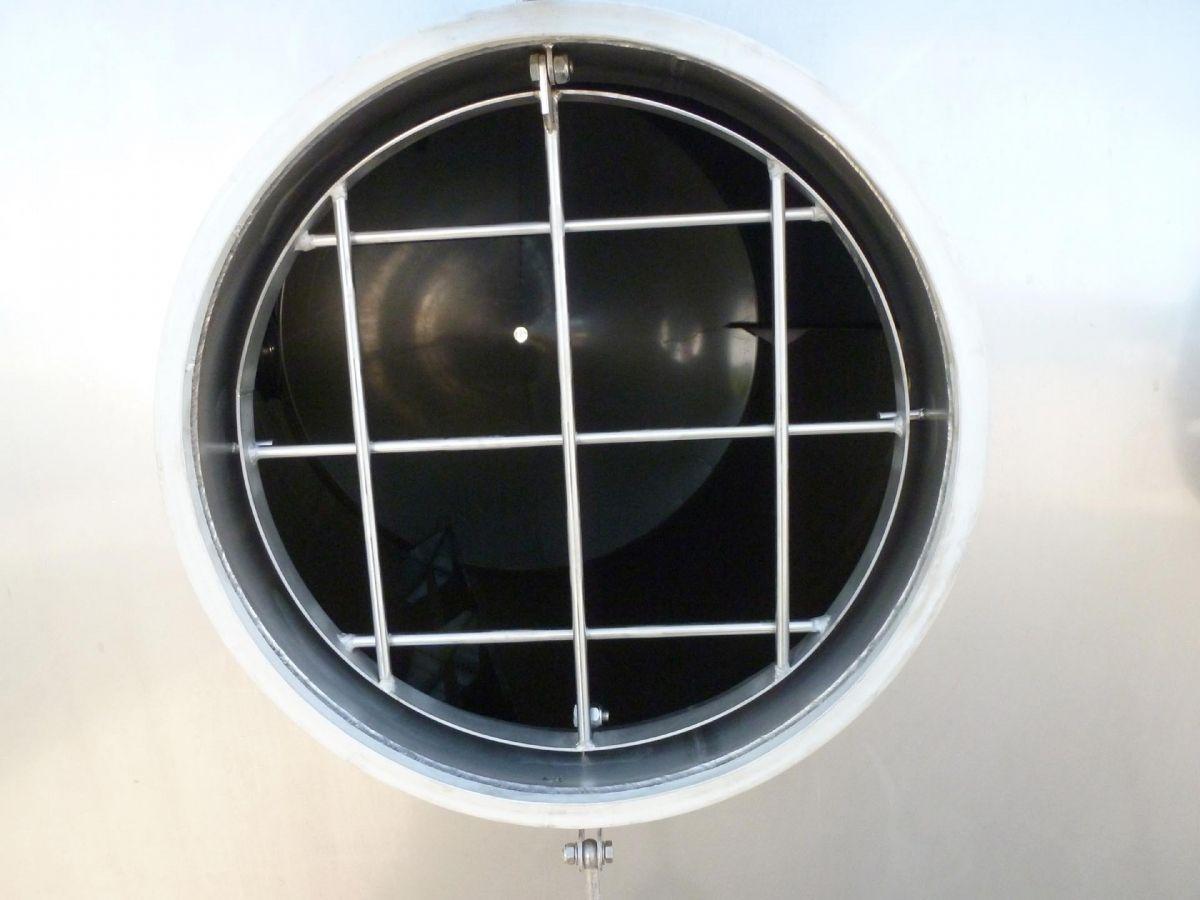

Manway 1: 500 mm
Hinged lid: yes

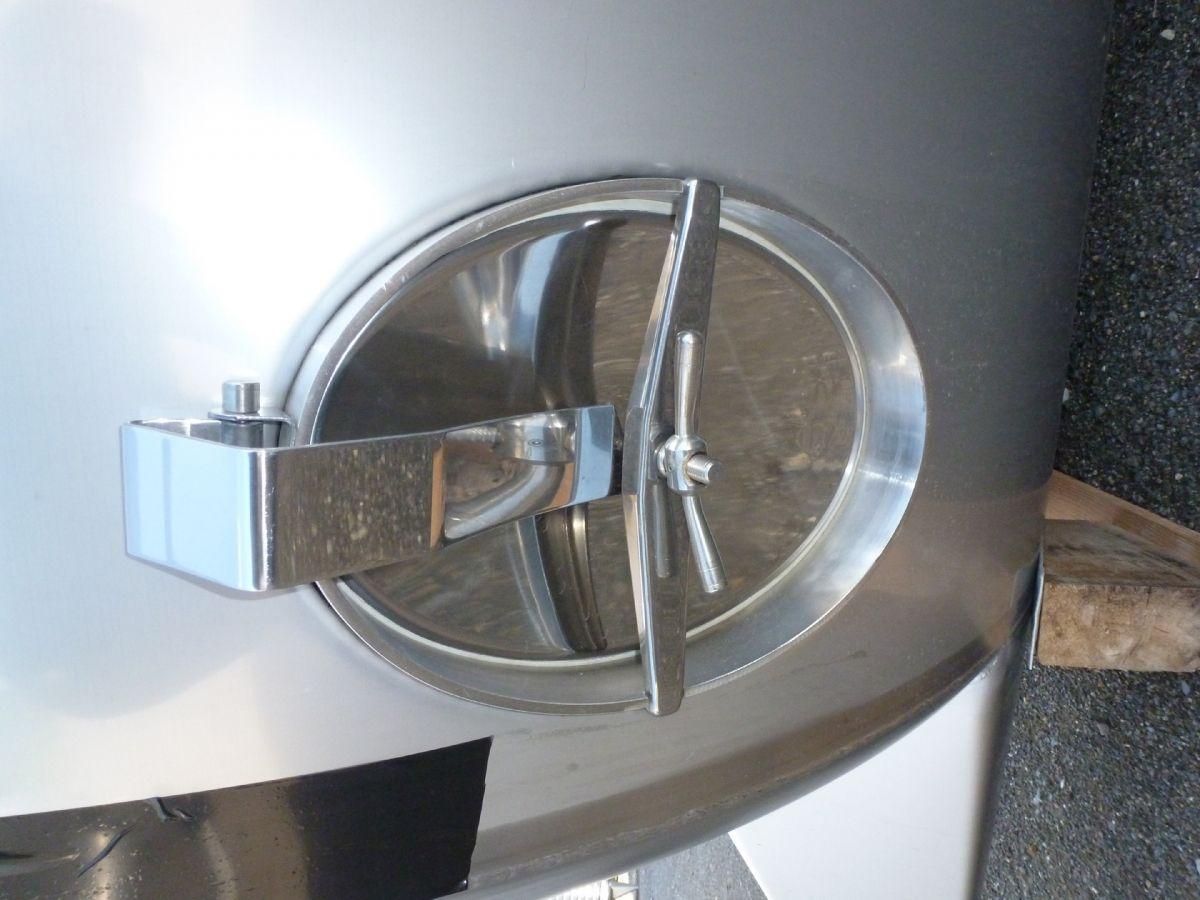

Position 2nd manway: cylinder
Manway 2 (W): 440 x 308 mm
Hinged lid: yes
Spray ball: no
Tank outlet: inside Ø 80 mm
Outlet type: DIN 11850
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve
Top: 3 mm
Cylinder: 2,50 mm
Bottom: 4 mm
Distance from outlet to ground: 300 mm
Outer diameter tank: 3.000 mm
Cylinder height: 7.000 mm
Height of top: 443 mm
Height of bottom: 615 mm
Feet height: 945 mm
Total height of tank: 8.800 mm
Empty weight tank: 1.850
