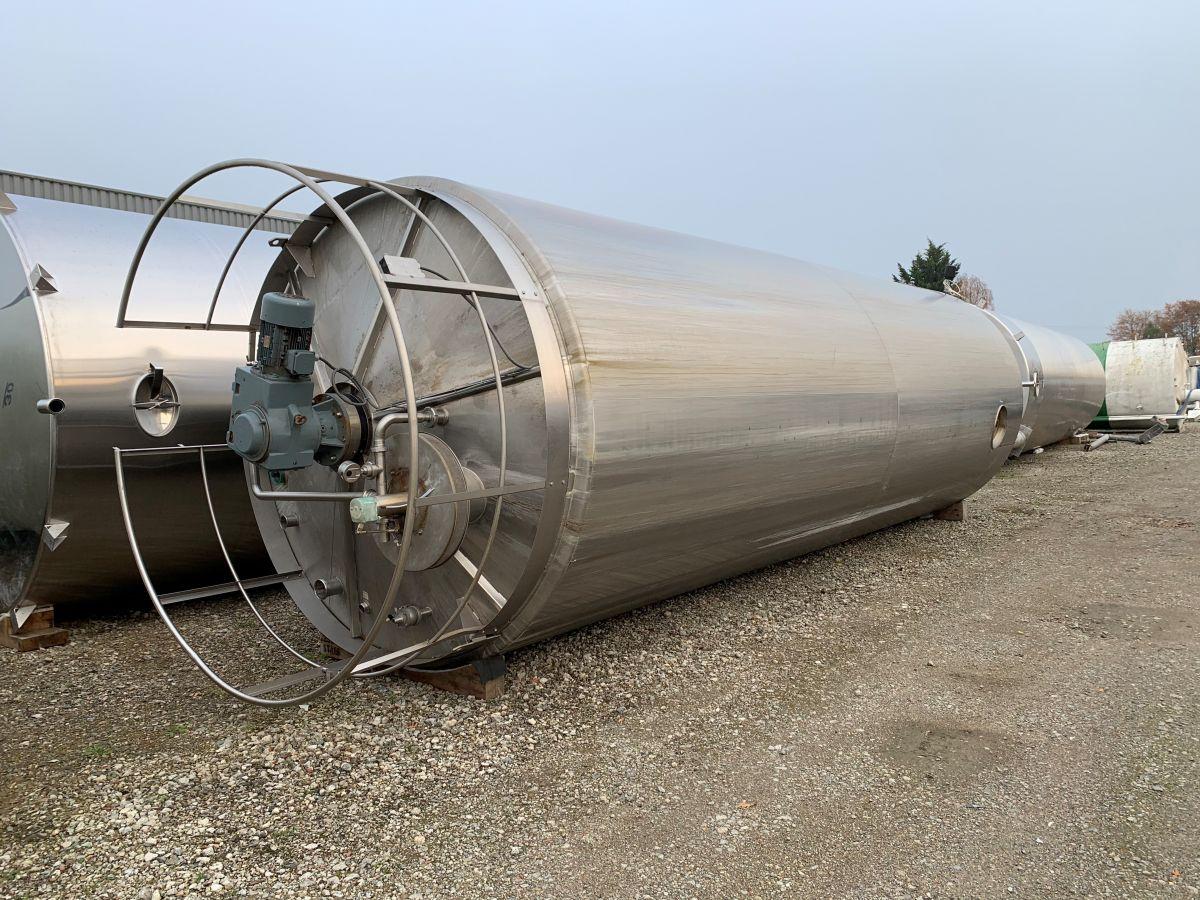

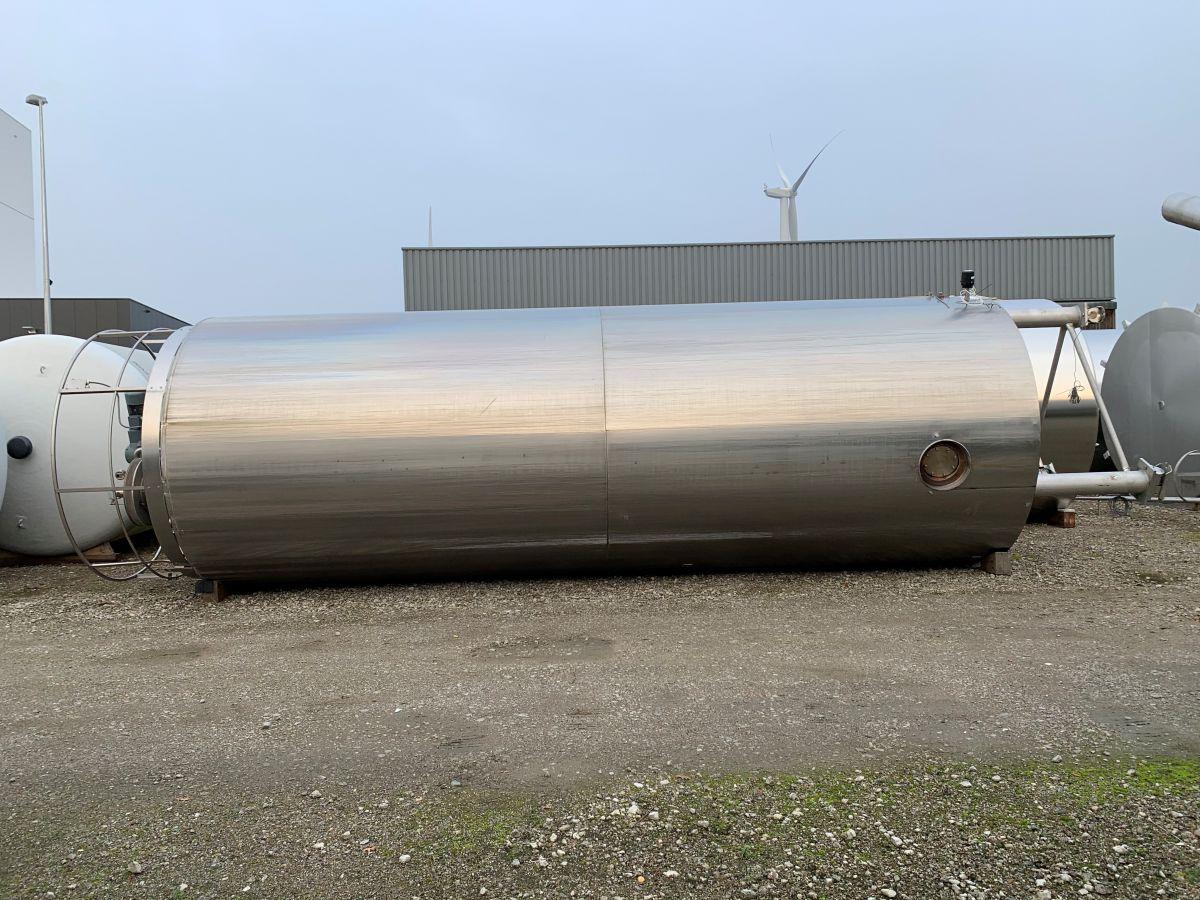

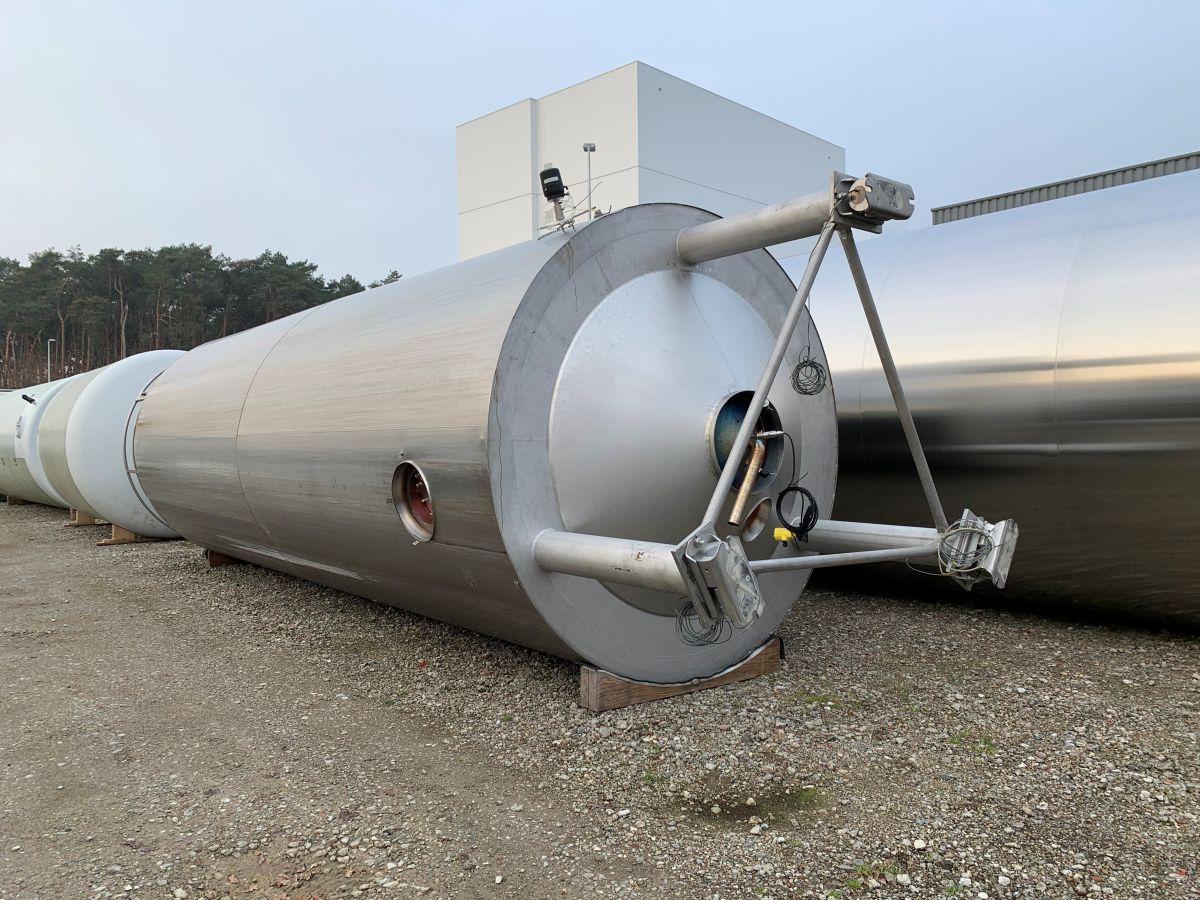

50000 liter i Rostfritt 304

Article type: second-hand mixing tank
Additional information: we can’t give any guarantees about the agitator
Capacity: 50.000 L
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 304 (V2A)

Model: vertical
Configuration: insulated
Heat exchanger: no
Insulation: yes
Agitator: yes

Mobile tank: no
Top type: conical
Shape of tank: cylindrical
Bottom type: conical
Total discharge: yes

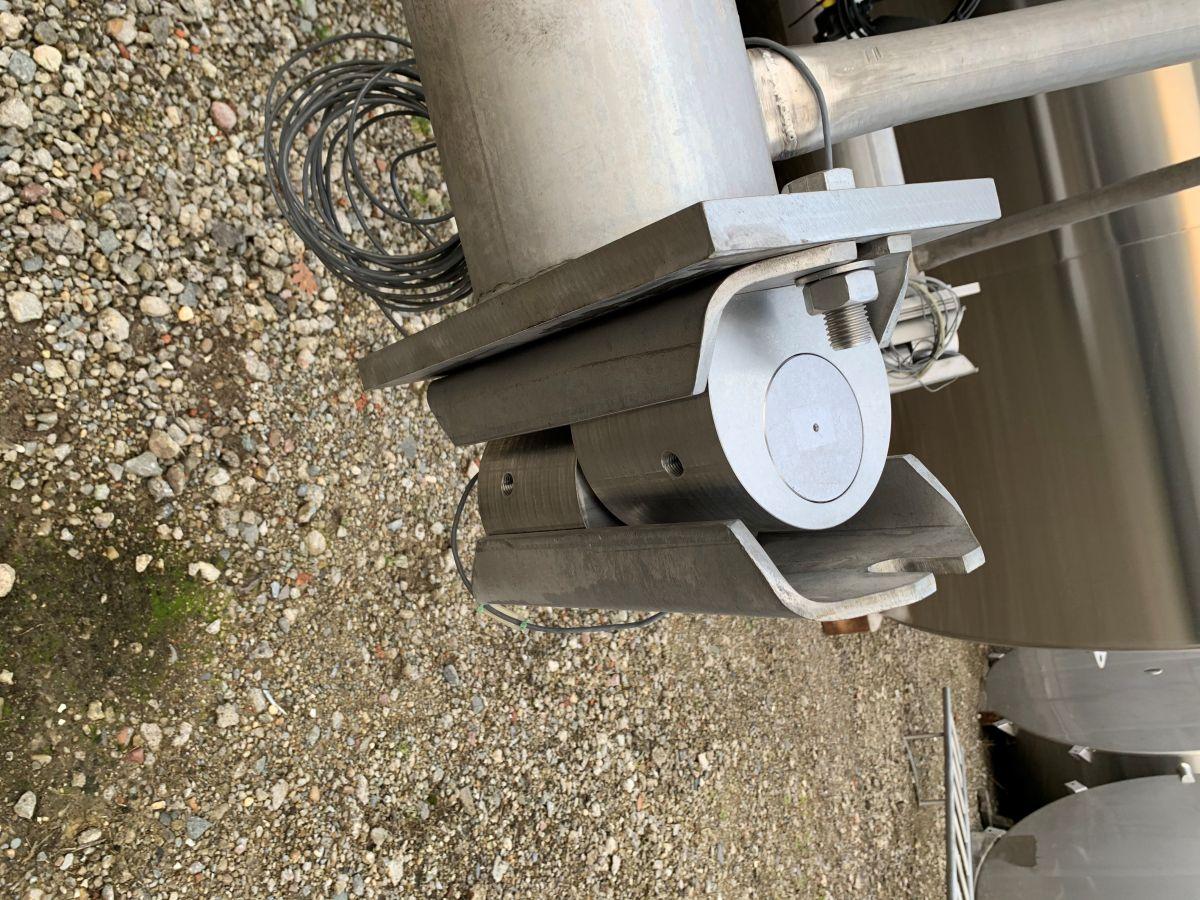

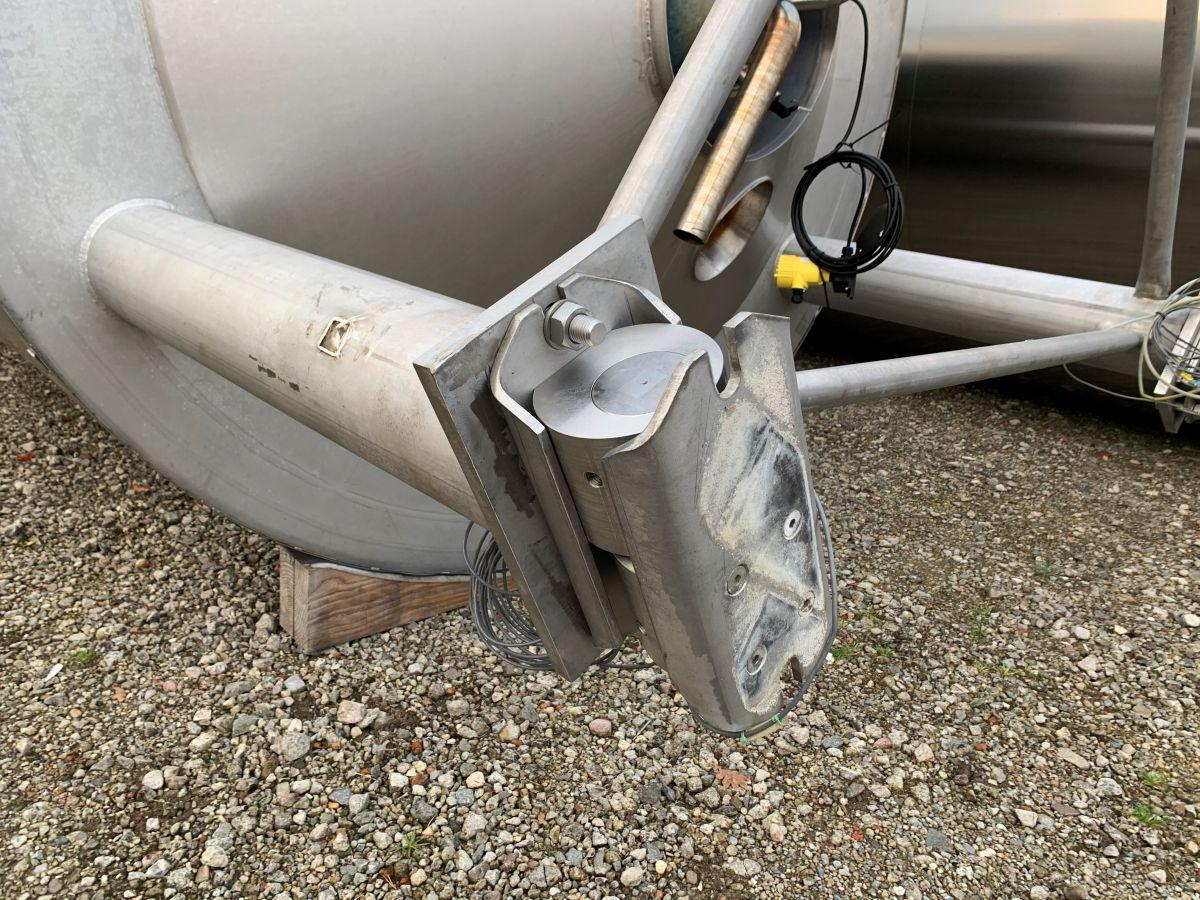

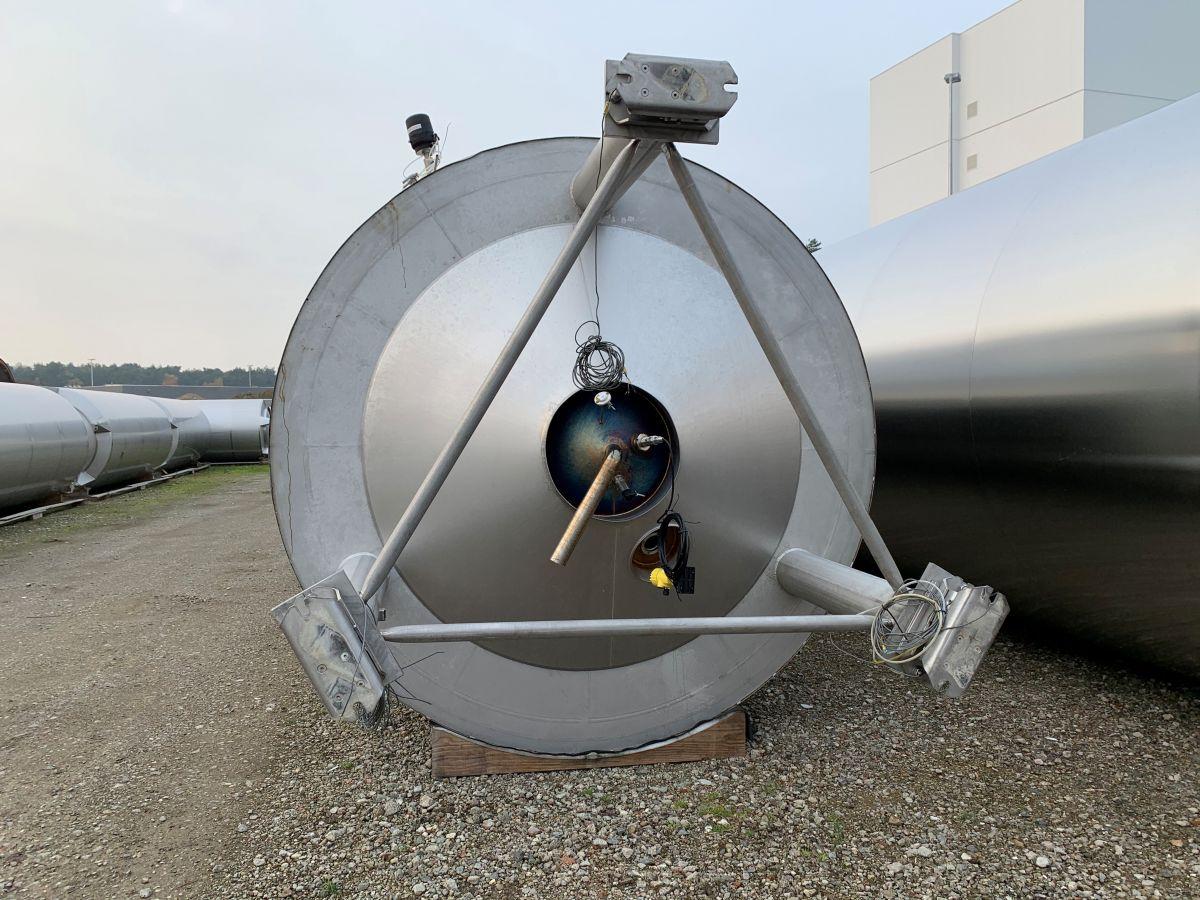

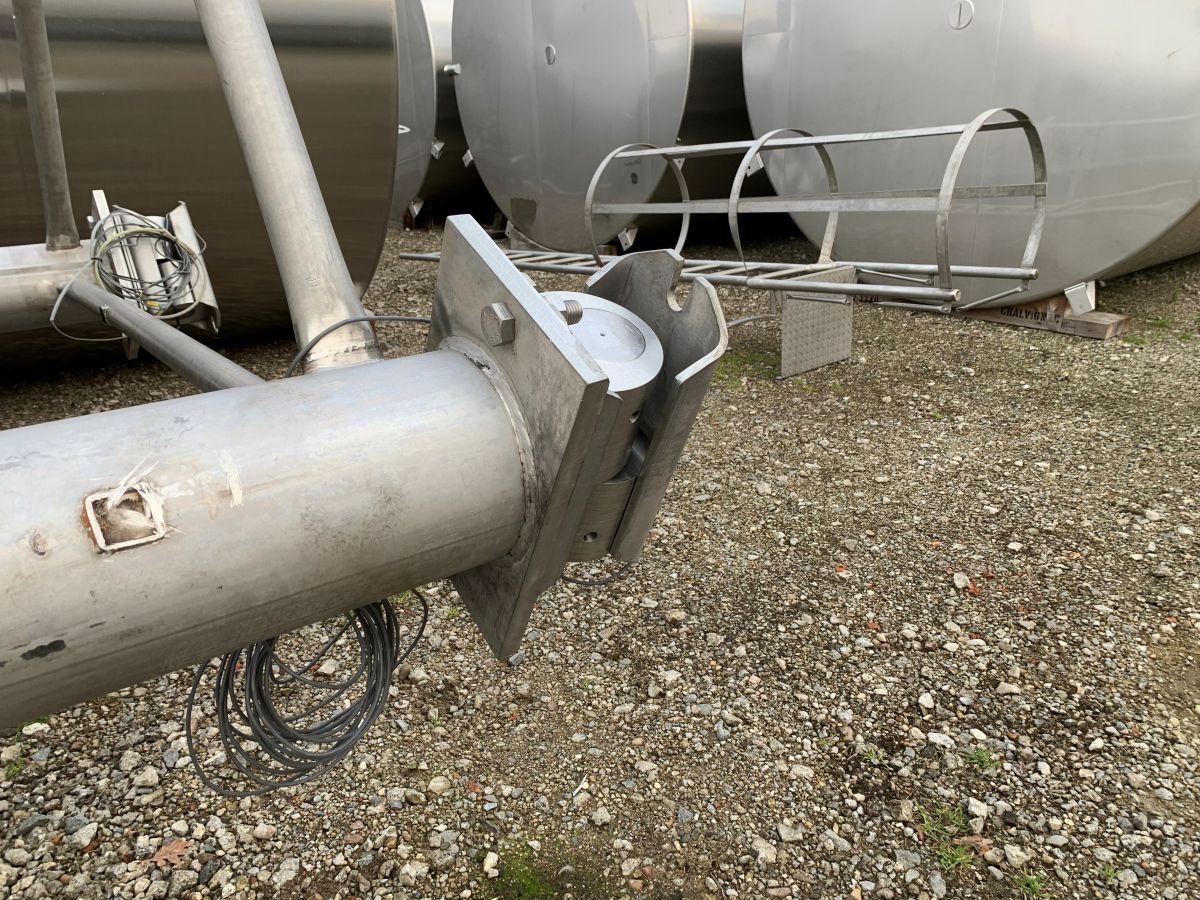

Fixation points: 3 non adjustable feet
Insulation material: Rockwool
Outer jacket (ornamental wall): RVS 304
Spray ball: RVS 304
Manway(s): RVS 304

Gasket manway(s): unknown
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no

Registration plate on the tank: no
Flange for agitator: no

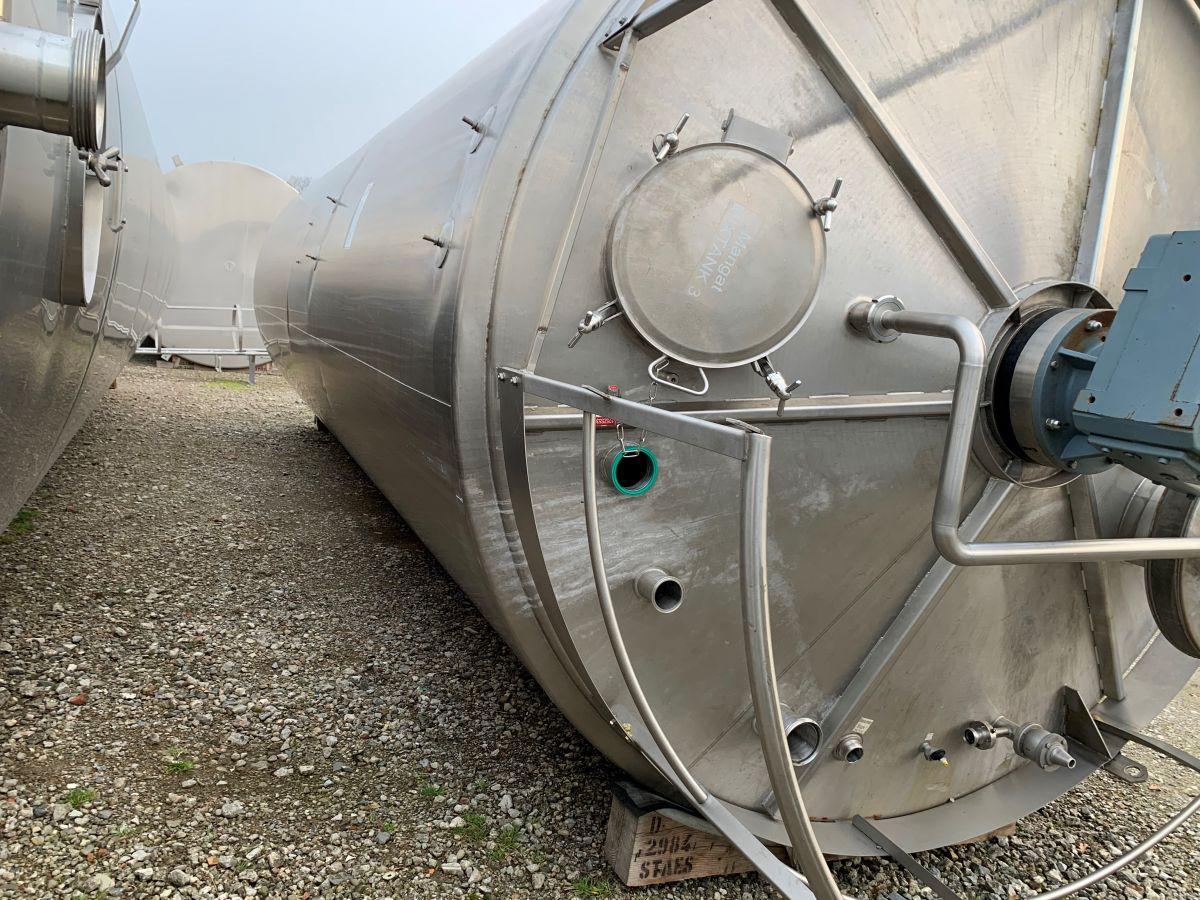

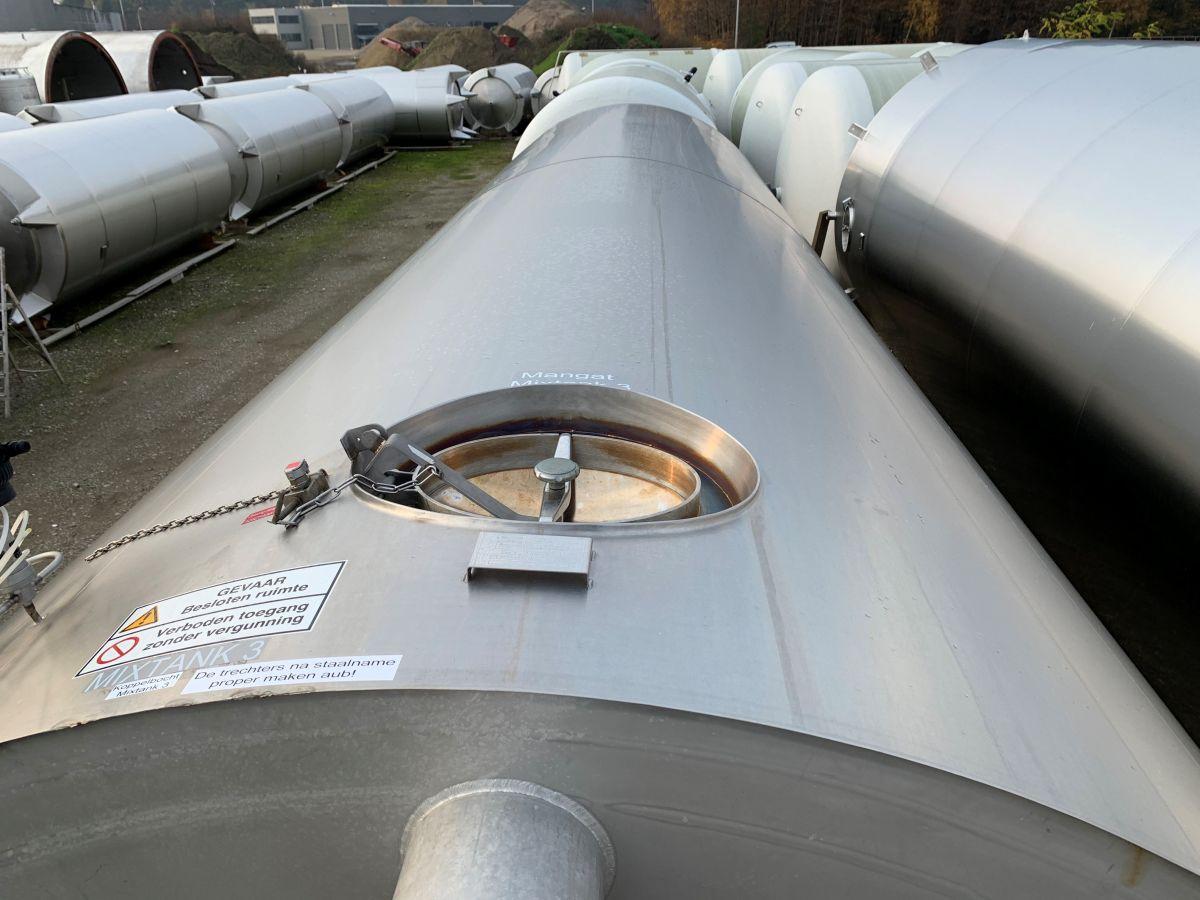

Number of manways: 2
Position manway: headside
Manway 1: 430 mm

Position 2nd manway: cylinder

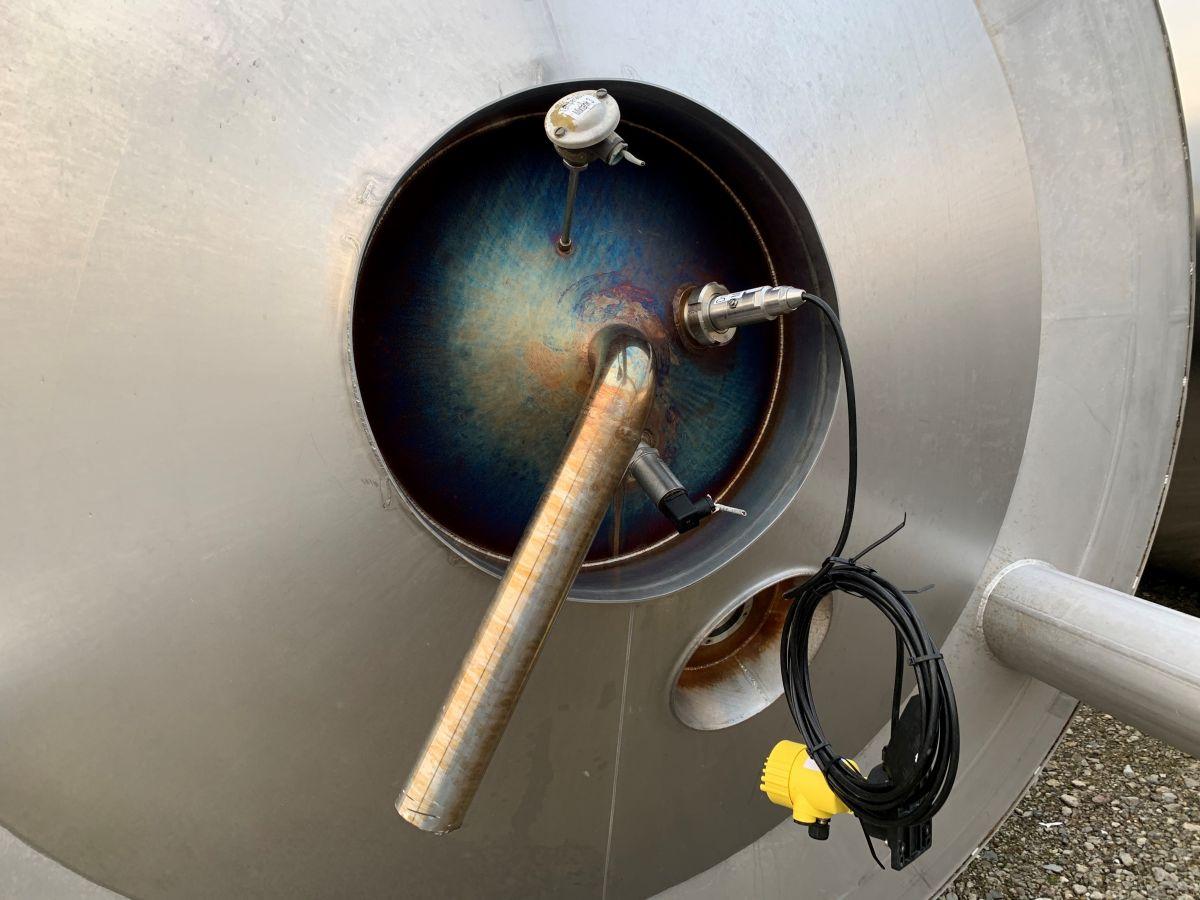

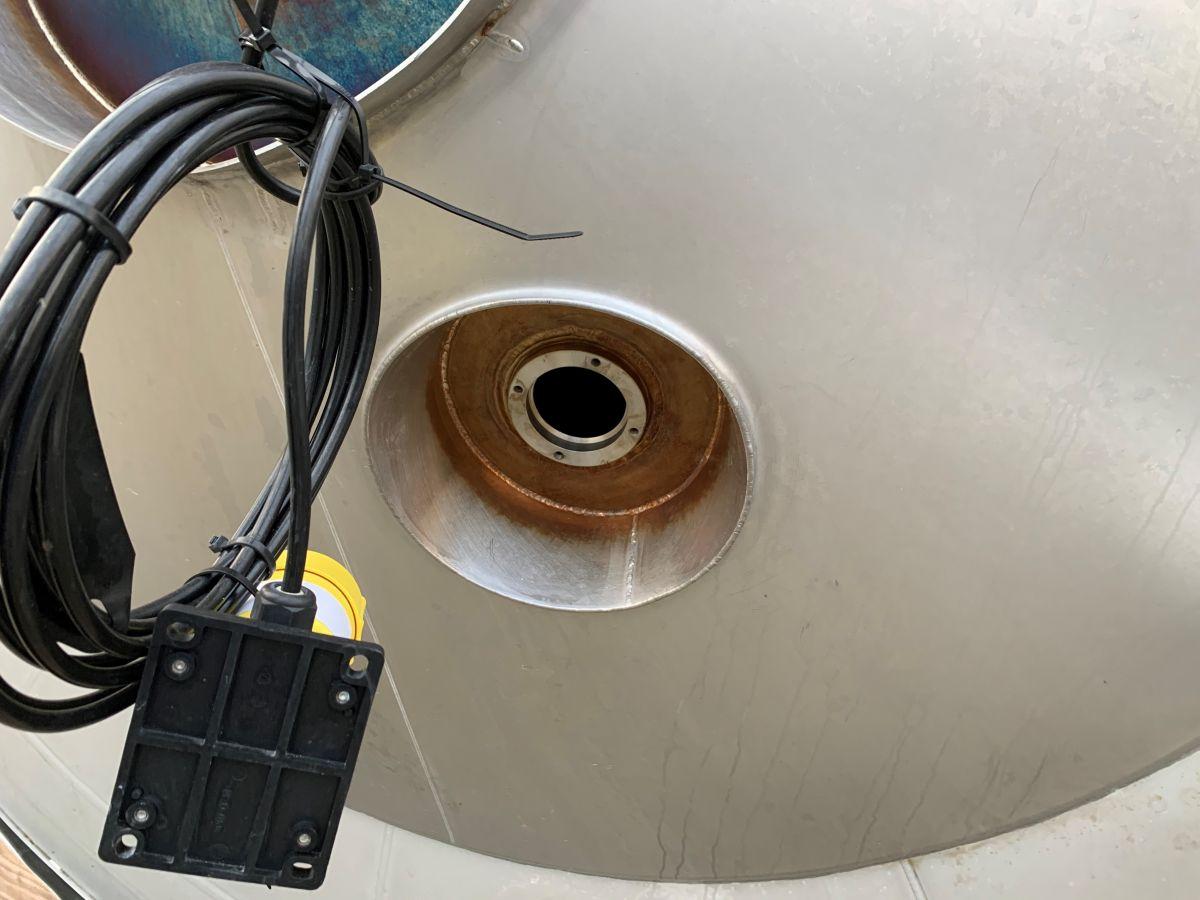

Tank outlet: inside Ø 65 mm
Total outlet valve: no

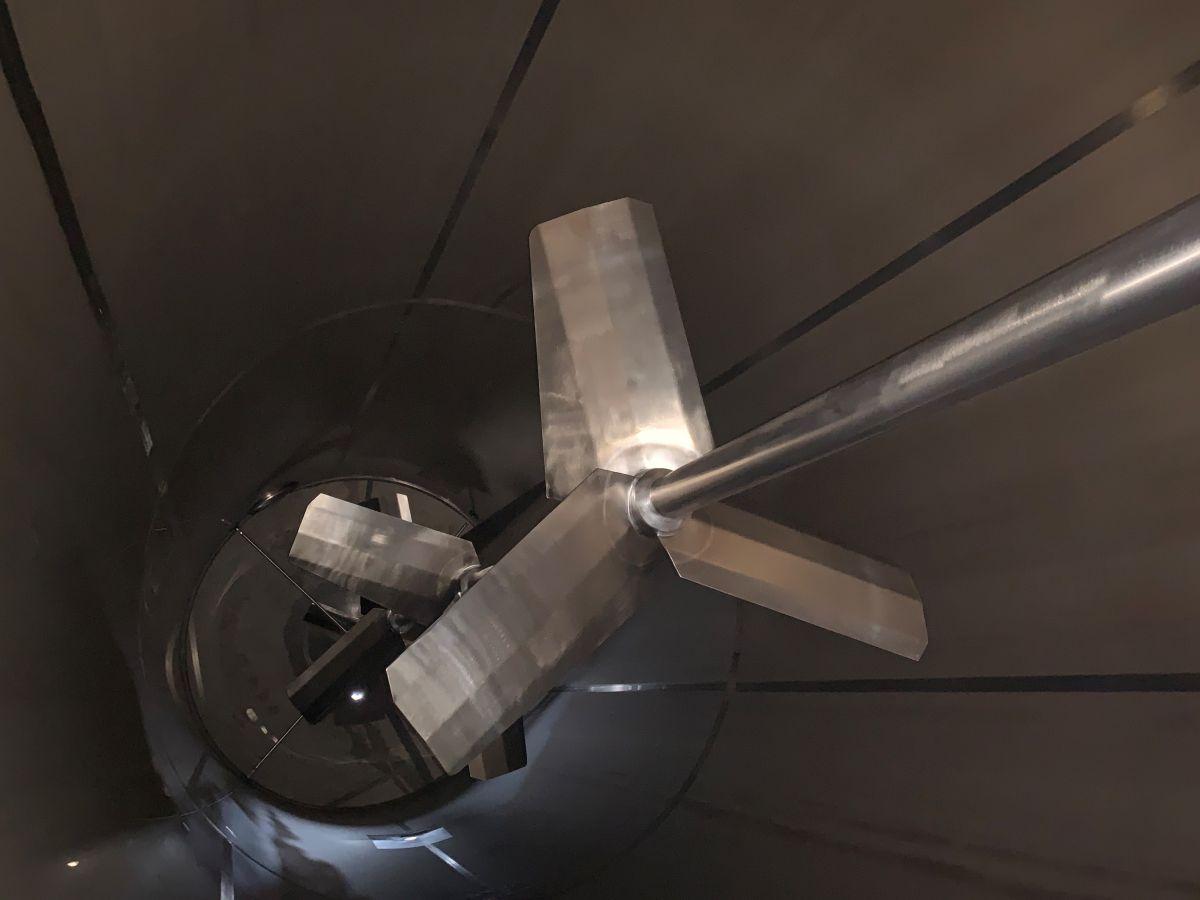

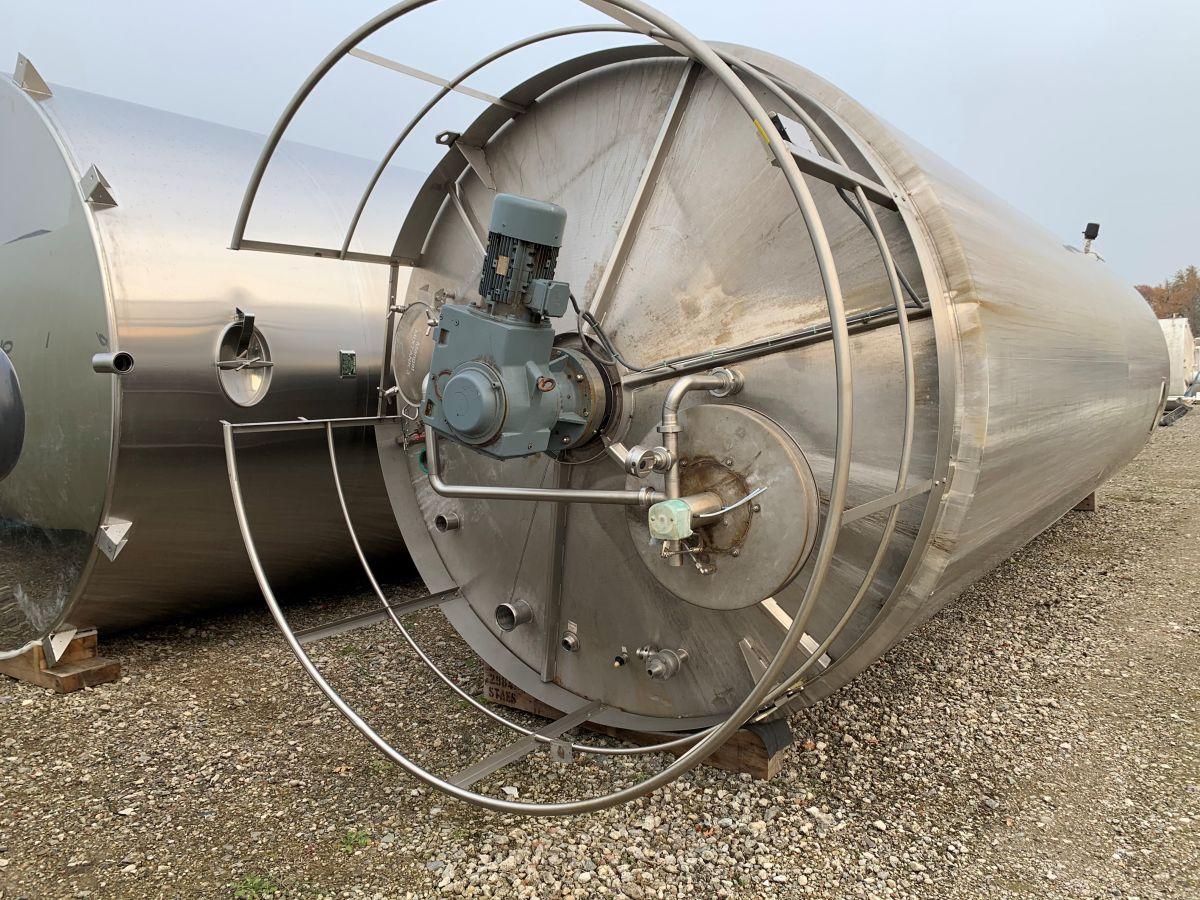

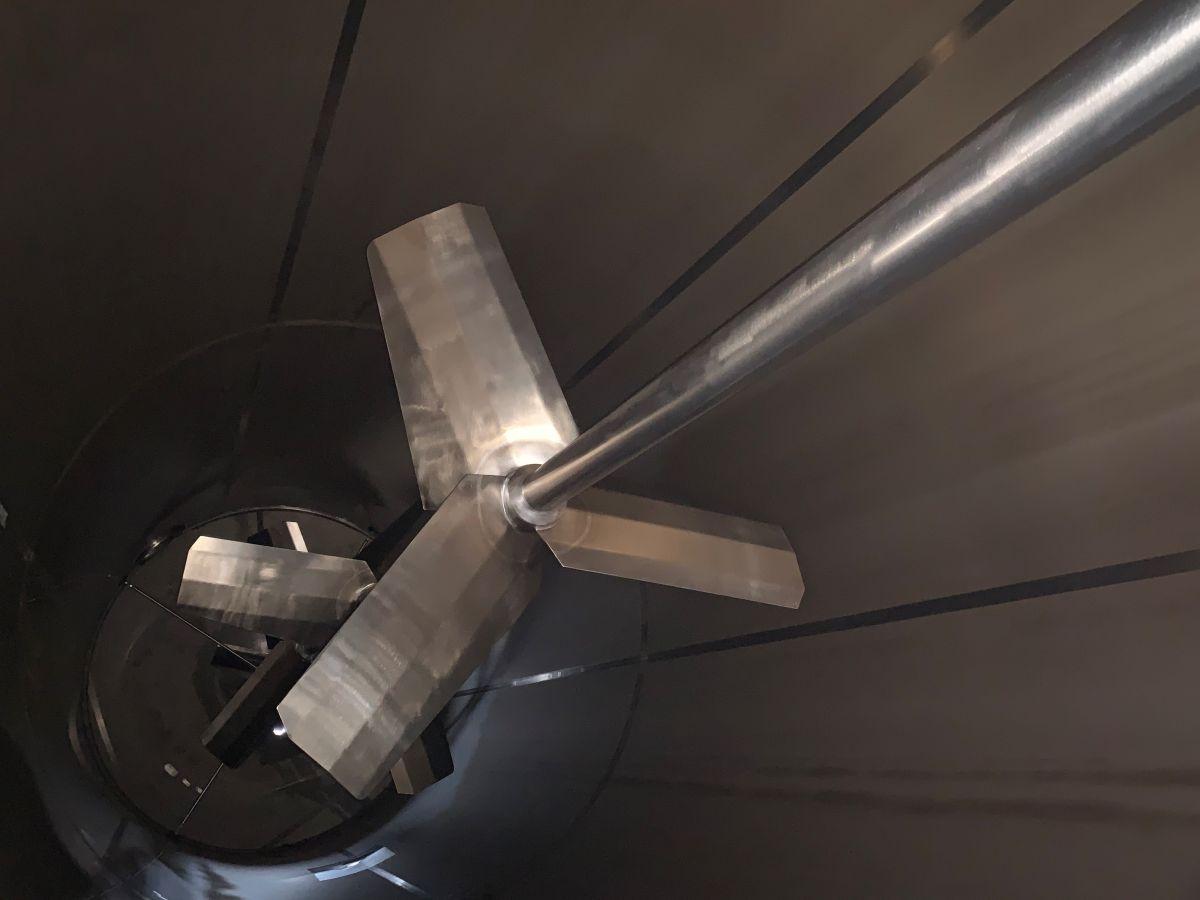

Agitator type: tripad

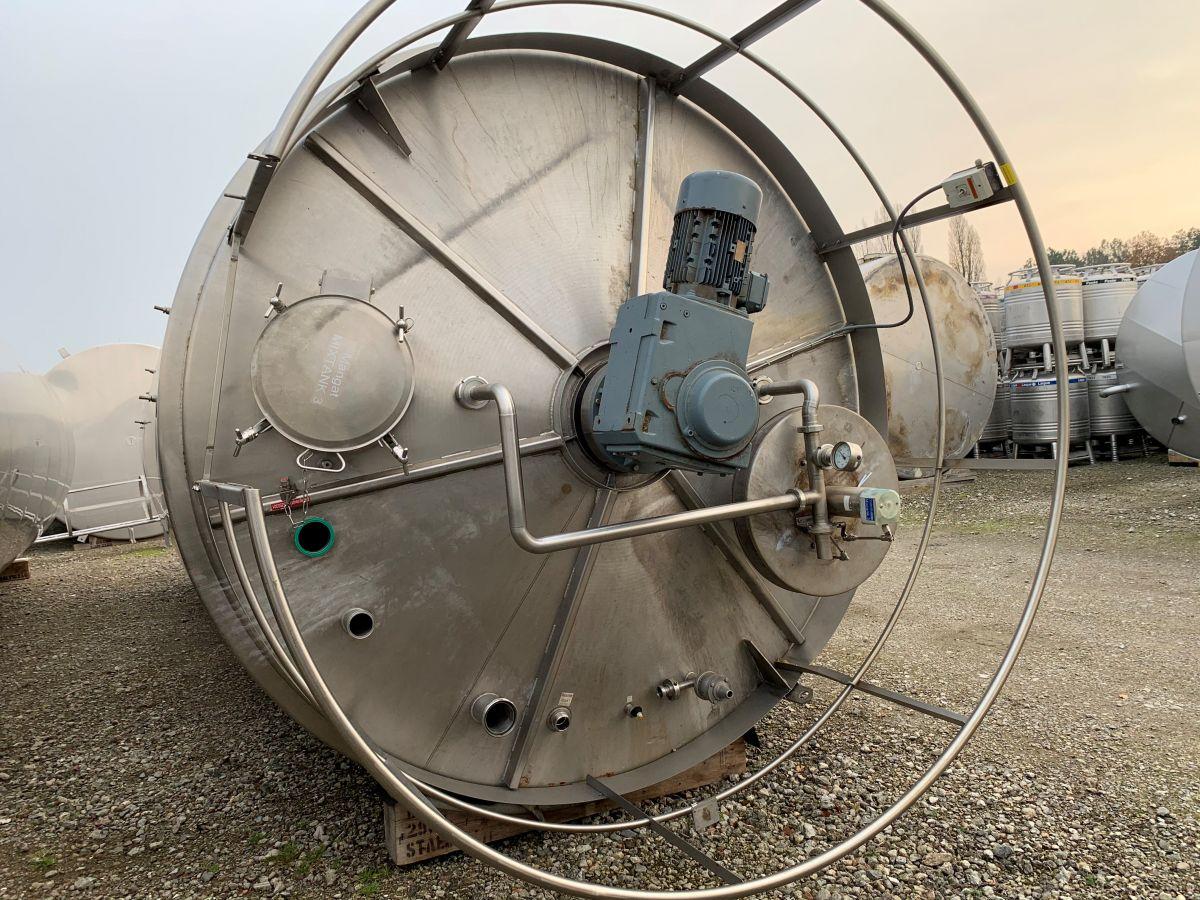

Position engine: at the top

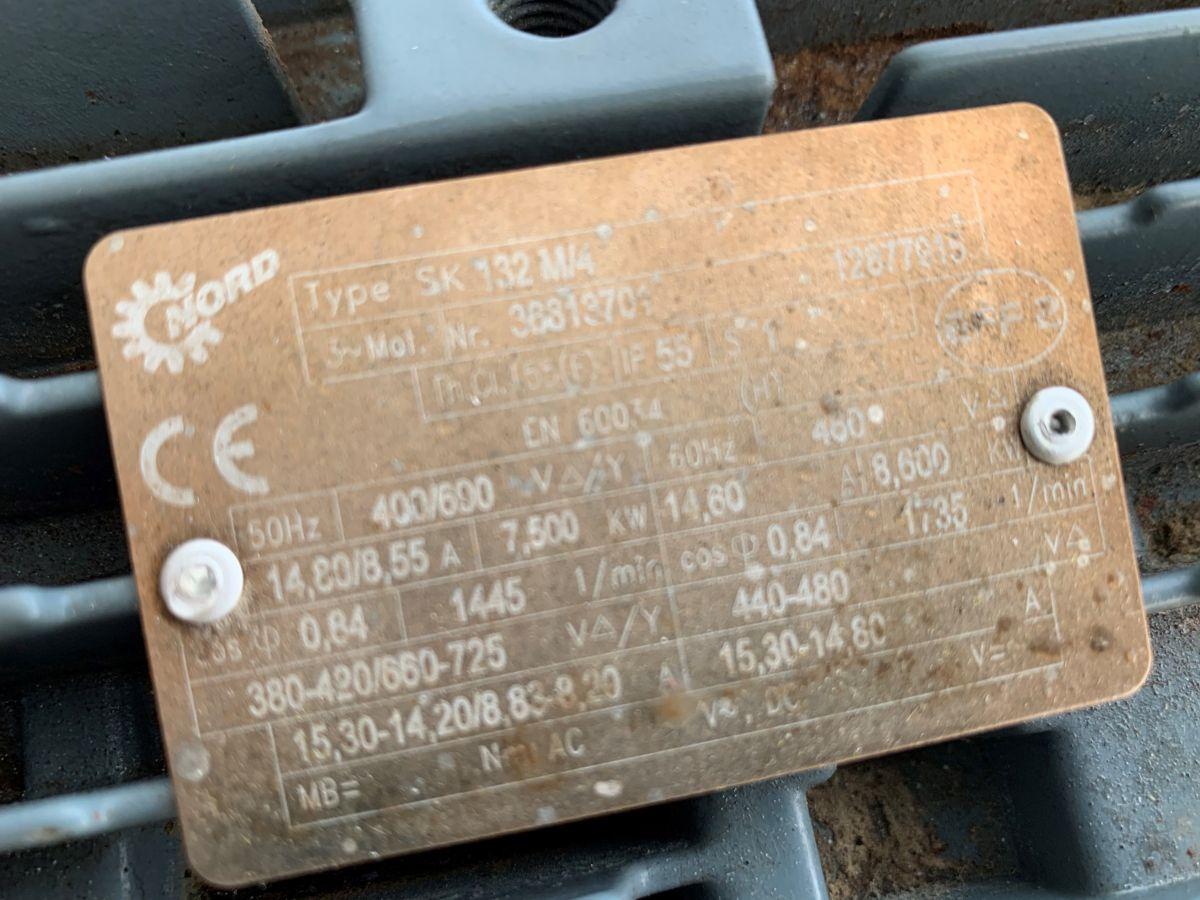

Power: 7,50
Voltage: three-phase
Distance from outlet to ground: 600 mm
Outer diameter tank: 3.000 mm
Cylinder height: 8.200 mm

Total height of tank: 10.700 mm
Empty weight tank: 5.000
