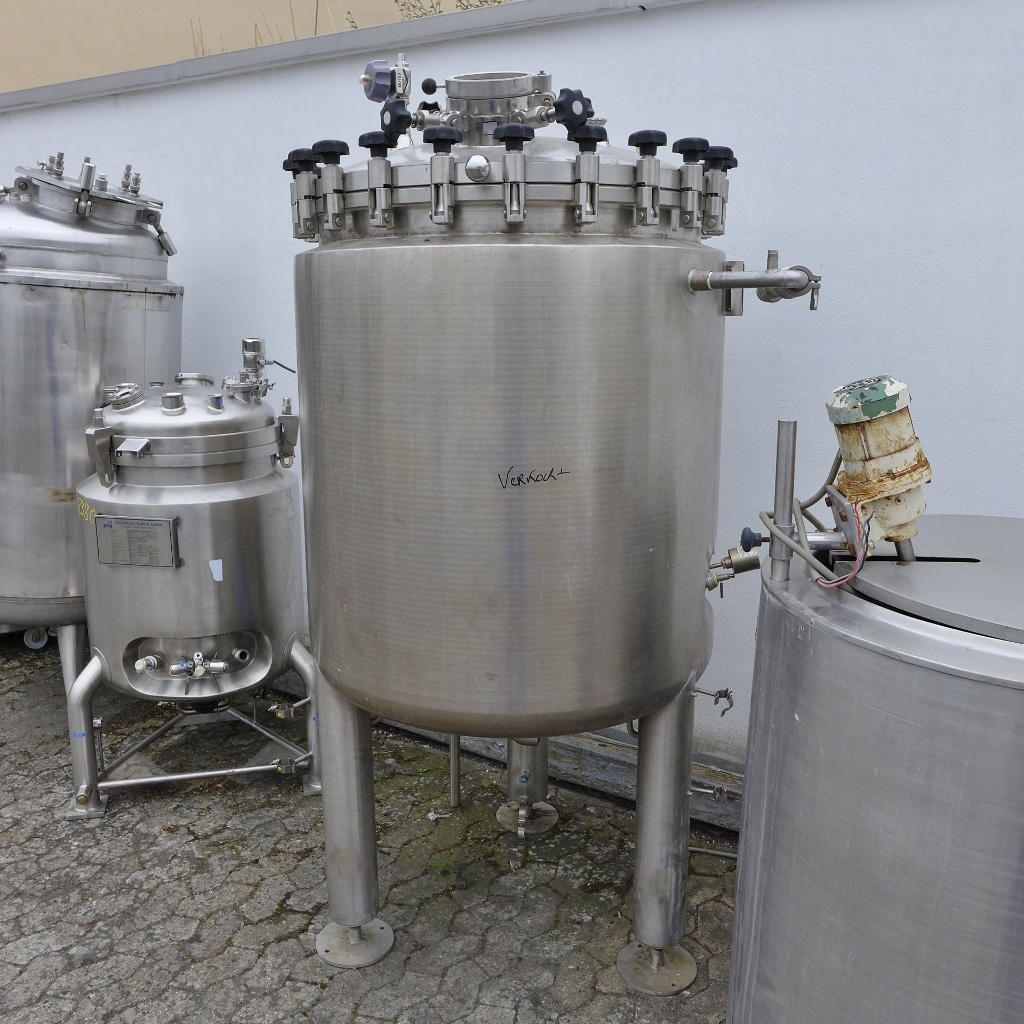

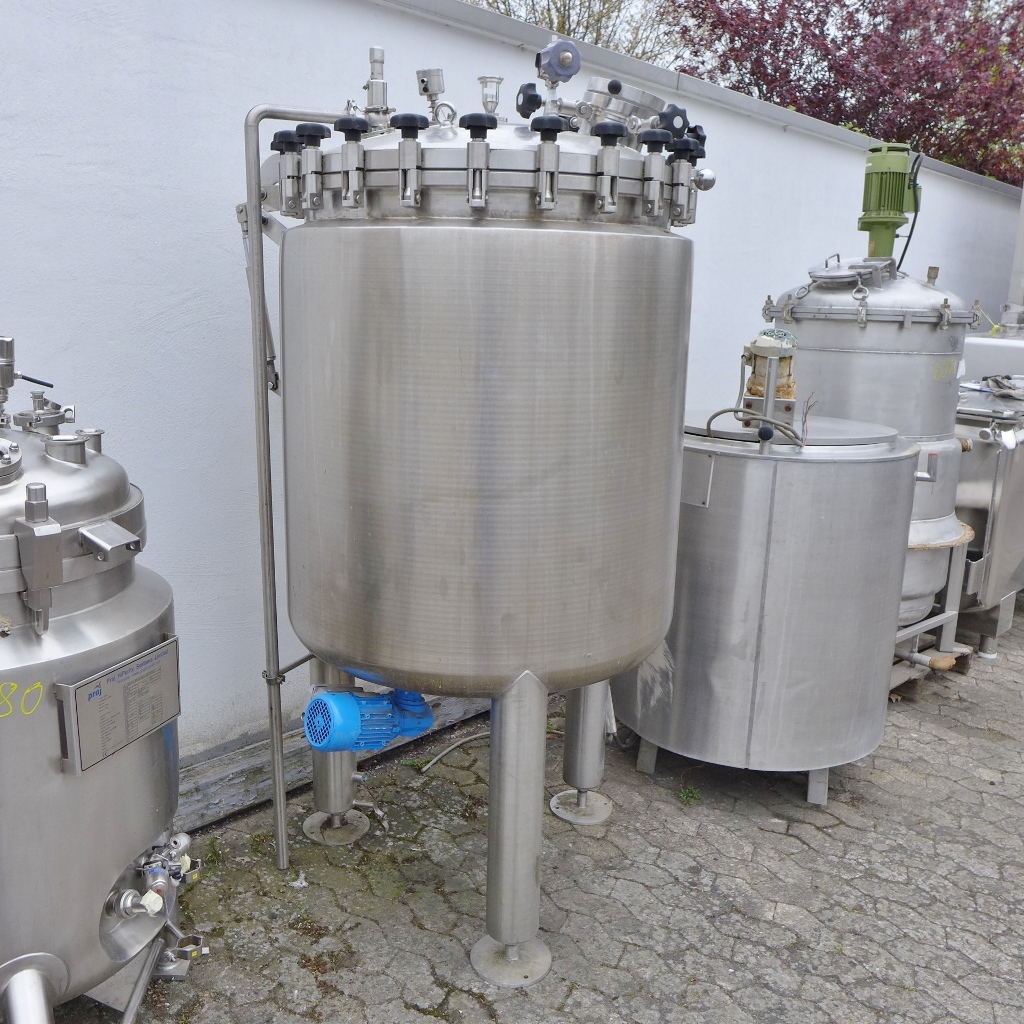

500 liter tank i Syrafast 316

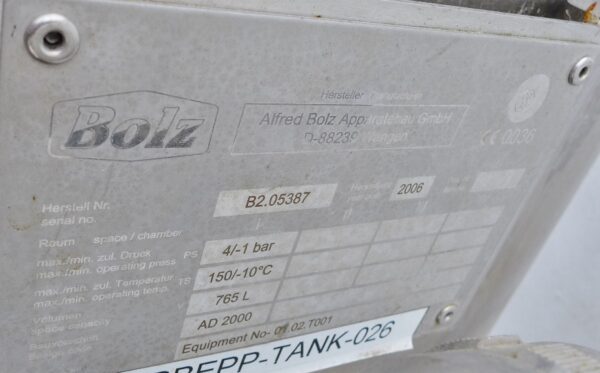

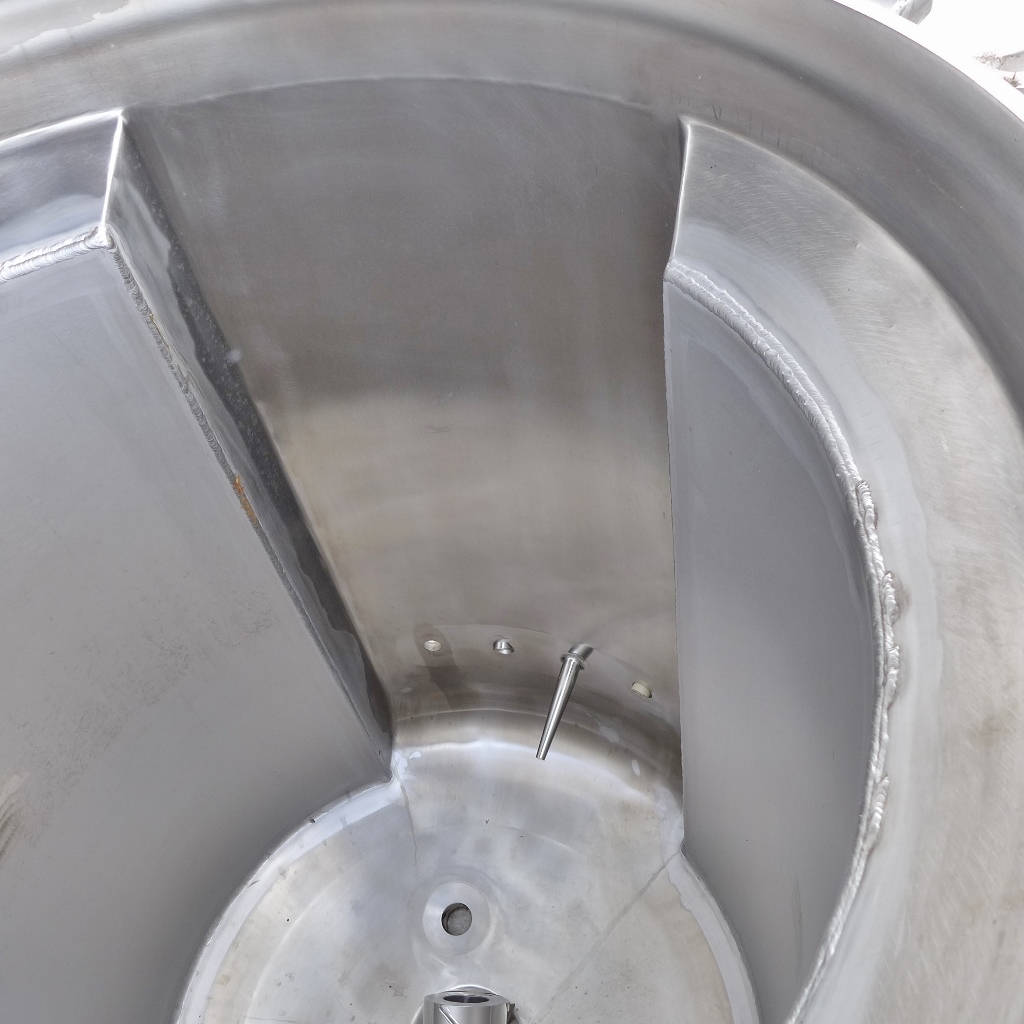

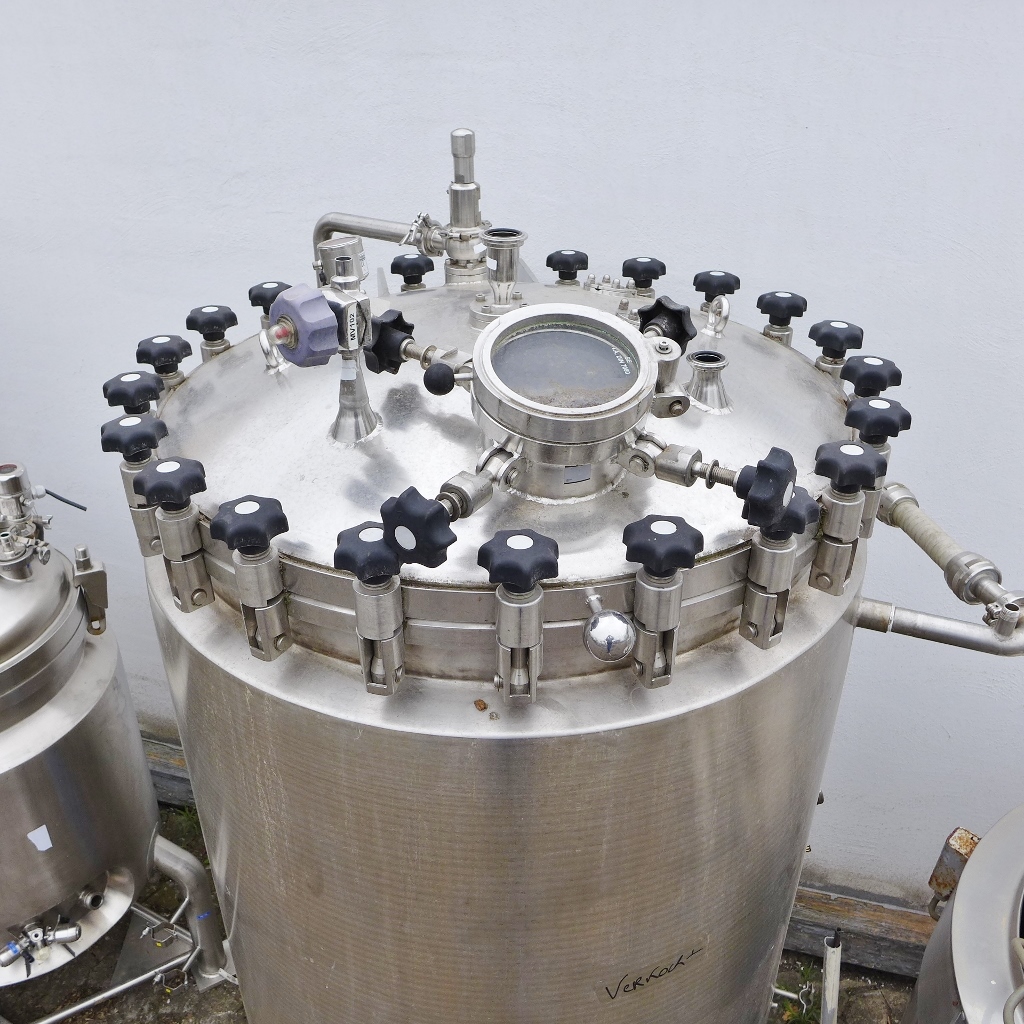

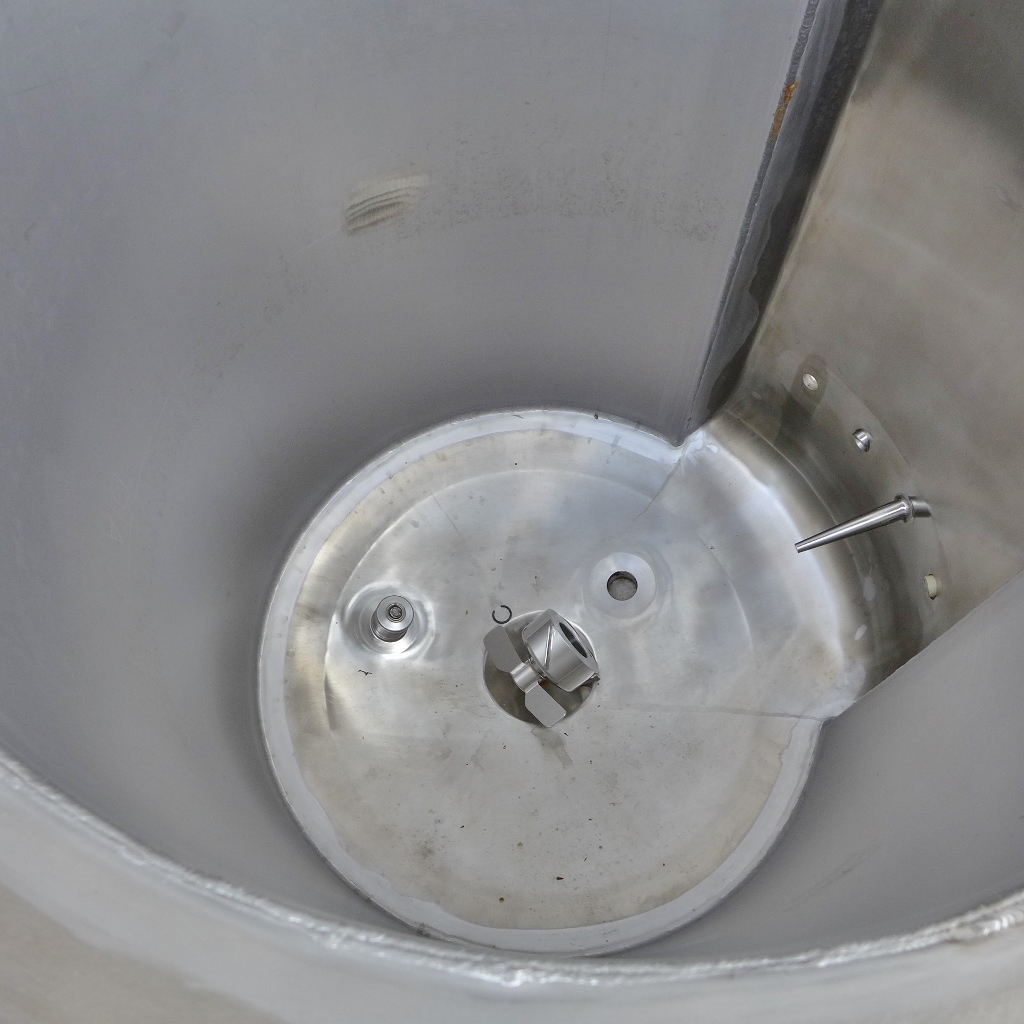

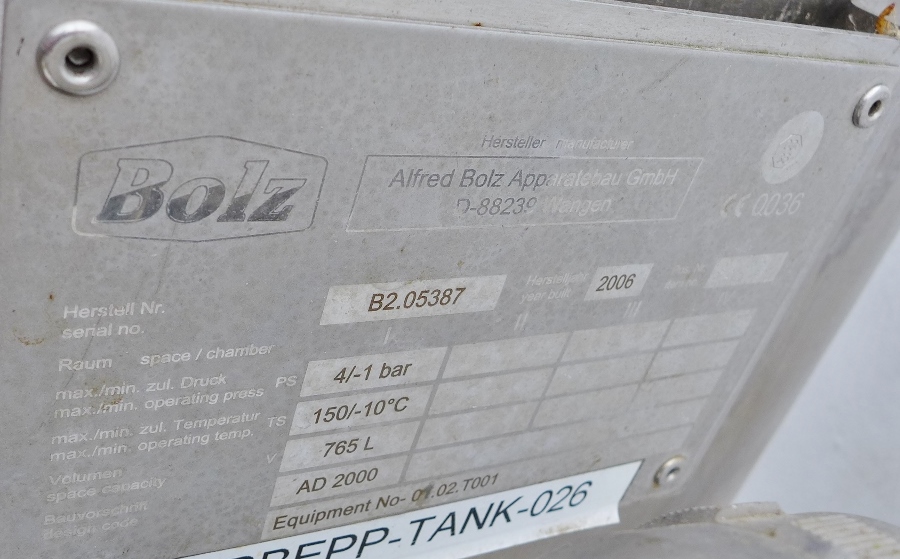

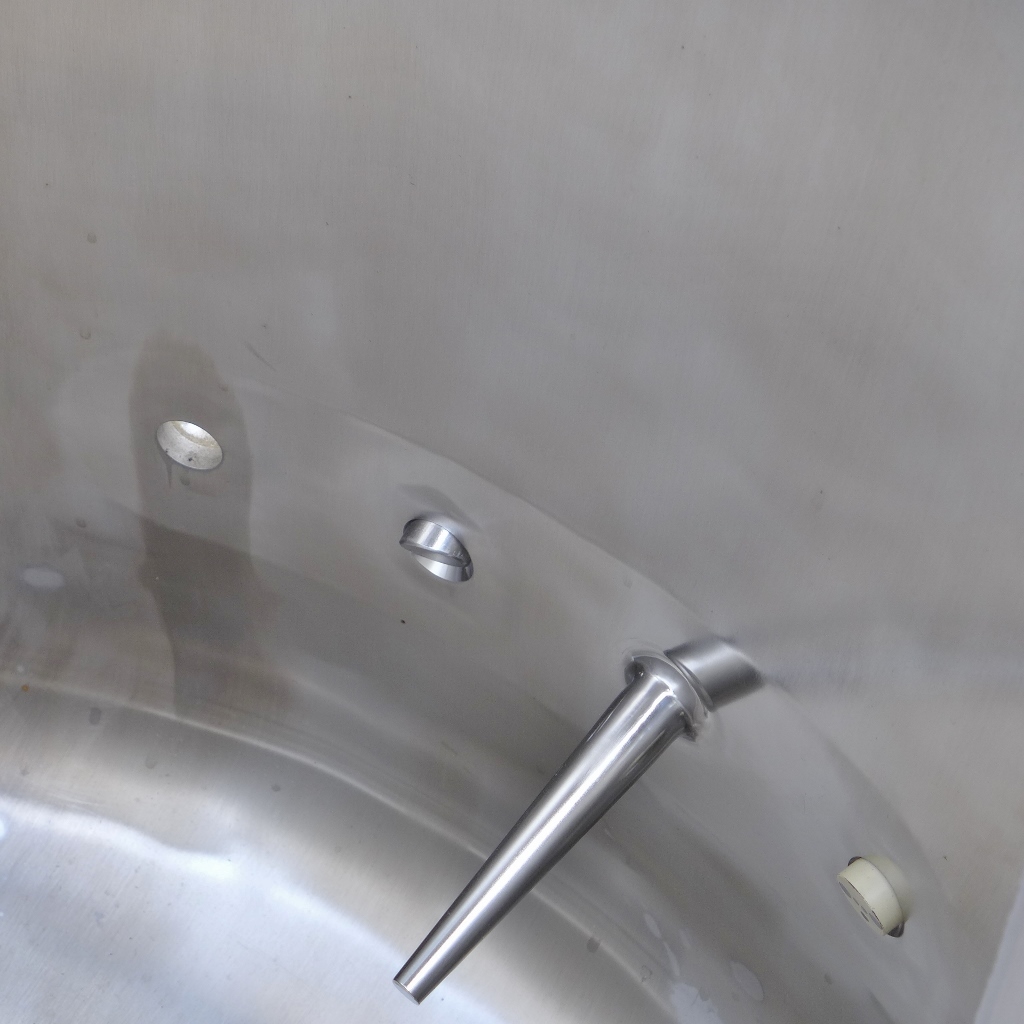

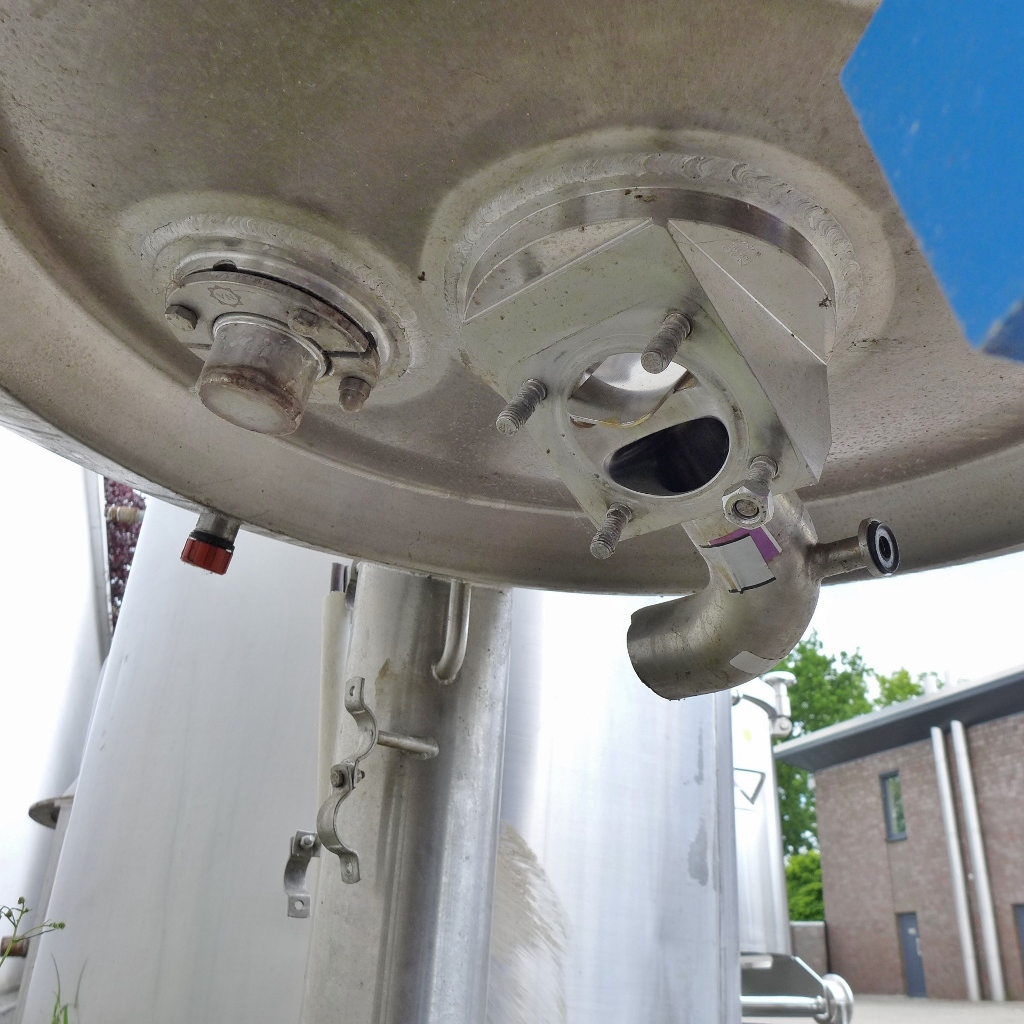

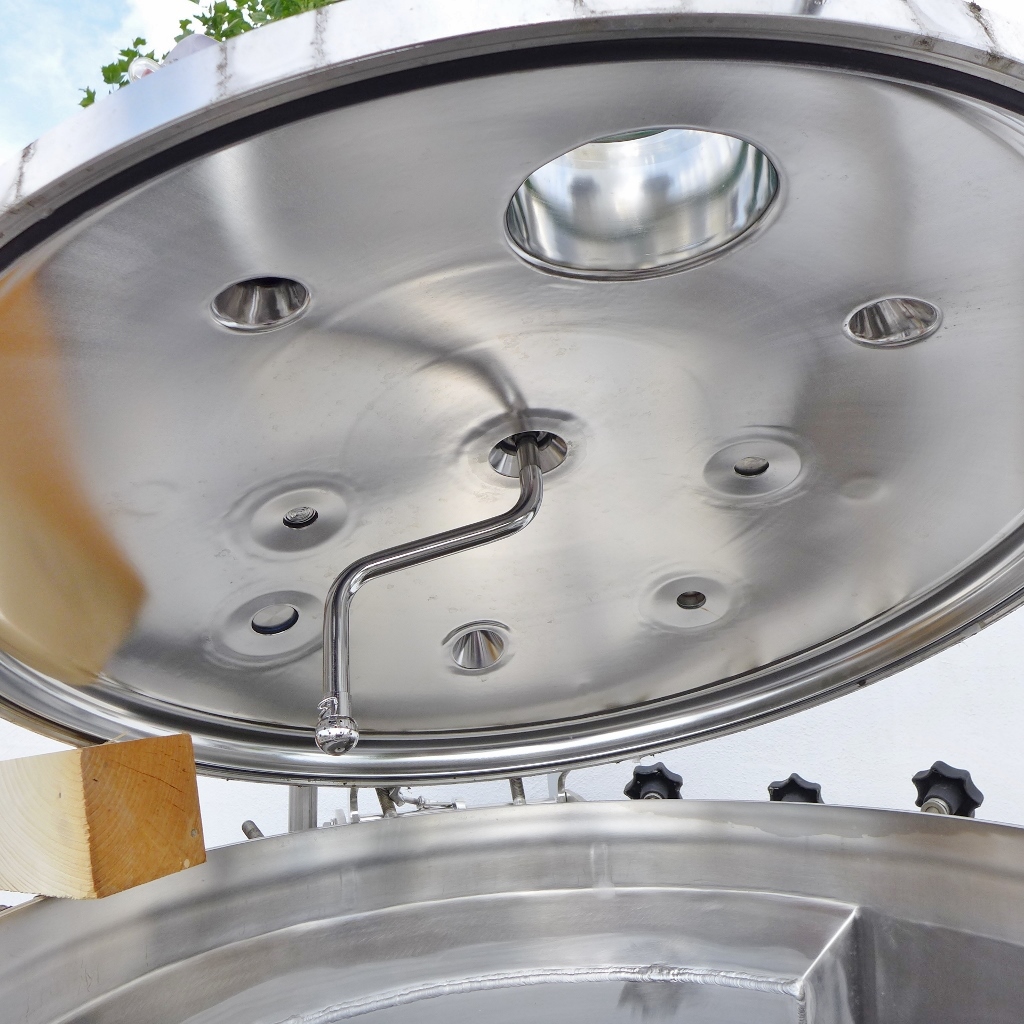

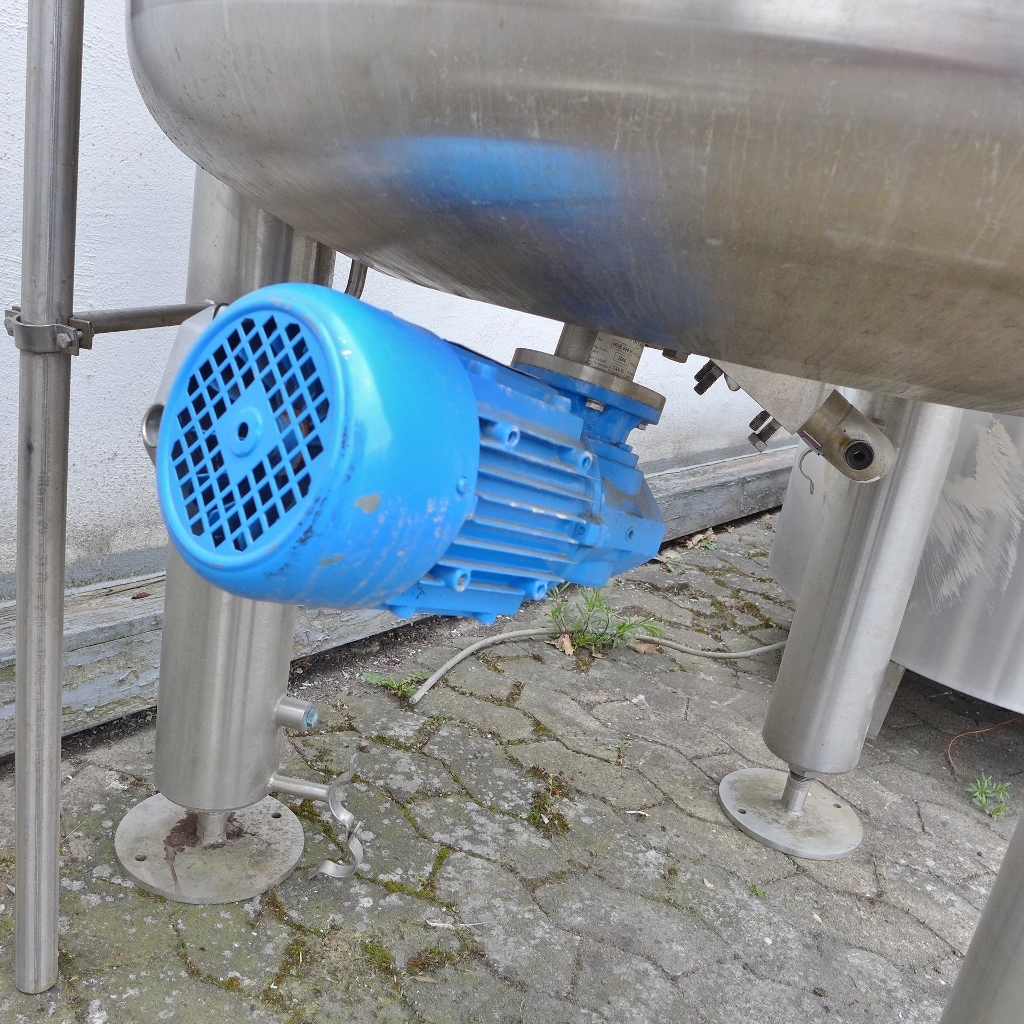

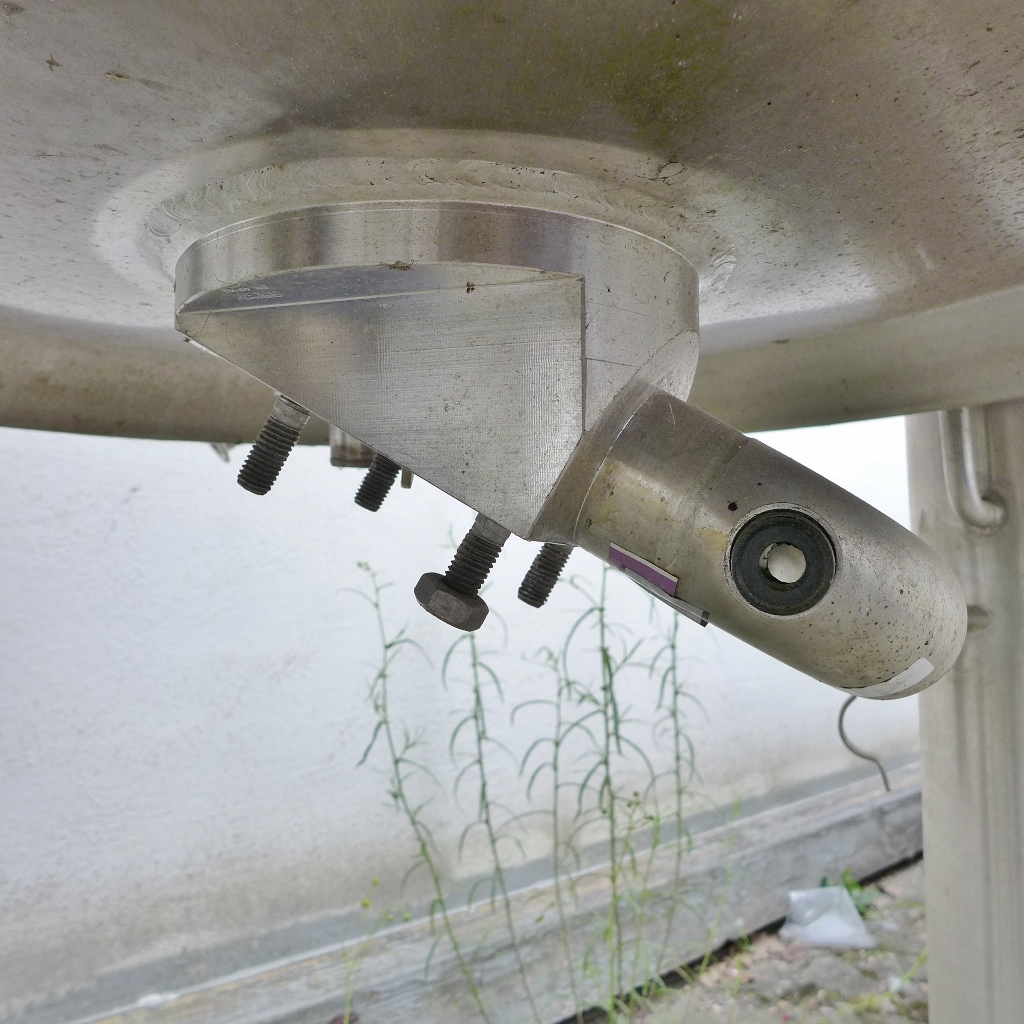

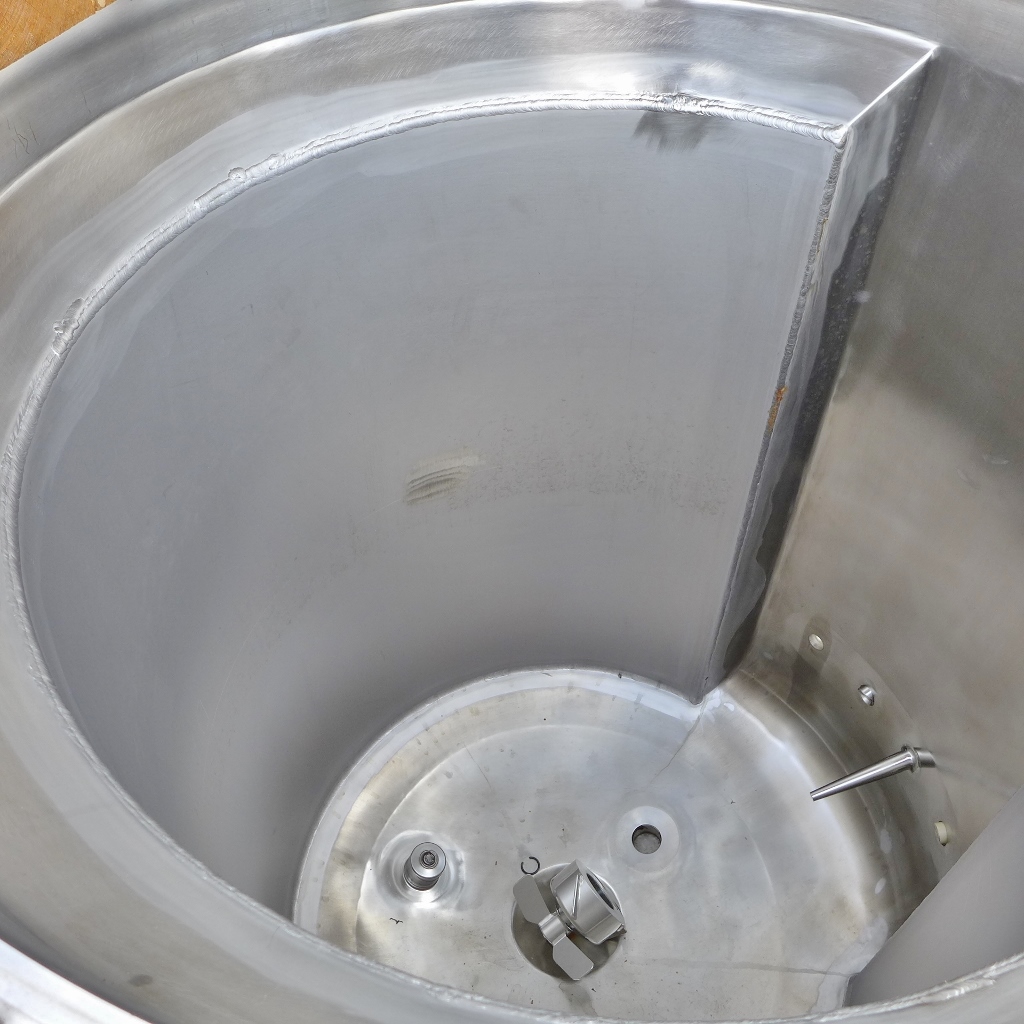

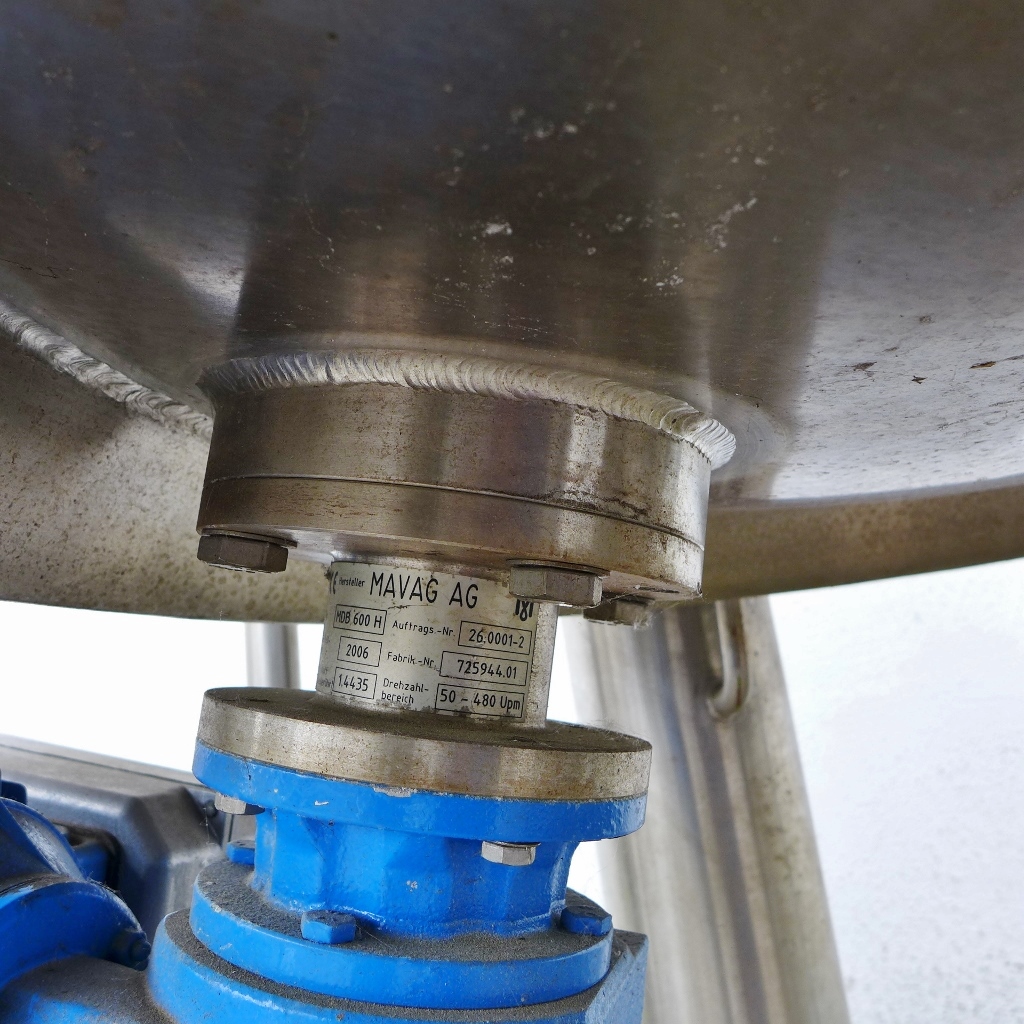

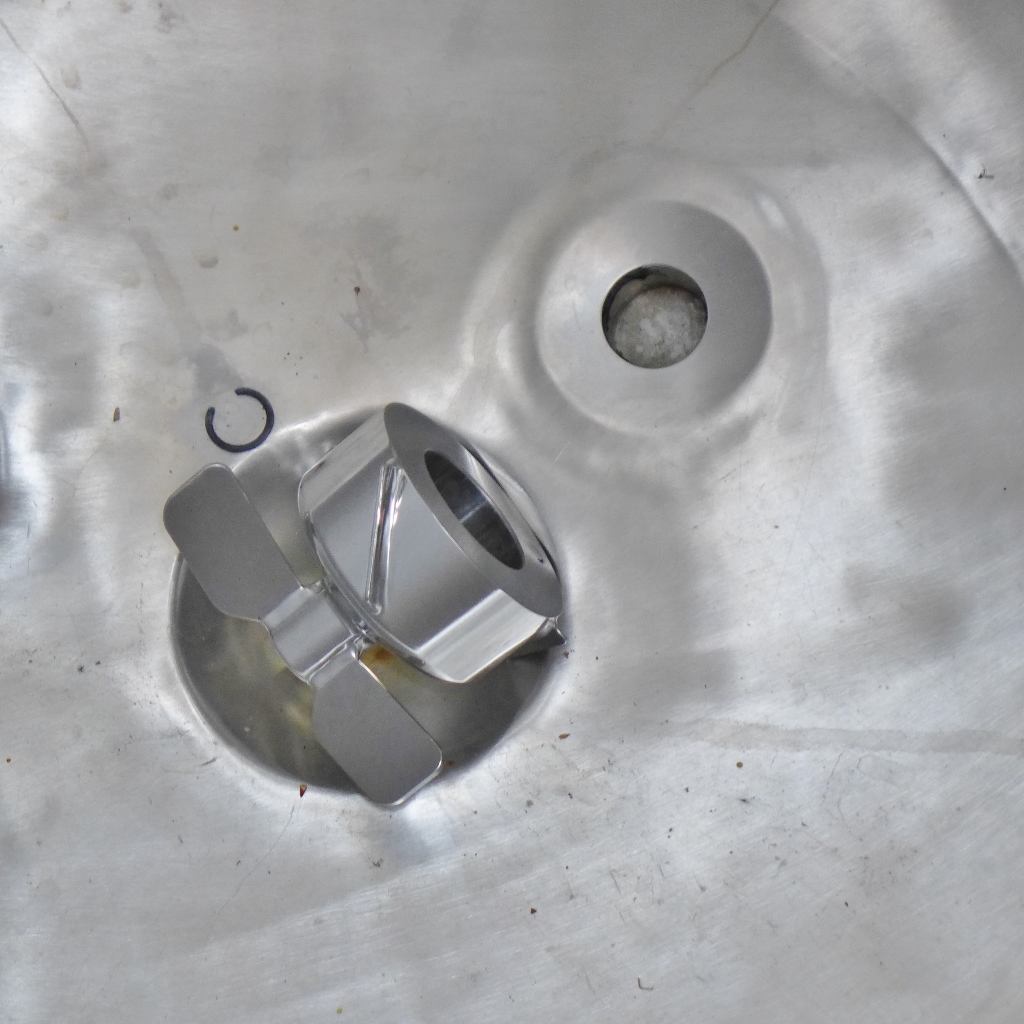

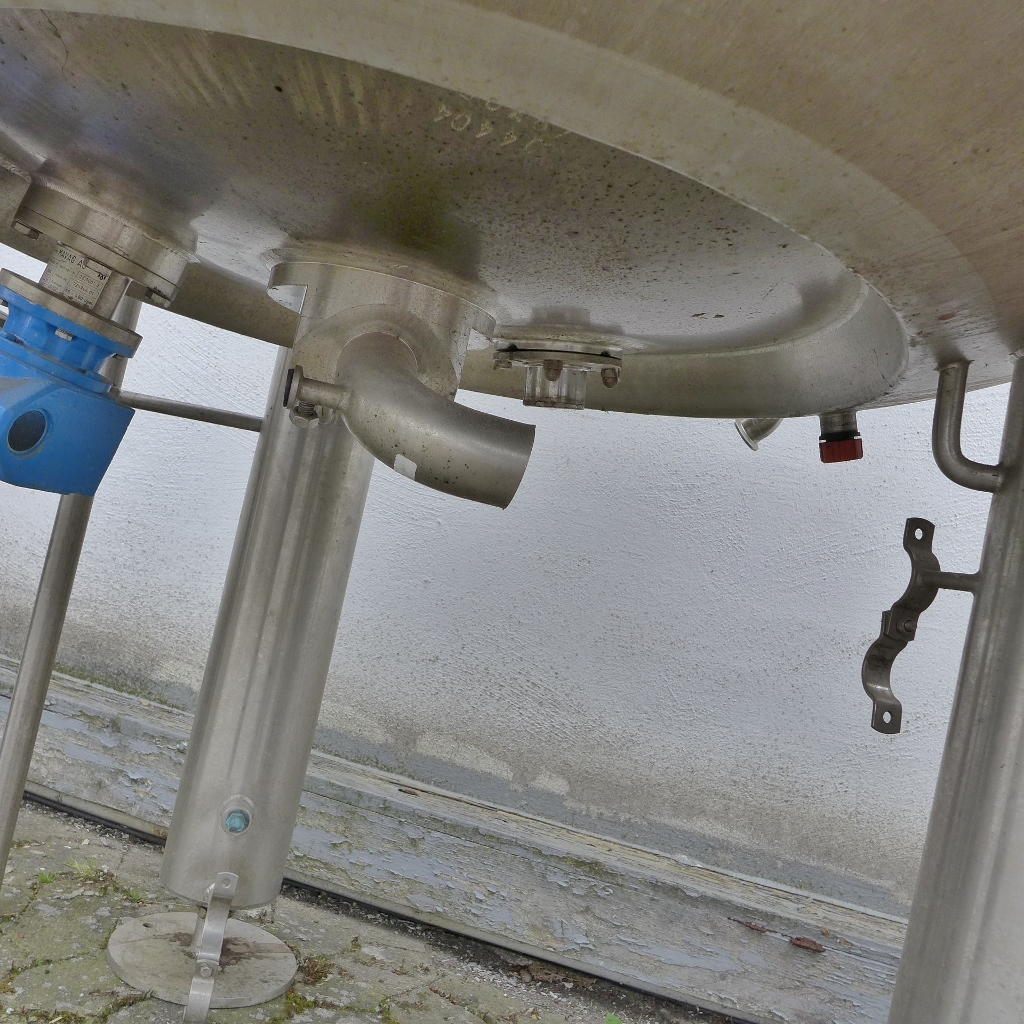

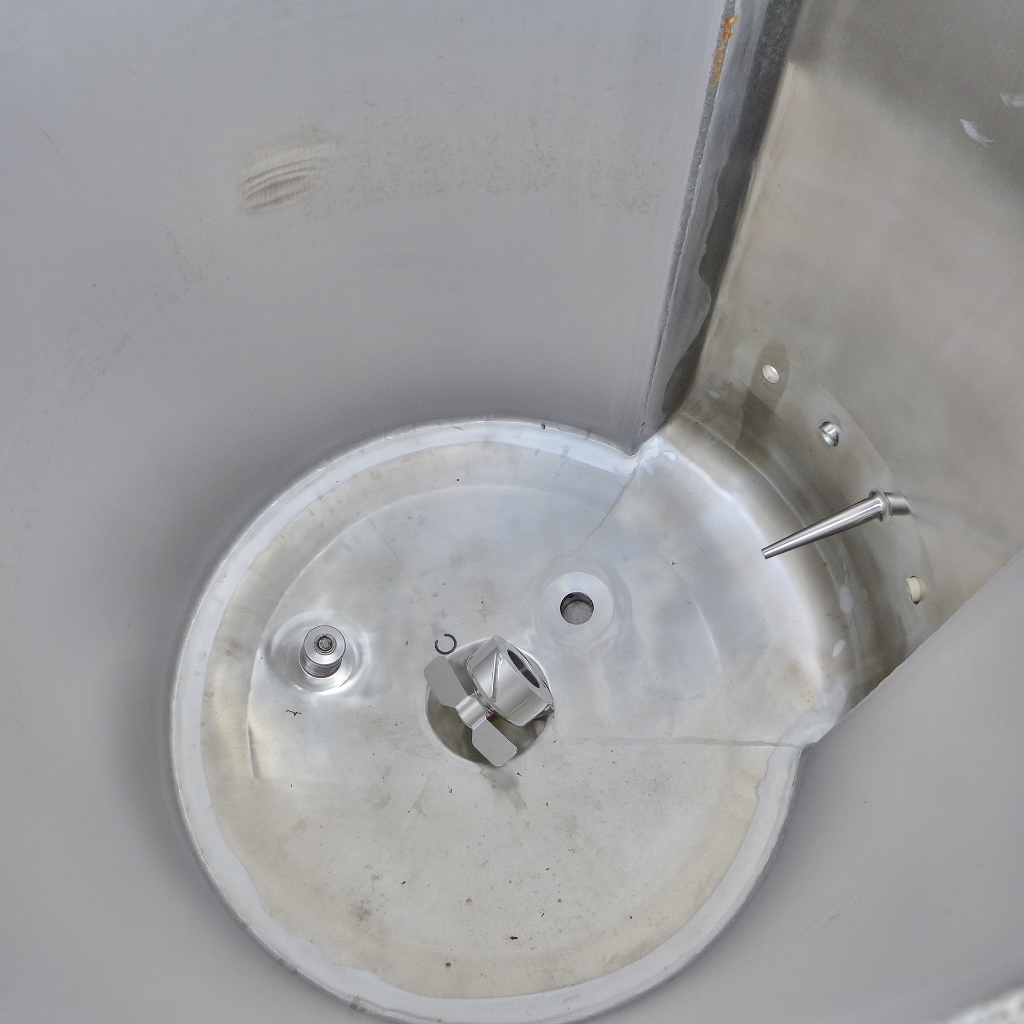

Additional information: An internal double jacket was subsequently welded into the tank by the previous operator, which reduces the volume specified on the type plate to approx. 500 liters (see photos); Unfortunately, we do not know to what extent the pressure and temperature information given on the type plate is still valid; total inner diameter of the tank approx. 900 mm, in the area of the inner double jacket approx. 760 mm; 1 hand hole diameter 150 mm in the upper bottom; Outlet fitting no longer available; pipe end cut flush Volumetric volume (L): 500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: 42 Agitator: yes Number of revolutions: 50 - 480 Outer diameter tank: 1.000 mm Total height of tank: 2.300 mm
