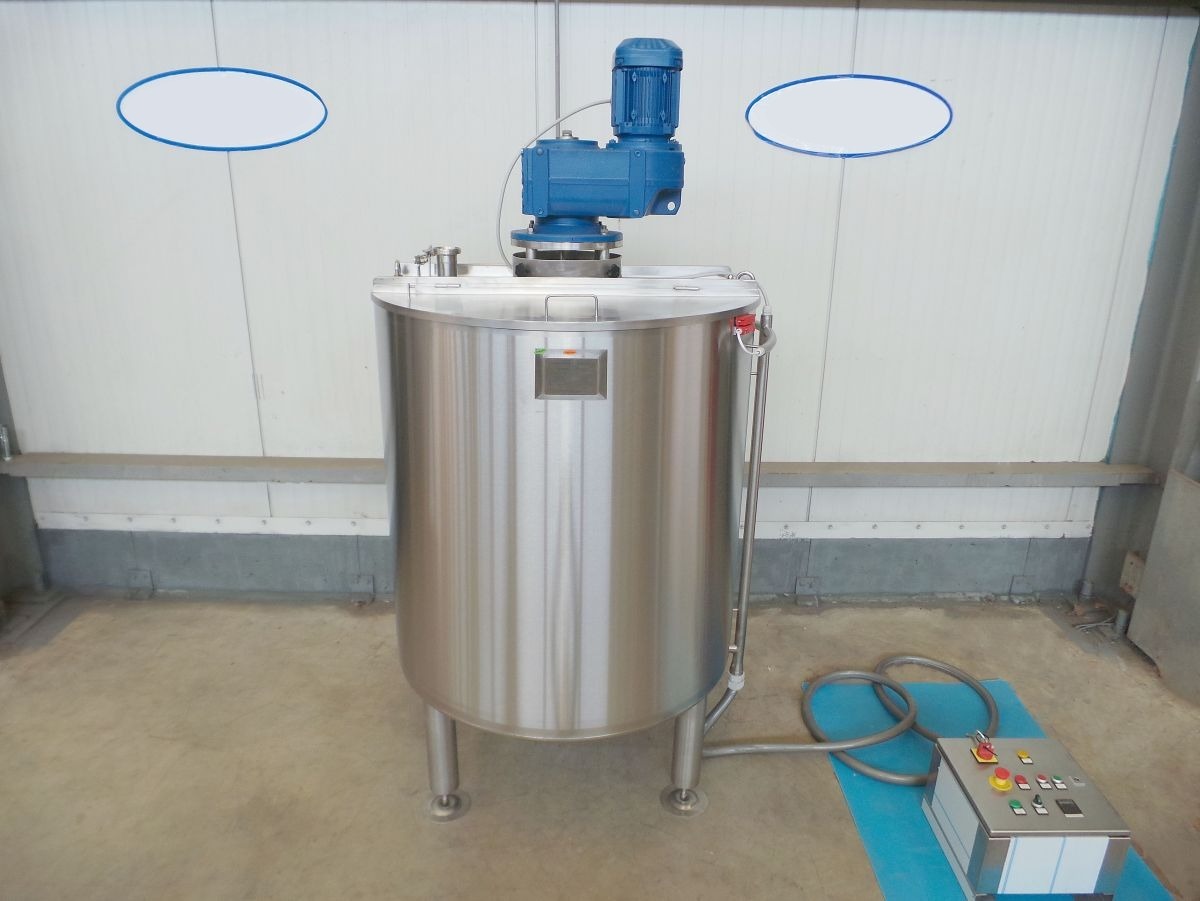

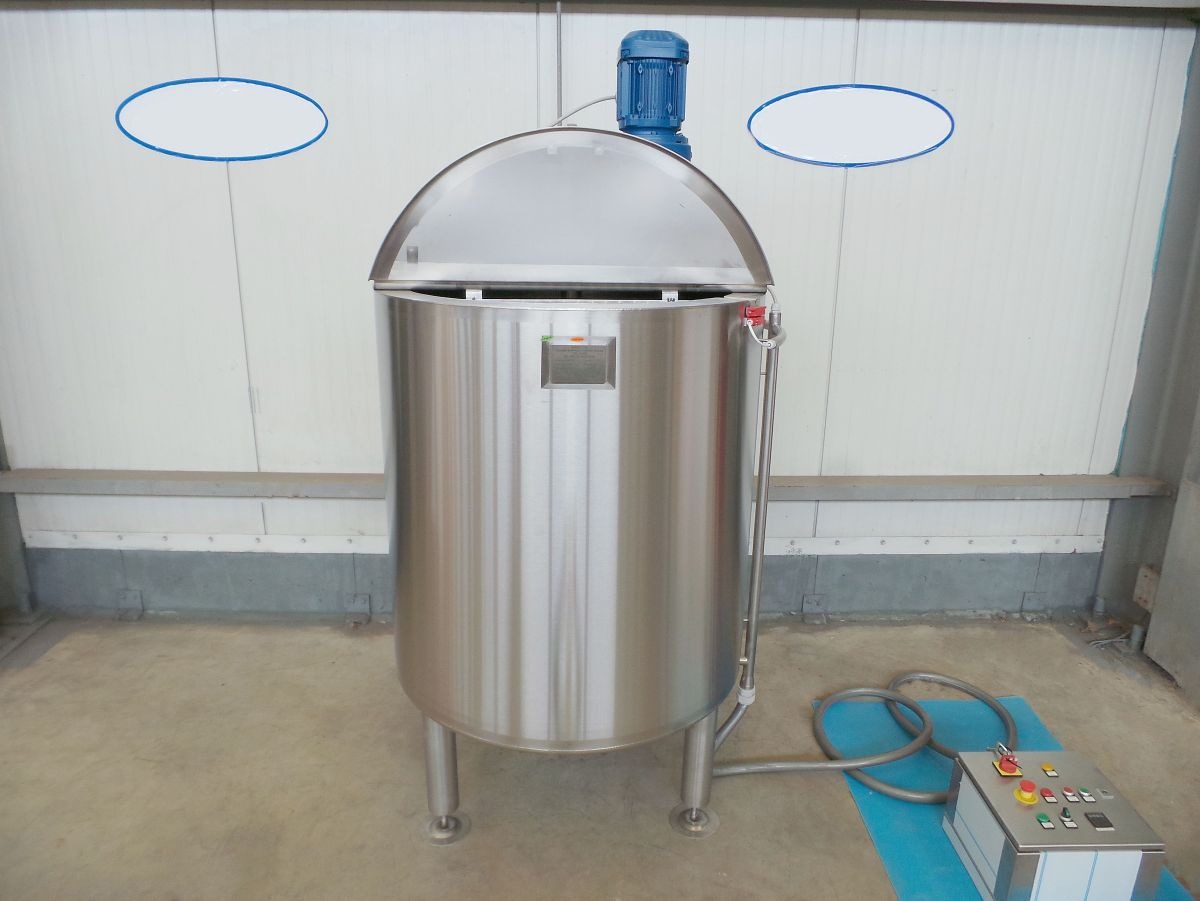

500 liter tank i Rostfritt 304

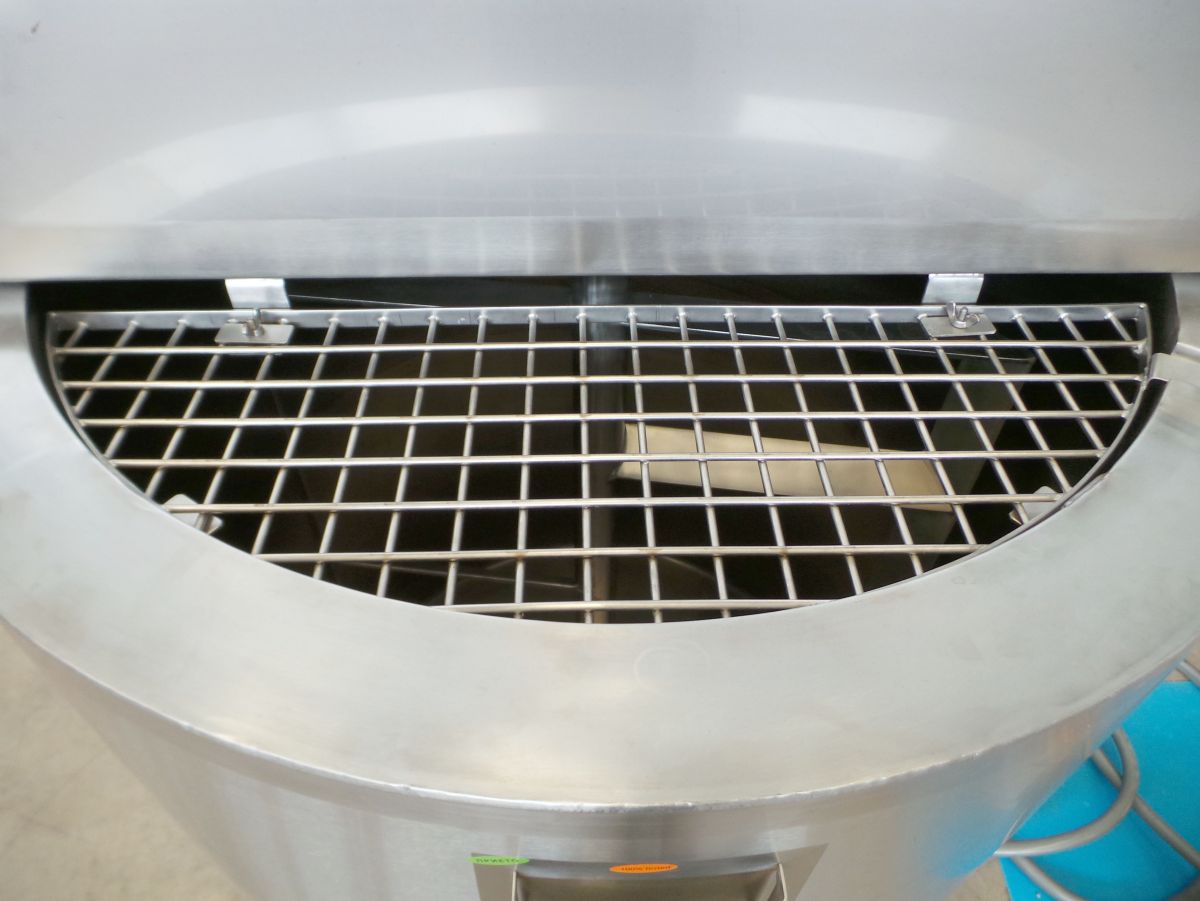

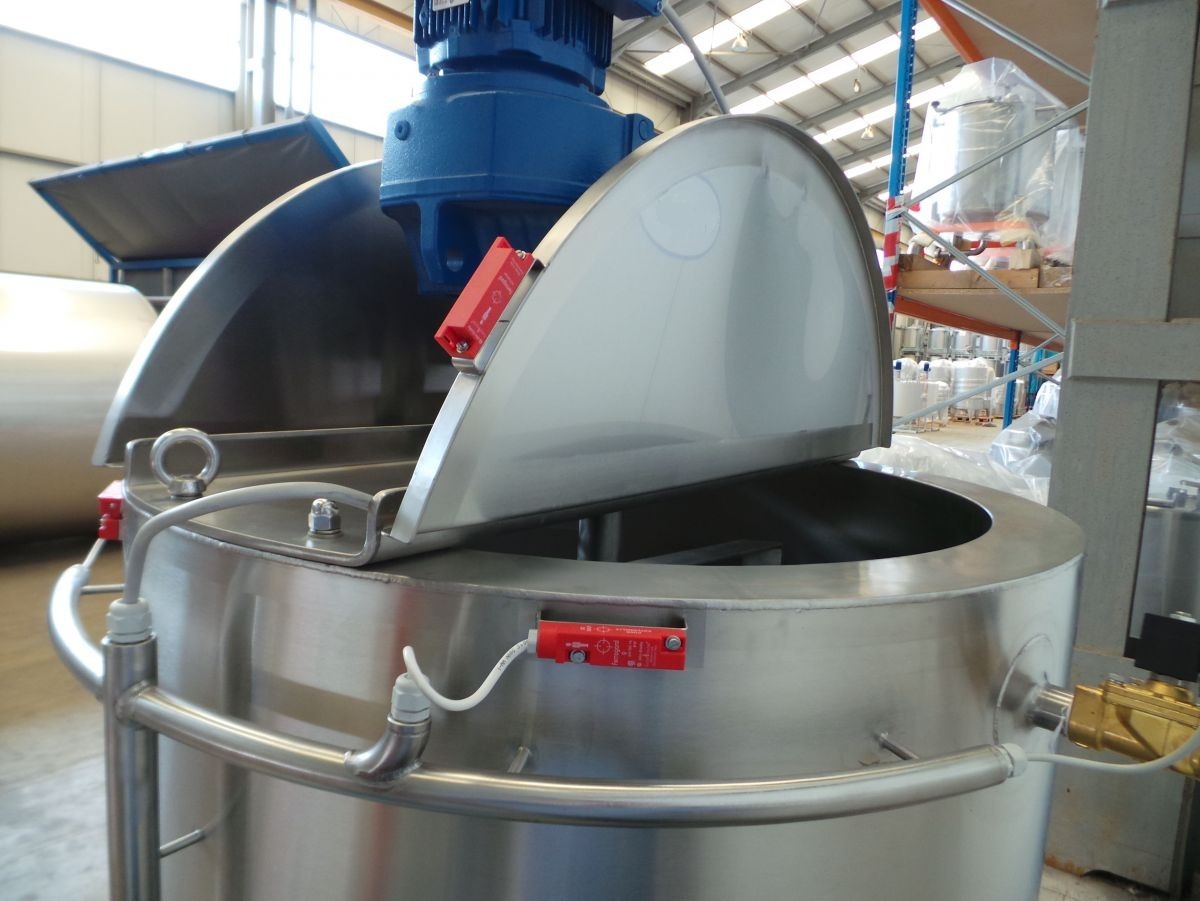

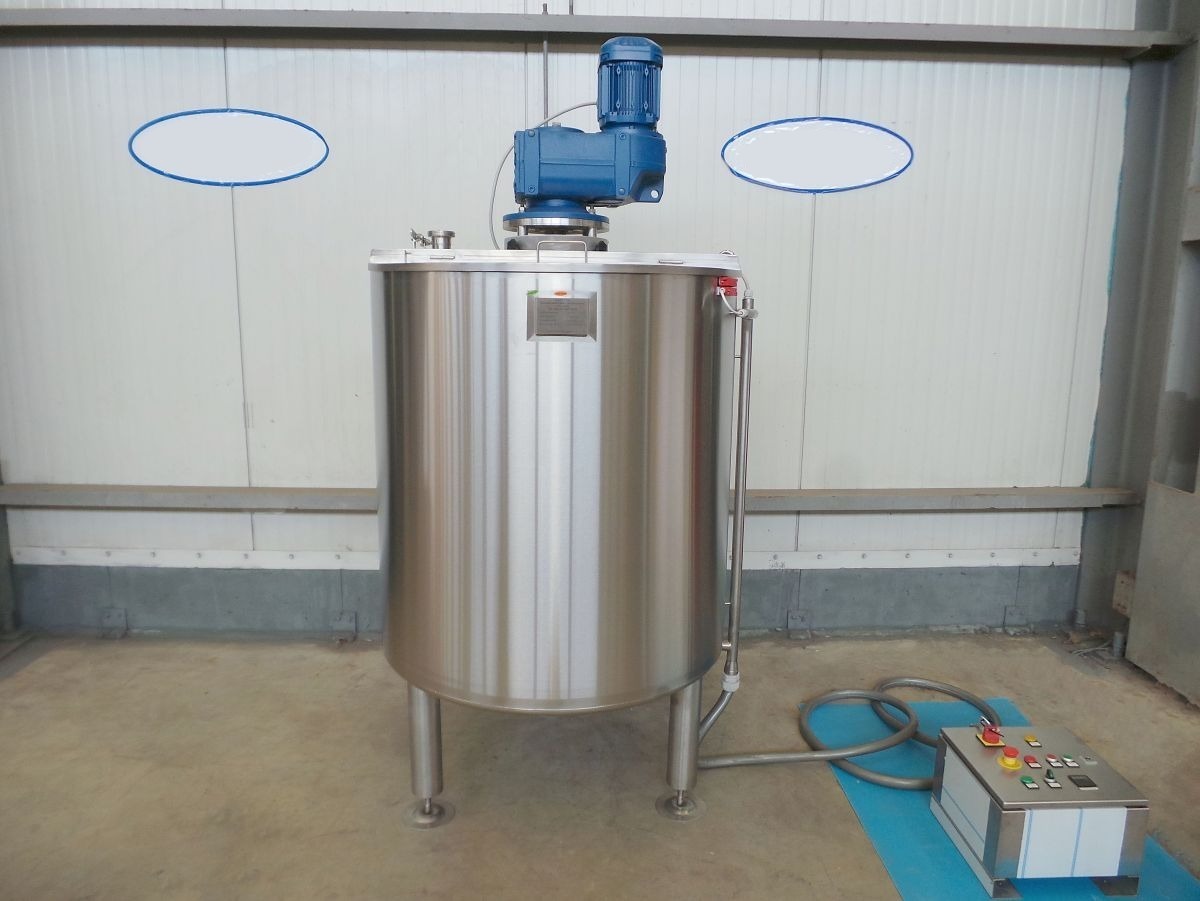

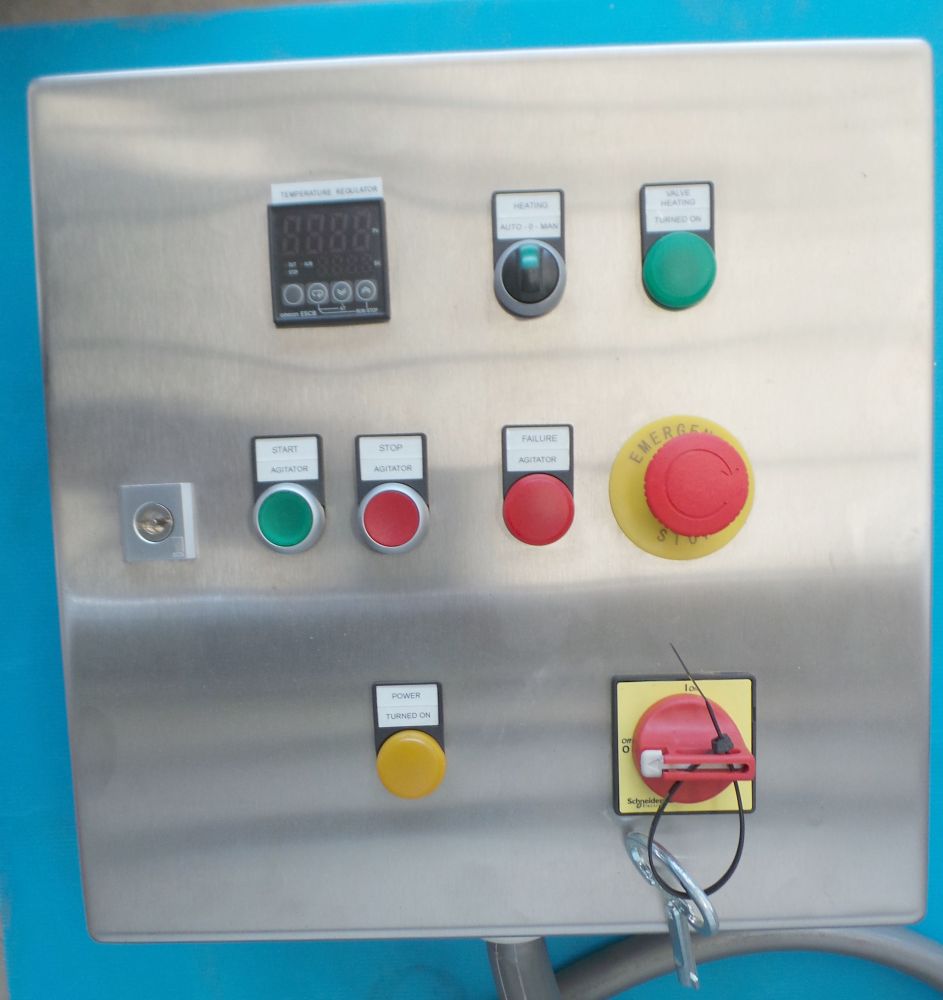

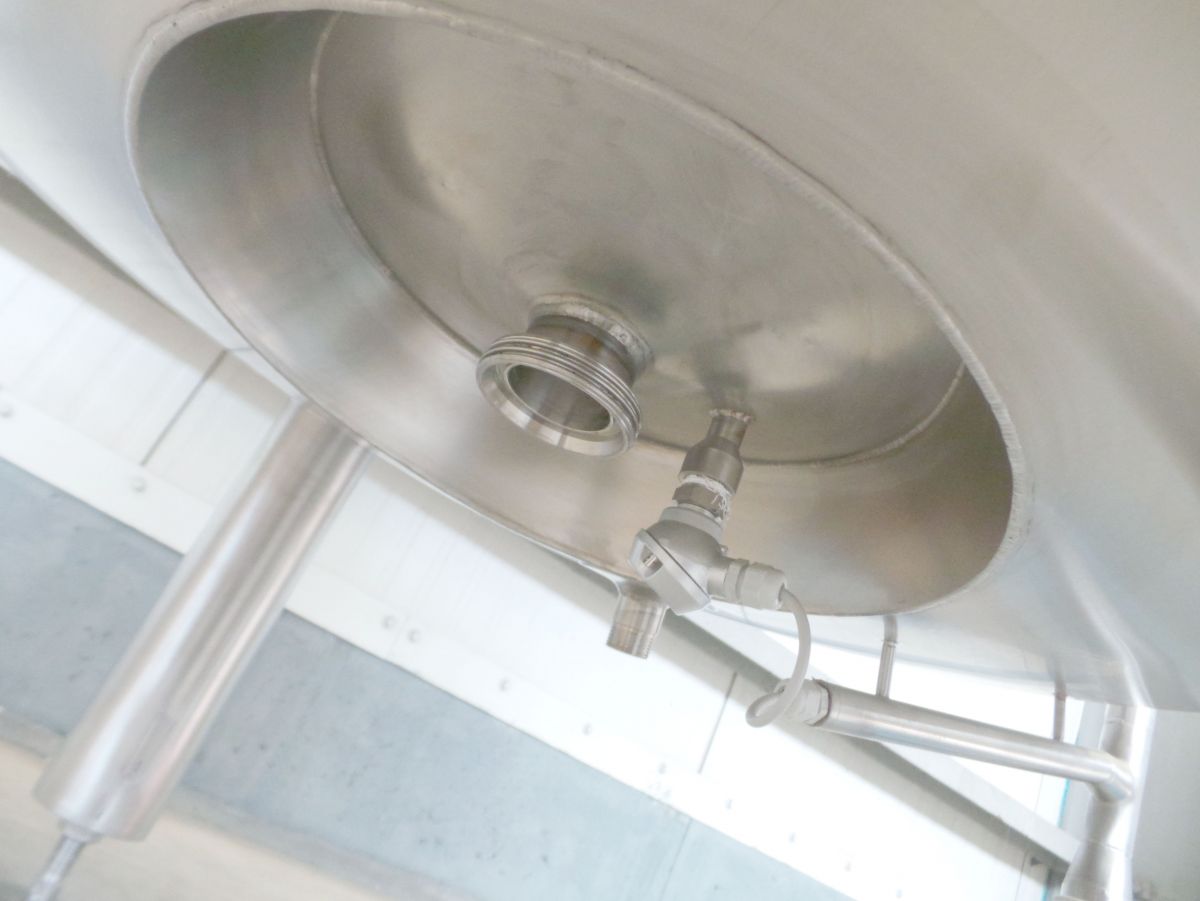

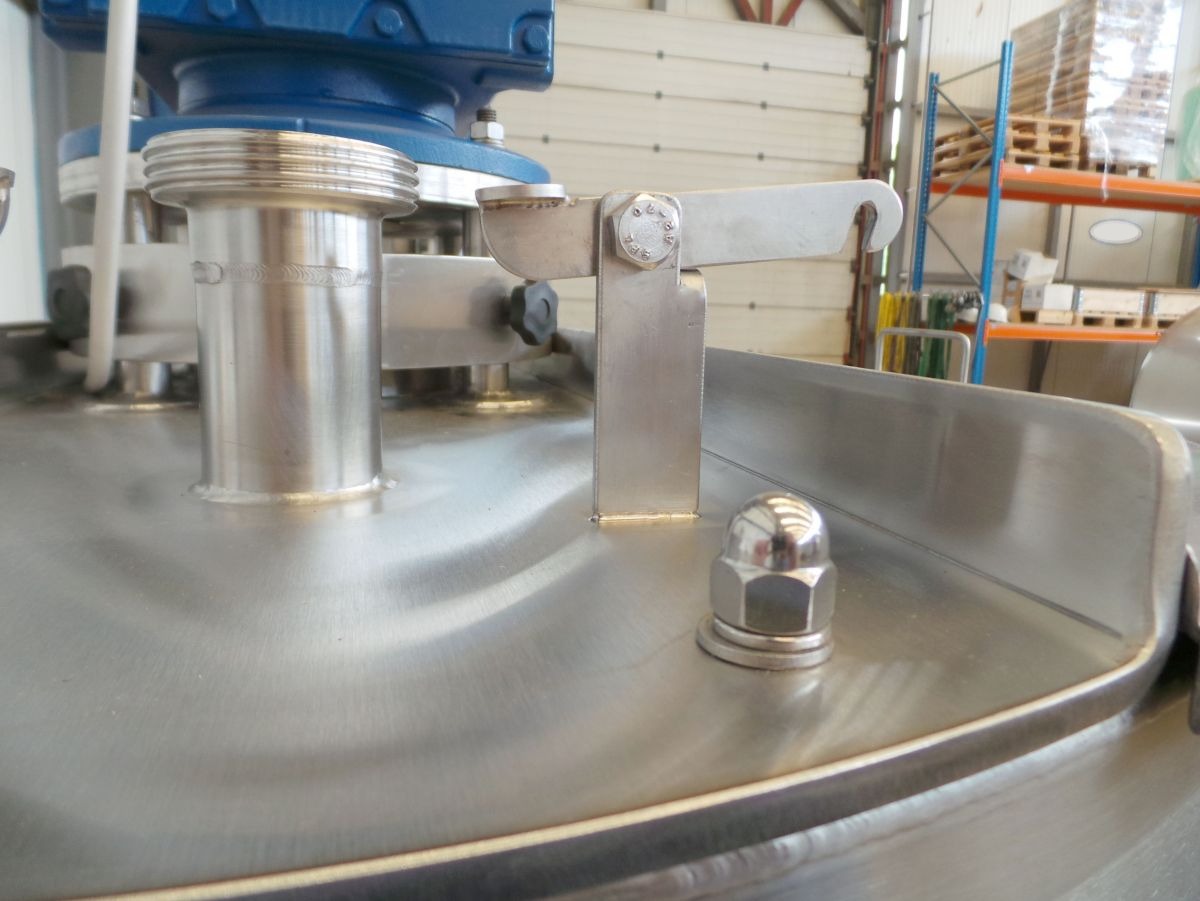

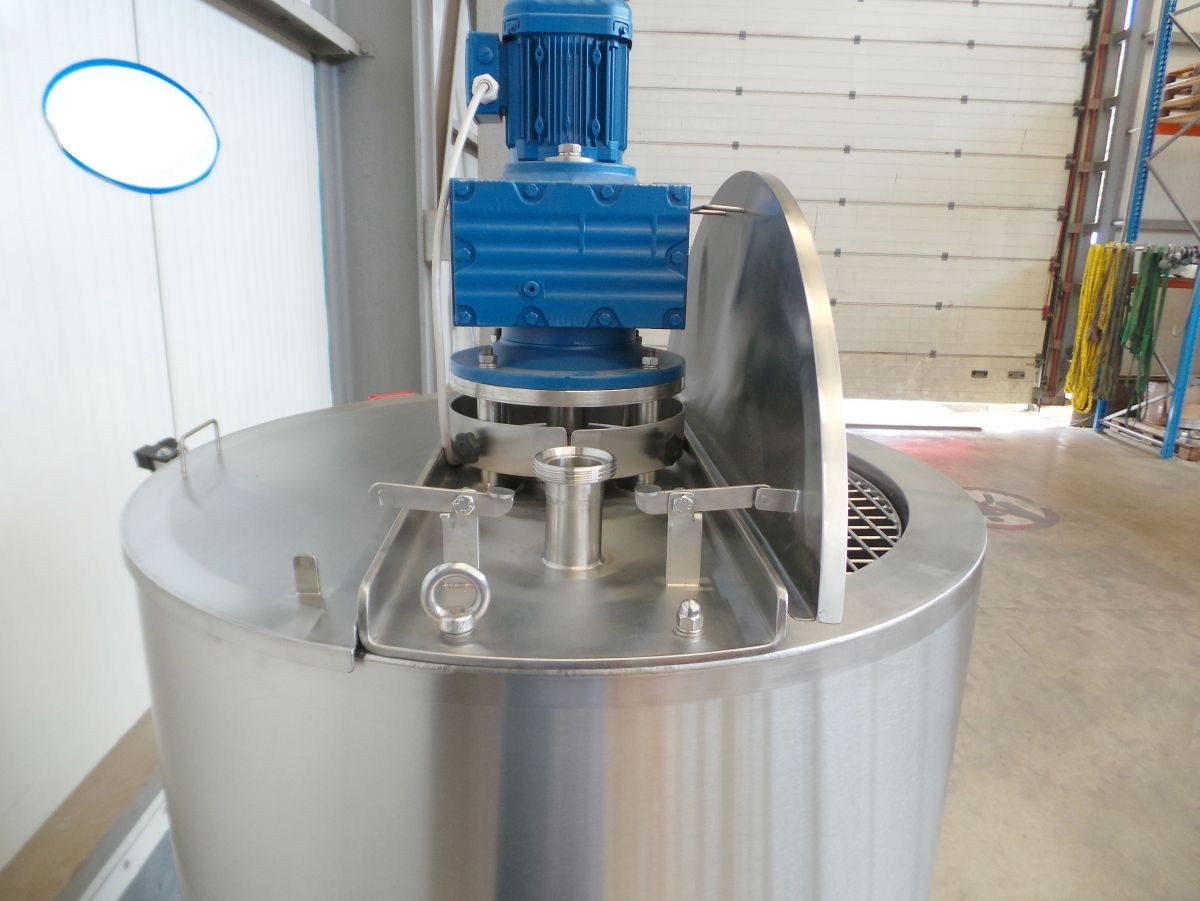

item available on order Article type: brand new mixing tank - type CHC-HILA Additional information: Delivered with food certificate; article price without control panel; see options; (The article can also be purchased without options)   Volumetric volume (L): 500 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: bridge with 2 lids Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 adjustable feet Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Water pressure HE: 5 Bar Steam pressure HE: 3 Bar Hydraulic test pressure: 7,50 Bar Contact surface cylinder: 2 m² Connection HE: 1" BSP Working temperature HE cylinder: 150 °C Type HE: half pipe welded onto the outside of the innertank Type of HE on the bottom: dimple-jacket Water pressure HE: 5 Bar Steam pressure HE: 3 Bar Hydraulic test pressure: 7,50 Bar Contact surface bottom: 0,30 Connection HE: 1" BSP Working temperature HE bottom: 150 °C Heat exchanger: RVS 304 Outer jacket (ornamental wall): RVS 304 Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: no Technical drawing included: yes Registration plate on the tank: no Flange for agitator: no Tank outlet: inside Ø 50 mm Outlet type: DIN11850 male part Agitator type: gate Position engine: at the top Storage below: yes Number of revolutions: 15 Power: 0,75 Voltage: 400 V - three-phase Cylinder: 3 mm Bottom: 3 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Internal diameter tank: 865 mm Distance from outlet to ground: 344 mm Outer diameter tank: 1.005 mm Cylinder height: 1.000 mm Feet height: 425 mm Total height of tank: 2.165 mm Empty weight tank: 560
