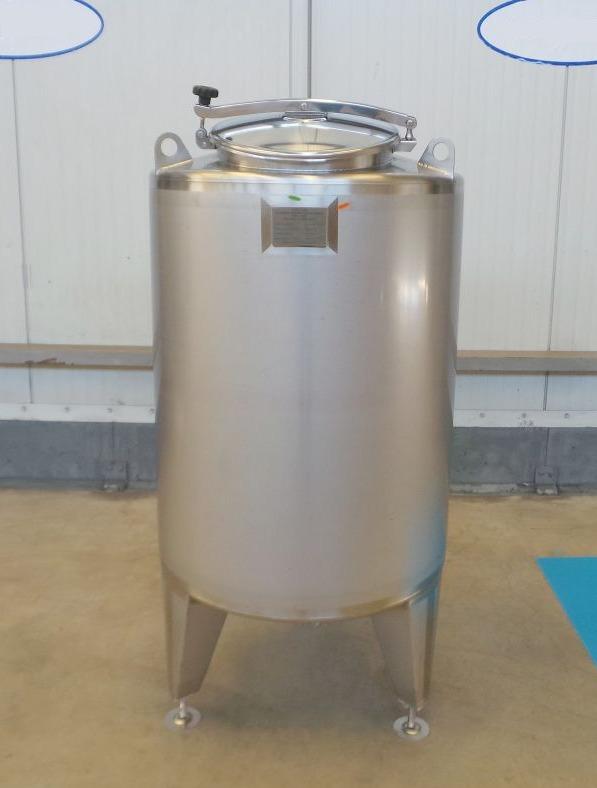

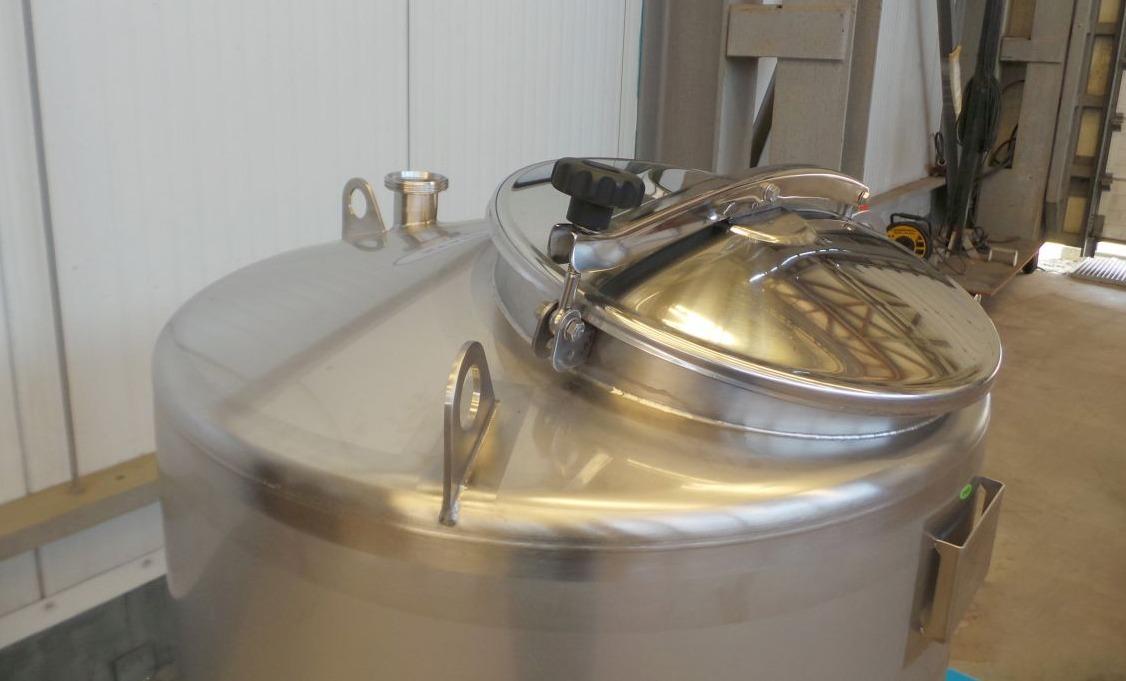

500 liter i Syrafast 316
40,000.00 SEK/st exkl moms
Mer information
Volym i liter | 500 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |

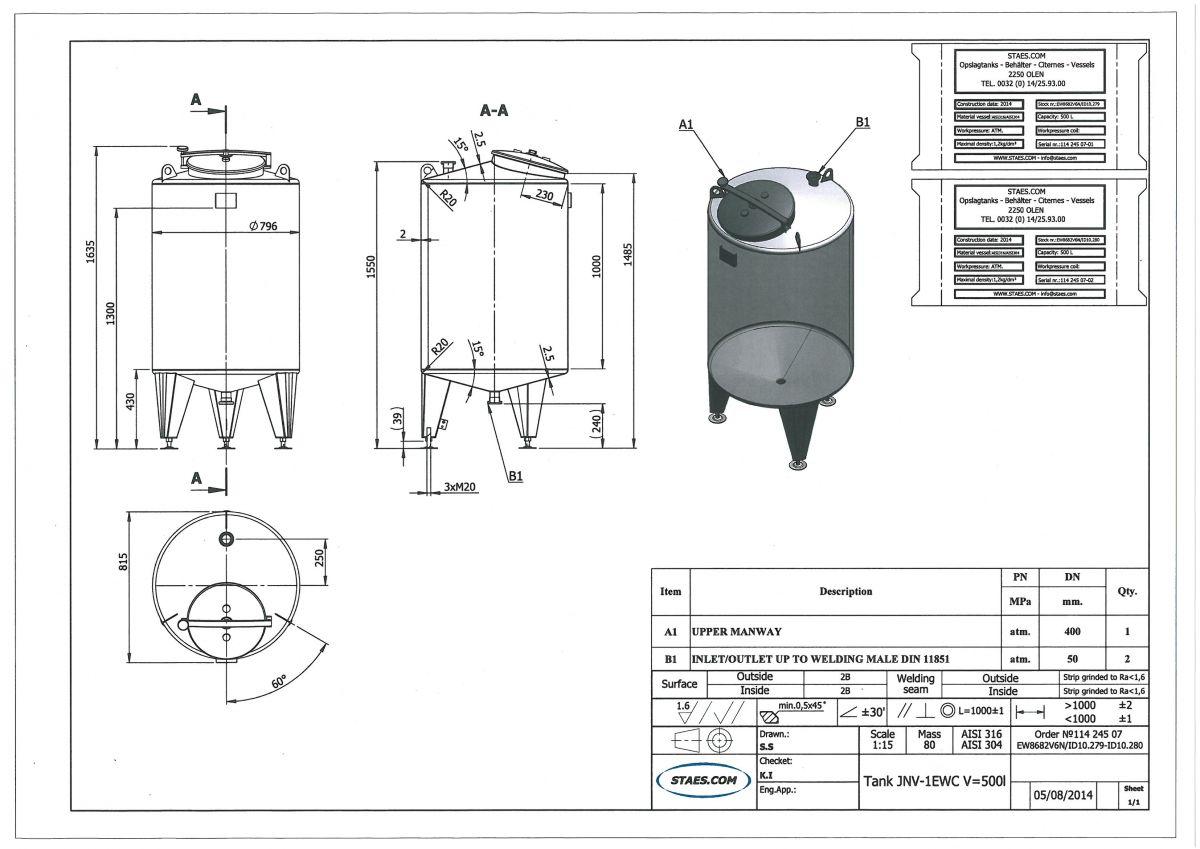

Ritning
ÖppnaArticle type: brand new storage tank – type K-SL
Capacity: 500 L
Maximal density of the product: 1.200
Ra inner weld: 1,60
Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no
Top type: conical 15 %
Shape of tank: cylindrical

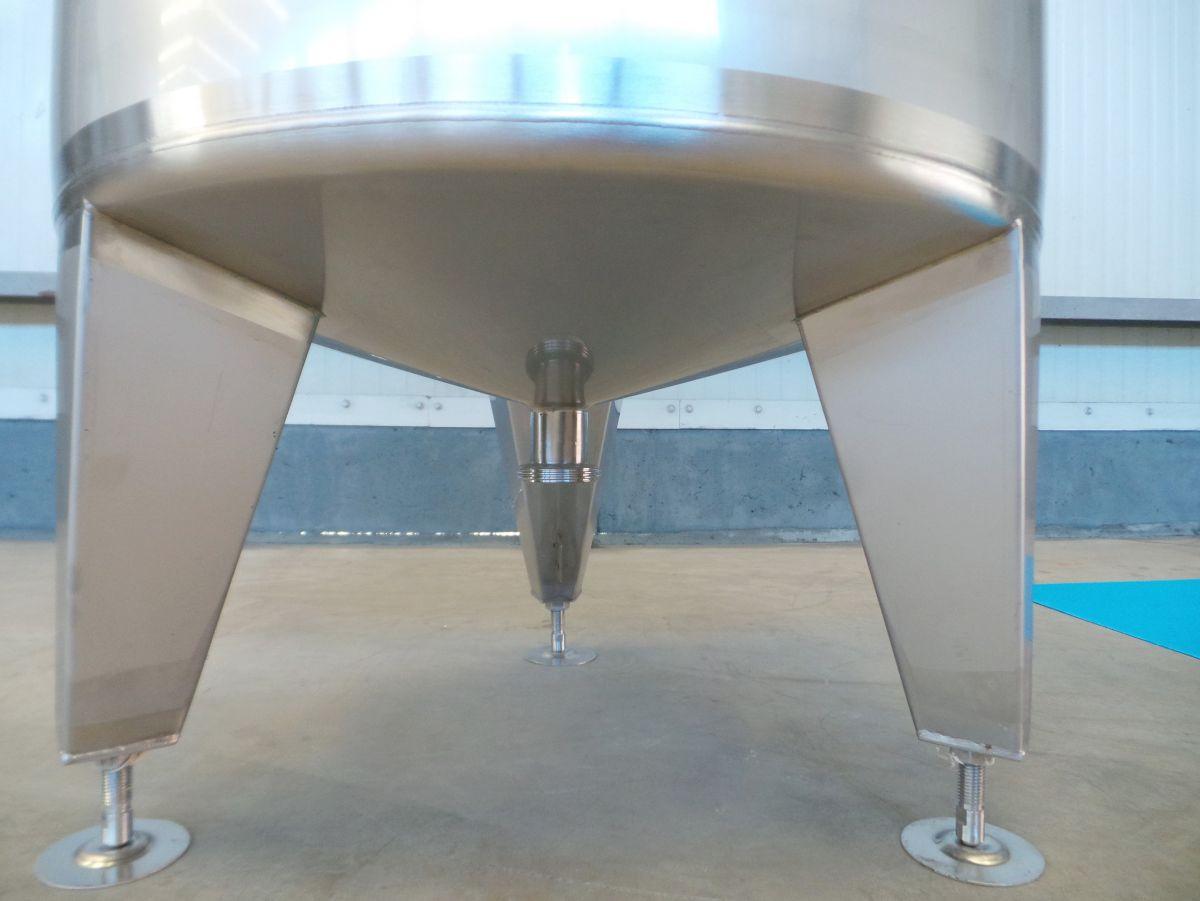

Bottom type: conical 15 %
Total discharge: yes
Fixation points: 3 adjustable feet
Legs: Set of baseplates and adjusting pieces included
Manway(s): RVS 316
Valve: RVS 316L
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no
Number of manways: 1
Position manway: at the top

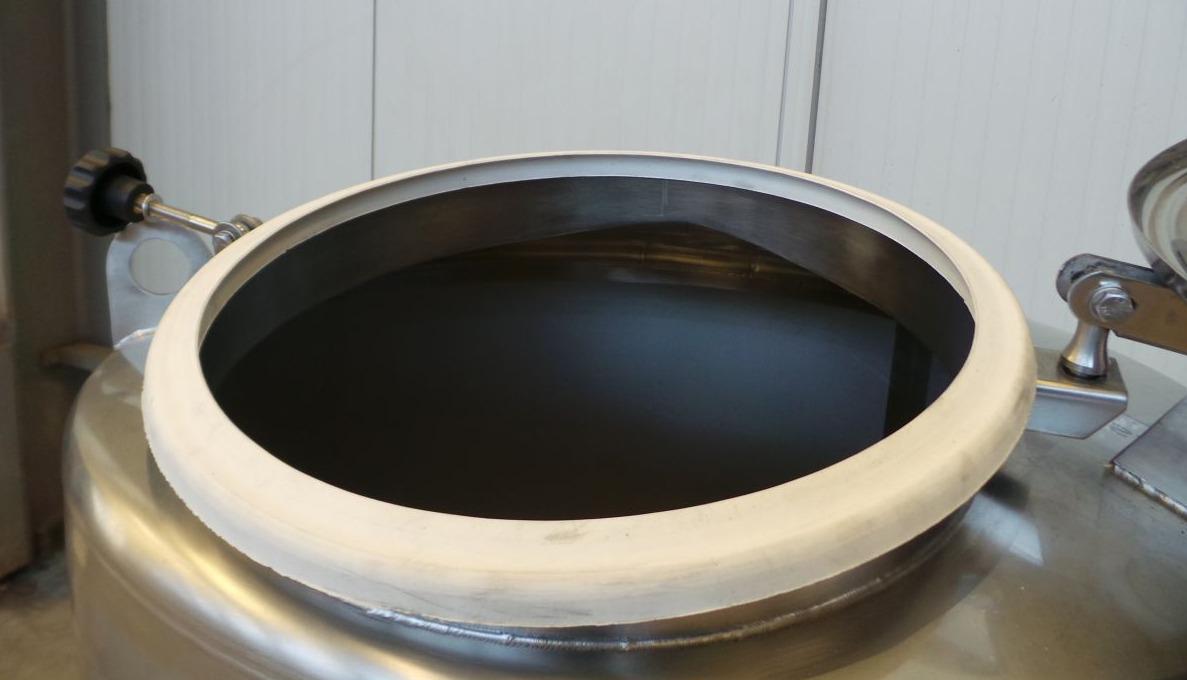

Manway 1: 400 mm

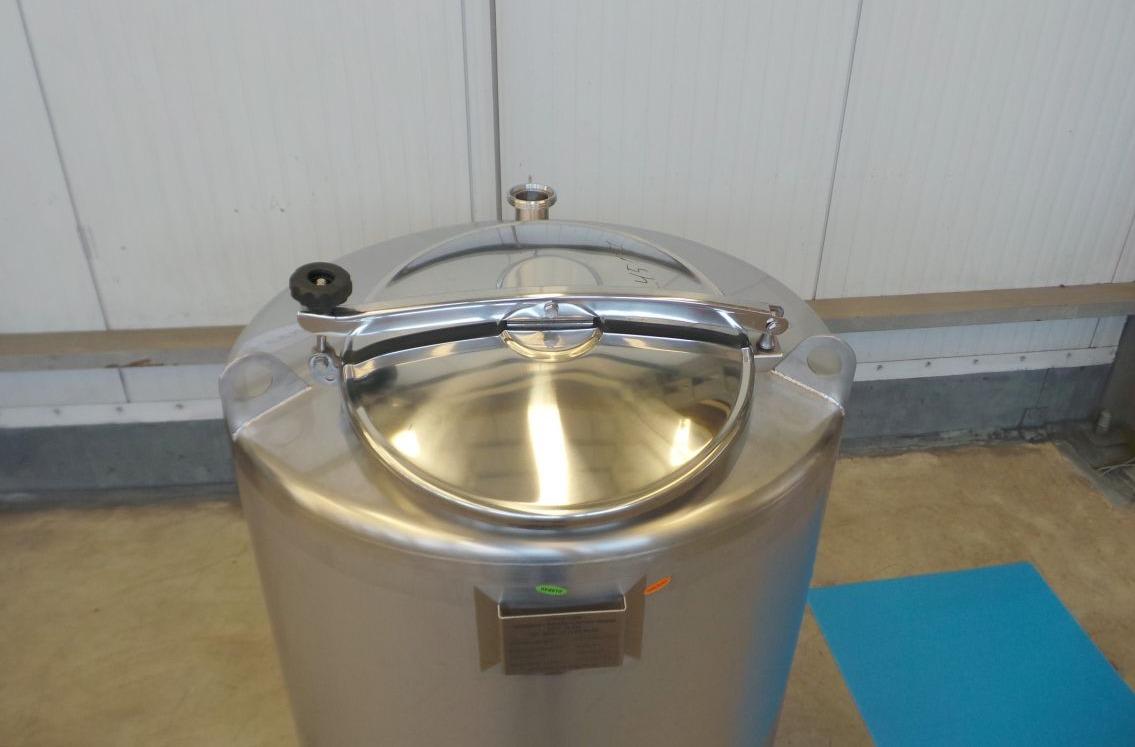

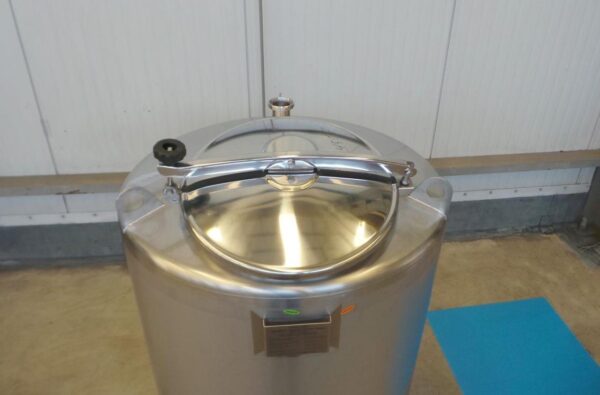

Hinged lid: yes
Spray ball: no

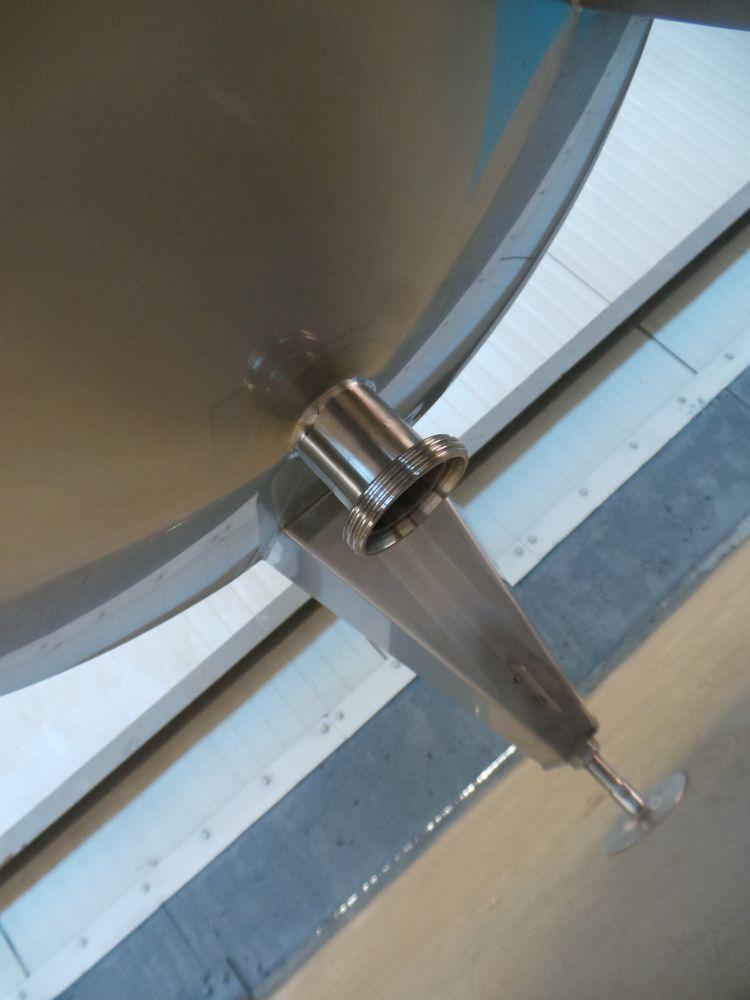

Tank outlet: inside Ø 50 mm
Outlet type: DIN11851
Total outlet valve: yes, optional
Adjustable legs: yes
Top: 2,50 mm
Cylinder: 2 mm
Bottom: 2,50 mm
Distance from outlet to ground: 240 mm
Outer diameter tank: 796 mm
Cylinder height: 1.000 mm
Total height of tank: 1.635 mm
Empty weight tank: 80
