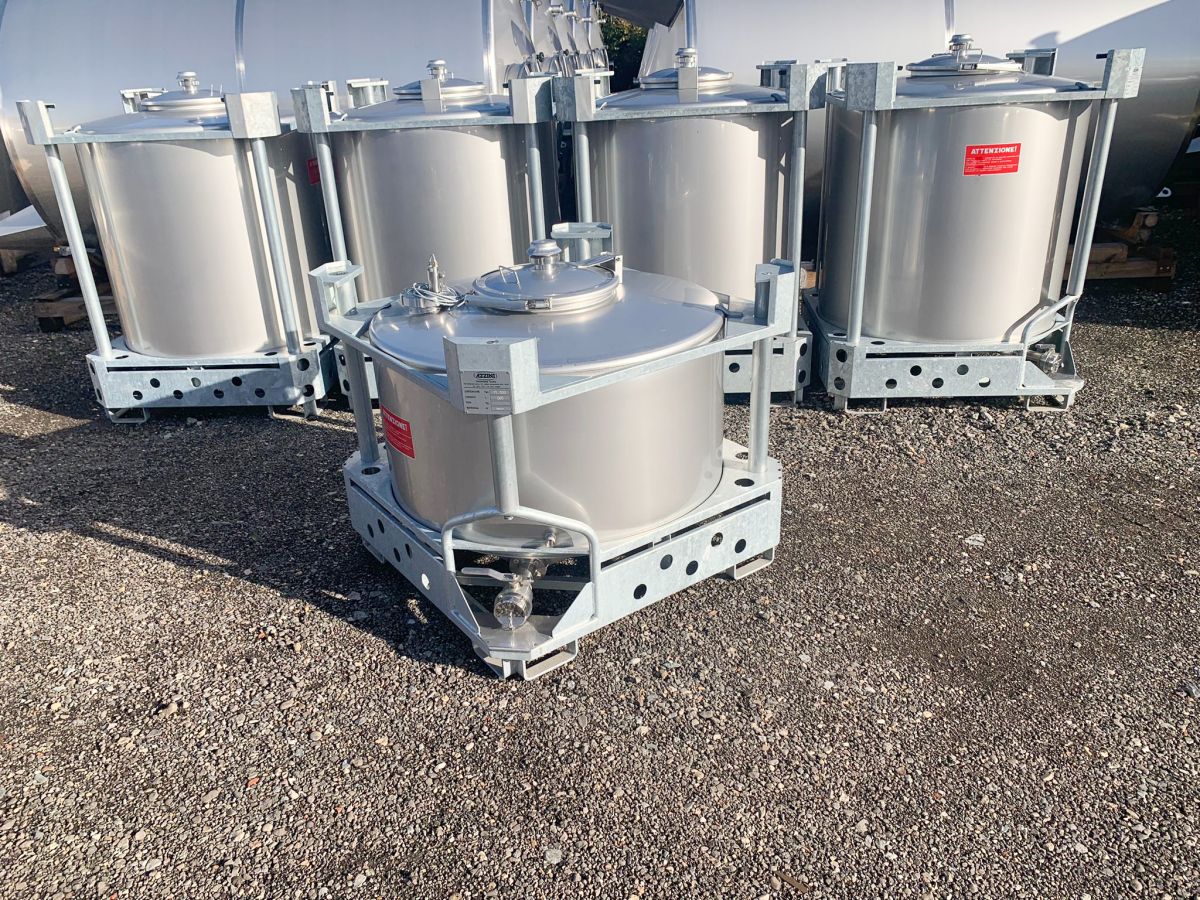

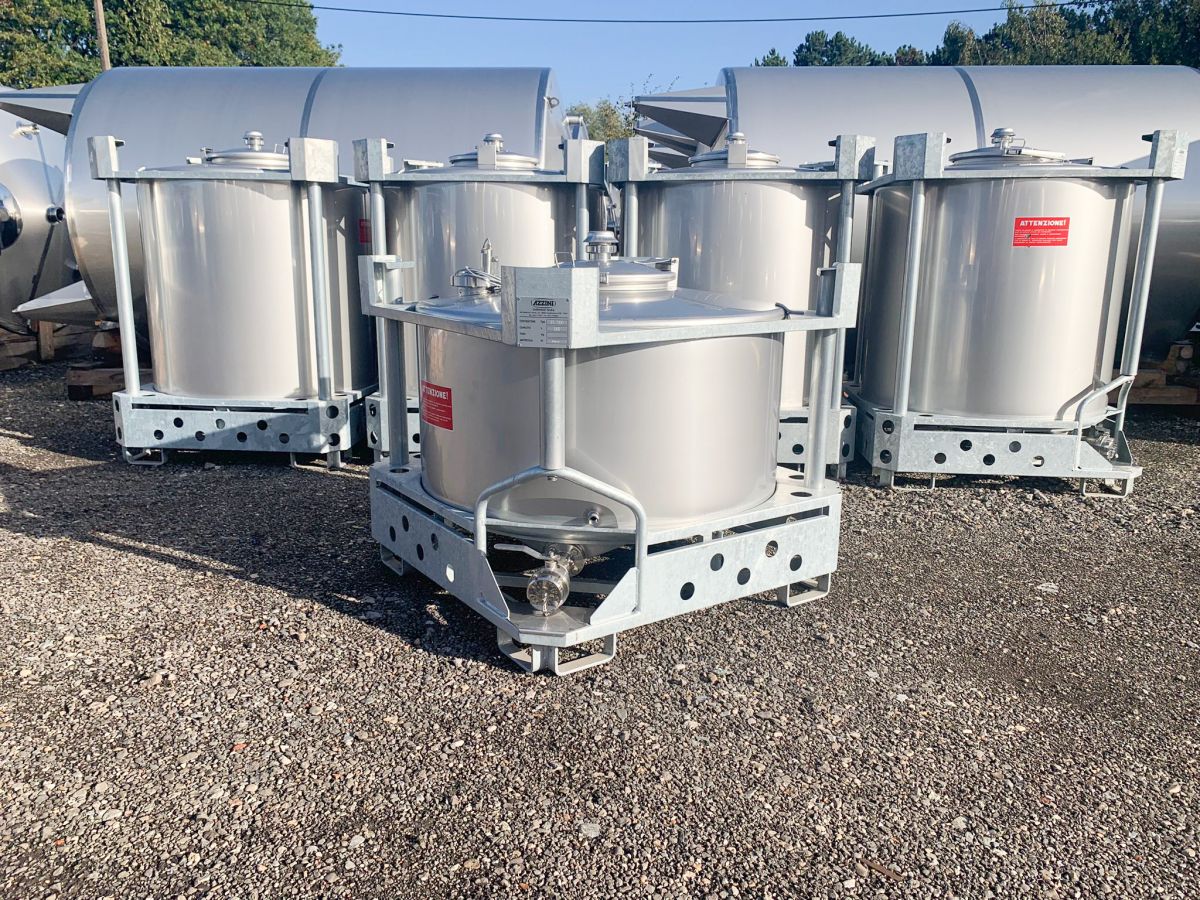

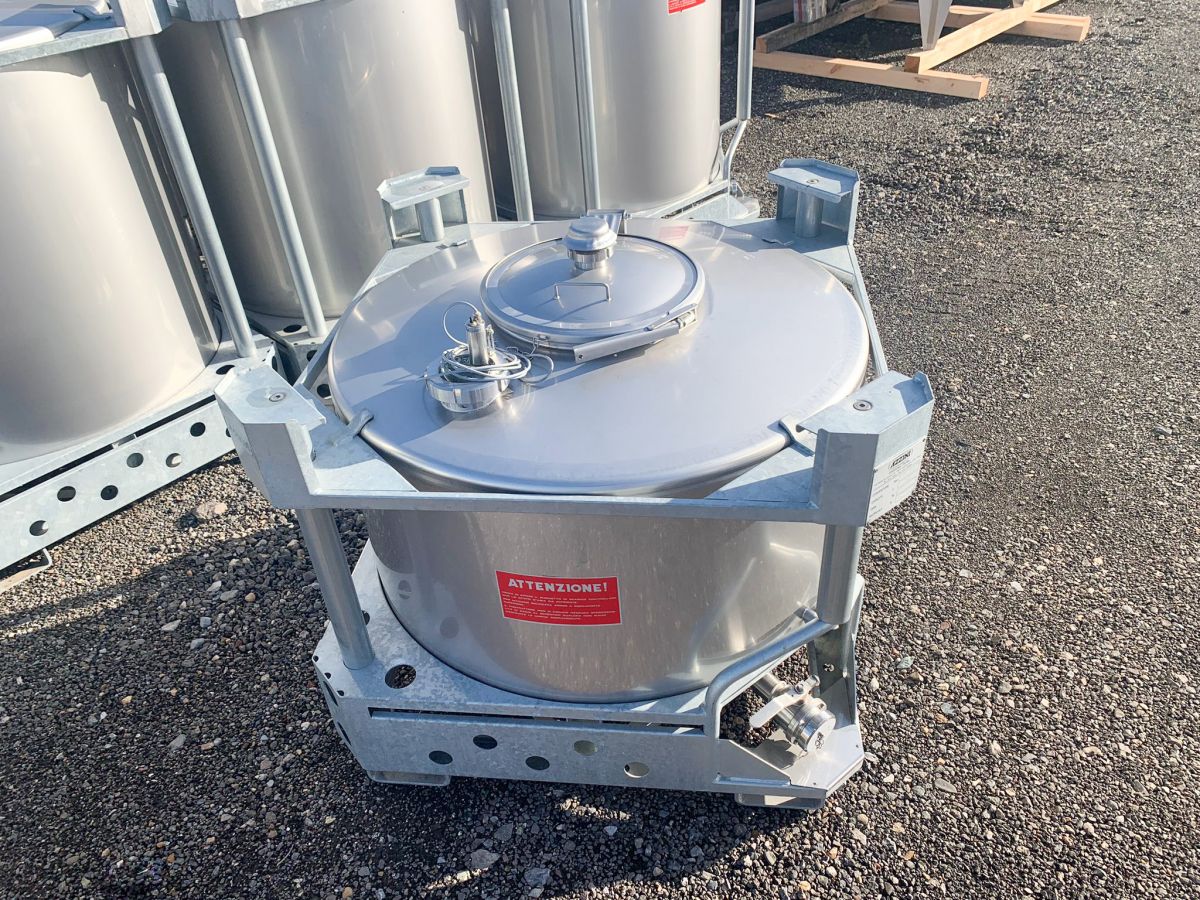

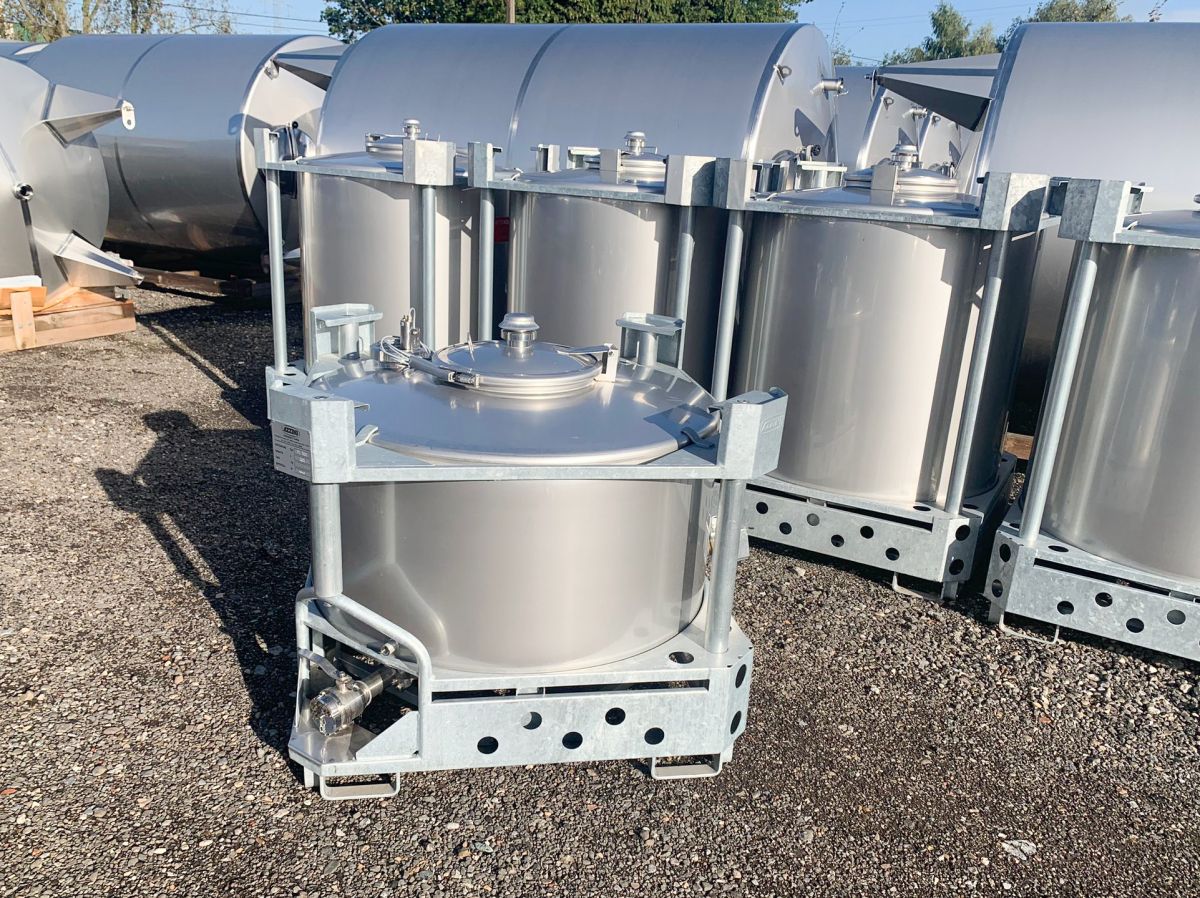

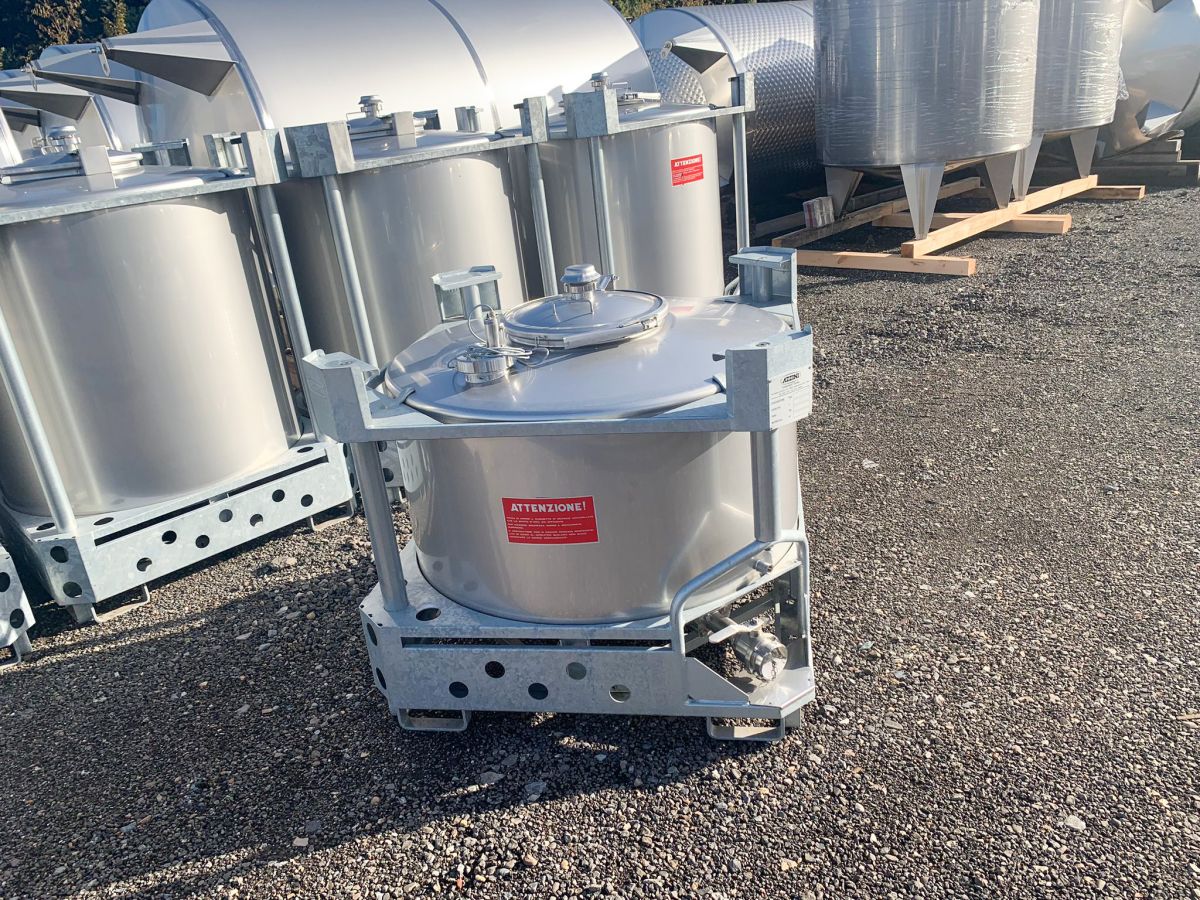

500 liter tank i Rostfritt 304

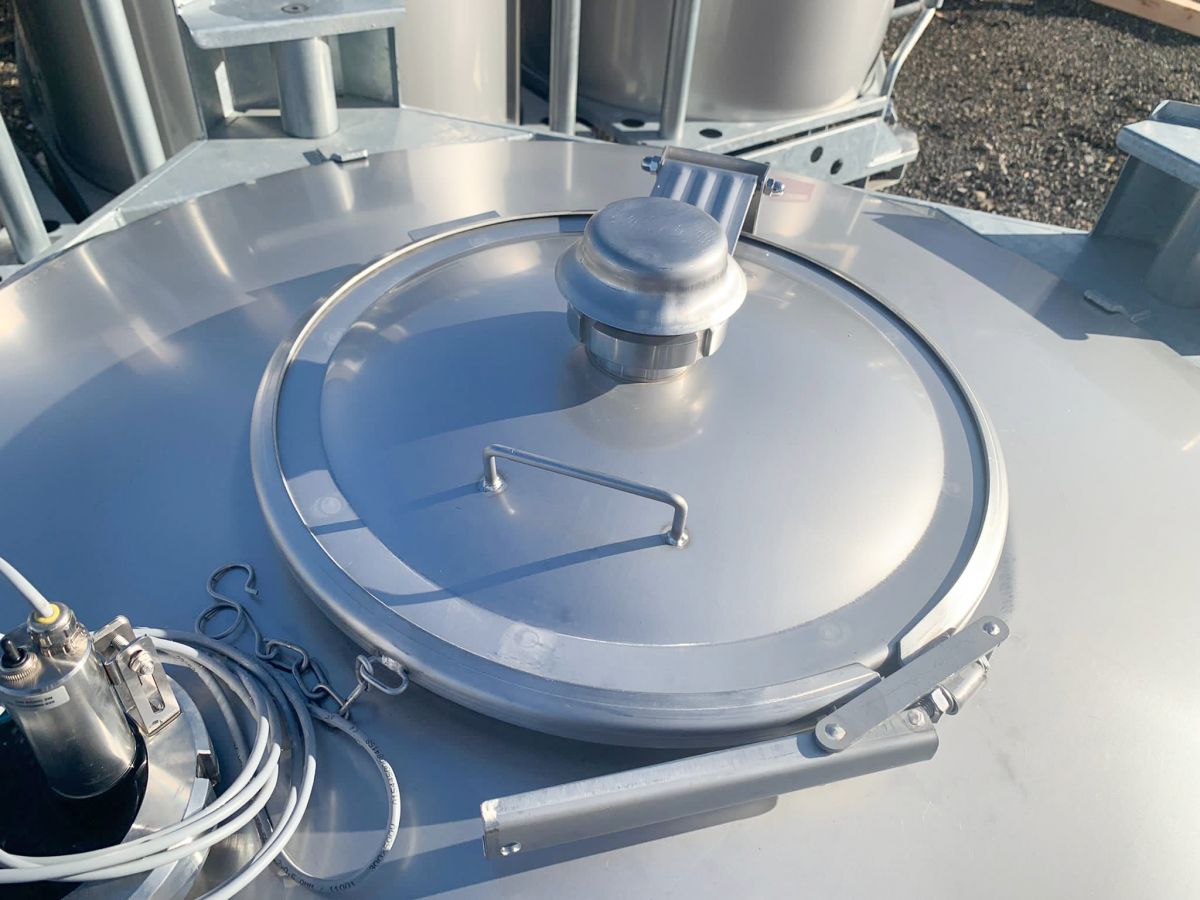

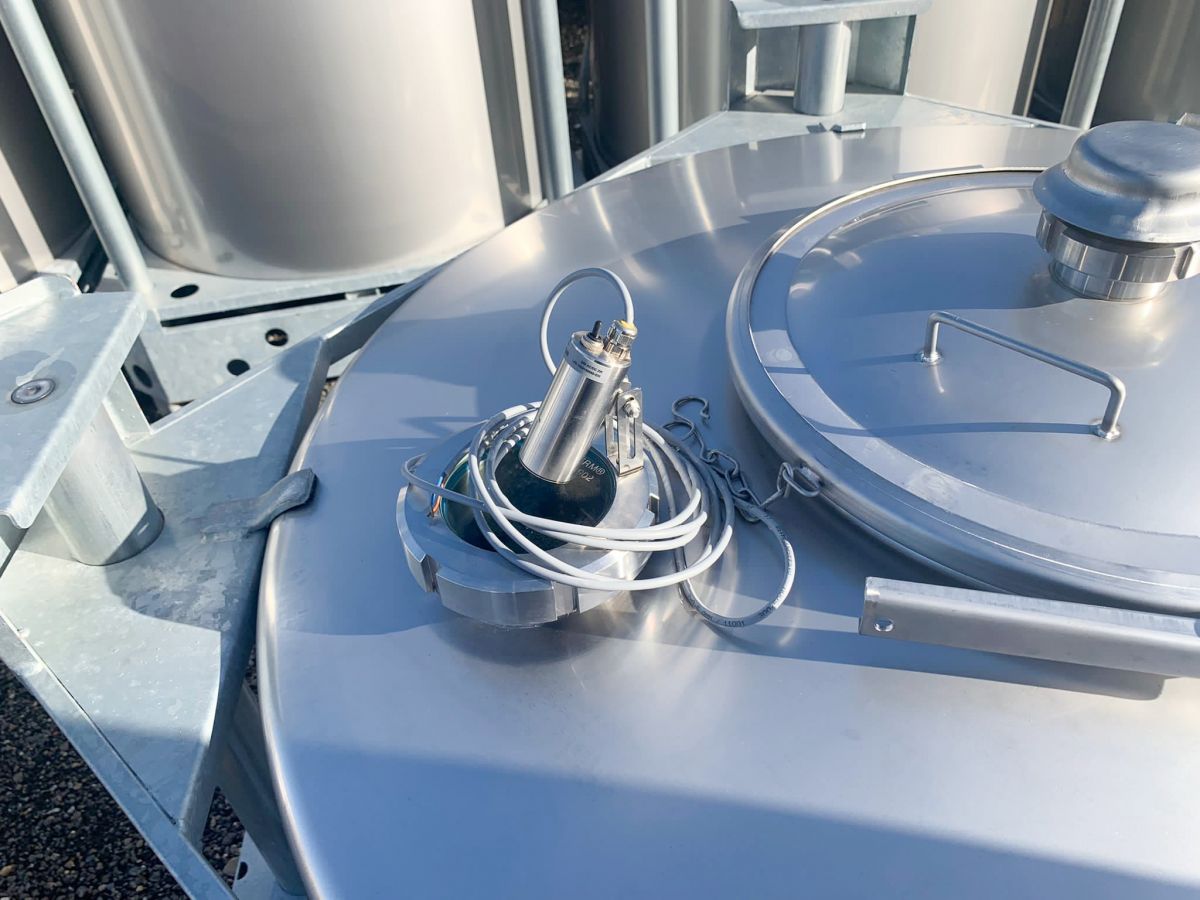

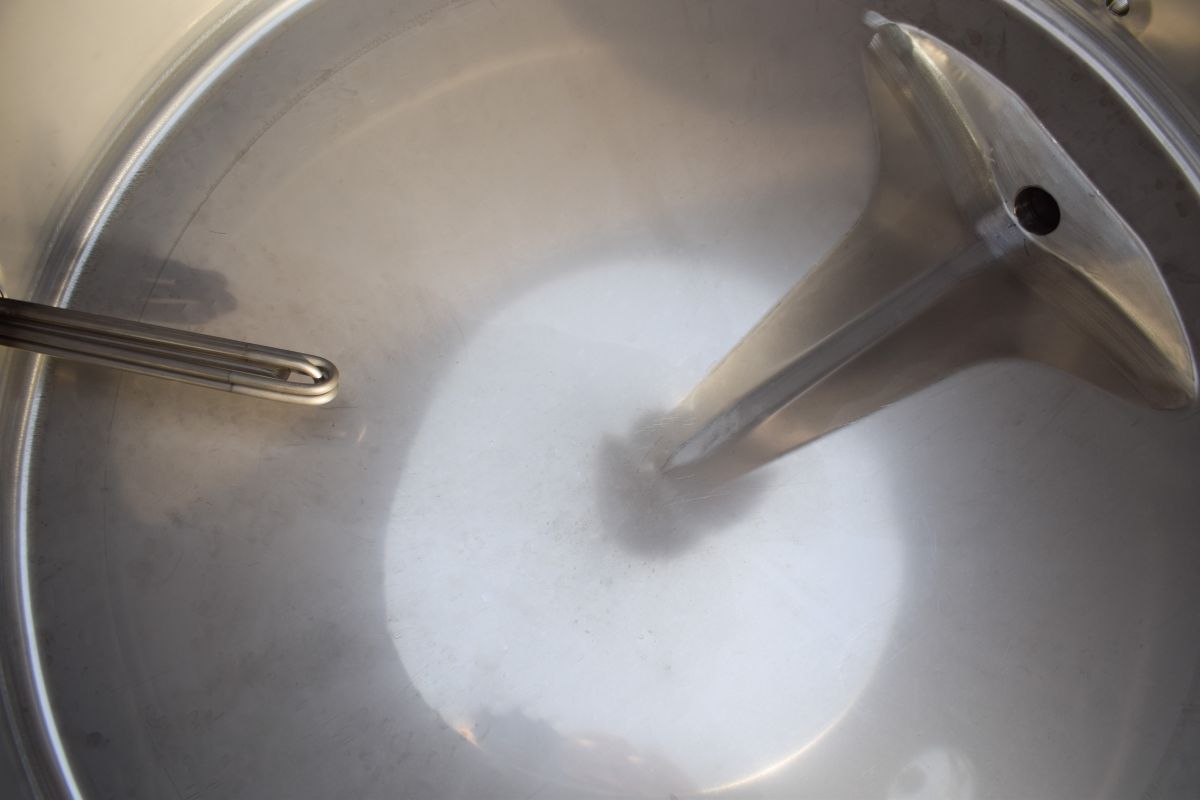

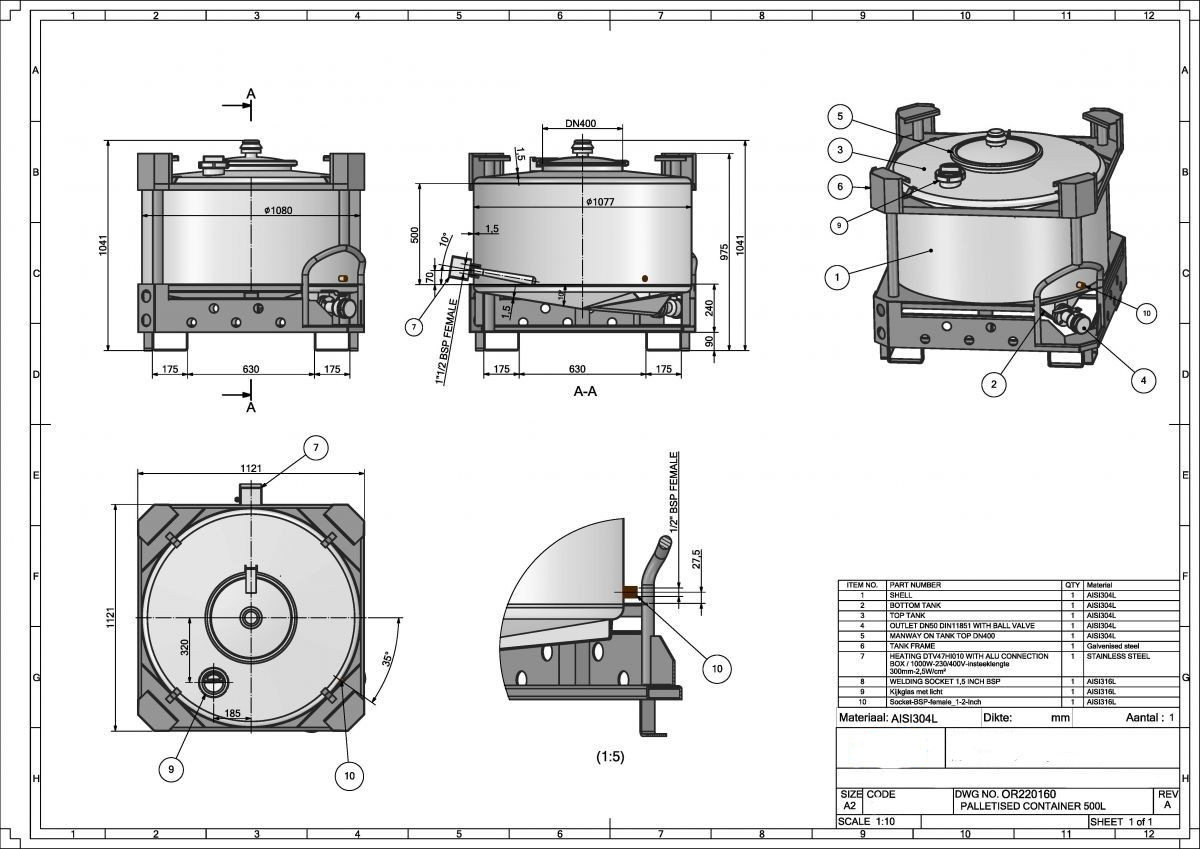

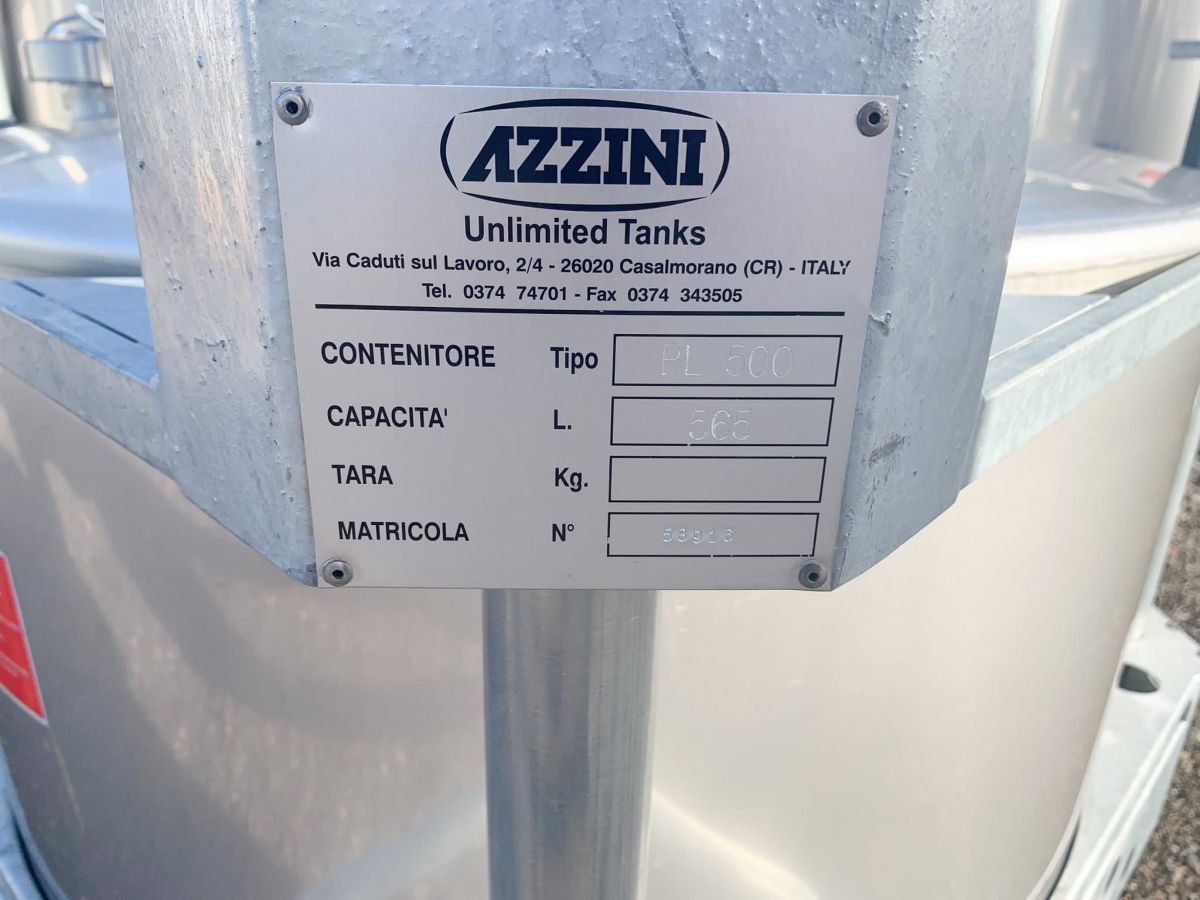

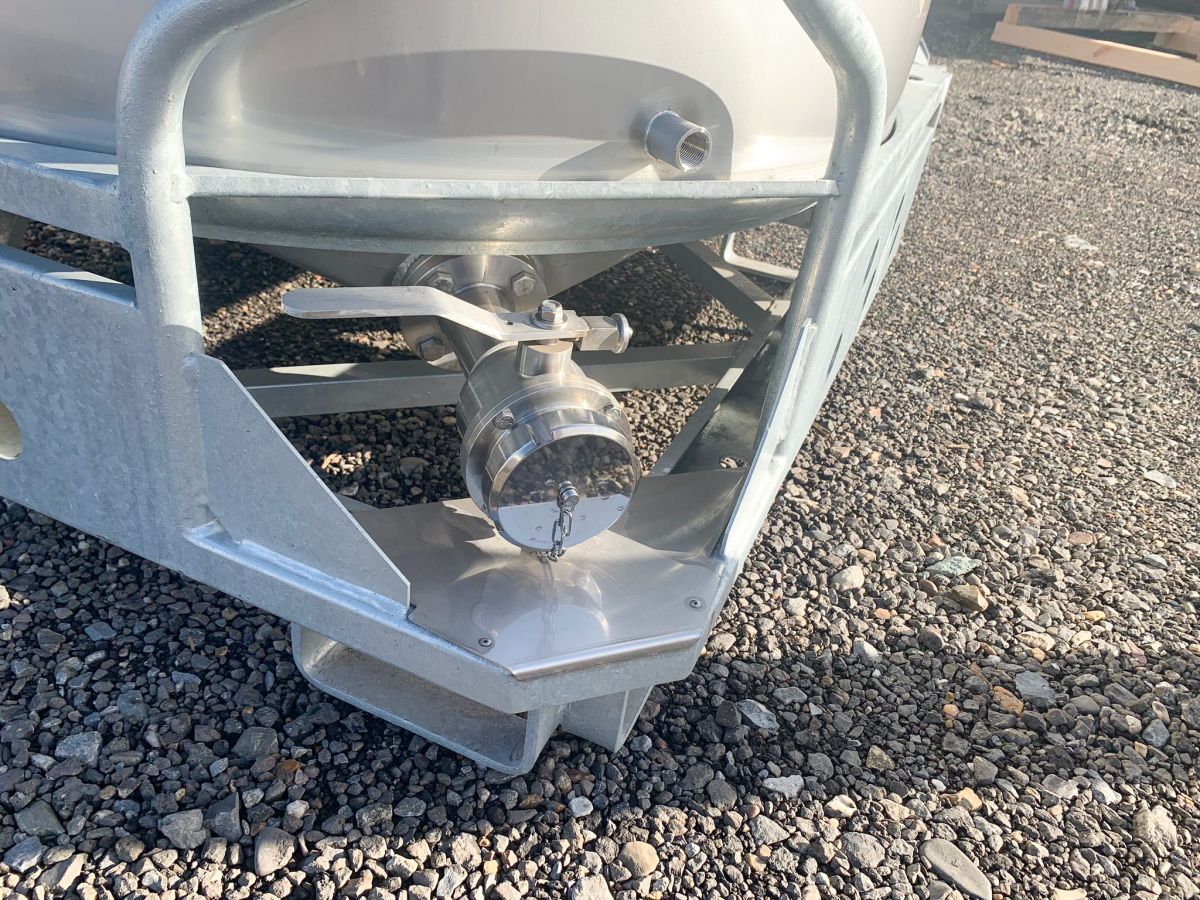

Article type: second-hand storage tank Additional information: Immersion resistance DIRAC 1000W - 120°C - 230/400V; Sight glass with lighting. The tank has never been used. Volumetric volume (L): 500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: yes Insulation: no Mobile tank: no Top type: dished Shape of tank: cylindrical Bottom type: flat sloping Wall type: flat Bottom outlet: yes Total discharge: yes Fixation points: 4 stackable frame Manway(s): RVS 304 Valve: RVS 304 Fixation point(s): galvanised steel Suitable for food industry: no Documents included: no Technical drawing included: yes Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Position of manway: at the top Outlet of tank: DN50 Total outlet valve: yes Outer diameter tank: 1.080 mm Cylinder height: 500 mm Height of top: 1.041 mm Total height of tank: 1.041 mm Total outer width: 1.121 mm
