500 liter i Syrafast 316
49,000.00 SEK/st exkl moms
Mer information
Volym i liter | 500 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Trycktank | Ja |

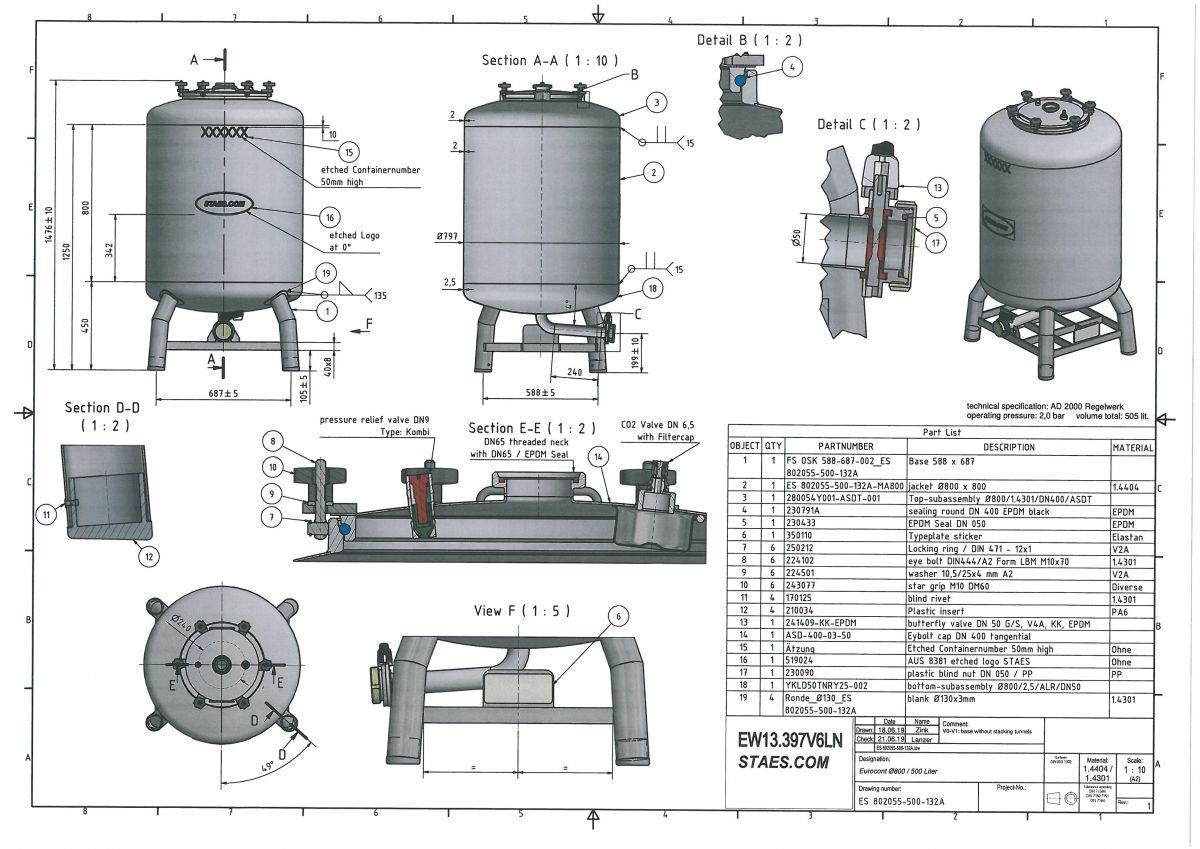

Ritning
ÖppnaArticle type: brand new pressure tank – type BBT-ES-SL
Capacity: 500 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Working pressure in tank: pressure
Design pressure of the tank: 3,40 Bar
Overpressure: 2 Bar
Max. working temperature: -10 °C
Min. working temperature: 130 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no
Top type: dished
Shape of tank: cylindrical
Bottom type: dished
Total discharge: yes
Fixation points: 4 non adjustable feet
Manway(s): RVS 316
Gasket manway(s): EPDM
Valve: RVS 316
Gasket shut-off valve (mat): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no
Number of manways: 1
Position manway: at the top
Manway 1: 400 mm
Spray ball: yes, optional
Tank outlet: inside Ø 50 mm
Outlet type: DIN11851 male
Total outlet valve: yes
Type shut-off valve: butterfly valve
Top: 2 mm
Cylinder: 2 mm
Bottom: 2,50 mm
Distance from outlet to ground: 200 mm
Outer diameter tank: 797 mm
Cylinder height: 800 mm
Total height of tank: 1.476 mm
Empty weight tank: 180
