450 liter tank i Syrafast 316
Art.nr: 86272
52,000,00 kr /st exkl moms
Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:
Lagersaldo:
Slut i lager

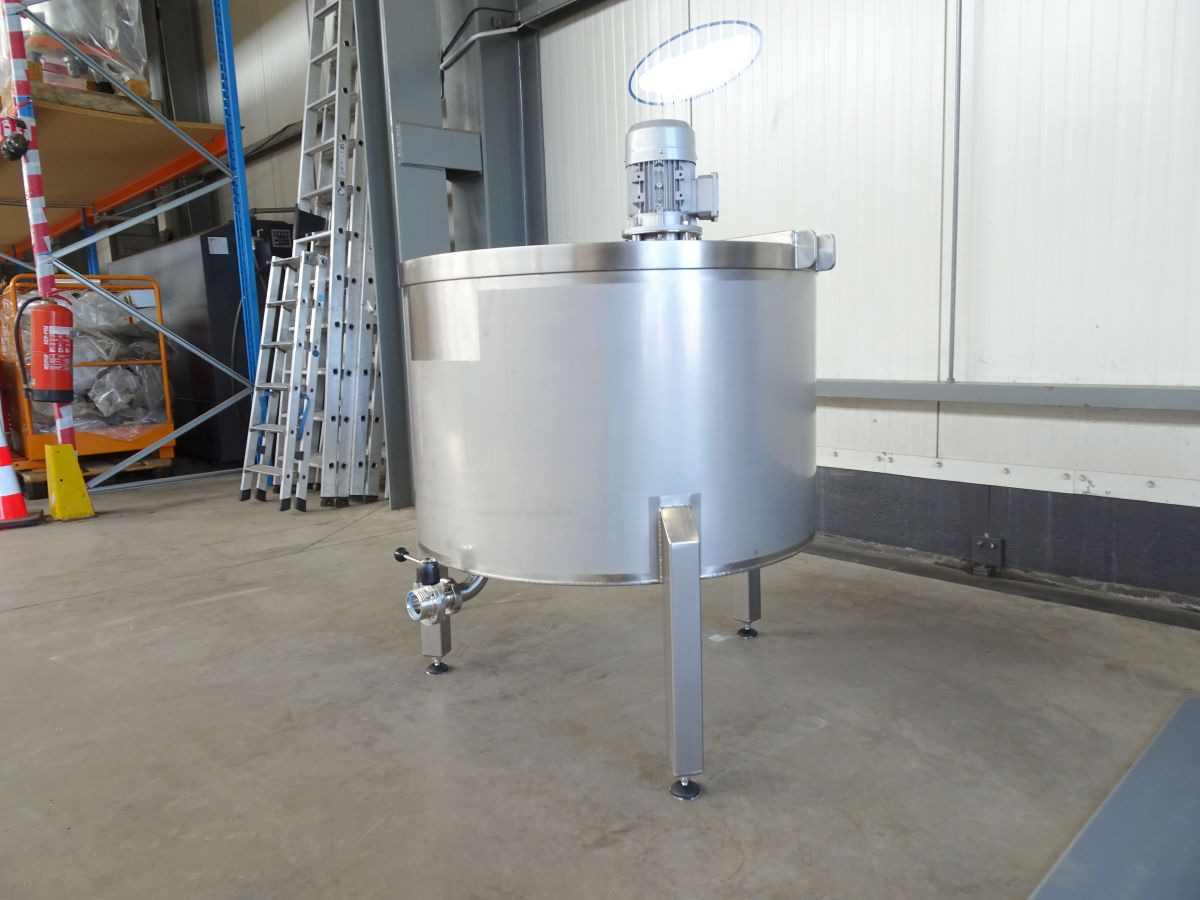

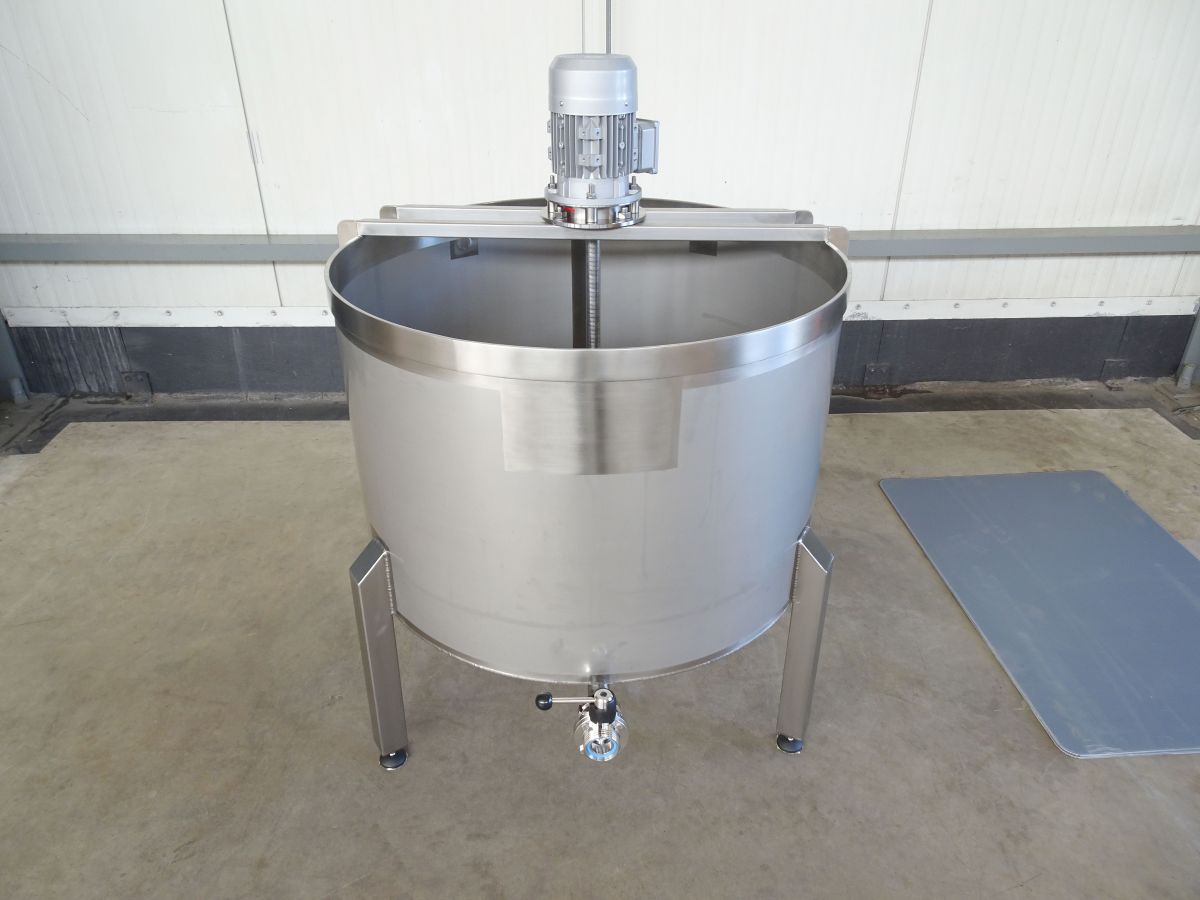

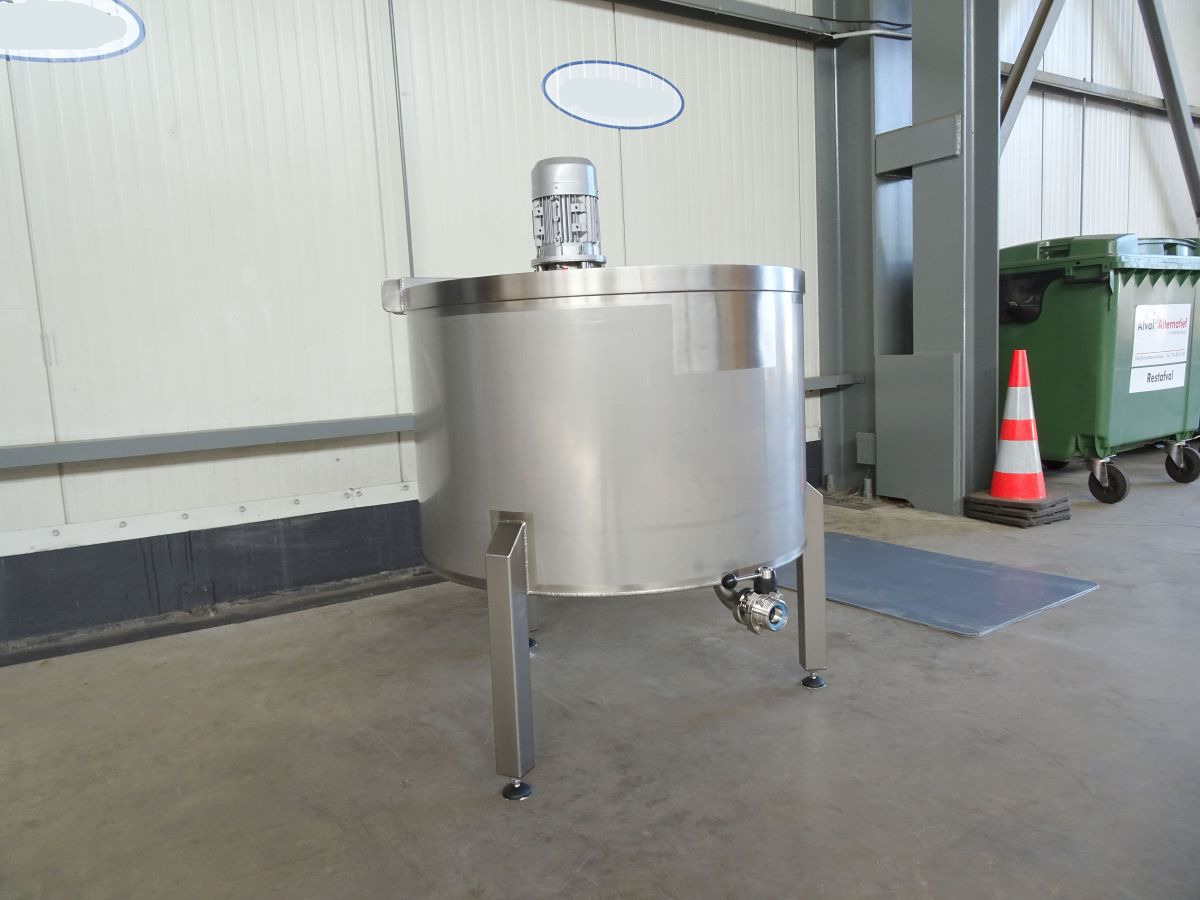

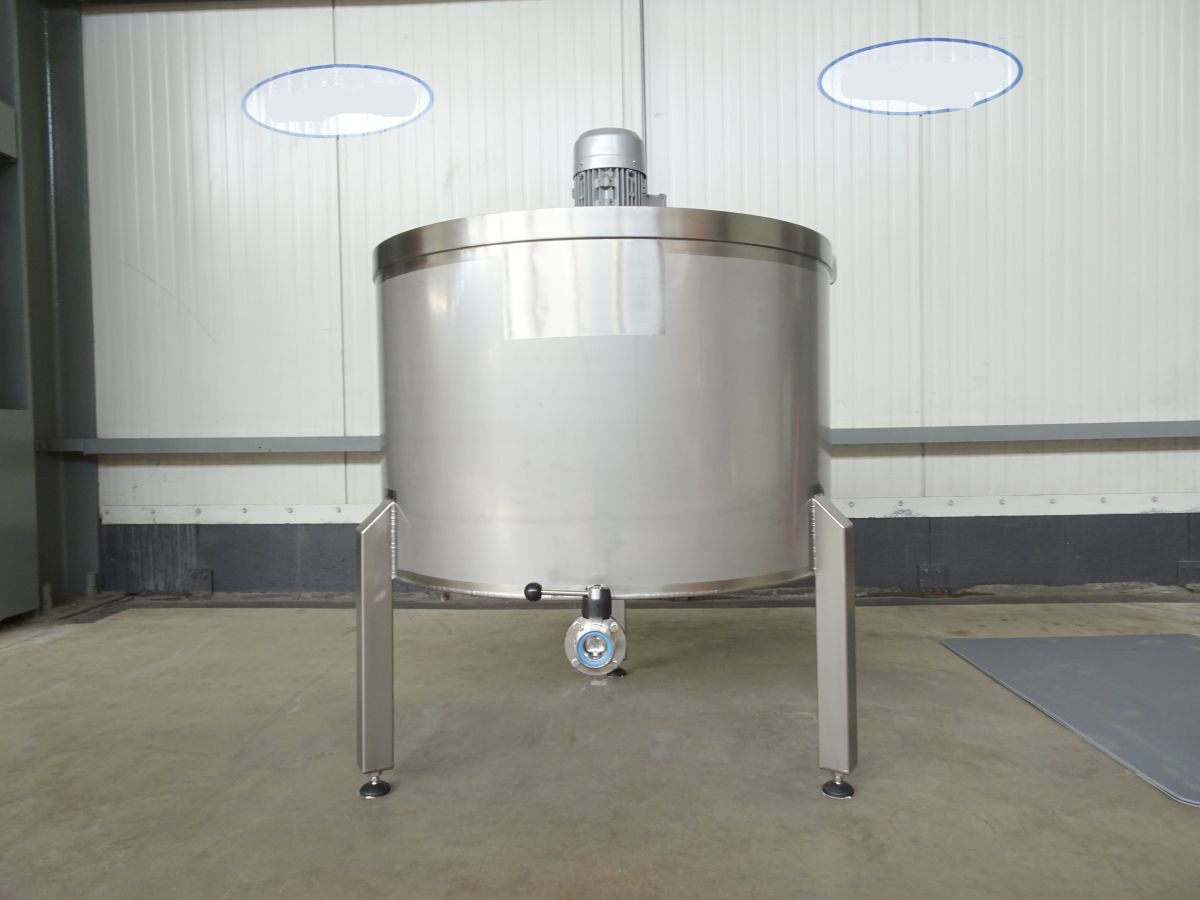

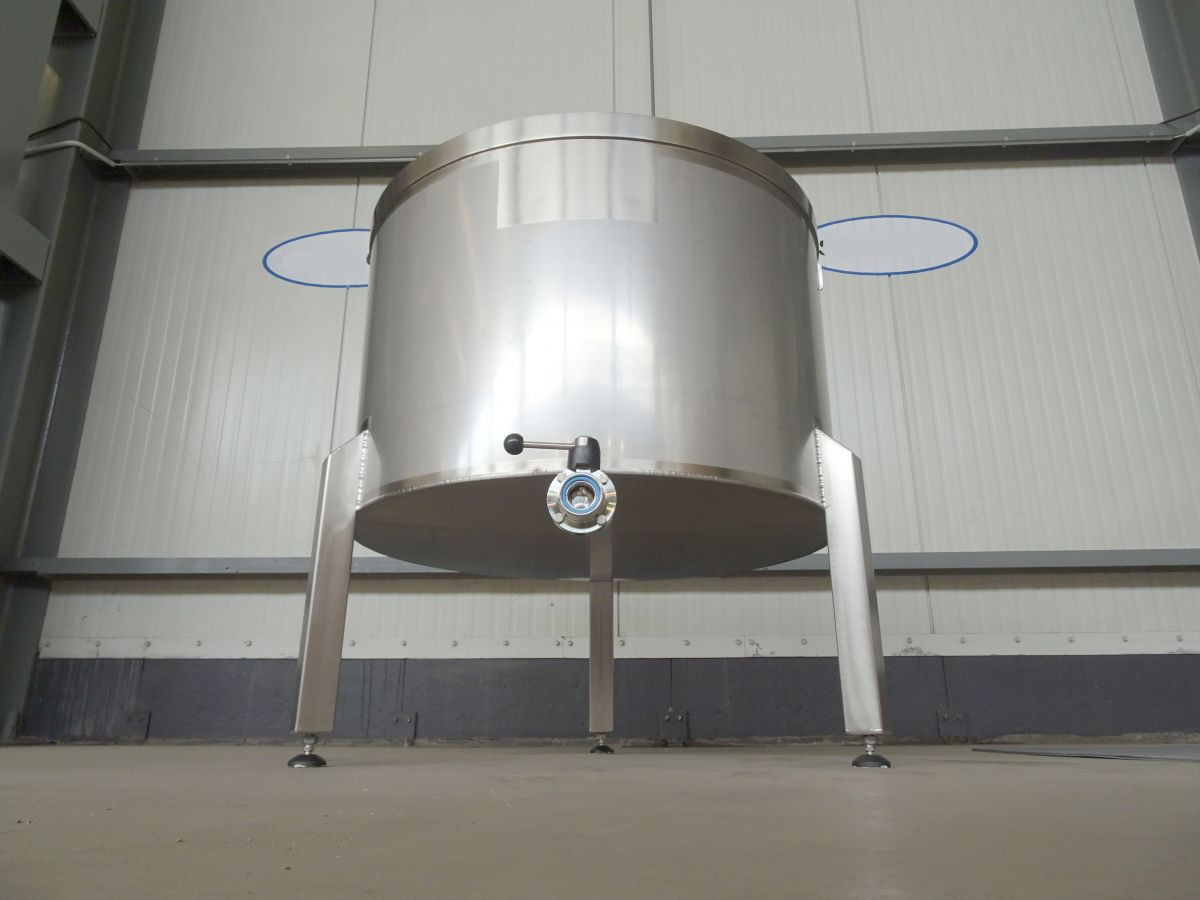

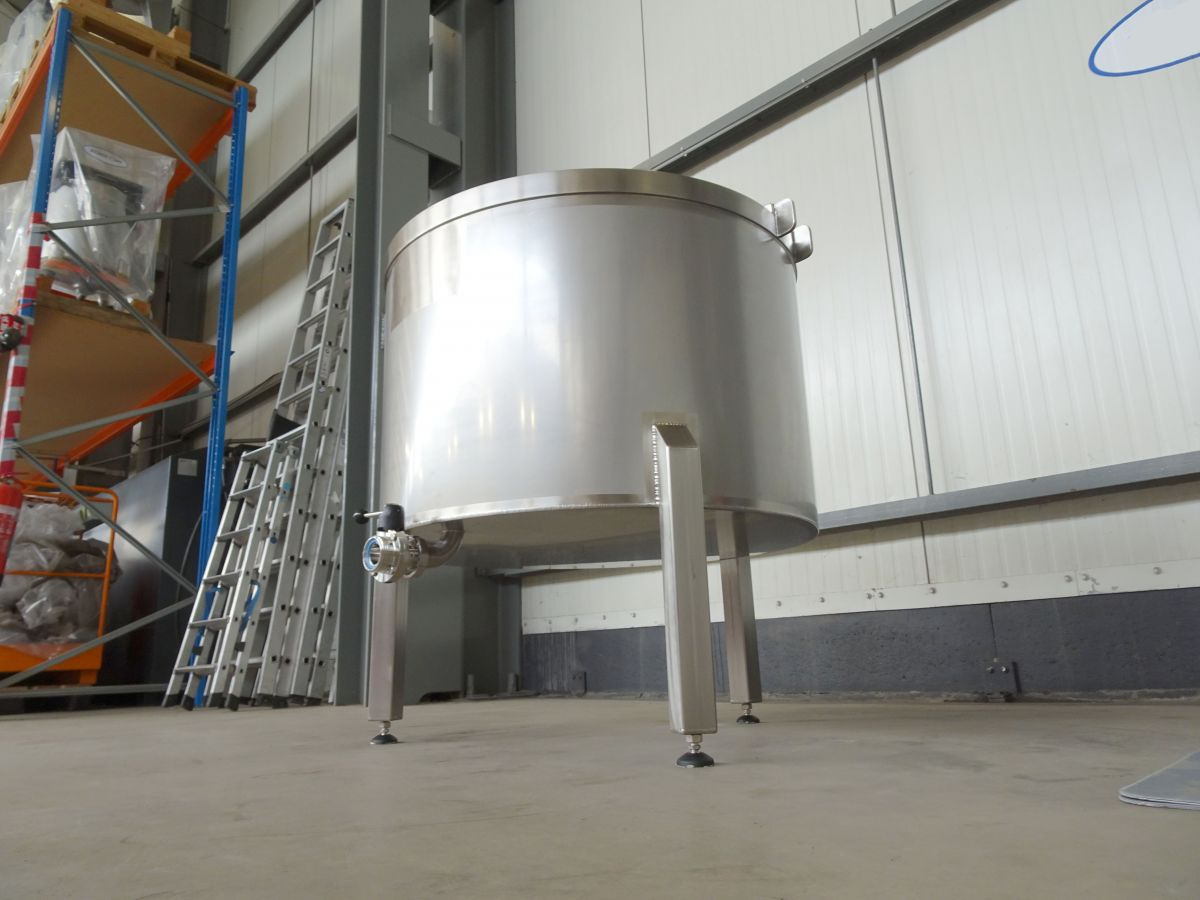

450 liter tank i Syrafast 316
Article type: second-hand mixing tank
Additional information: Never used, new agitator, new butterfly valve tap; we can’t give any guarantees about the agitator
Volumetric volume (L): 450 L
Max. density P (kg/m³): 1
Finish stainless steel: 2B
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Shape of tank: cylindrical

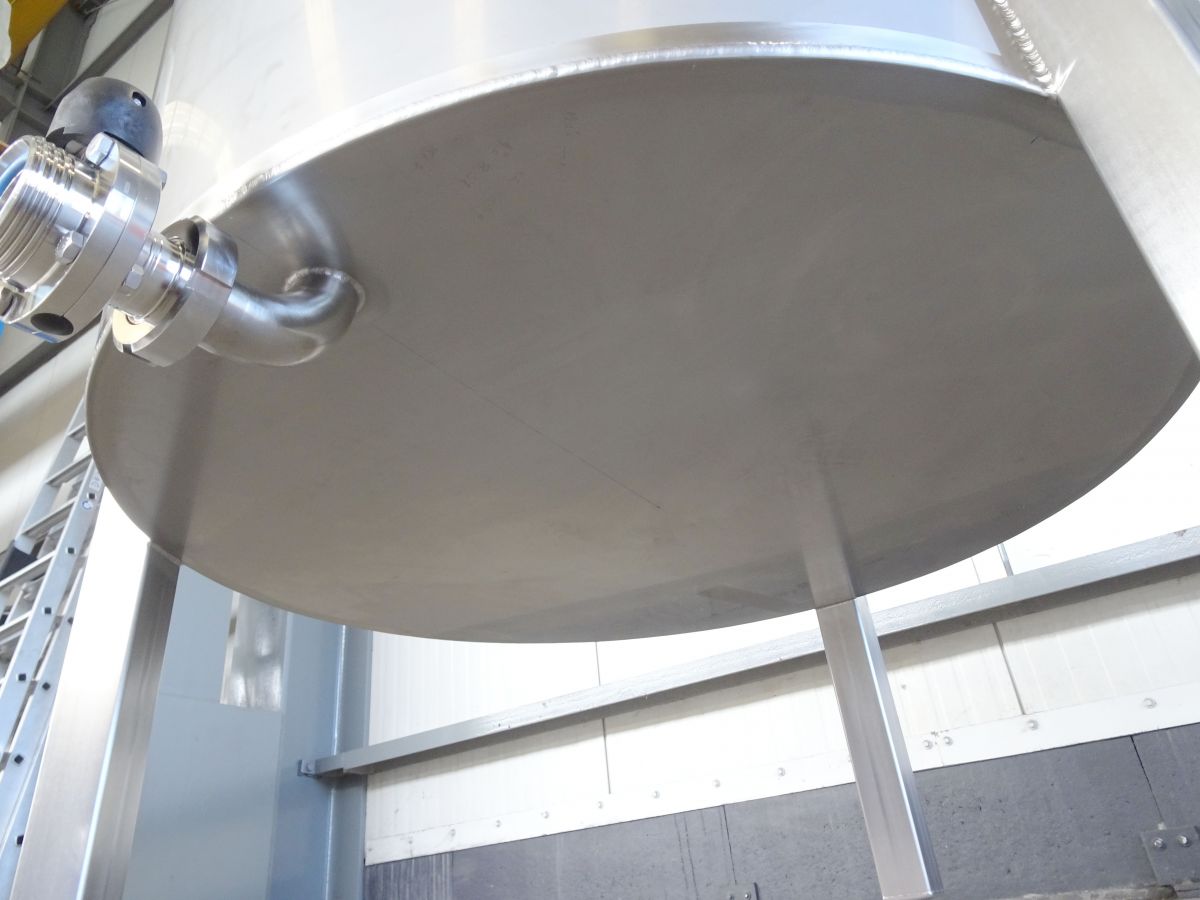

Bottom type: flat
Total discharge: yes
Fixation points: 3 adjustable feet
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no
Tank outlet: inside Ø 40 mm
Outlet type: DIN11851

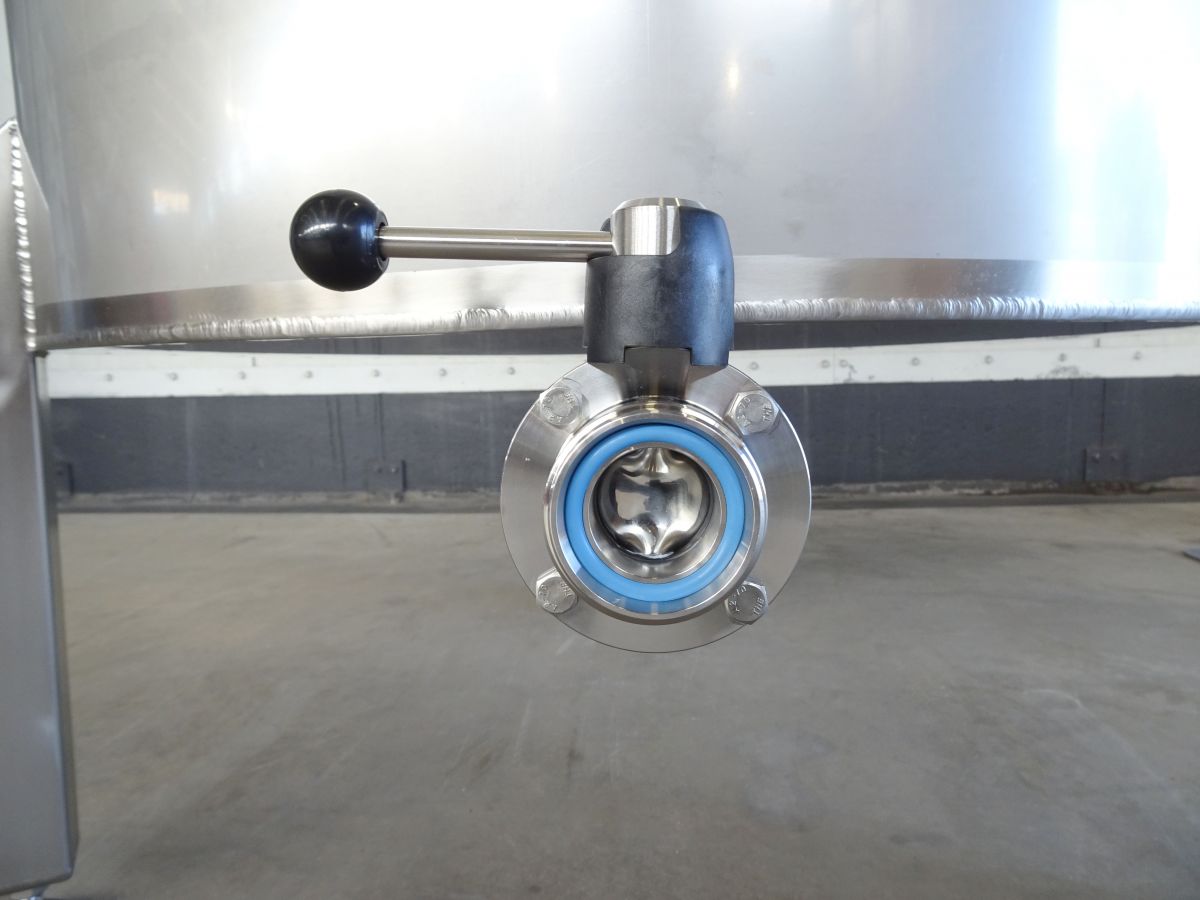

Total outlet valve: yes

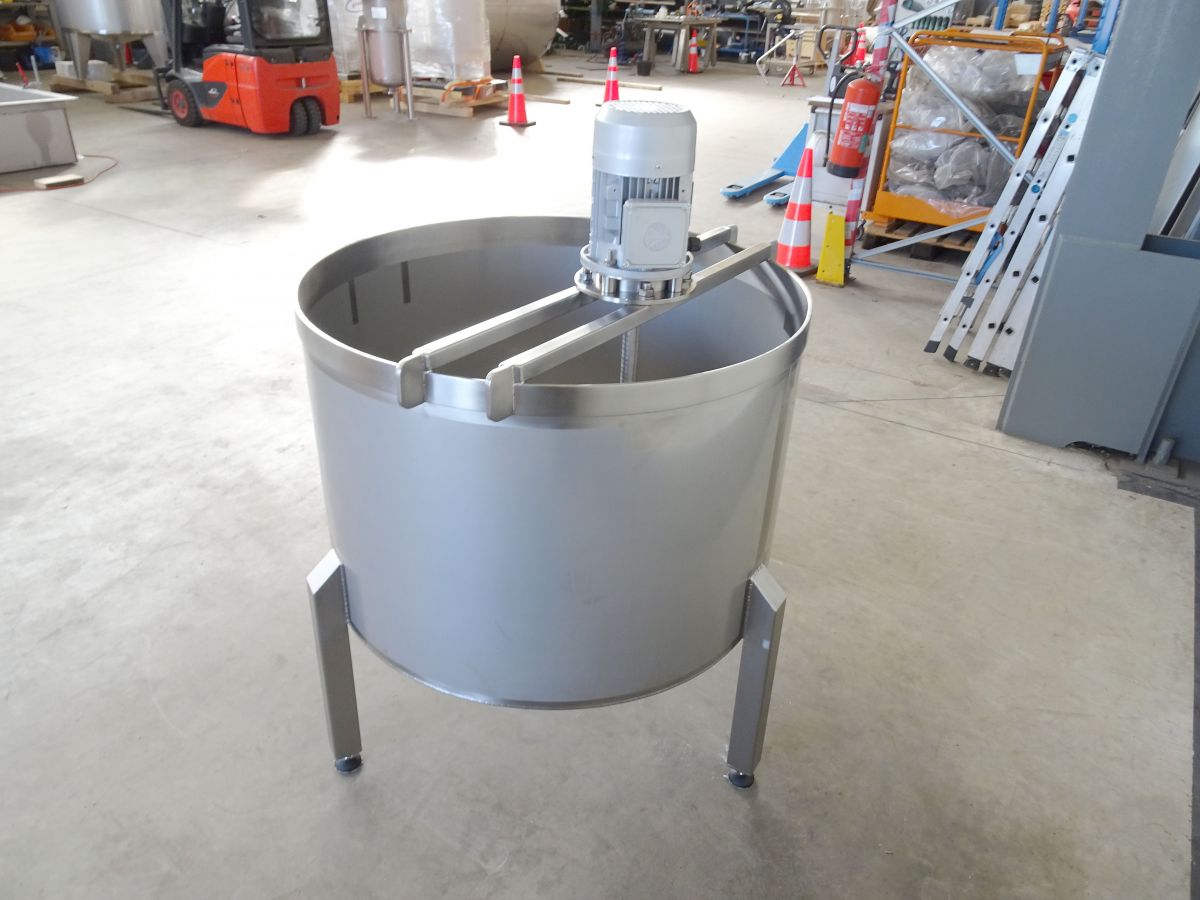

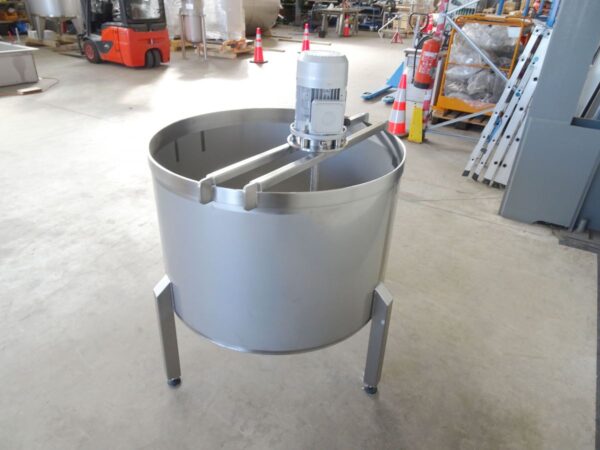

Agitator: yes

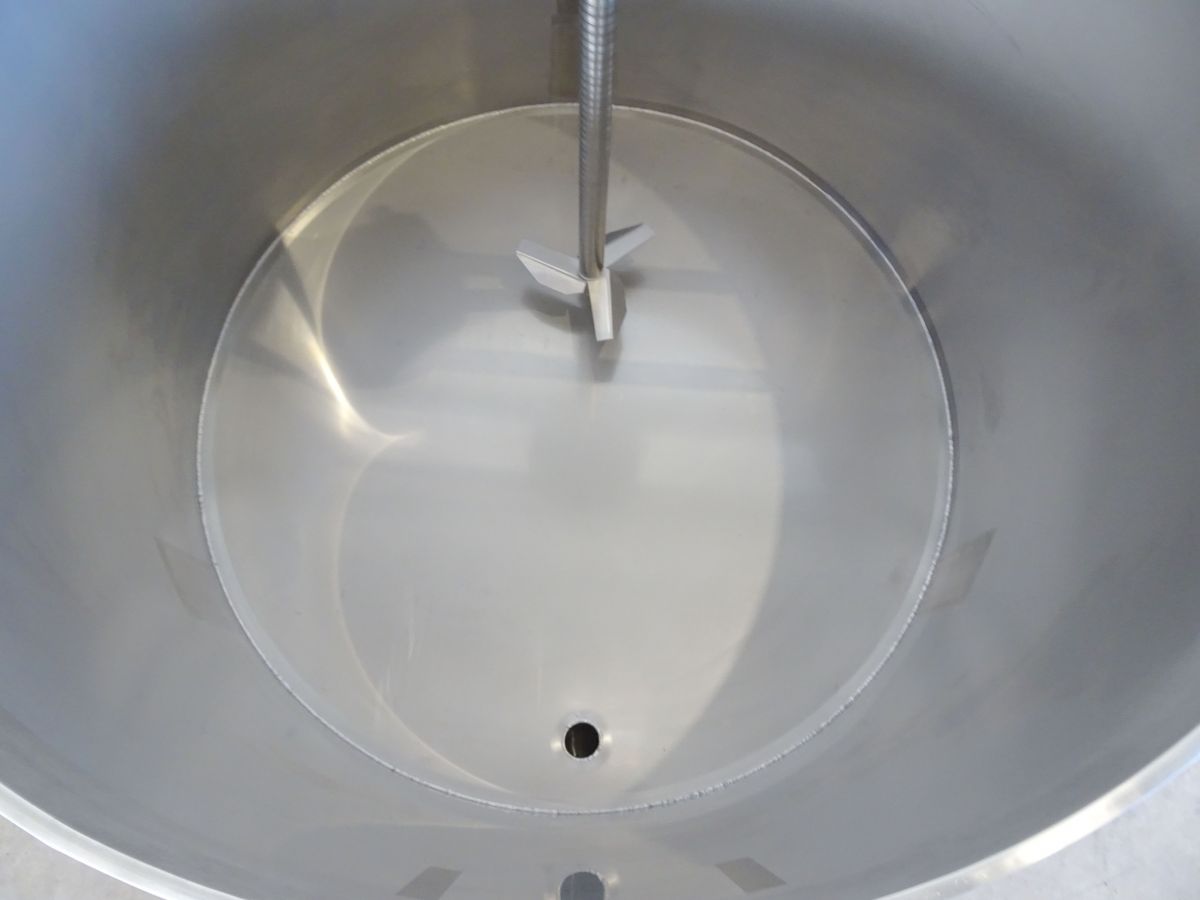

Agitator type: propeller agitator

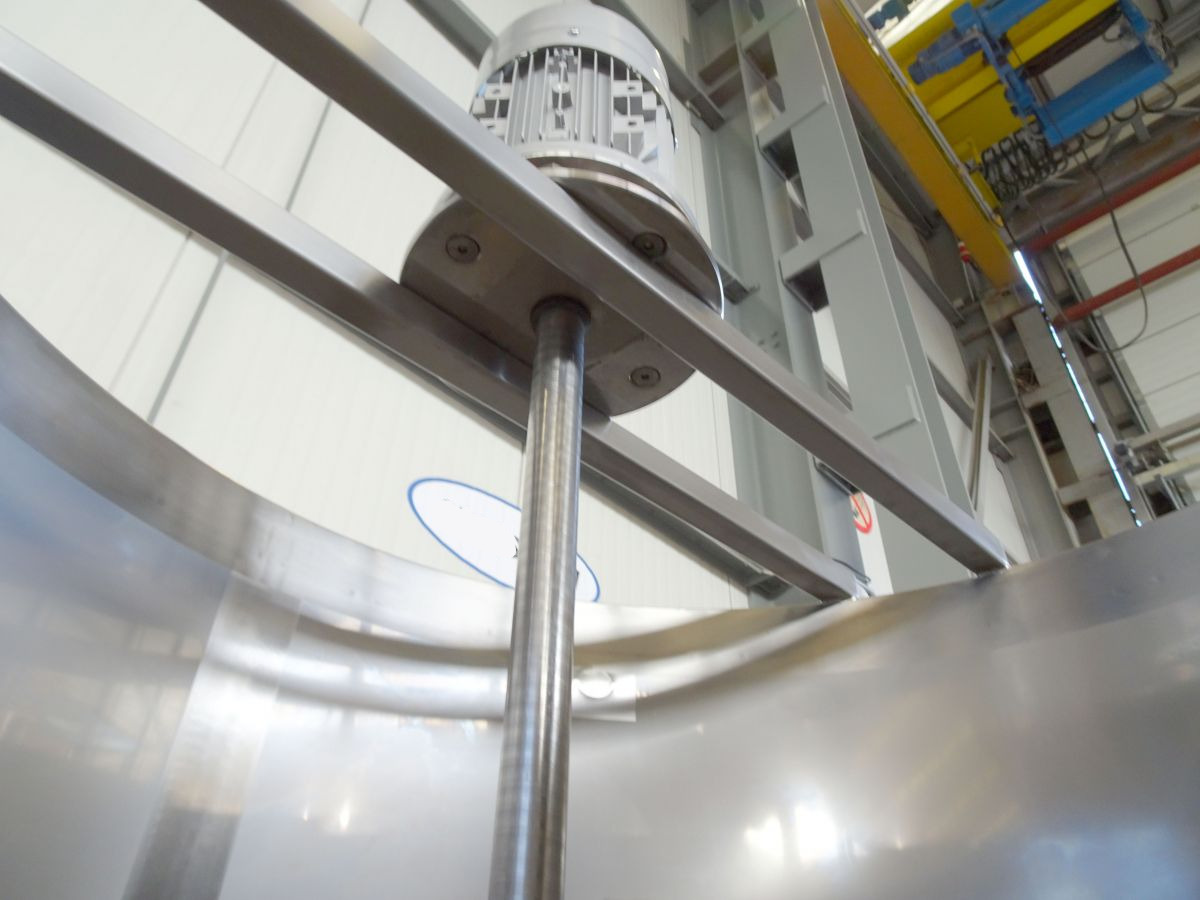

Position engine: at the top

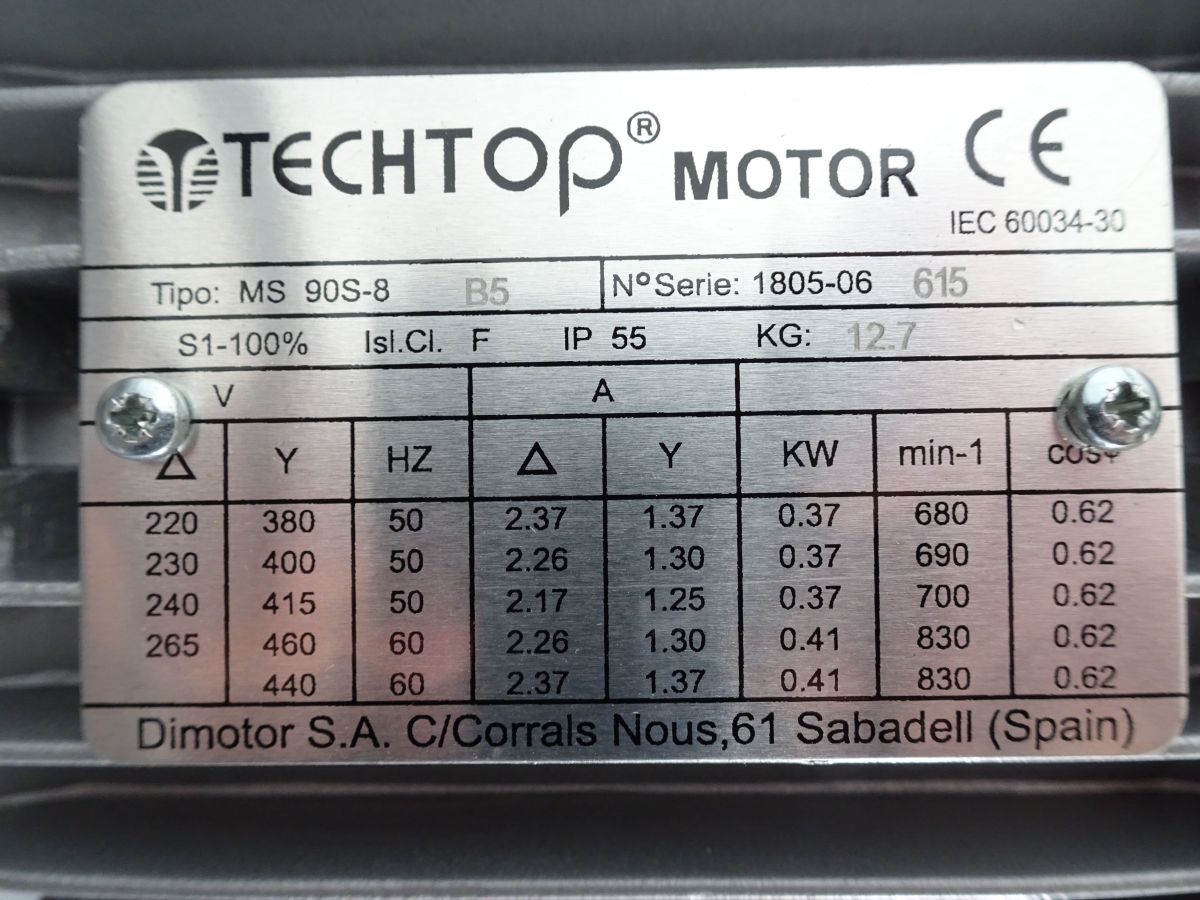

Number of revolutions: 680
Power: 0,37
Voltage: three-phase
Cylinder: 3 mm
Bottom: 5 mm
Distance from outlet to ground: 360 mm
Outer diameter tank: 995 mm
Cylinder height: 646 mm
Feet height: 415 mm
Total height of tank: 1.400 mm
Empty weight tank: 250
