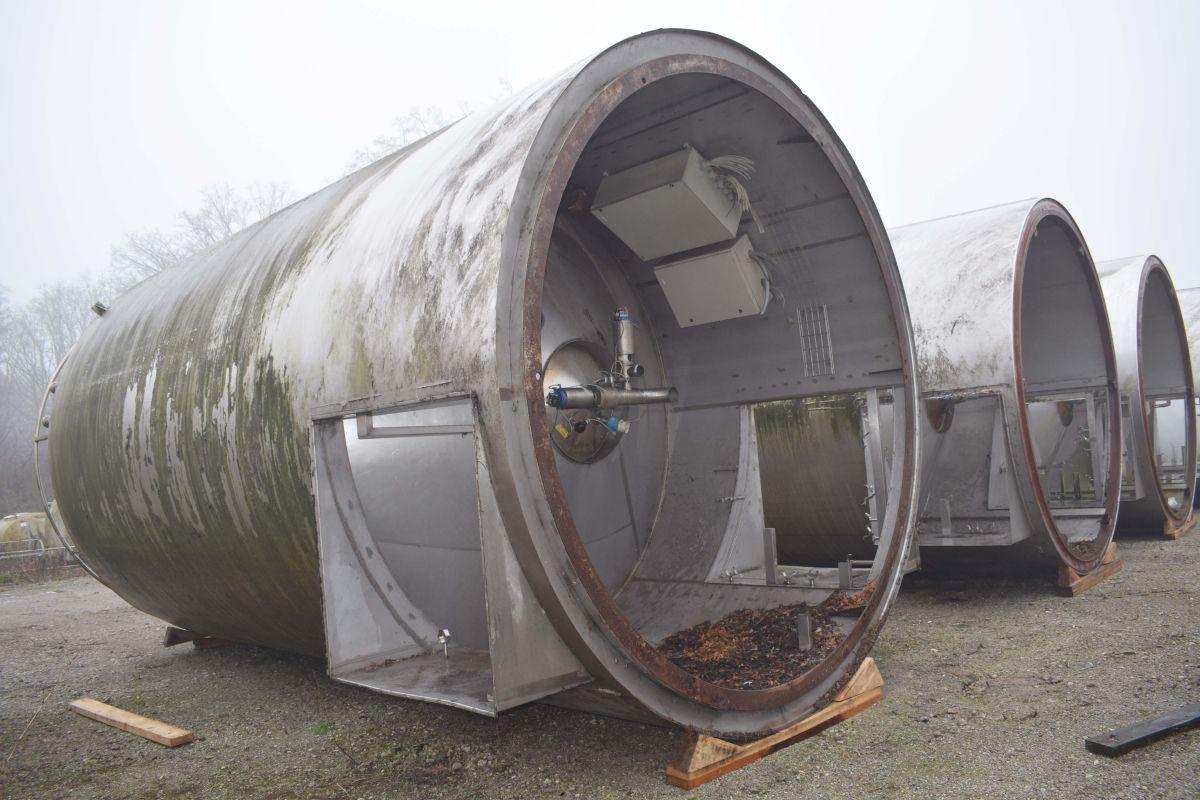

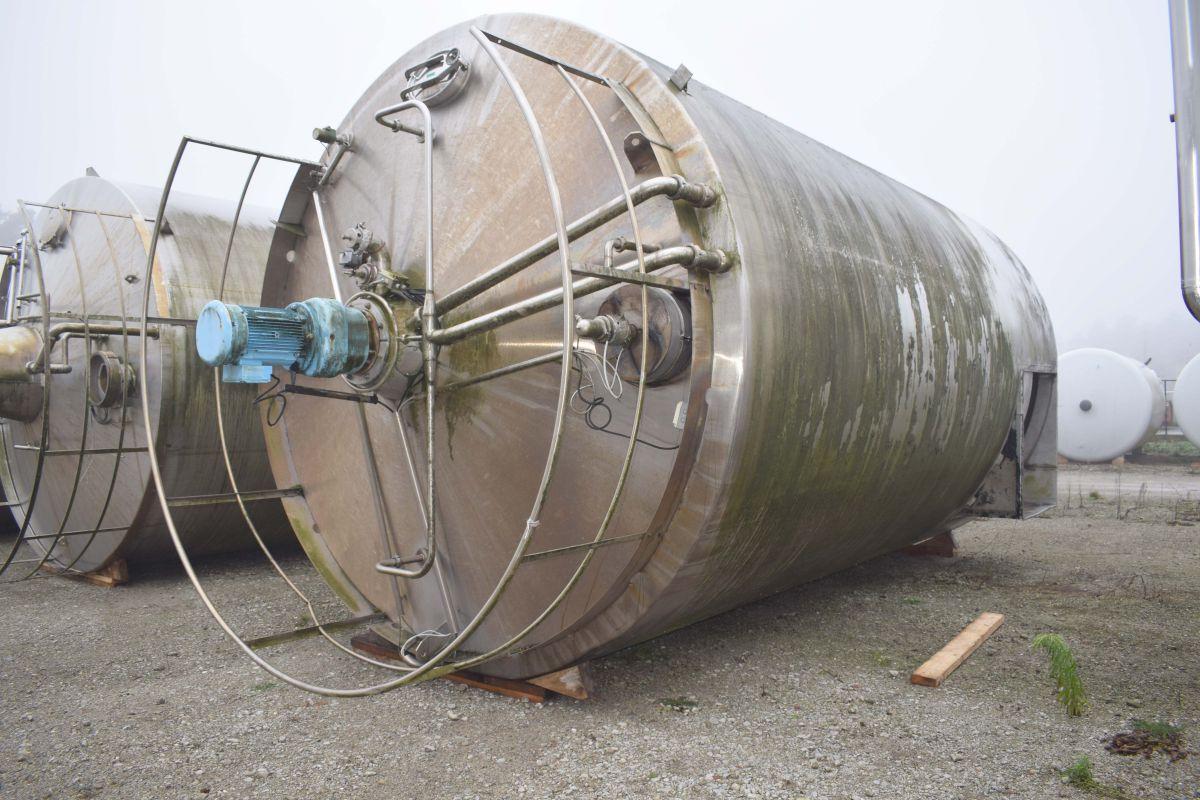

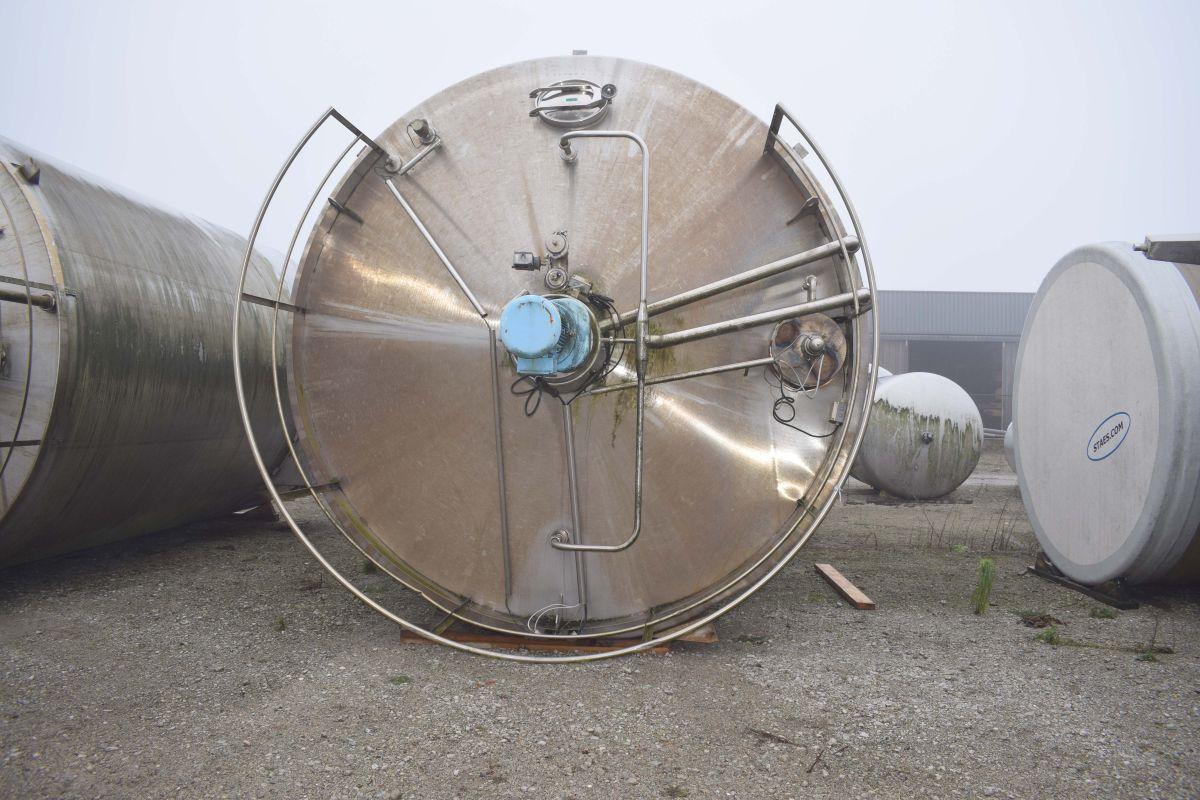

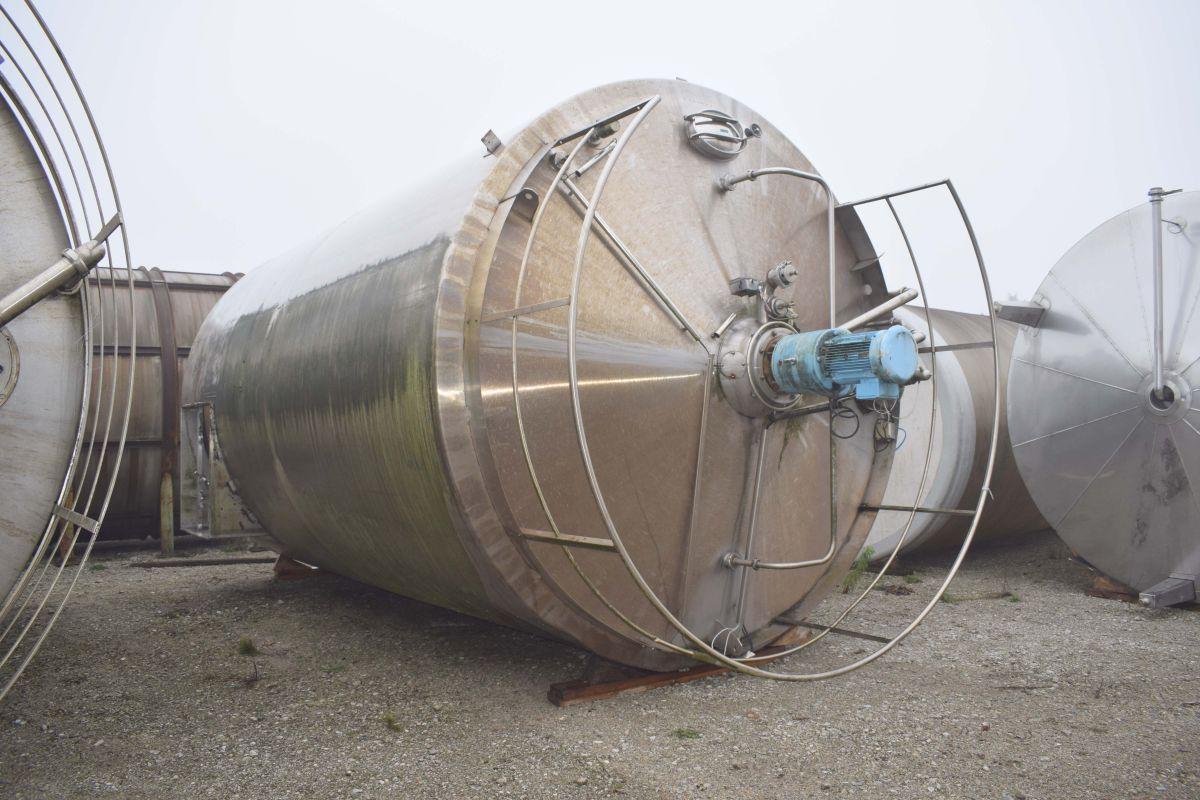

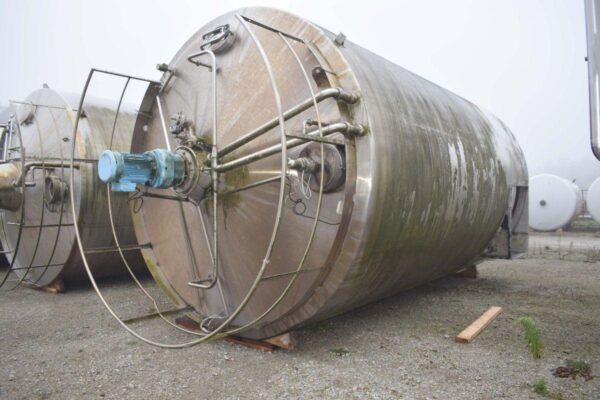

40000 liter i Rostfritt 304

Article type: second-hand storage tank

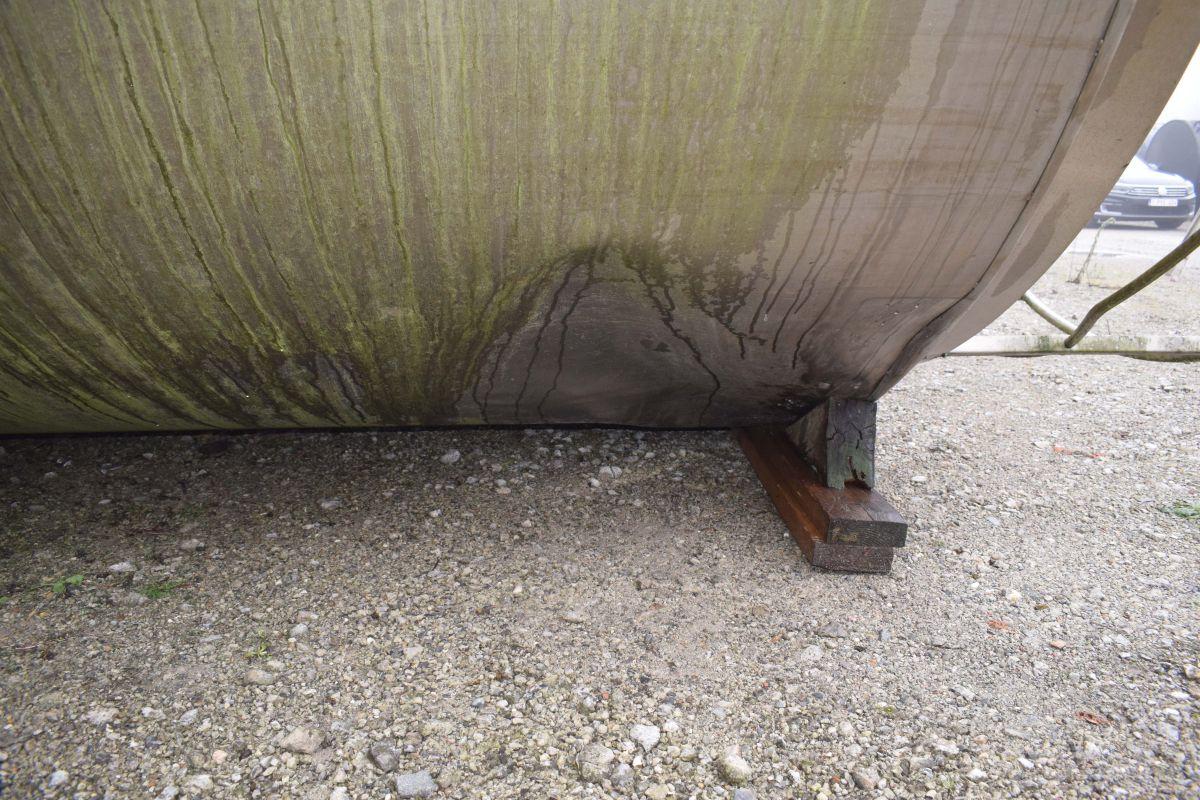

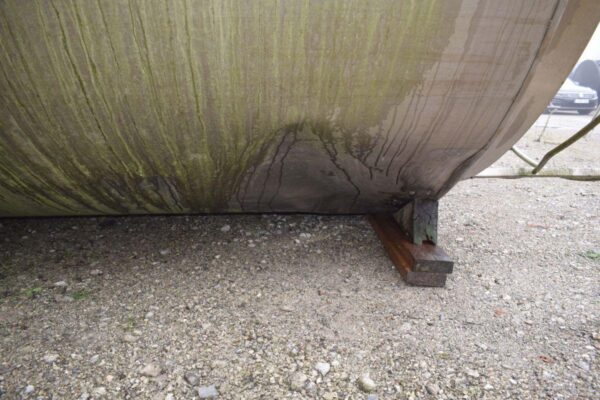

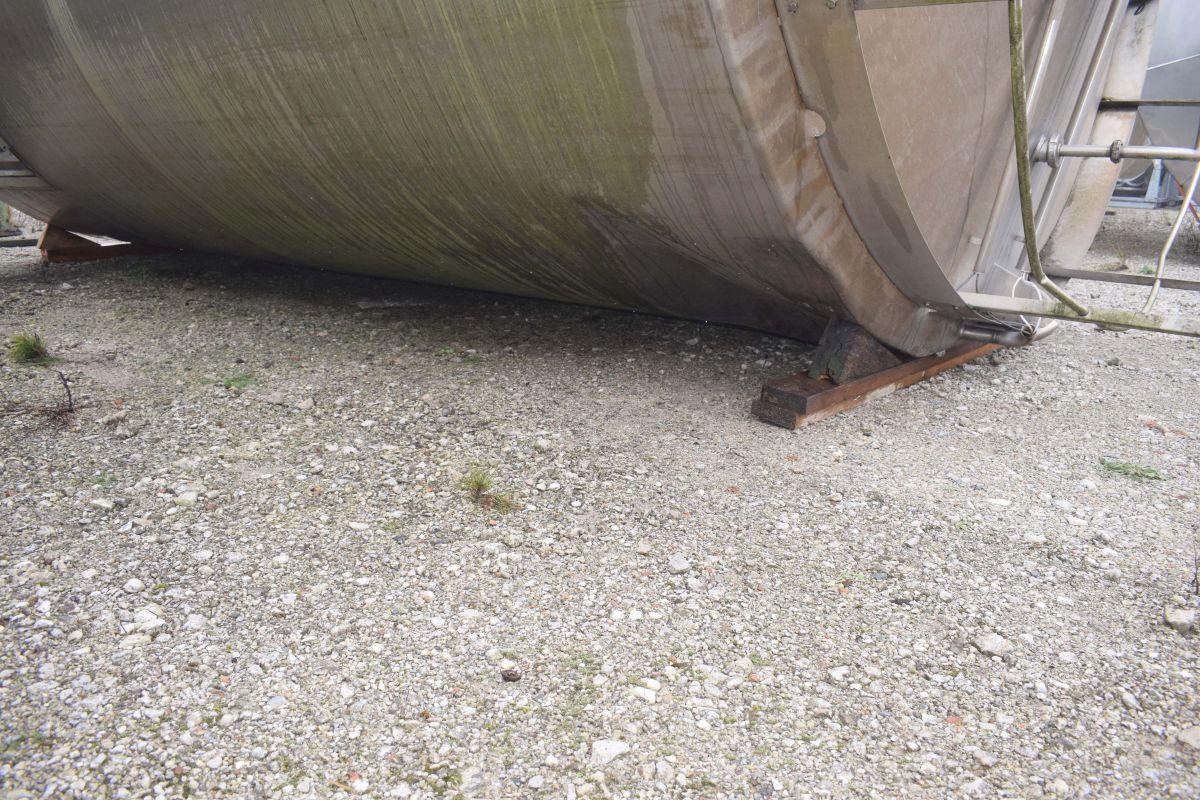

Additional information: there is a dent in the insulation cladding, the inner tank itself is ok; we can’t give any guarantees about the agitator
Capacity: 40.000 L
Material wet parts: SS AISI 304 (V2A)
Model: vertical

Configuration: insulated
Heat exchanger: no
Insulation: yes
Agitator: yes
Mobile tank: no

Shape of tank: cylindrical
Total discharge: yes
Insulation material: rockwool
Outer jacket (ornamental wall): RVS 304
Manway(s): RVS 304

Gasket manway(s): unknown
Fixation point(s): RVS 304
Wet parts agitator(s): SS AISI 304 (V2A)
Suitable for food industry: yes
Documents included: no

Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no
Number of manways: 1
Position manway: at the top

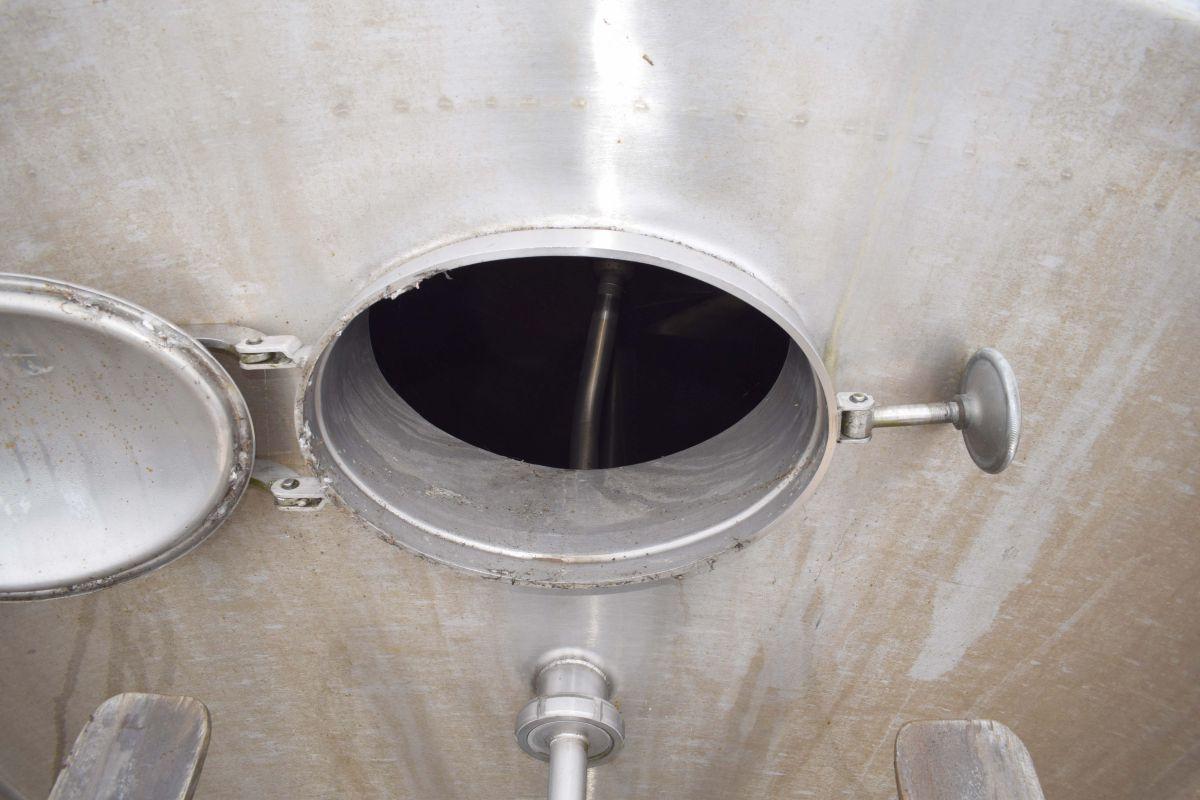

Manway 1: 300 mm x H 400 mm

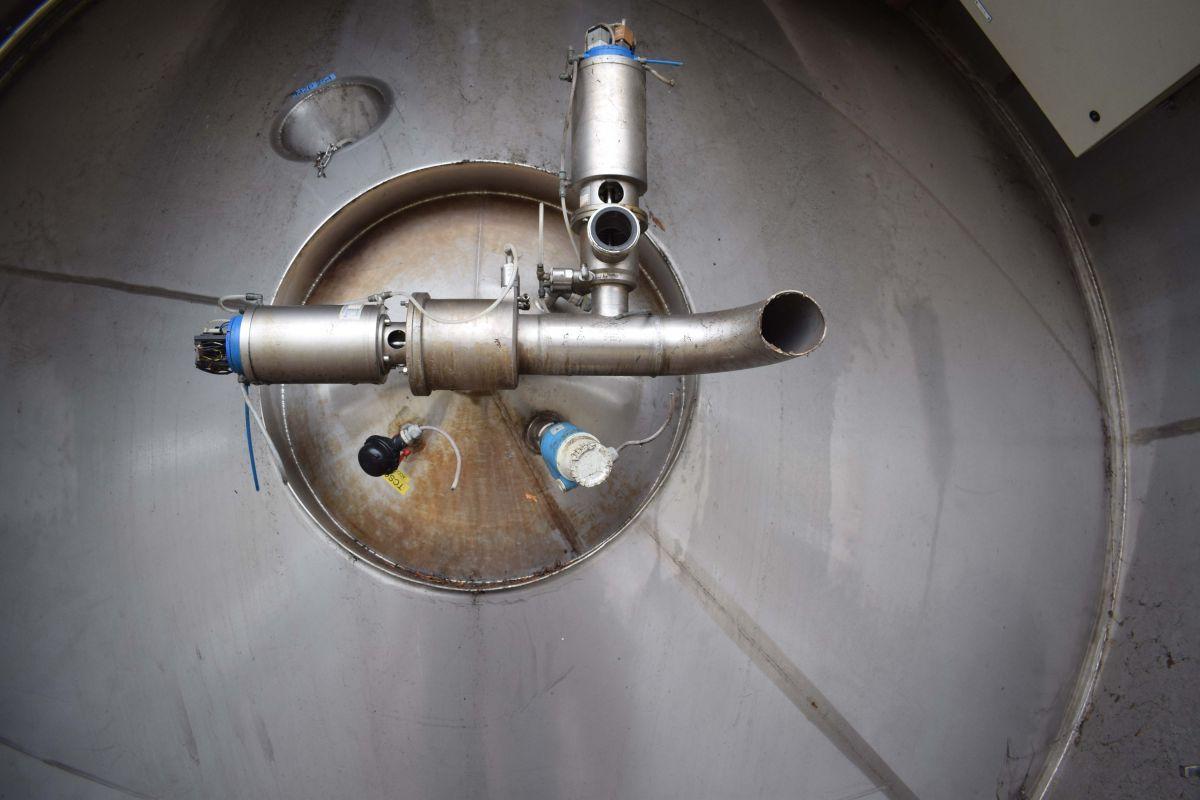

Tank outlet: inside Ø 100 mm

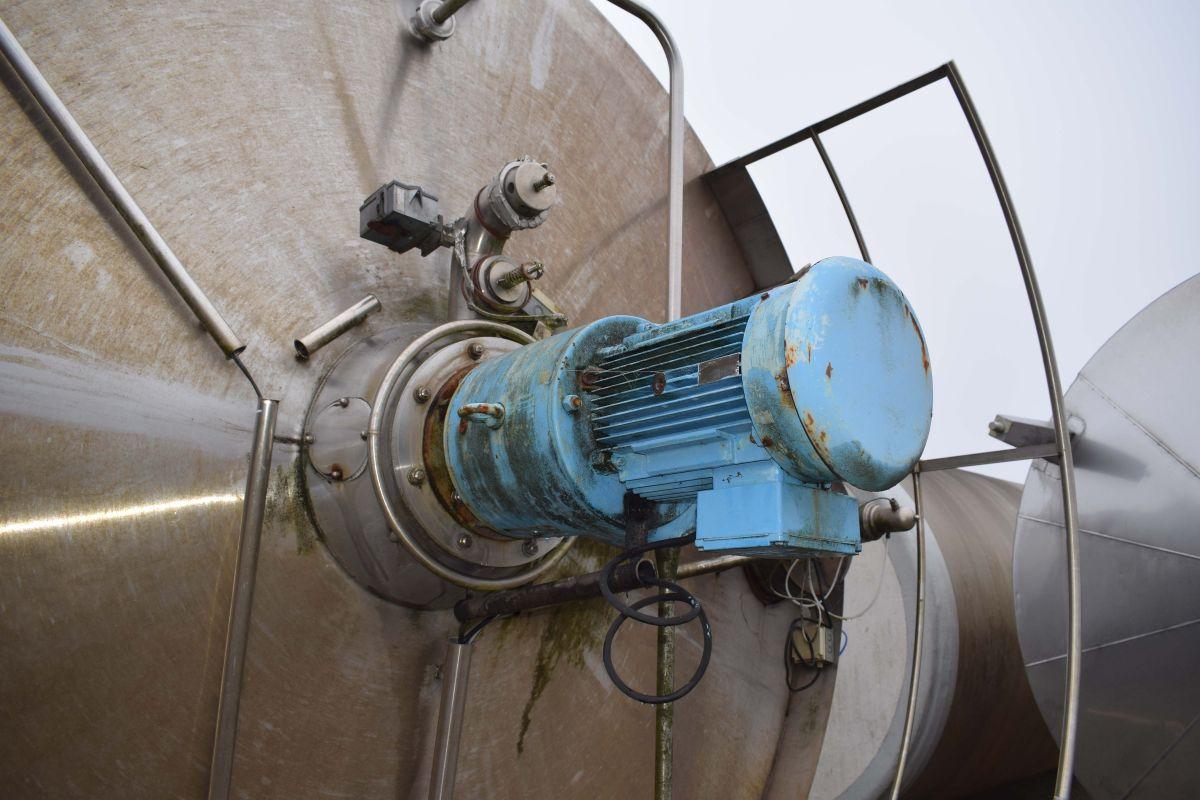

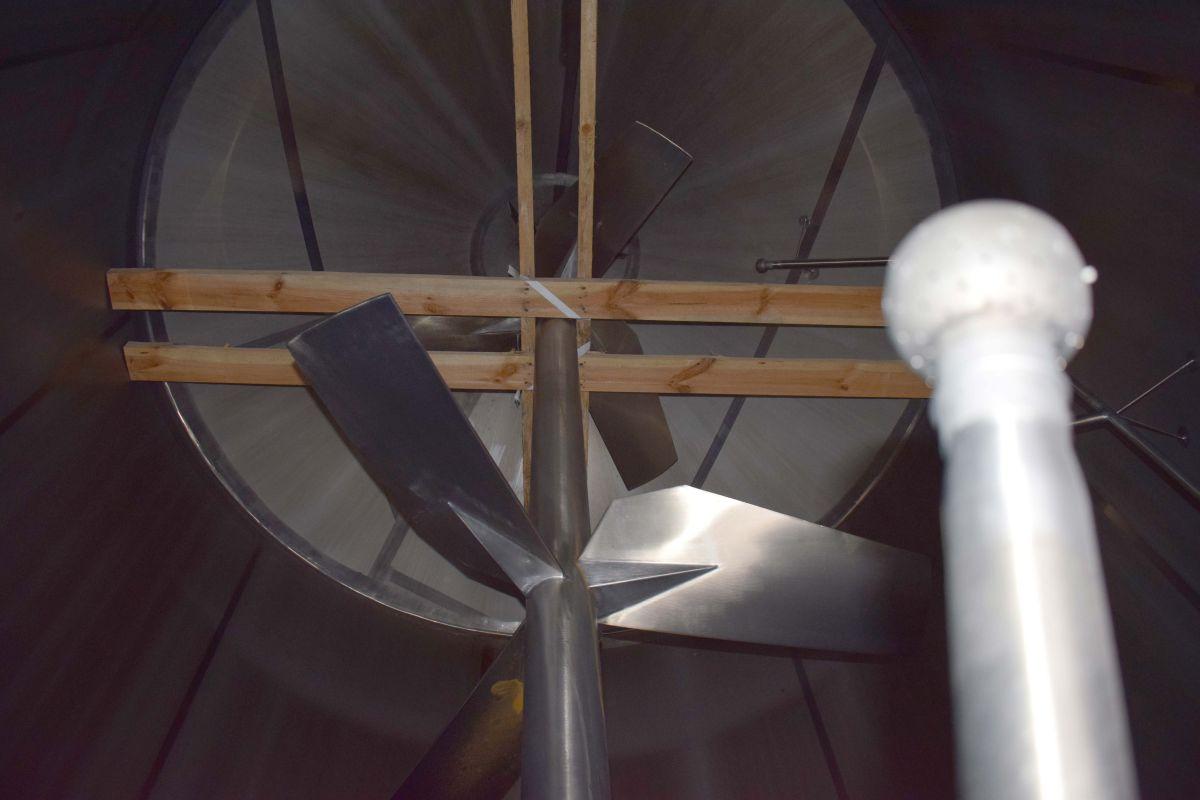

Agitator type: propeller agitator

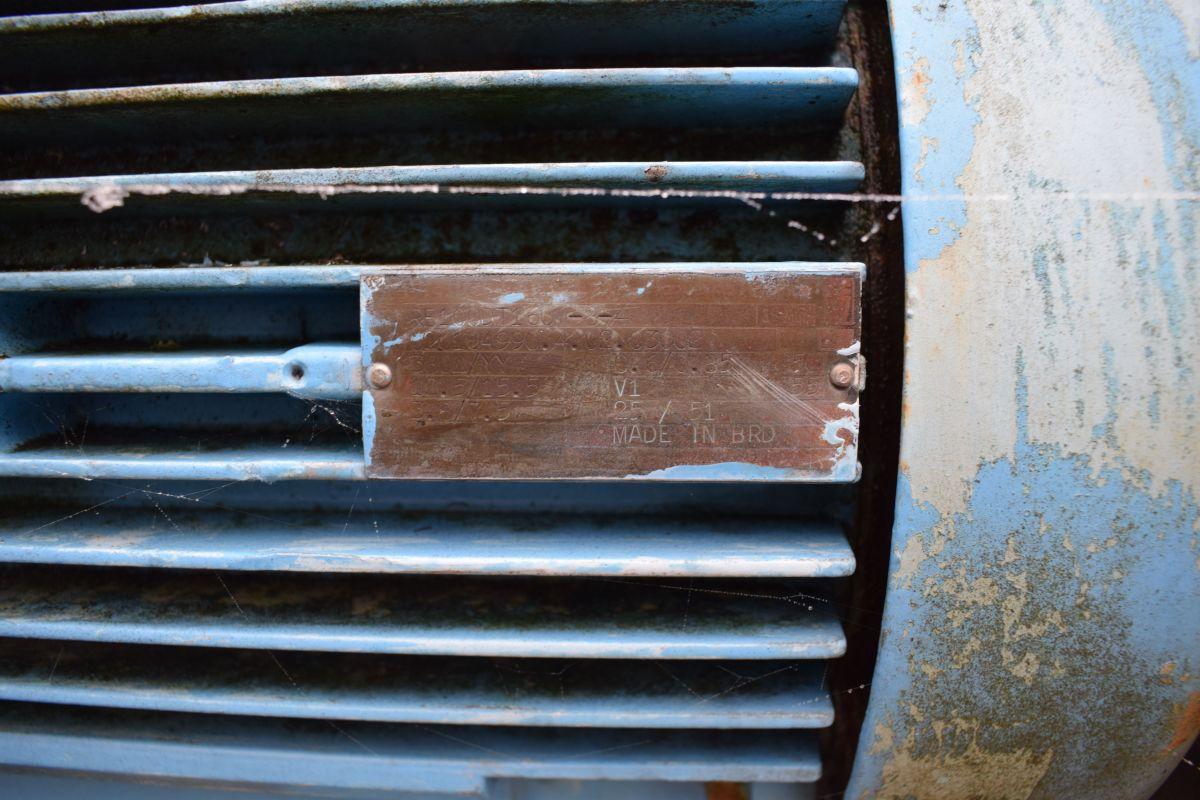

Position engine: at the top
Number of revolutions: 25/51

Power: 7,50
Voltage: three-phase
Insulation top: yes
Insulation body: yes
Insulation bottom/sides: yes

finish of the outer jacket: welded
Distance from outlet to ground: 1.100 mm
Outer diameter tank: 3.850 mm
Total height of tank: 8.300 mm
