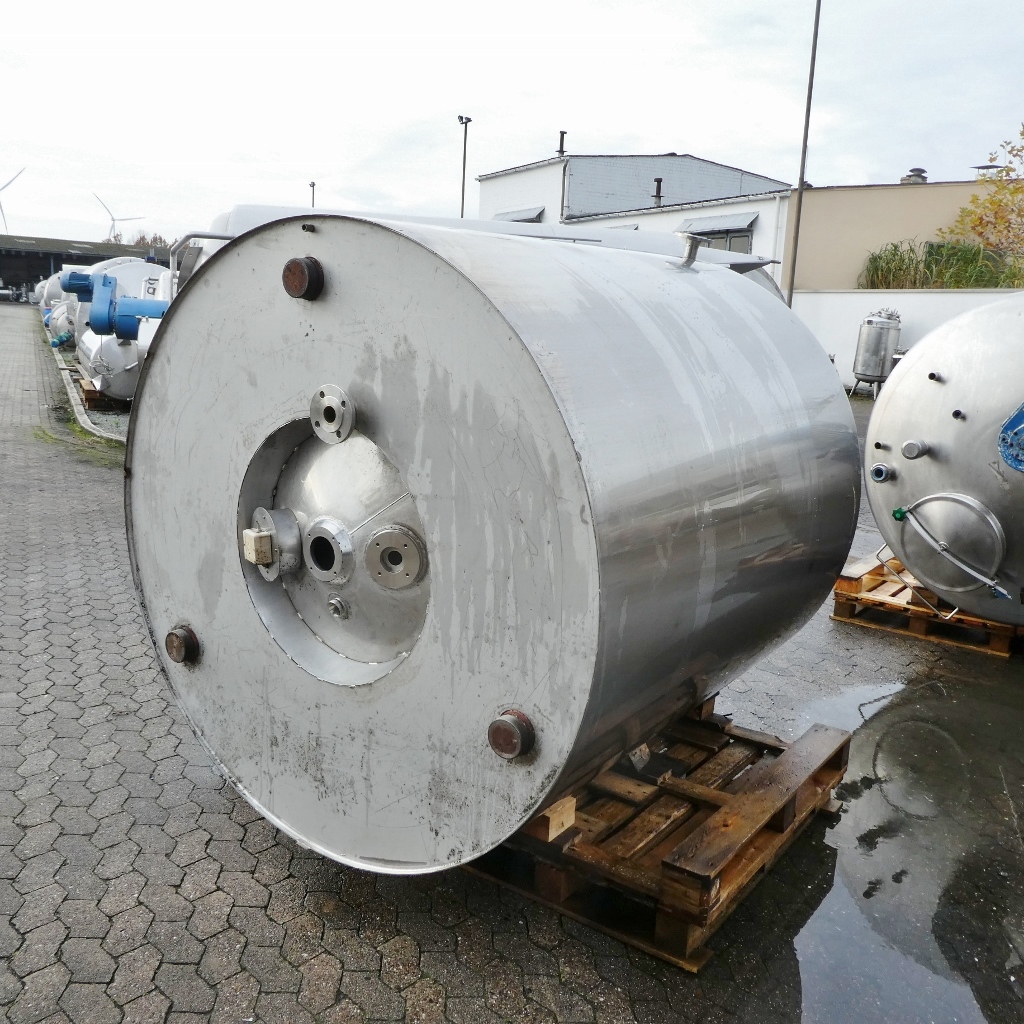

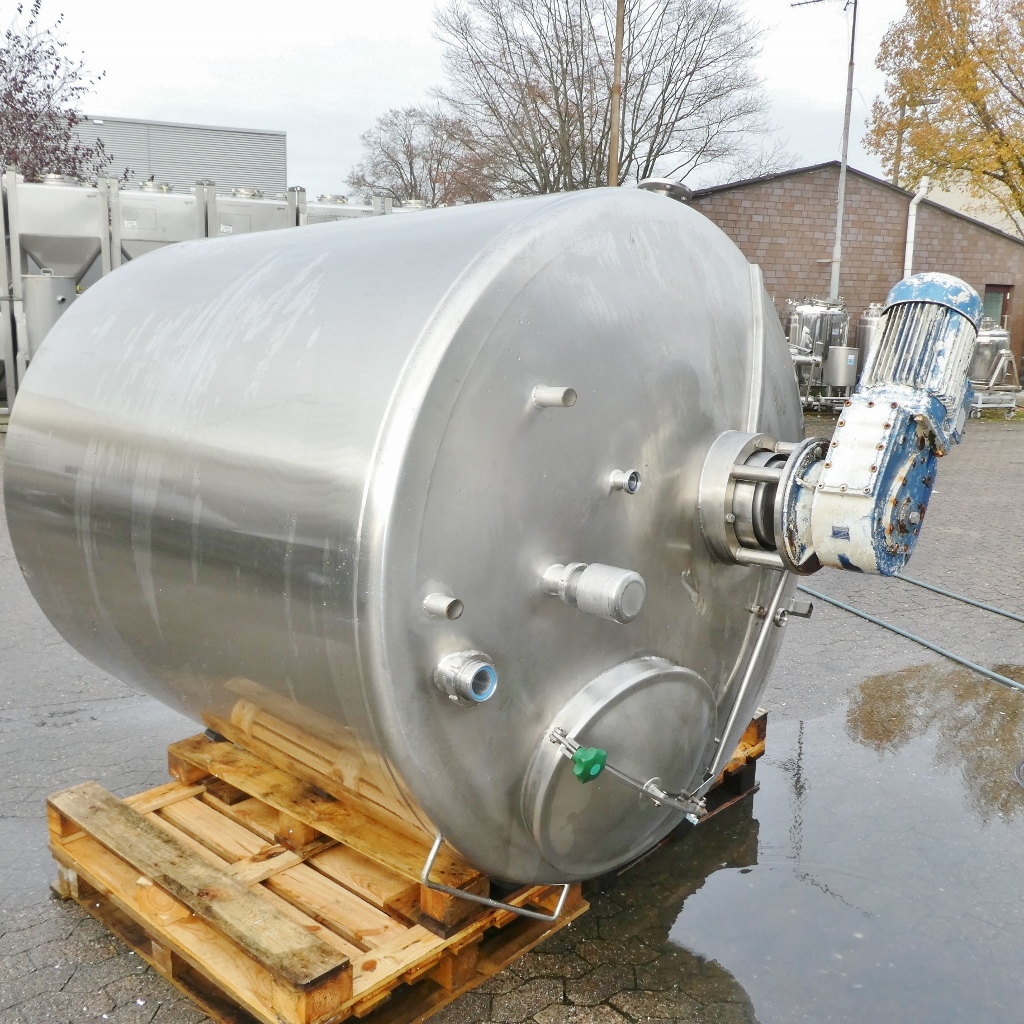

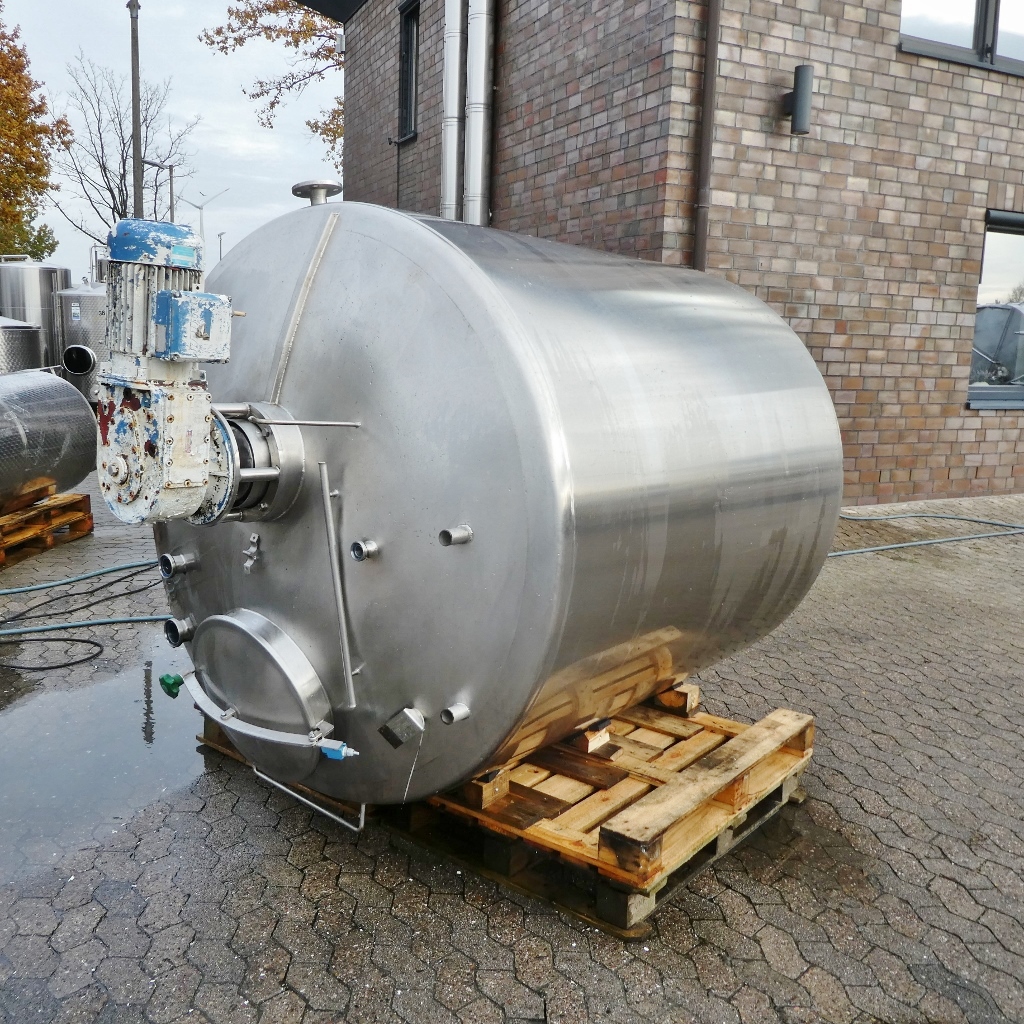

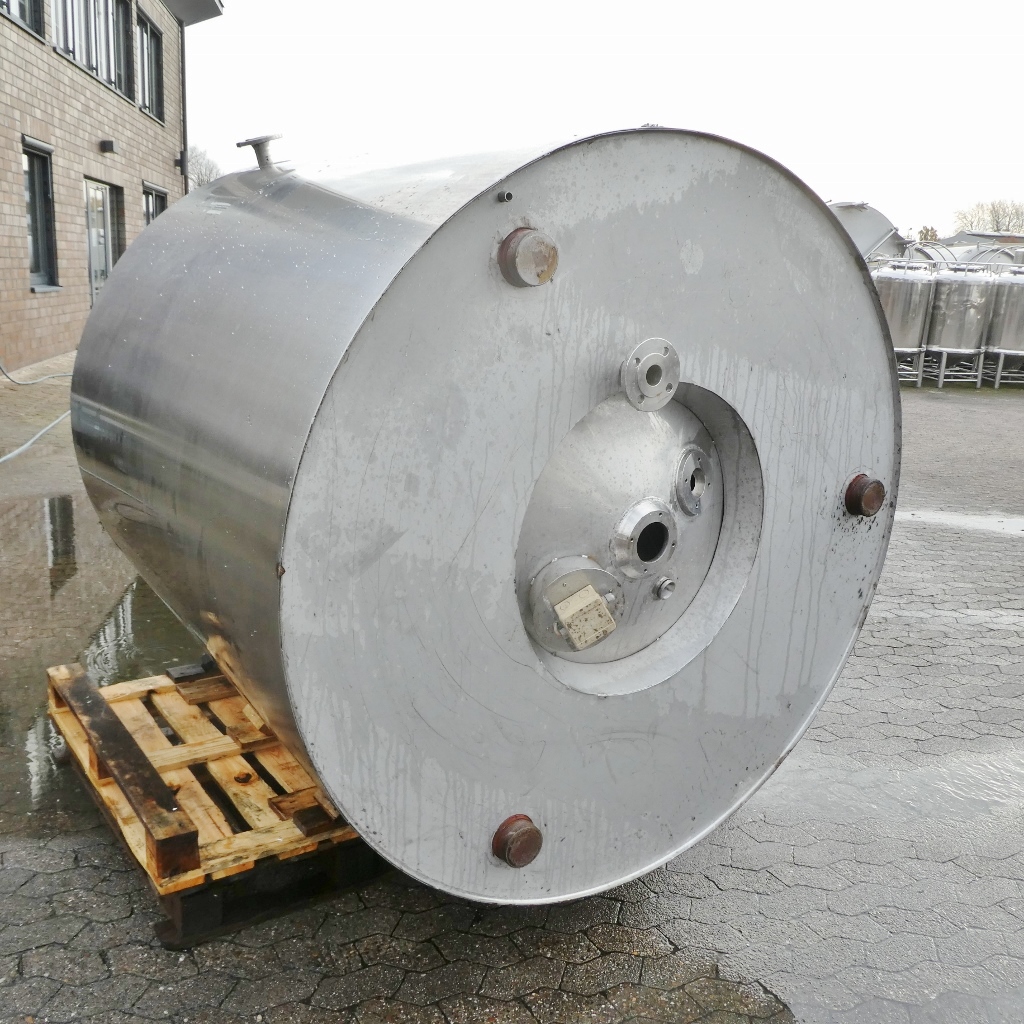

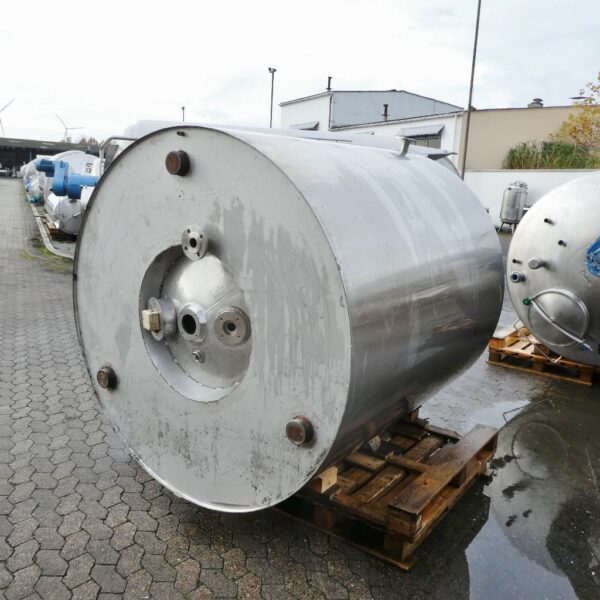

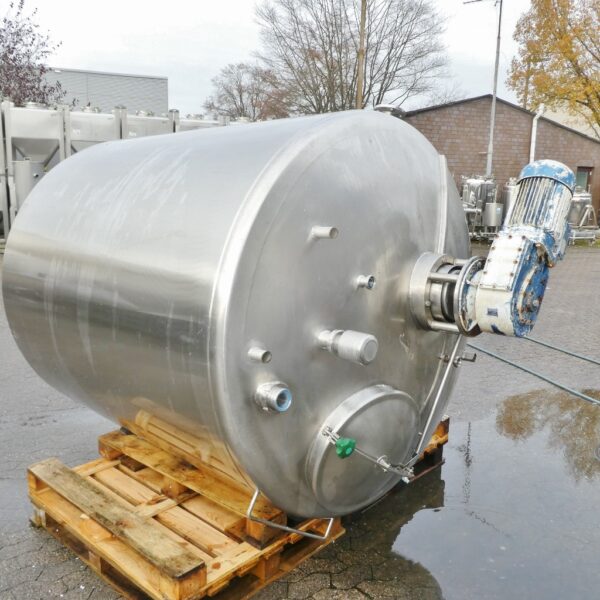

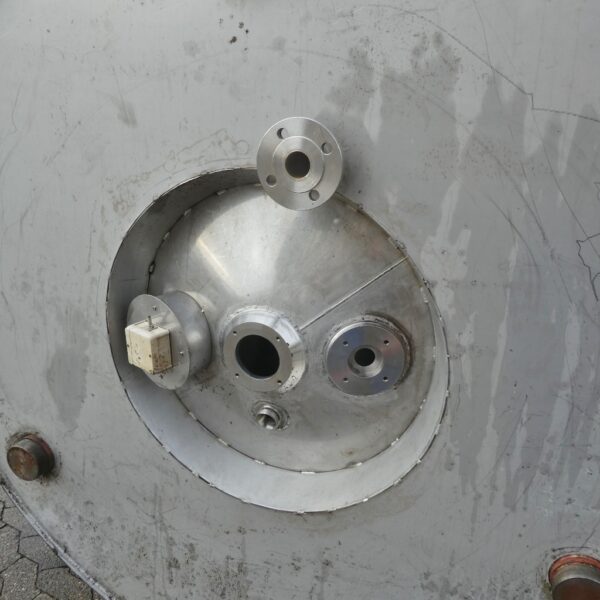

3600 liter tank i Syrafast 316

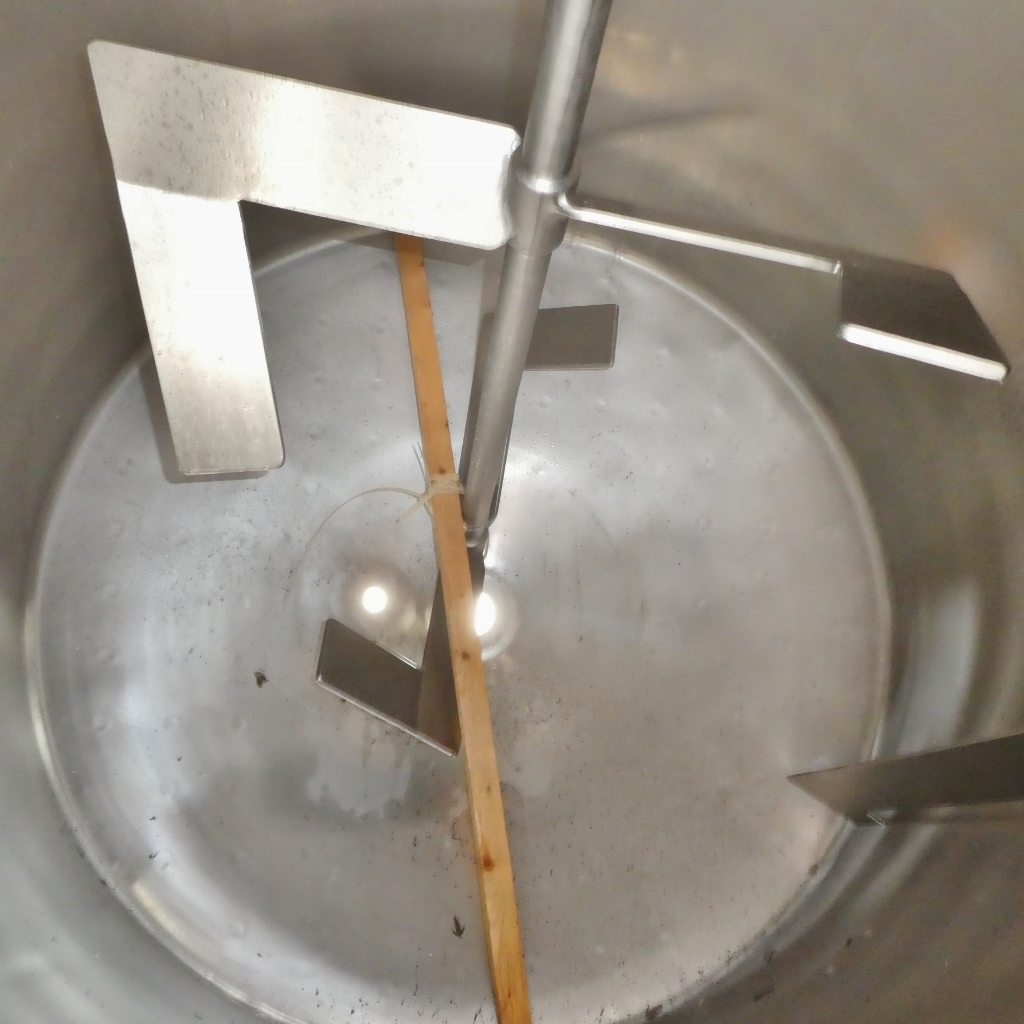

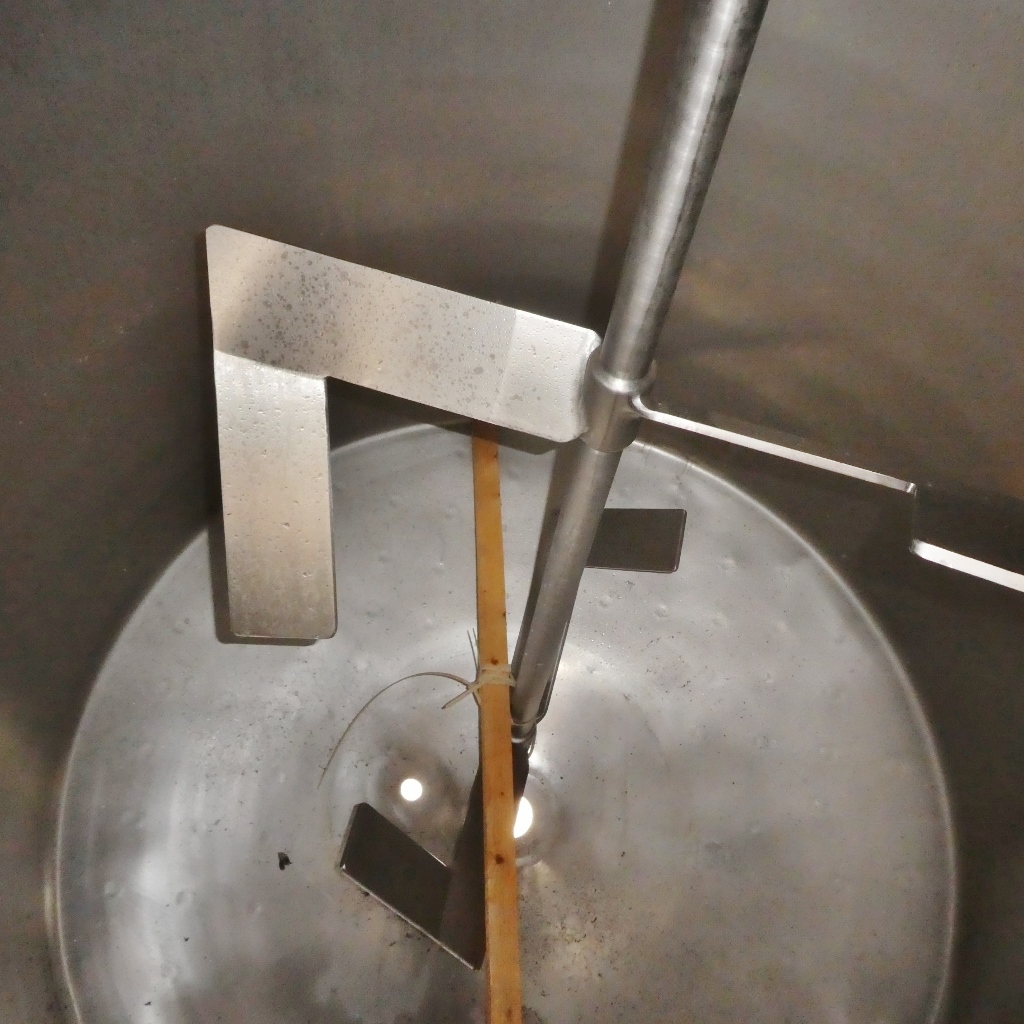

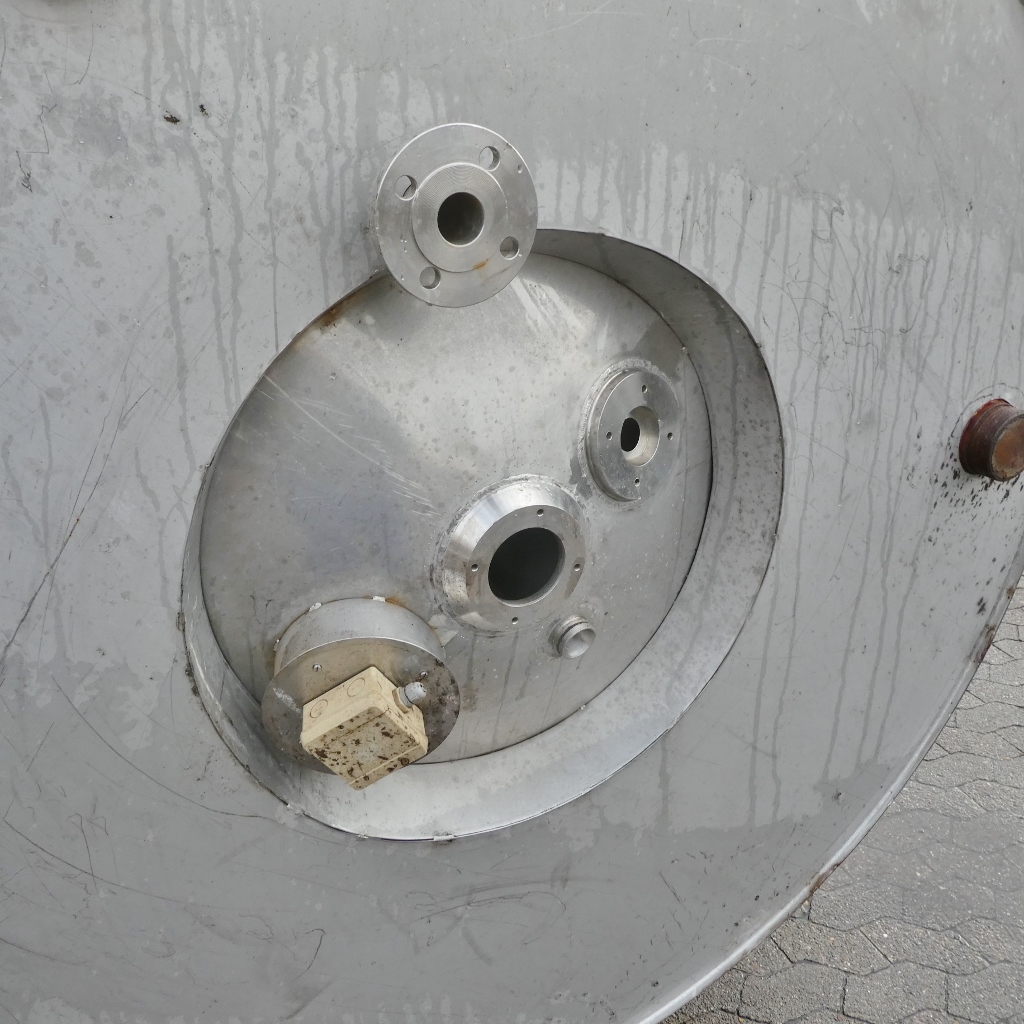

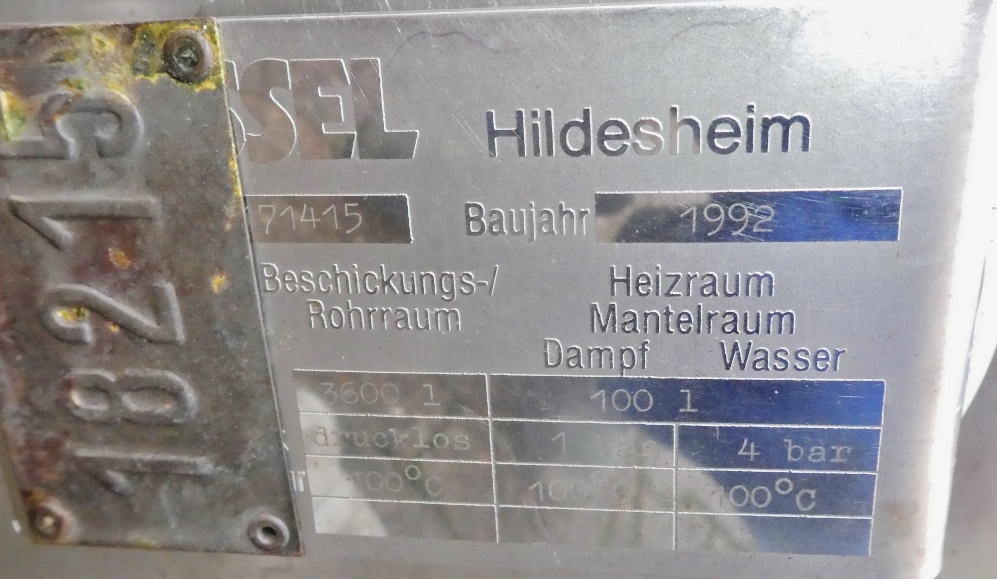

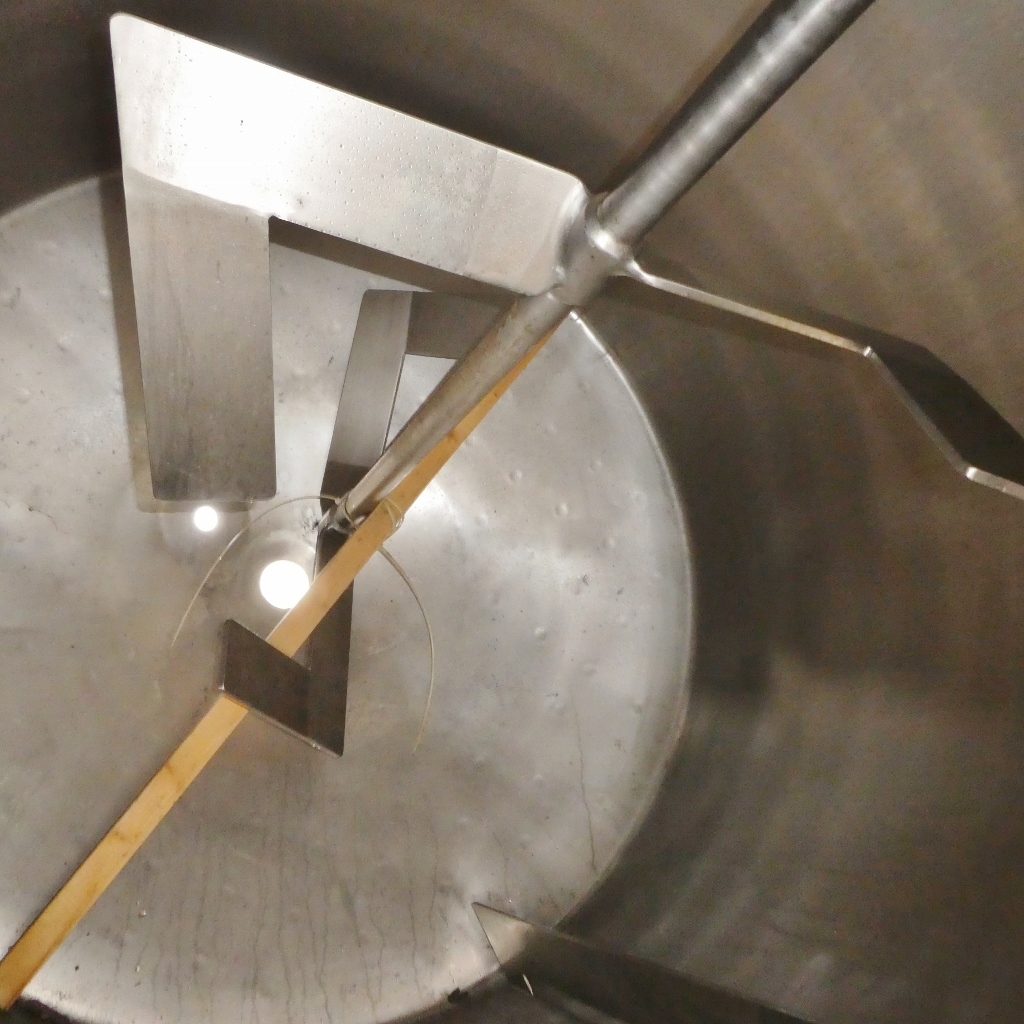

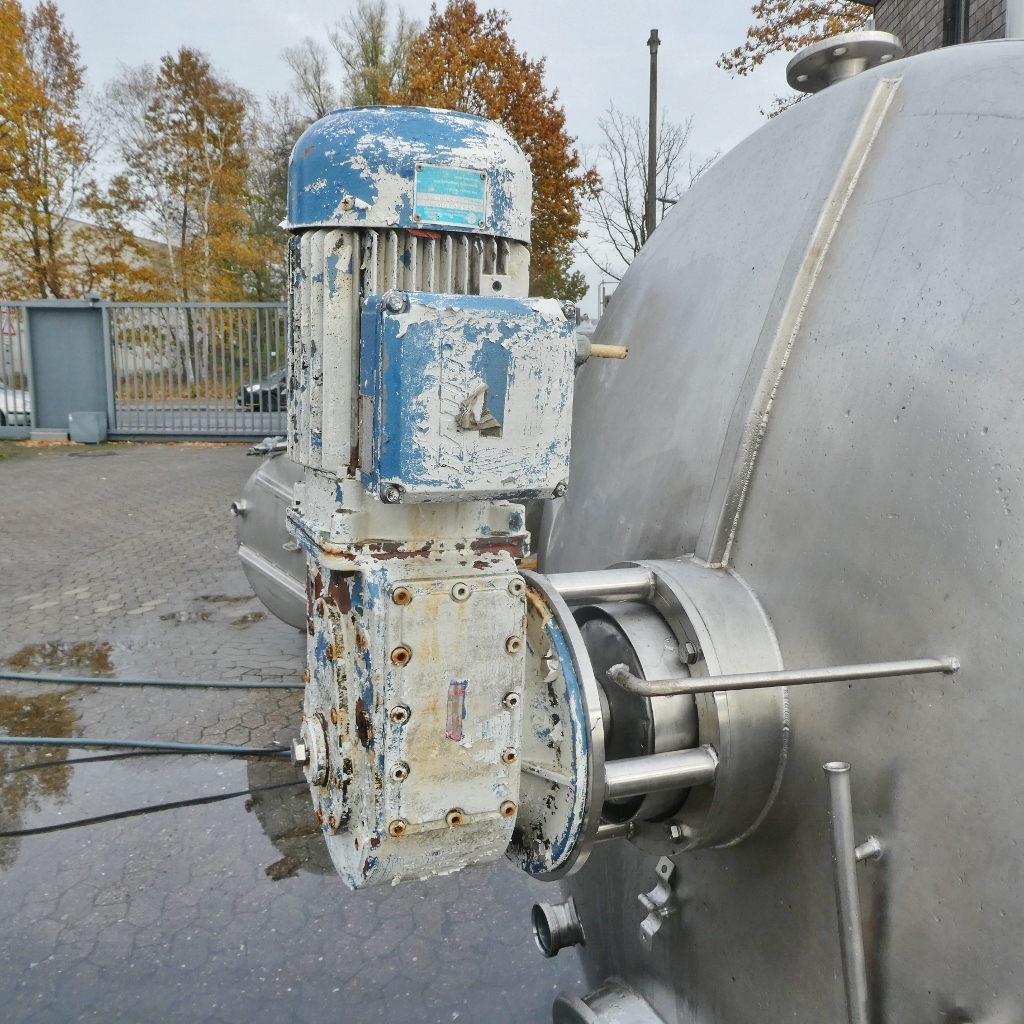

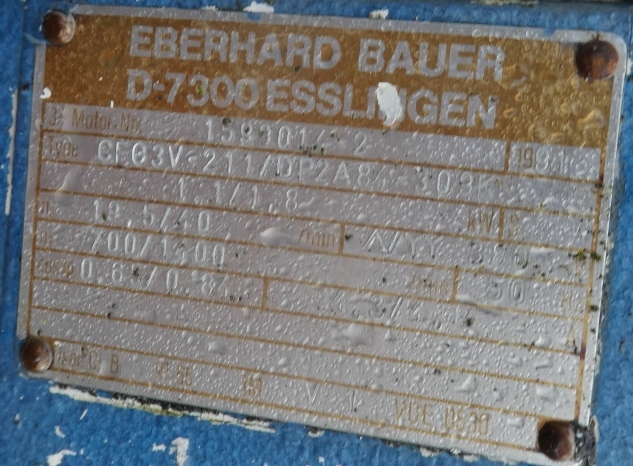

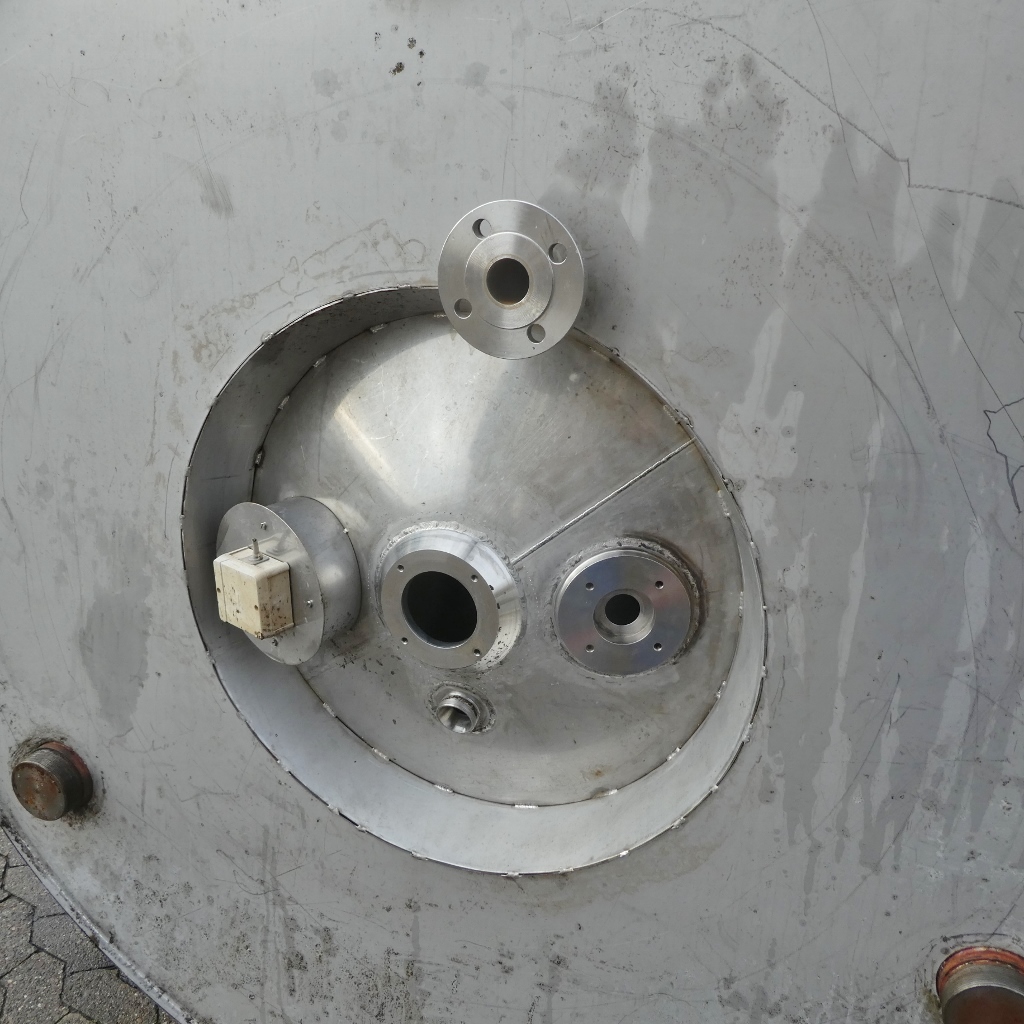

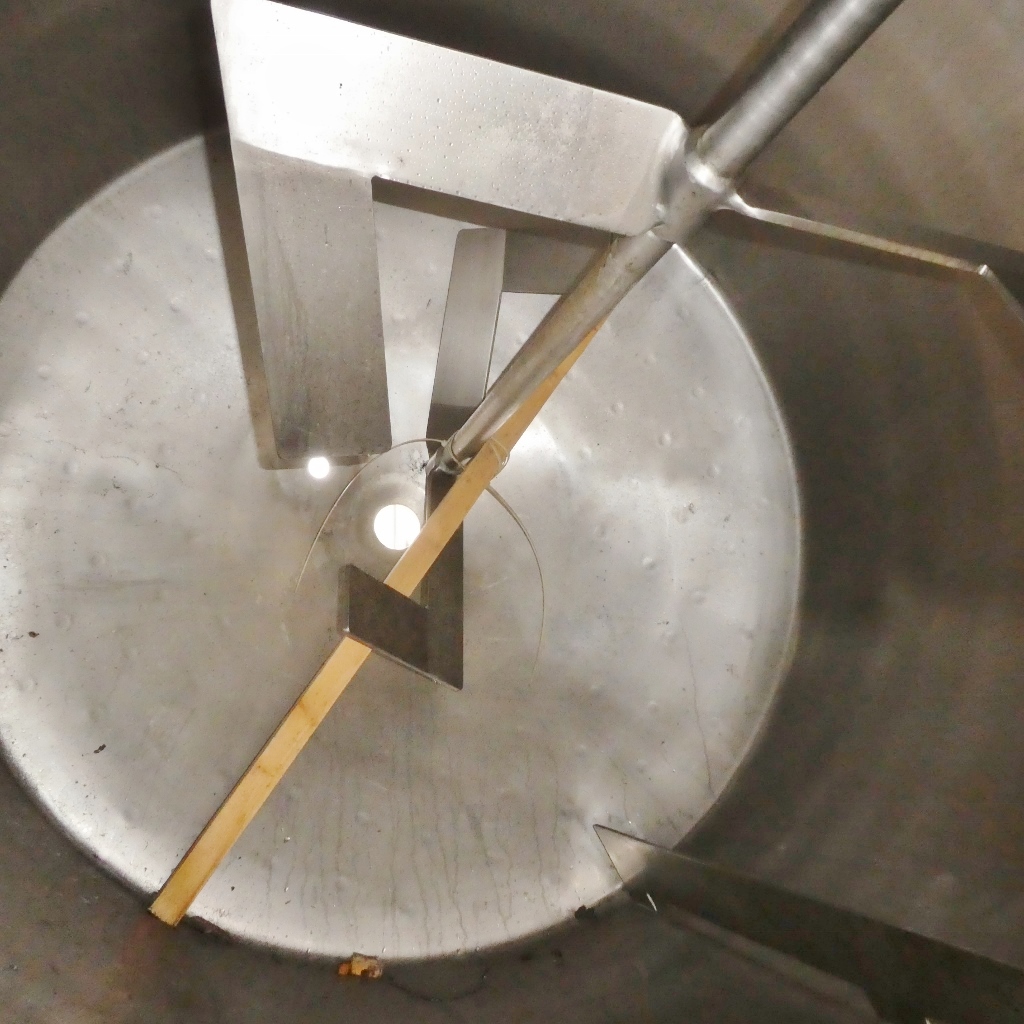

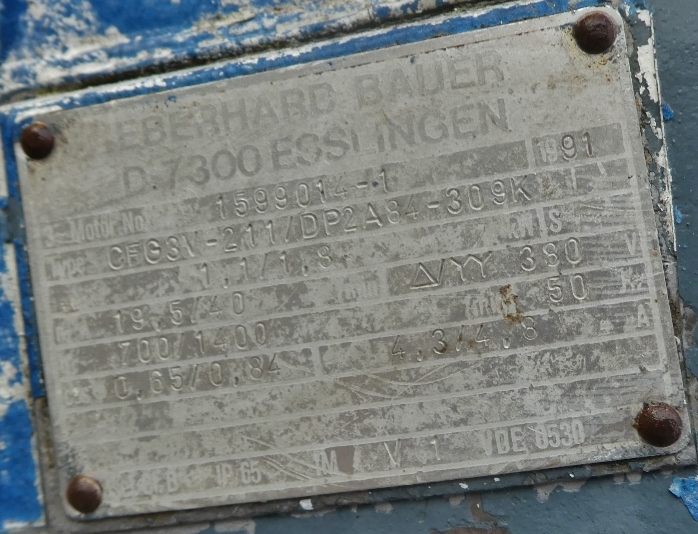

Additional information: Food industry; Operating pressure for steam operation of the double jacket 1 bar; 1 height-adjustable screw is missing from 1 tank Volumetric volume (L): 3.600 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 100 L Max Overpressure: 4 Bar Max. working temperature: 100 °C Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 95 Agitator: yes Number of revolutions: 19.5 / 40 Power: 1.1 / 1.8 Internal diameter tank: 1.600 mm Outer diameter tank: 1.750 mm Cylinder height: 1.500 mm Total height of tank: 3.350 mm
