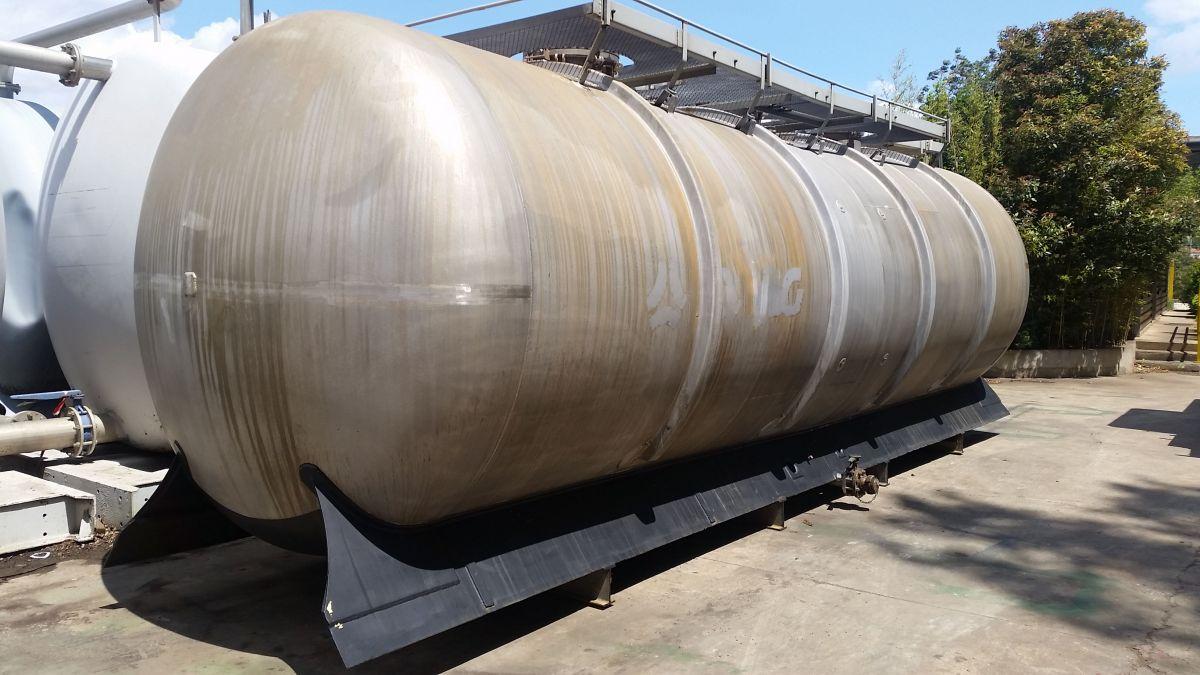

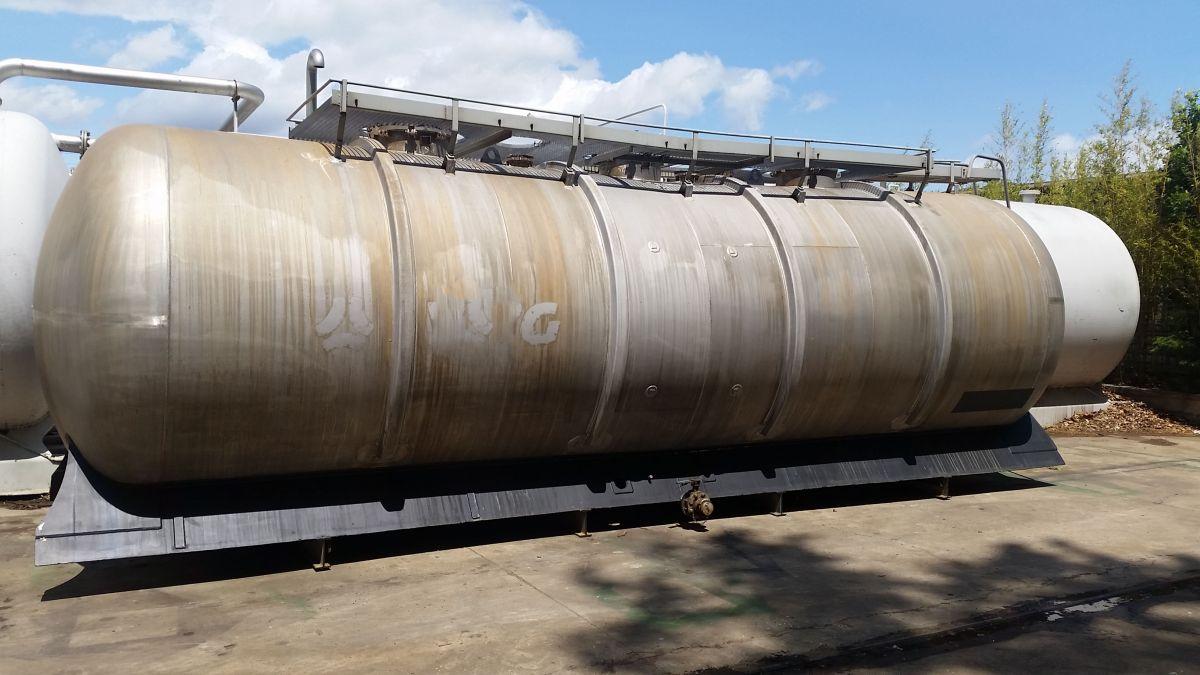

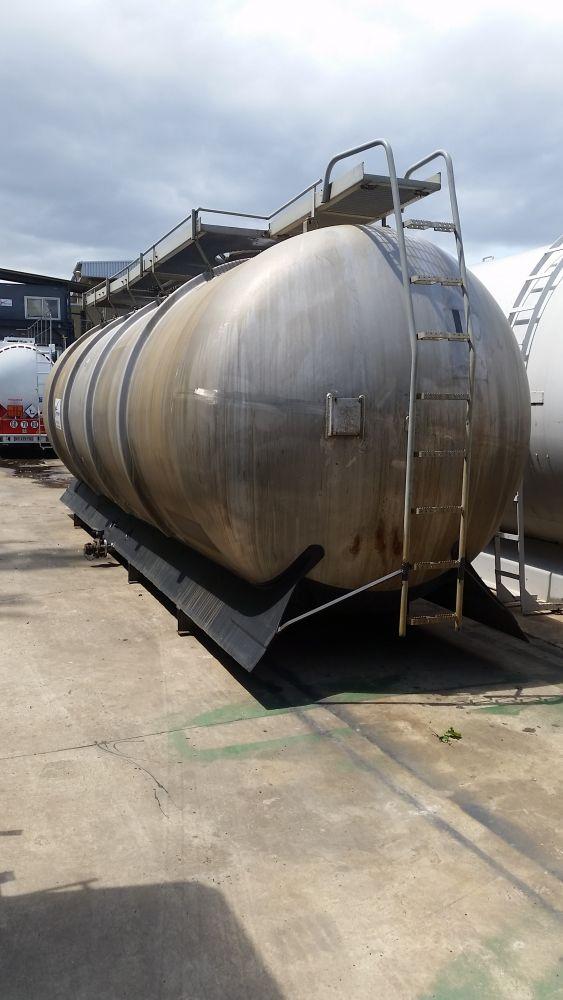

35000 liter i Syrafast 316

Article type: second-hand storage tank
Additional information: Equipped with 1 compartment.
Capacity: 35.000 L
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 316L (V4A)

Model: horizontal
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: no

Mobile tank: no
Shape of tank: cylindrical
Wall type: dished
Total discharge: yes
Fixation points: saddles

Manway(s): RVS 316
Gasket manway(s): unknown
Fixation point(s): steel-epoxy
Suitable for food industry: yes
Documents included: no

Technical drawing included: no
Registration plate on the tank: yes
Flange for agitator: no

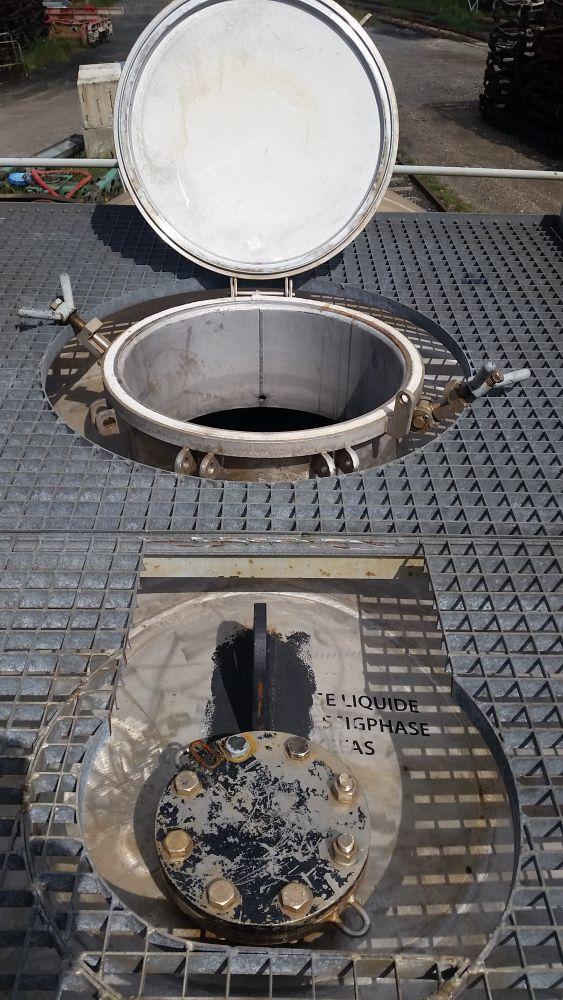

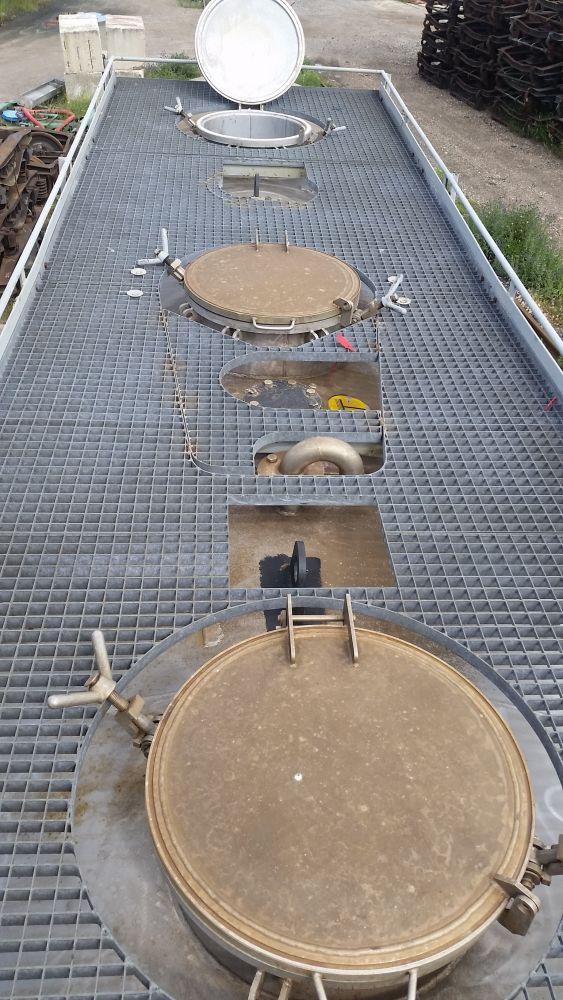

Number of manways: 3
Position manway: at the top

Manway 1: 500 mm
Position 2nd manway: at the top
Manway 2 (W): 500
Spray ball: no
Tank outlet: inside Ø 80 mm

Total outlet valve: yes
Type shut-off valve: butterfly valve
Top: 5 mm
Cylinder: 5 mm
Bottom: 5 mm

Outer diameter tank: 2.500 mm
Total height of tank: 2.950 mm
Total outer length: 8.400 mm
Empty weight tank: 6.000
