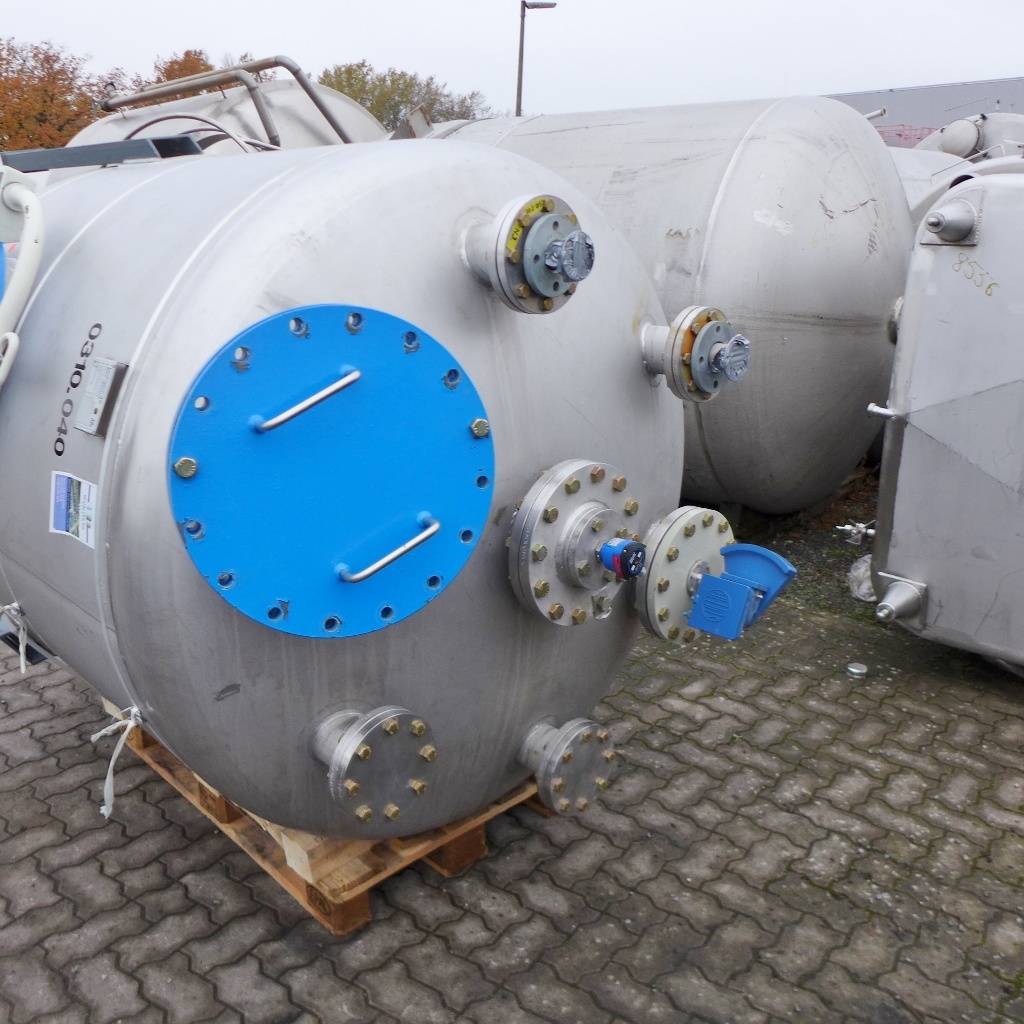

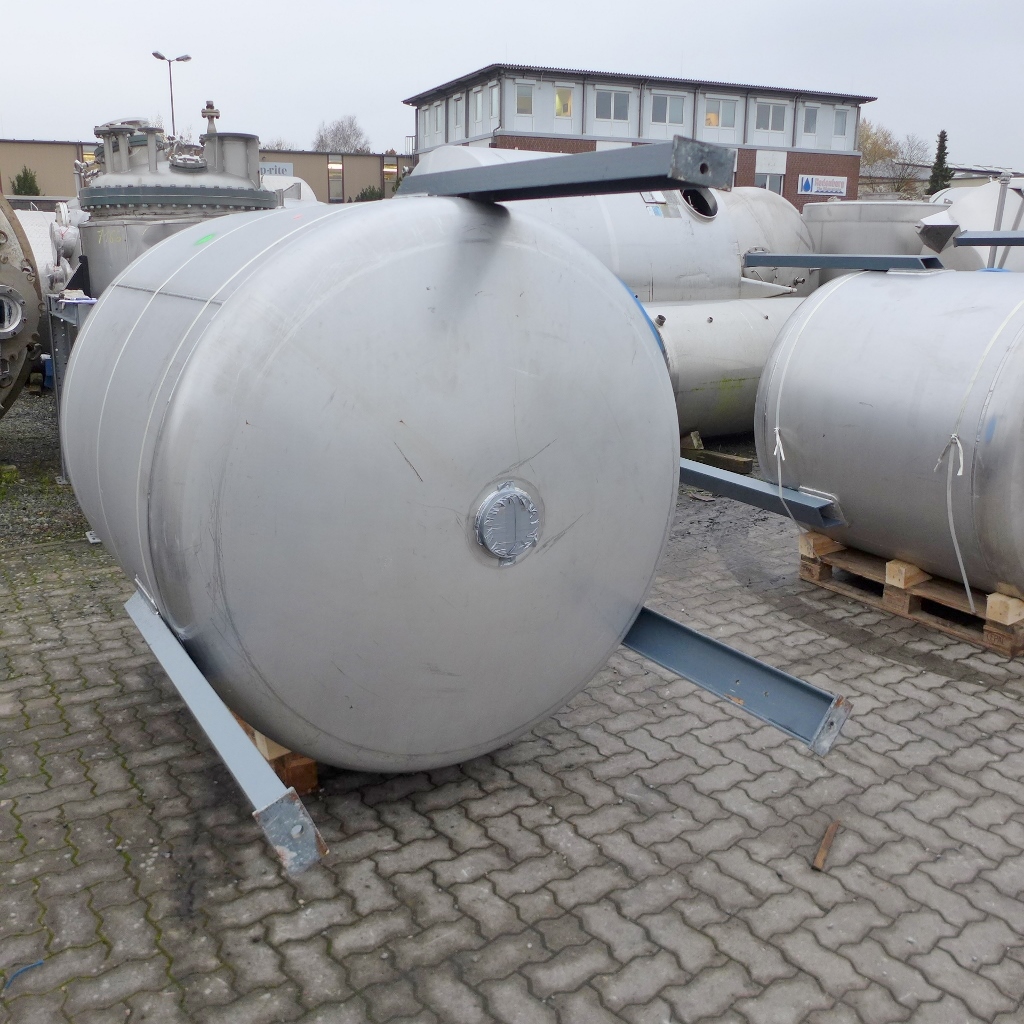

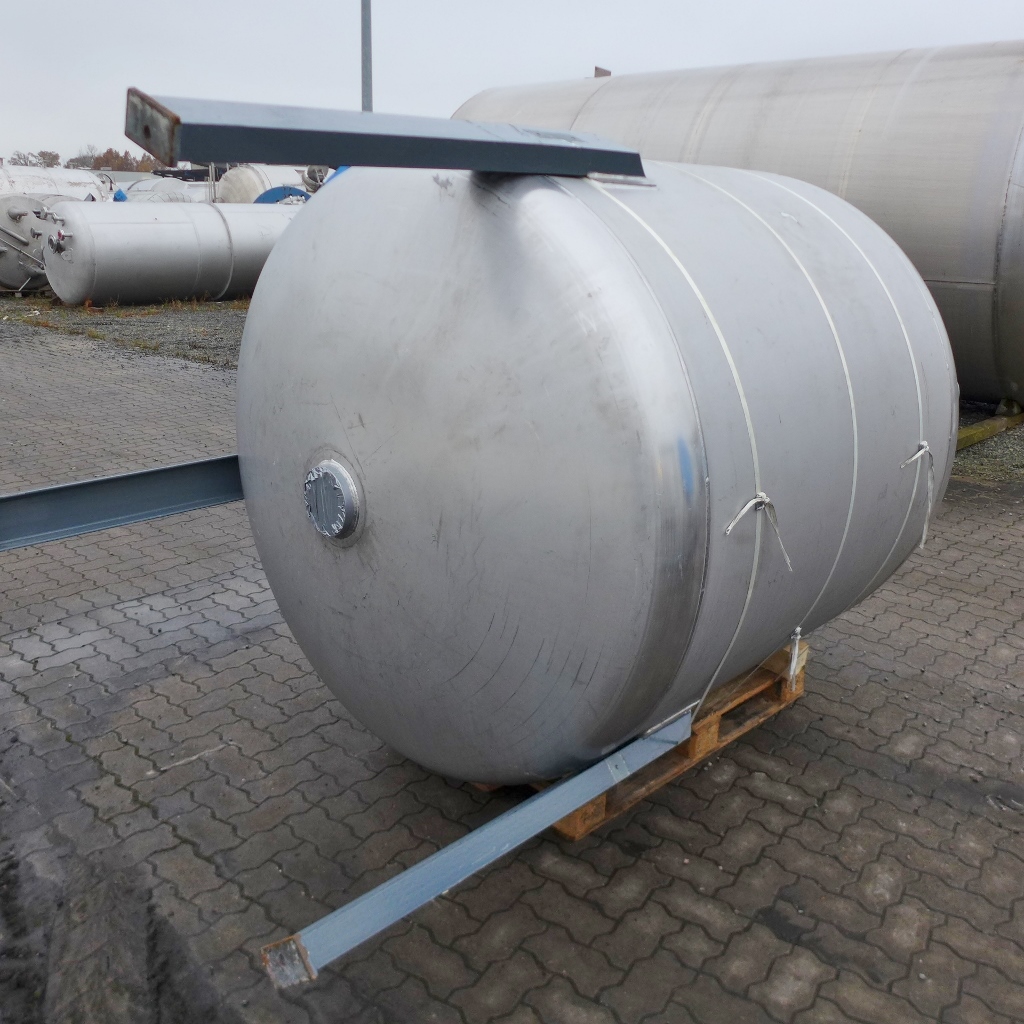

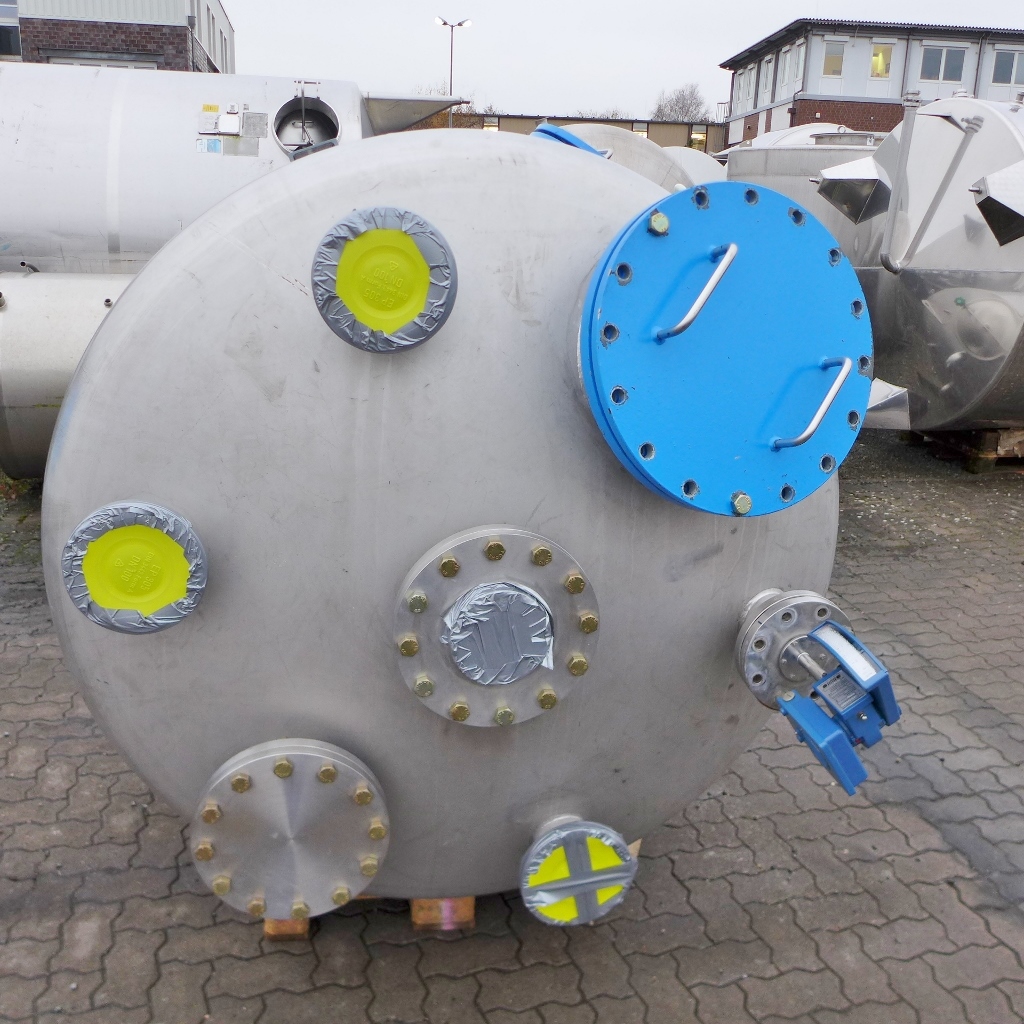

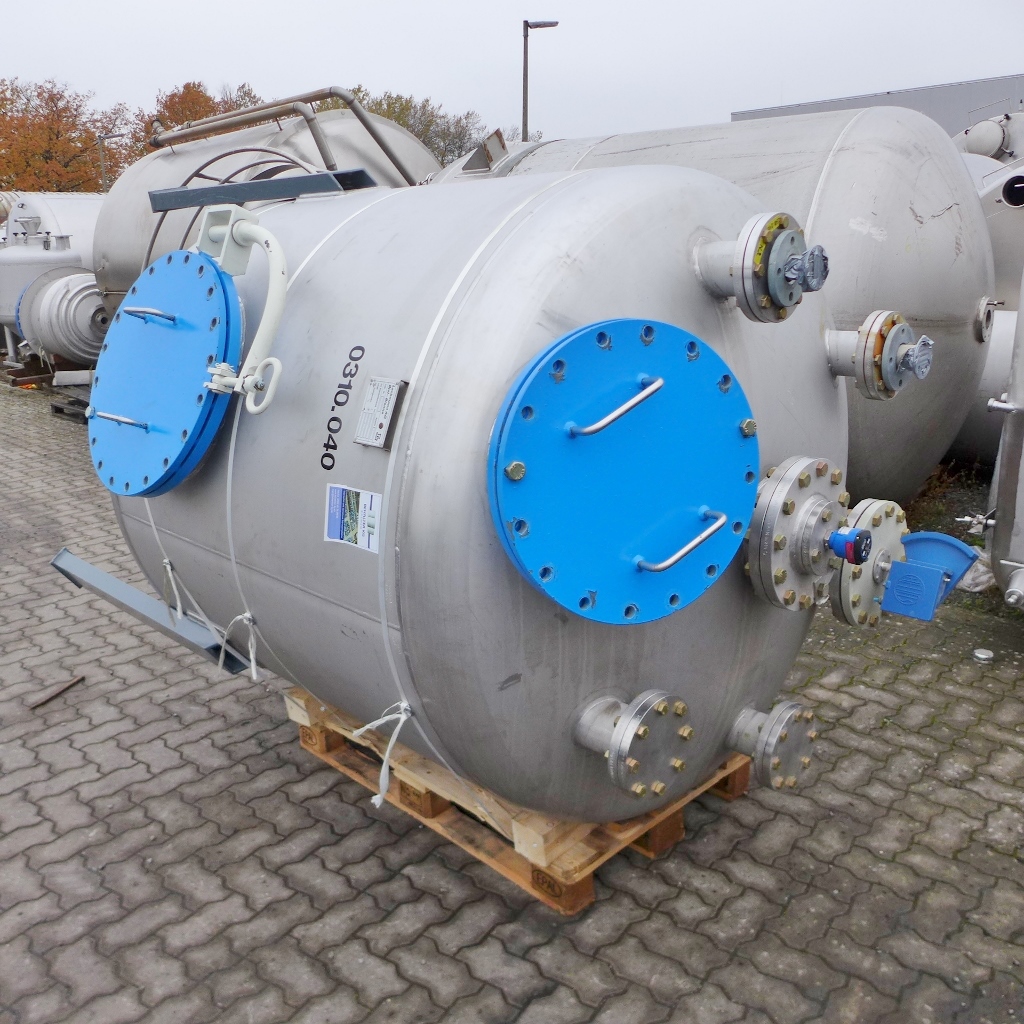

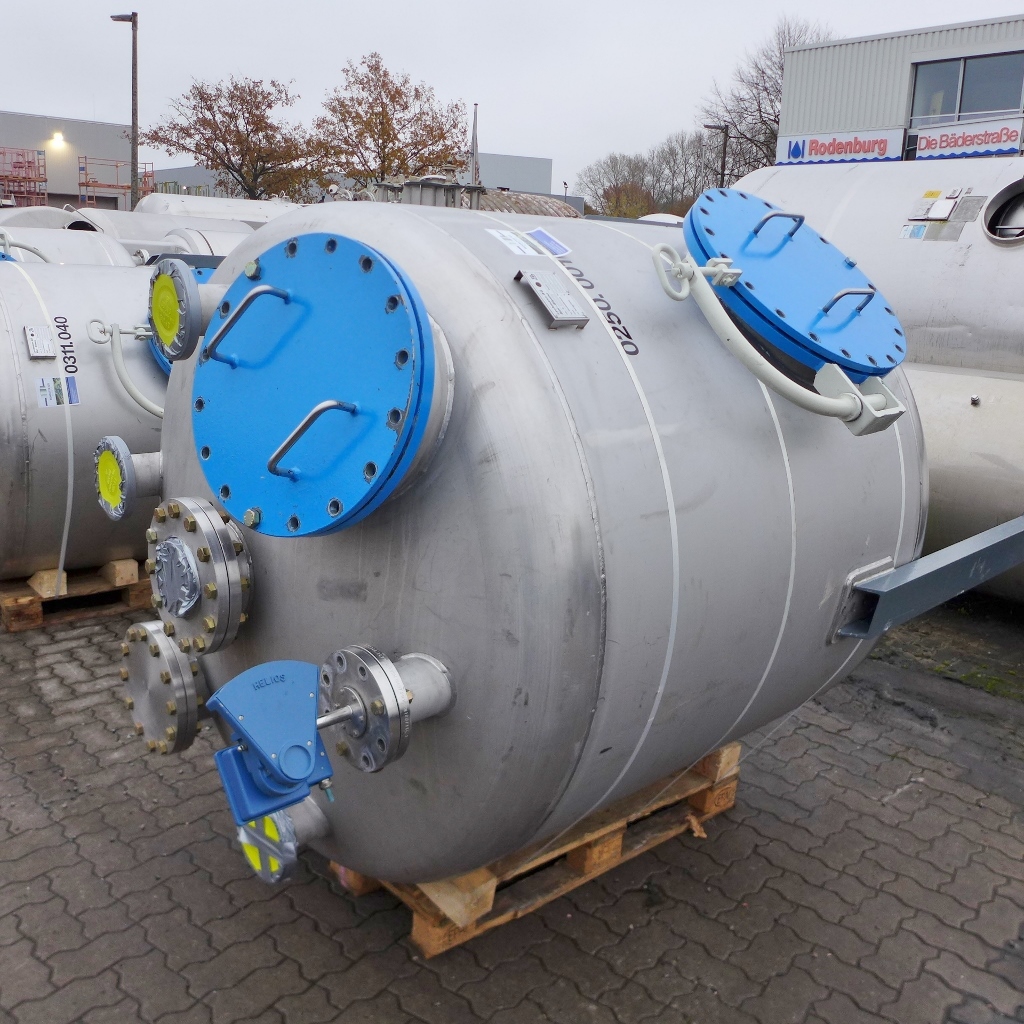

3500 liter tank i Syrafast 316

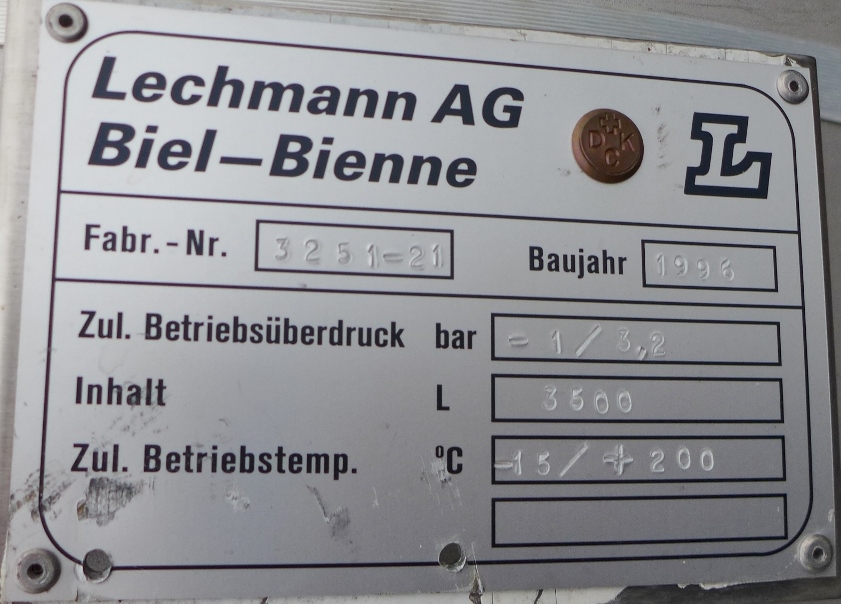

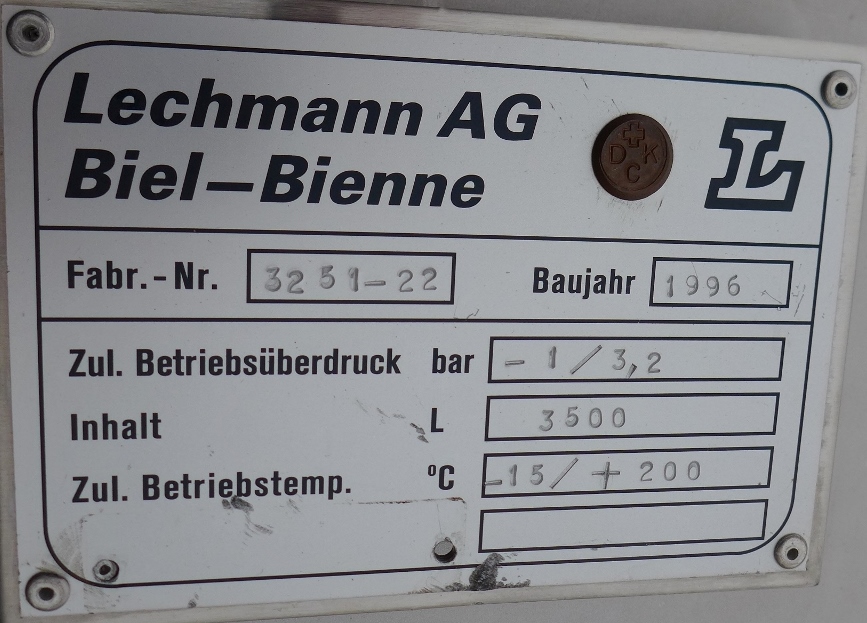

Additional information: Pharmaceutical chemistry; Manhole cylinder DN 500; more technical documents available; manhole cover plated Volumetric volume (L): 3.500 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 3,20 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: flange DN50 Top: 5,70 mm Cylinder: 6 mm Bottom: 4,80 mm Internal diameter tank: 1.600 mm Cylinder height: 1.300 mm Total height of tank: 2.800 mm
