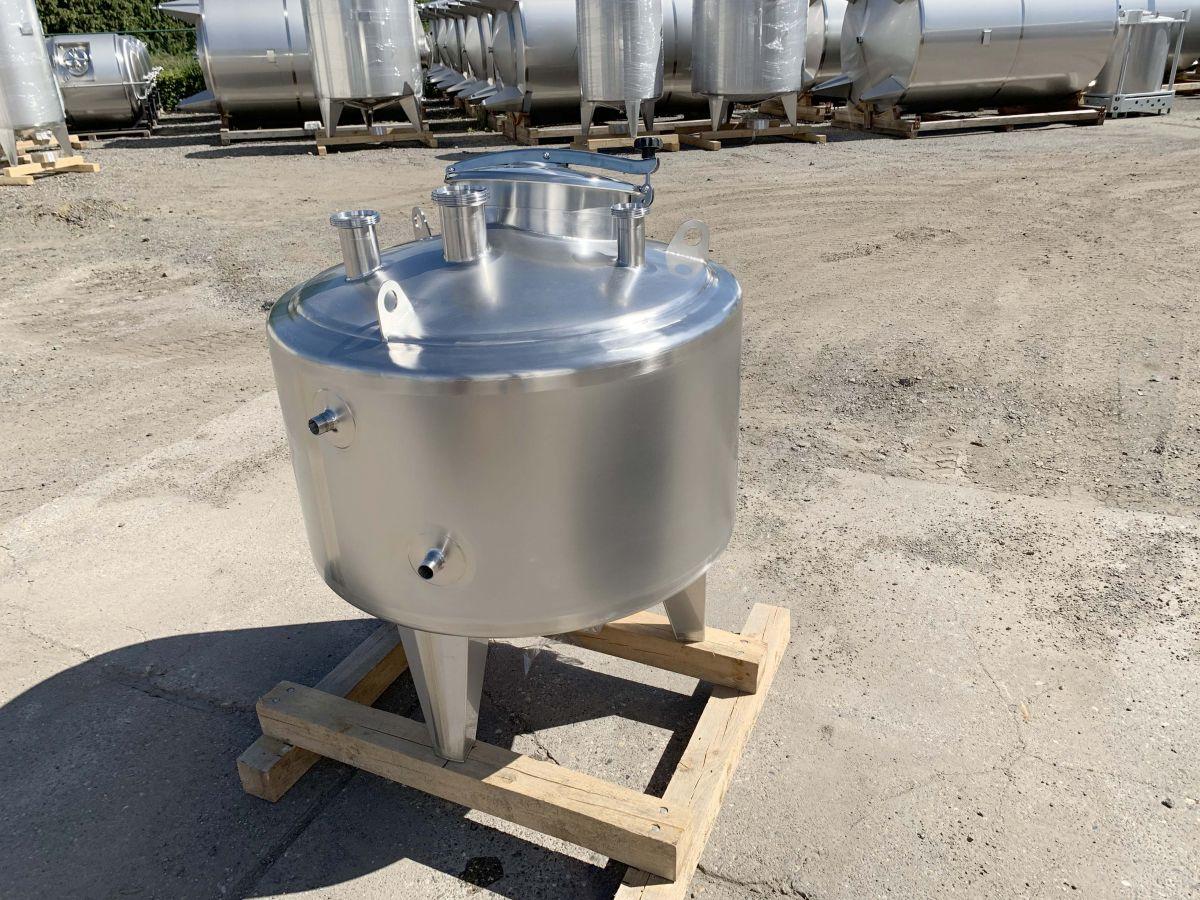

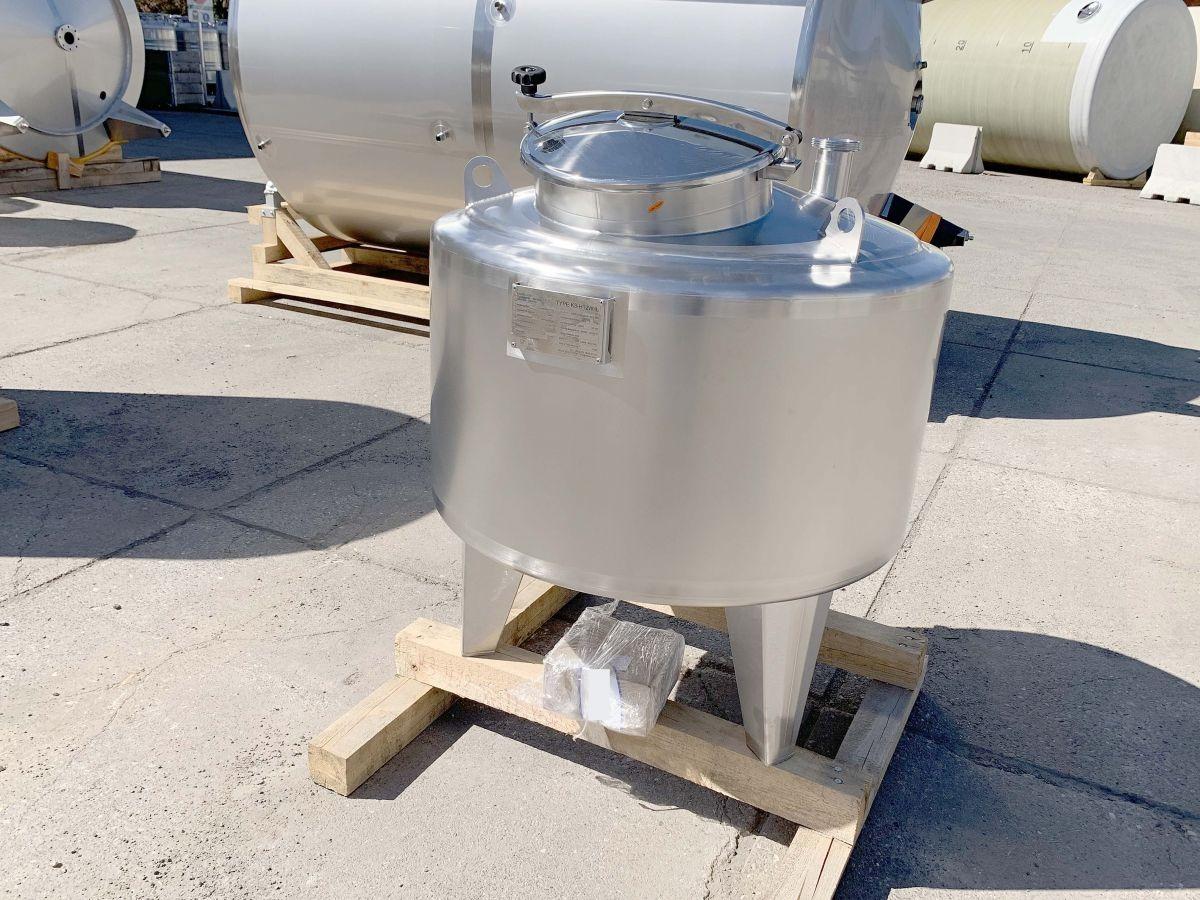

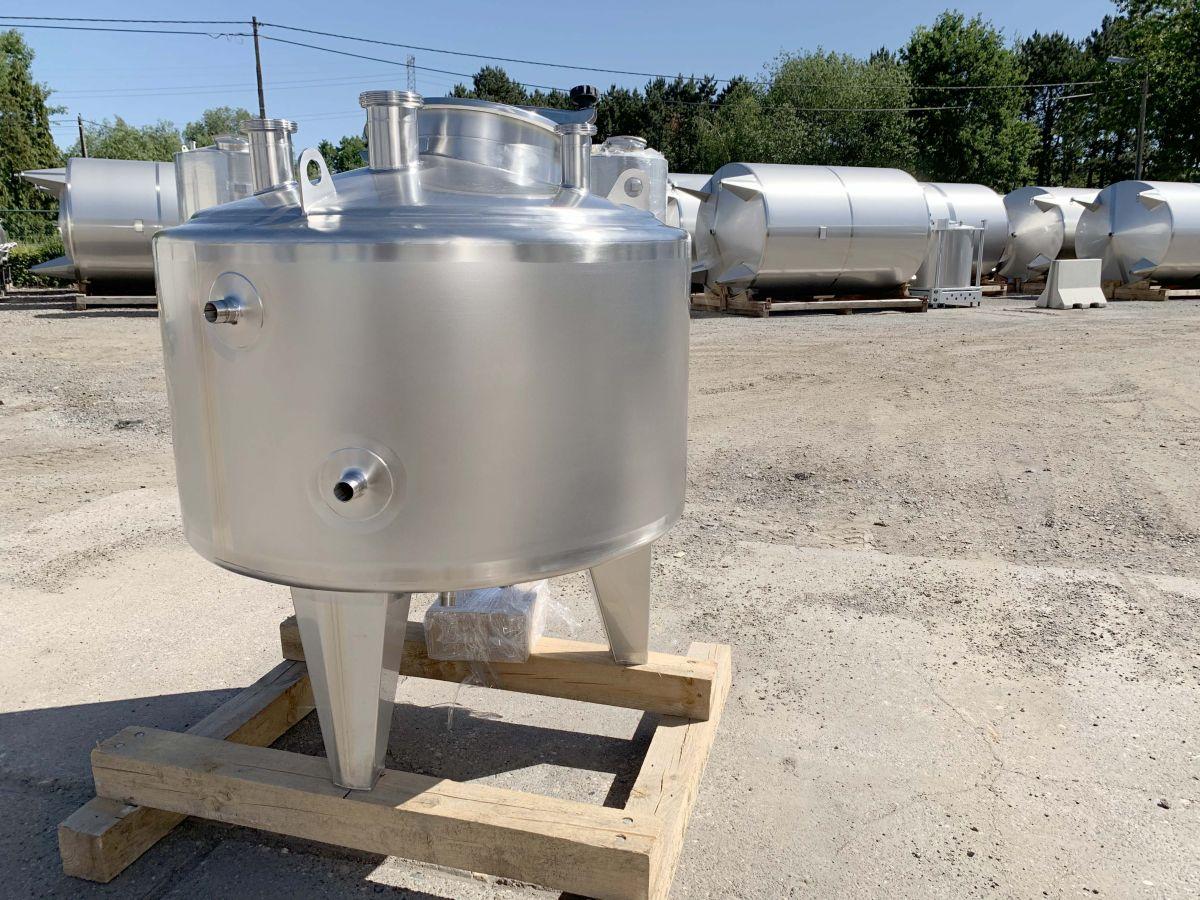

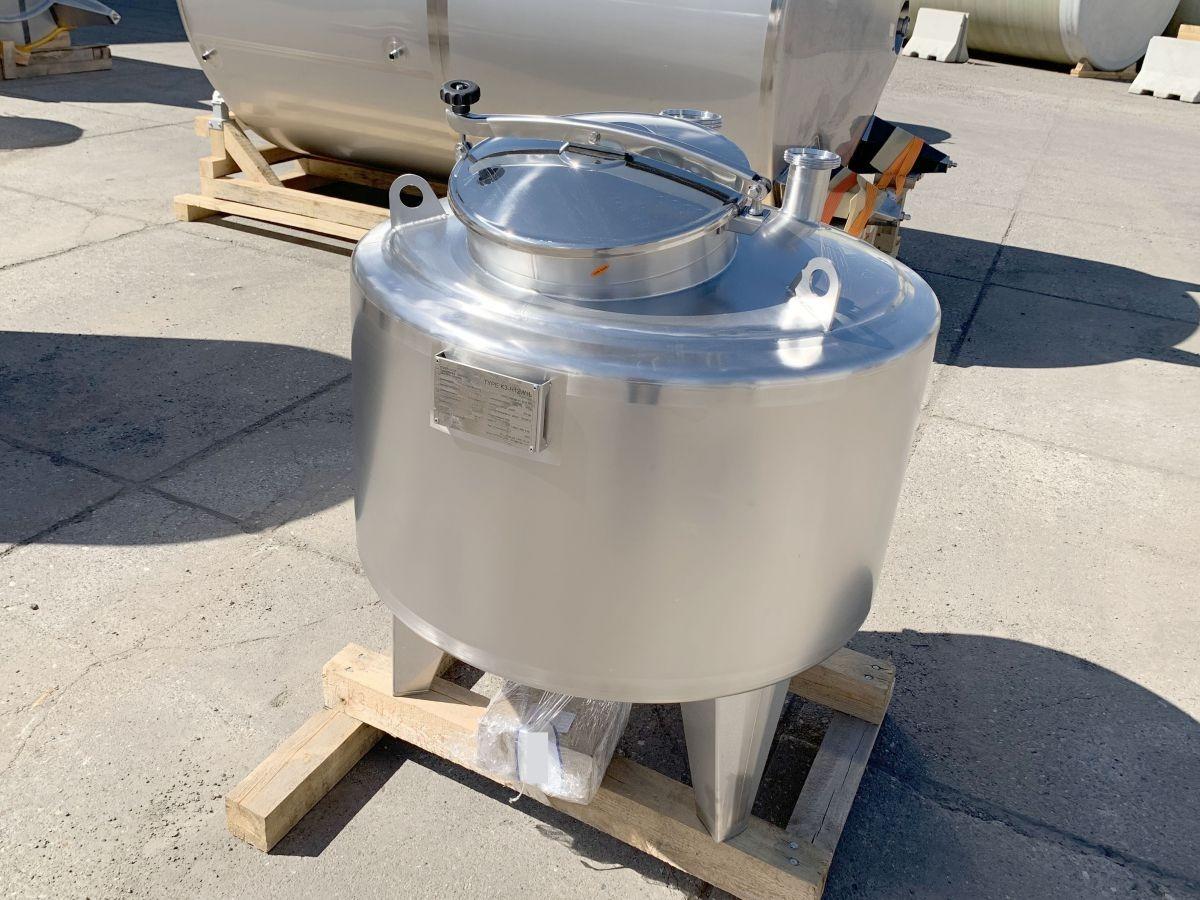

340 liter tank i Syrafast 316

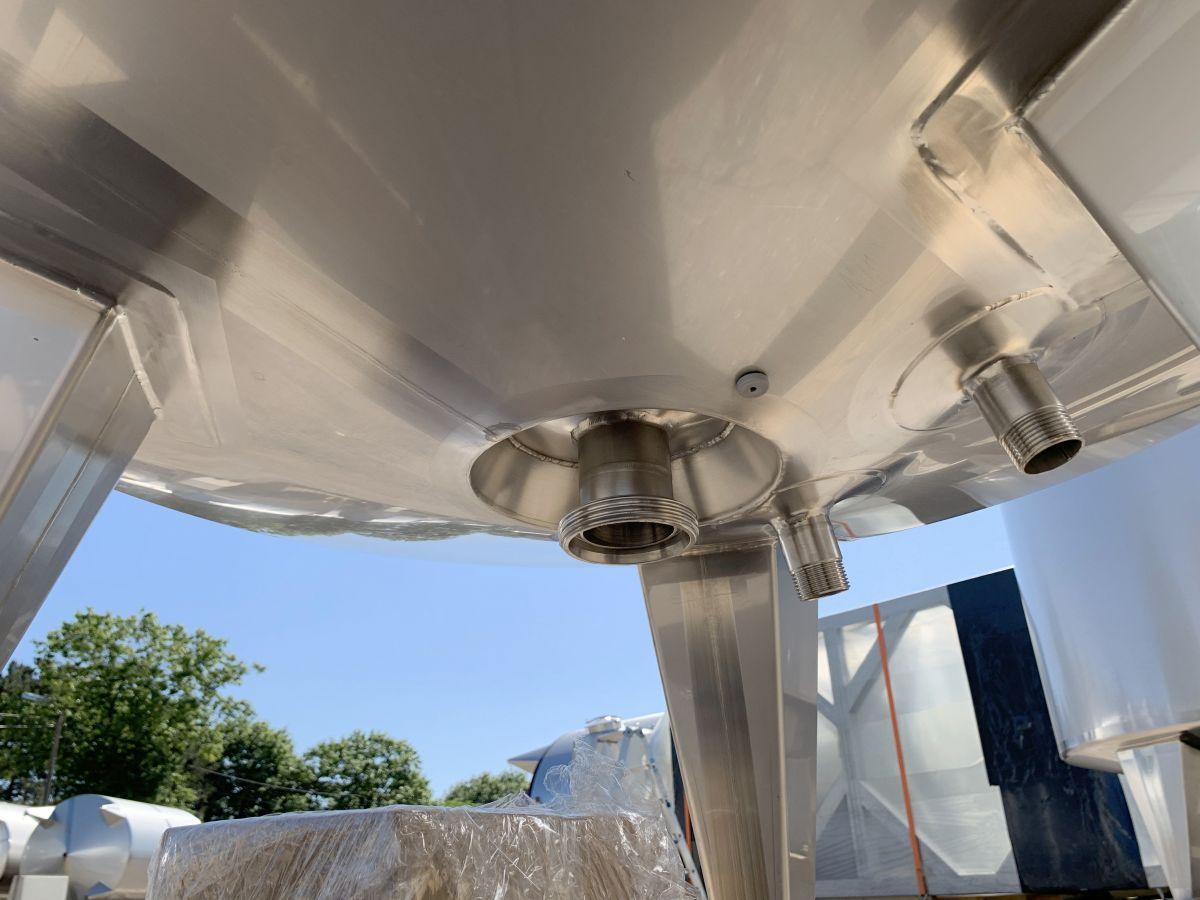

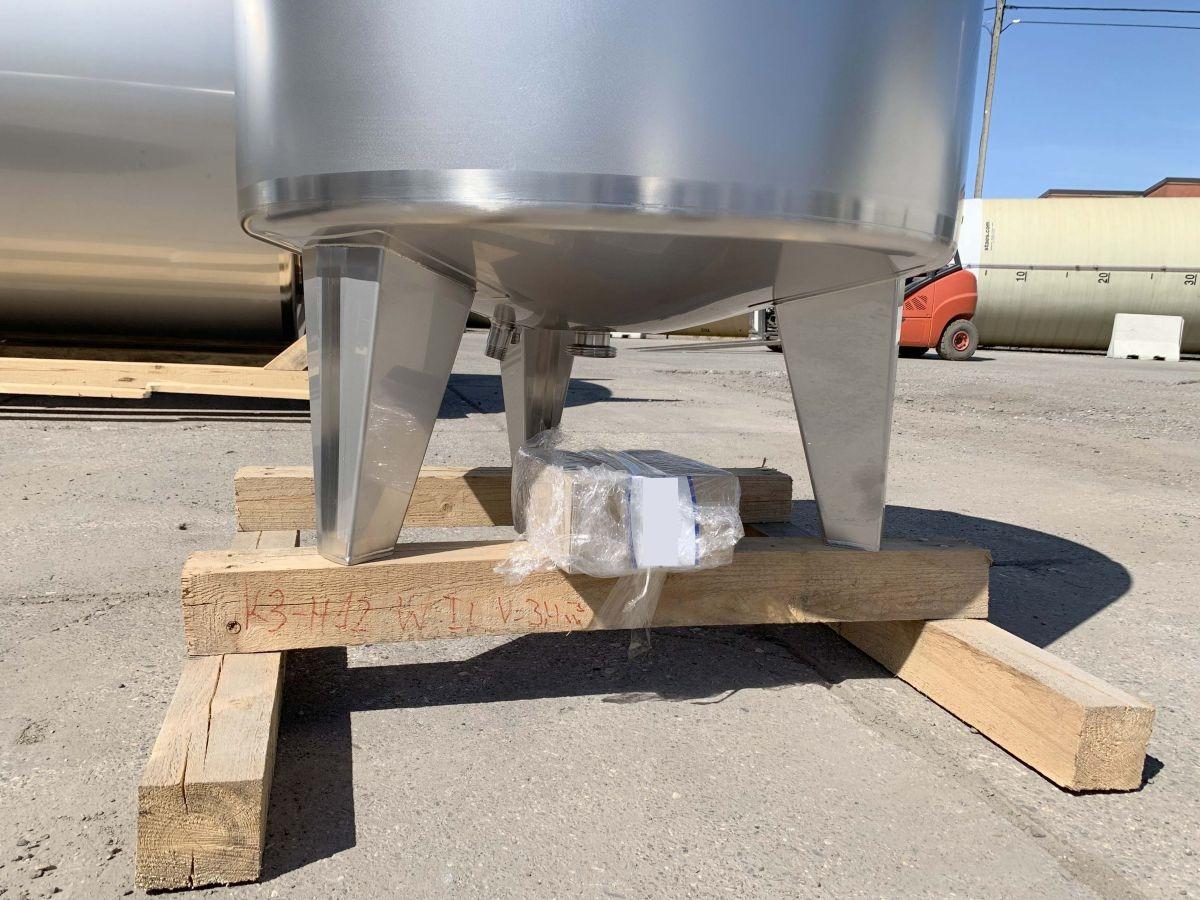

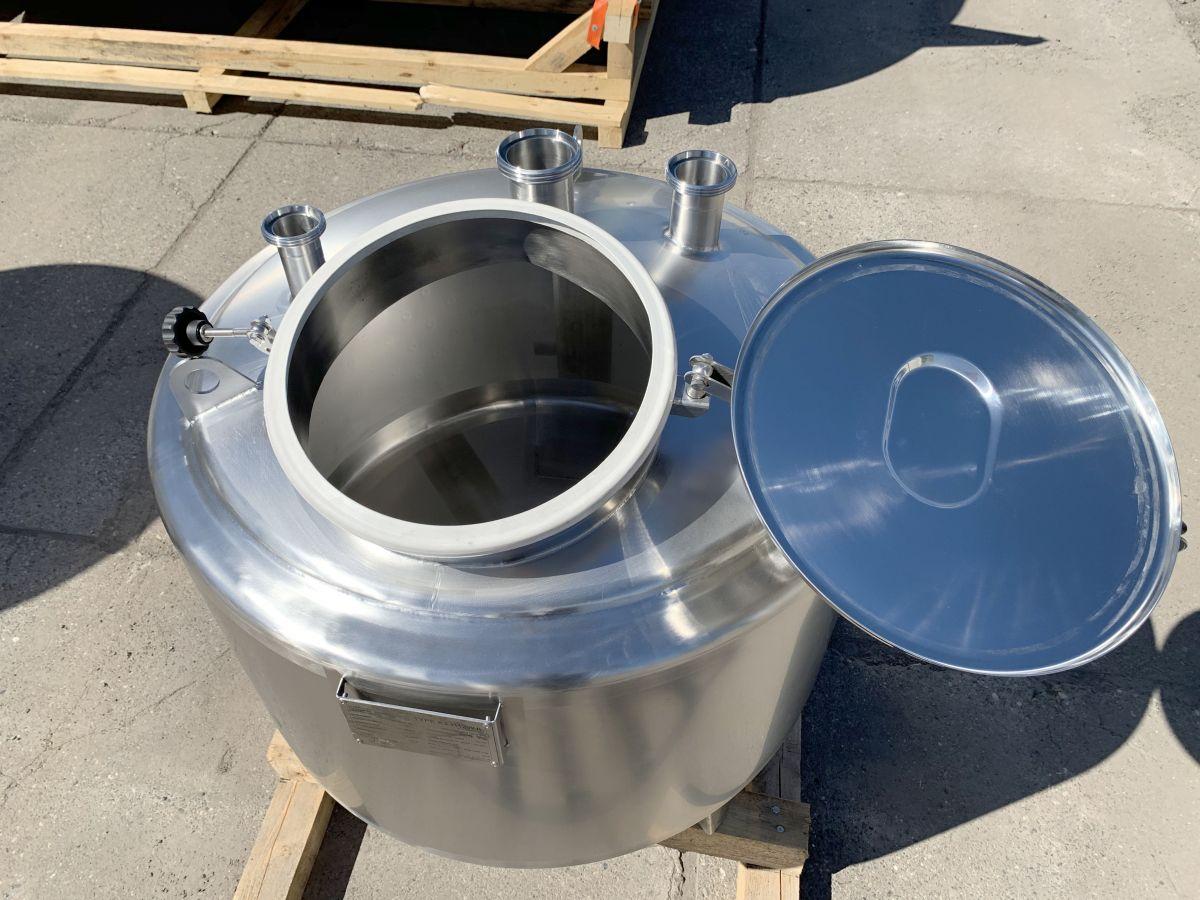

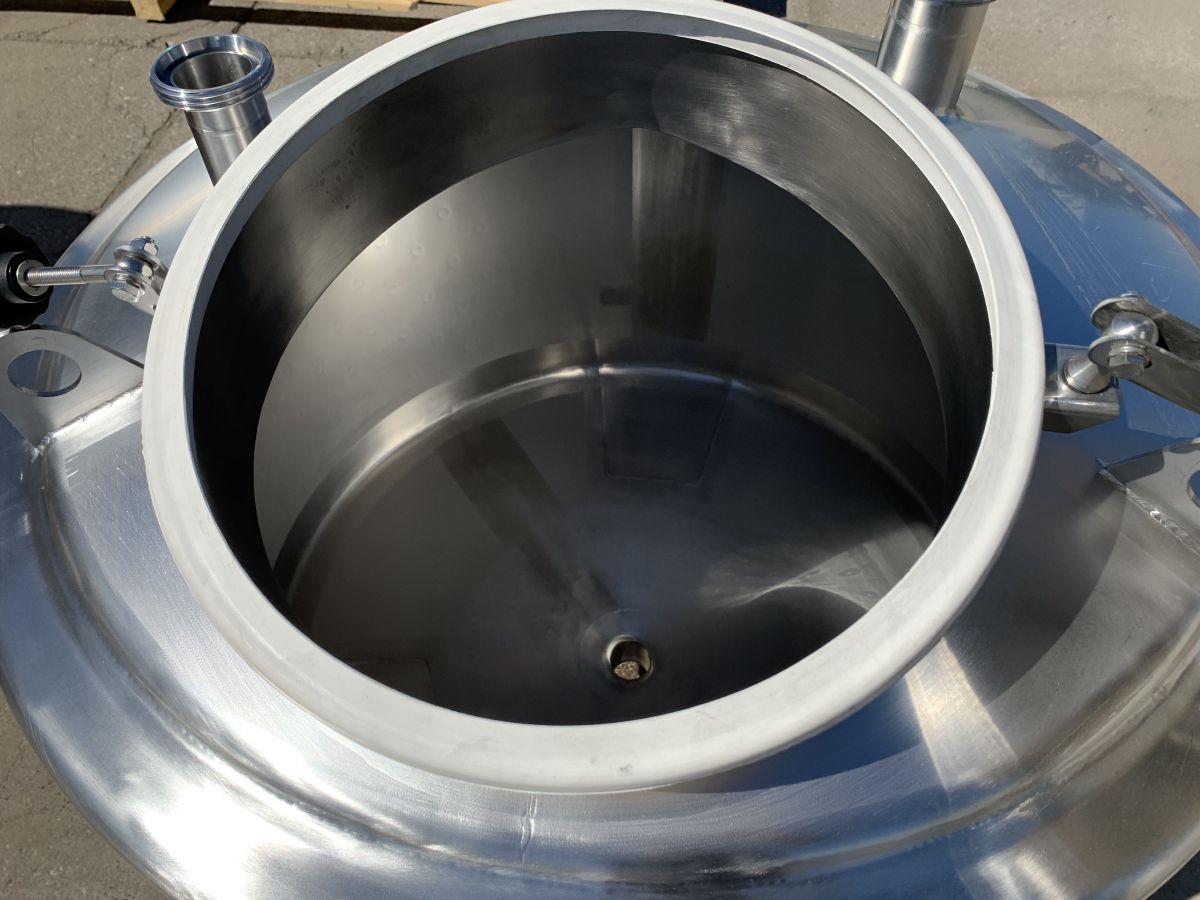

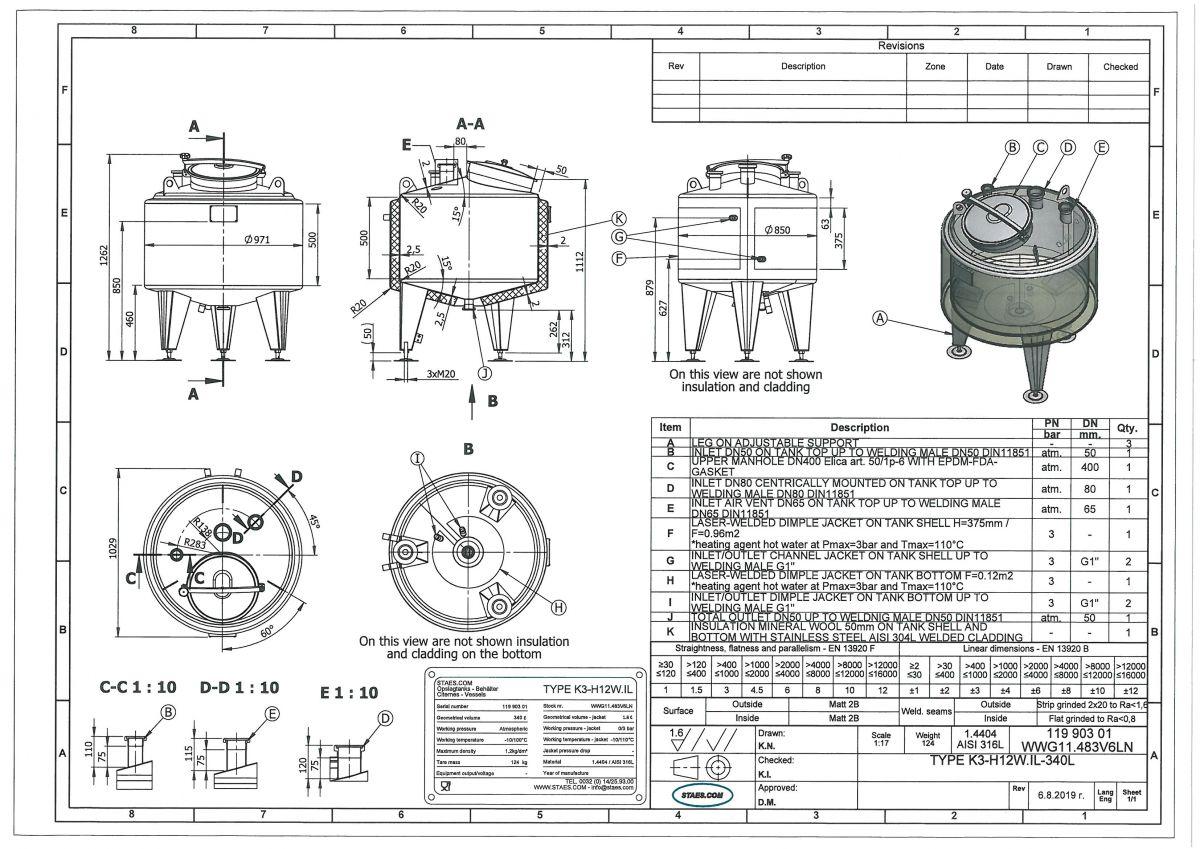

item available on order Article type: brand new storage tank - type K3-H12W.IL Additional information: Ra=<0.8µm Volumetric volume (L): 340 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 130 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: conical ° Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 adjustable feet Legs: Set of baseplates and adjusting pieces included Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Contact surface cylinder: 0,96 m² Connection HE: 1" BSP Working temperature HE cylinder: 110 °C Type of HE on the bottom: dimple-jacket Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Contact surface bottom: 0,12 Connection HE: 1" BSP Working temperature HE bottom: 110 °C Heat exchanger: RVS - 304 with rockwool insulation Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304L Manway(s): RVS 316 Gasket manway(s): EPDM Fixation point(s): RVS 304L Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Inspection of: TUV Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 400 mm CIP spray ball: no, optional Tank outlet: inside Ø Outlet type: DIN11851 male Total outlet valve: no, optional Agitator: no, optional Top: 2 mm Cylinder: 2,50 mm Bottom: 2,50 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 50 Internal diameter tank: 850 mm Distance from outlet to ground: 312 mm Outer diameter tank: 971 mm Cylinder height: 500 mm Feet height: 460 mm Total height of tank: 1.262 mm Empty weight tank: 124
