Additional information: some residues of previous content
Volumetric volume (L): 3.300 L
Pressure in tank: pressure and vacuum
Max. pressure (Bar): 2,50 Bar
Min. pressure (Bar): 1 Bar
Max. temperature (°C): 130 °C
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: insulated
Heat exchanger: no
Insulation: yes
Mobile tank: no
Total discharge: no
Documents included: no

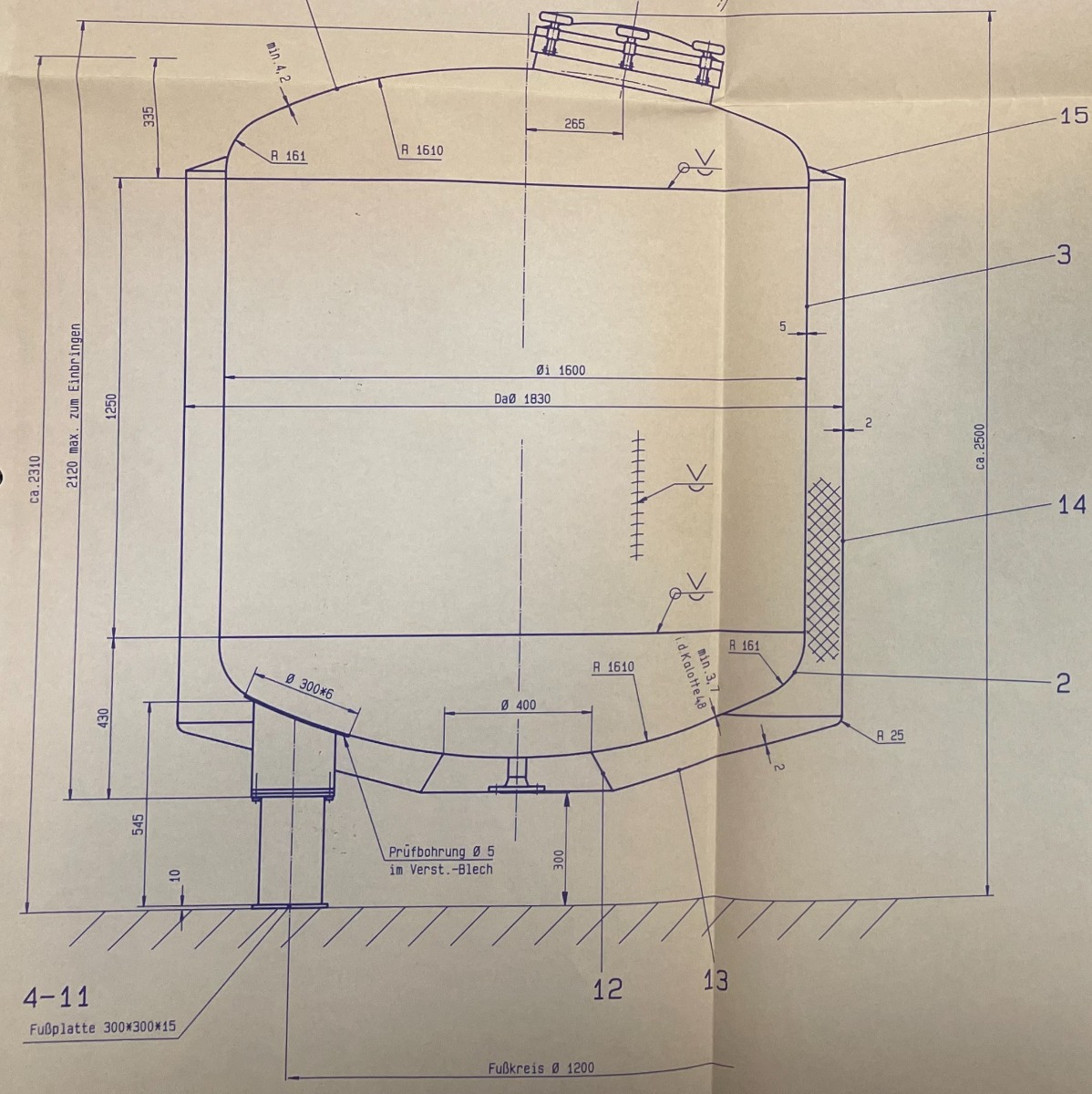

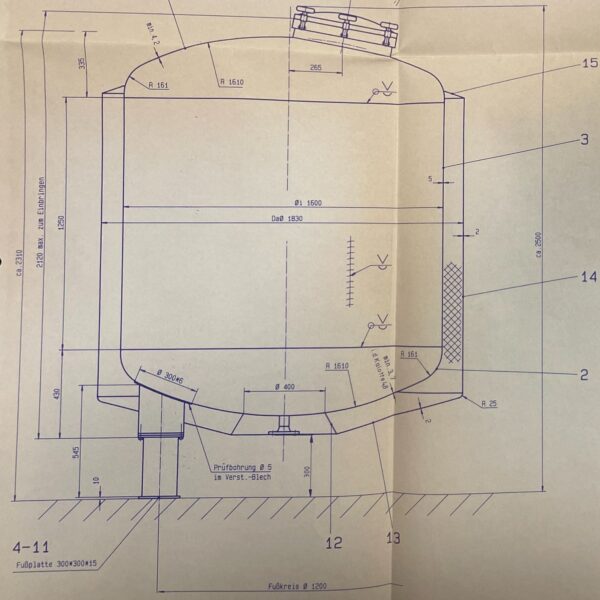

Technical drawing included: no
Registration plate on the tank: yes
Flange for agitator: no
Position of manway: in the bottom
Top: 4,20 mm
Cylinder: 5 mm
Bottom: 3,70 mm
Internal diameter tank: 1.600 mm
Outer diameter tank: 1.800 mm
Cylinder height: 1.250 mm
Total height of tank: 2.500 mm
