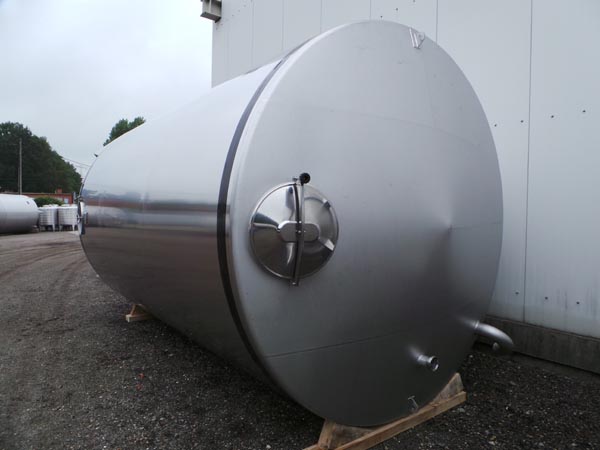

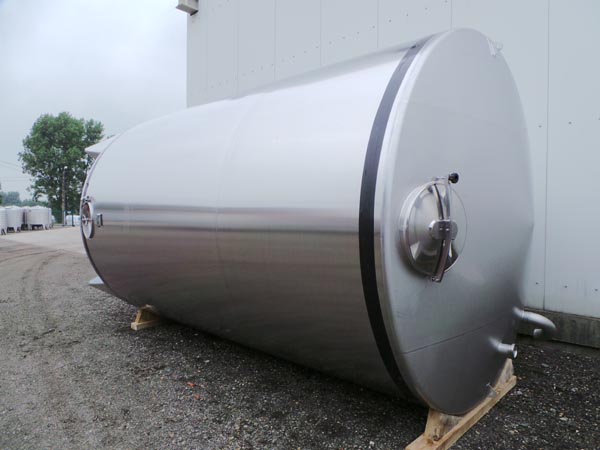

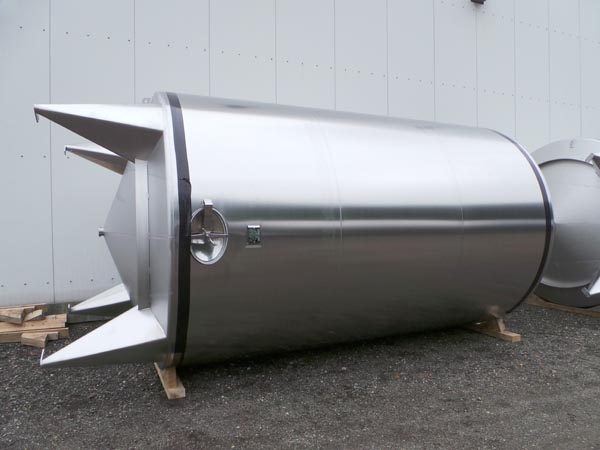

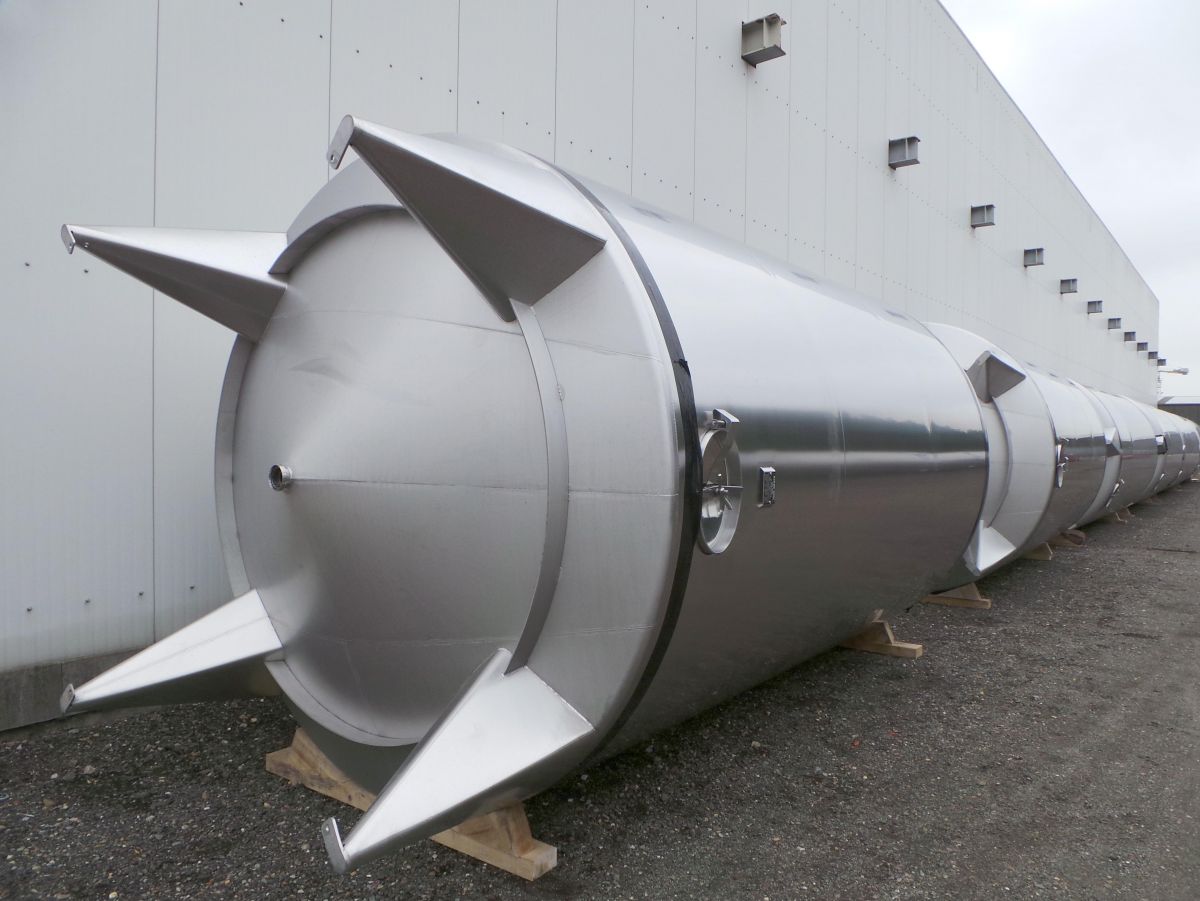

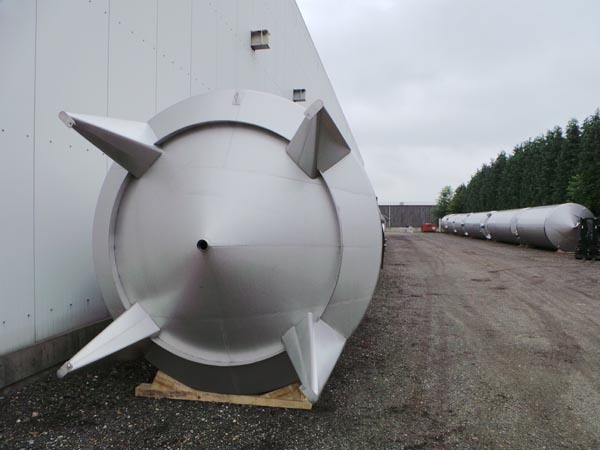

32700 liter tank i Syrafast 316

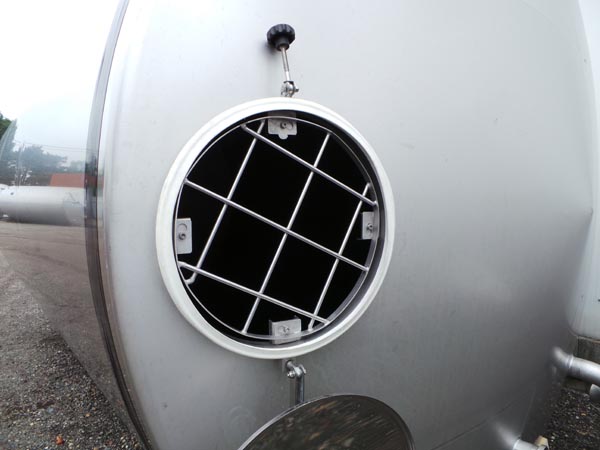

item available on order Article type: brand new storage tank - type TZN-SL Volumetric volume (L): 32.700 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 20 ° Total discharge: yes Fixation points: 4 non adjustable feet Manway(s): RVS 316 Gasket manway(s): EPDM Valve: RVS 316L Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Inspection of: No Documentation Flange for agitator: no Number of manways: 2 Position of manway: cylinder Height manhole 1 (mm): 440 mm x H 308 mm Position 2nd manway: headside Height manhole 2 (mm): 500 CIP spray ball: no Tank outlet: inside Ø 80 mm Outlet type: DIN 11851 Total outlet valve: no, optional Agitator: no Top: 2 mm Cylinder: 2 mm Bottom: 3 mm Distance from outlet to ground: 405 mm Outer diameter tank: 2.984 mm Cylinder height: 4.500 mm Height of top: 382 mm Height of bottom: 595 mm Feet height: 1.000 mm Total height of tank: 5.882 mm Empty weight tank: 2.900
