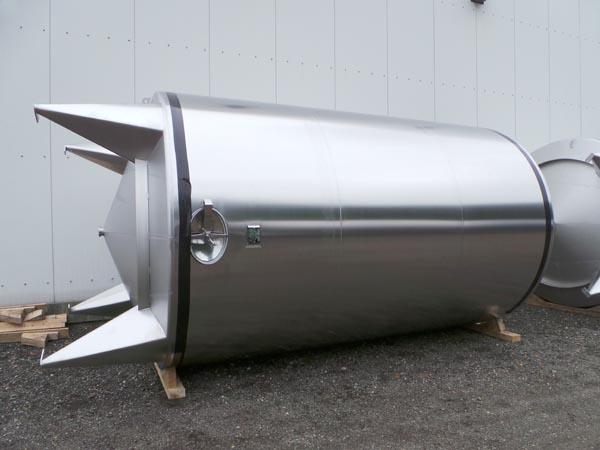

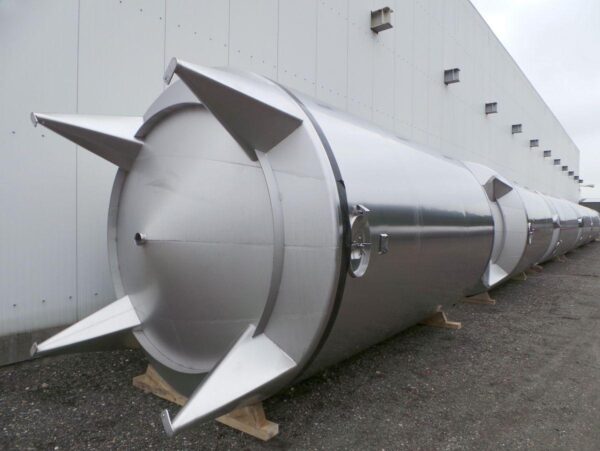

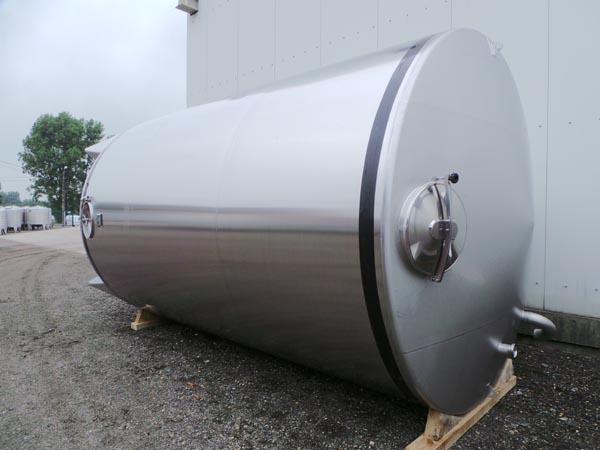

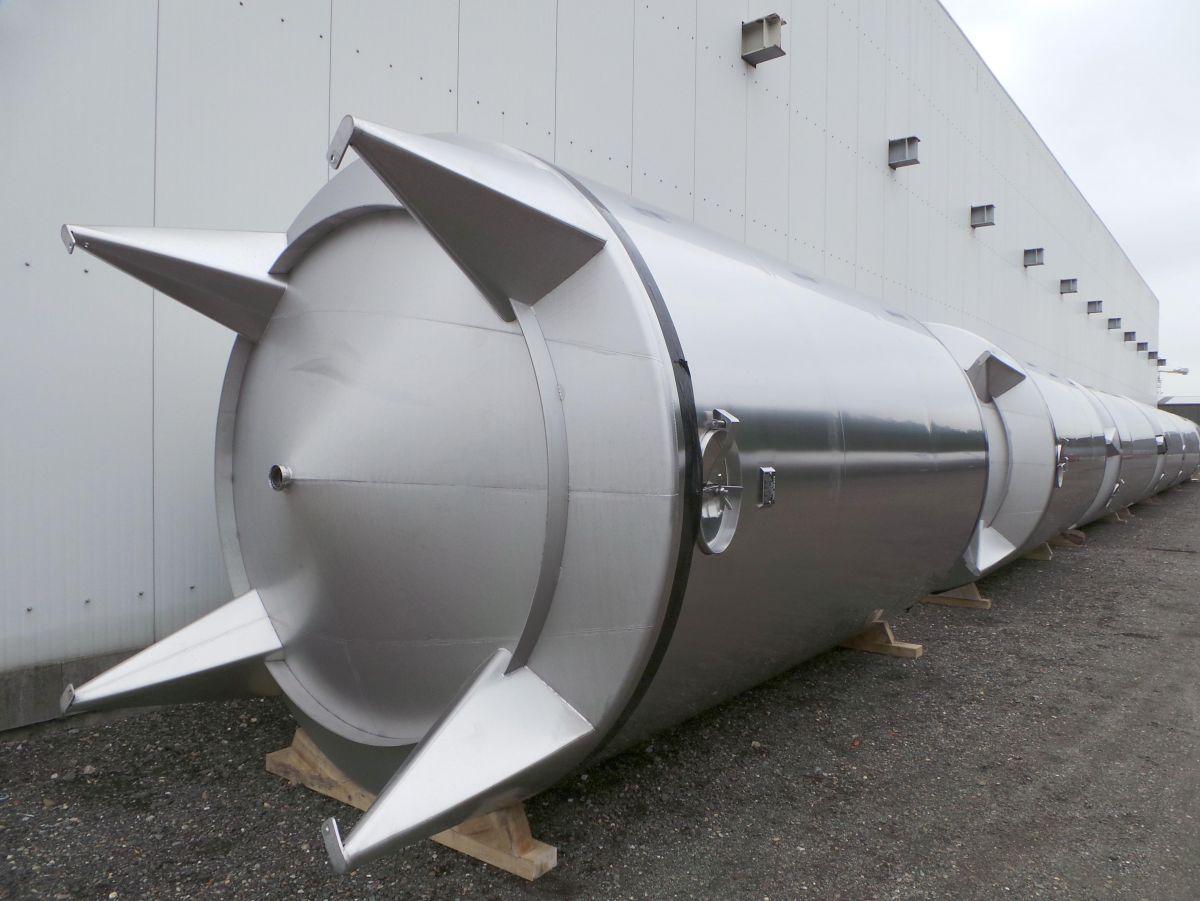

32700 liter i Syrafast 316
194,000.00 SEK/st exkl moms
Mer information
Volym i liter | 32700 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Ritning
Öppnaitem available on order
Article type: brand new storage tank – type TZN-SL
Capacity: 32.700 L
Maximal density of the product: 1.000
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: no
Mobile tank: no
Top type: conical 15 °
Shape of tank: cylindrical

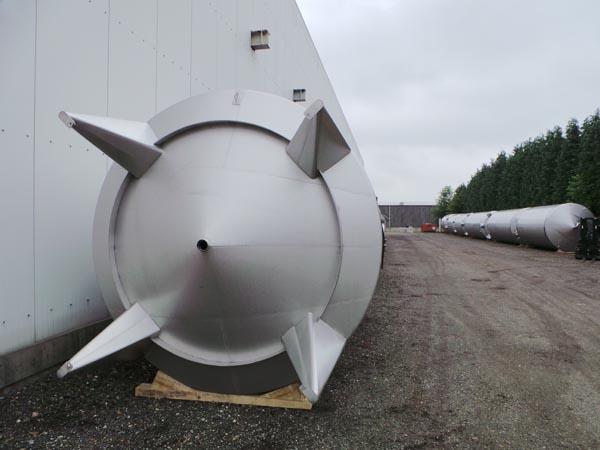

Bottom type: conical 20 °
Total discharge: yes
Fixation points: 4 non adjustable feet
Manway(s): RVS 316
Gasket manway(s): EPDM
Valve: RVS 316L
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
with inspection of: No Documentation
Flange for agitator: no
Number of manways: 2
Position manway: cylinder

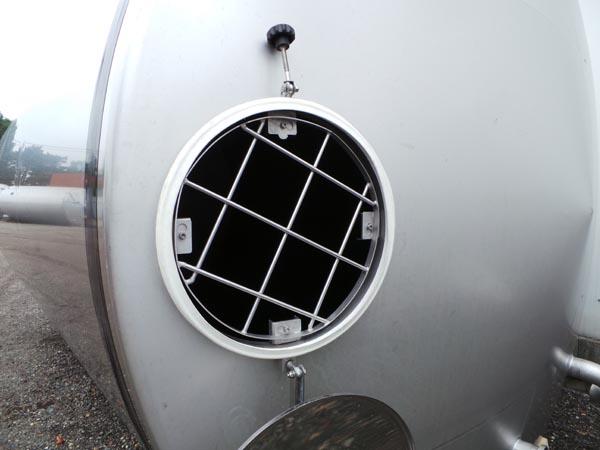

Manway 1: 440 mm x H 308 mm

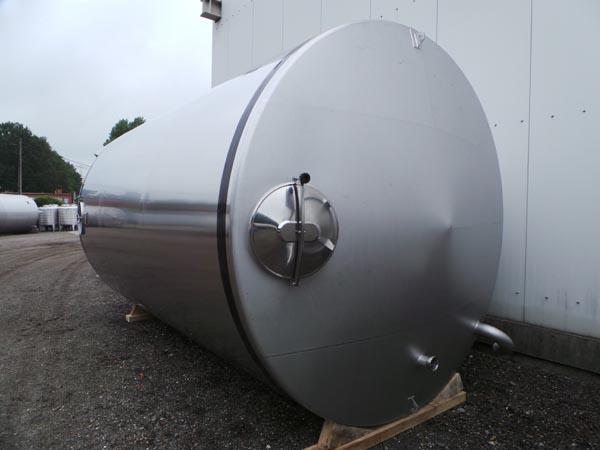

Position 2nd manway: headside
Manway 2 (W): 500
Spray ball: no
Tank outlet: inside Ø 80 mm
Outlet type: DIN 11851
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve
Top: 2 mm
Cylinder: 2 mm
Bottom: 3 mm
Distance from outlet to ground: 405 mm
Outer diameter tank: 2.984 mm
Cylinder height: 4.500 mm
Height of top: 382 mm
Height of bottom: 595 mm
Feet height: 1.000 mm
Total height of tank: 5.882 mm
Empty weight tank: 1.500
