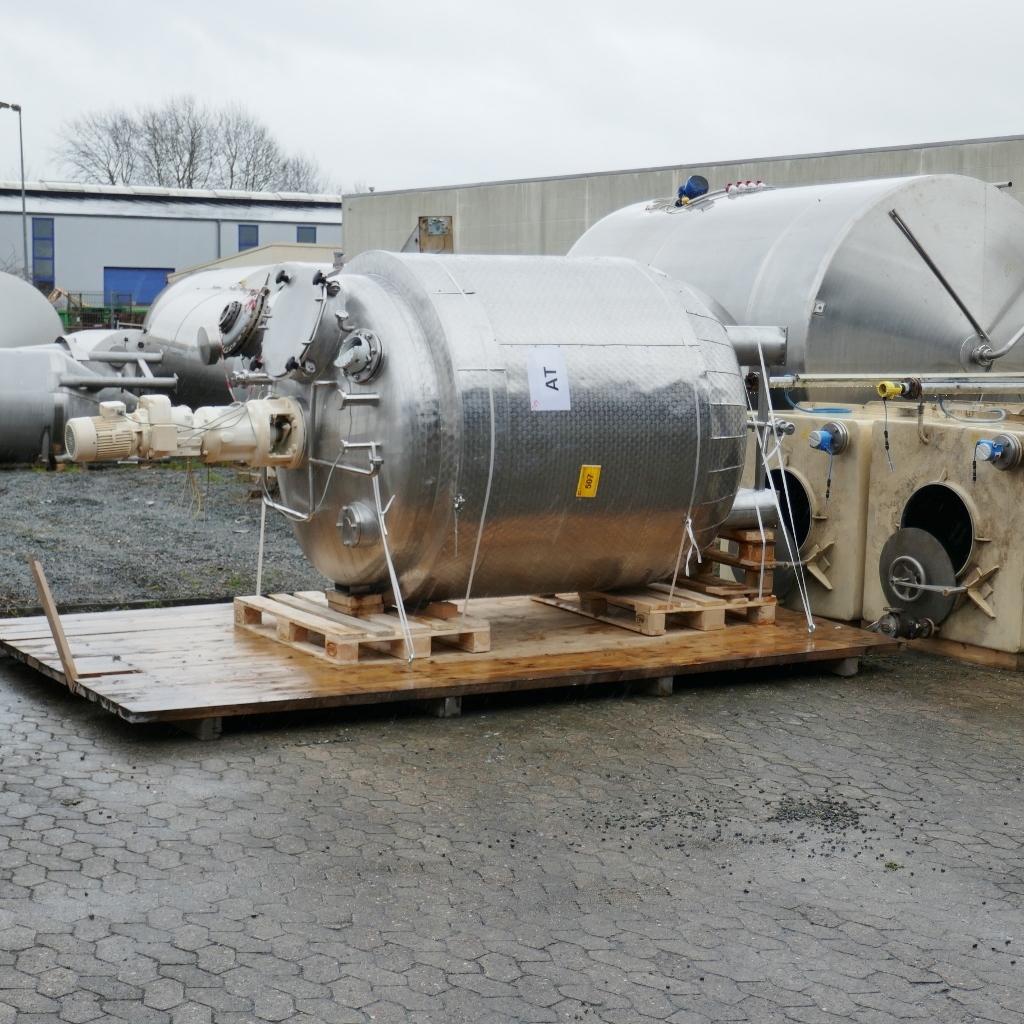

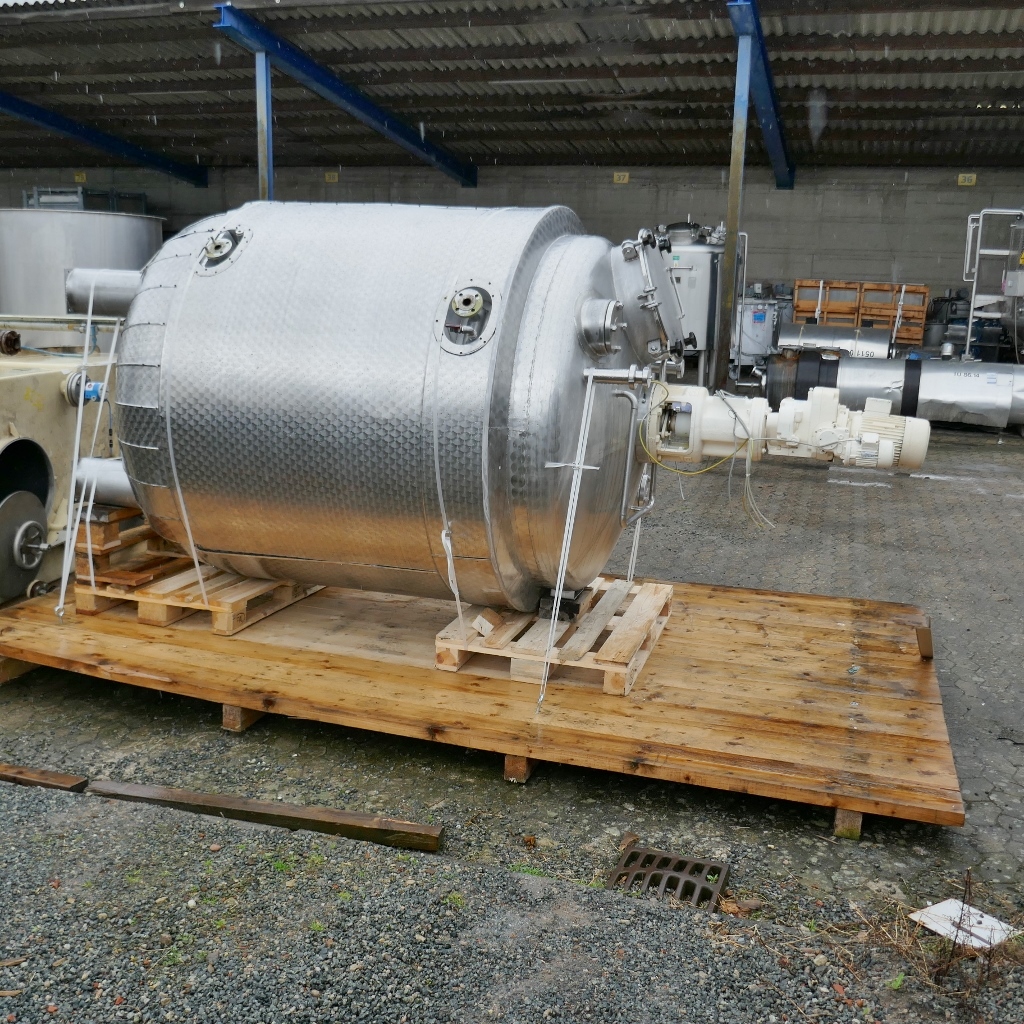

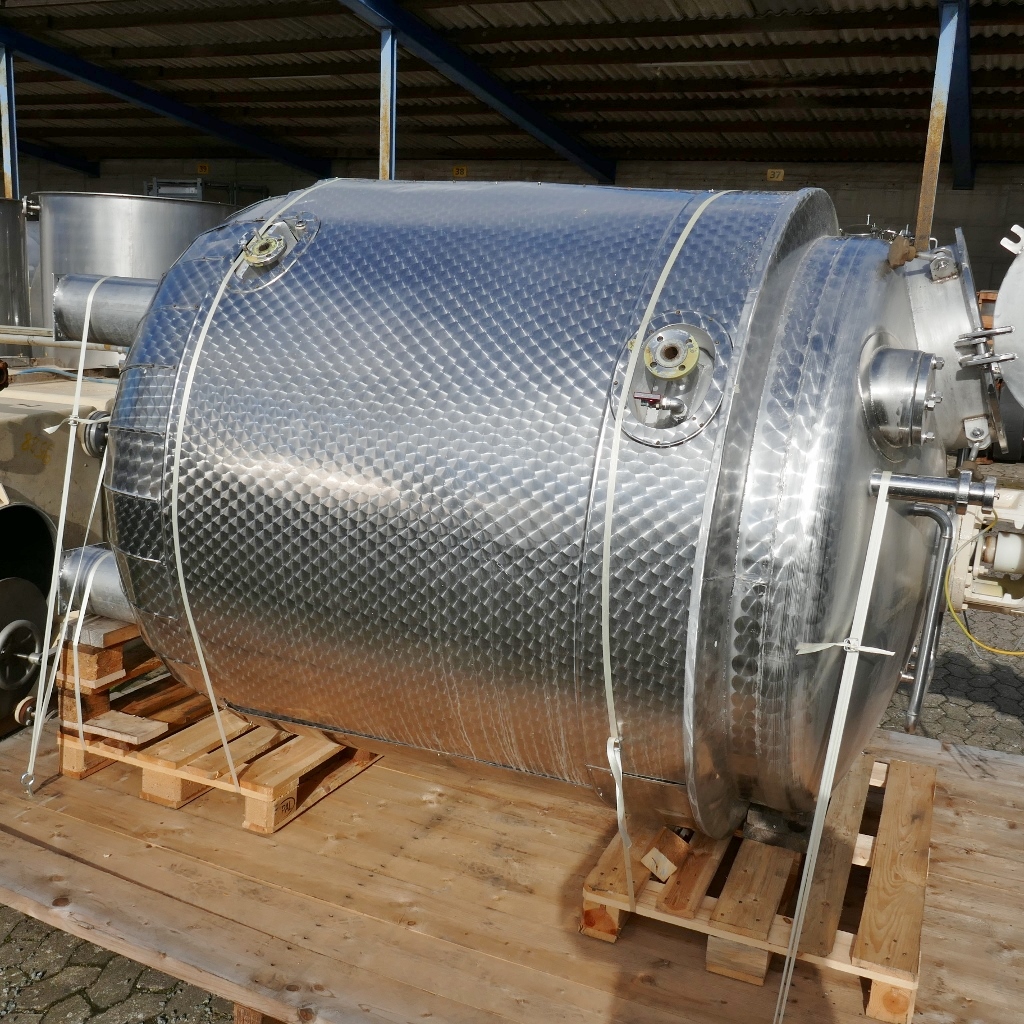

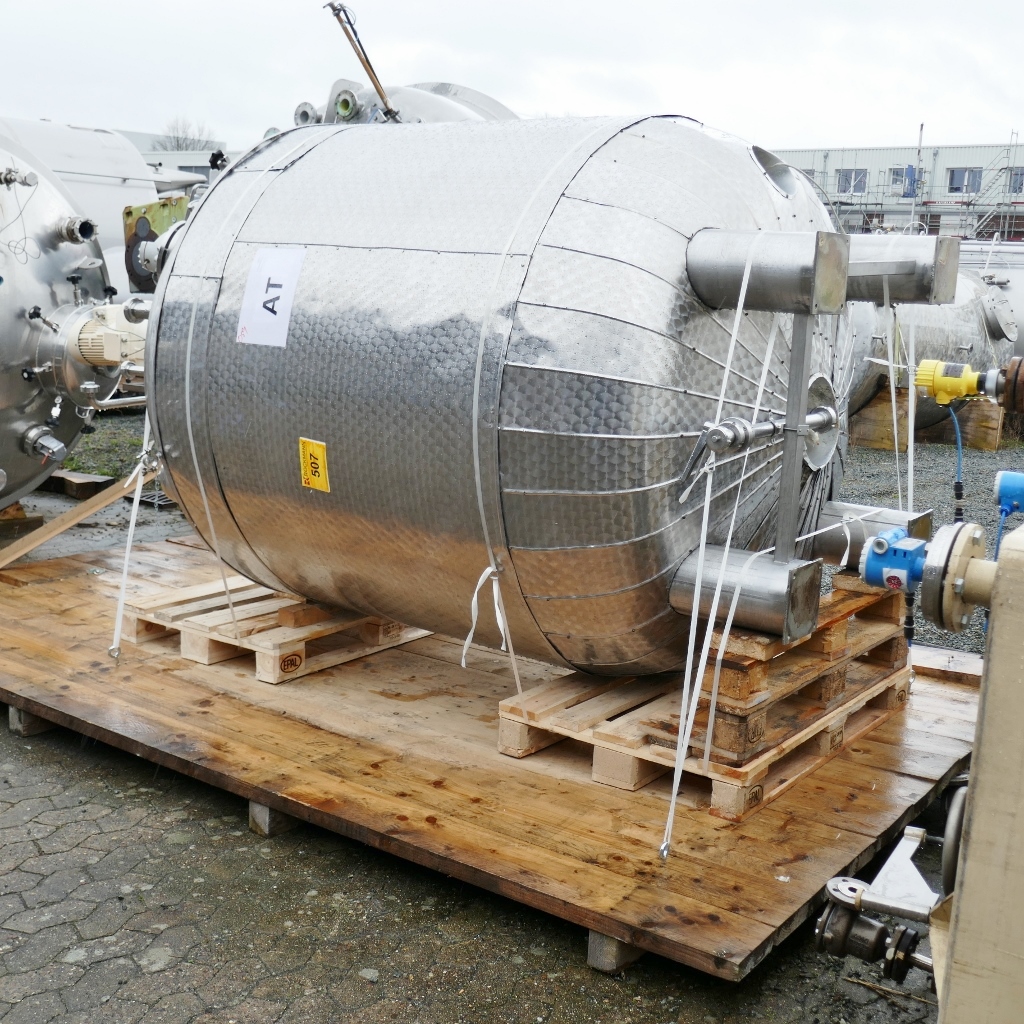

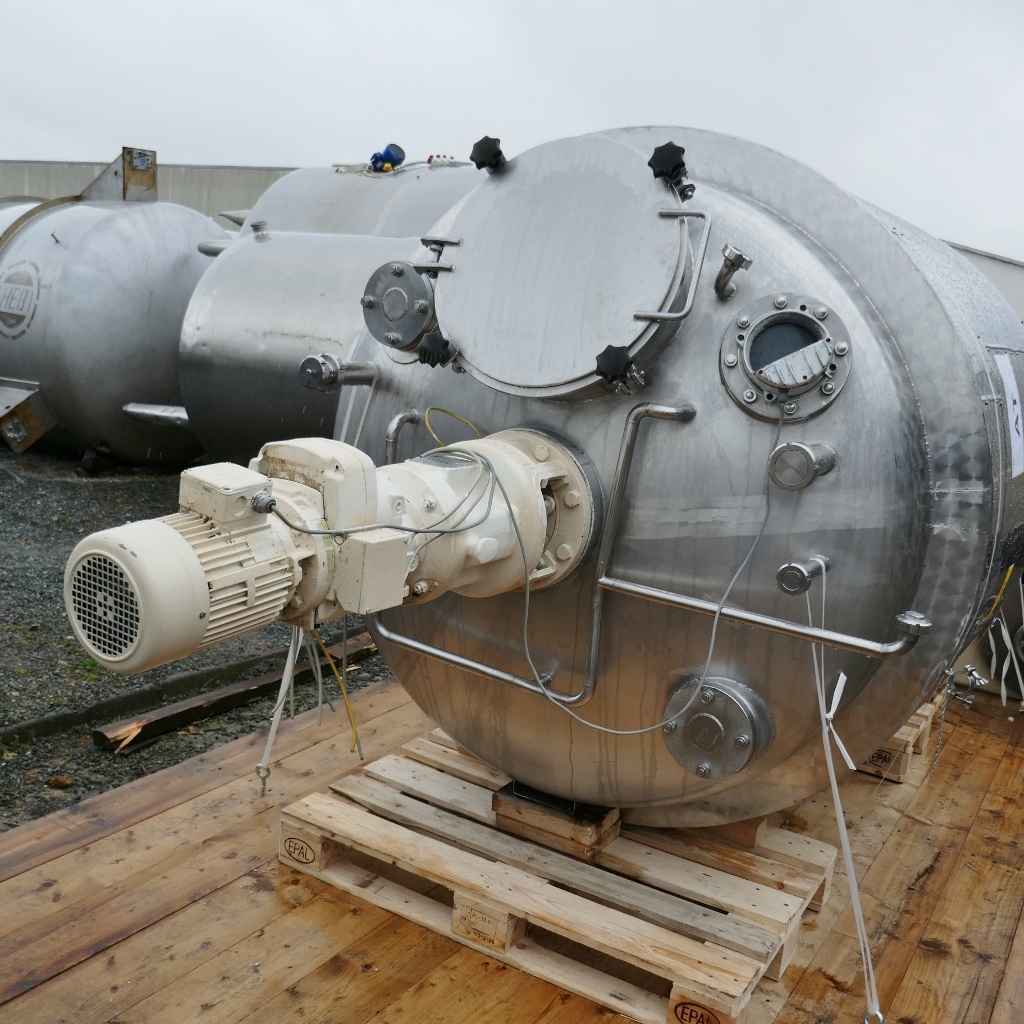

3230 liter tank i Syrafast 316

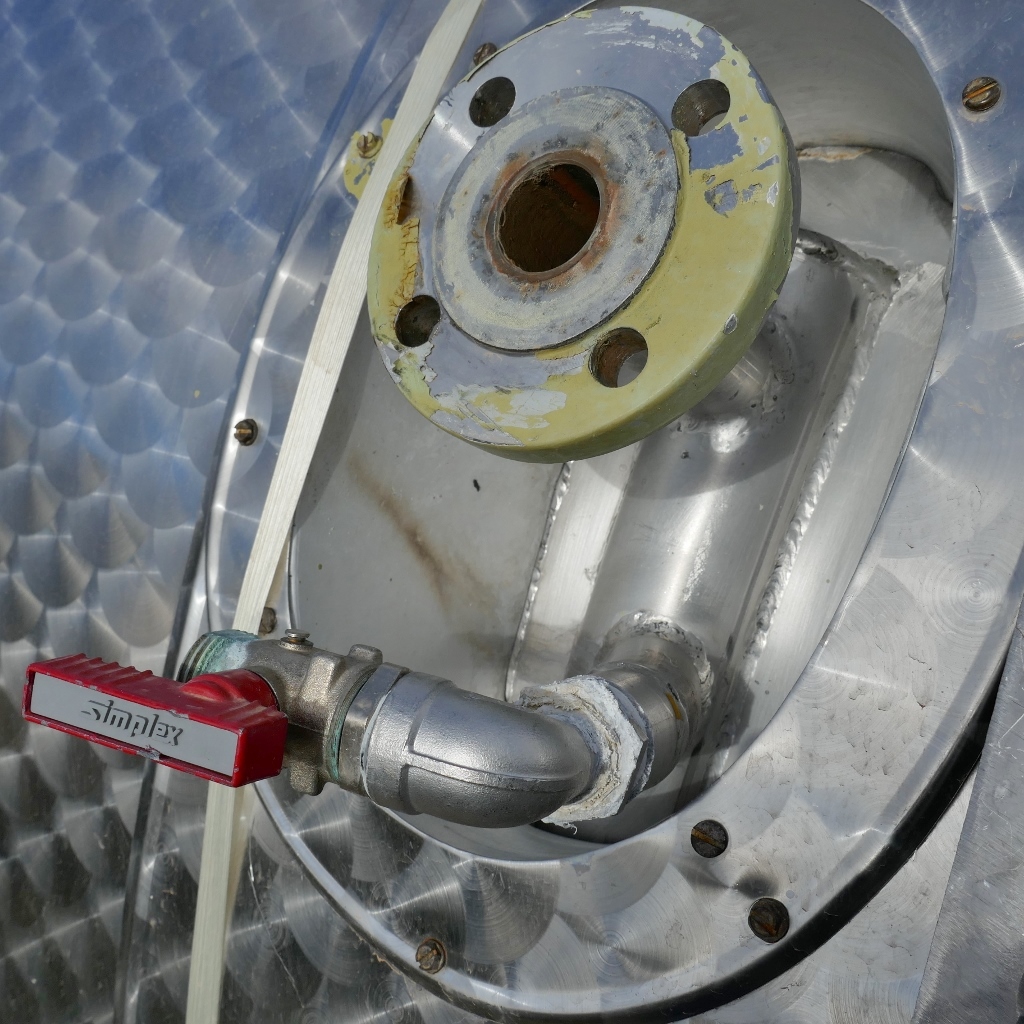

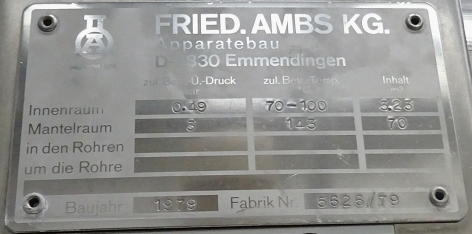

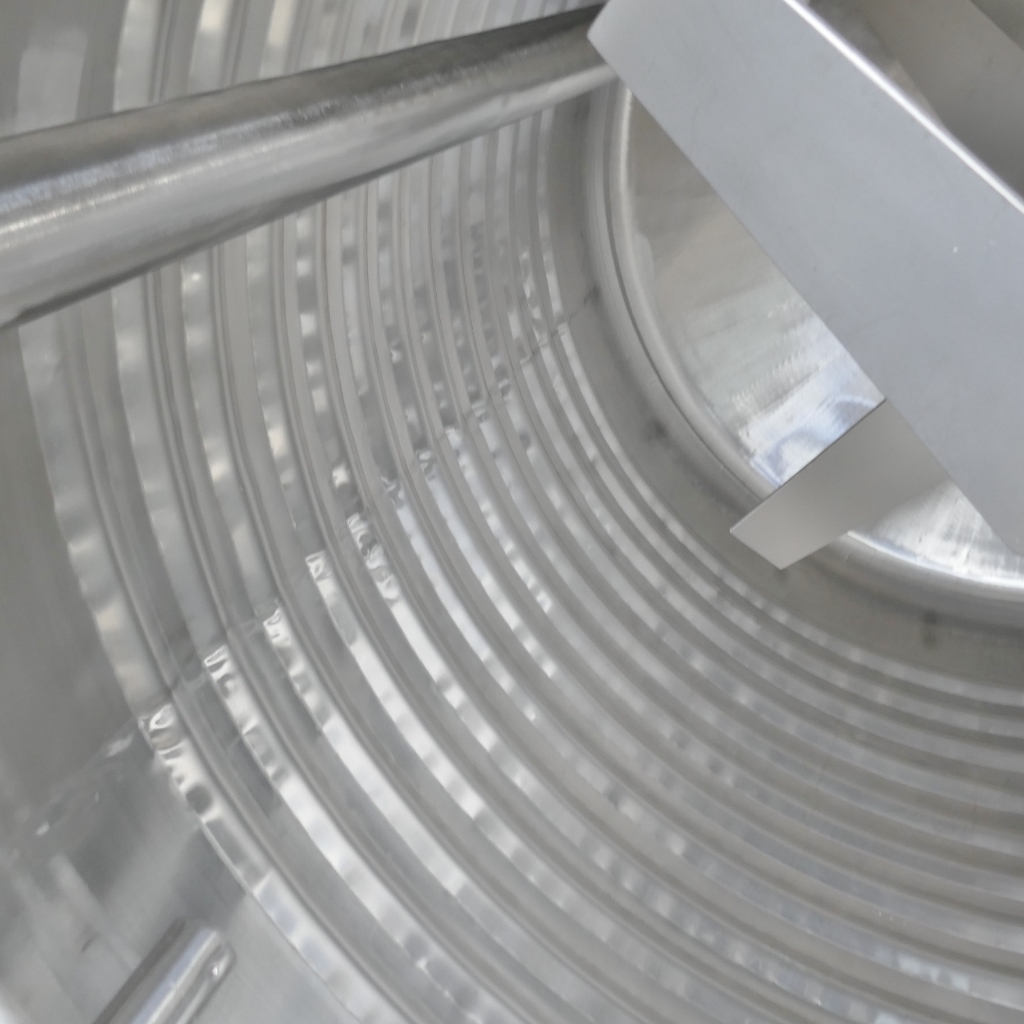

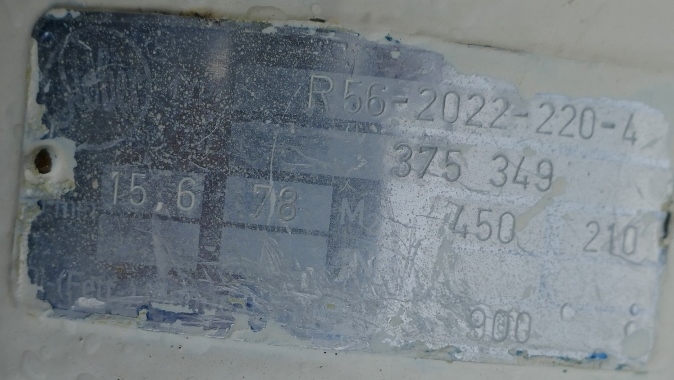

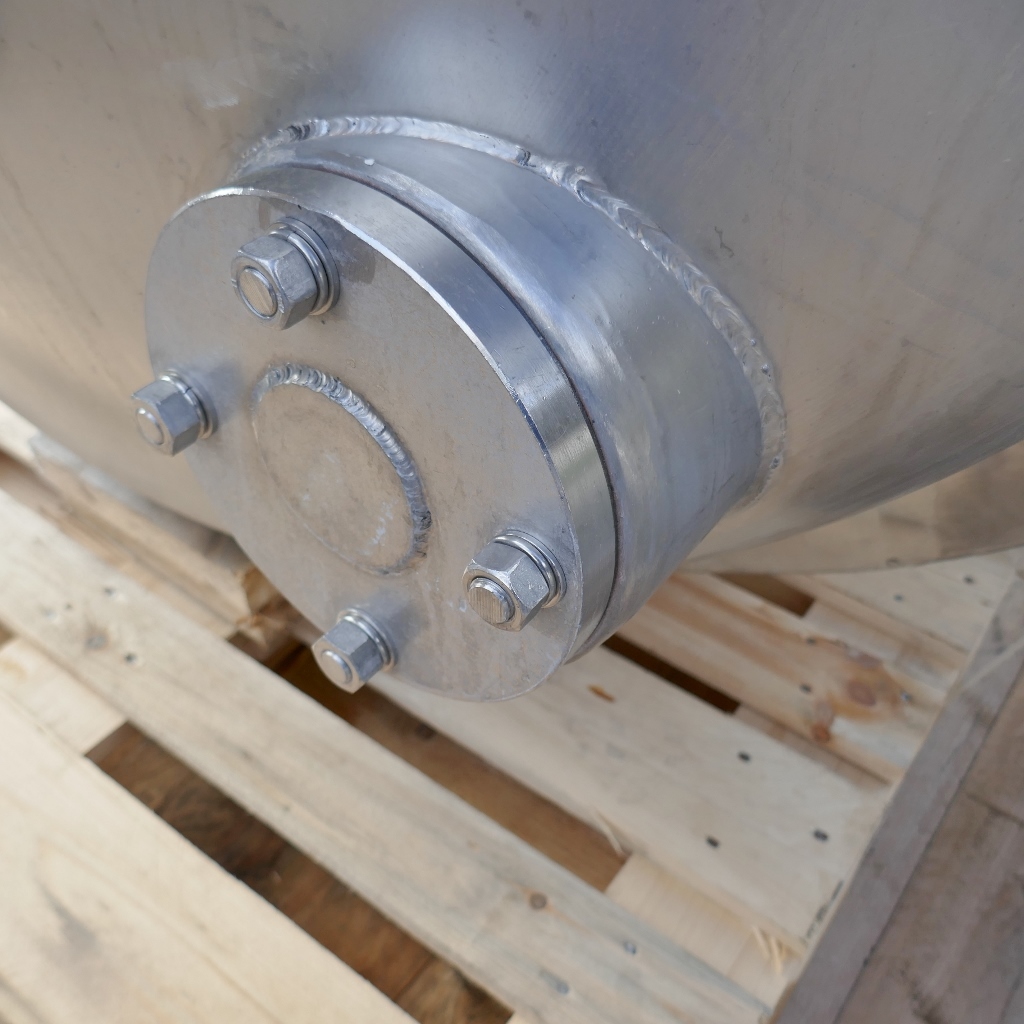

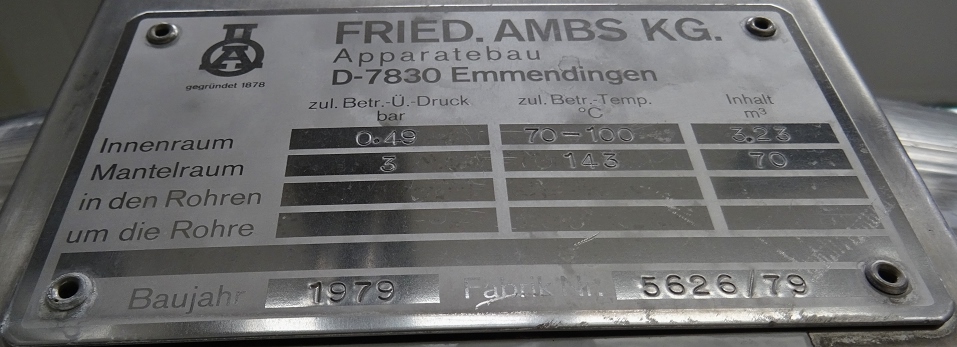

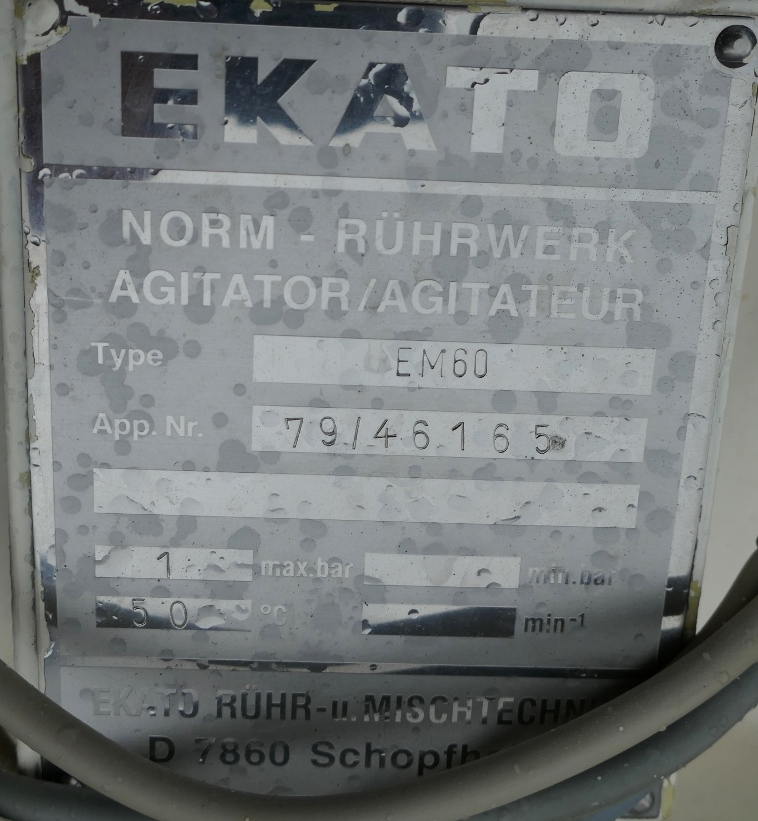

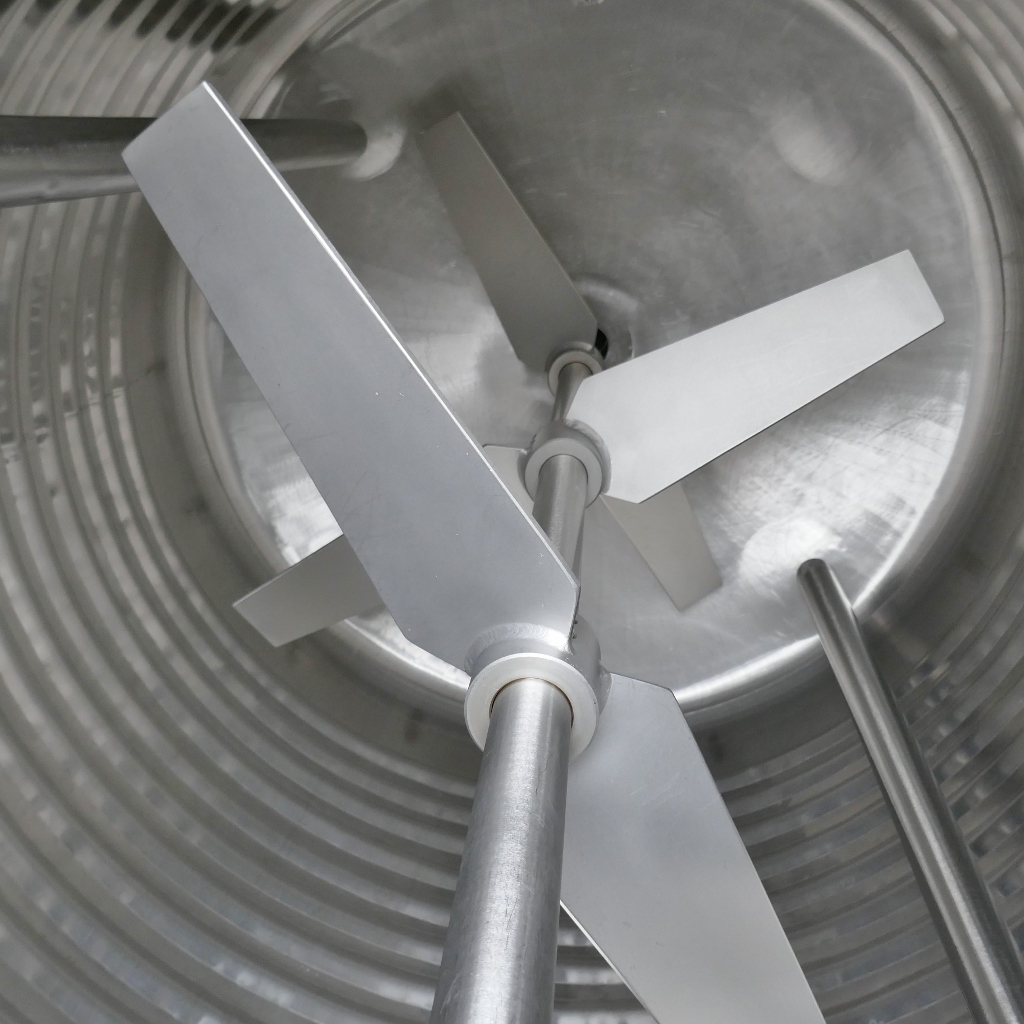

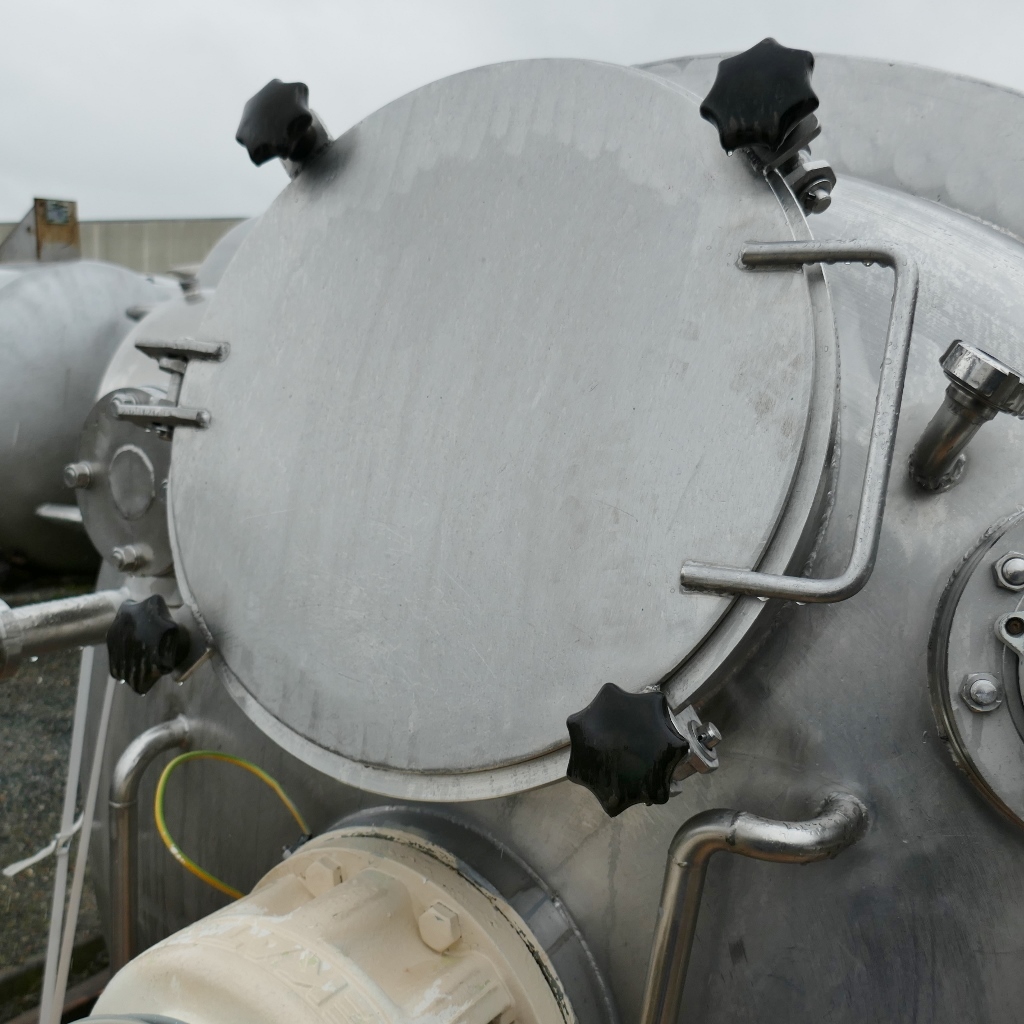

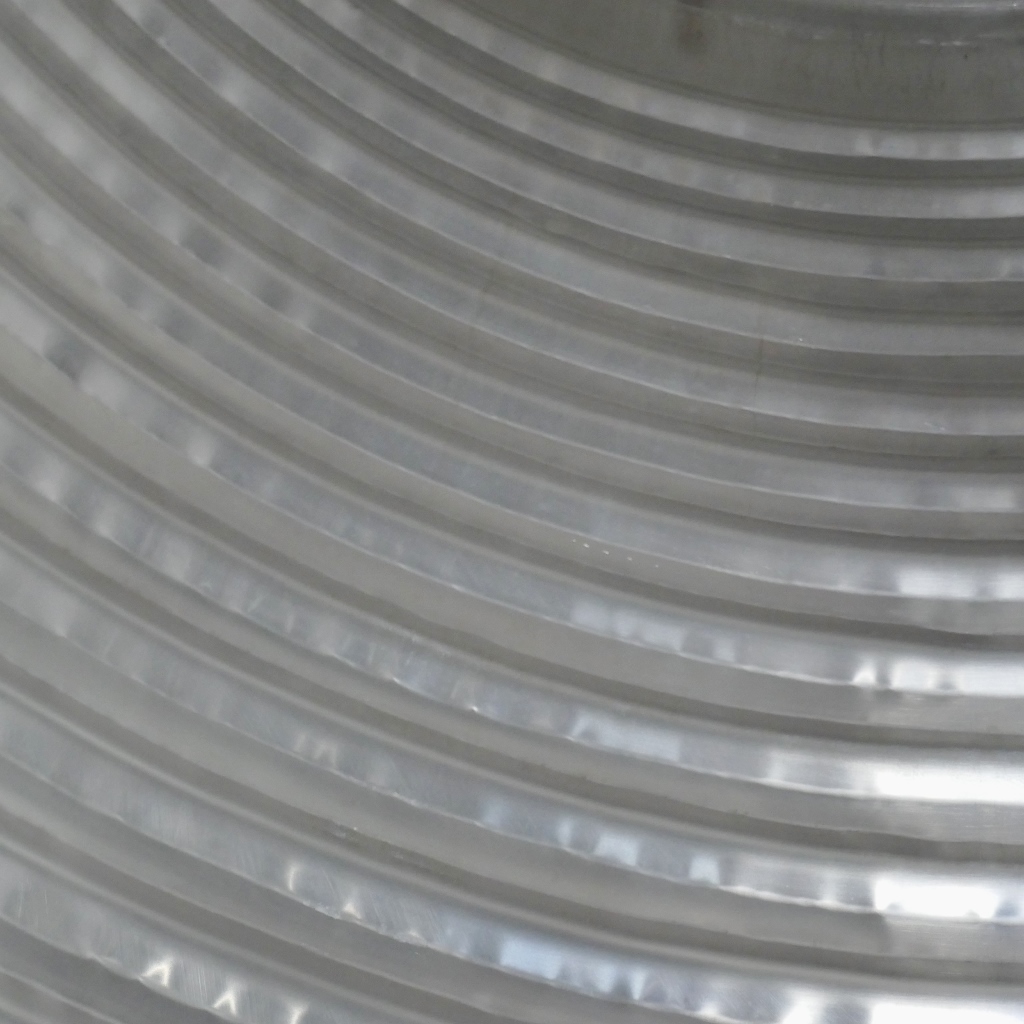

Additional information: Pharmacy; Heating coil both inside and outside the cylinder wall; Manhole diameter approx. 490 mm; Insulating jacket with small dents and partly slightly loose; 1 reduction DN 25 DIN 11851 screwed onto the outlet; 2 inner dip tubes (external blind flanges welded shut) Volumetric volume (L): 3.230 L Pressure in tank: pressure Max. pressure (Bar): 0,49 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Max Overpressure: 3 Bar Max. working temperature: 143 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: DN40 DIN 11851 Agitator: yes Number of revolutions: 15.6 - 78 Internal diameter tank: 1.500 mm Outer diameter tank: 1.720 mm Cylinder height: 1.500 mm Total height of tank: 3.650 mm
