3200 liter tank i Syrafast 316

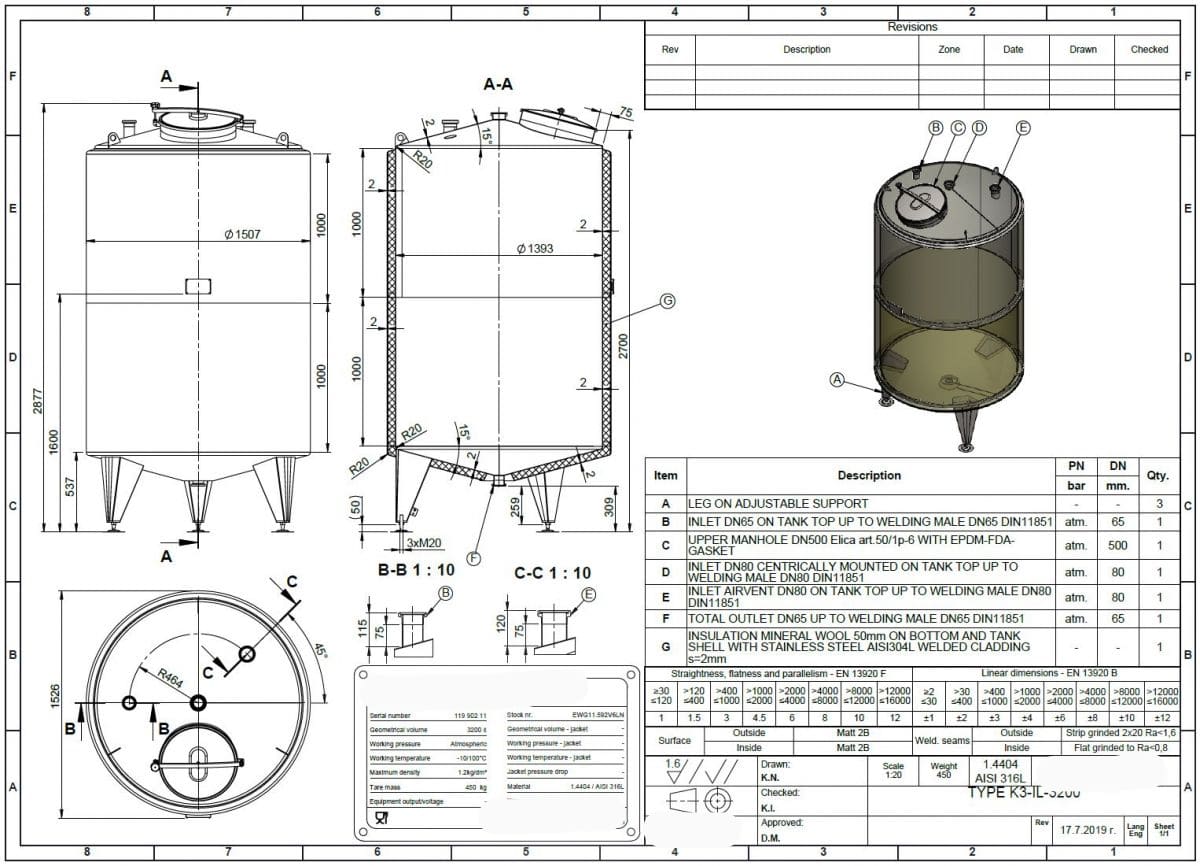

item available on order Article type: brand new storage tank - type K3-IL Volumetric volume (L): 3.200 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 150 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 ° Bottom outlet: yes Total discharge: yes Fixation points: 3 adjustable feet Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304 Manway(s): RVS 316 Gasket manway(s): EPDM Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: headside Hinged lid: yes Tank outlet: inside Ø 65 mm Outlet type: DIN11851 Total outlet valve: no, optional Agitator: no, optional Top: 2 mm Cylinder: 2 mm Bottom: 2 mm Top: 2 Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 50 Distance from outlet to ground: 309 mm Outer diameter tank: 1.526 mm Cylinder height: 2.000 mm Feet height: 537 mm Total height of tank: 2.877 mm Empty weight tank: 450
