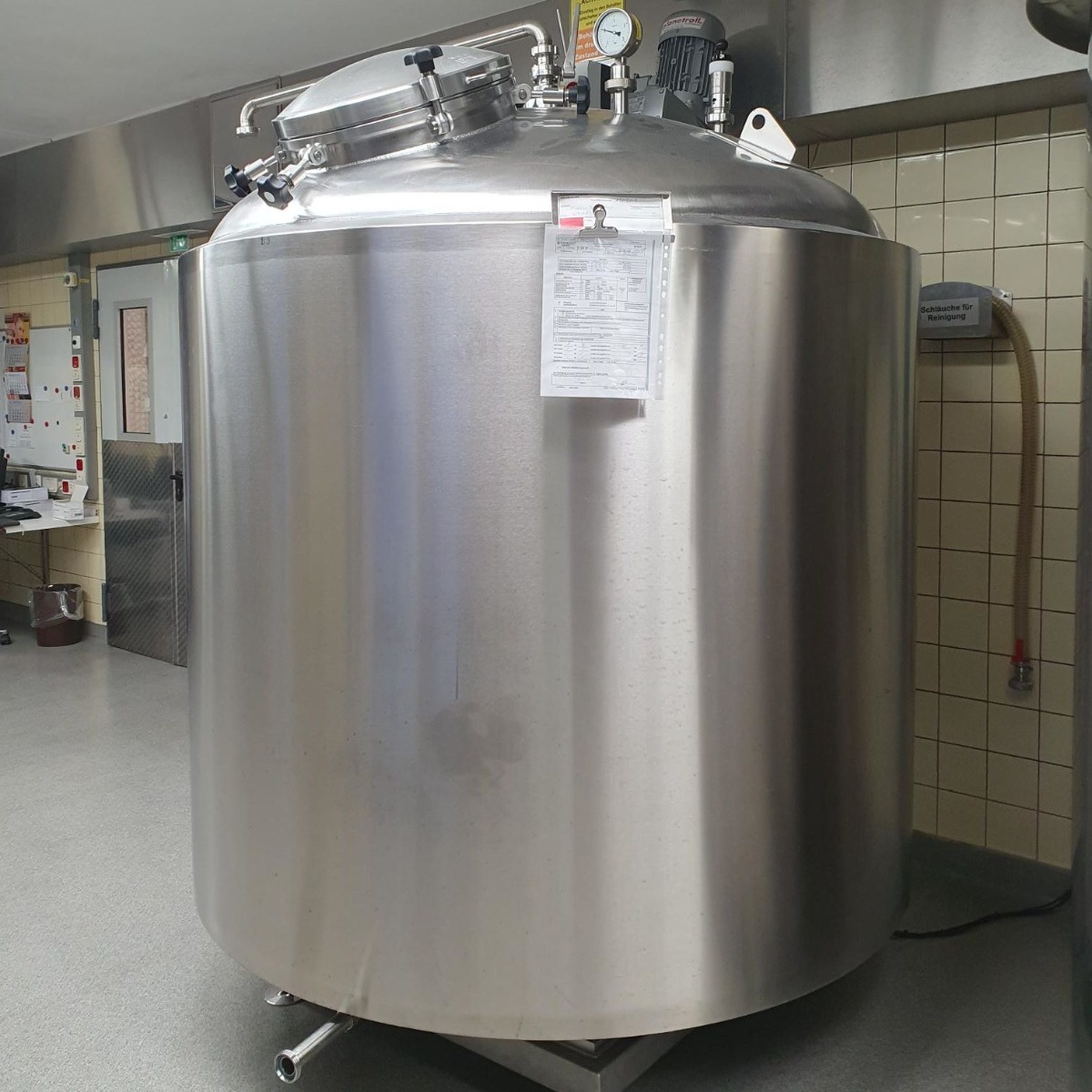

3000 liter tank i Syrafast 316

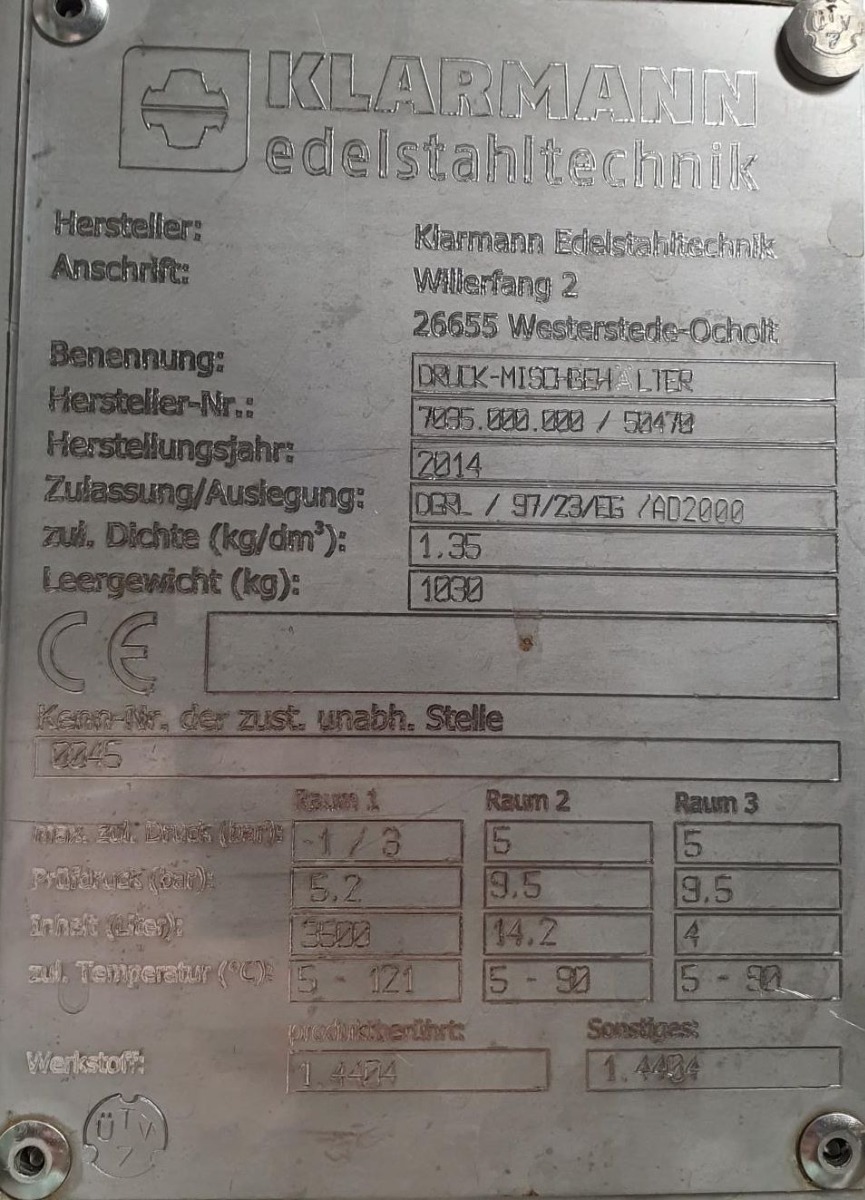

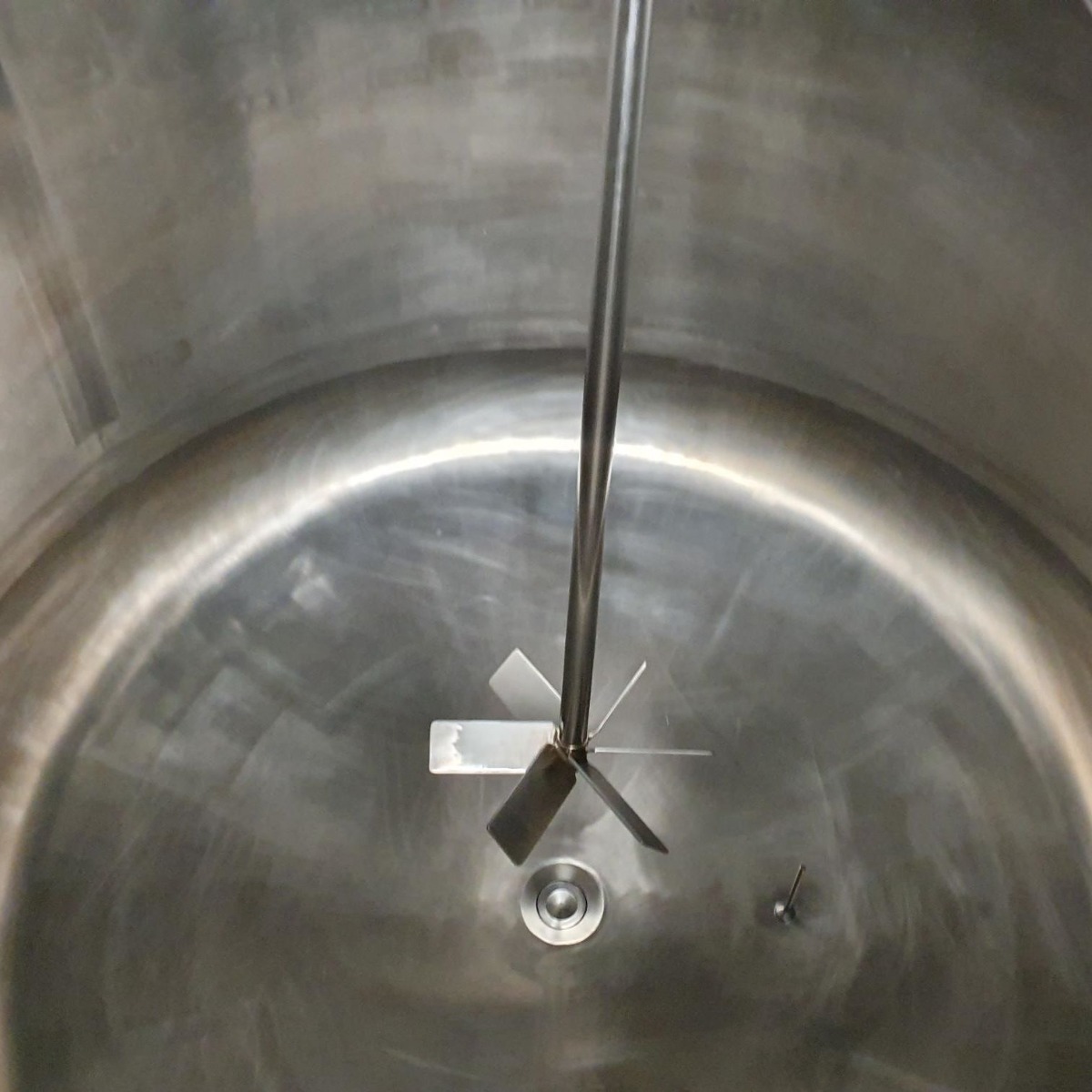

Additional information: herbal pharmacy Volumetric volume (L): 3.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 121 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Max Overpressure: 5 Bar Max. working temperature: 90 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 50 Agitator: yes Number of revolutions: 253 Power: 2,20 Outer diameter tank: 1.800 mm Cylinder height: 1.000 mm Total height of tank: 2.100 mm Empty weight tank: 1.100
