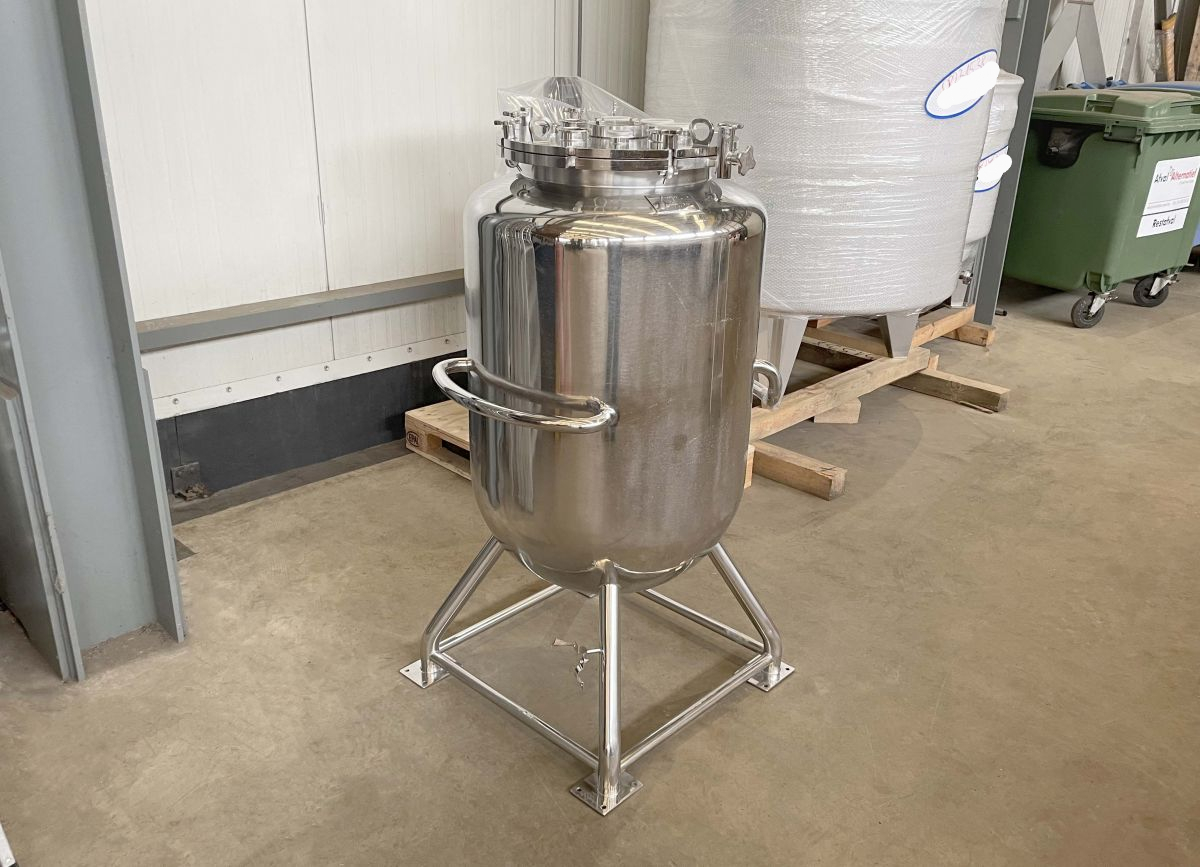

300 liter tank i Rostfritt 304

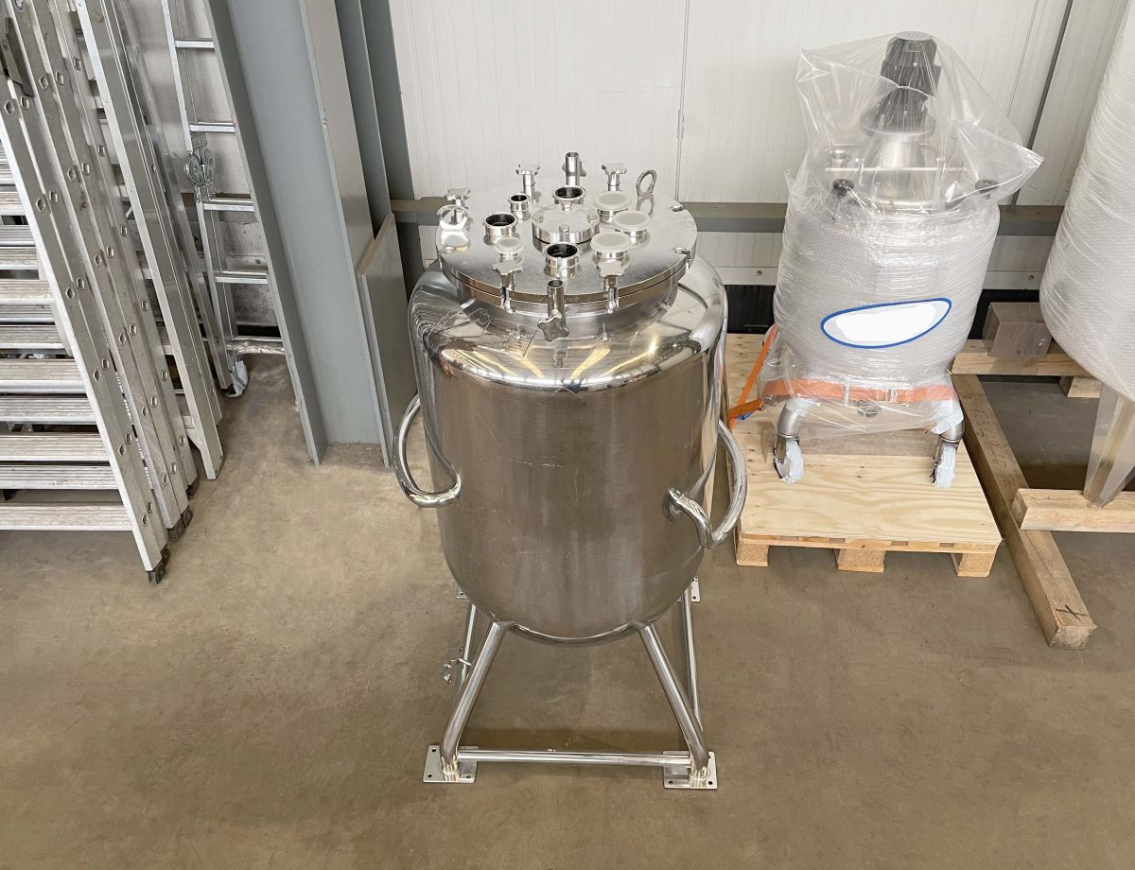

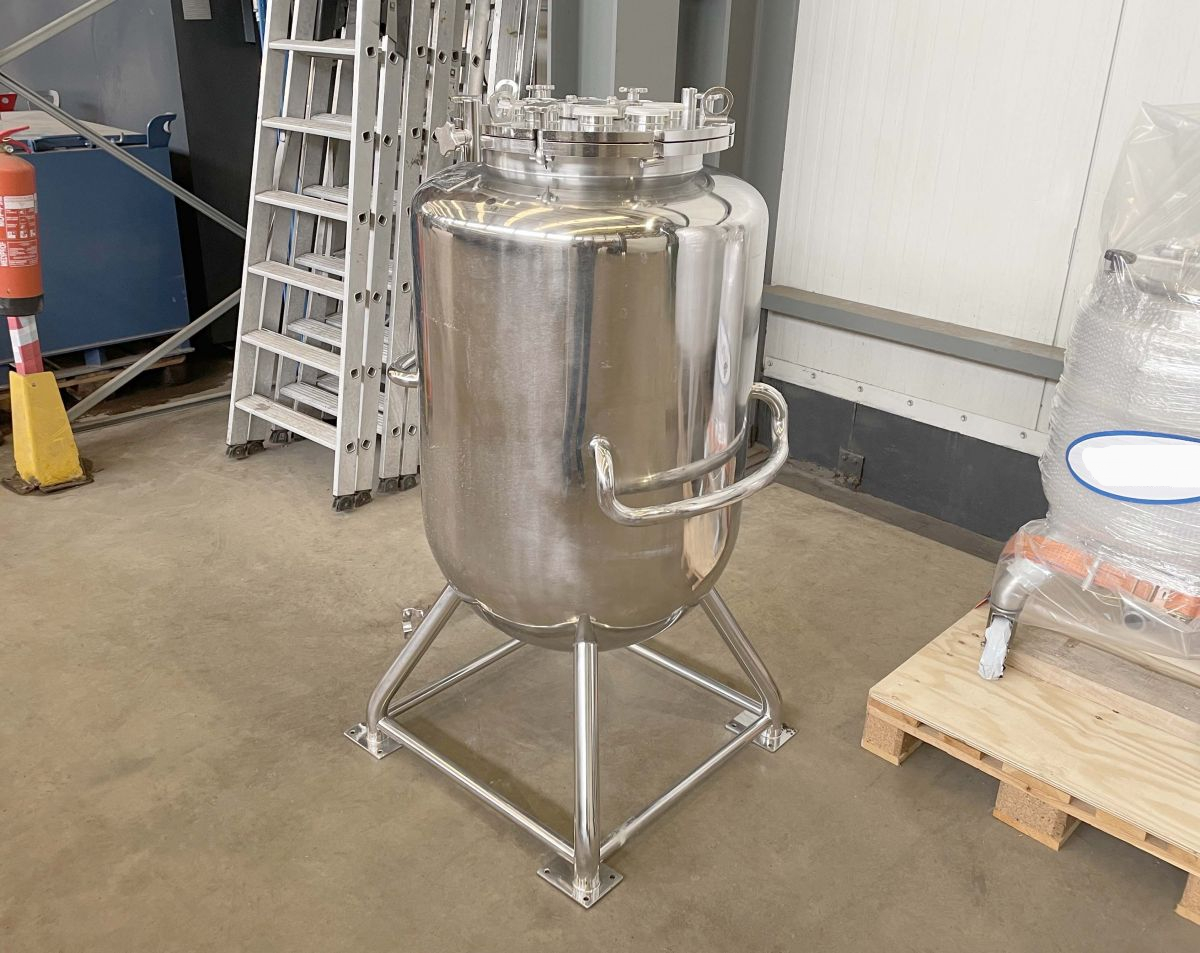

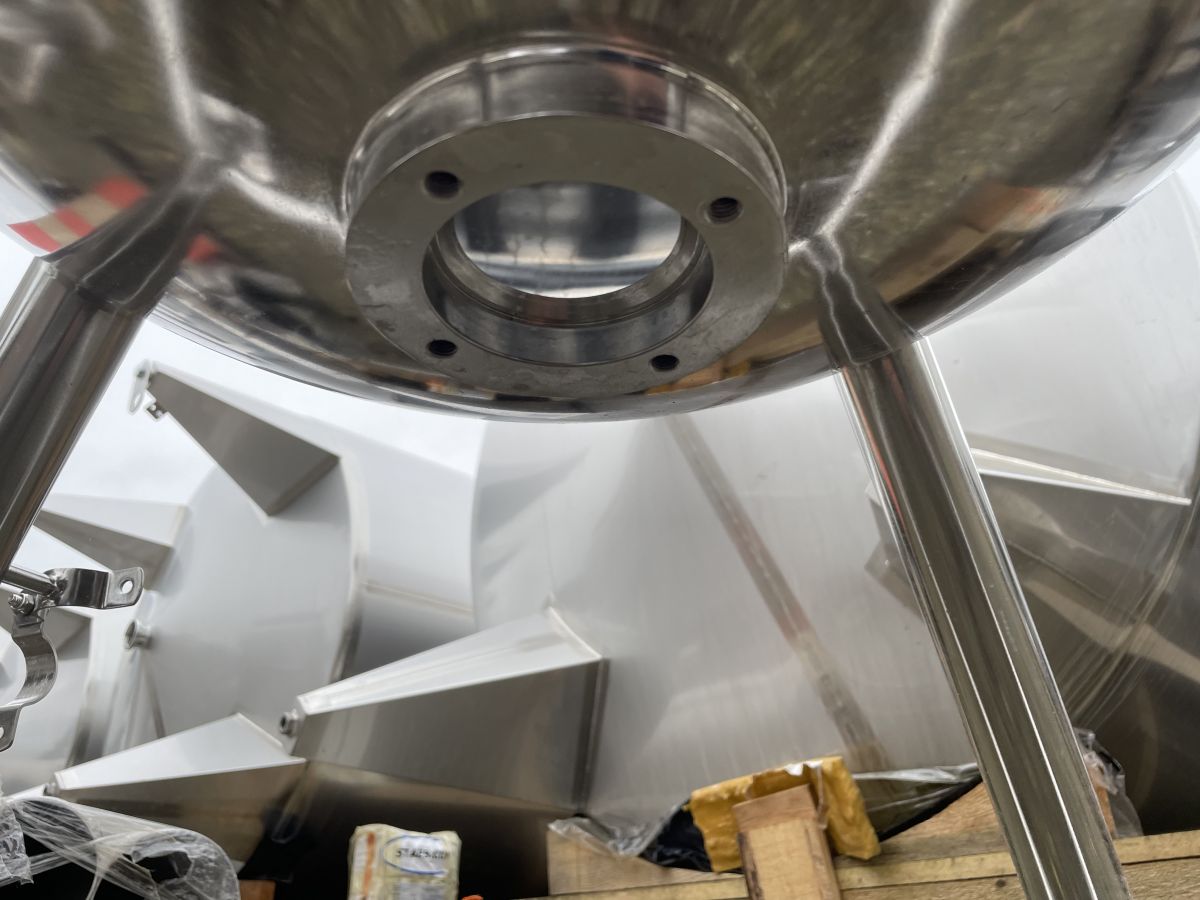

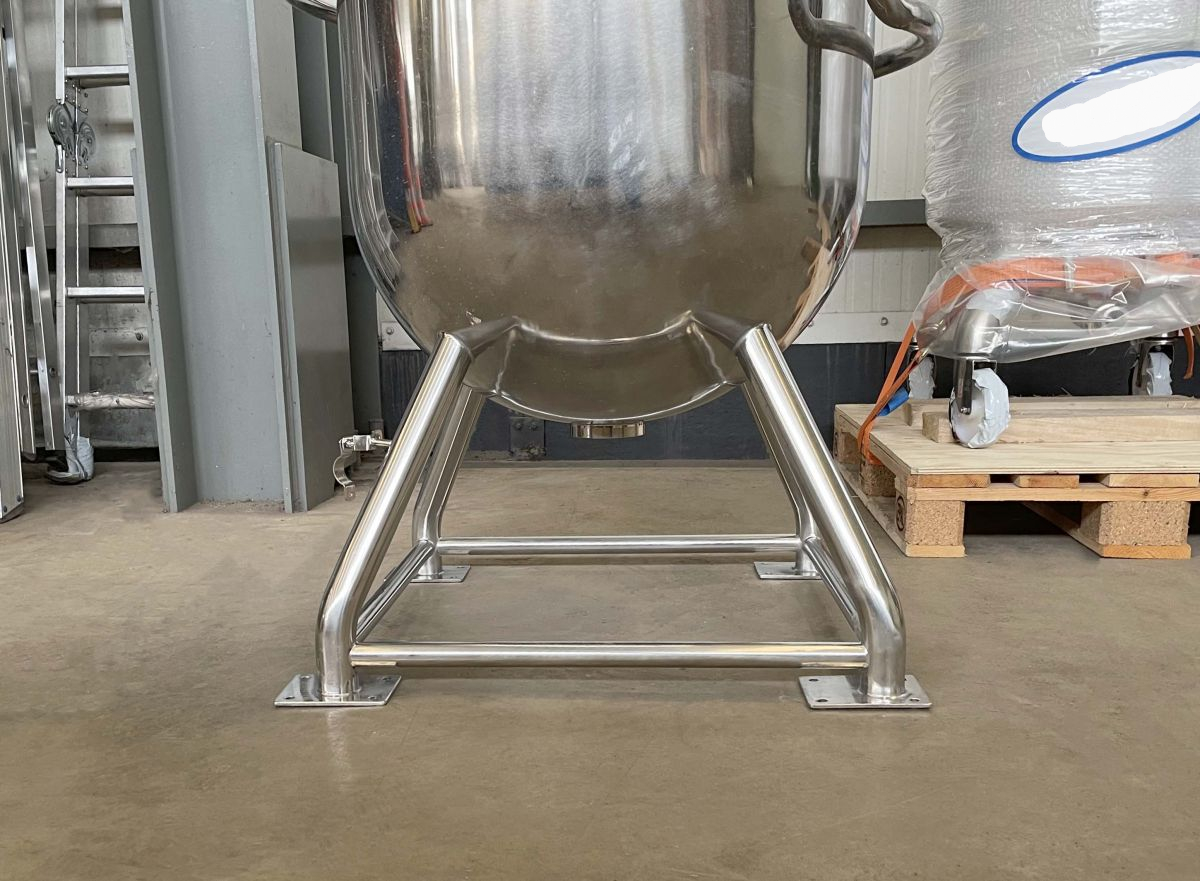

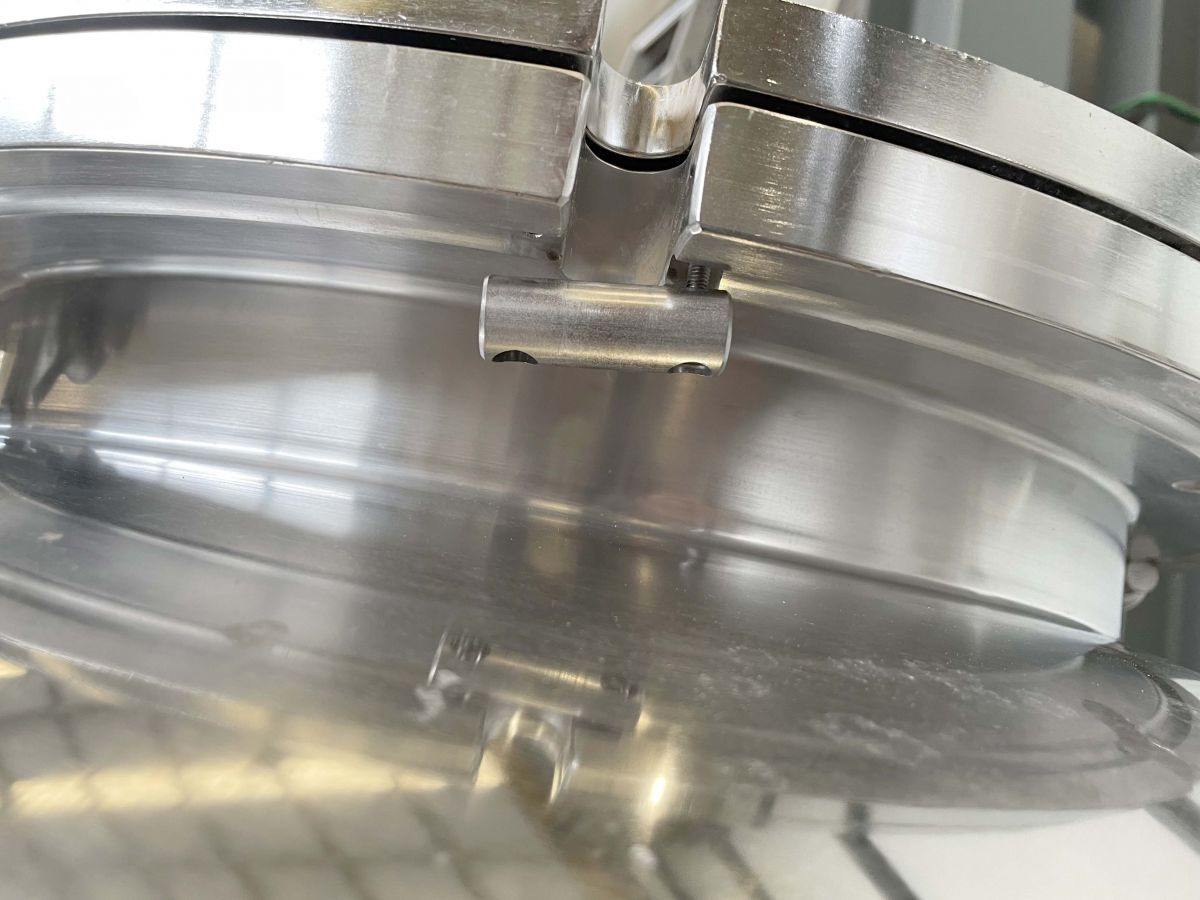

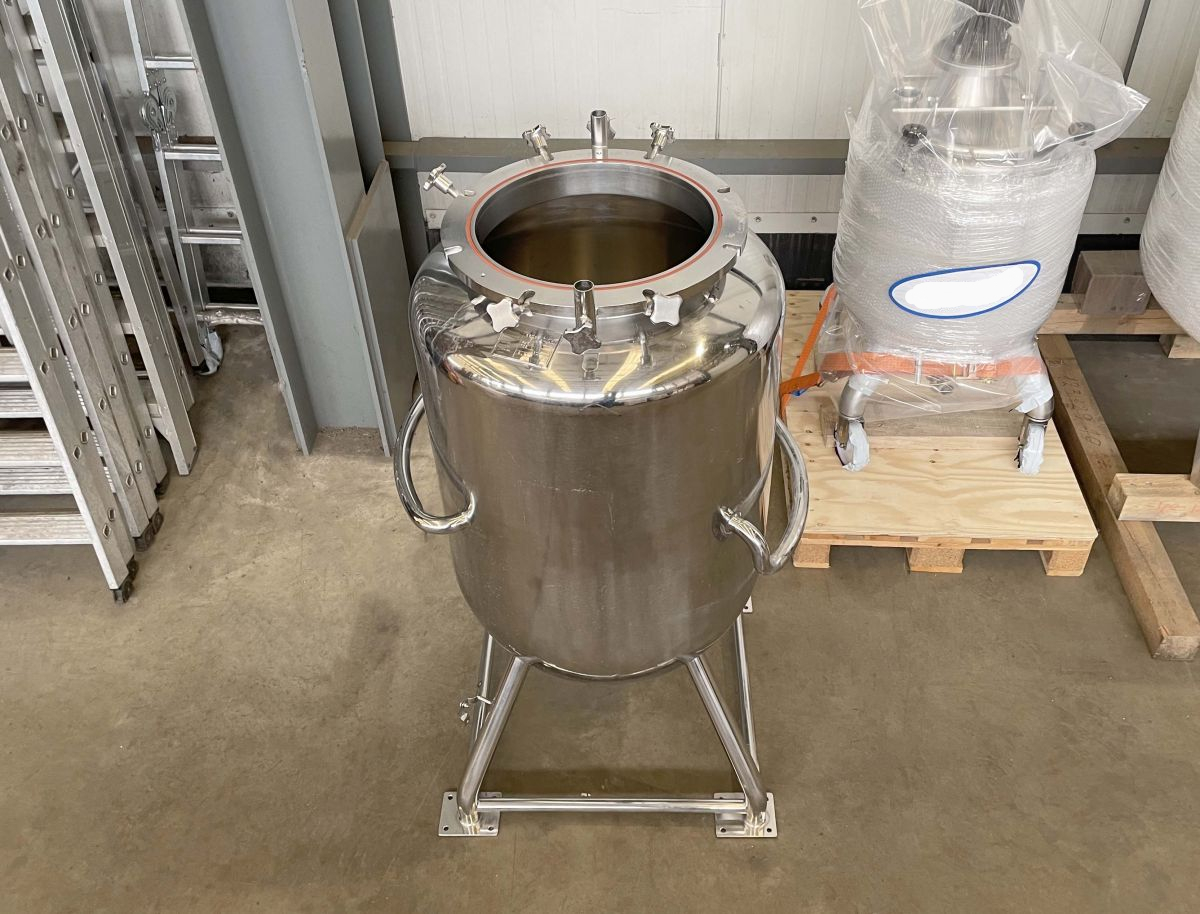

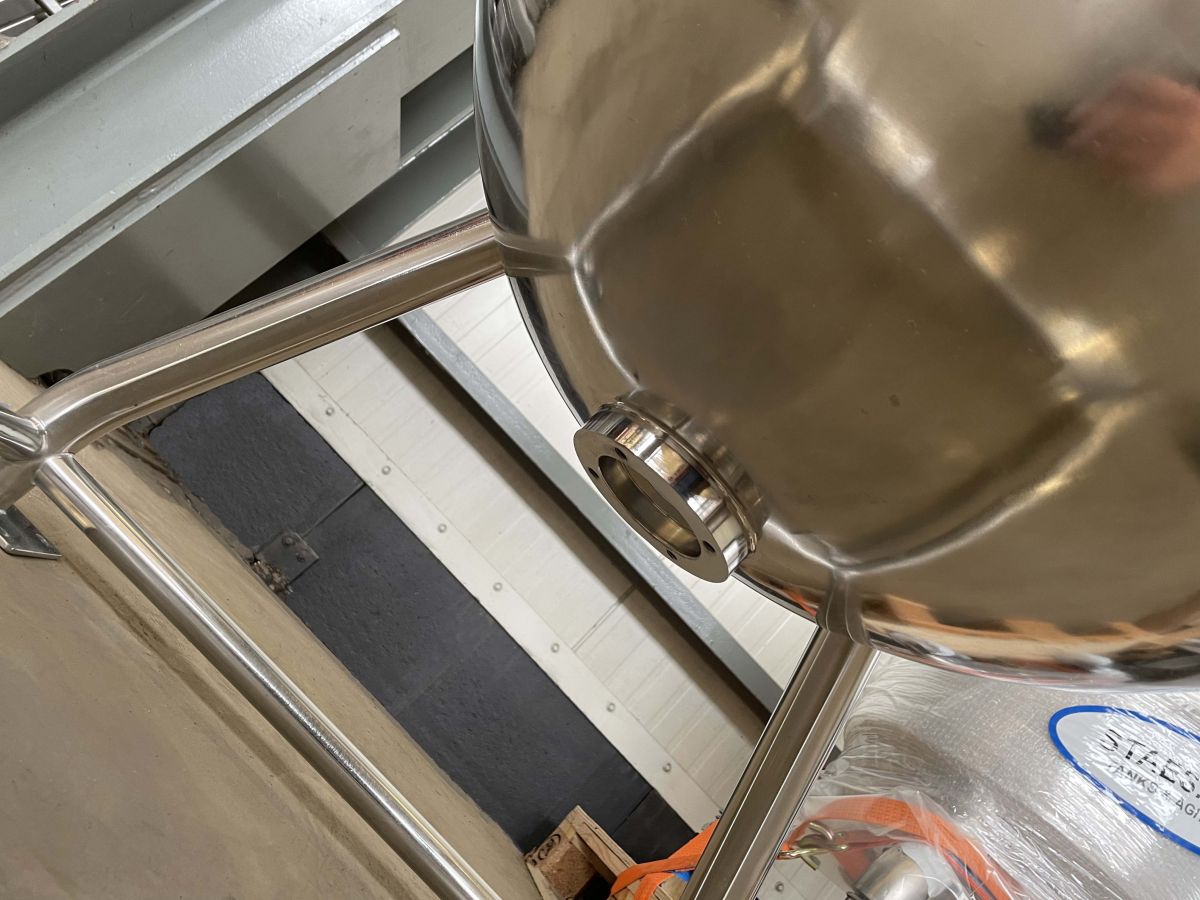

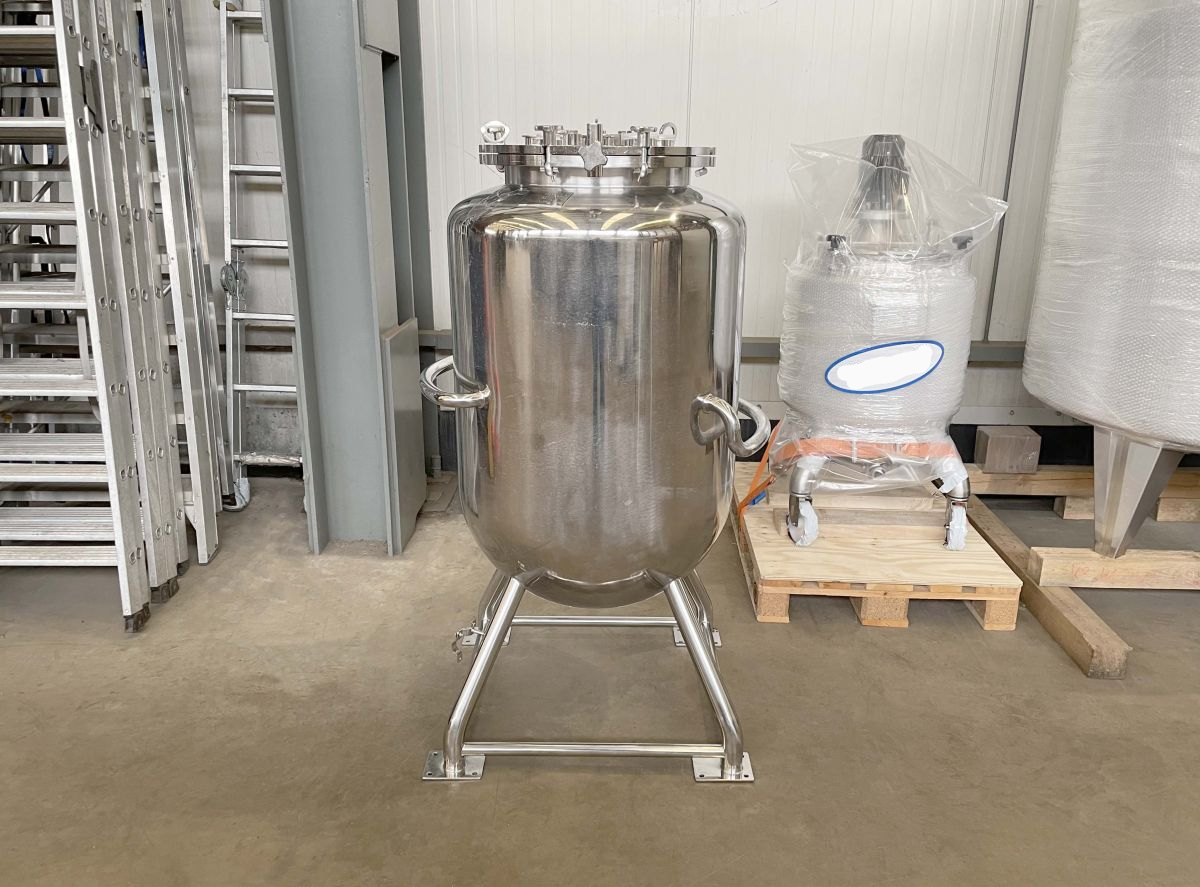

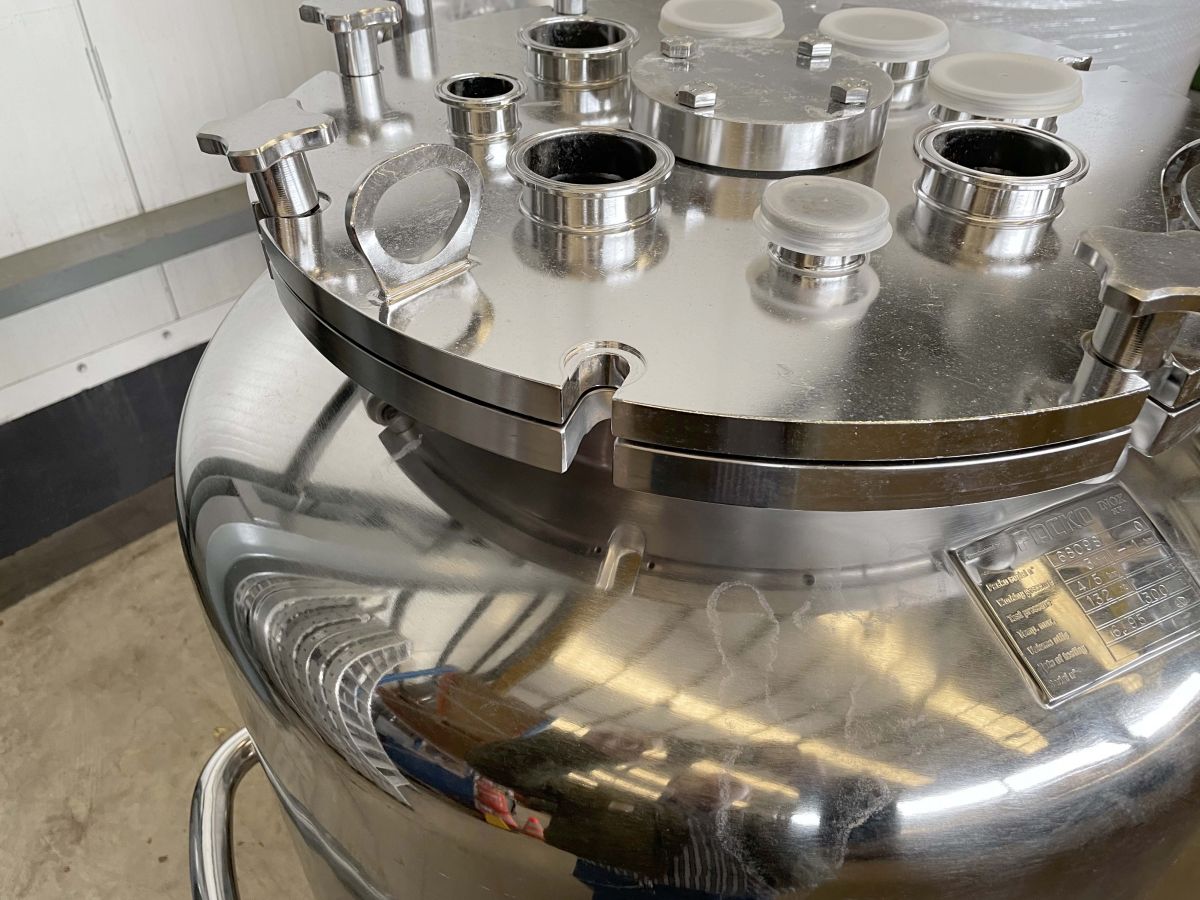

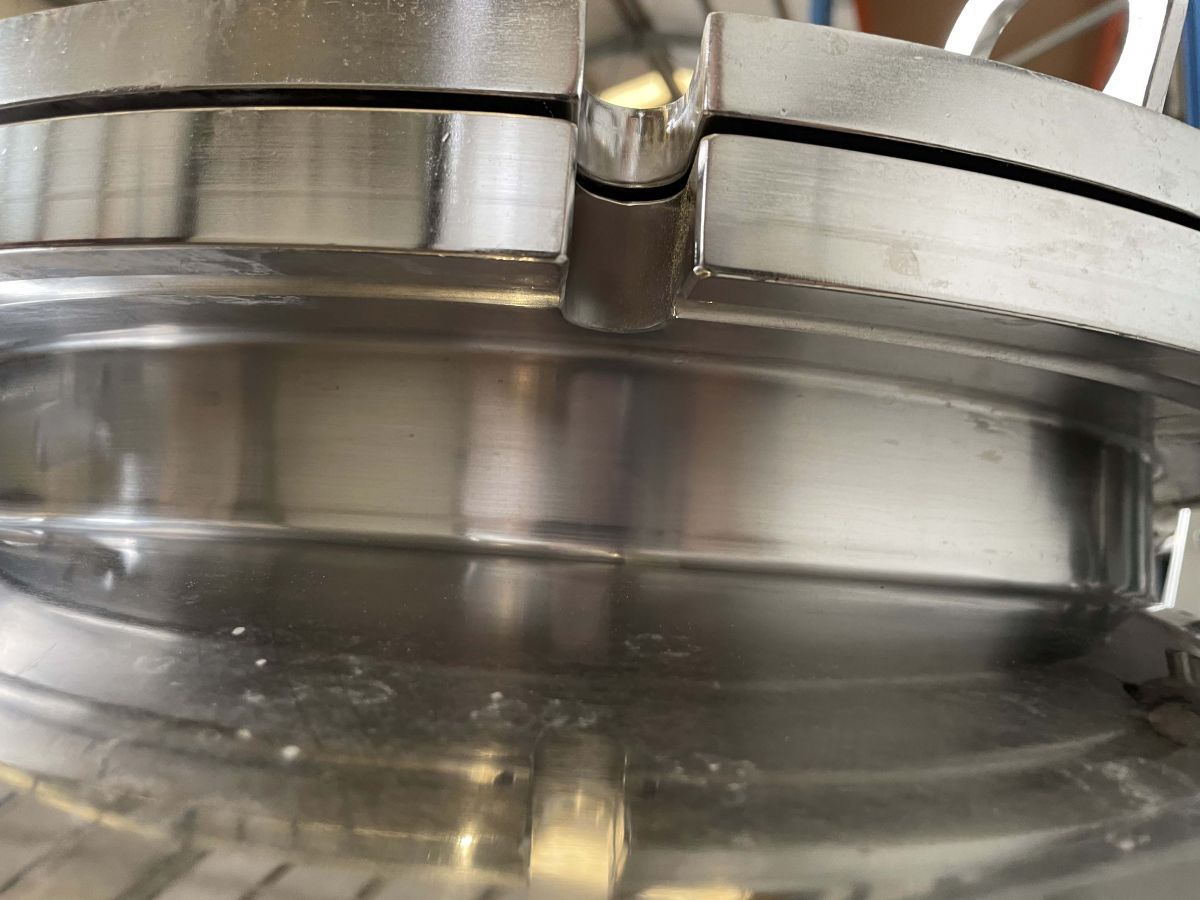

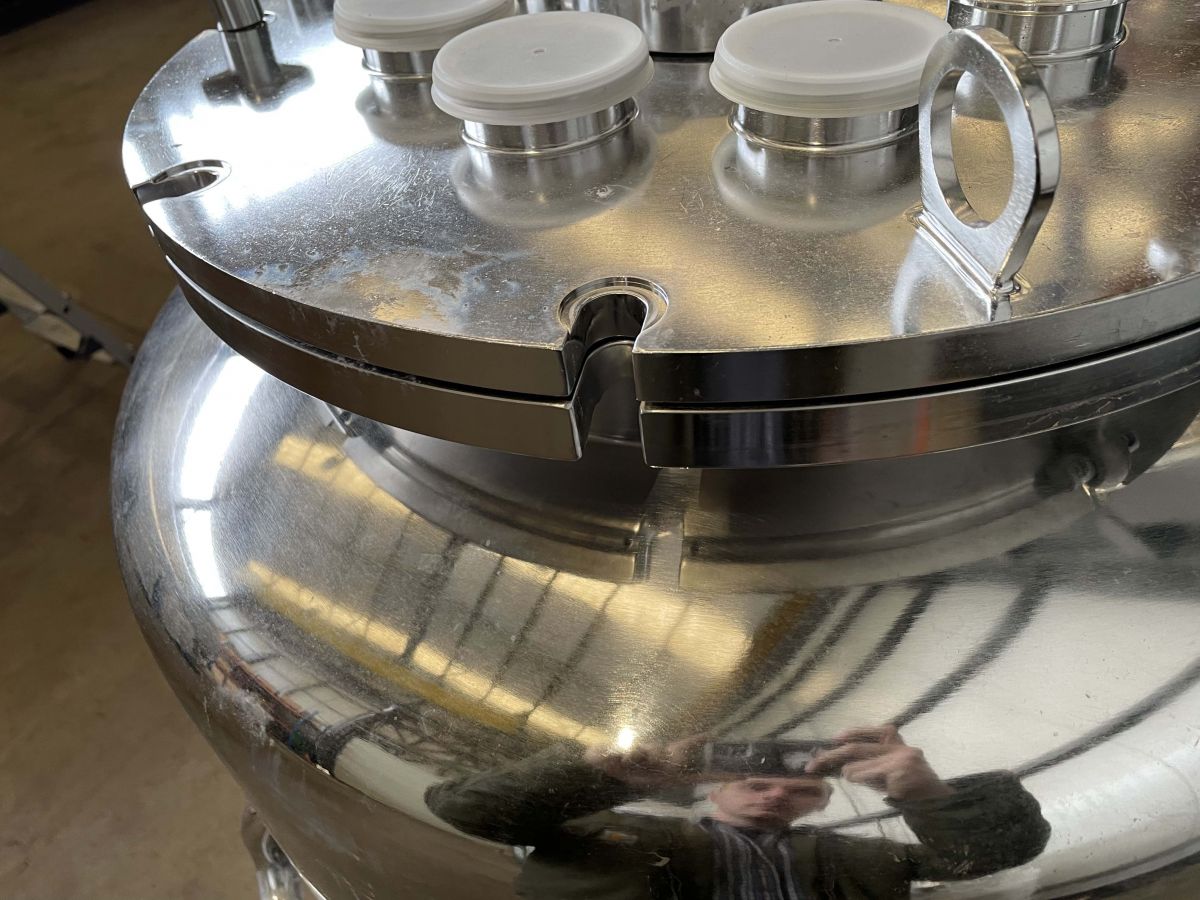

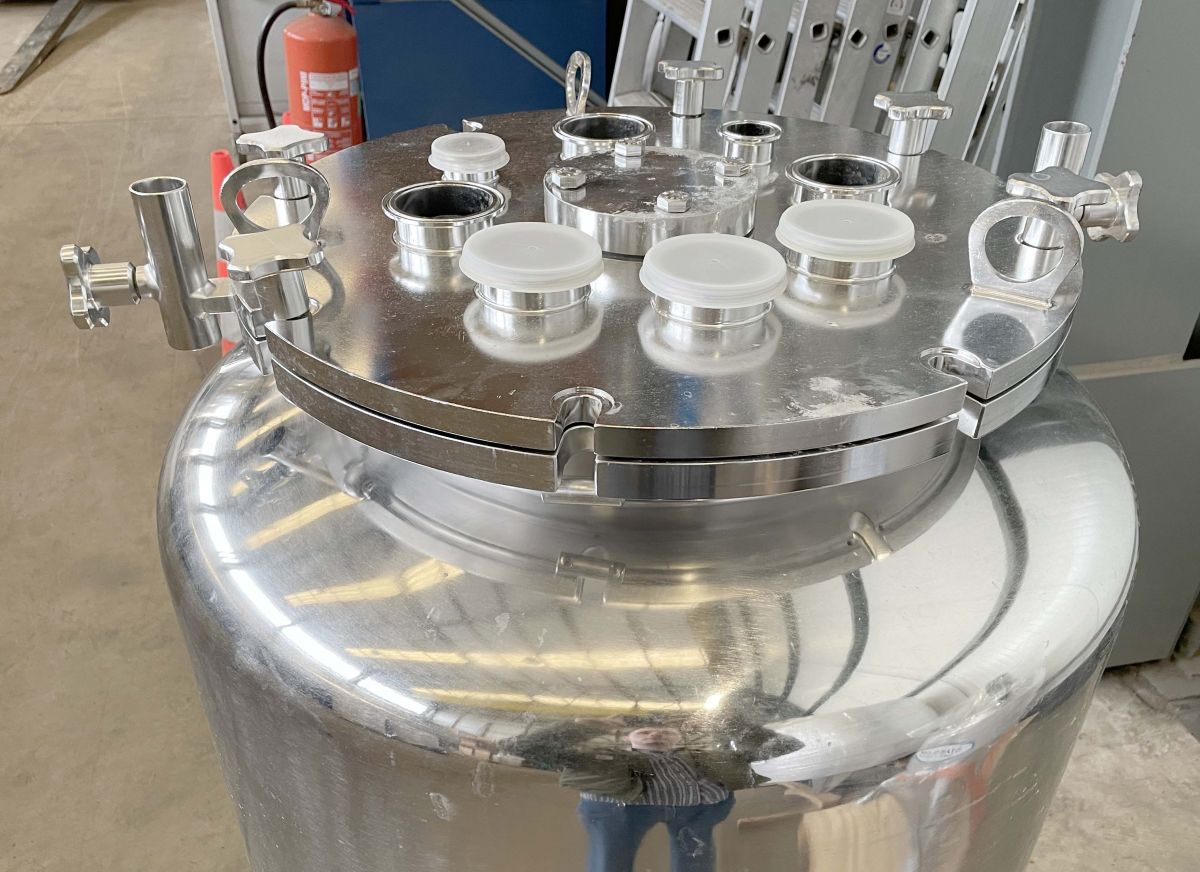

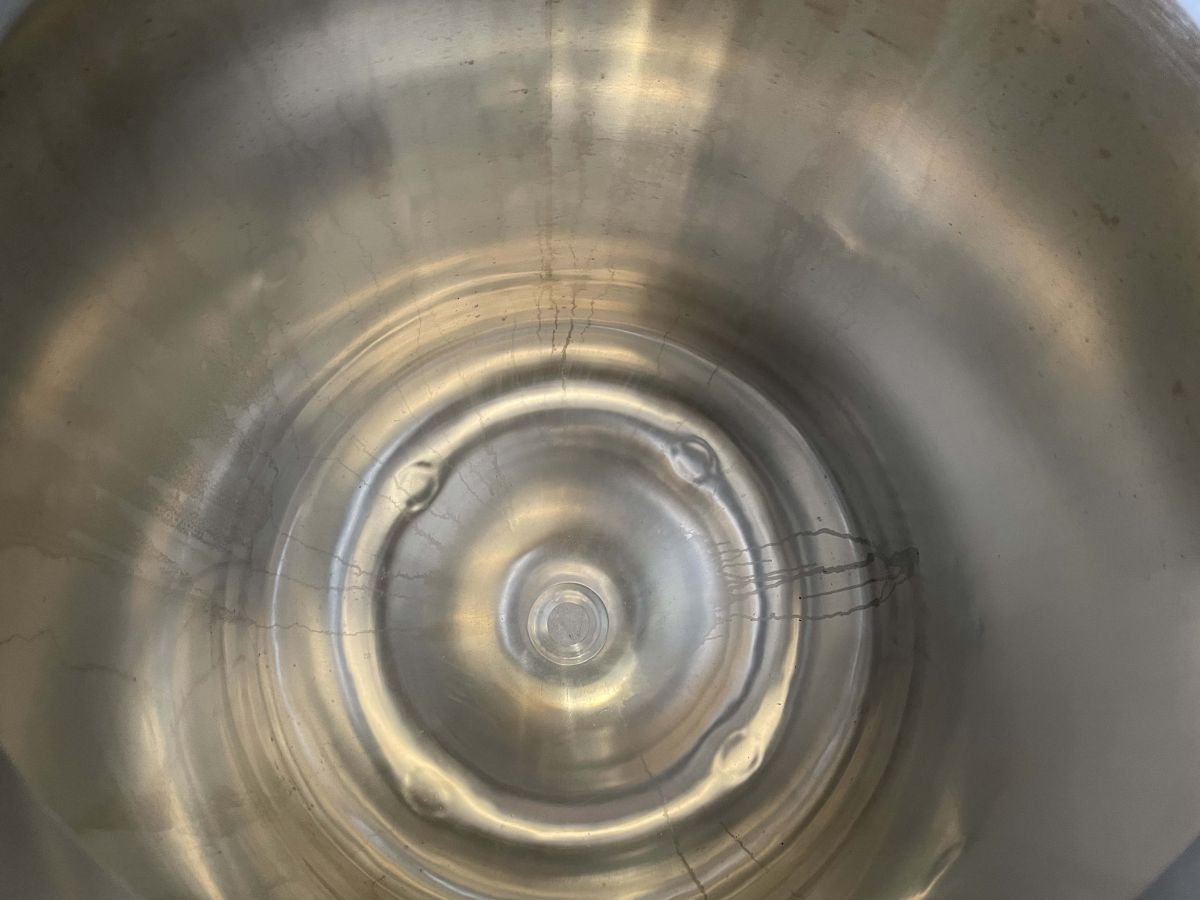

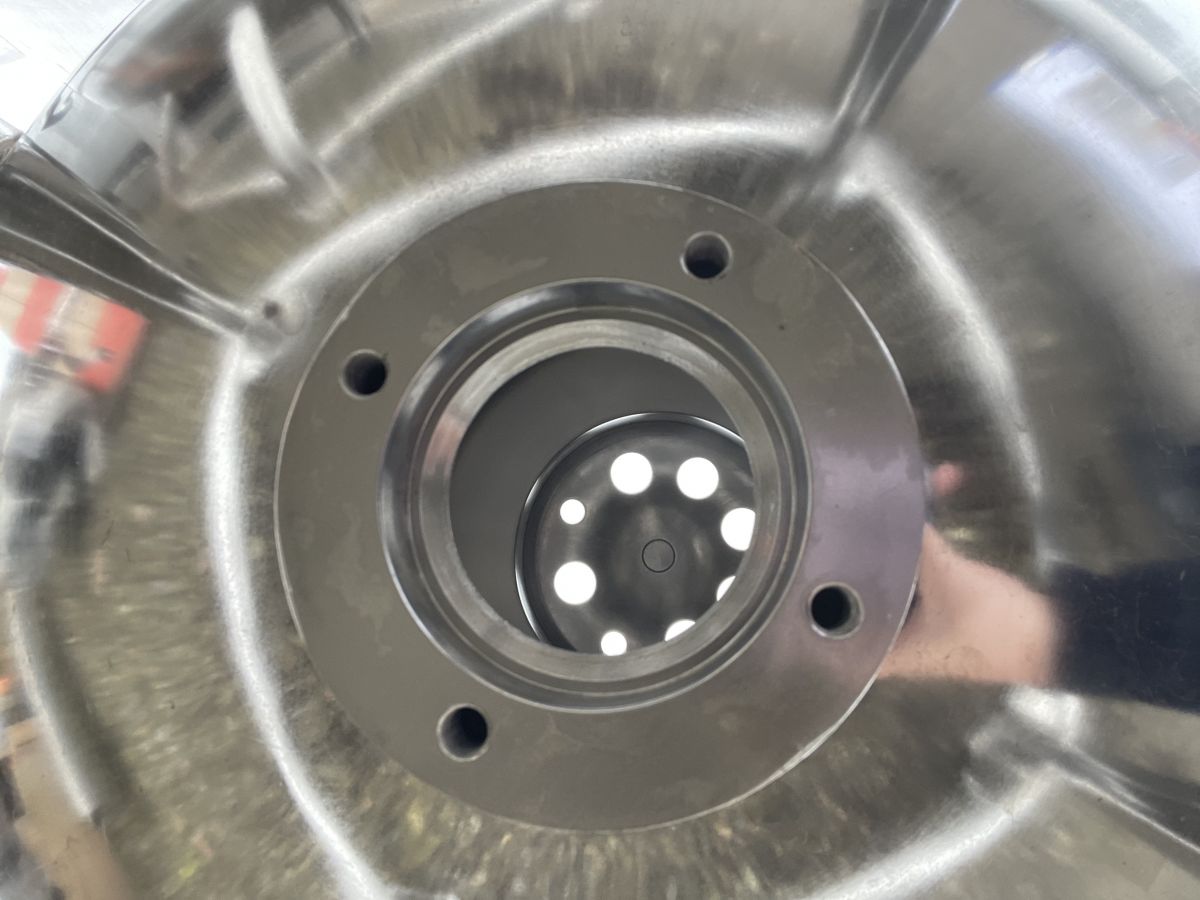

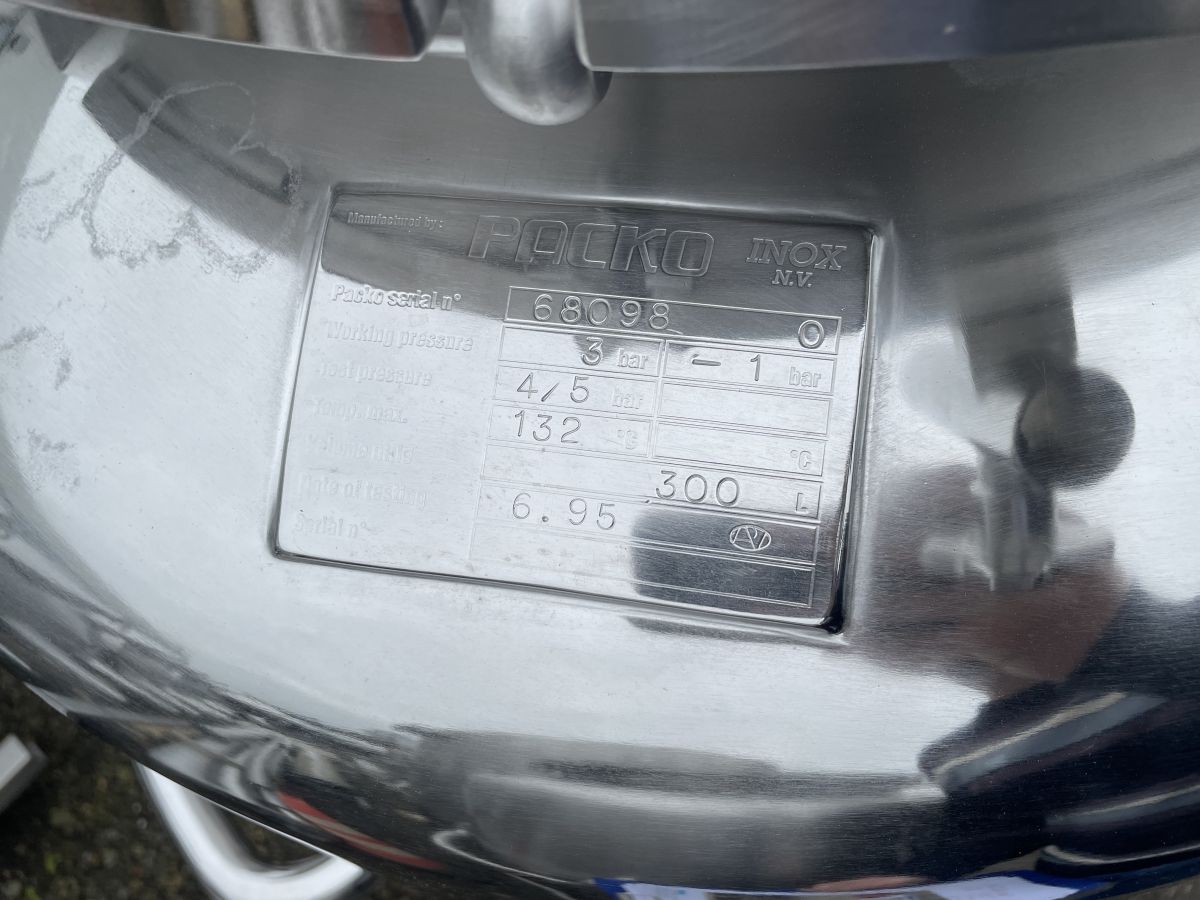

Article type: second-hand storage tank Additional information: The casters and some of the closures for the manway are missing. Special flange on the outlet, we can adjust this to a connection of your choice, this costs €474. We can modify the tank for you, contact us without obligation for your quote. Volumetric volume (L): 300 L Ra inner weld: 0,80 Pressure in tank: pressure and vacuum Design pressure (Bar): 3 Bar Max. pressure (Bar): 4 Bar Min. pressure (Bar): -1 Bar Max. temperature (°C): 132 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: dished Shape of tank: cylindrical Bottom type: dished Bottom outlet: yes Total discharge: yes Fixation points: 4 non adjustable feet Manway(s): RVS 304 Gasket manway(s): unknown Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: at the top Tank outlet: inside Ø 50 mm Agitator: no Top: 5 mm Cylinder: 3 mm Bottom: 5 mm Distance from outlet to ground: 290 mm Outer diameter tank: 720 mm Cylinder height: 650 mm Total height of tank: 1.430 mm Total outer width: 762 mm Total outer length: 780 mm
