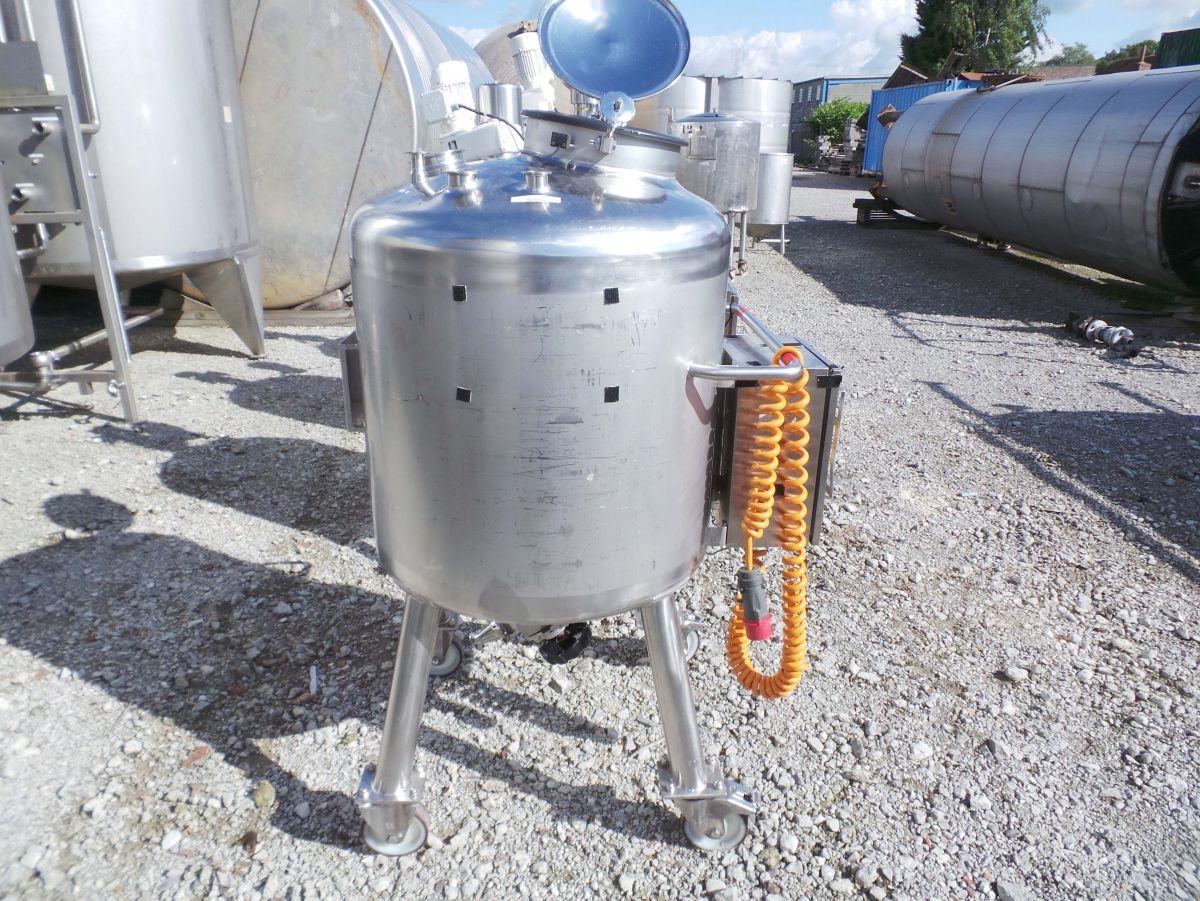

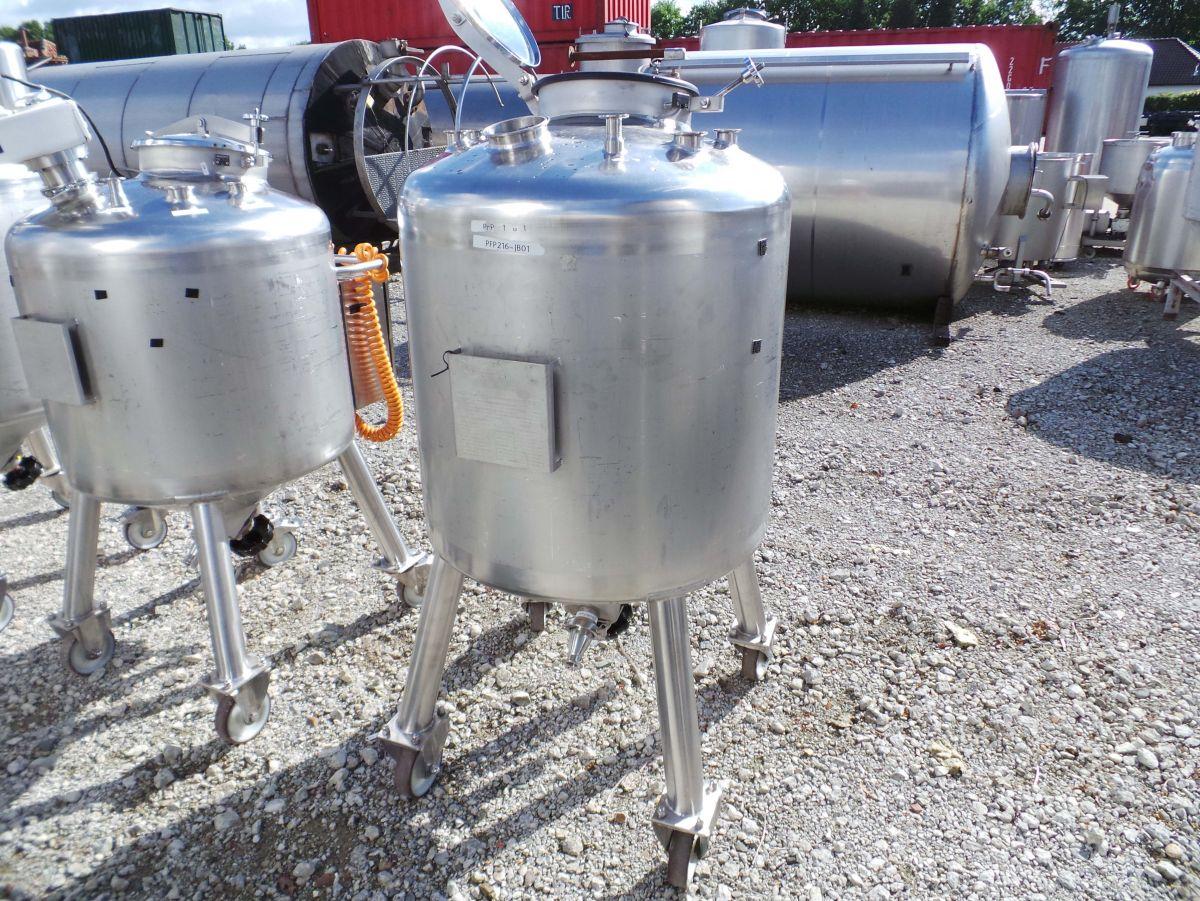

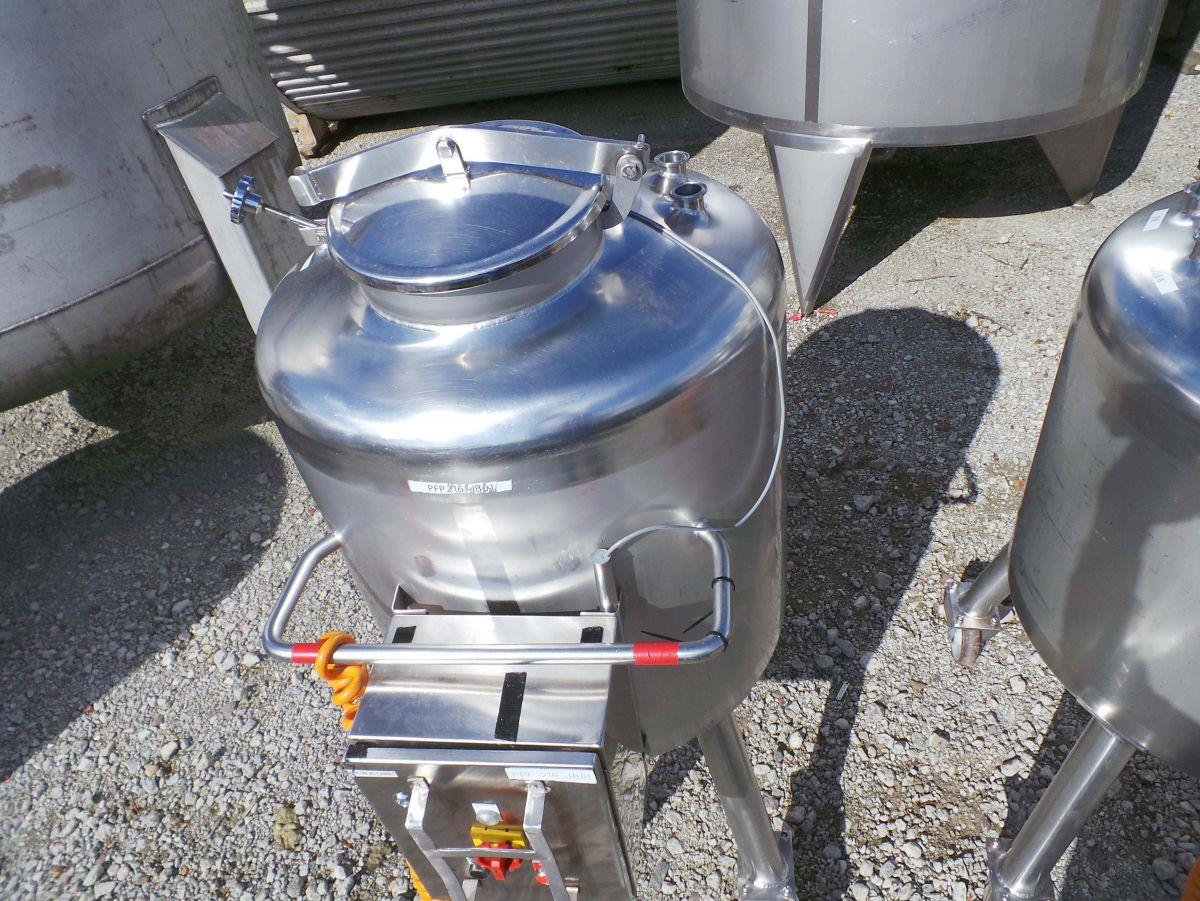

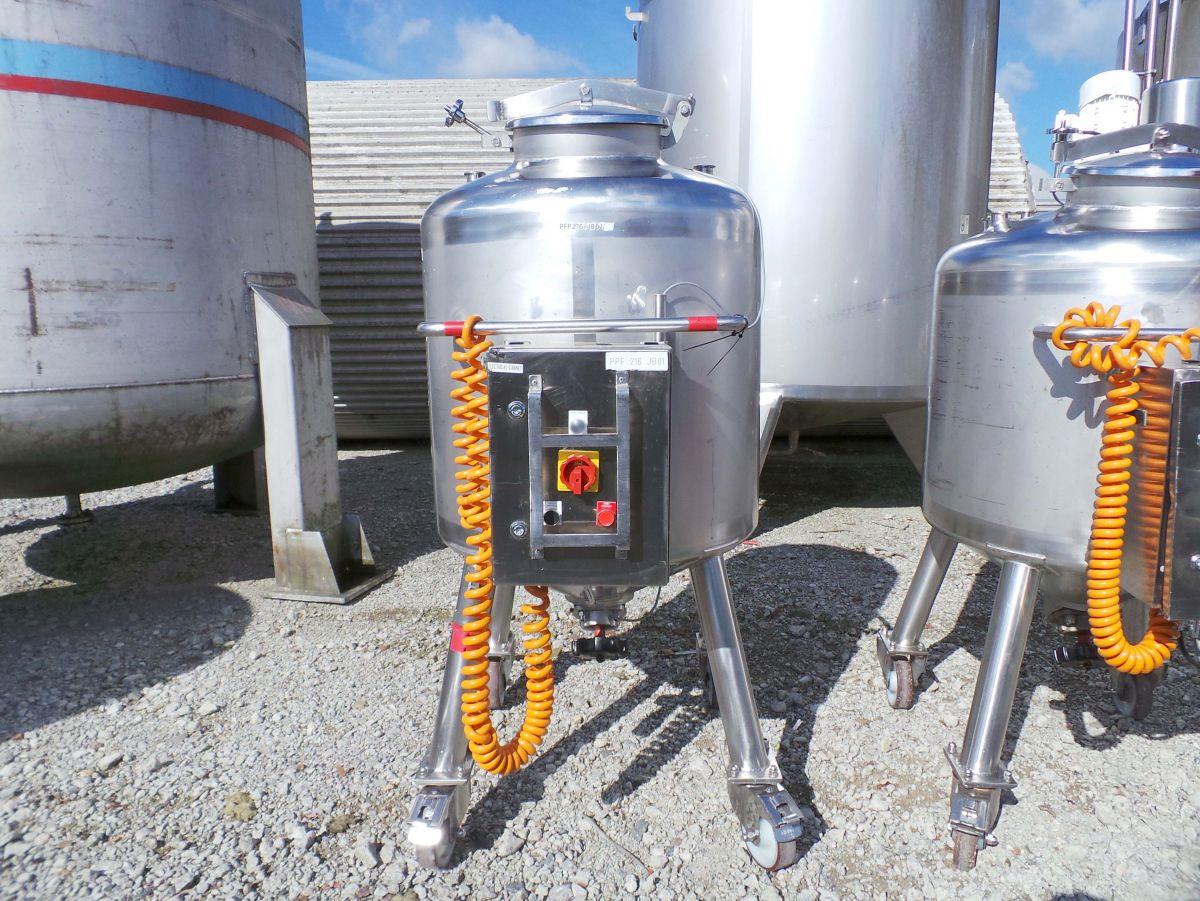

300 liter i Syrafast 316
Vi erbjuder finansiering via:
42,000.00 SEK/st exkl moms
Mer information
| Volym i liter | 300 |
|---|---|
| Nytillverkad/Begagnad | Begagnad |
| Livsmedelsklassad | Ja |
| Modell | Vertikal |
| Material | Syrafast 316 |
| Omrörare | Nej |
| Uppvärmning/kylning | Nej |
| Isolerad | Nej |
| Trycktank | Ja |
Article type: second-hand storage tank
Additional information: -25°C / +50°C; -0.1bar / +0.2bar; condition control box unknown
Capacity: 300 L
Working pressure in tank: pressure
Overpressure: 0,20 Bar
Underpressure: 0,10 Bar
Max. working temperature: -25 °C
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Top type: dished
Shape of tank: cylindrical

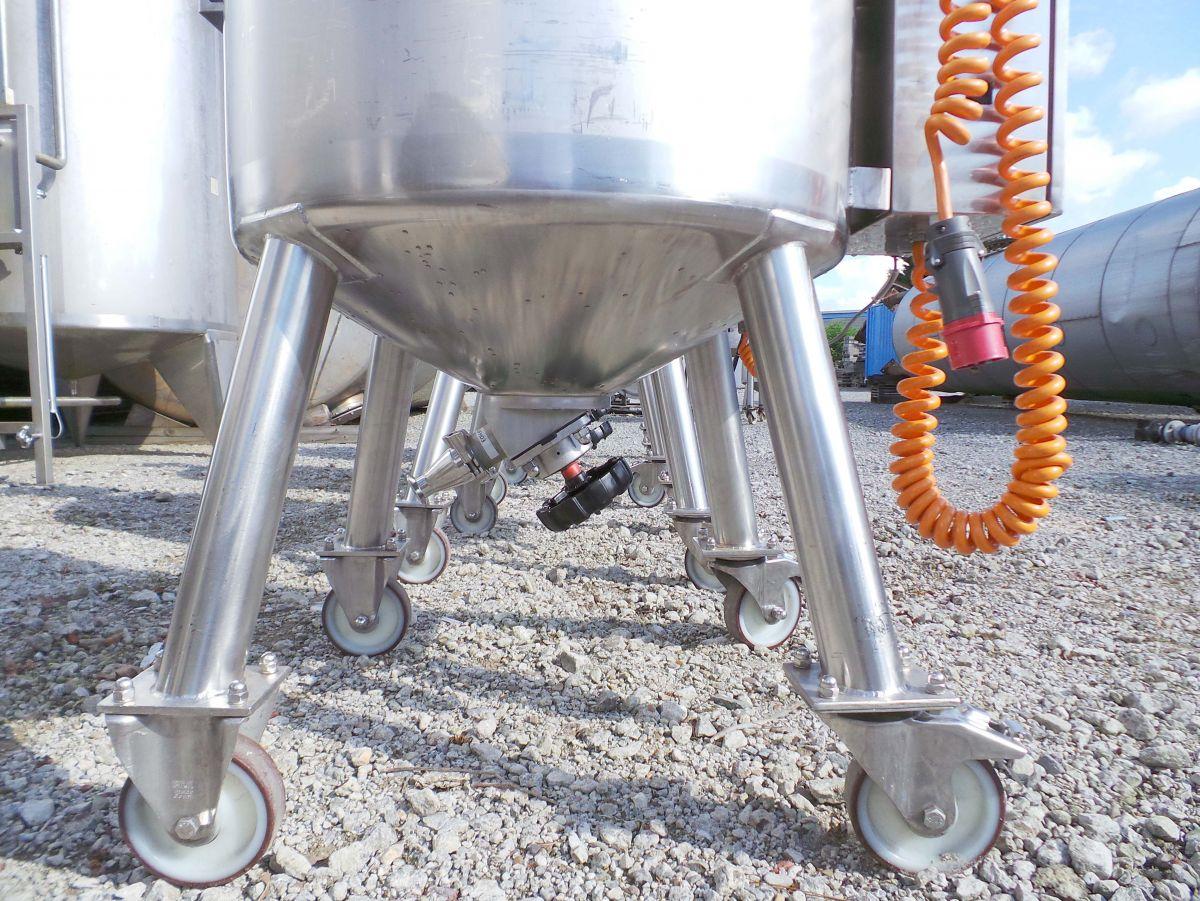

Bottom type: conical
Total discharge: yes
Fixation points: 4 casters
Manway(s): RVS 316
Gasket manway(s): unknown
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no

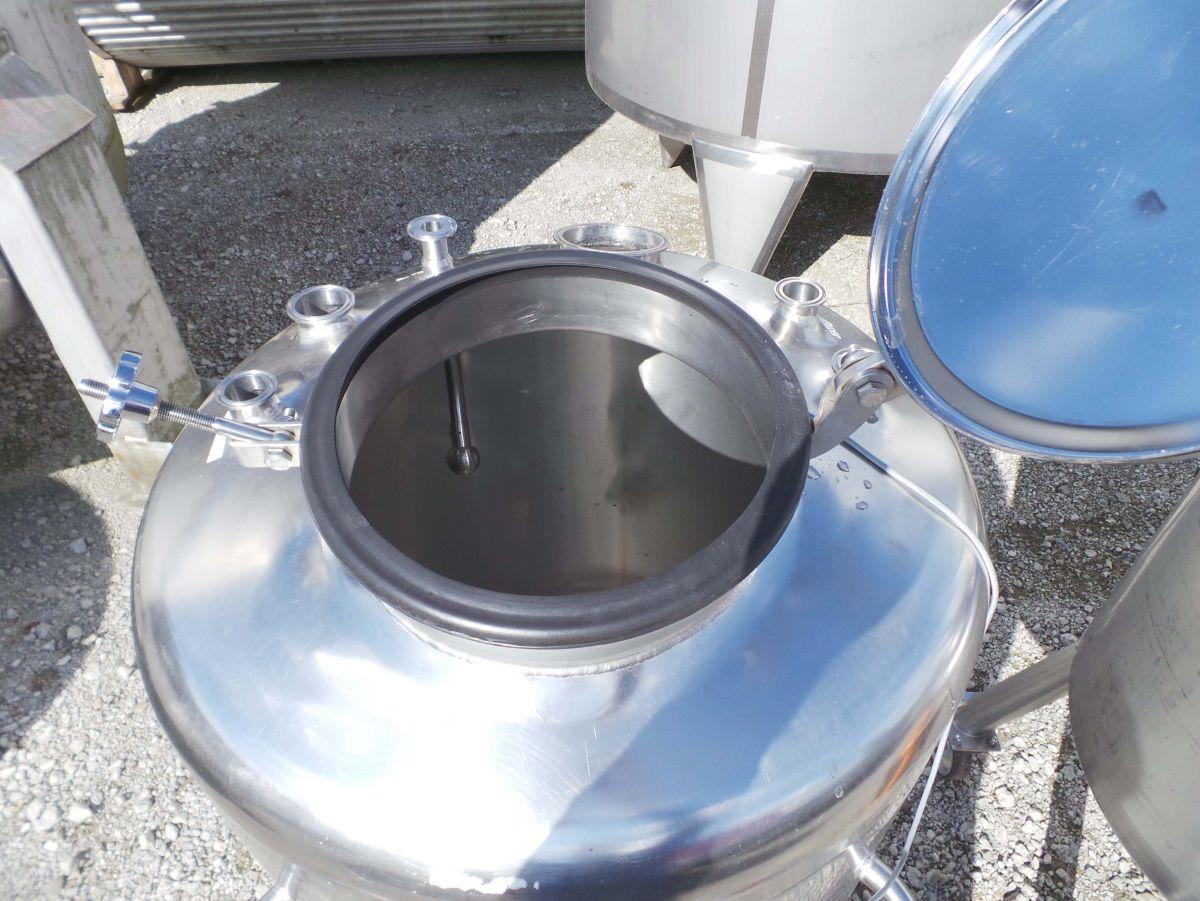

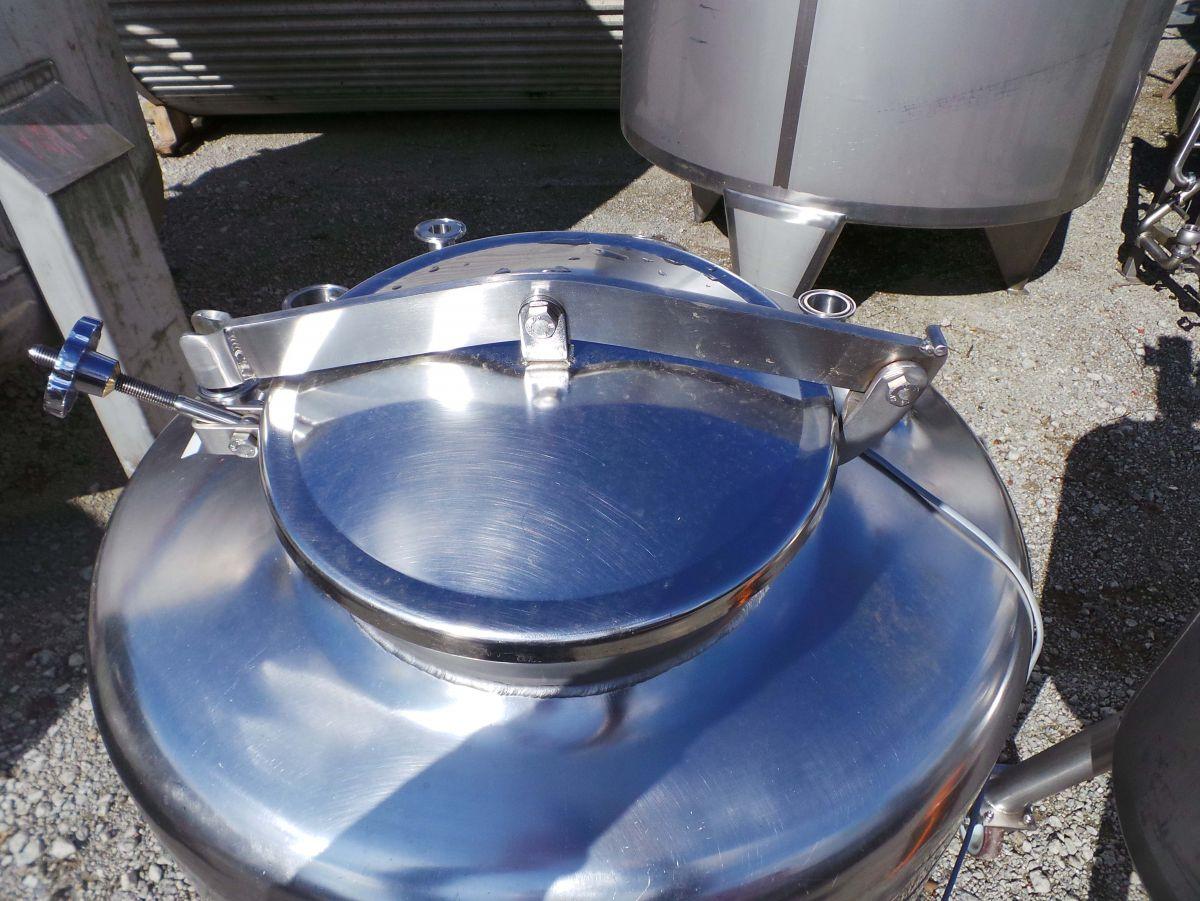

Number of manways: 1
Position manway: at the top
Manway 1: 300 mm

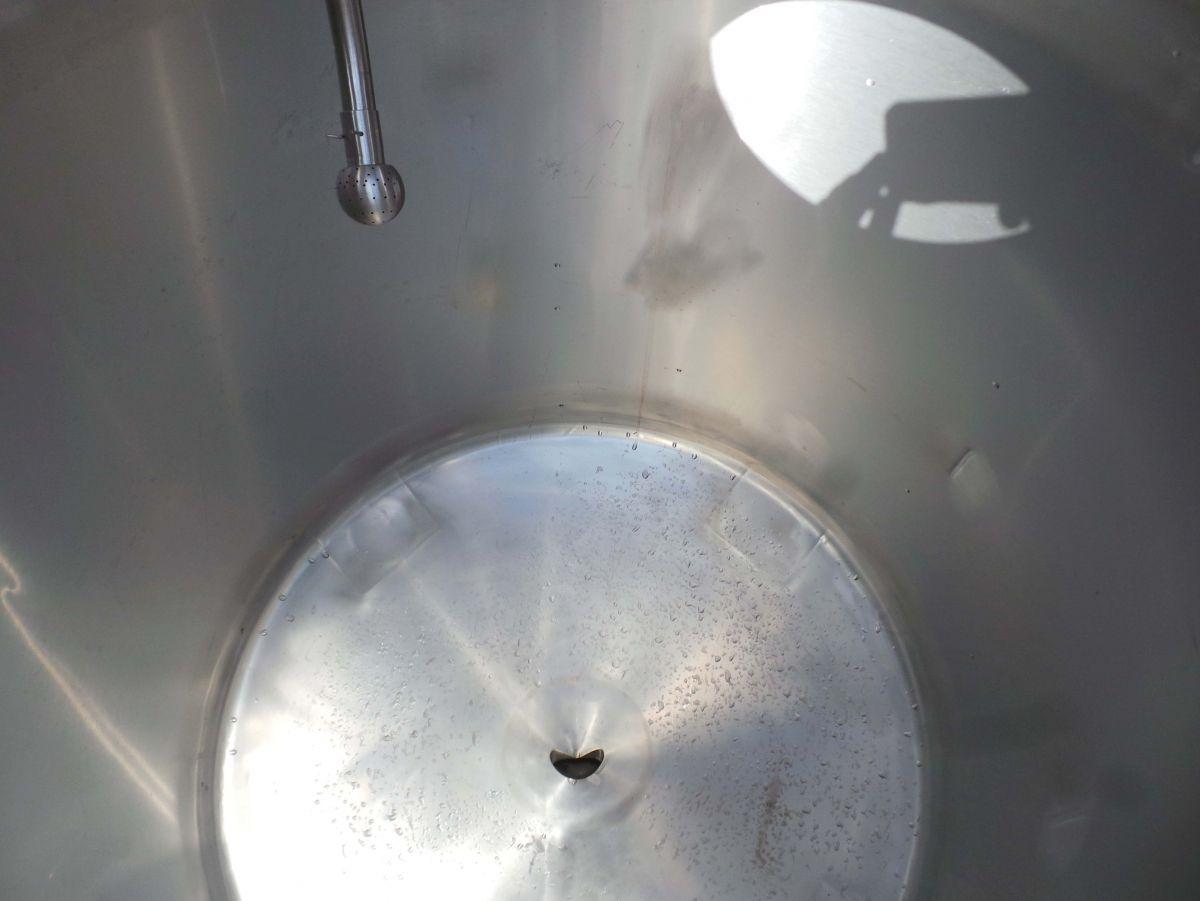

Type: spray ball
Number: 1

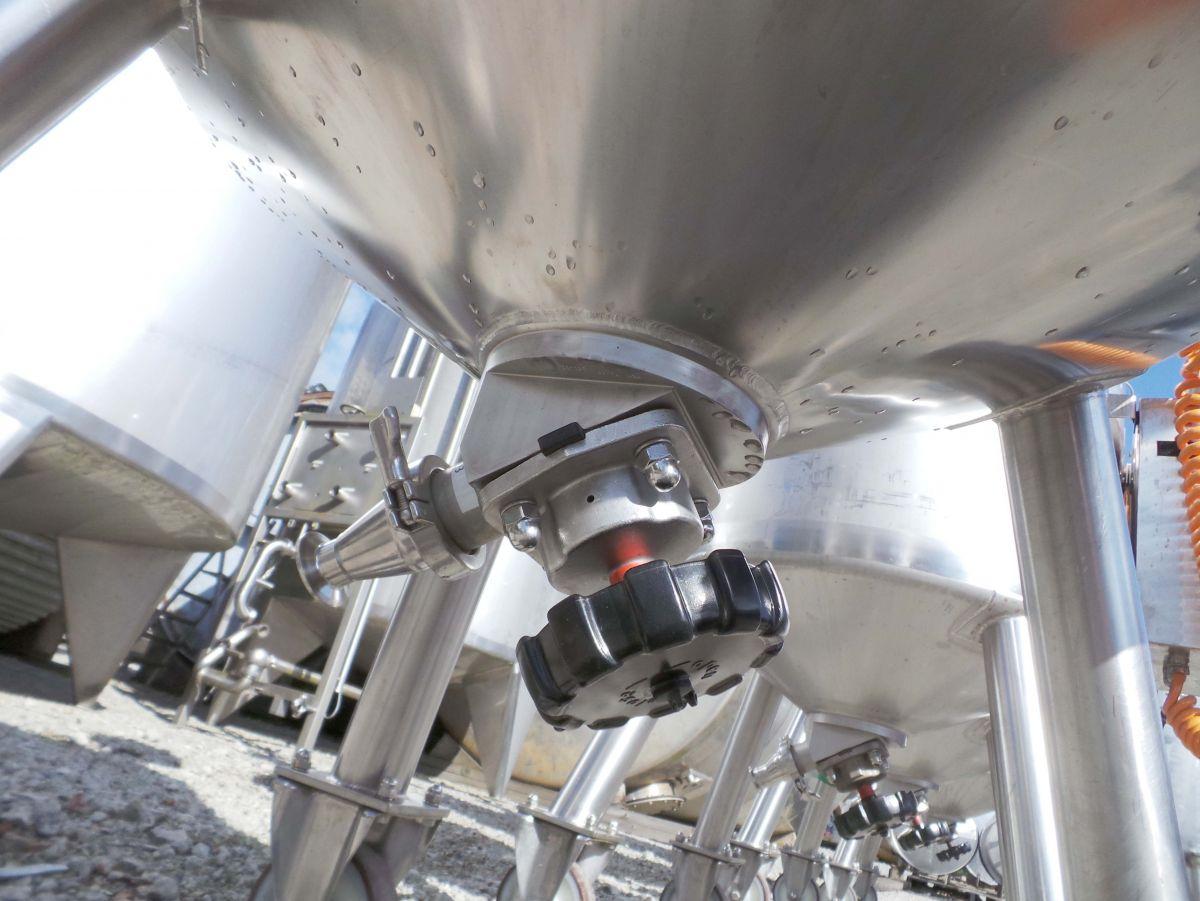

Tank outlet: inside Ø 50 mm
Outlet type: DIN32676
Distance from outlet to ground: 350 mm
Outer diameter tank: 760 mm
Cylinder height: 700 mm
Total height of tank: 1.630 mm
Empty weight tank: 225
