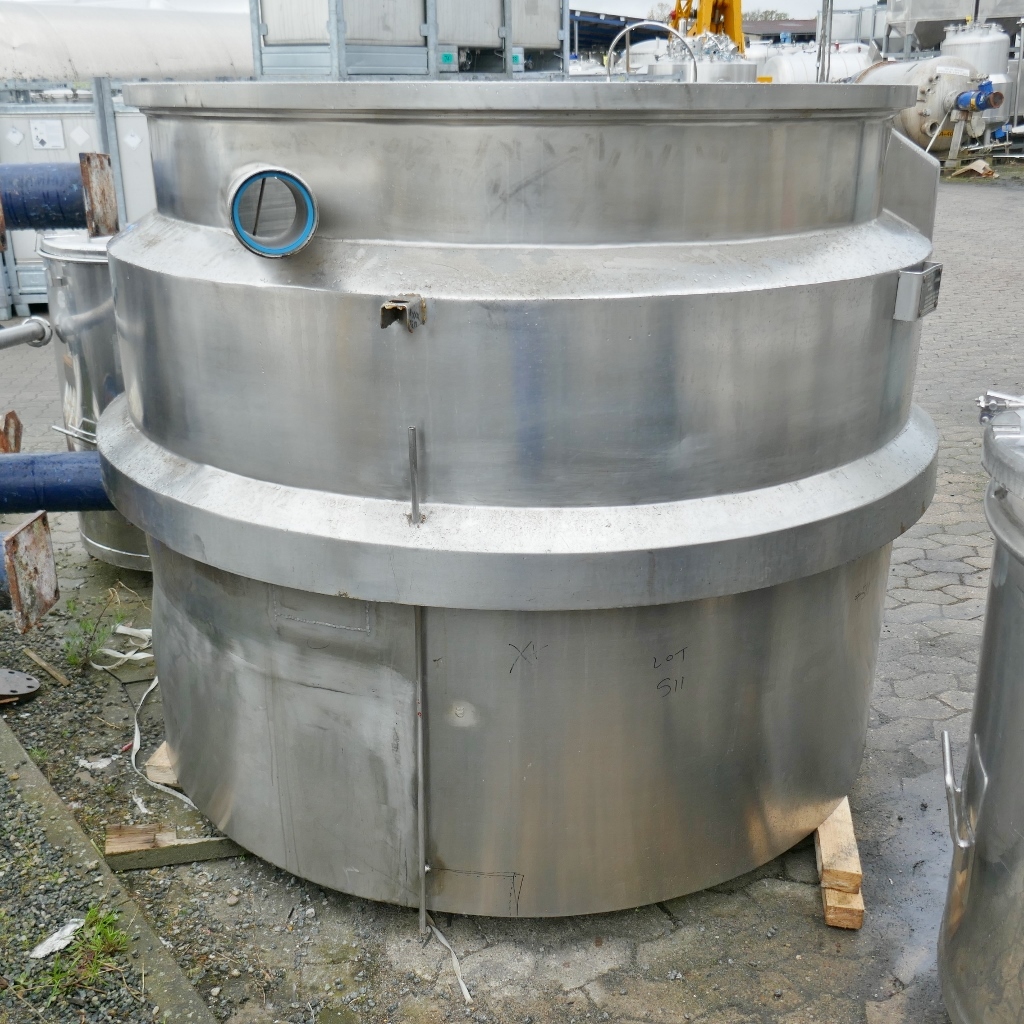

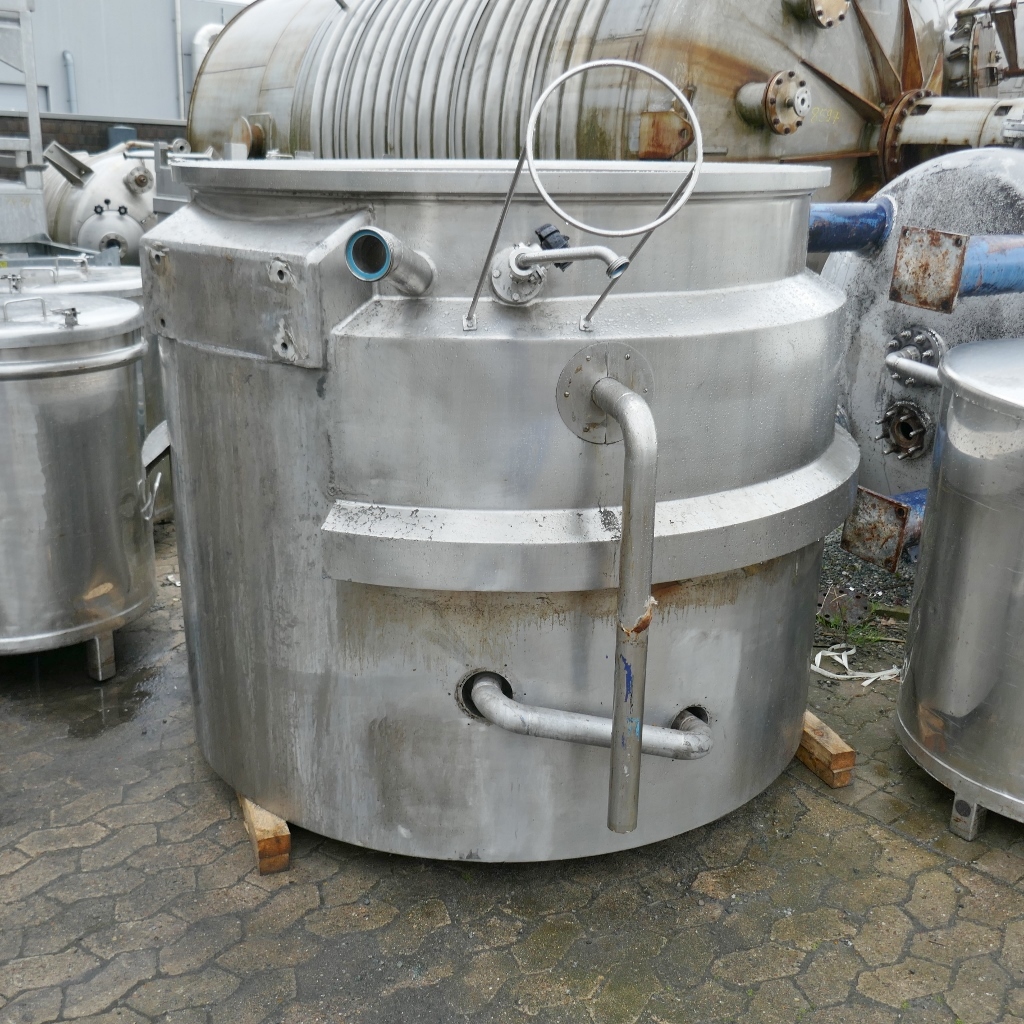

2911 liter tank i Syrafast 316

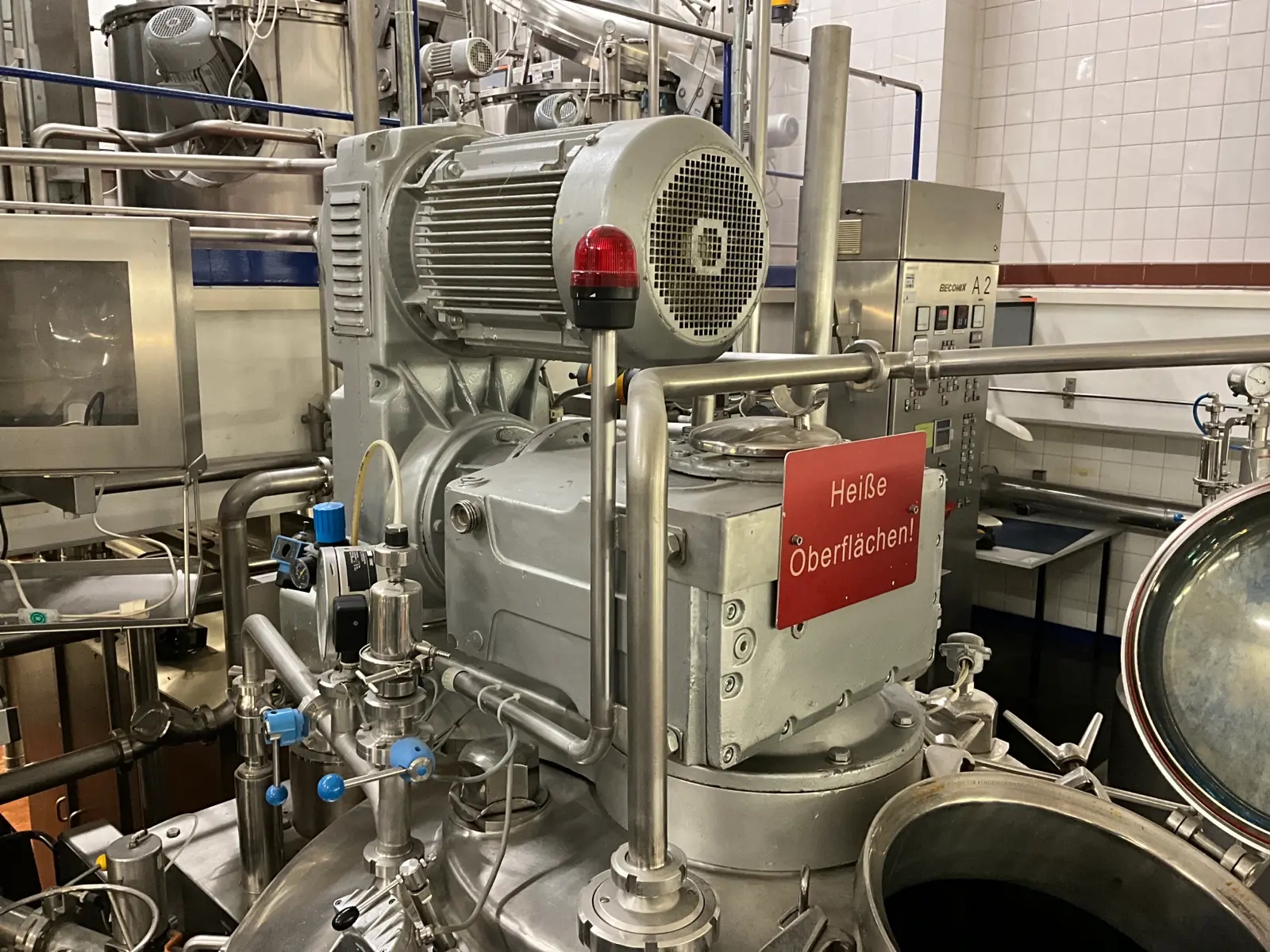

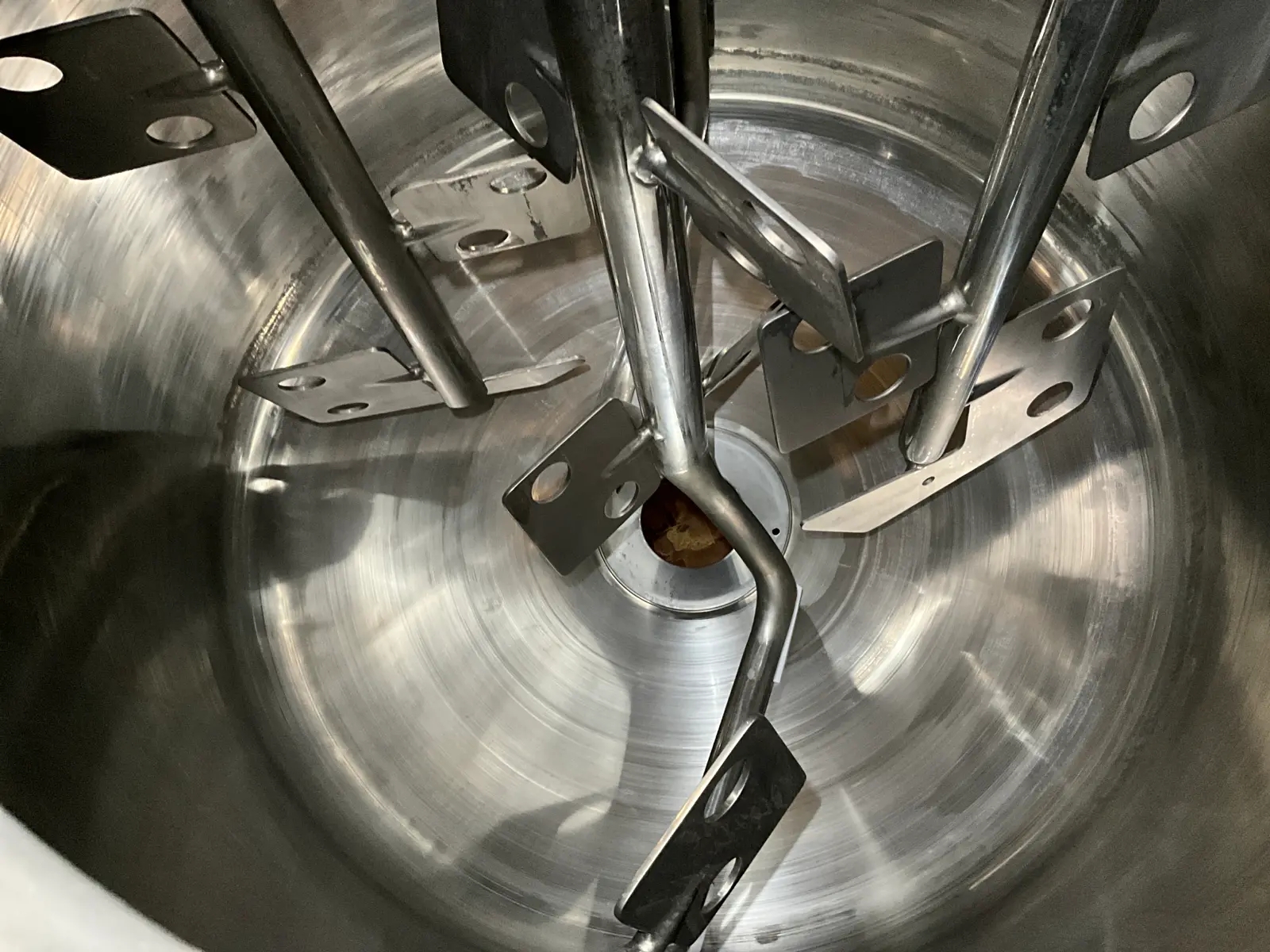

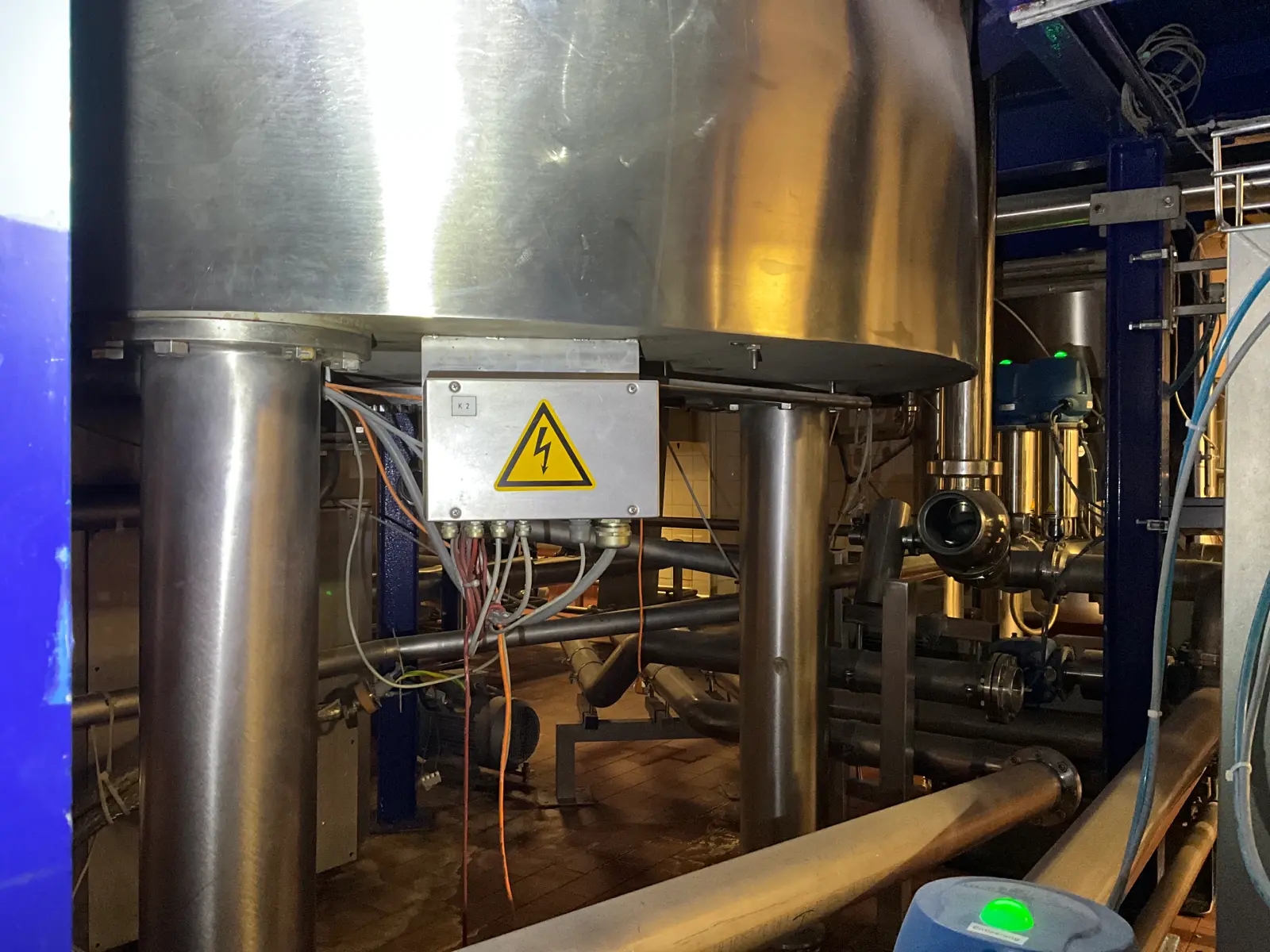

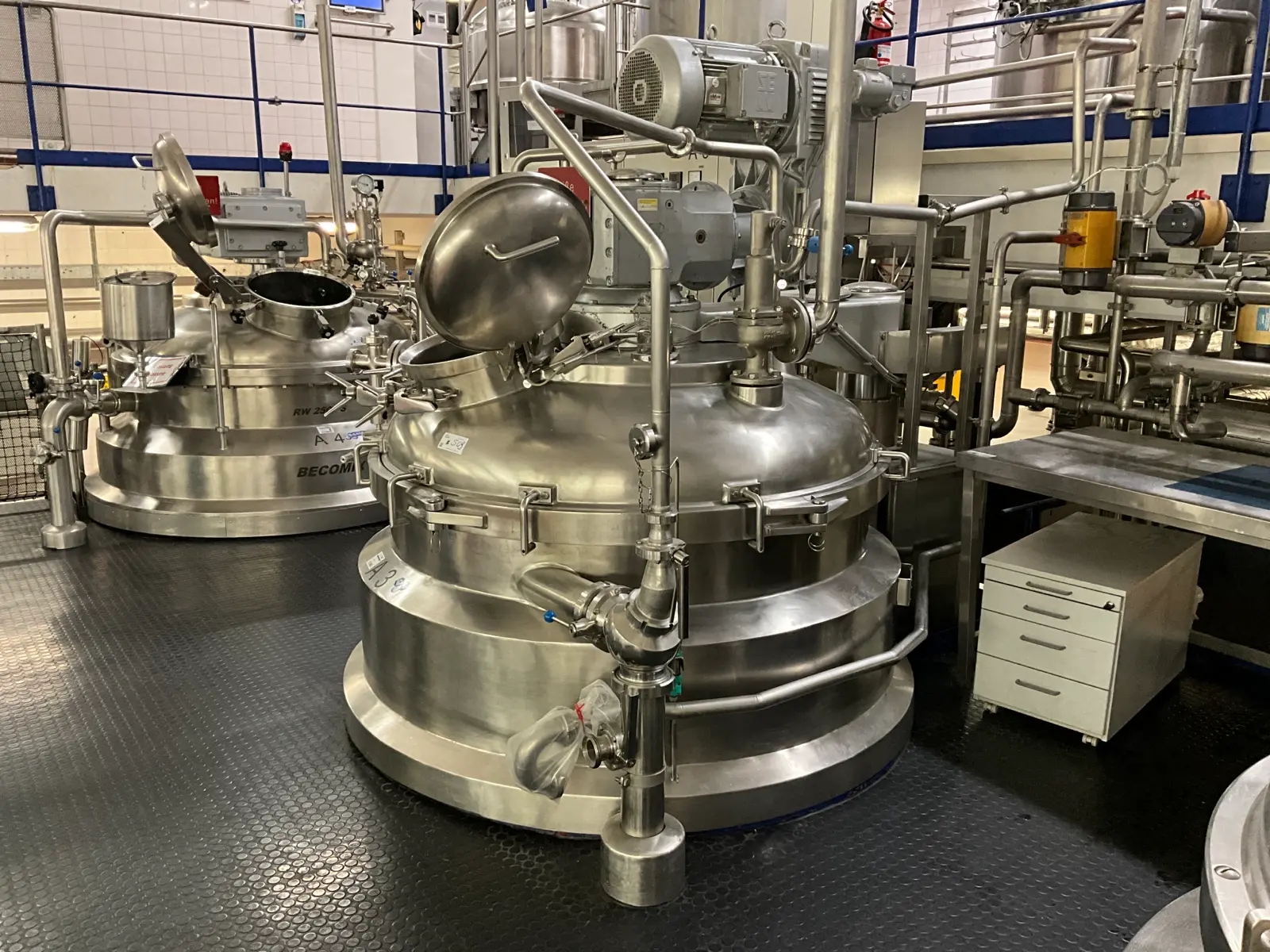

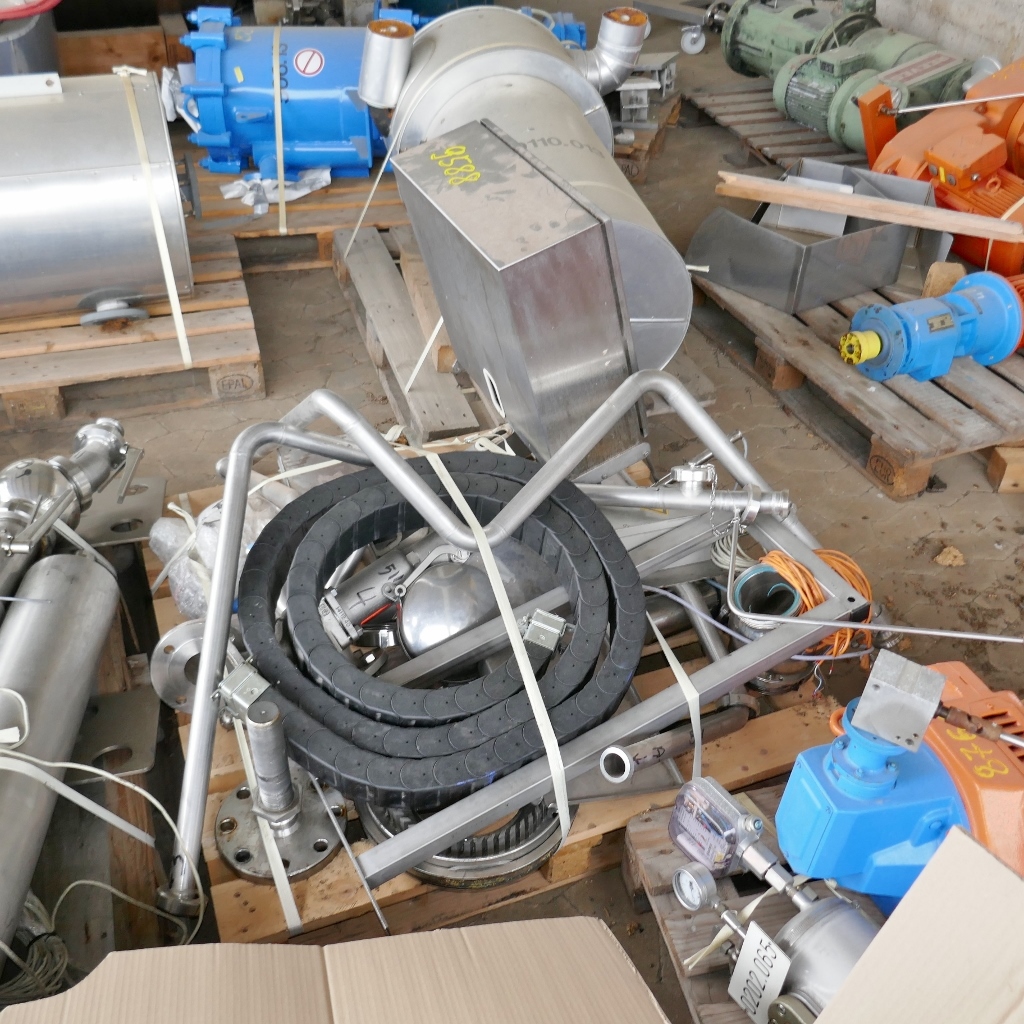

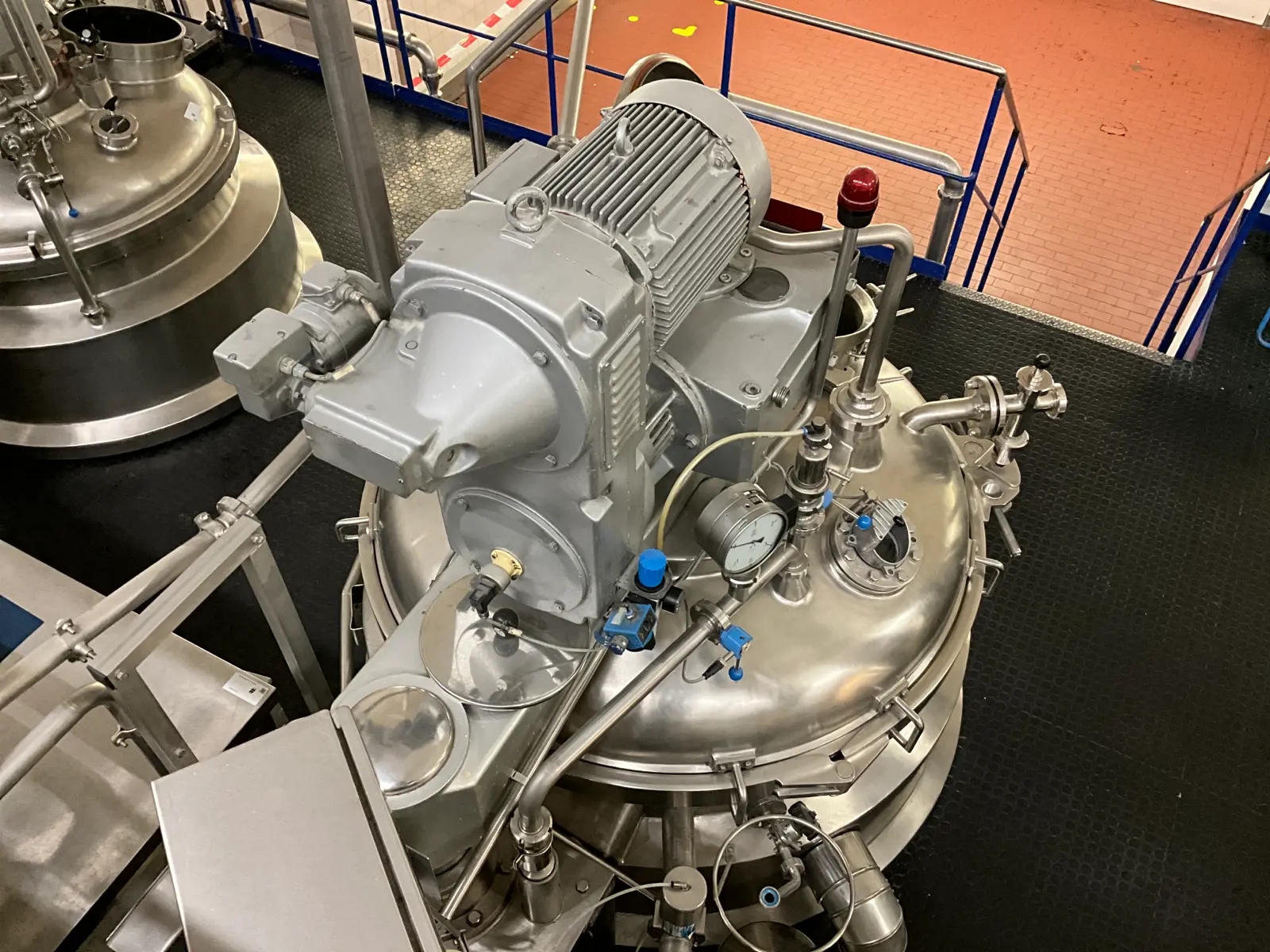

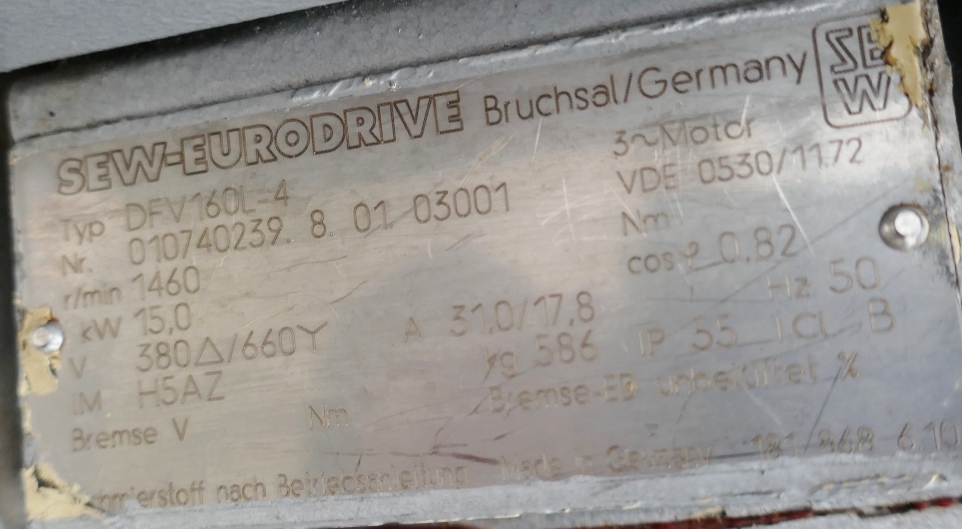

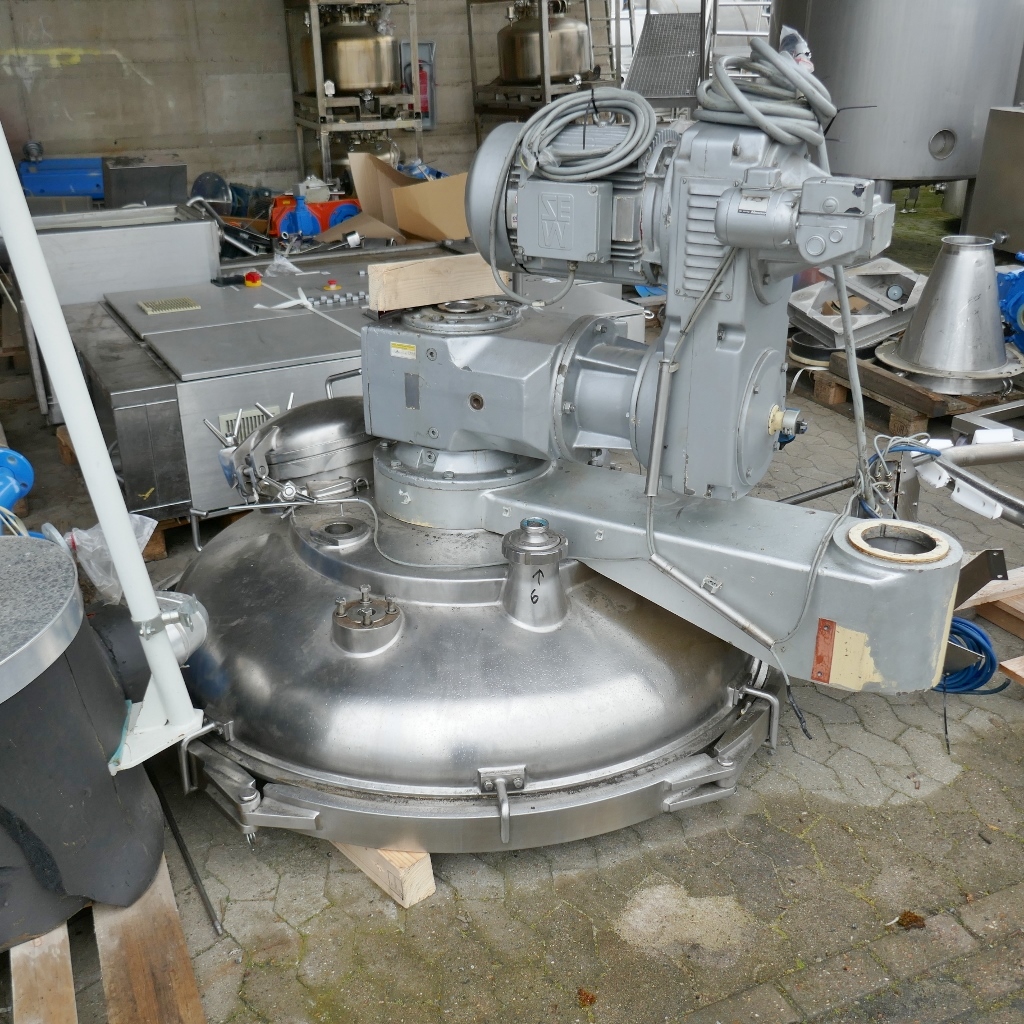

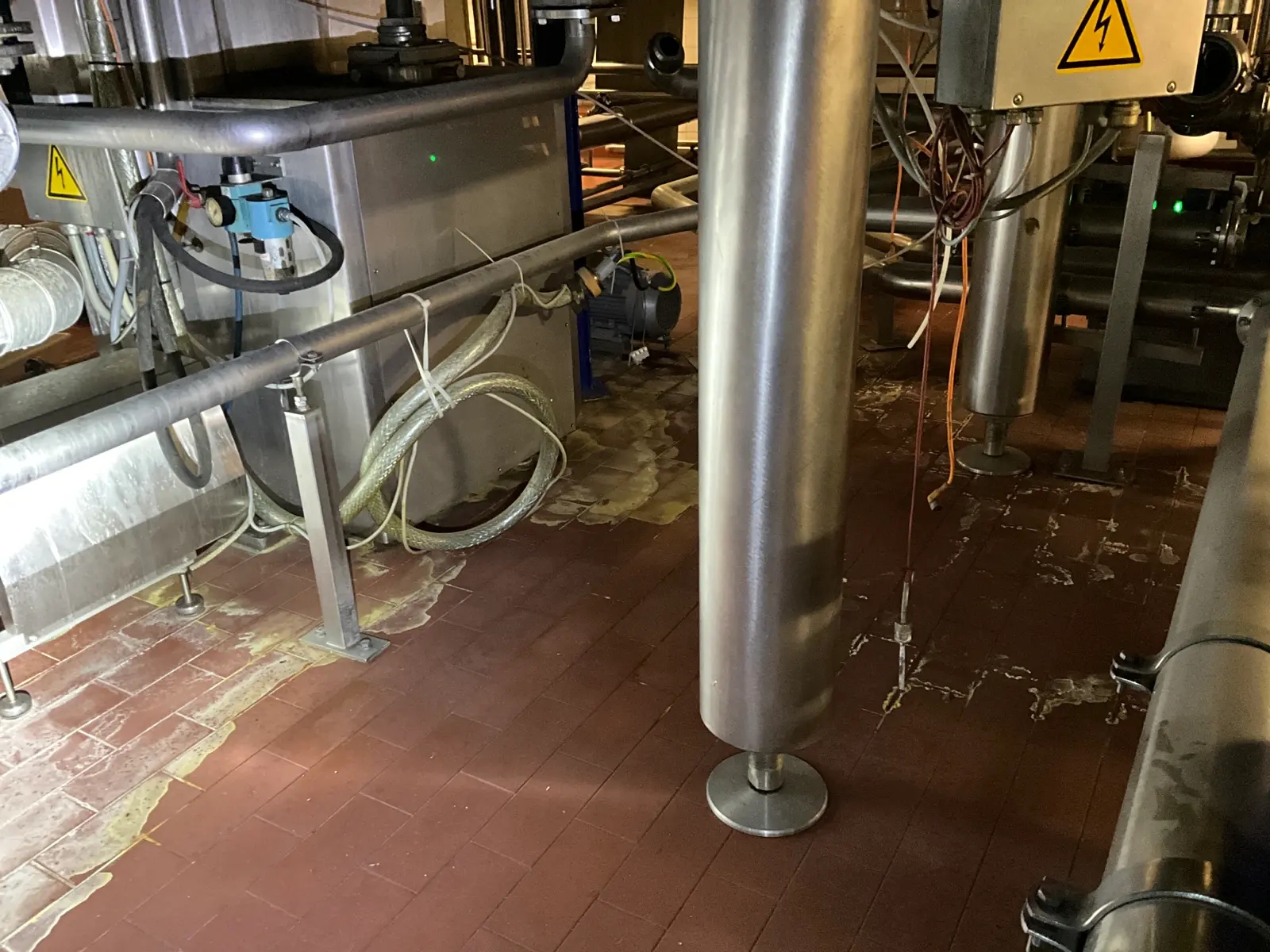

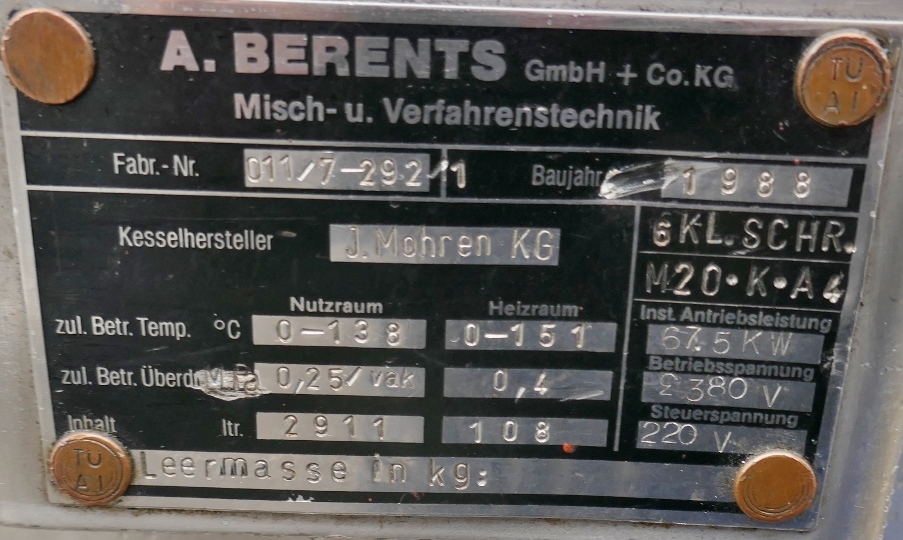

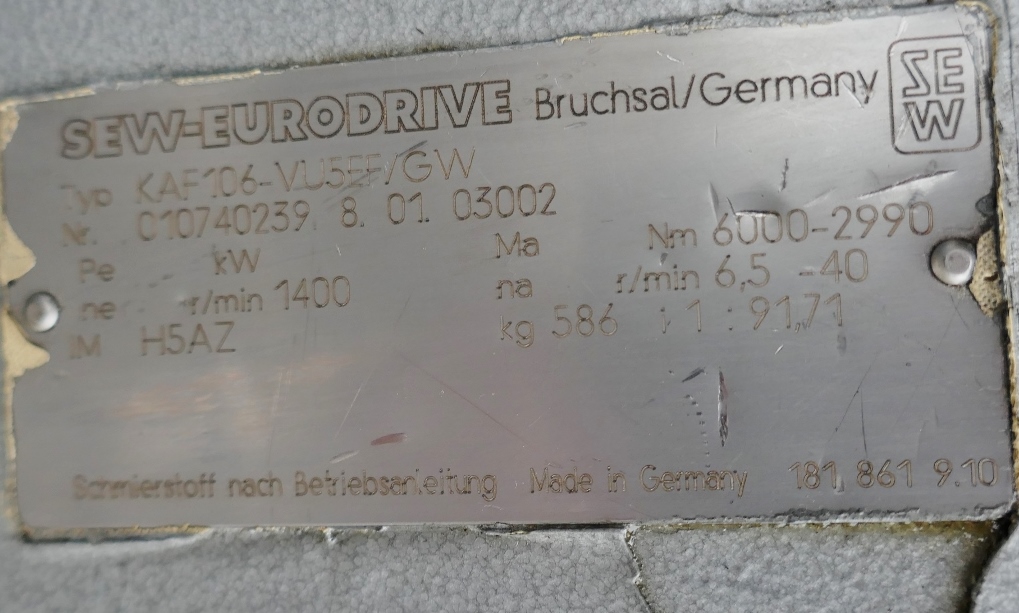

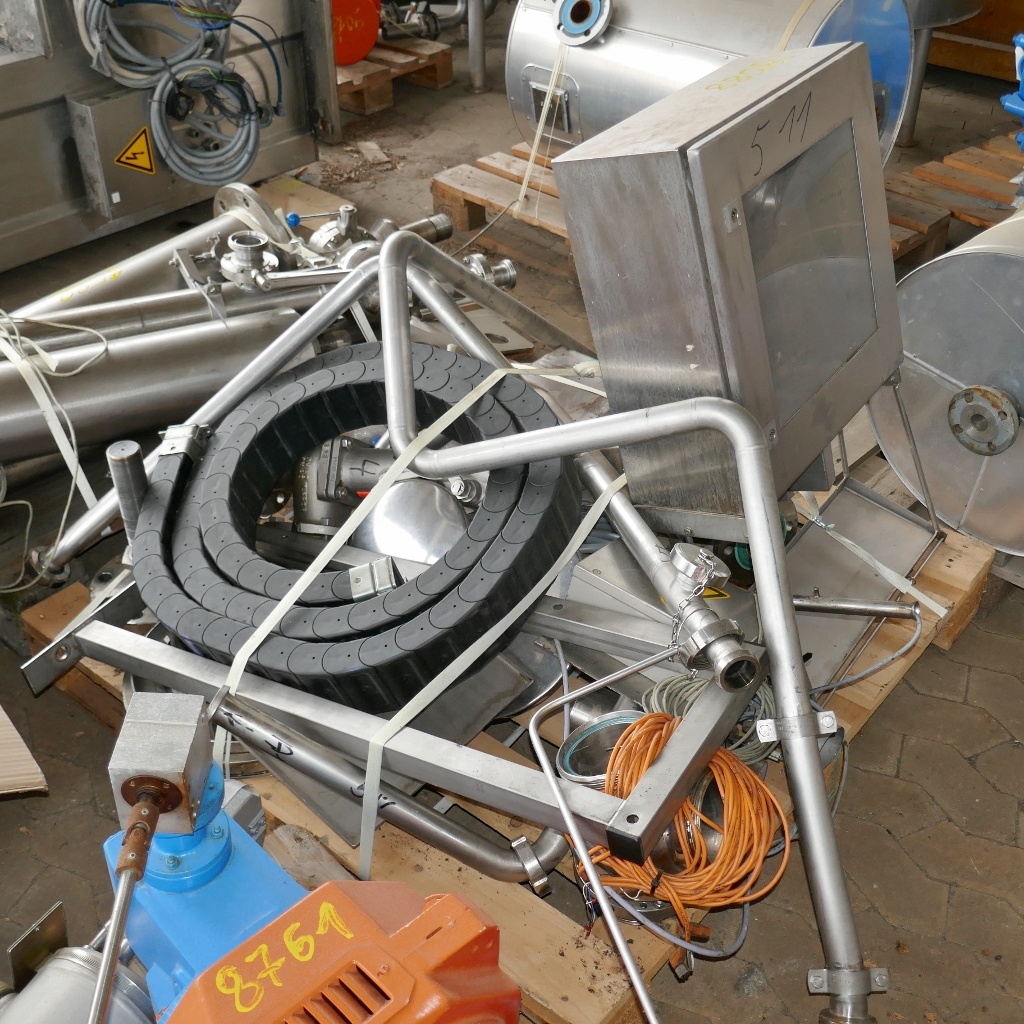

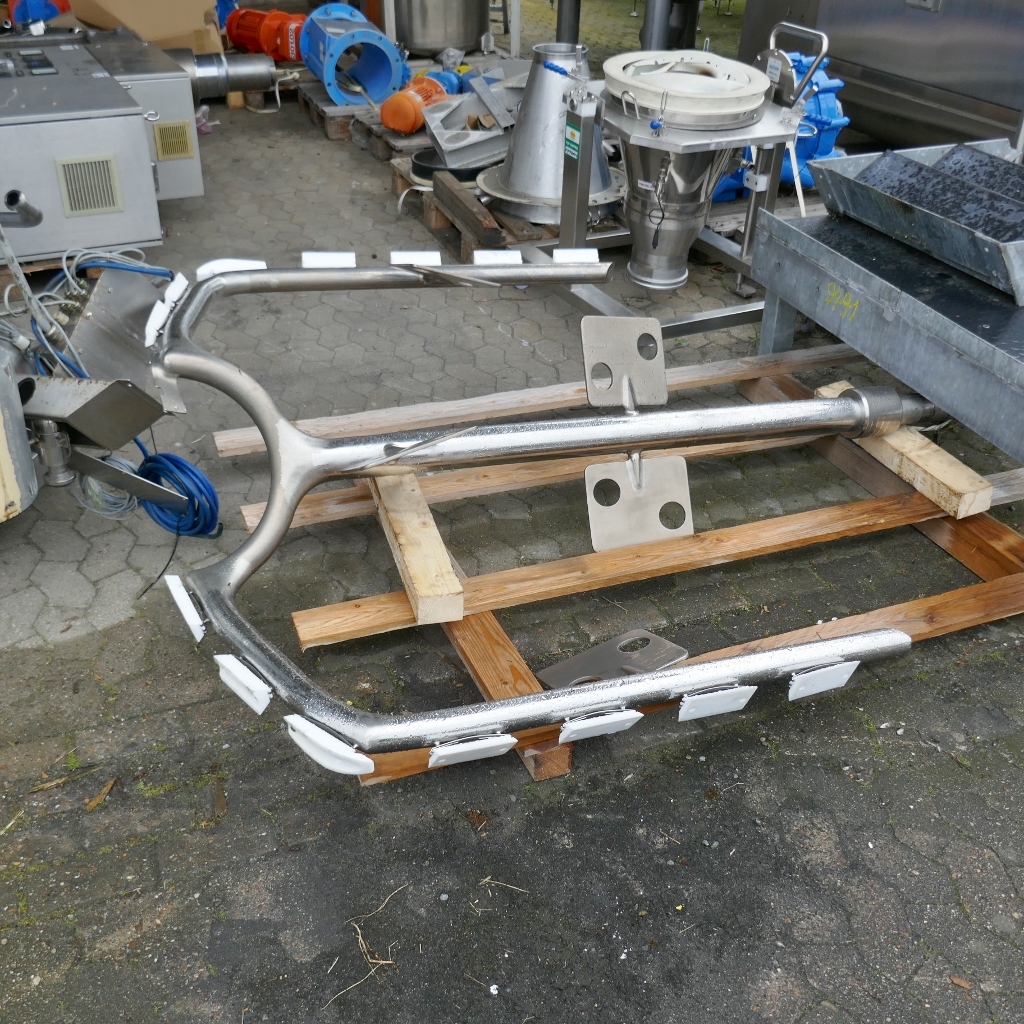

Additional information: Cosmetics; Vessel lid can be lifted with lifting frame; Vessel stands on 2 feet and is also attached to the lifting frame; Total height indicated is estimated; Manhole diameter approx. 440 mm; 1 heating connection cut off; 1 dirt protection collar around the outside of the vessel (diameter approx. 1,870 mm) Volumetric volume (L): 2.911 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2,50 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 138 °C Material wet parts: SS AISI 316 (V4A) Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 108 L Max Overpressure: 5 Bar Max. working temperature: 151 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Agitator: yes Number of revolutions: 6.5 - 40 Power: 15 Internal diameter tank: 1.520 mm Outer diameter tank: 1.740 mm Cylinder height: 1.130 mm Total height of tank: 4.300 mm
