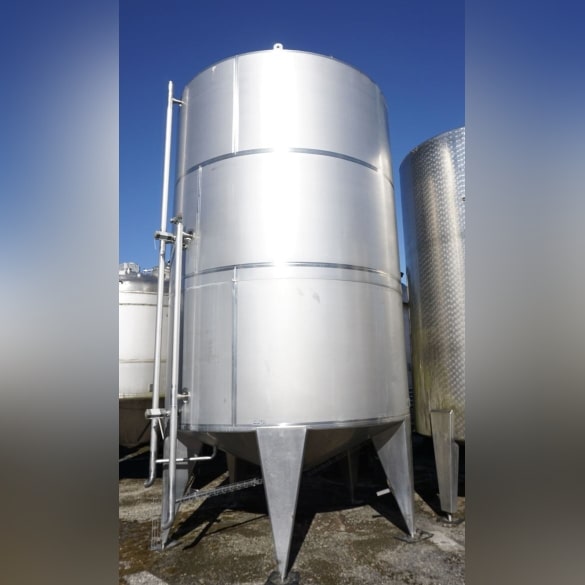

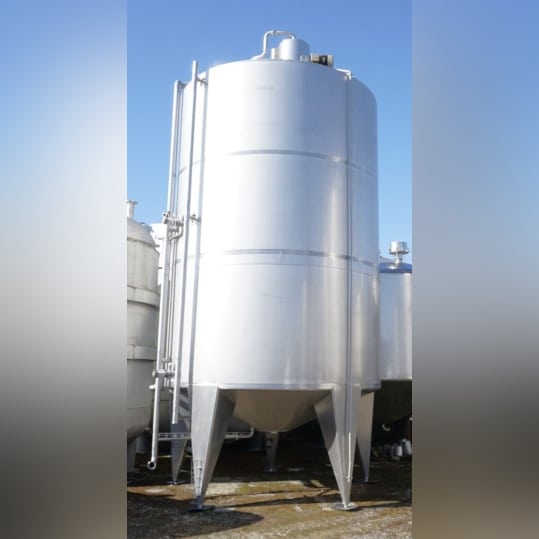

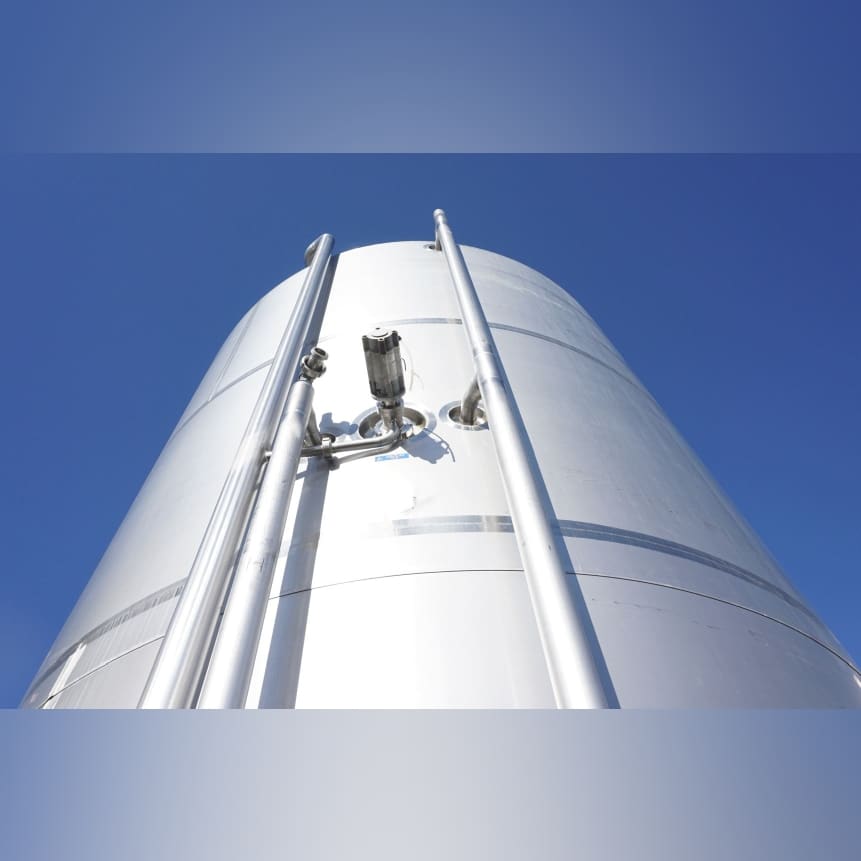

25000 liter tank i Syrafast 316

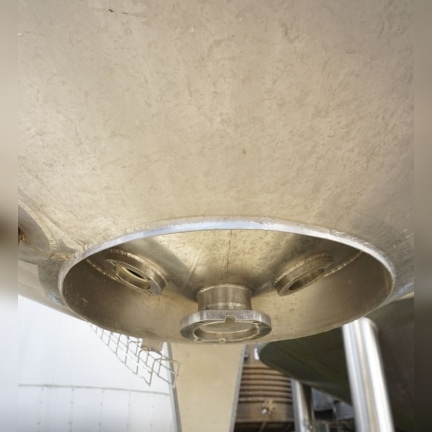

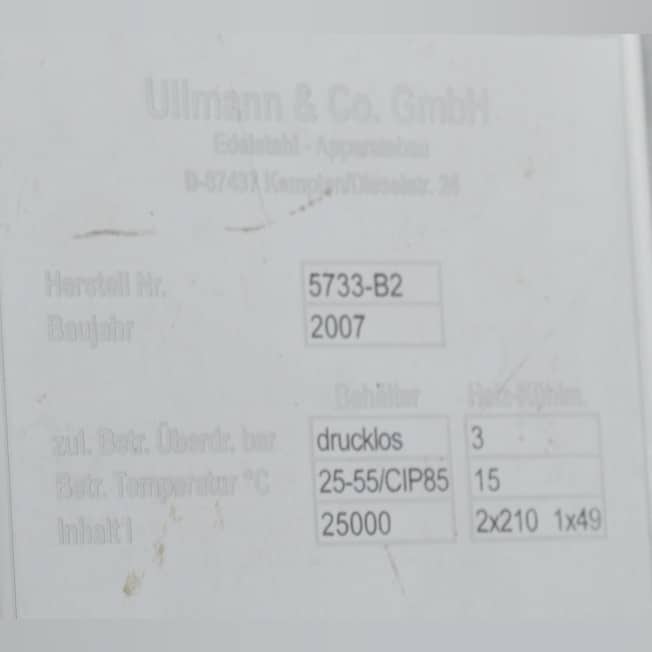

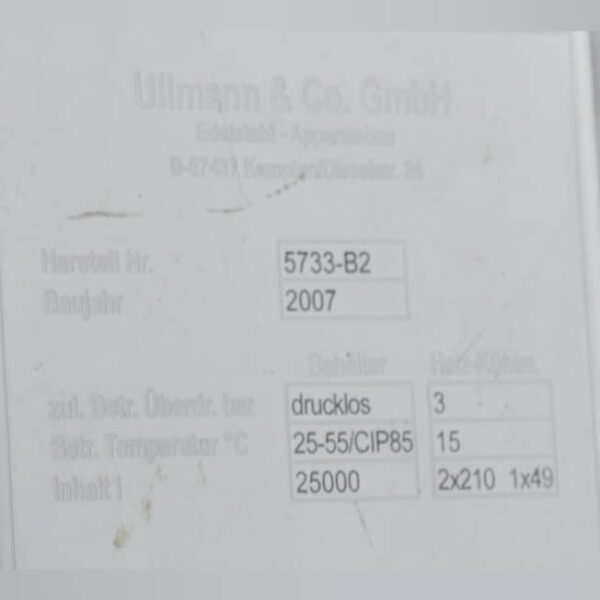

Volumetric volume (L): 25.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 55 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 489 L Max Overpressure: 3 Bar Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: DN80 DIN 11851 Top: 4 mm Cylinder: 4 mm Bottom: 4 mm Internal diameter tank: 2.750 mm Outer diameter tank: 2.925 mm Cylinder height: 4.000 mm Total height of tank: 6.500 mm Empty weight tank: 2.500
