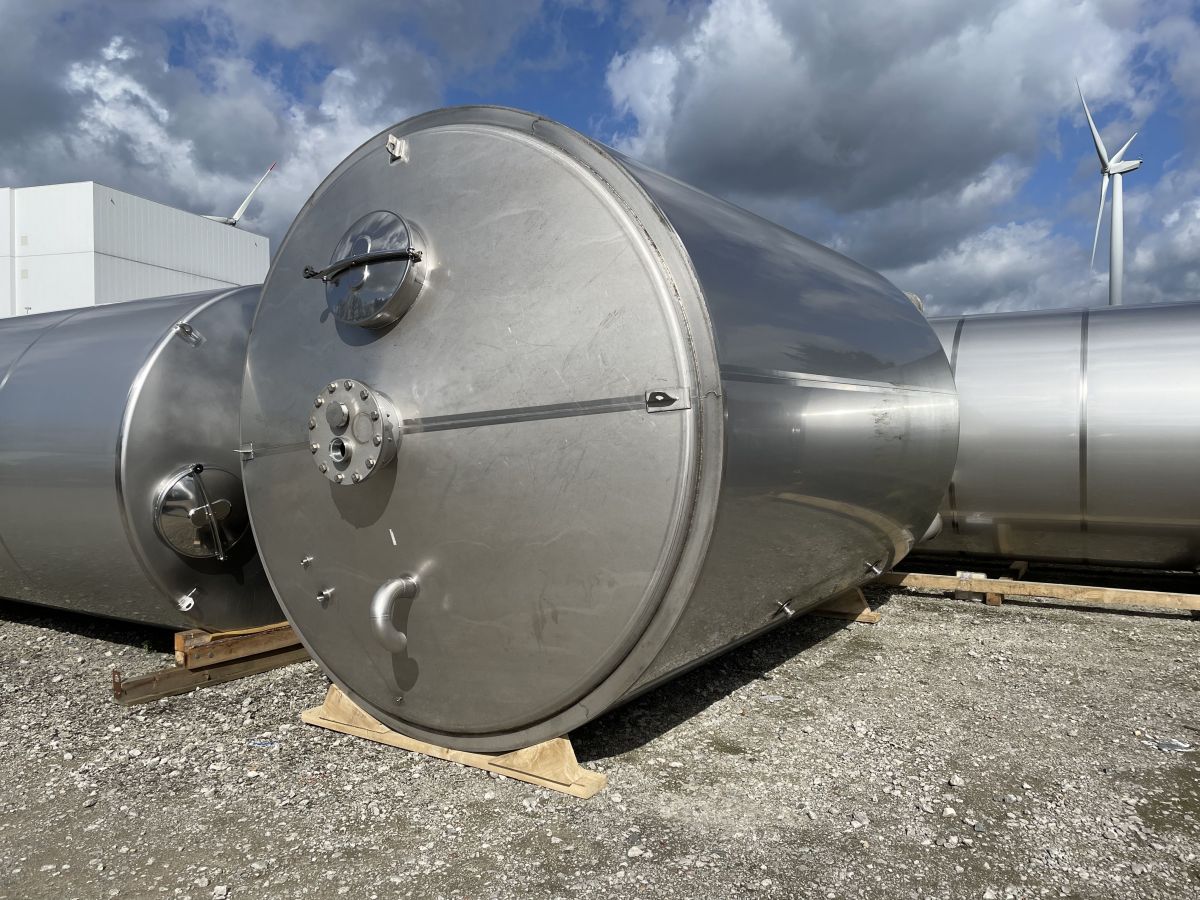

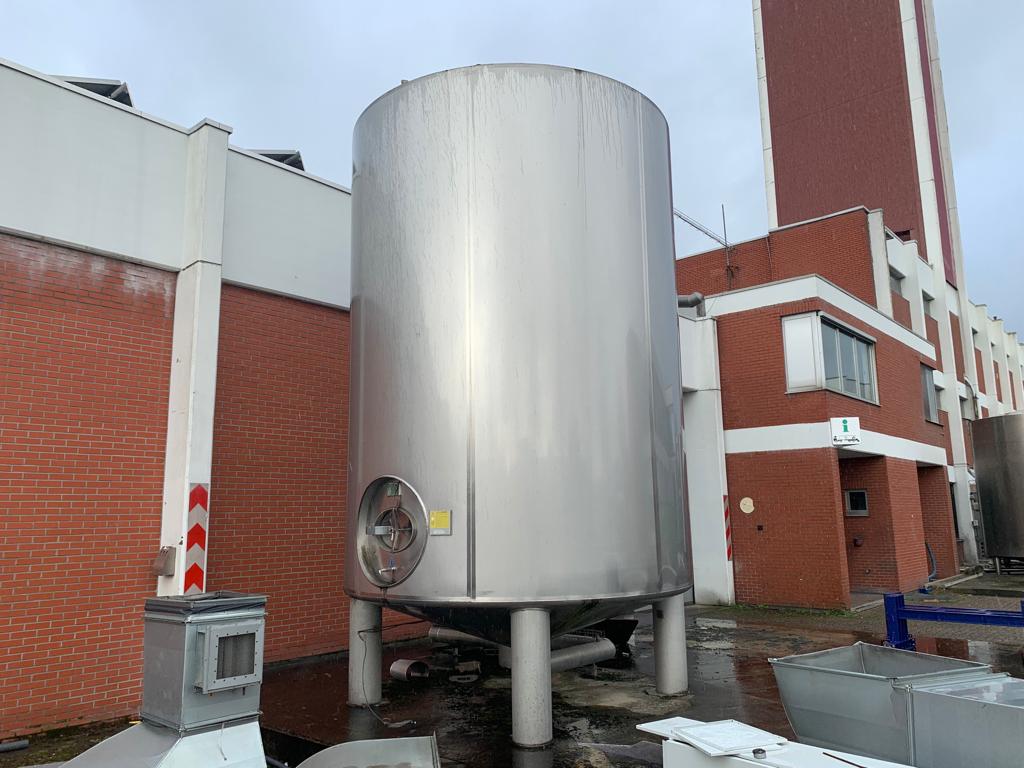

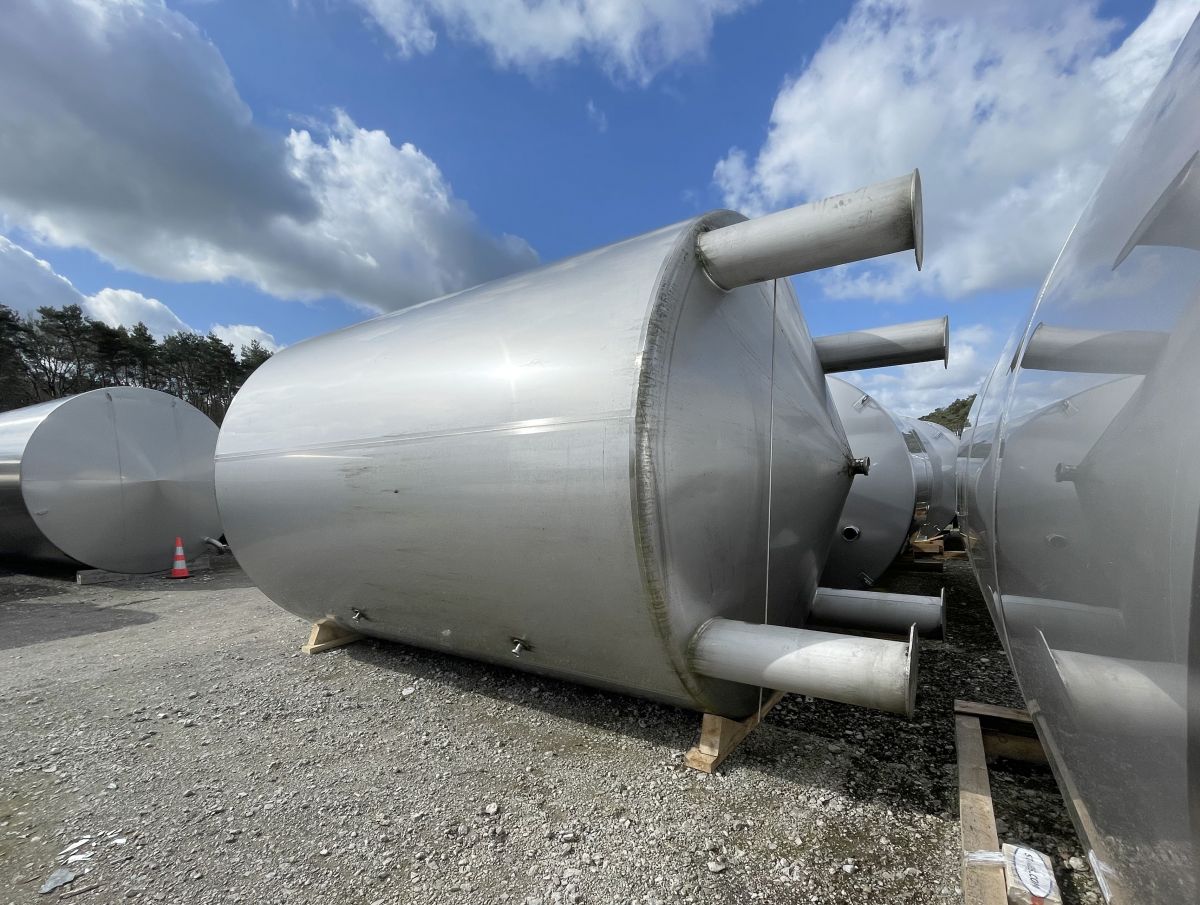

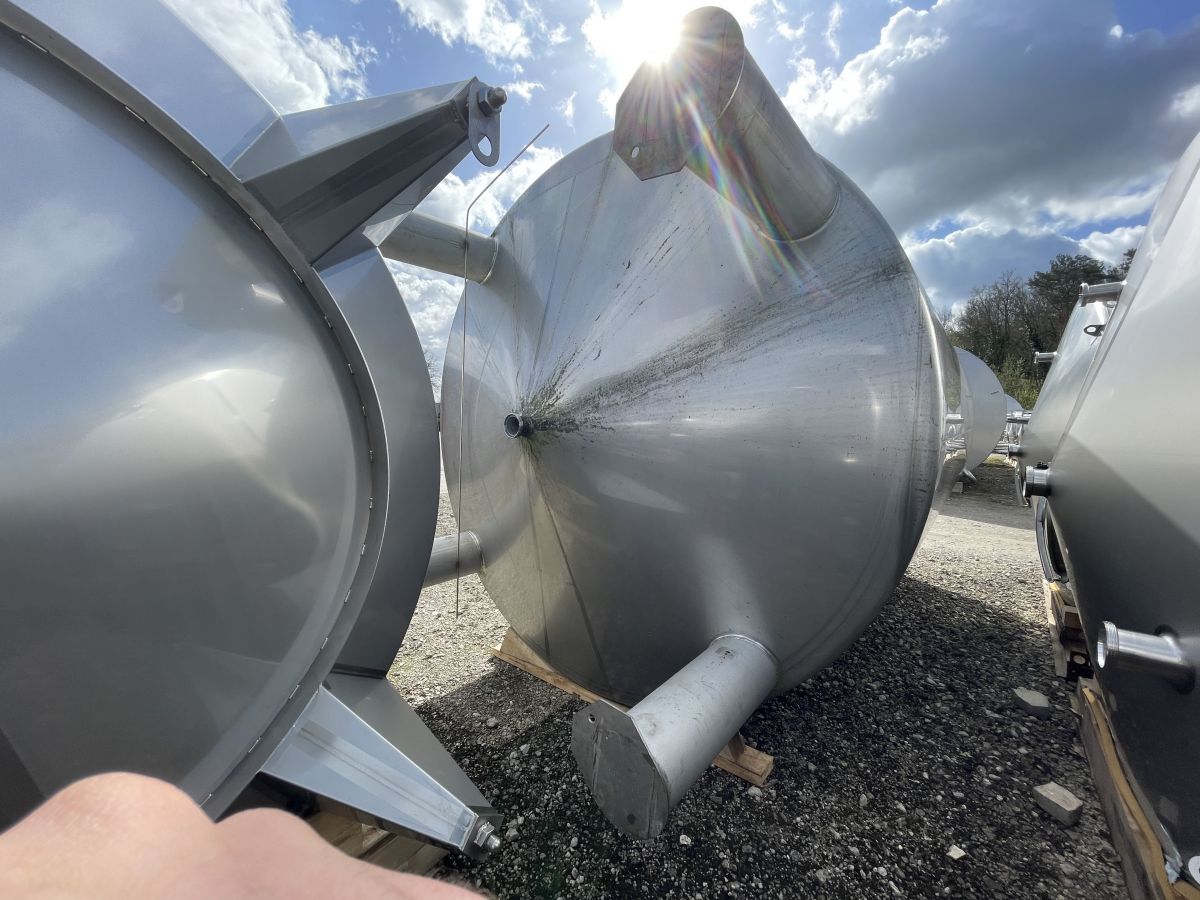

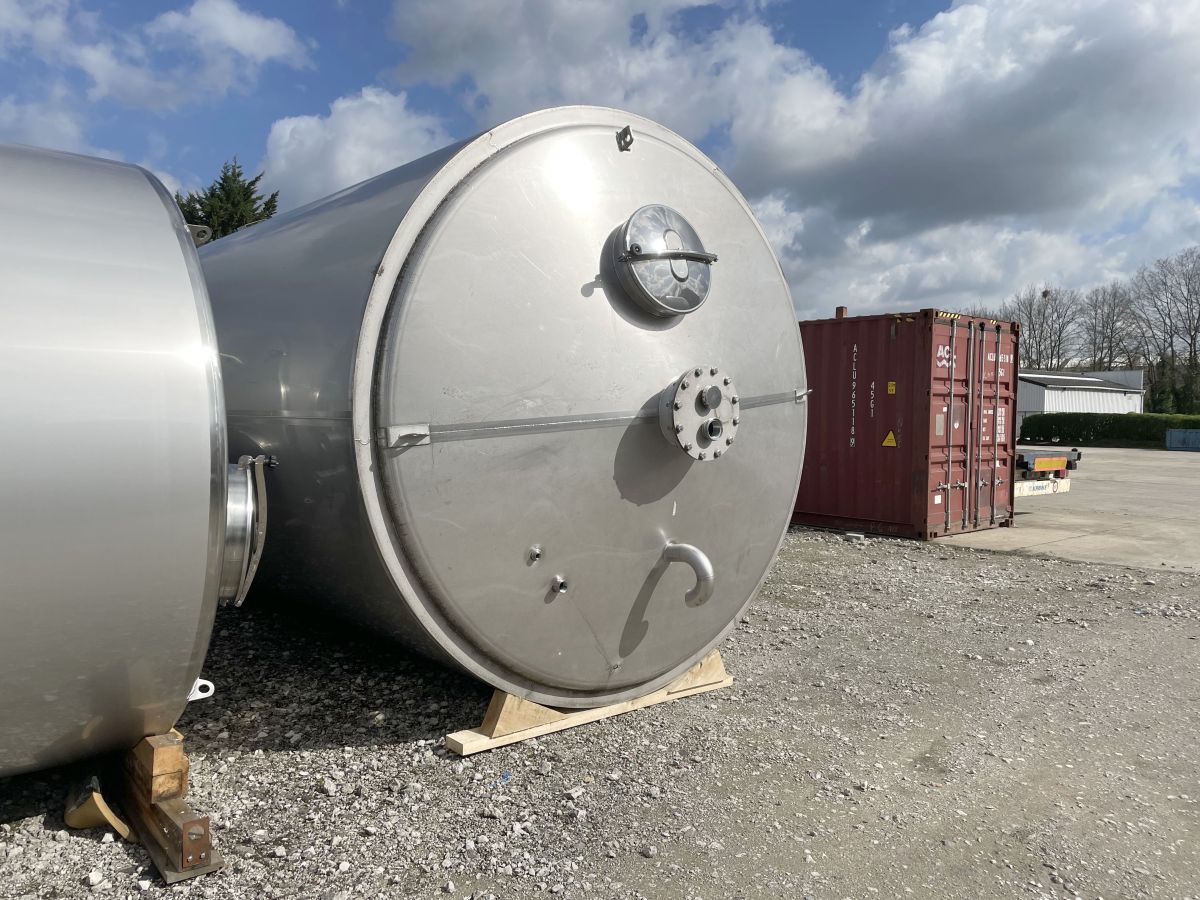

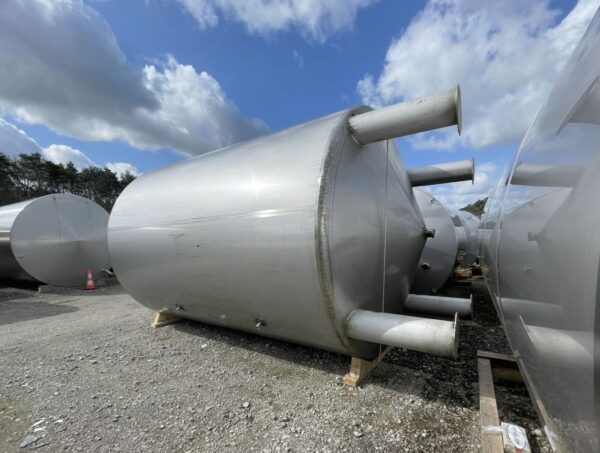

25000 liter tank i Syrafast 316

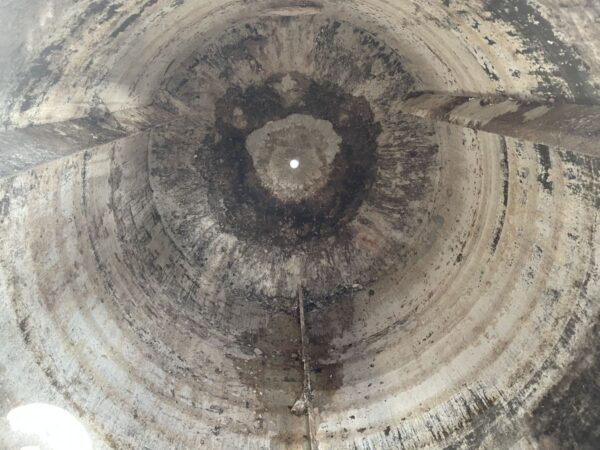

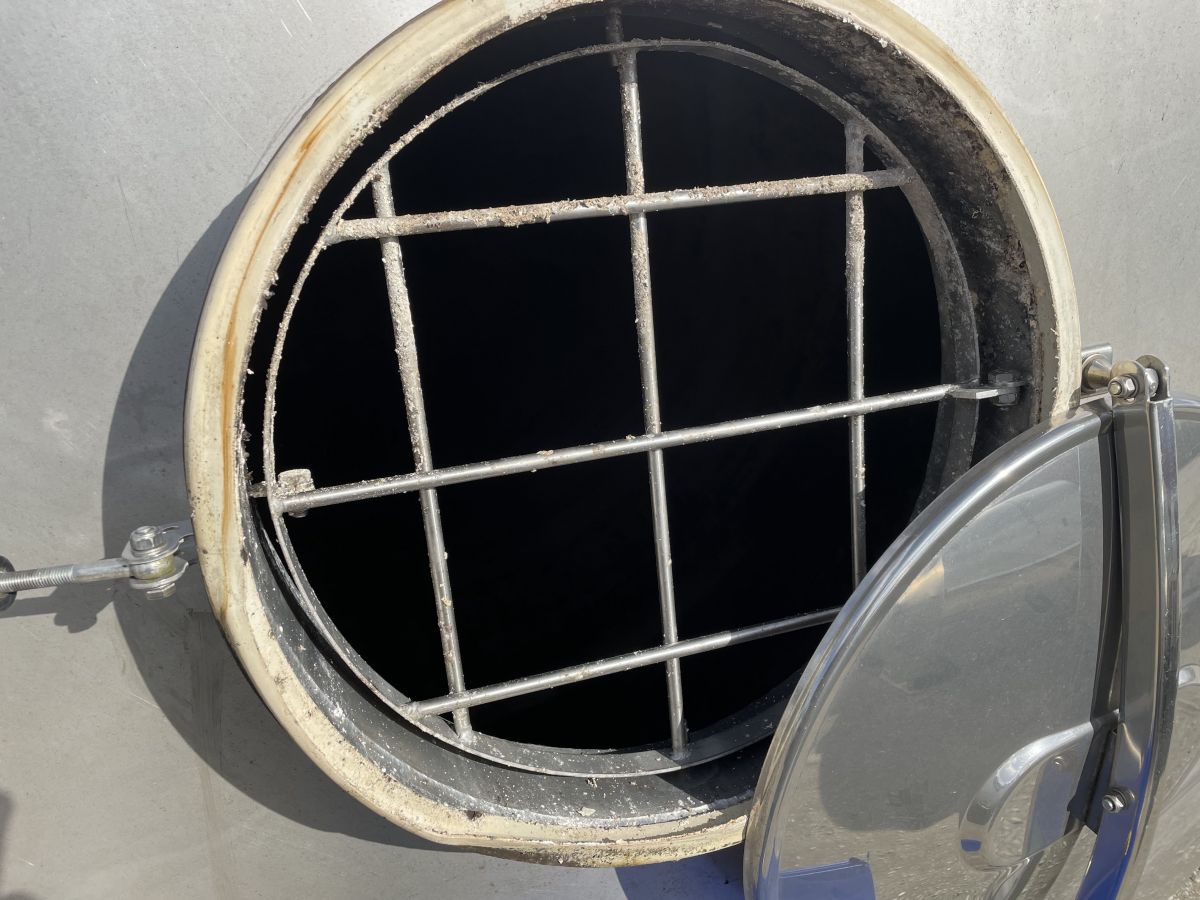

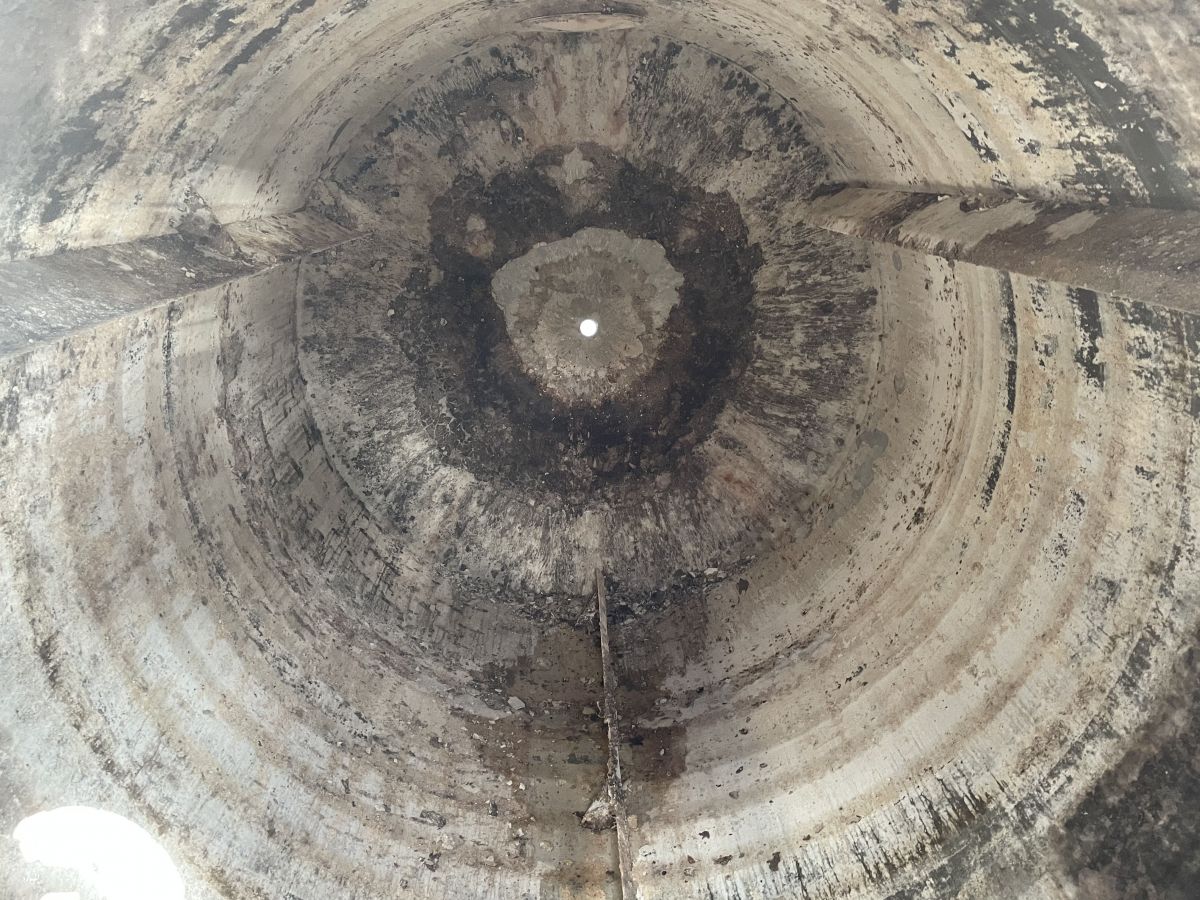

Article type: second-hand storage tank Additional information: Powder inside the tank, this will be cleaned week 16; we can’t give any guarantees about the heating/cooling jacket Volumetric volume (L): 25.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: conical Bottom outlet: yes Total discharge: yes Fixation points: 4 adjustable feet Type of HE on the cylinder: half pipe welded onto the outside of the innertank Position HE: the middle part of the cilinder Number of windings: 6 Height HE: 1.500 mm Number of sections: 1 Water pressure HE: 4 Bar Steam pressure HE: 0,50 Bar Working temperature HE cylinder: 100 °C Heat exchanger: RVS 304 - with PUR insulation Insulation material: Rockwool Manway(s): RVS 316 Gasket manway(s): unknown Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: no Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: yes Number of manways: 1 Position of manway: at the top Hinged lid: yes Position 2nd manway: cylinder Hinged lid: yes Tank outlet: inside Ø 80 mm Outlet type: DIN11851 male Agitator: no Top: 4 mm Cylinder: 2,50 mm Bottom: 4 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 50 Internal diameter tank: 2.800 mm Distance from outlet to ground: 300 mm Outer diameter tank: 3.000 mm Cylinder height: 4.000 mm Total height of tank: 5.550 mm Empty weight tank: 2.300
