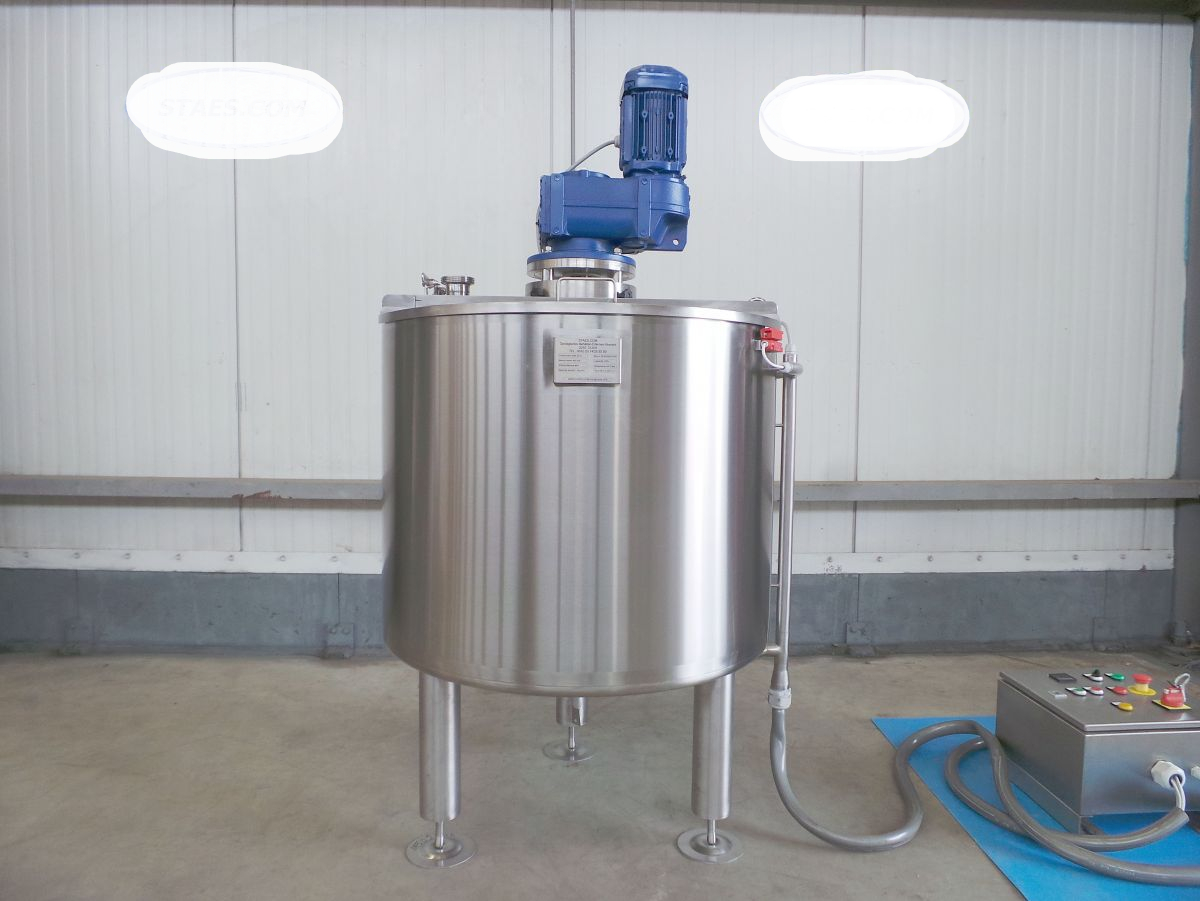

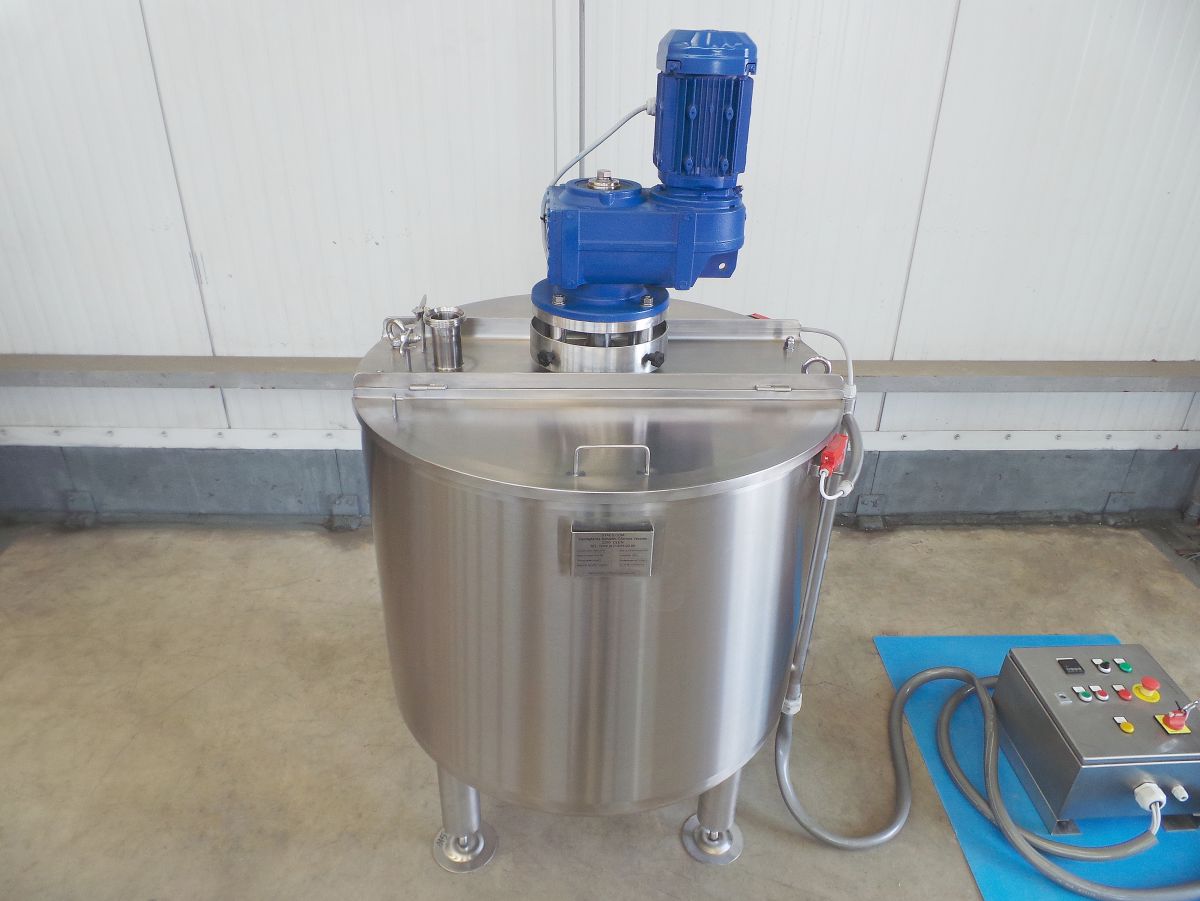

250 liter tank i Rostfritt 304

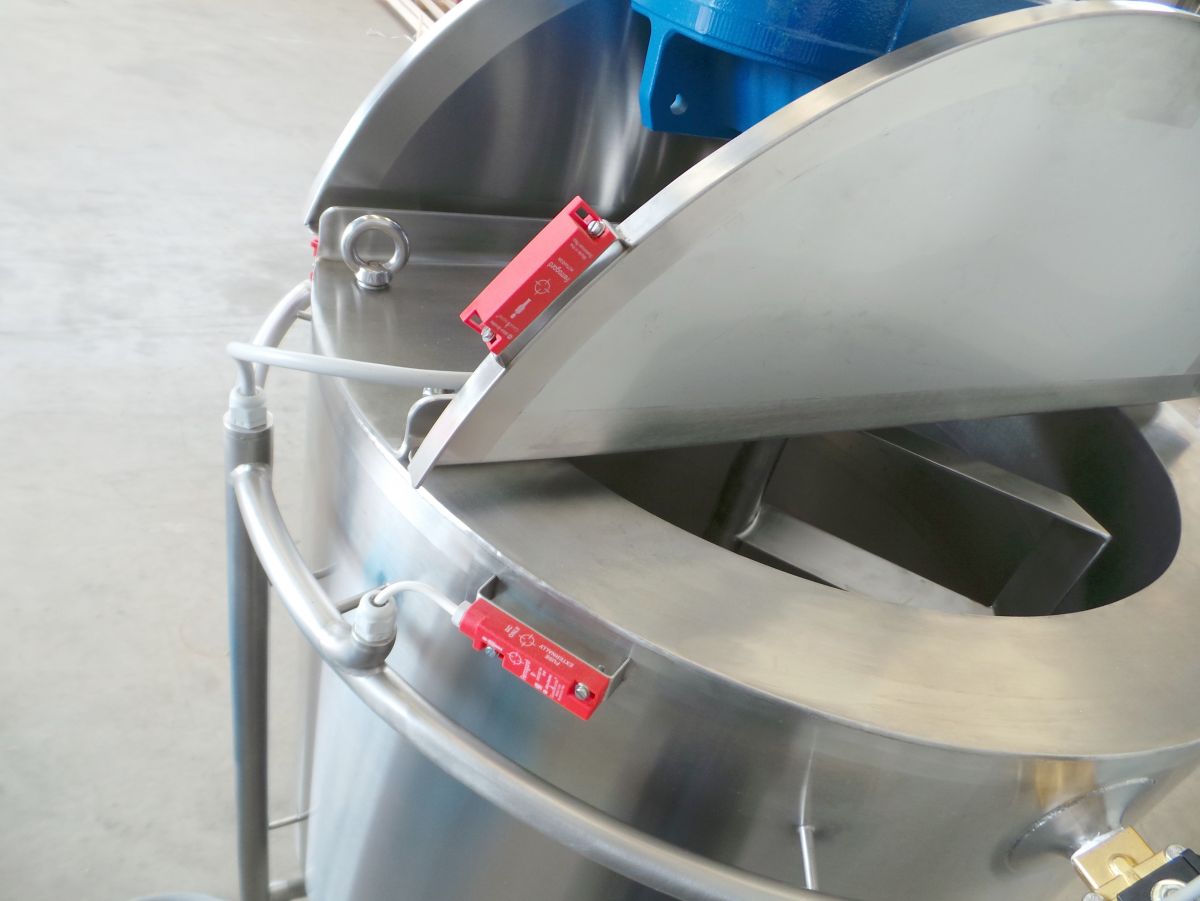

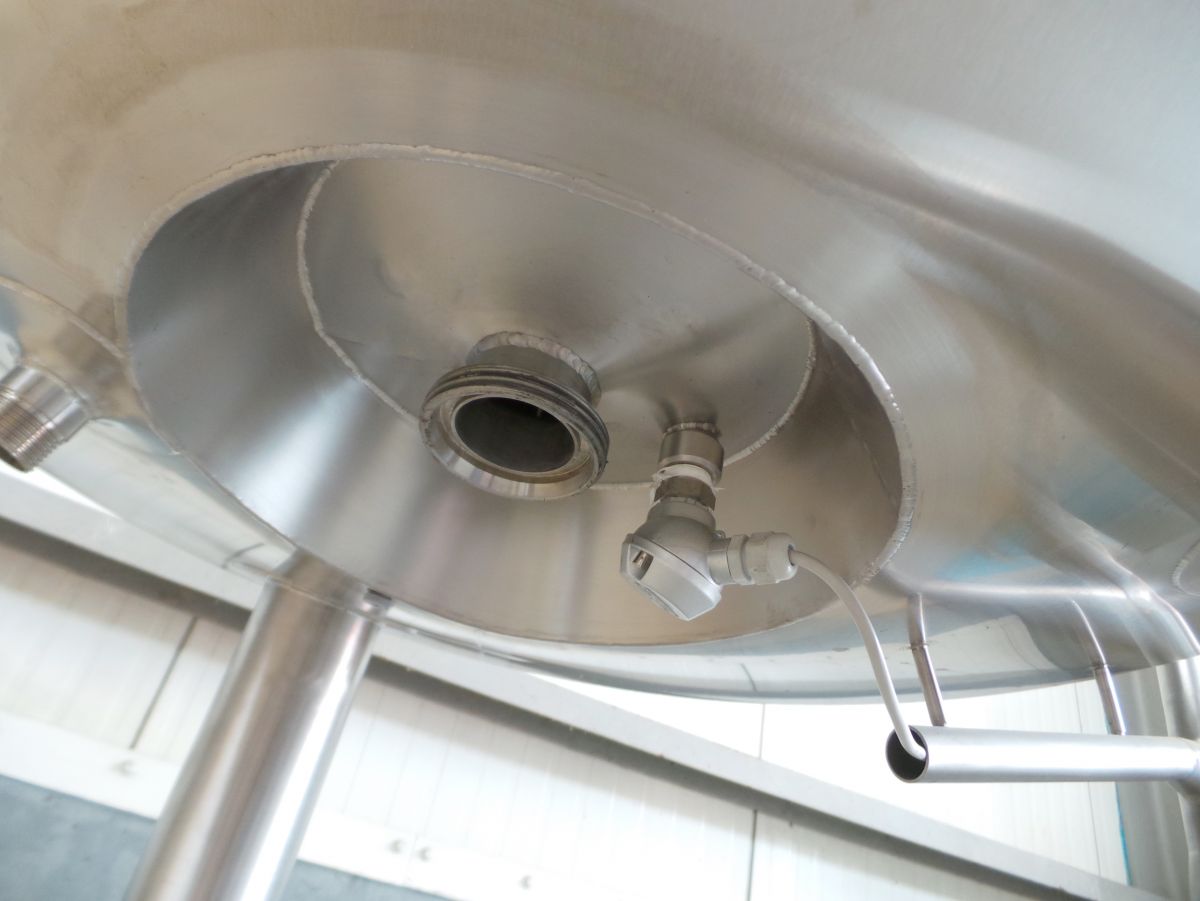

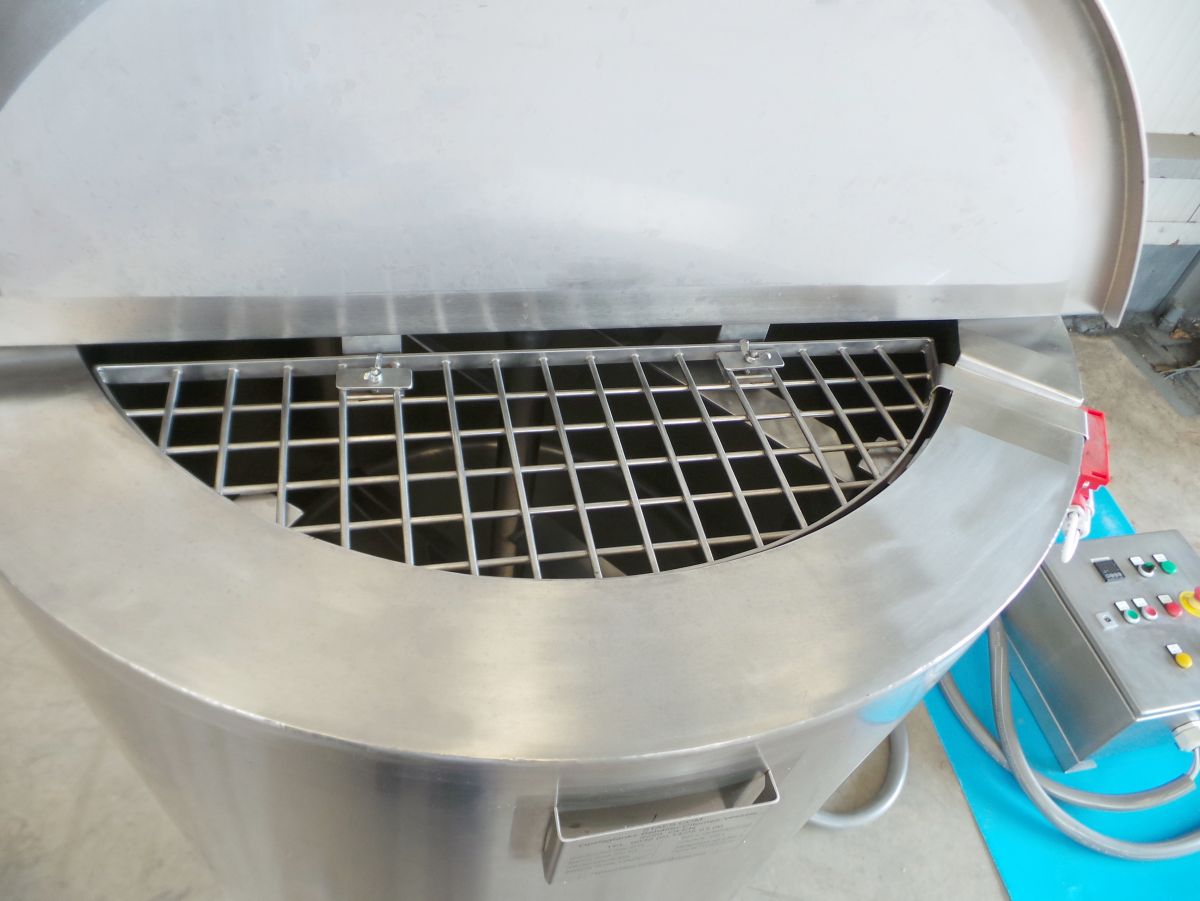

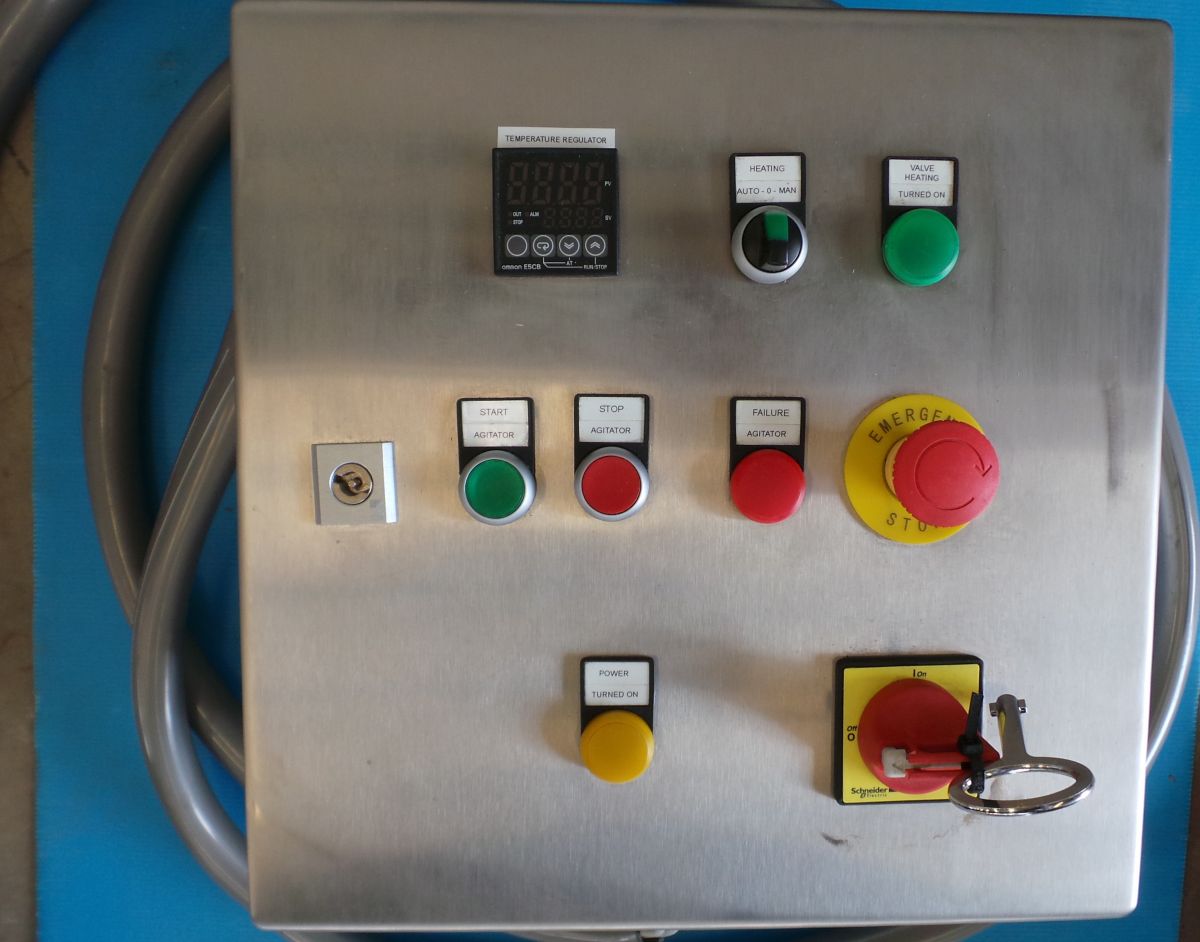

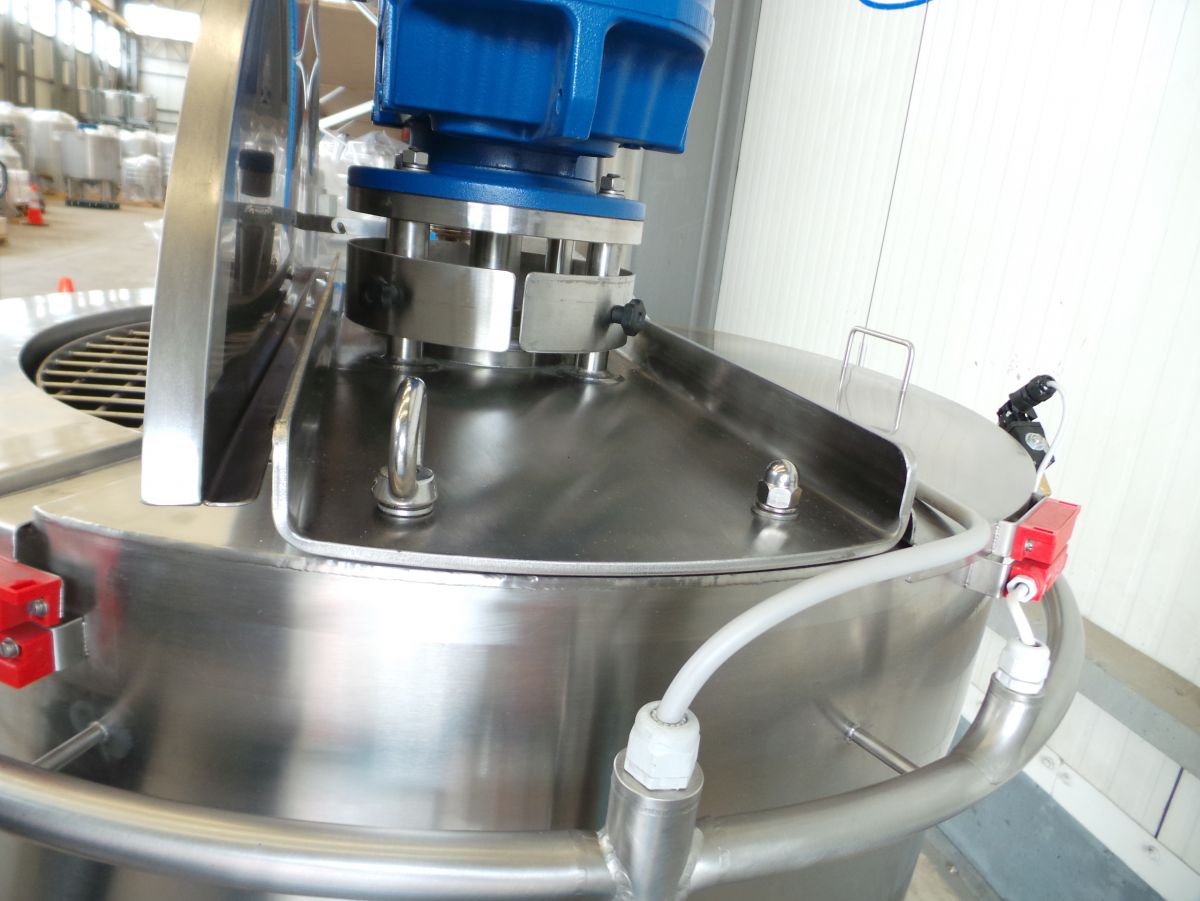

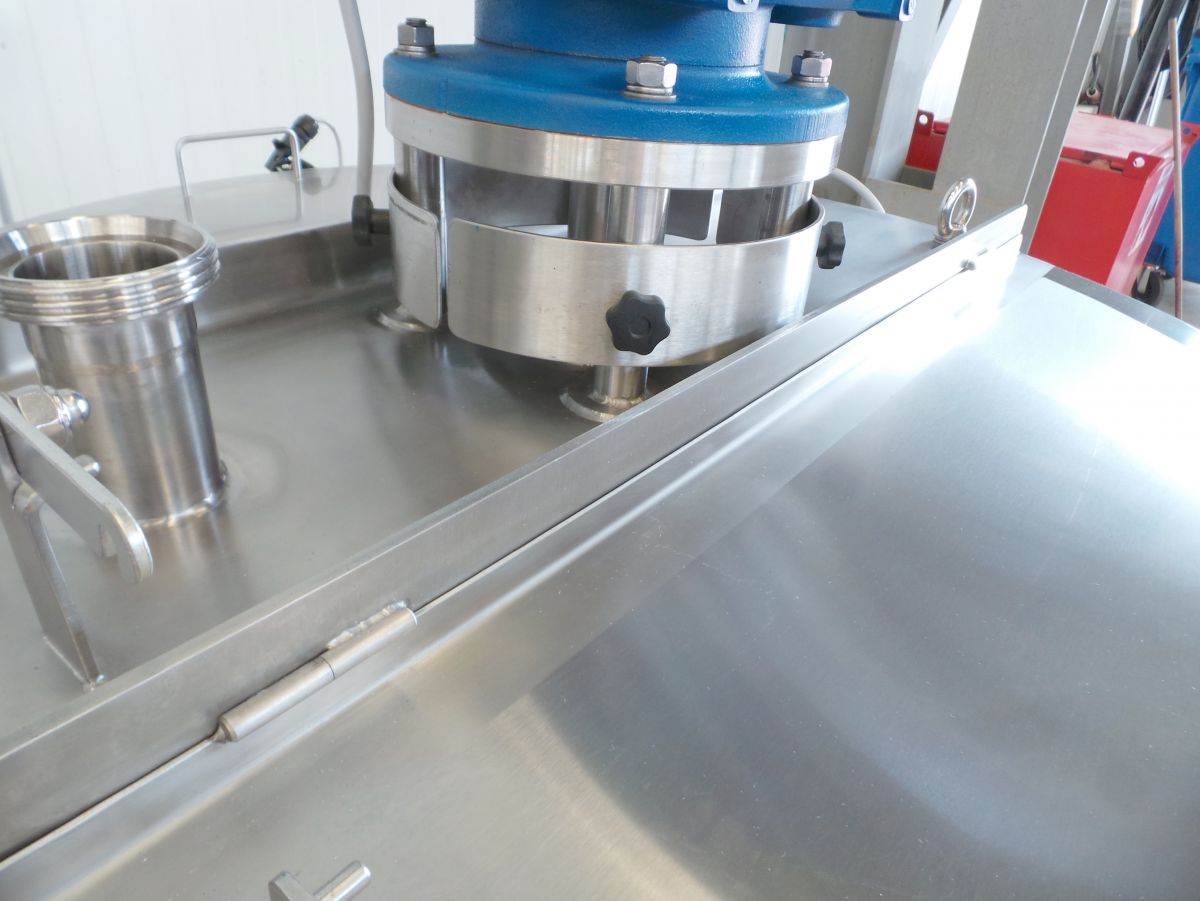

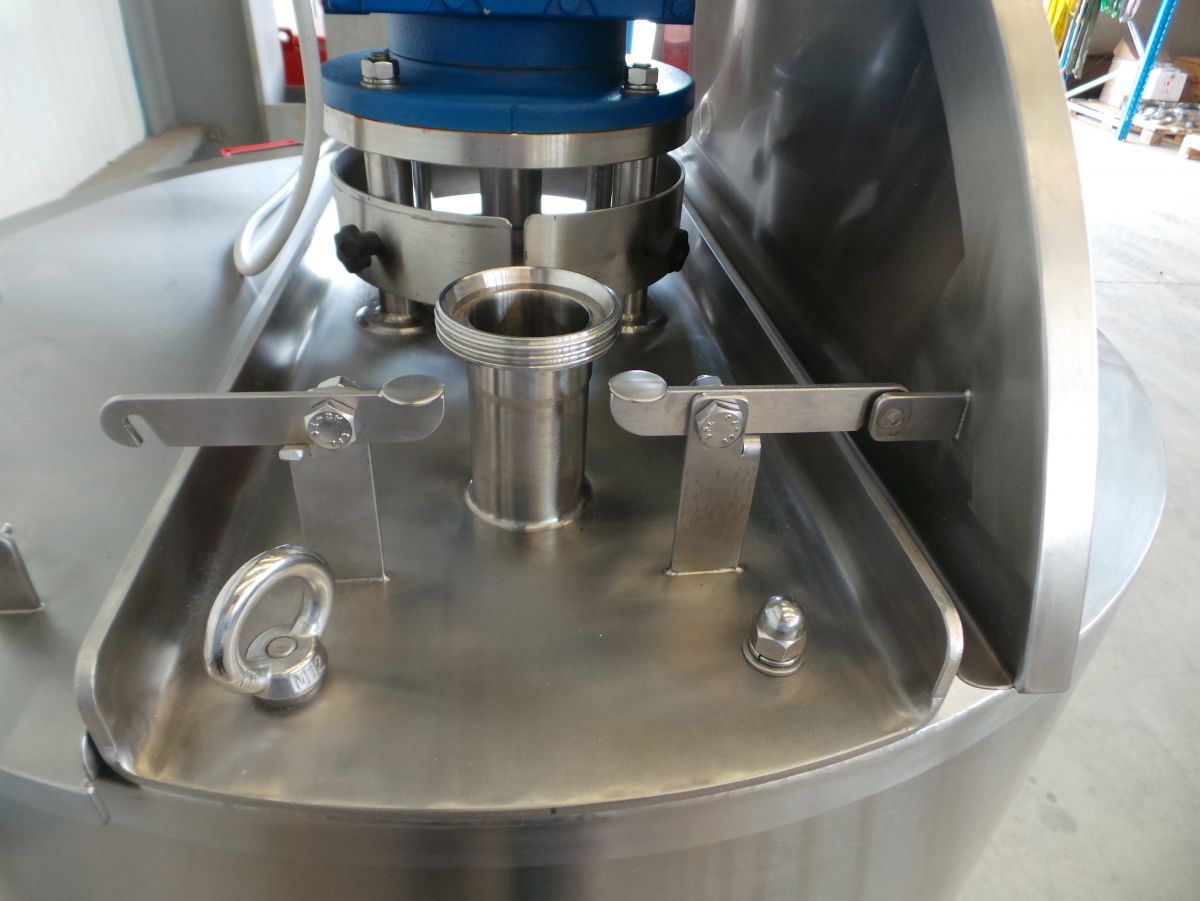

item available on order Article type: brand new production tank - type CHC-HILA Additional information: Delivered with food certificate; article price without control panel; see options; (The article can also be purchased without options)   Volumetric volume (L): 250 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: bridge with 2 lids Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 adjustable feet Legs: Set of baseplates and adjusting pieces included Type of HE on the cylinder: half pipe welded onto the outside of the innertank Position HE: the complet cilinder Water pressure HE: 2,50 Bar Steam pressure HE: 1 Bar Contact surface cylinder: 1 m² Type of HE on the bottom: dimple-jacket Heat exchanger bottom connected with cylinder: yes Connection of the bottom to the cylinder: binnen isolatie Water pressure HE: 2,50 Bar Steam pressure HE: 2,50 Bar Heat exchanger: RVS 304 Outer jacket (ornamental wall): RVS 304 Valve: RVS 316L Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: yes CIP spray ball: no Tank outlet: inside Ø 50 mm Outlet type: DIN11850 Total outlet valve: no, optional Adjustable legs: yes Agitator: yes Agitator type: gate Position engine: at the top Storage below: yes Number of revolutions: 15 Power: 0,75 Voltage: 400 V - three-phase Top: 2 mm Cylinder: 3 mm Bottom: 3 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Internal diameter tank: 703 mm Distance from outlet to ground: 344 mm Outer diameter tank: 893 mm Cylinder height: 625 mm Feet height: 403 mm Total height of tank: 1.730 mm Empty weight tank: 245
