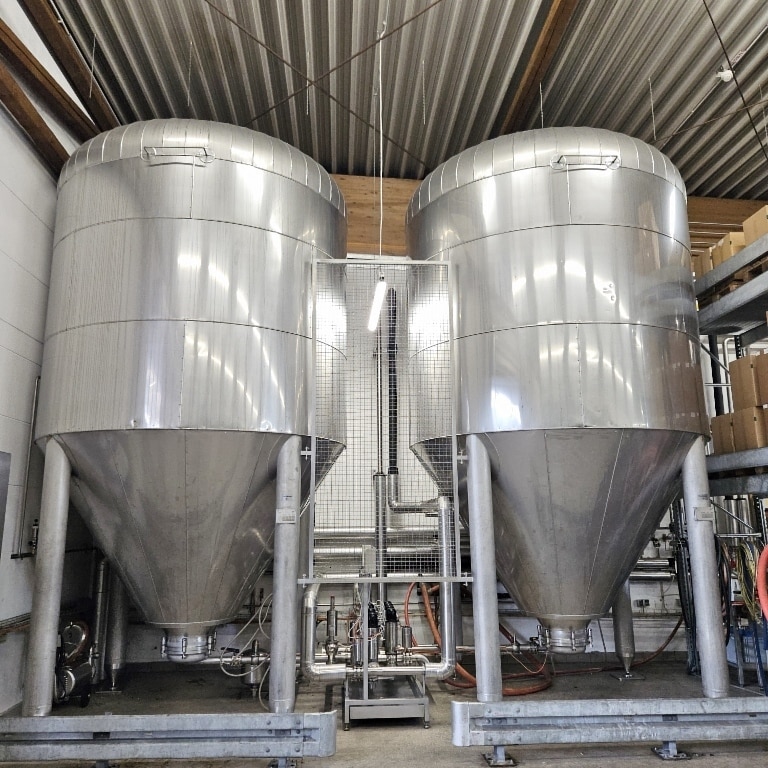

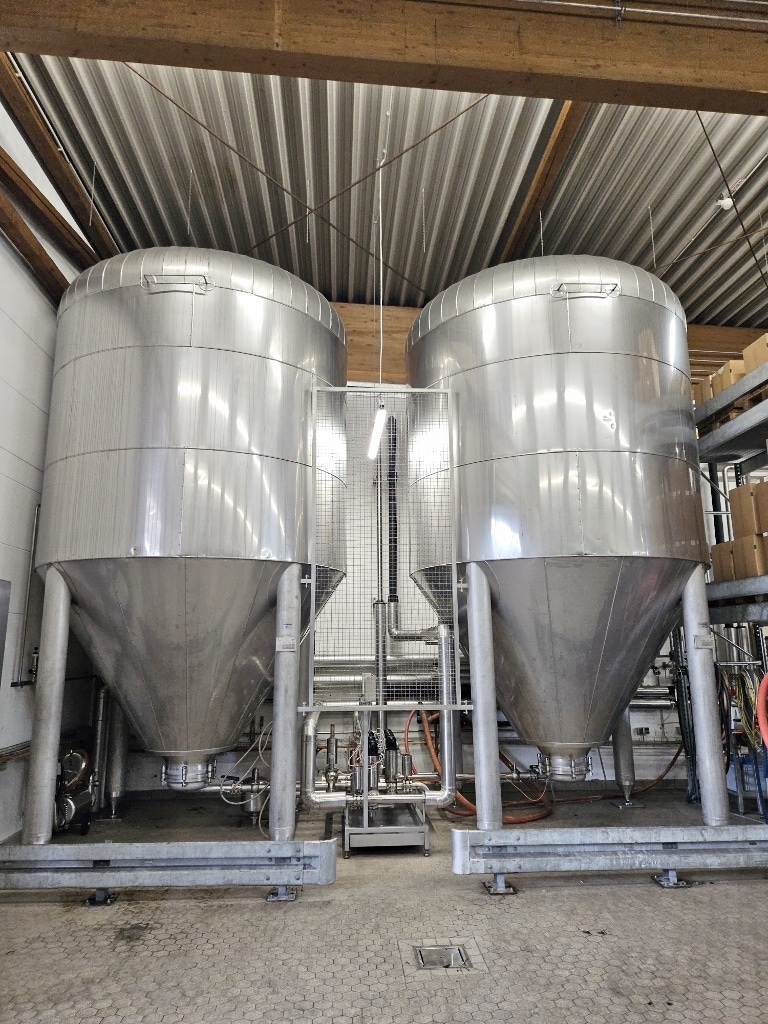

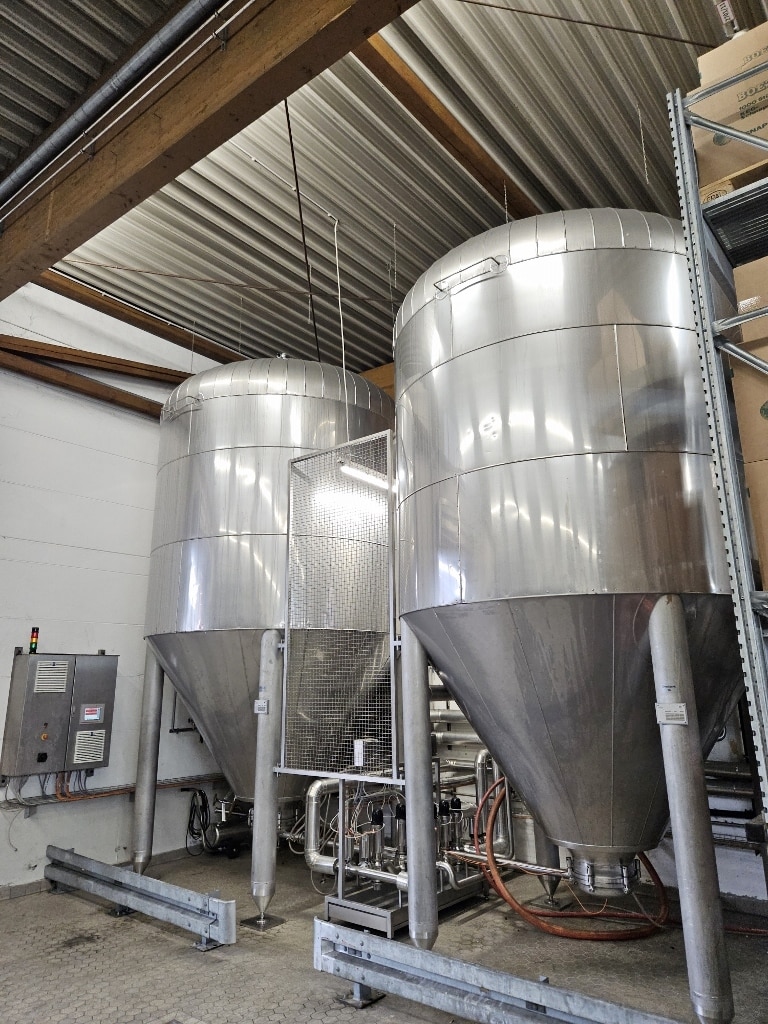

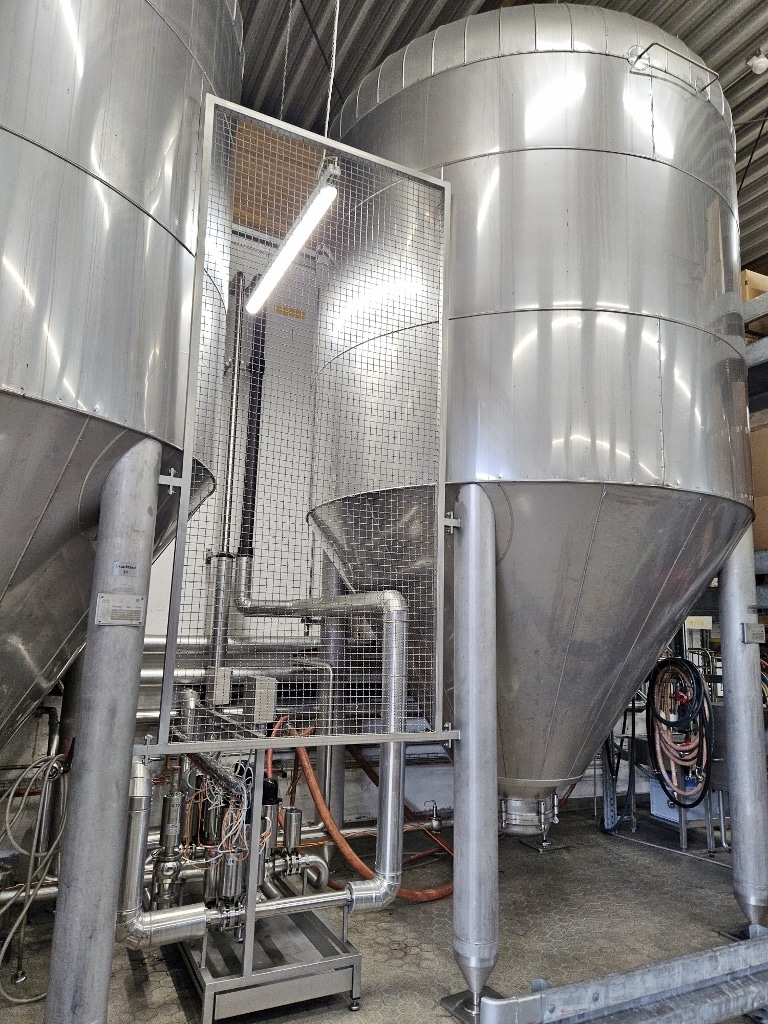

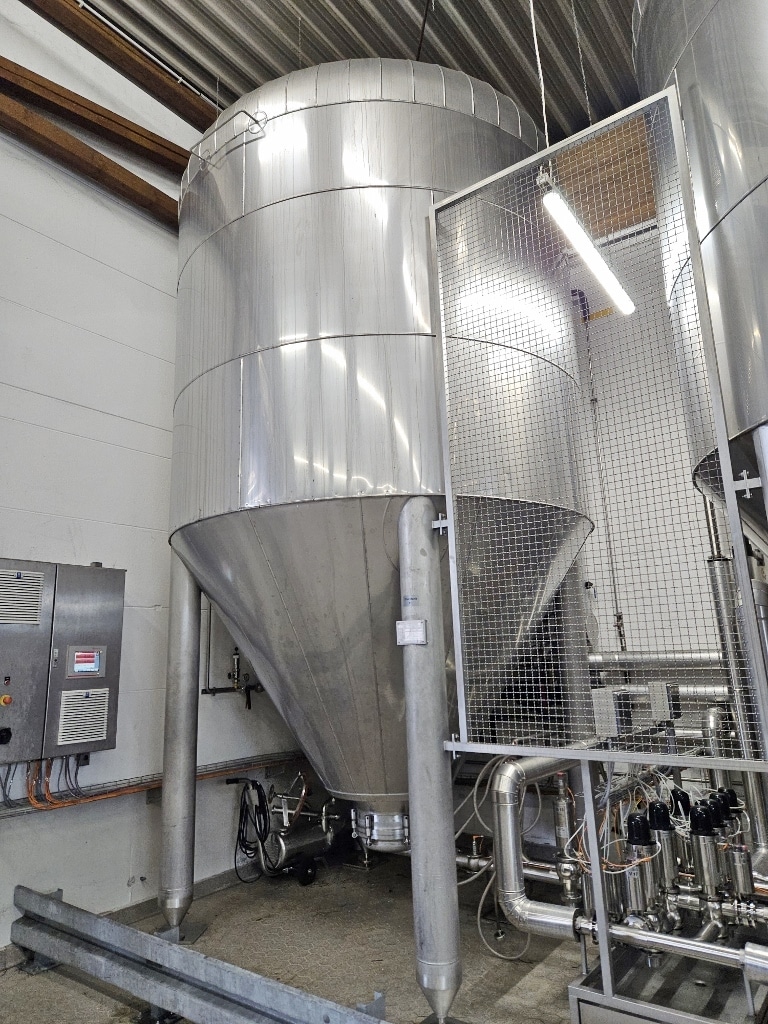

24500 liter tank i Rostfritt 304

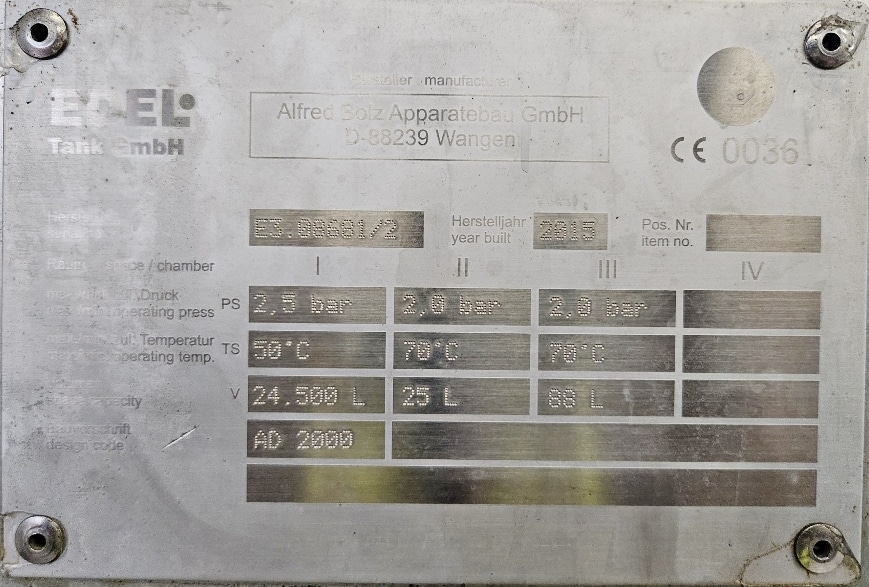

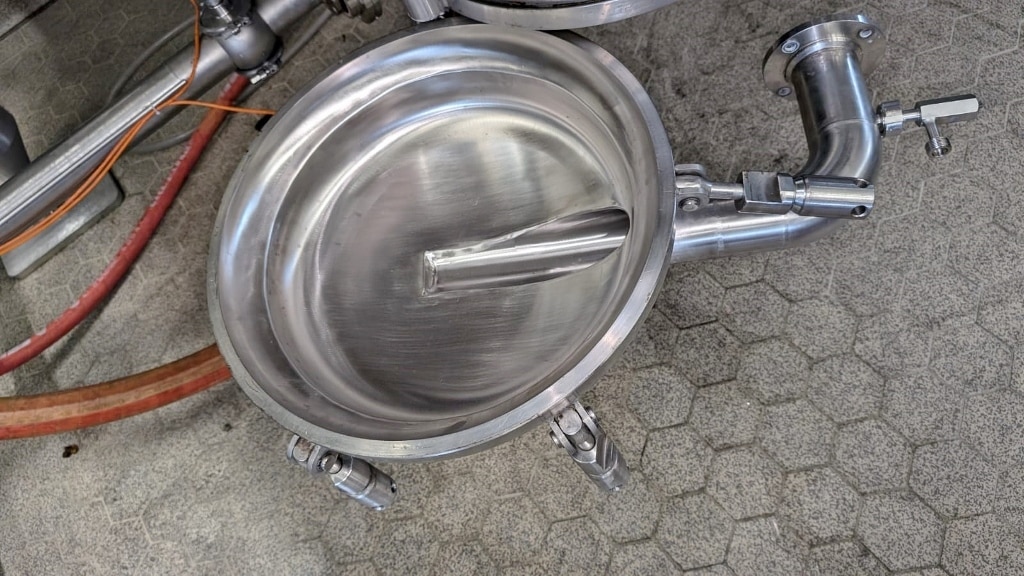

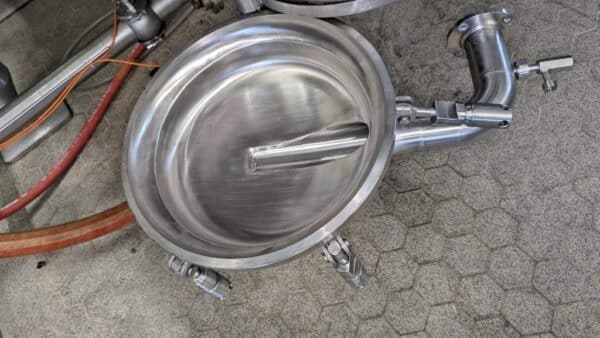

Additional information: Brewery; Total height estimated according to drawing; 1 manhole diameter 450 mm with connection diameter 70 mm at the end of the cone bottom; wall thickness of 1000 mm of cylinder height 4 mm Volumetric volume (L): 24.500 L Pressure in tank: pressure Max. pressure (Bar): 2,50 Bar Max. temperature (°C): 50 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: no Volume: 113 L Max Overpressure: 2 Bar Max. working temperature: 70 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Top: 6 mm Cylinder: 3,50 mm Bottom: 4,50 mm Internal diameter tank: 2.882 mm Outer diameter tank: 3.084 mm Cylinder height: 2.500 mm Total height of tank: 6.000 mm
