2355 liter tank i Syrafast 316

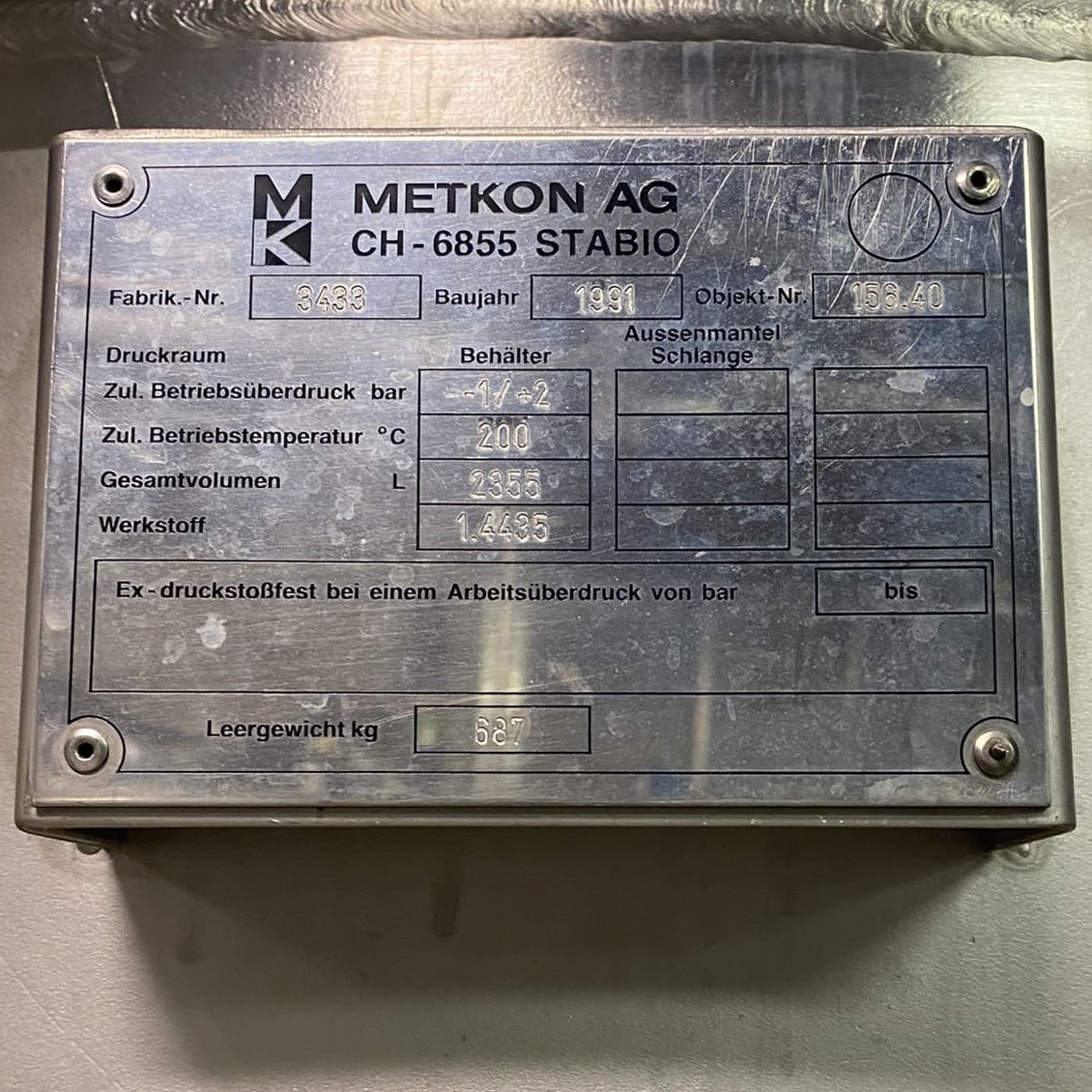

Additional information: Pharmaceutical chemistry; Manhole diameter 420 mm; 3 feet, Fe, screwed to stainless steel support brackets Volumetric volume (L): 2.355 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 2 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 53 Internal diameter tank: 1.390 mm Cylinder height: 1.130 mm Total height of tank: 2.550 mm Empty weight tank: 690
