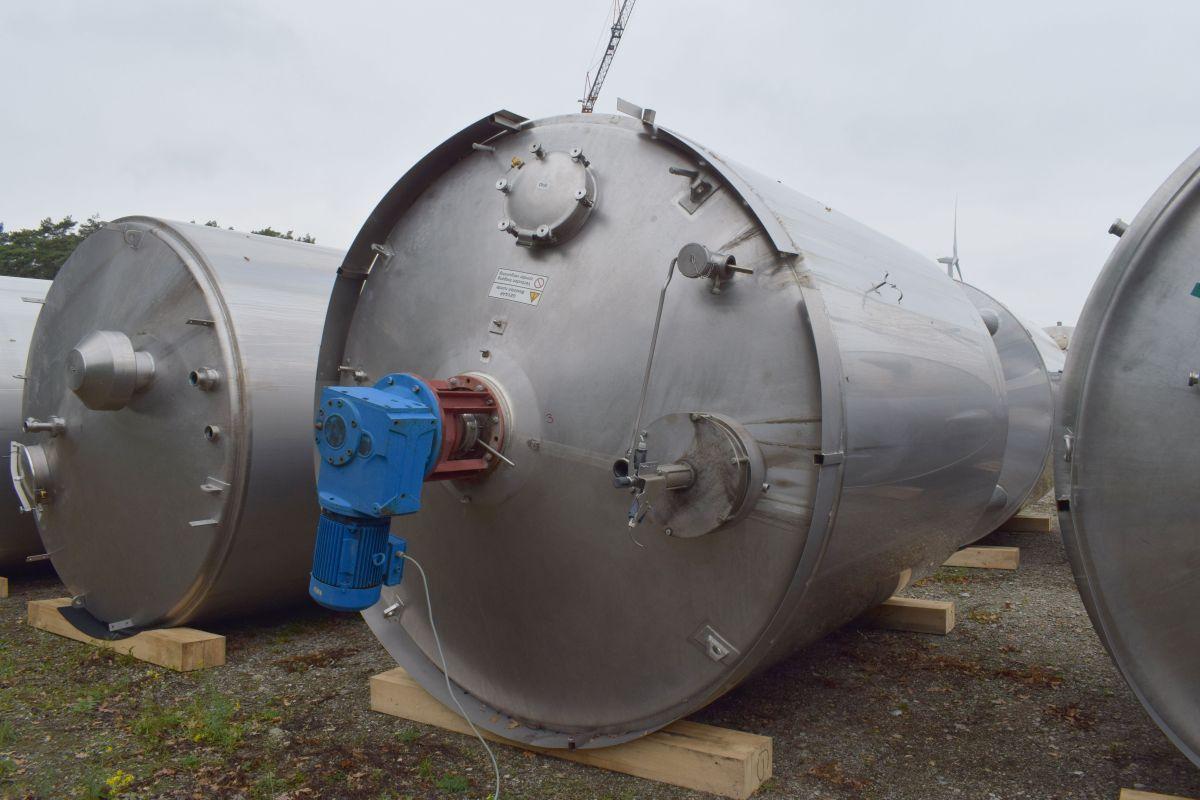

22000 liter i Rostfritt 304

Article type: second-hand mixing tank
Additional information: we can’t give any guarantees about the agitator
Capacity: 22.000 L
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 304 (V2A)

Model: vertical
Configuration: insulated
Heat exchanger: no
Insulation: yes
Agitator: yes

Mobile tank: no
Top type: conical
Shape of tank: cylindrical

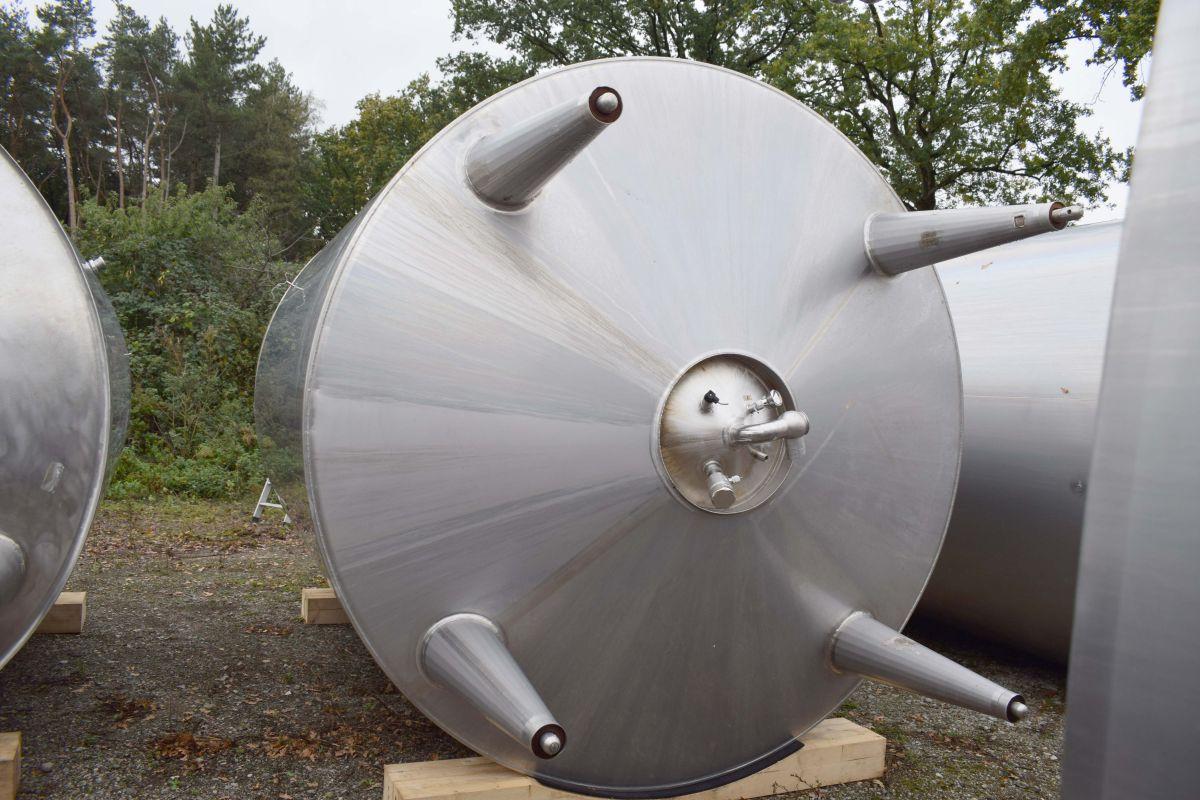

Bottom type: conical
Total discharge: yes

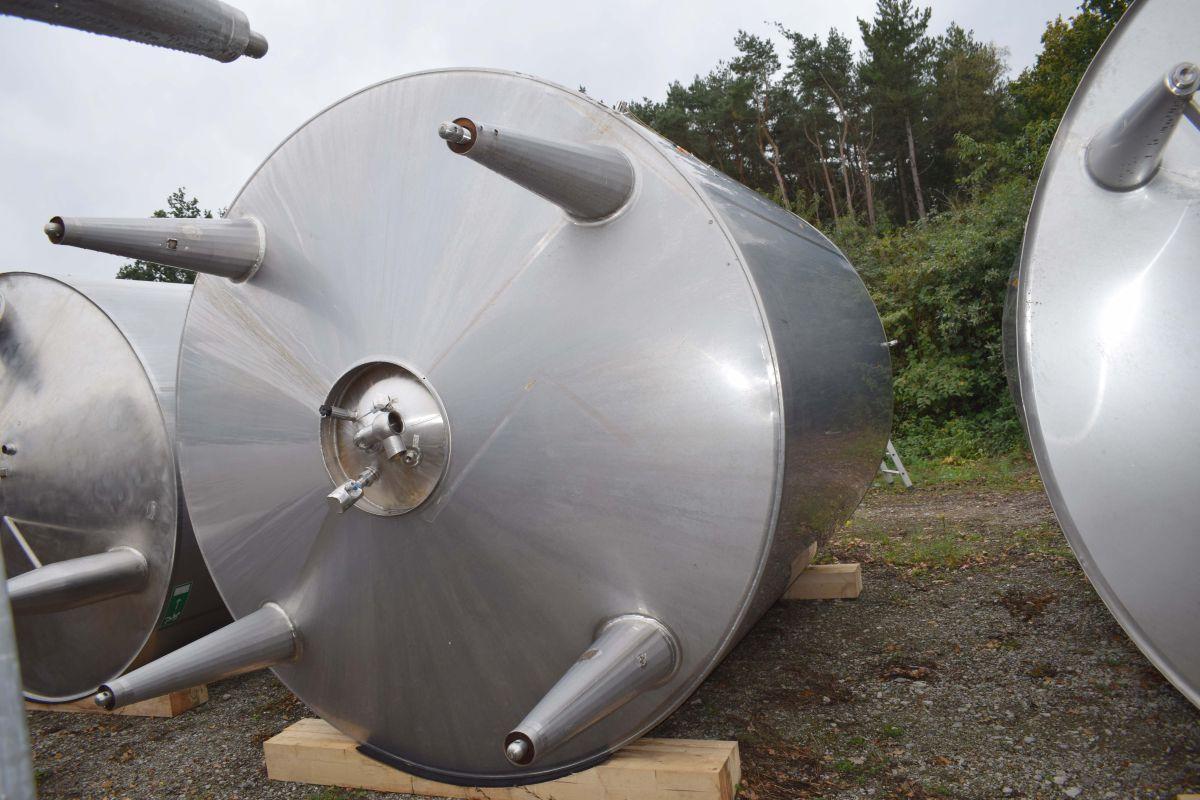

Fixation points: 4 adjustable feet
Insulation material: rockwool
Outer jacket (ornamental wall): RVS 304
Manway(s): RVS 304
Gasket manway(s): unknown

Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no

Flange for agitator: no

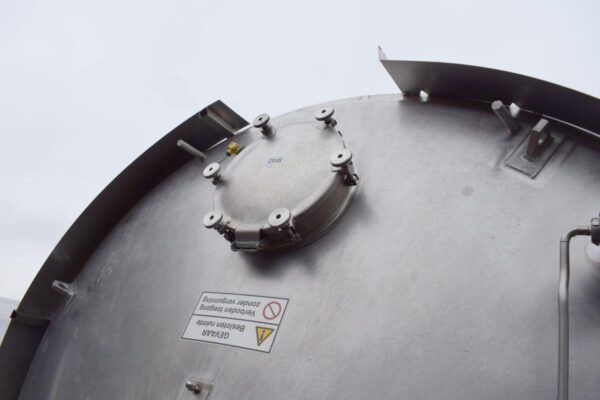

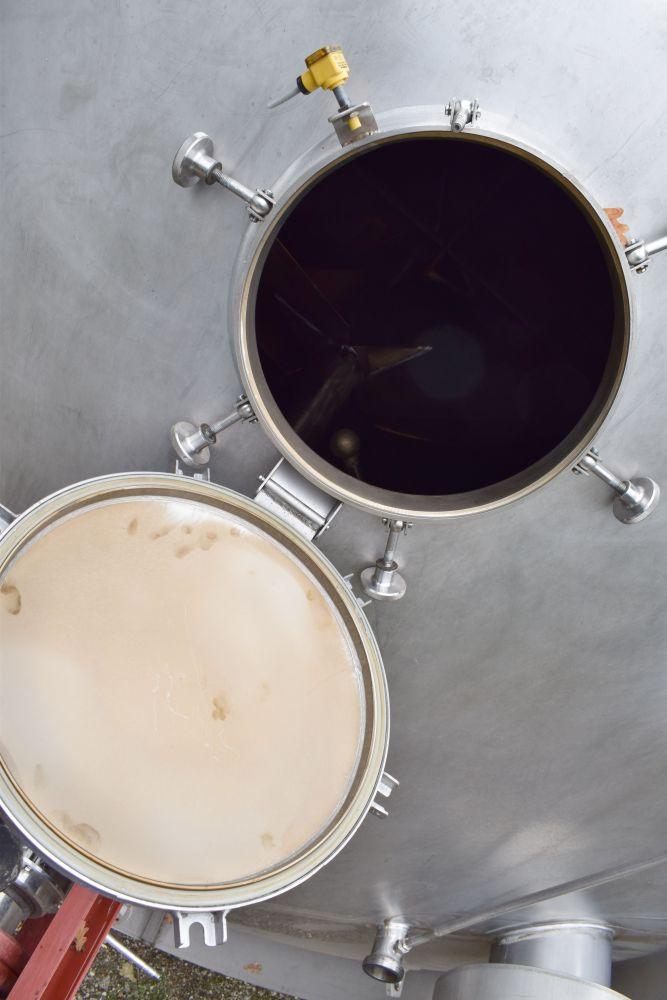

Number of manways: 1

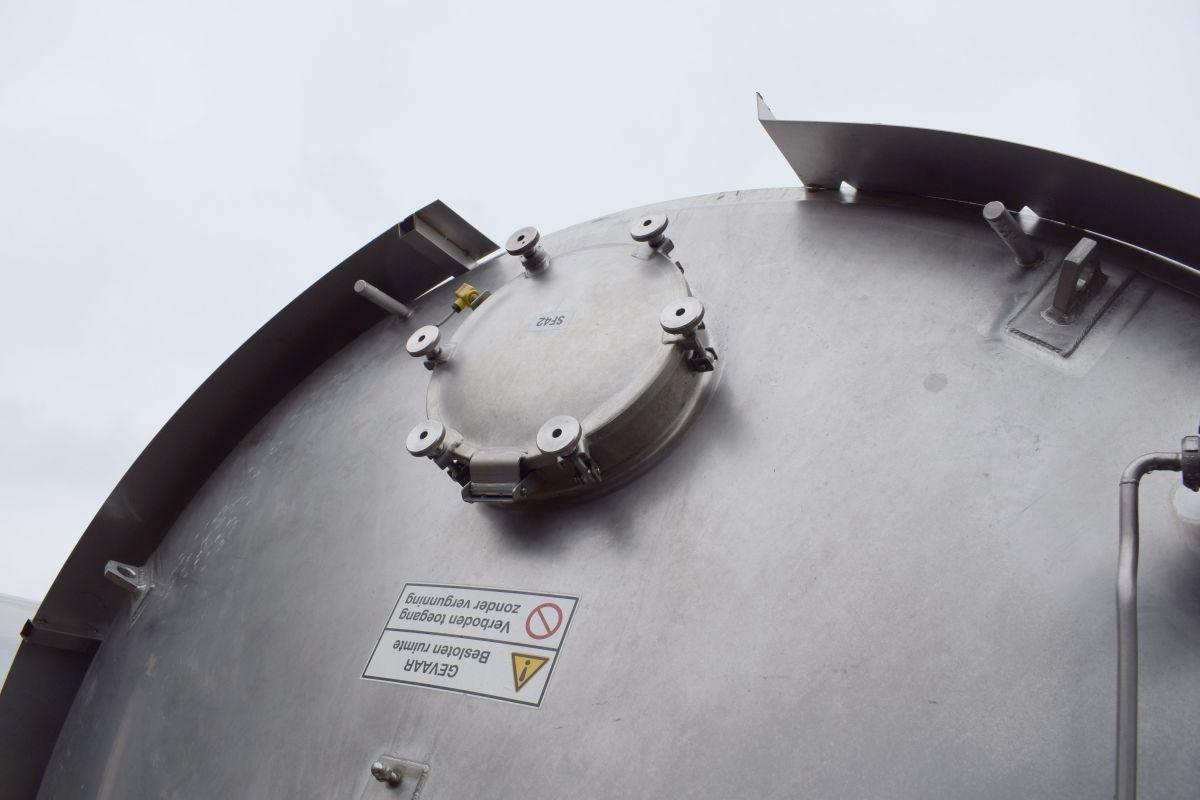

Position manway: at the top
Manway 1: 420 mm
Tank outlet: inside Ø 80 mm

Total outlet valve: no

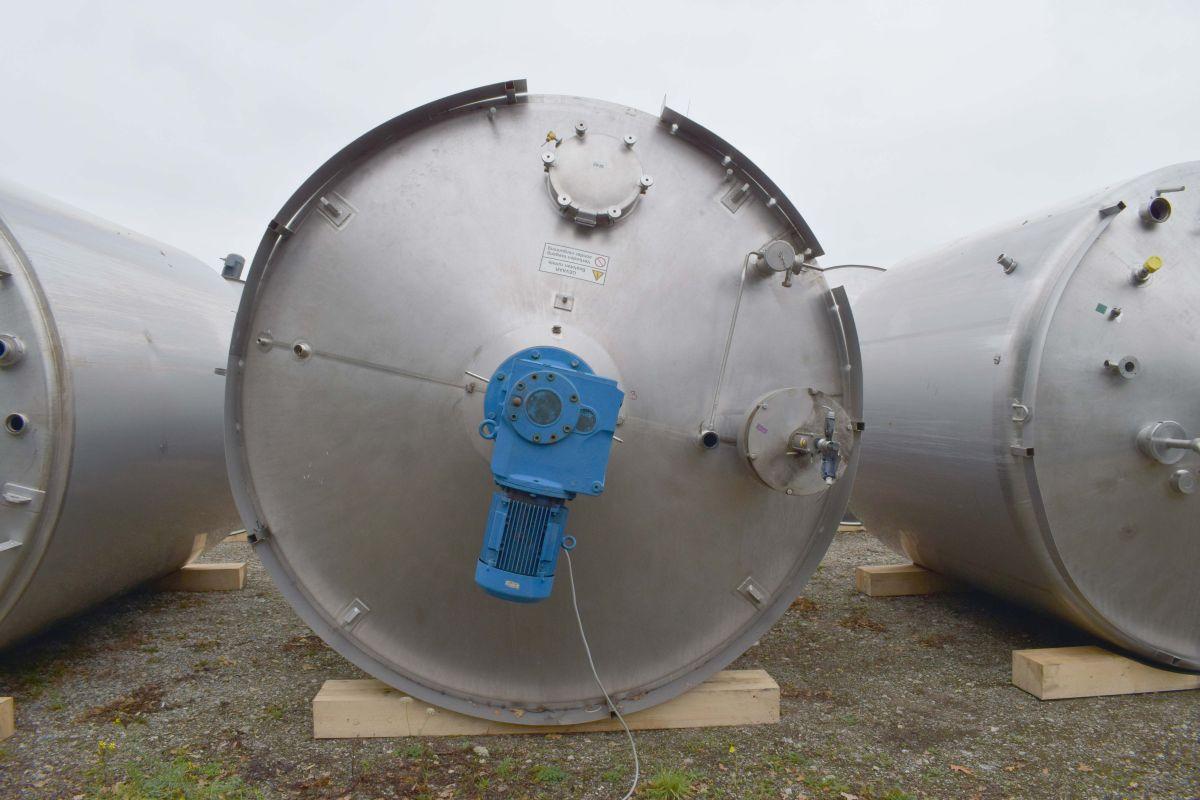

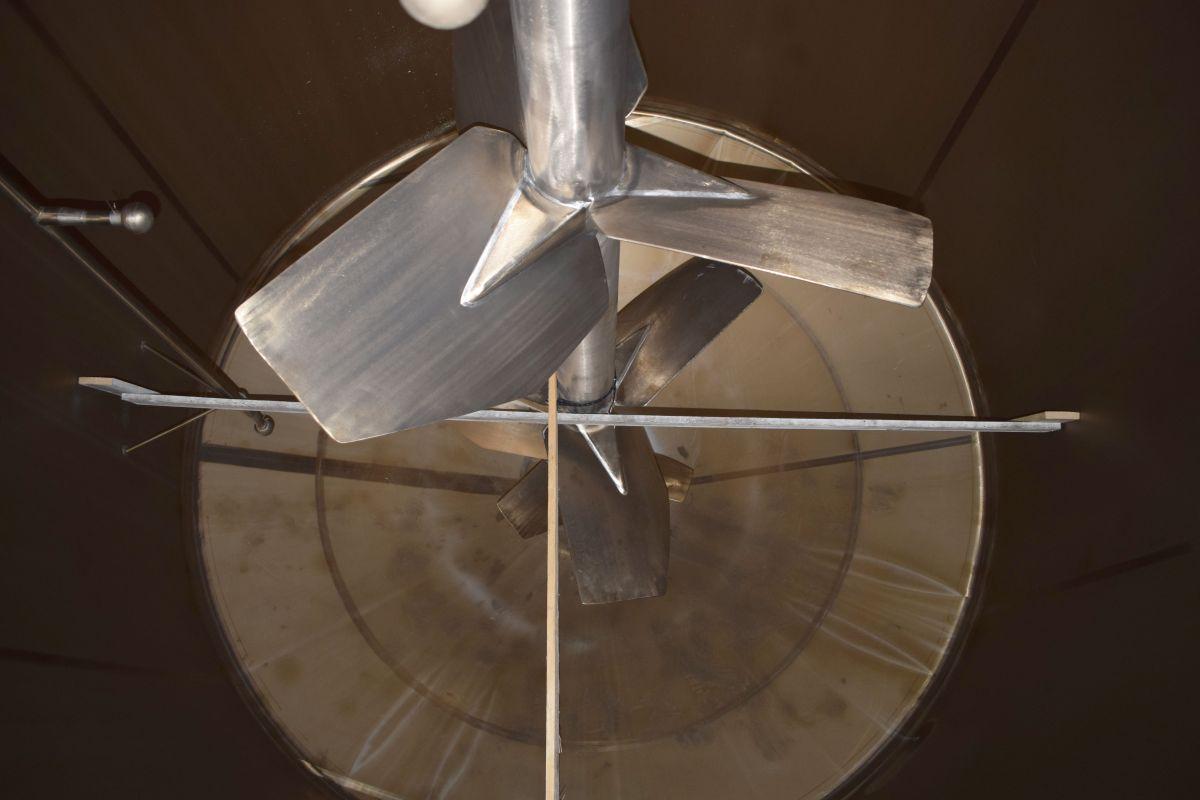

Agitator type: tripad

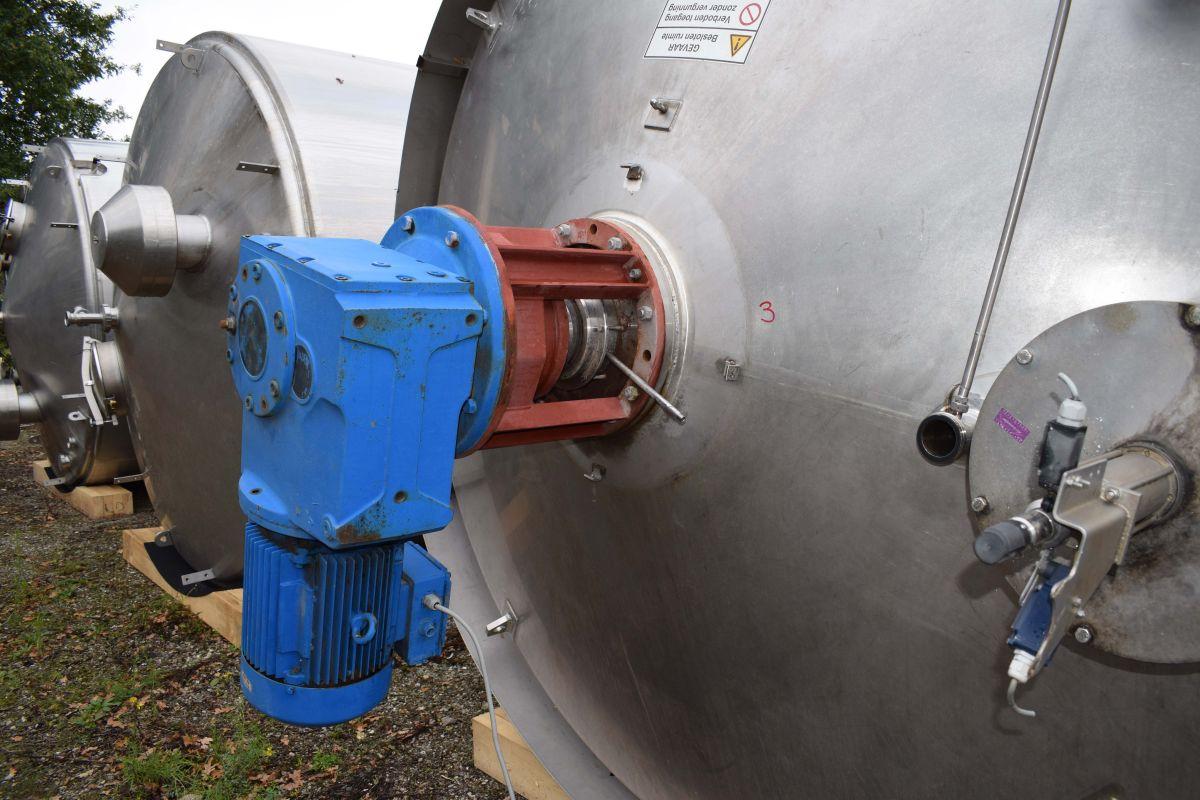

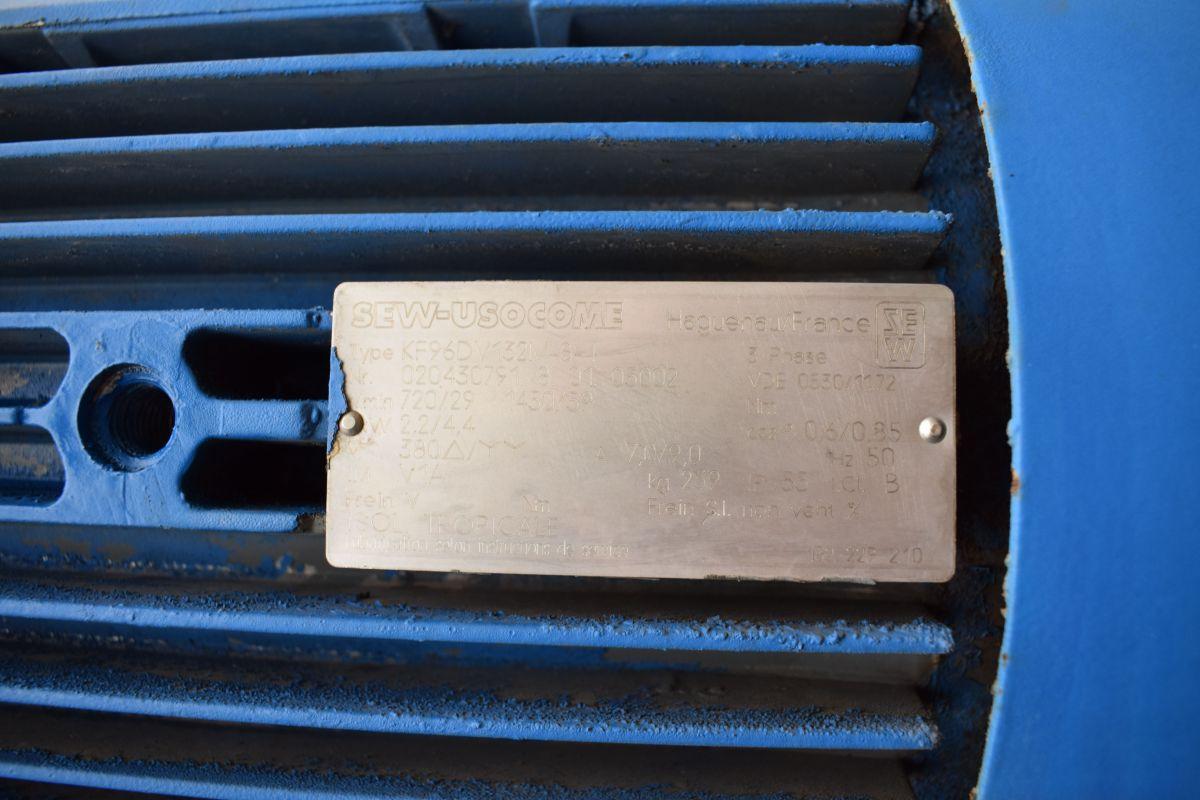

Position engine: at the top
Number of revolutions: 29 / 59
Power: 4,40

Voltage: three-phase
Internal diameter tank: 2.890 mm
Distance from outlet to ground: 500 mm
Outer diameter tank: 3.000 mm
Cylinder height: 3.300 mm

Total height of tank: 5.700 mm
