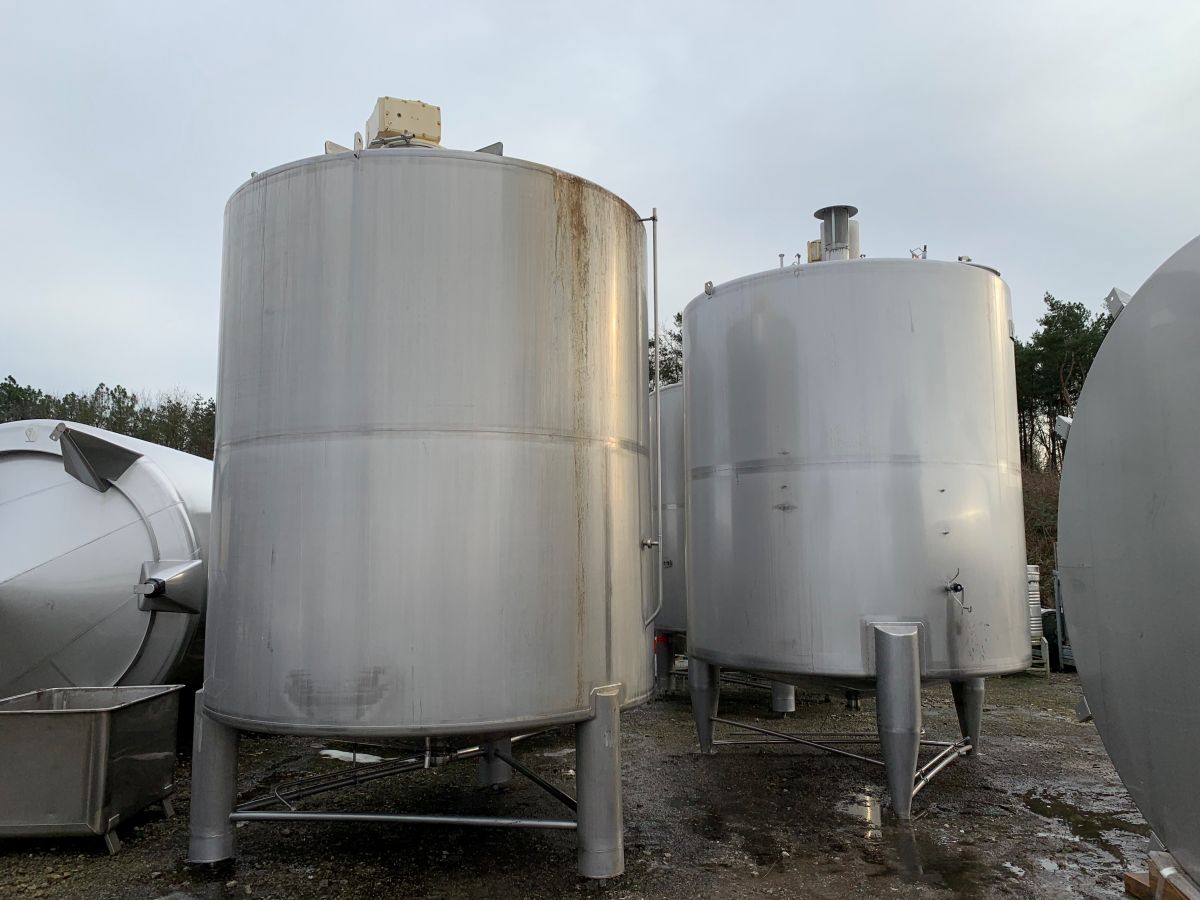

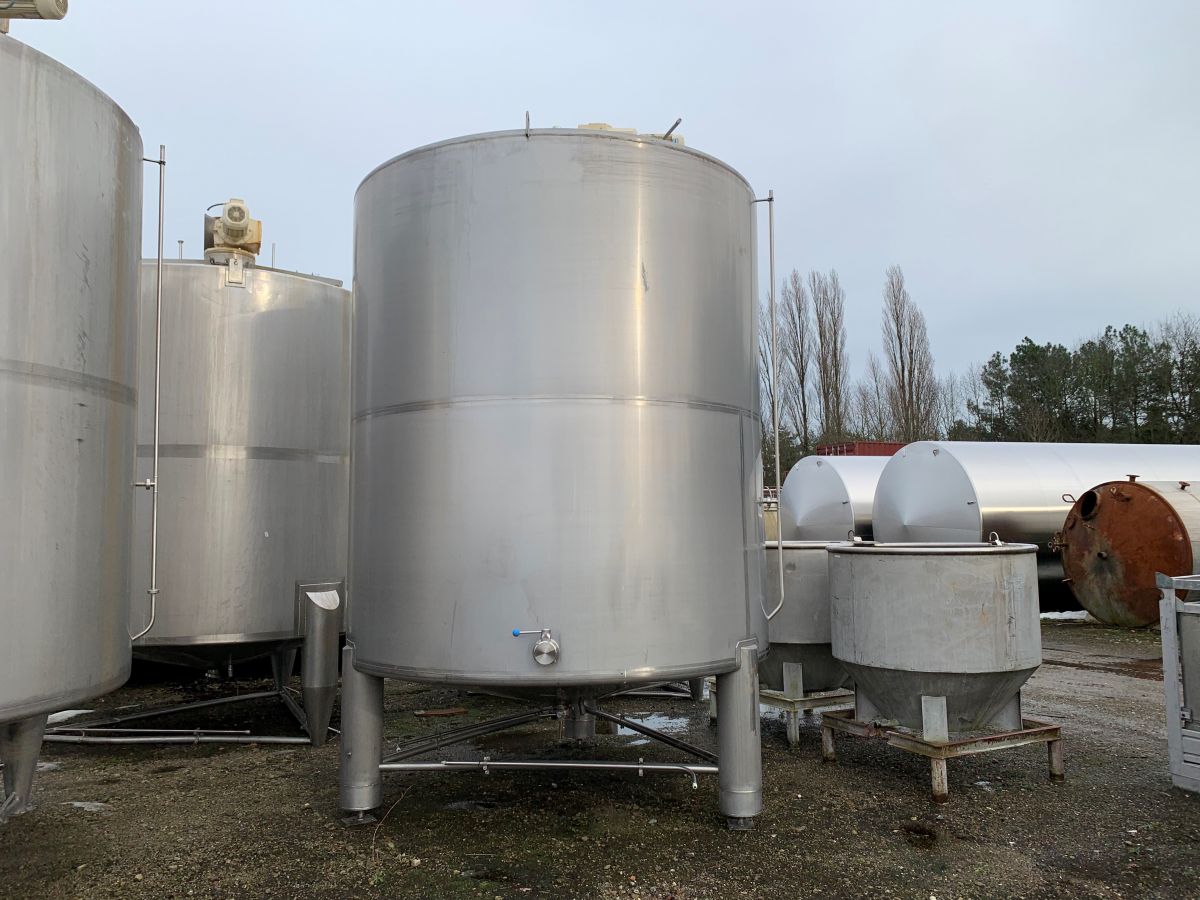

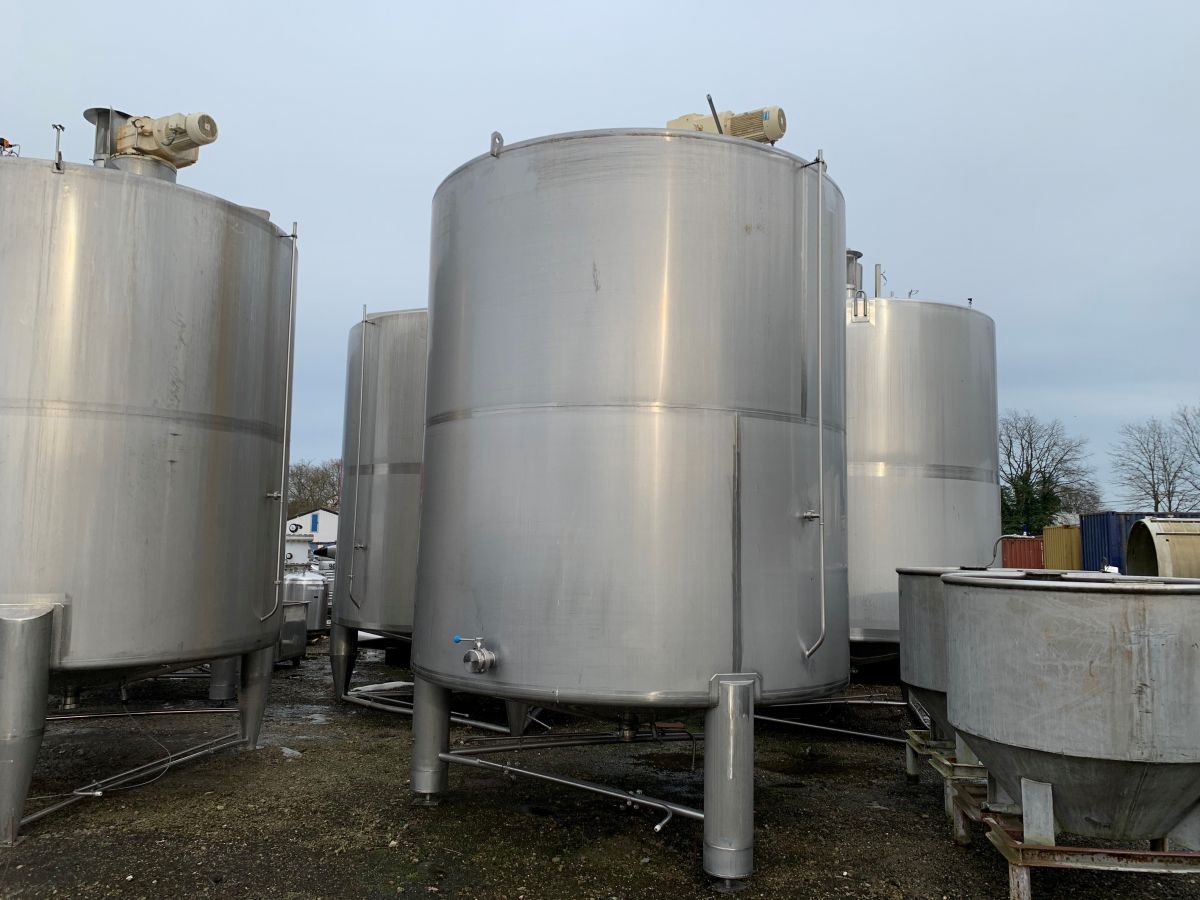

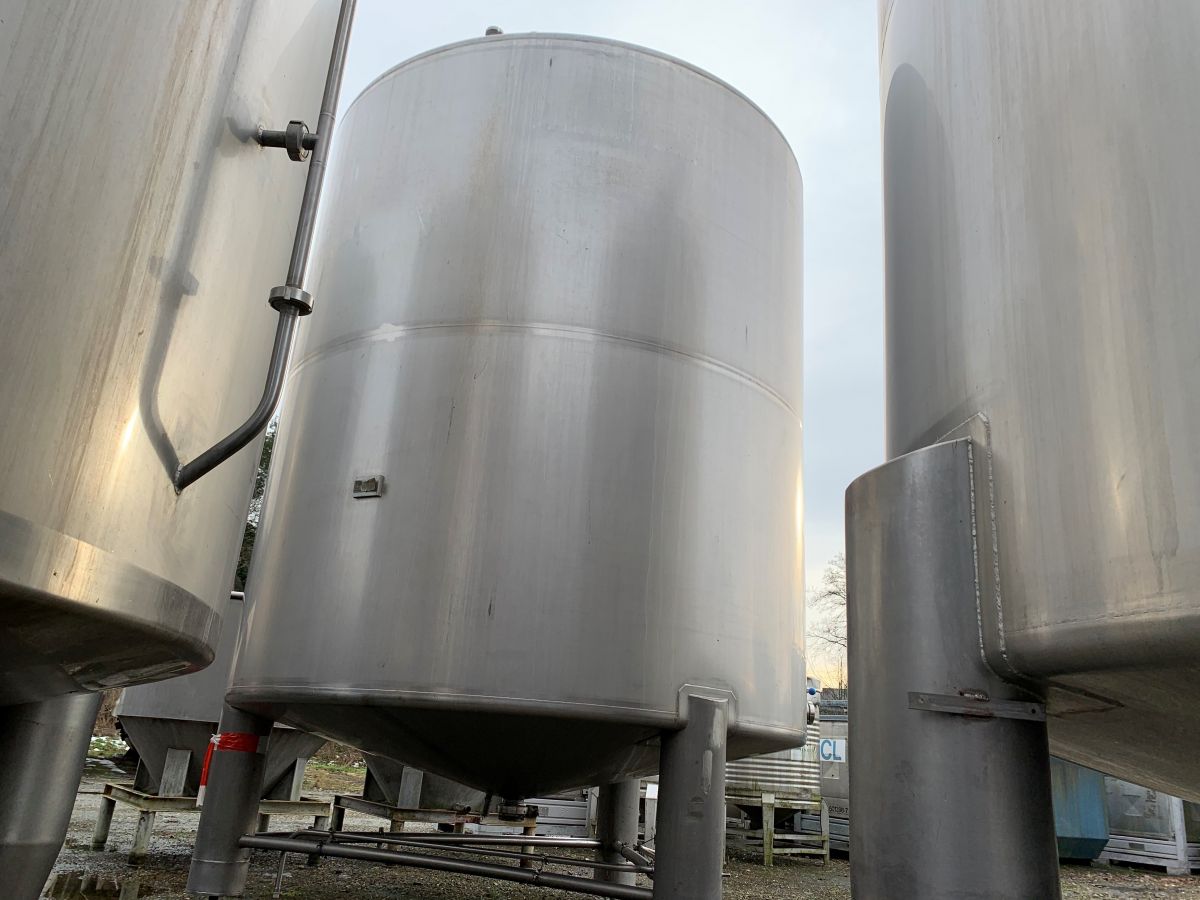

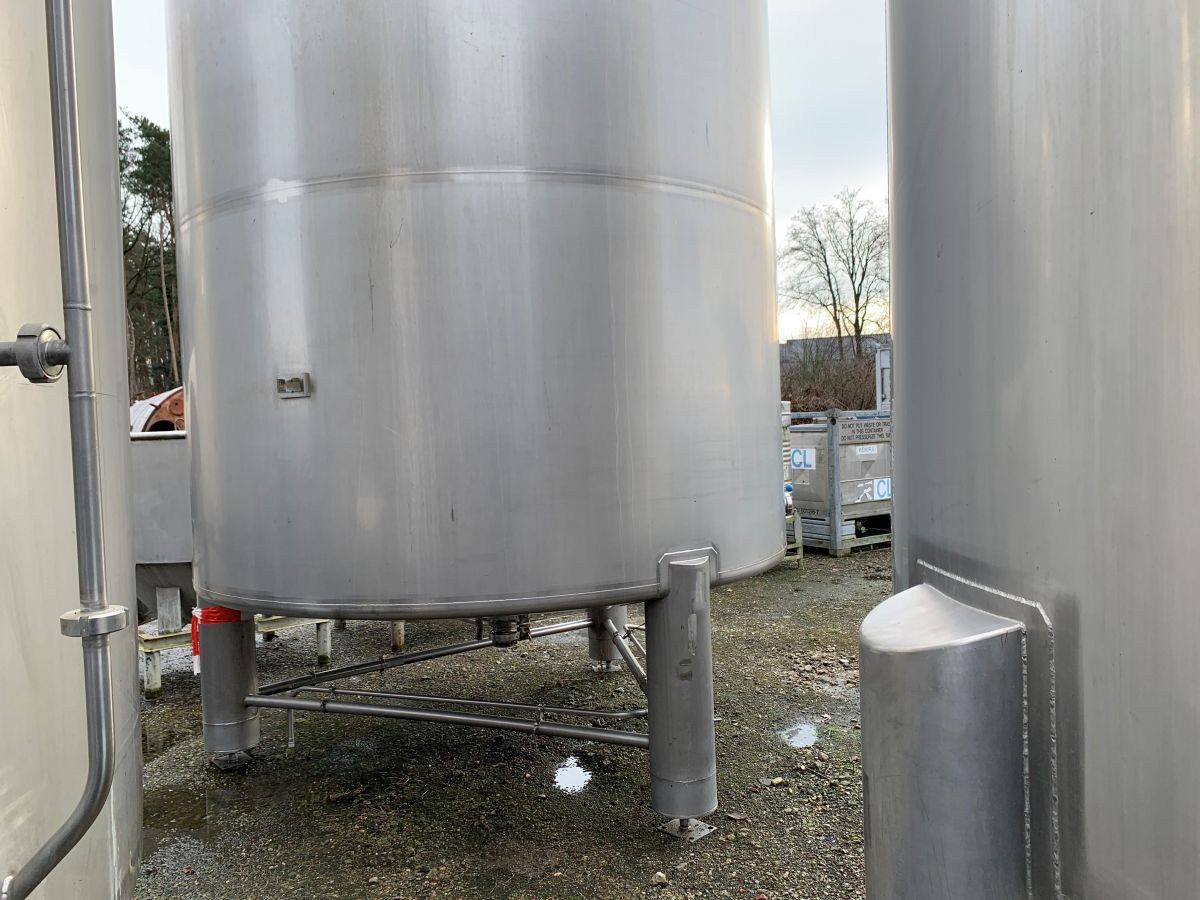

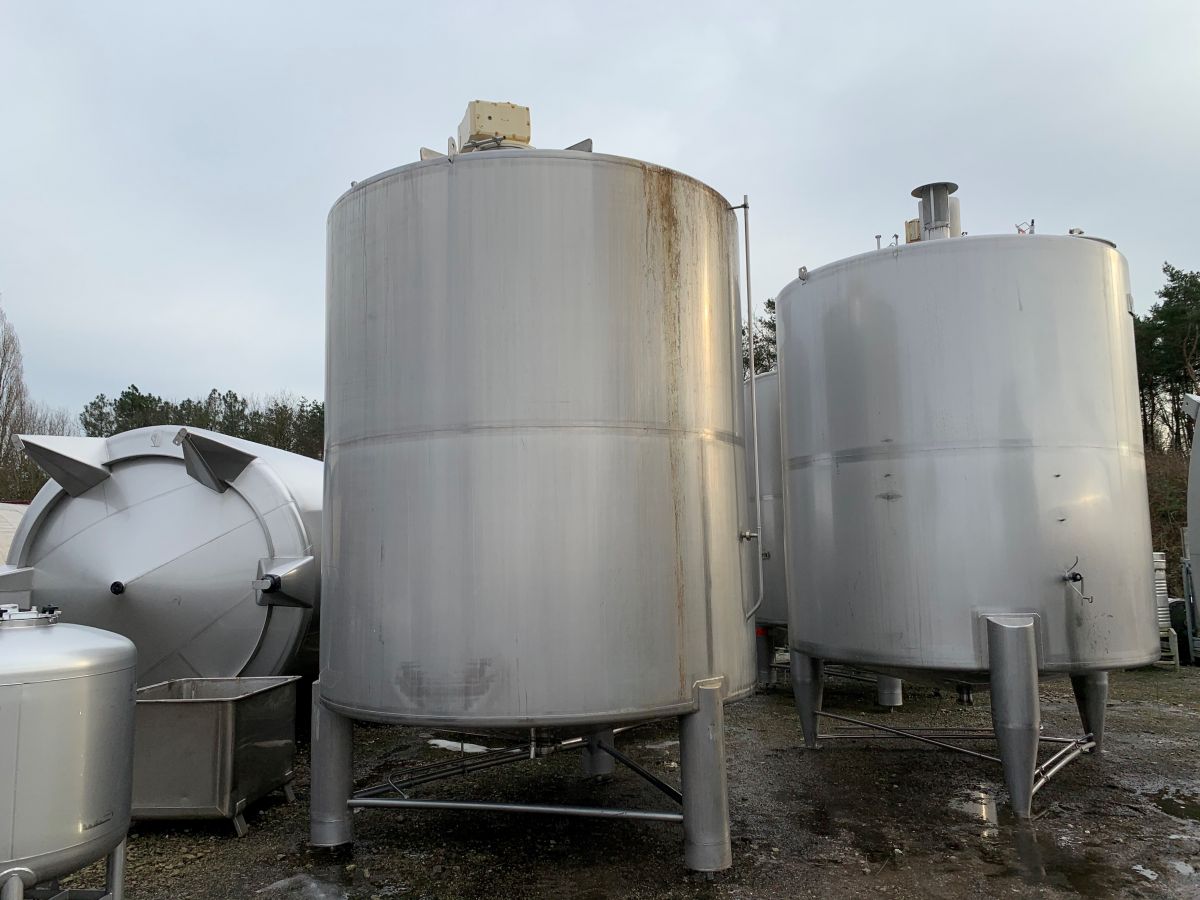

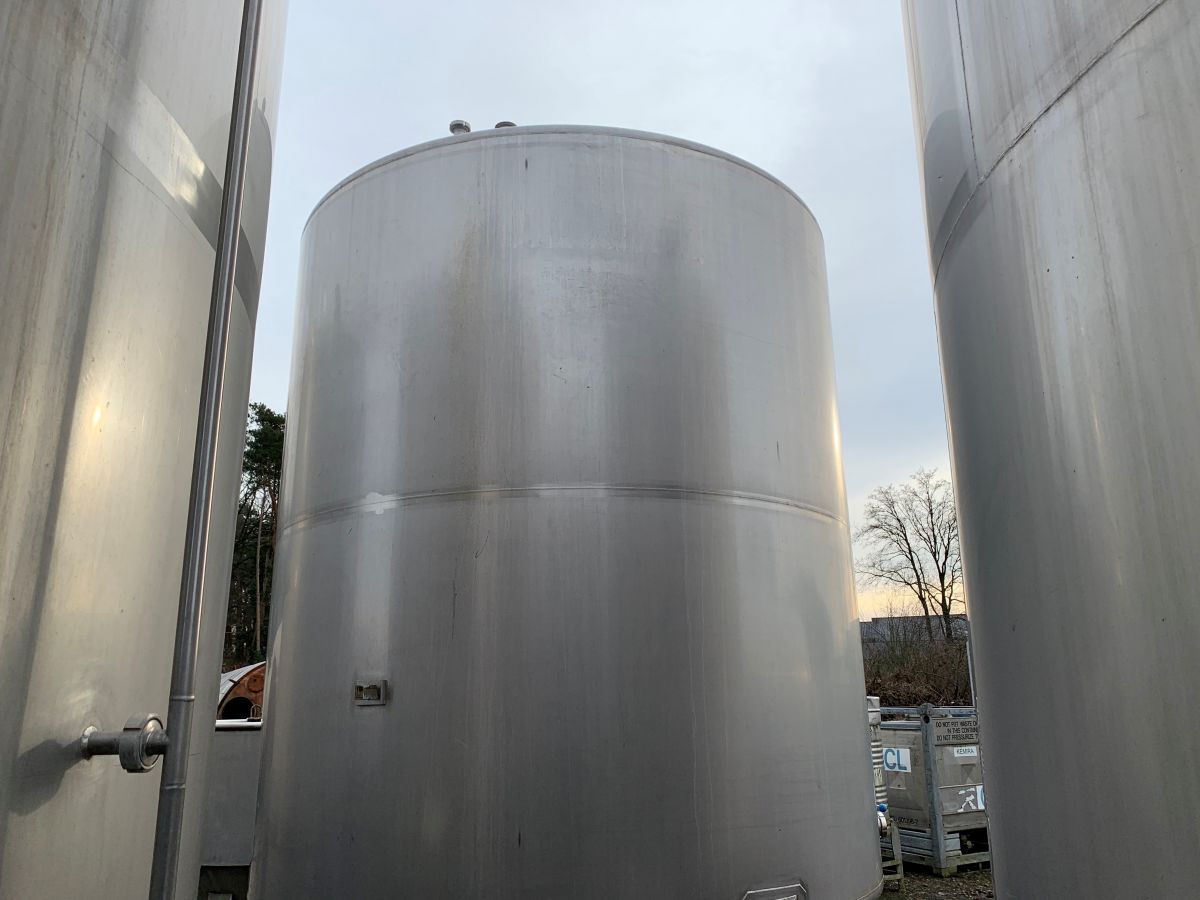

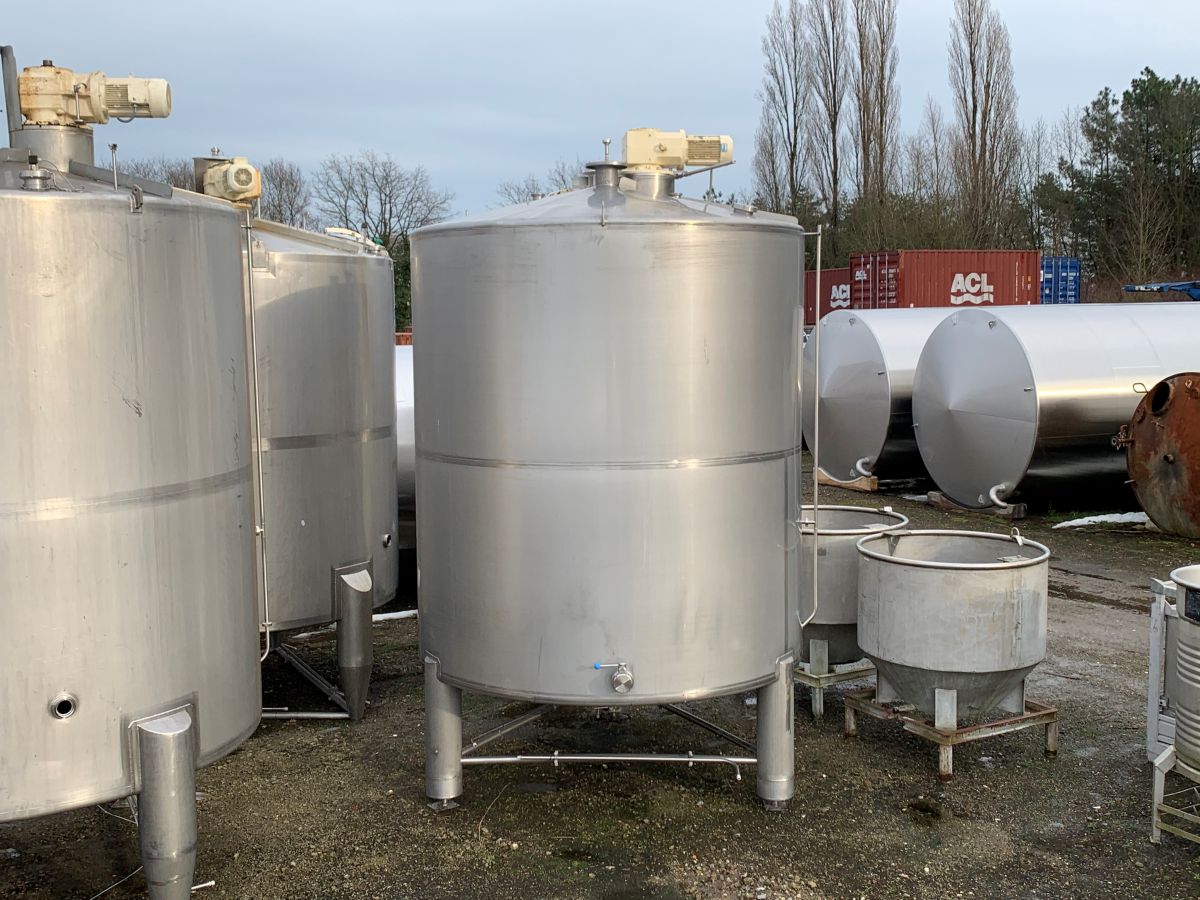

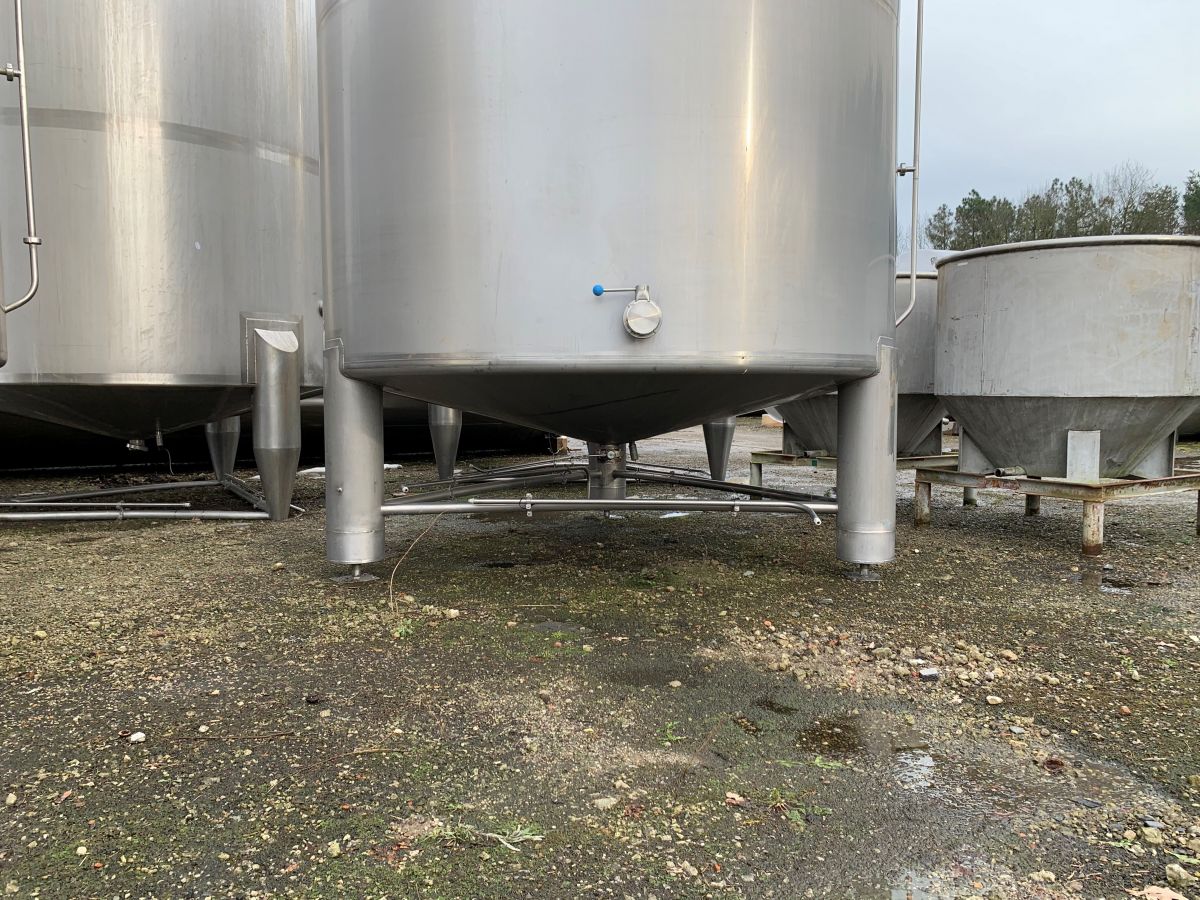

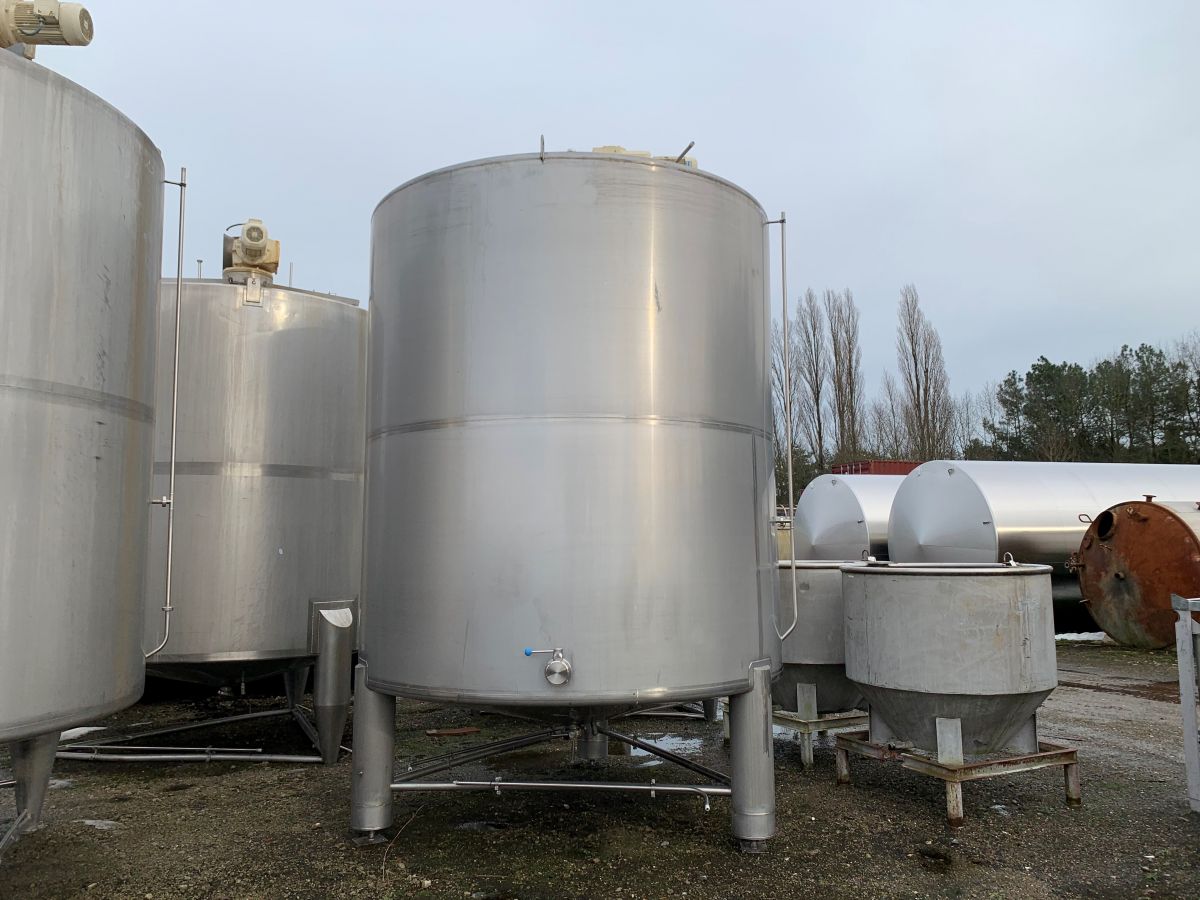

Article type: second-hand mixing tank
Additional information: we can’t give any guarantees about the agitator
Volumetric volume (L): 20.000 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Top type: conical
Shape of tank: cylindrical
Bottom type: conical
Total discharge: yes

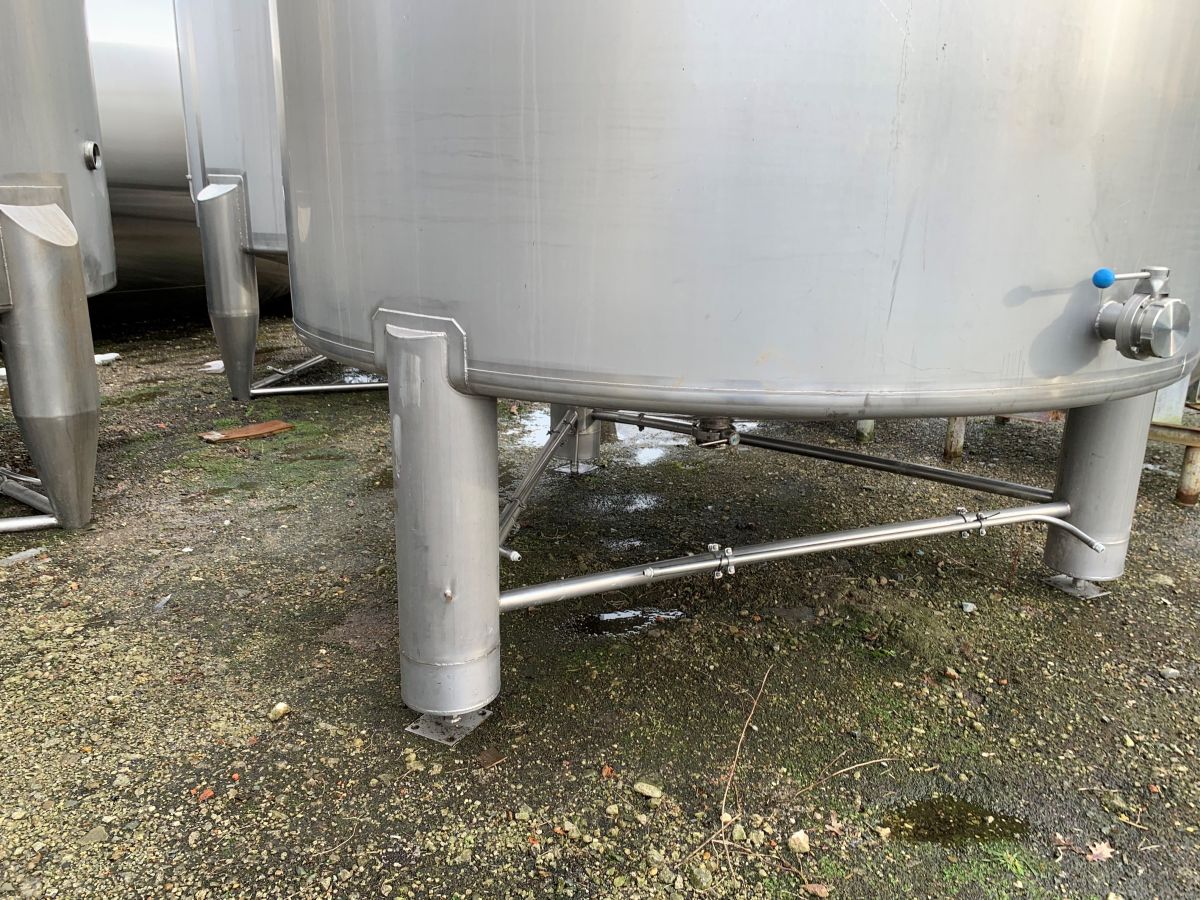

Fixation points: 3 adjustable feet
Manway(s): RVS 304
Fixation point(s): RVS 304
Wet parts agitator(s): SS AISI 304 (V2A)
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no
Number of manways: 1
Position of manway: at the top
Height manhole 1 (mm): 500 mm
Tank outlet: inside Ø 100 mm
Outlet type: DIN11850
Total outlet valve: no

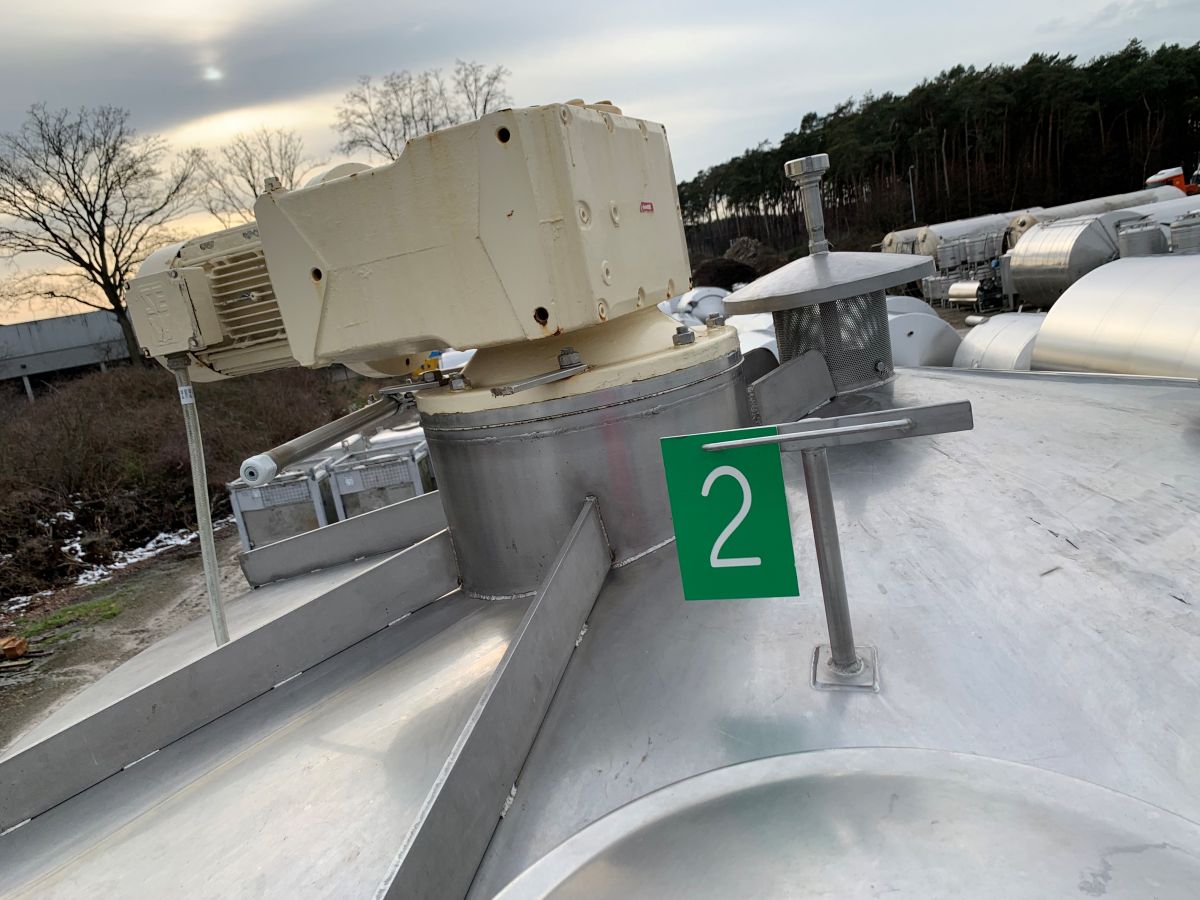

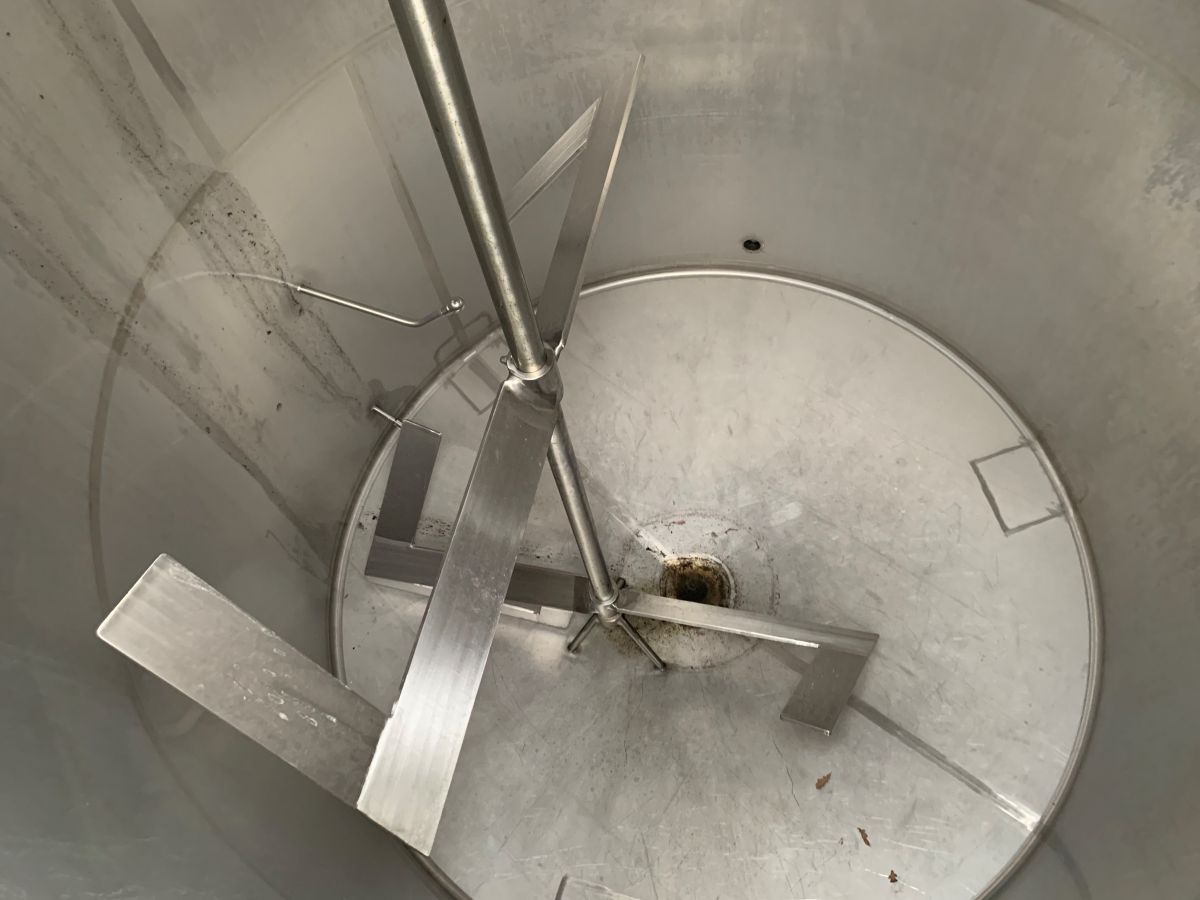

Agitator: yes
Top: 3 mm
Cylinder: 3 mm
Bottom: 4 mm
Distance from outlet to ground: 460 mm
Outer diameter tank: 2.800 mm
Cylinder height: 3.000 mm
Total height of tank: 5.000 mm
Empty weight tank: 1.200
