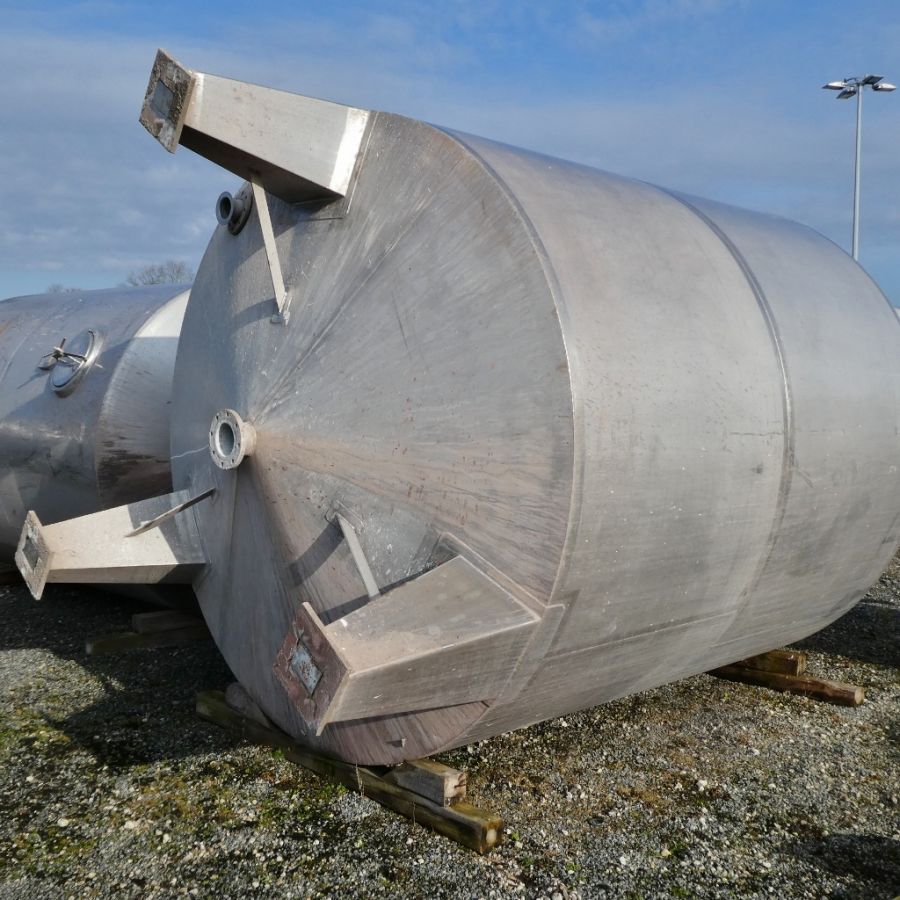

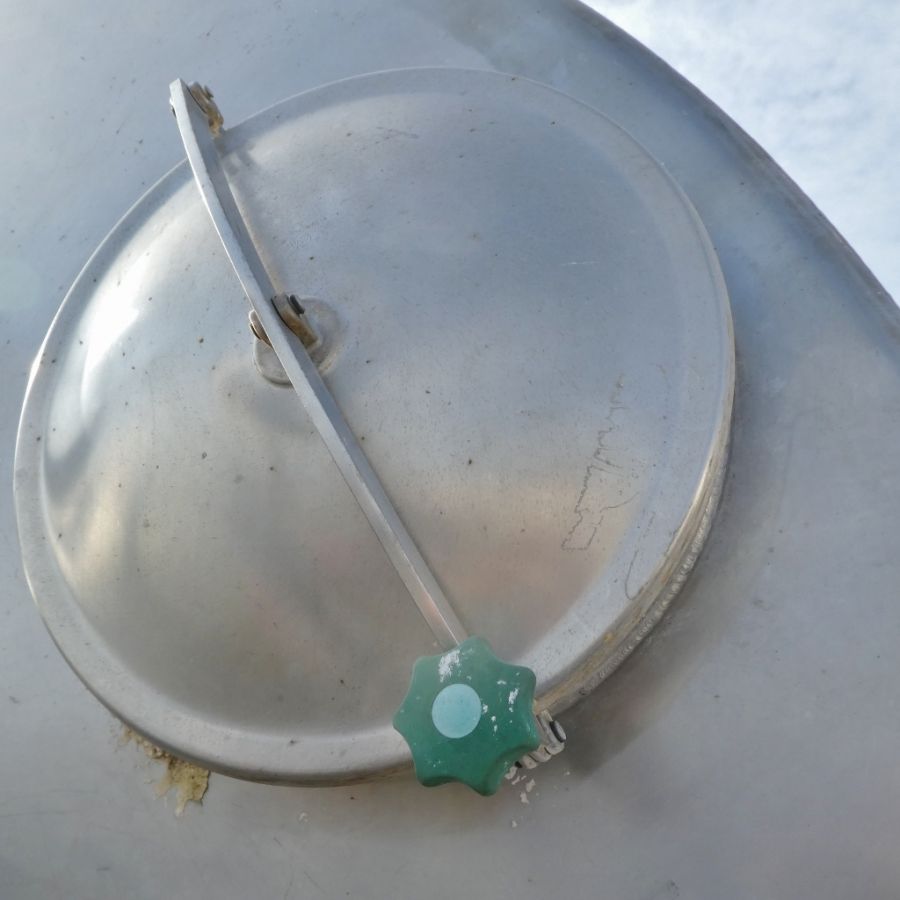

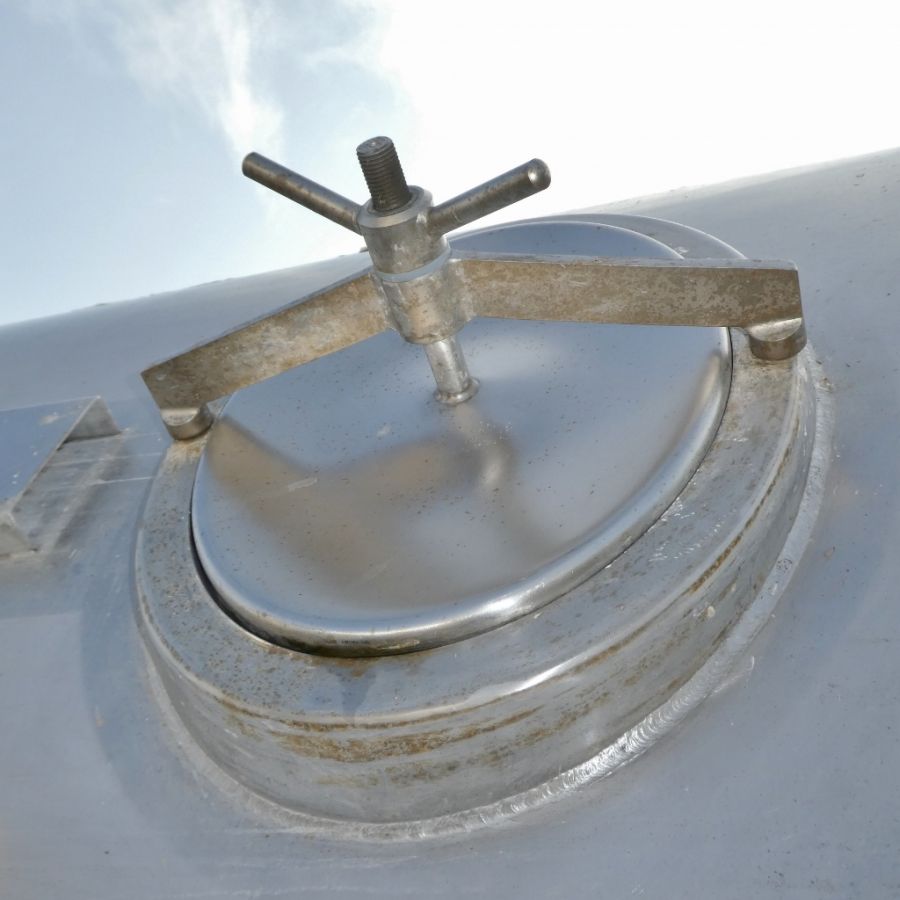

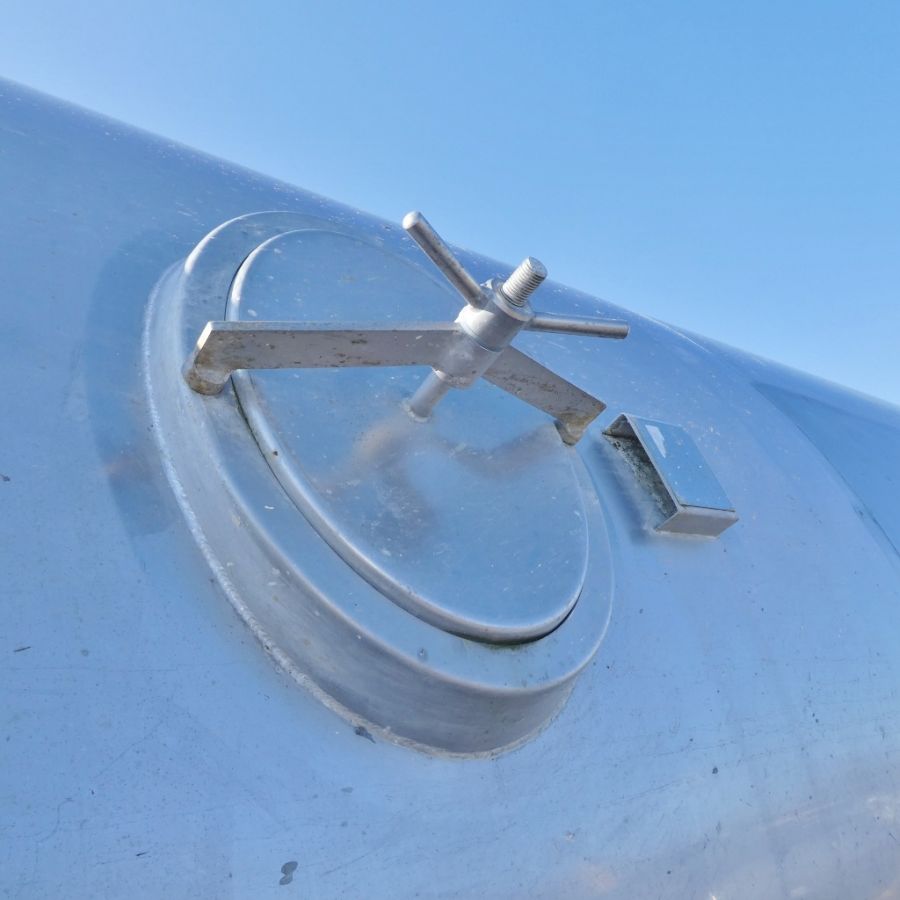

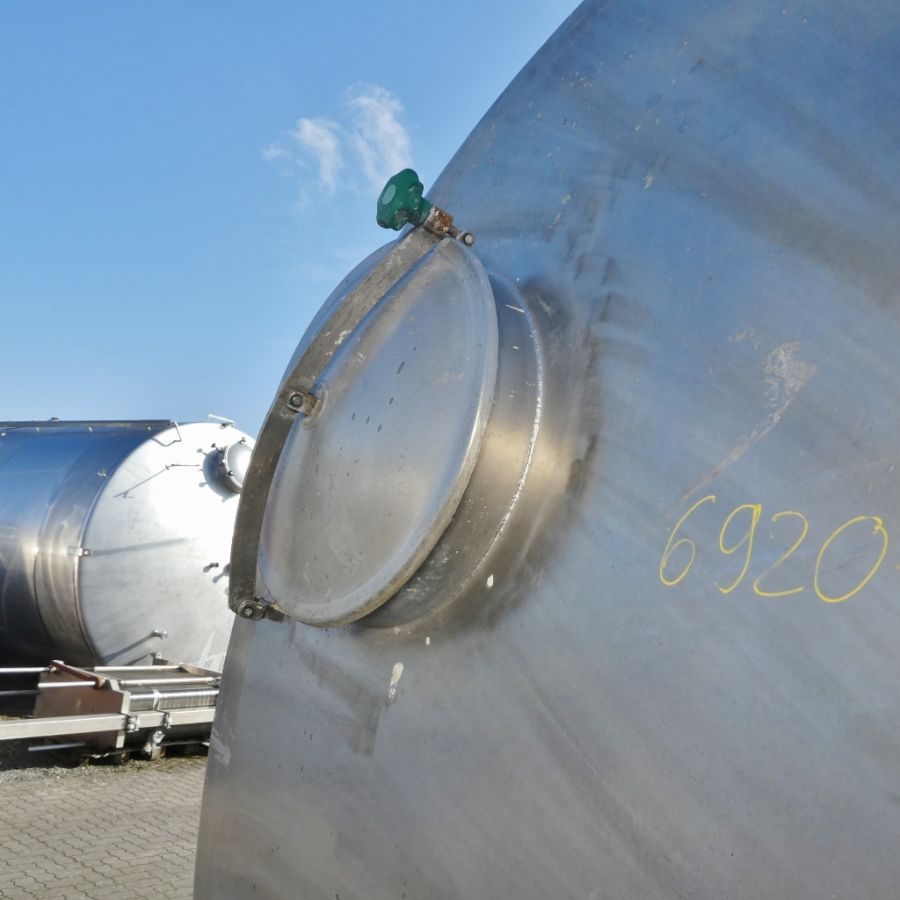

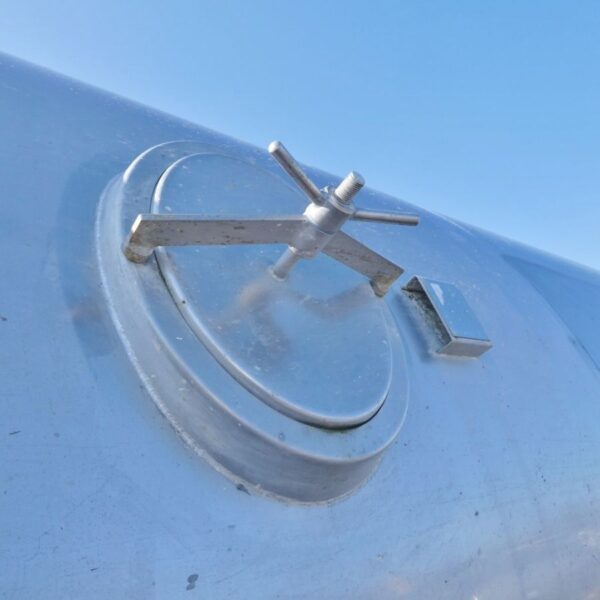

Additional information: water-soluble paints; wall thickness cylinder: lower cylinder section: 4 mm, upper cylinder section: 3 mm; partly smaller dents possible; the type plate is missing for 1 tank; cylinder man hole appr. 340 x 445 mm; 1 tank with heating coil and insulation with galvanized Fe jacket around the lower bottom (see photos); some residues of previous content
Volumetric volume (L): 20.000 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Total discharge: yes
Documents included: no
Technical drawing included: no

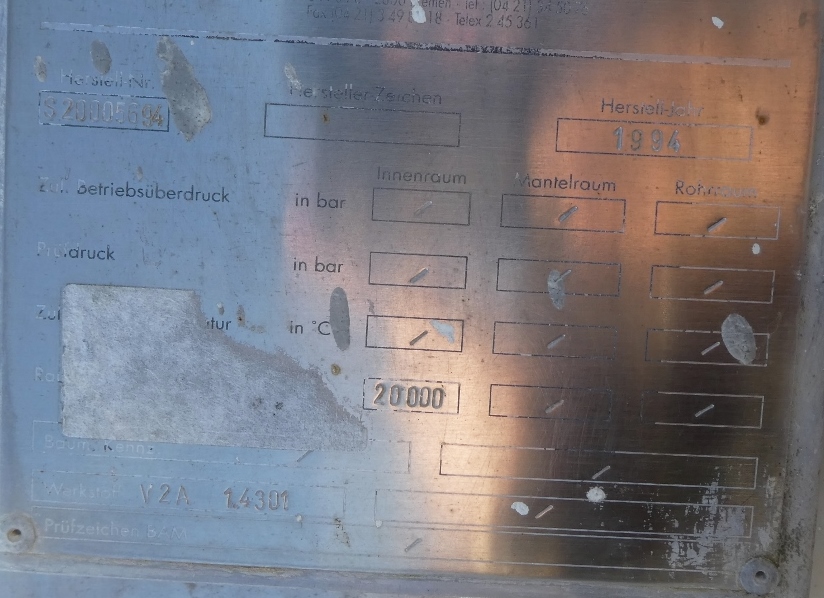

Registration plate on the tank: yes
Flange for agitator: no

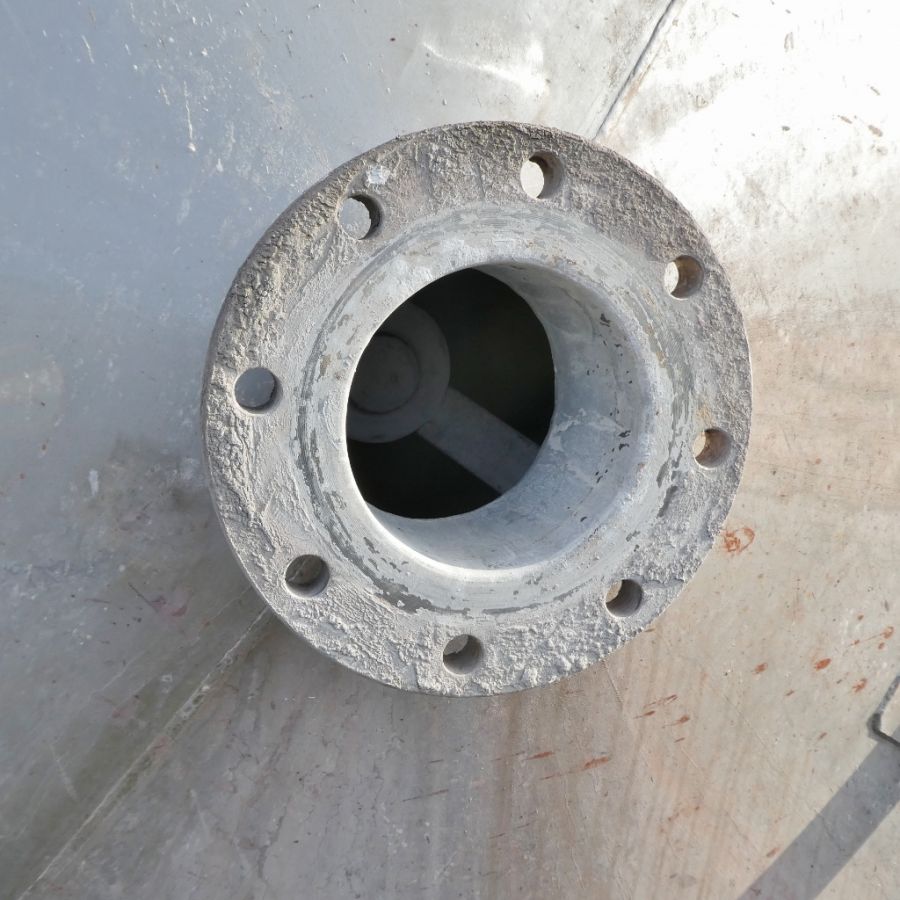

Outlet of tank: flange DN125

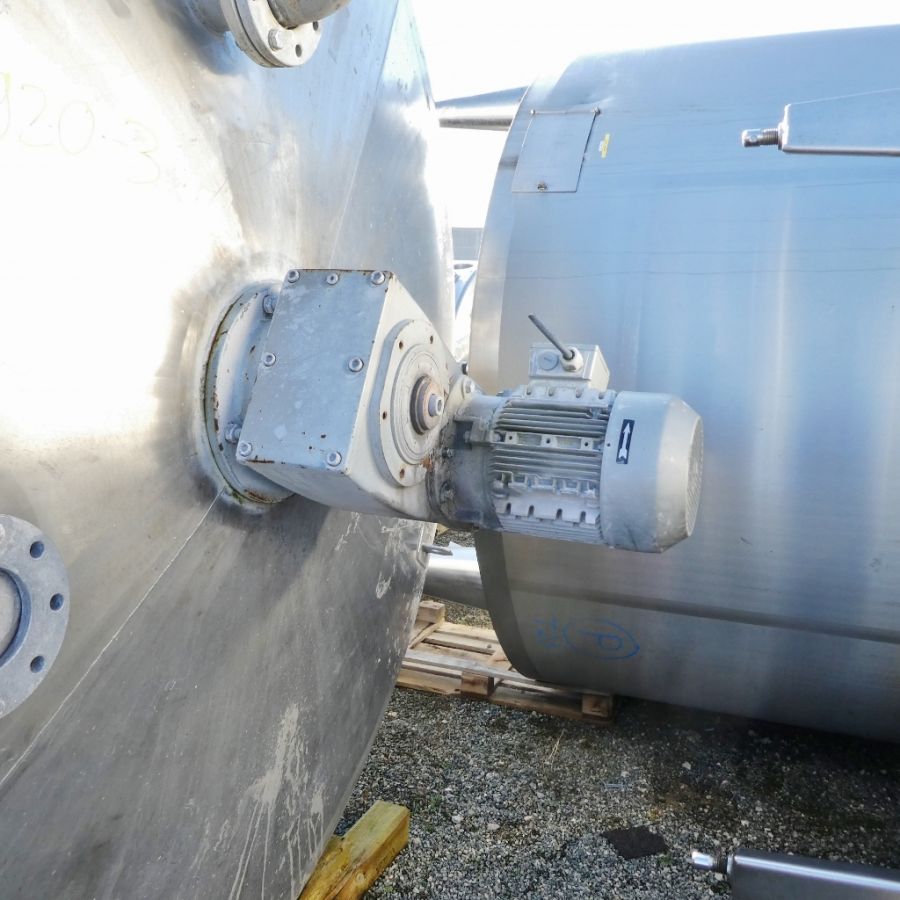

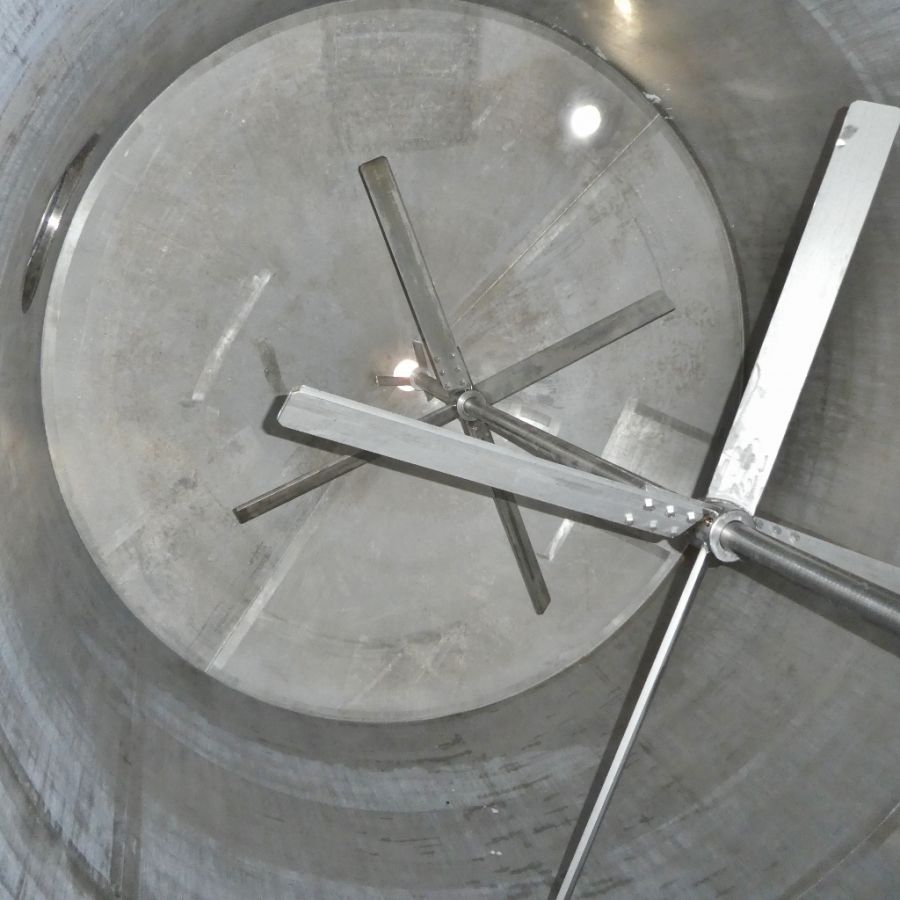

Agitator: yes
Number of revolutions: 21
Power: 5,50
Top: 3 mm
Bottom: 5 mm
Internal diameter tank: 2.850 mm
Cylinder height: 3.000 mm
Total height of tank: 4.850 mm
Empty weight tank: 1.500
