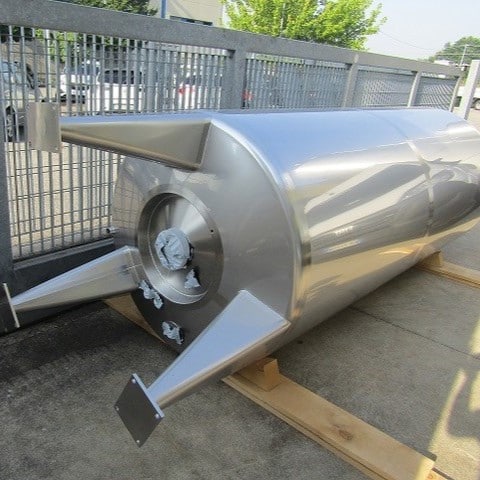

2000 liter tank i Syrafast 316

Additional information: Manhole approx. 308 x 440 mm; Total height as per drawing Volumetric volume (L): 2.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 90 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 15 L Max Overpressure: 3 Bar Max. working temperature: 90 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: yes Position of manway: in the bottom Outlet of tank: 50 Internal diameter tank: 1.050 mm Outer diameter tank: 1.150 mm Cylinder height: 2.500 mm Total height of tank: 3.700 mm
