2000 liter tank i Syrafast 316

Art.nr: 242153

273,000,00 kr /st exkl moms

Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:

Lagersaldo:

Slut i lager

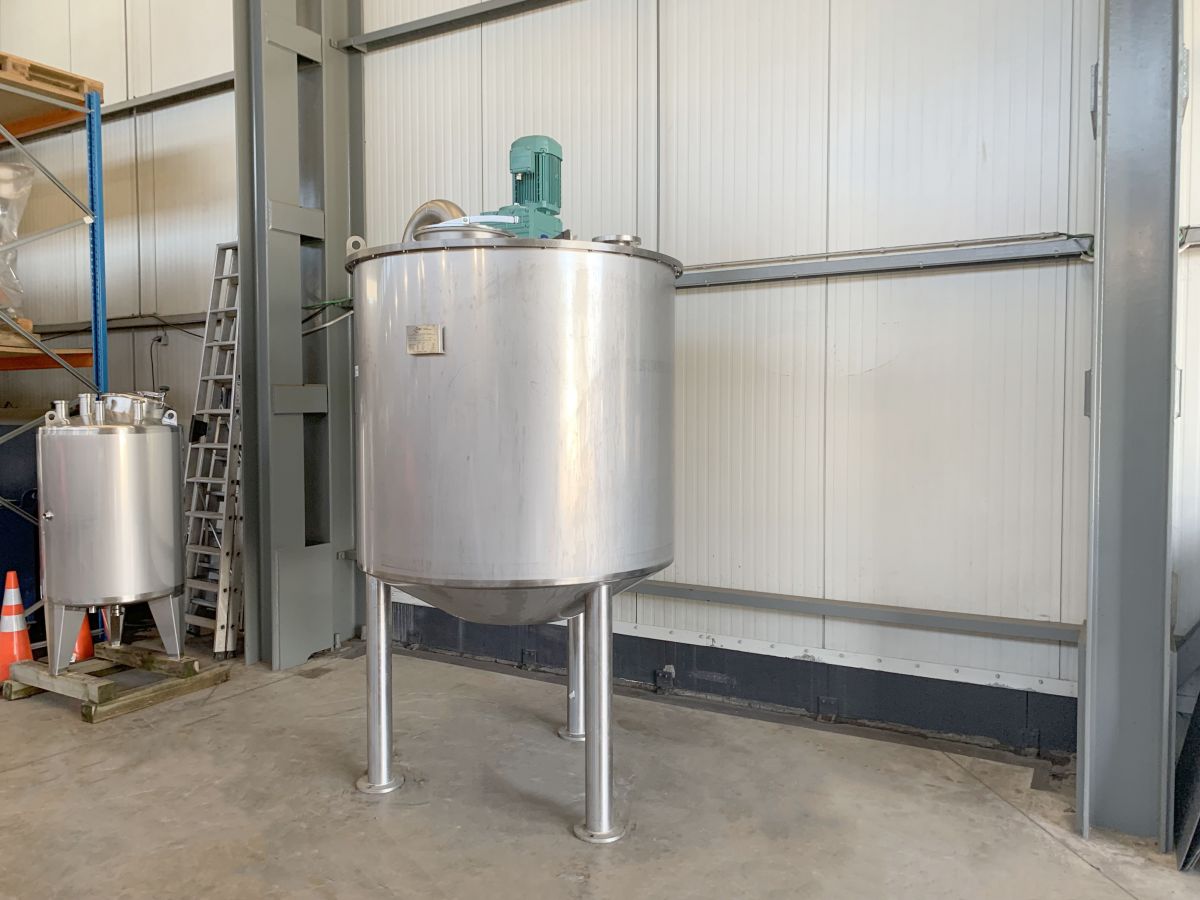

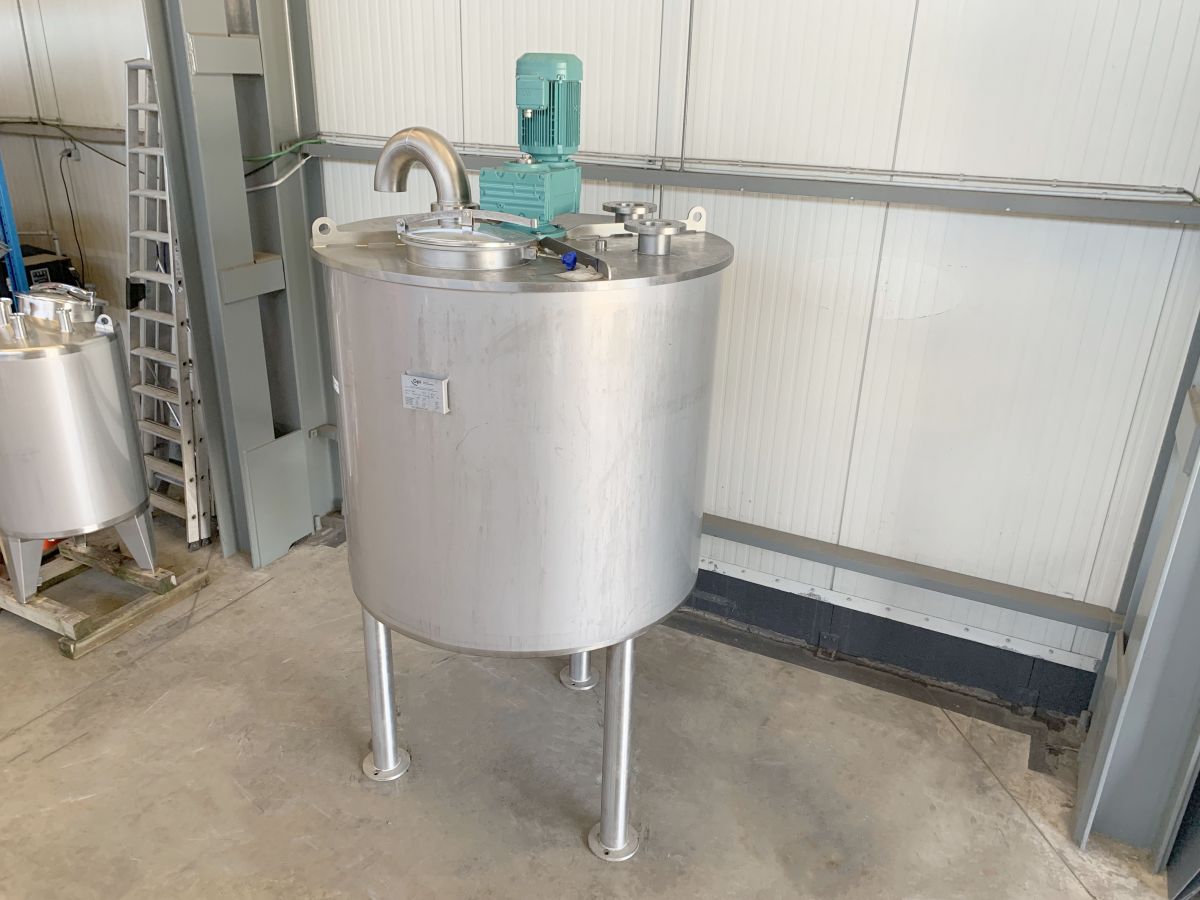

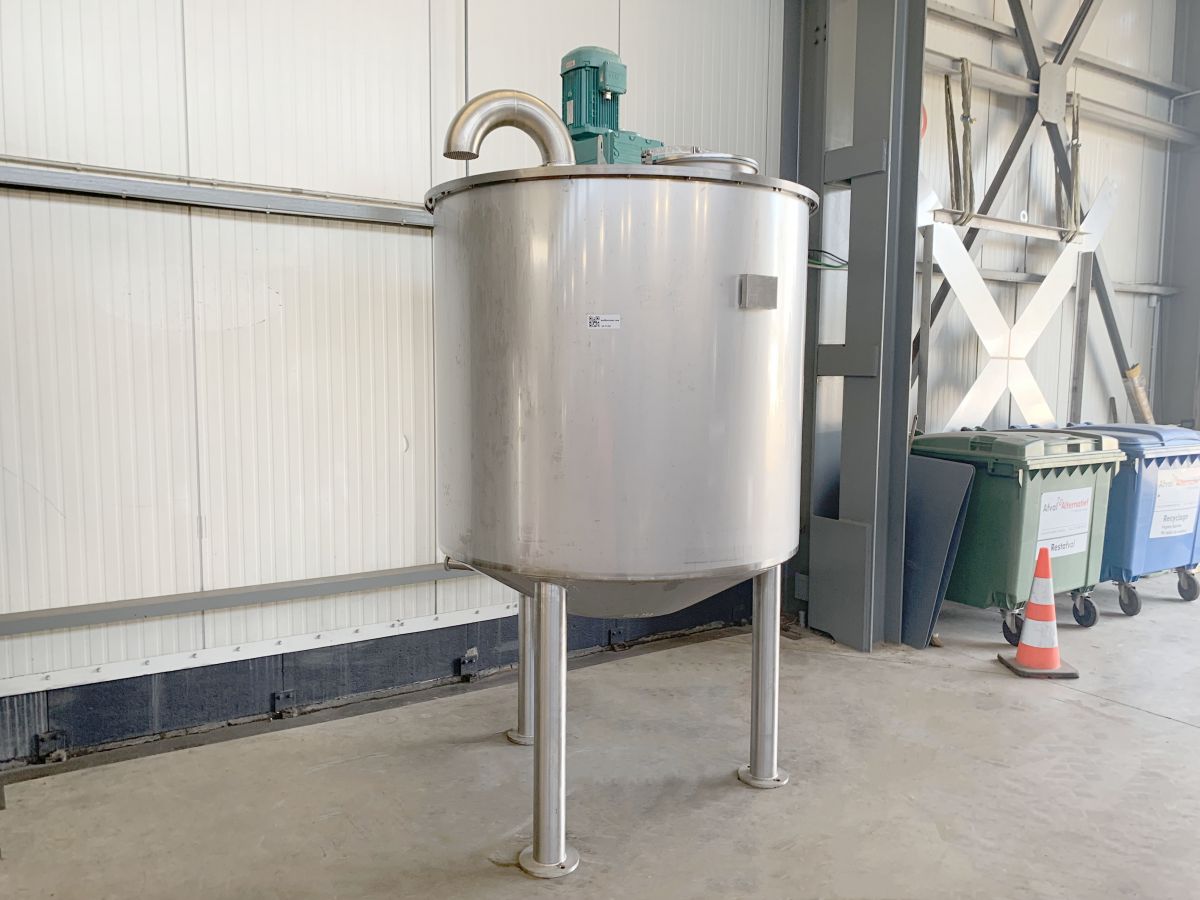

2000 liter tank i Syrafast 316

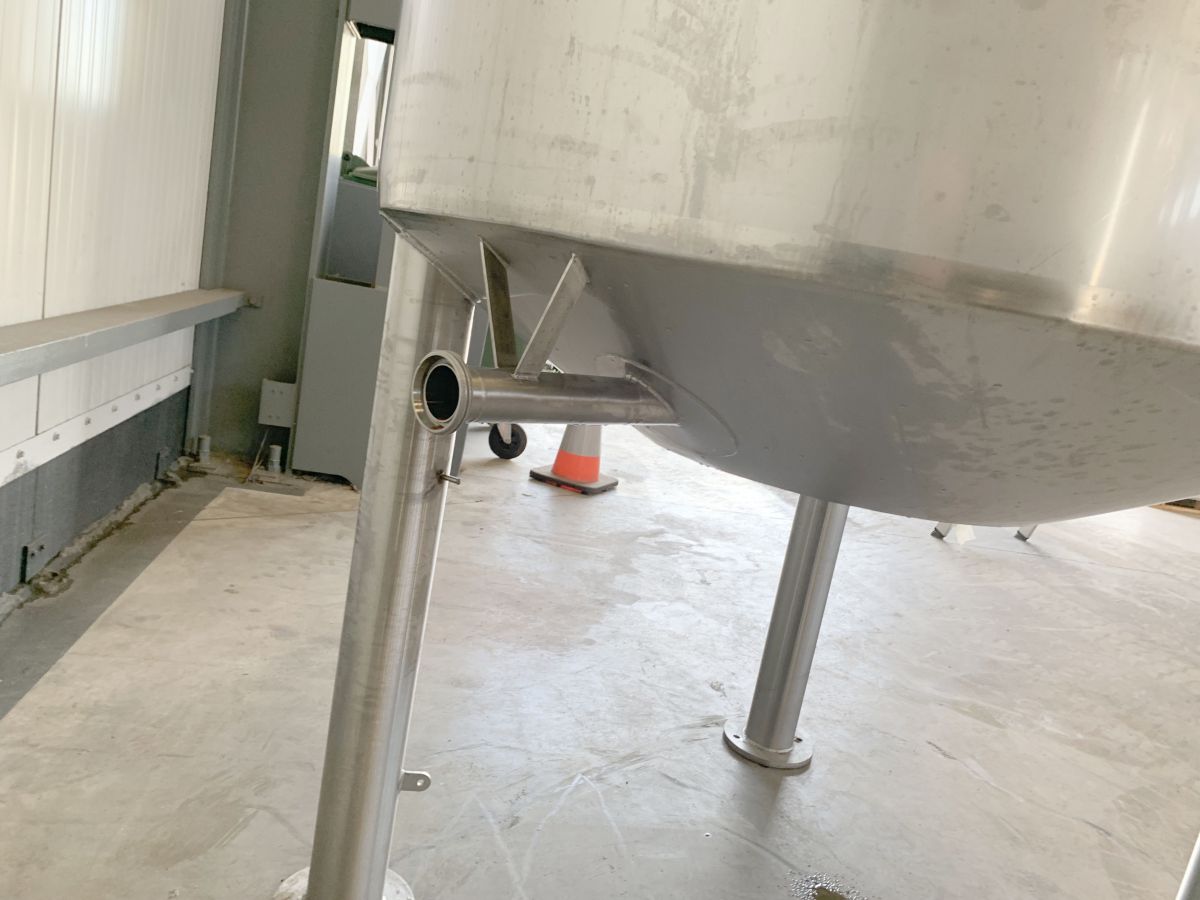

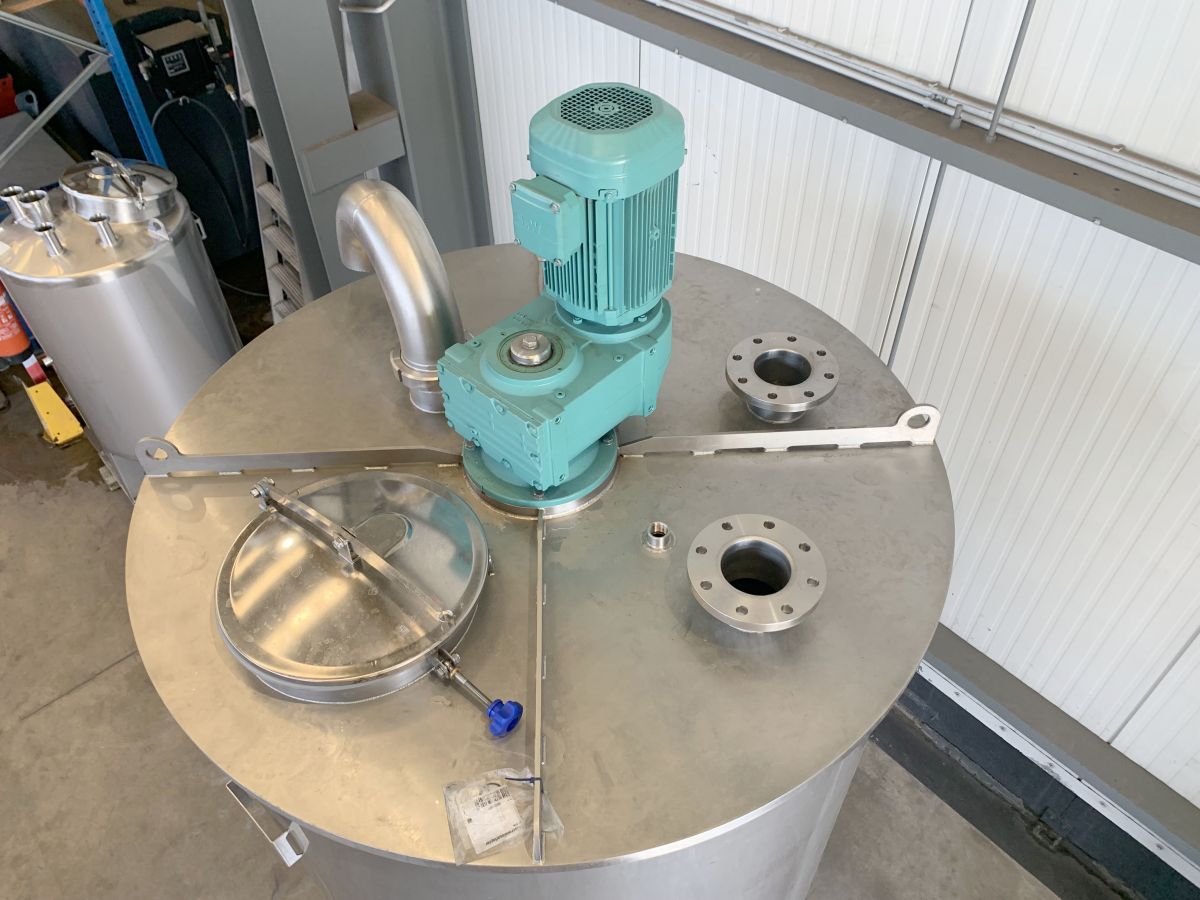

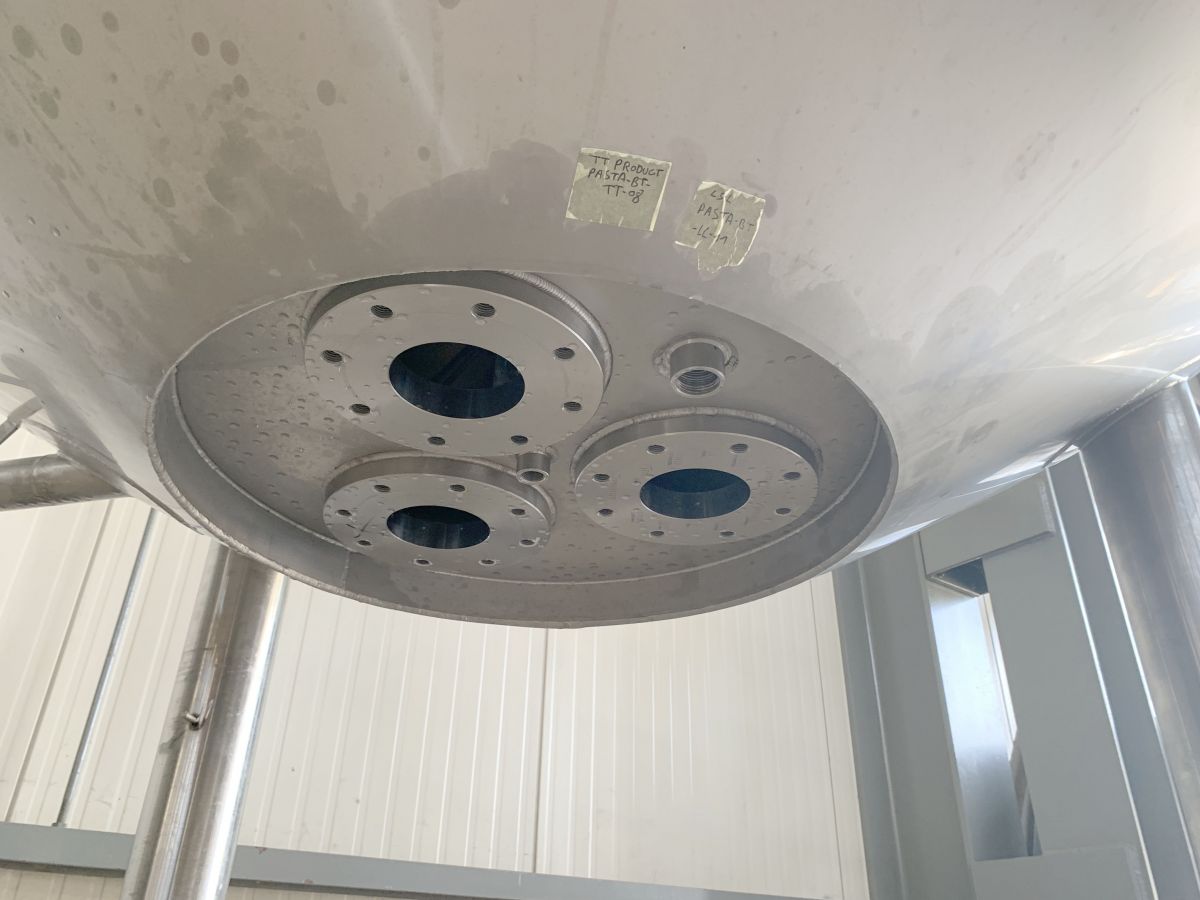

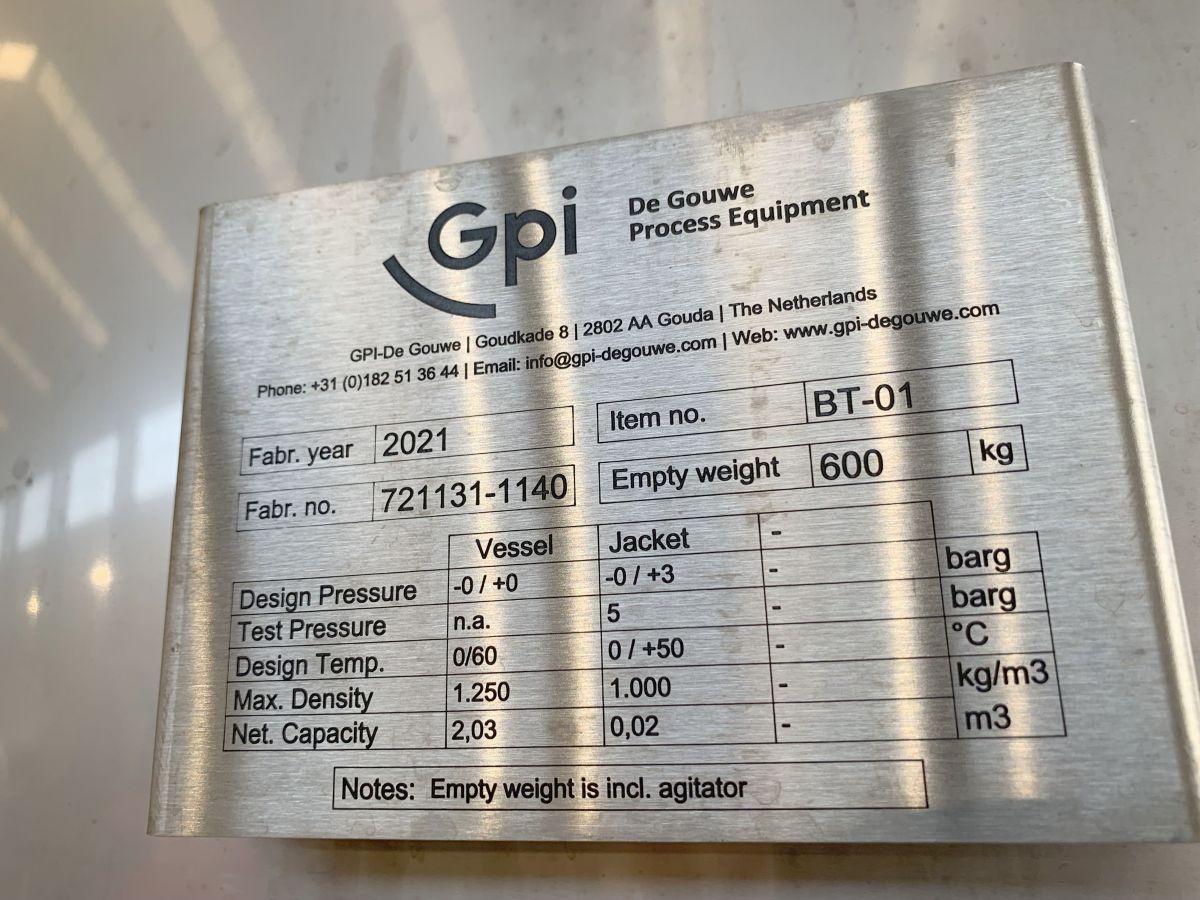

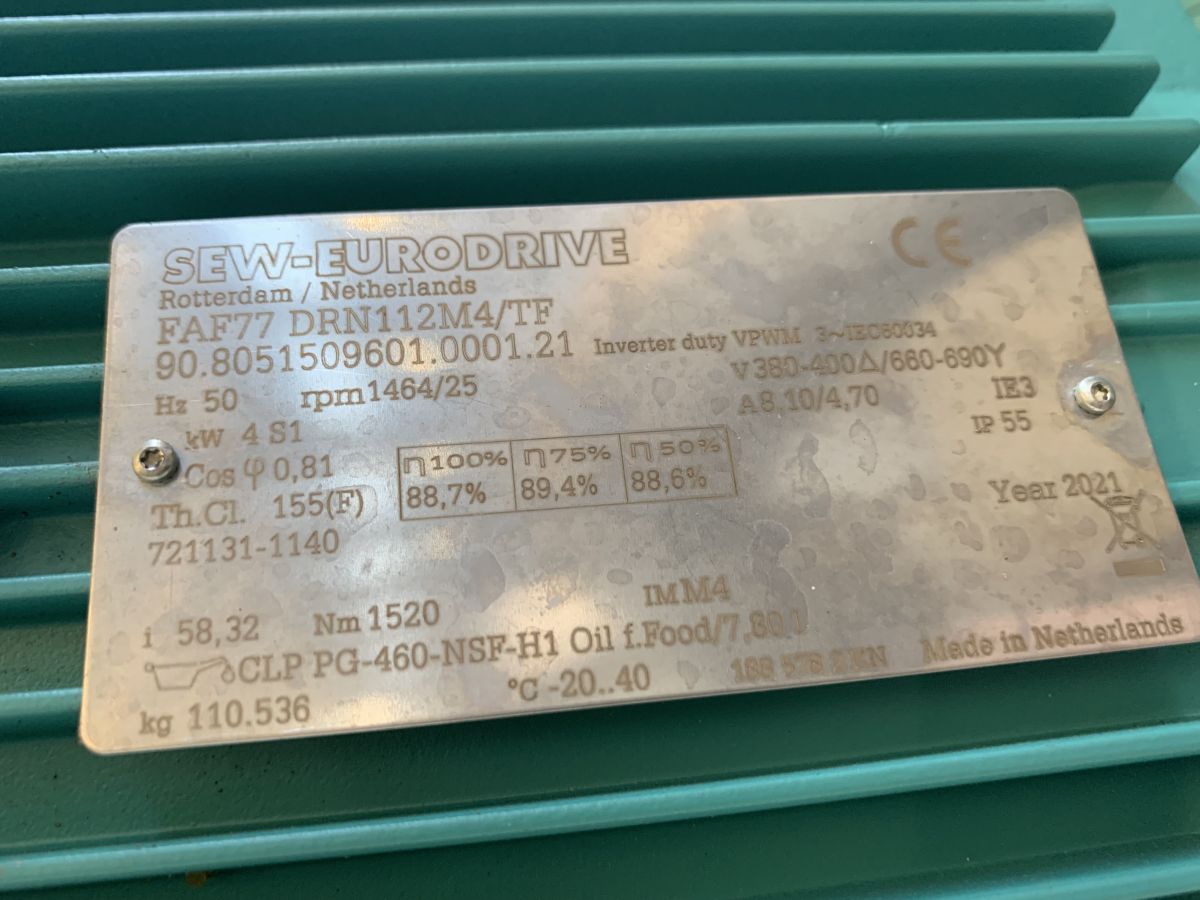

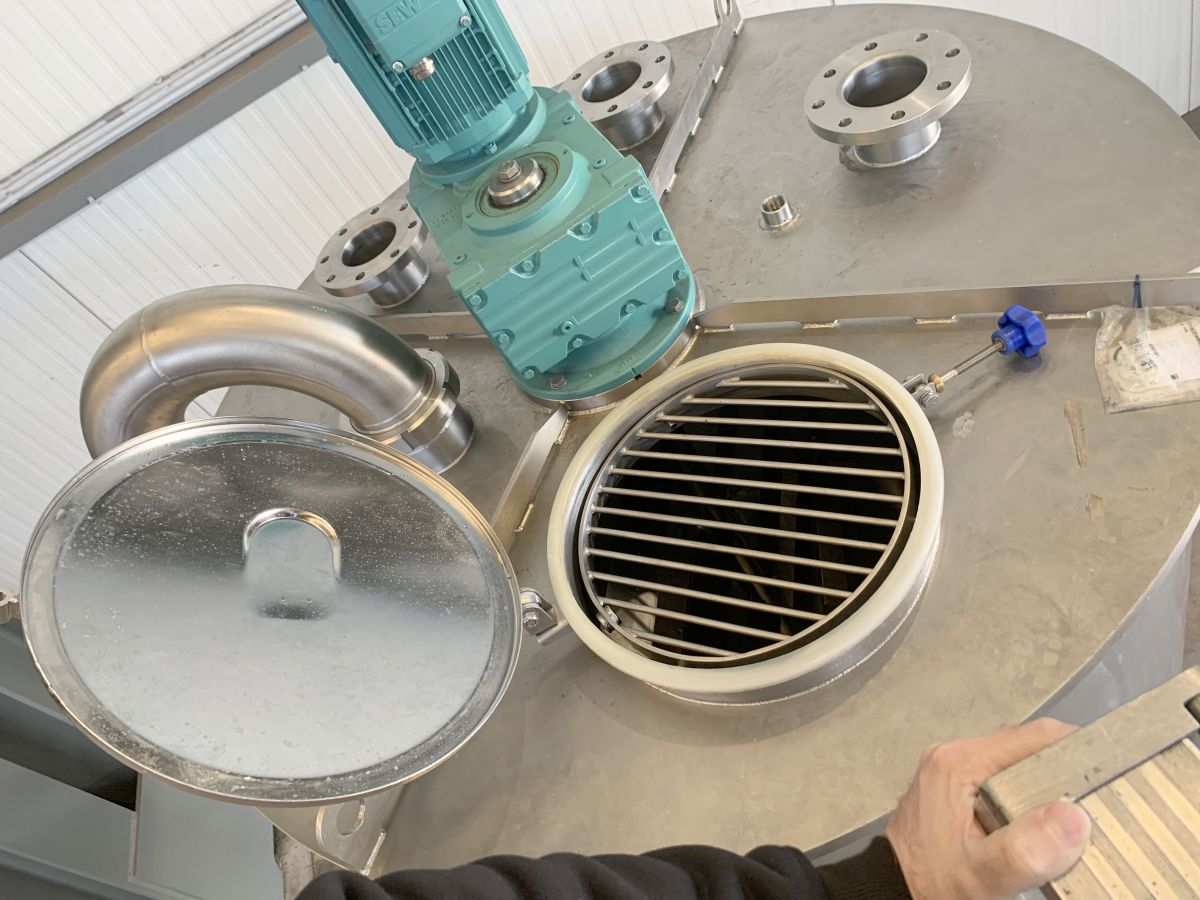

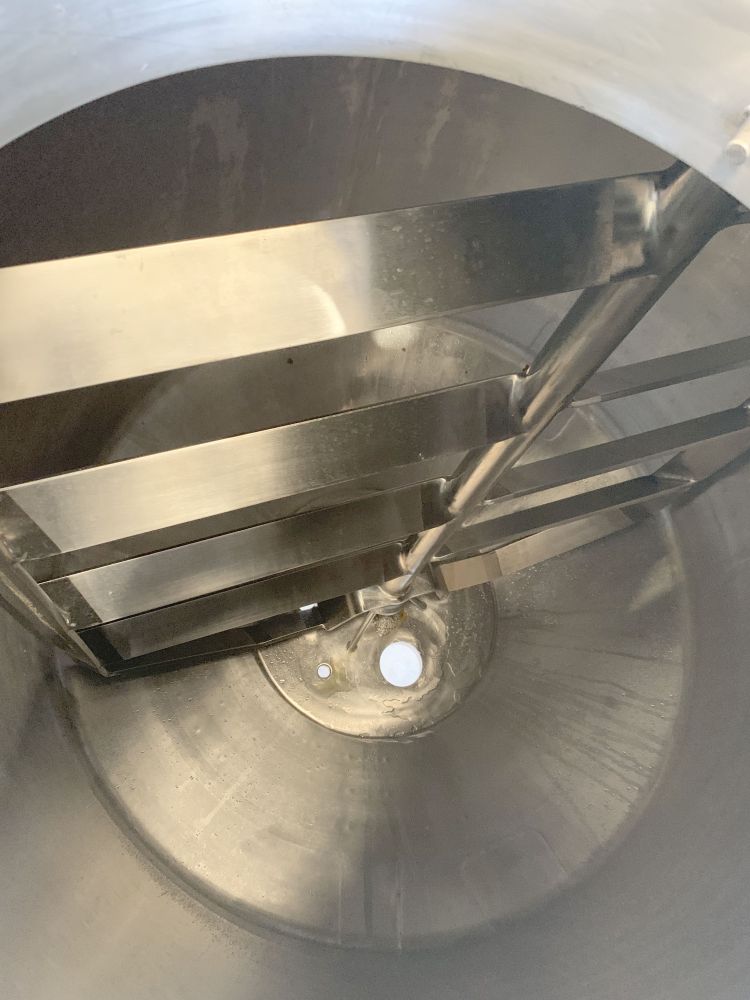

Article type: second-hand mixing tank Additional information: GPI mixing tank, only used a few times, year 2021; we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator Volumetric volume (L): 2.000 L Max. density P (kg/m³): 1.250 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 60 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: large seperat lid Shape of tank: cylindrical Bottom type: conical 30 ° Total discharge: yes Fixation points: 3 non adjustable feet Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Water pressure HE: 3 Bar Working temperature HE cylinder: 50 °C Type of HE on the bottom: dimple-jacket Water pressure HE: 3 Bar Working temperature HE bottom: 50 °C Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304 Manway(s): RVS 316 Gasket manway(s): EPDM Fixation point(s): RVS 304 Wet parts agitator(s): SS AISI 316L (V4A) Suitable for food industry: yes Documents included: no Technical drawing included: yes Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Height manhole 1 (mm): 400 mm Tank outlet: inside Ø 100 mm Outlet type: DIN 28117 Total outlet valve: no, optional Agitator: yes Agitator type: gate Position engine: at the top Number of revolutions: 25 Power: 4 Voltage: three-phase Top: 10 mm Cylinder: 3 mm Bottom: 3 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 50 Internal diameter tank: 1.350 mm Distance from outlet to ground: 830 mm Outer diameter tank: 1.534 mm Cylinder height: 1.273 mm Empty weight tank: 600
