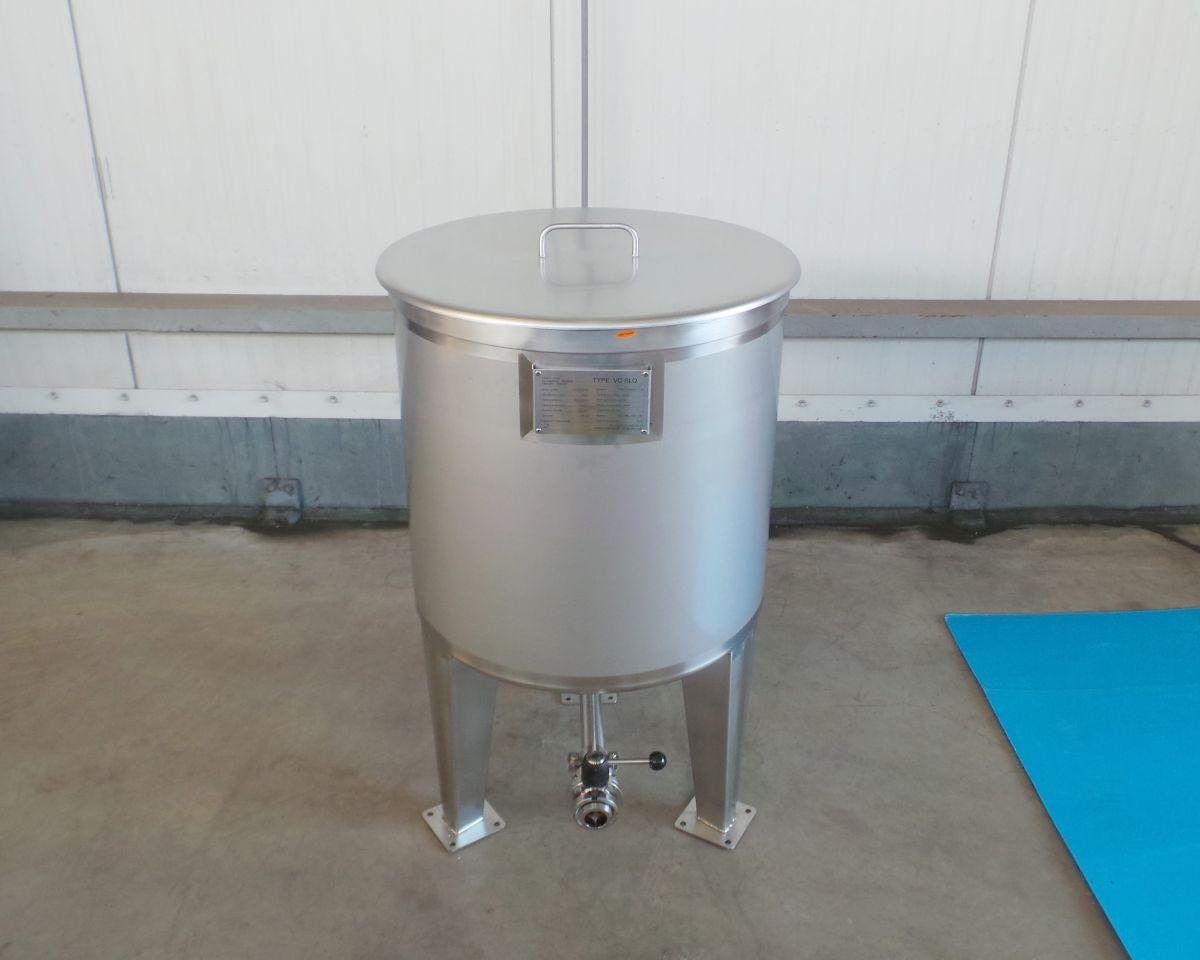

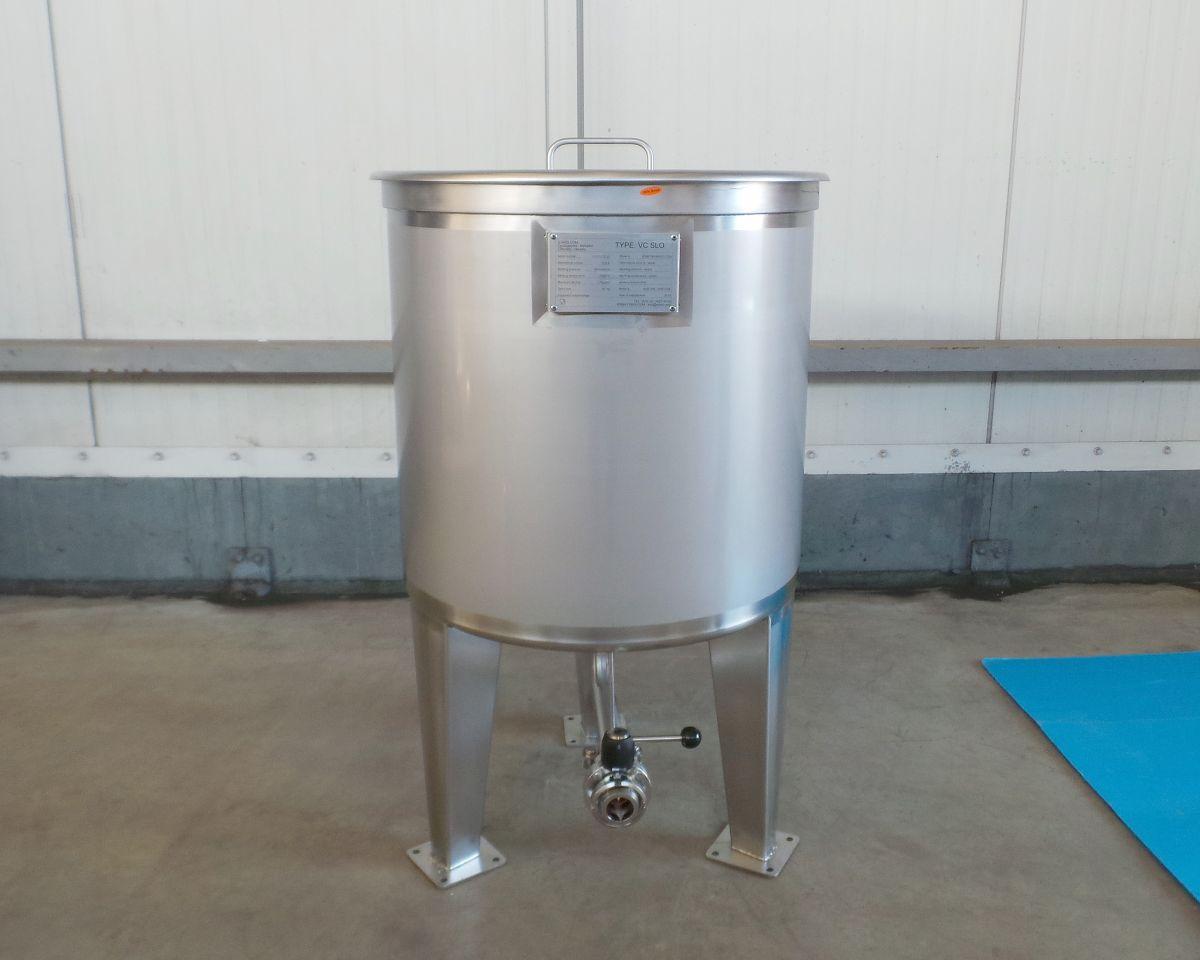

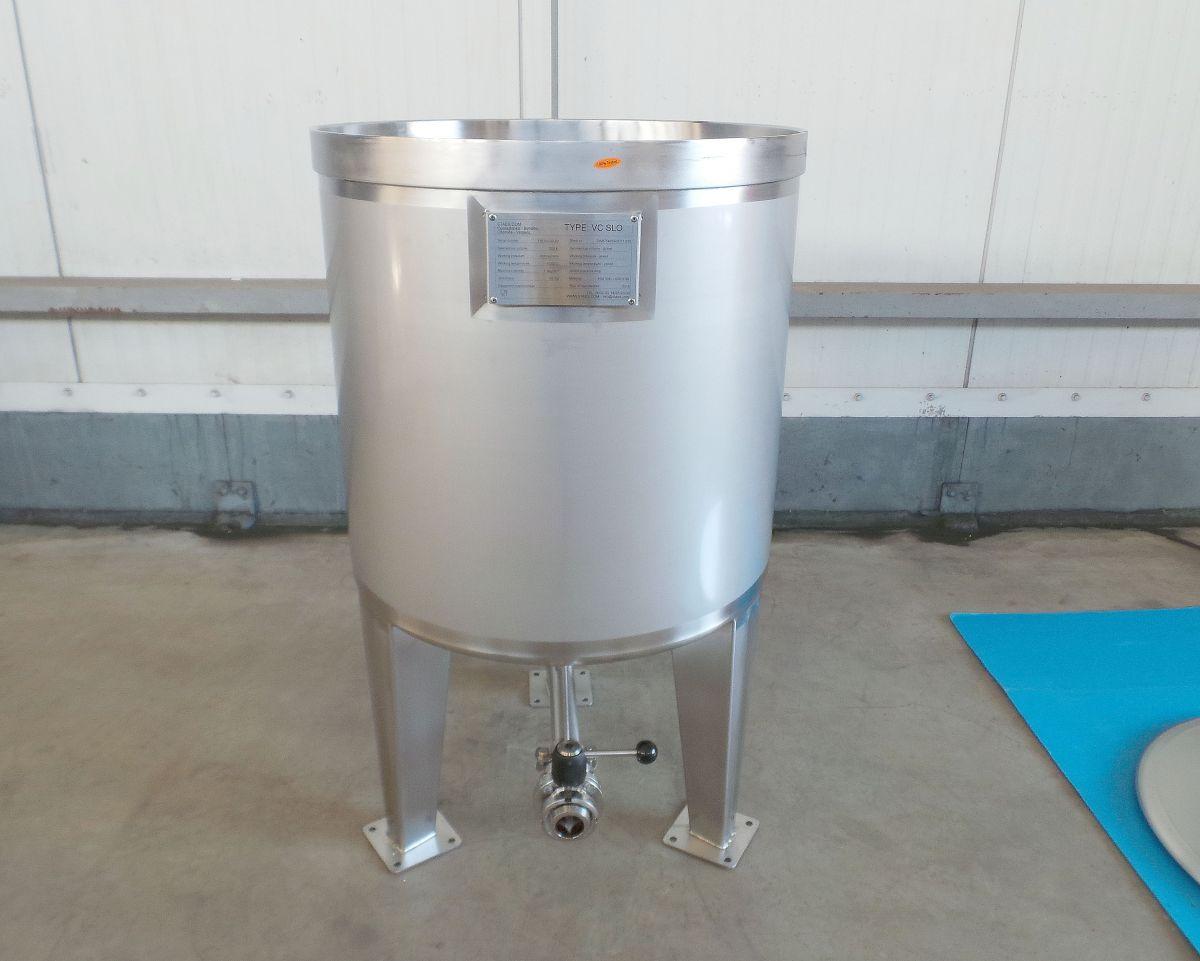

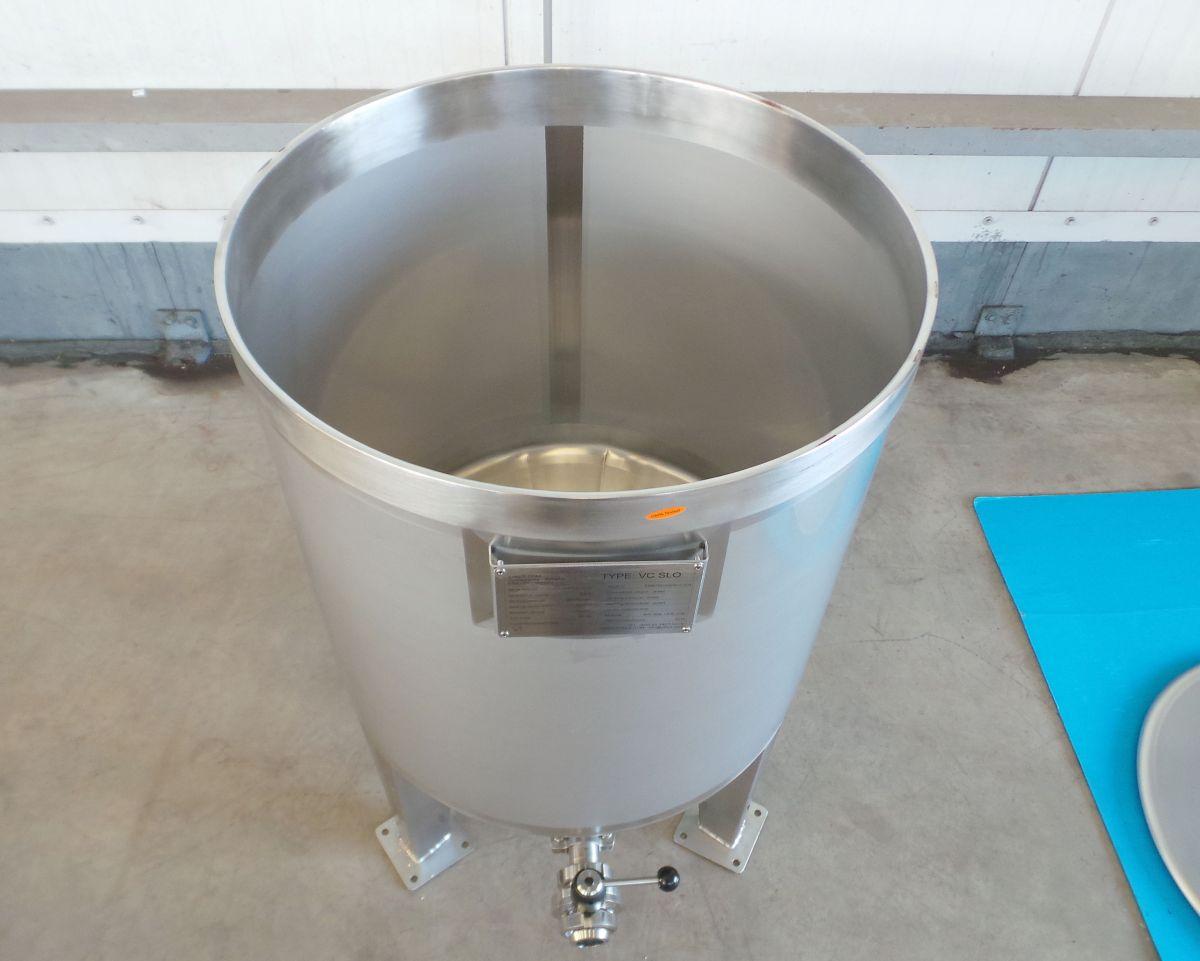

200 liter i Syrafast 316

item available on order

Article type: brand new storage tank – type VC-SLO
Additional information: Ra=<0.8µm
Capacity: 200 L
Maximal density of the product: 1.200
Ra inner weld: 0,80

Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 80 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: no

Mobile tank: no

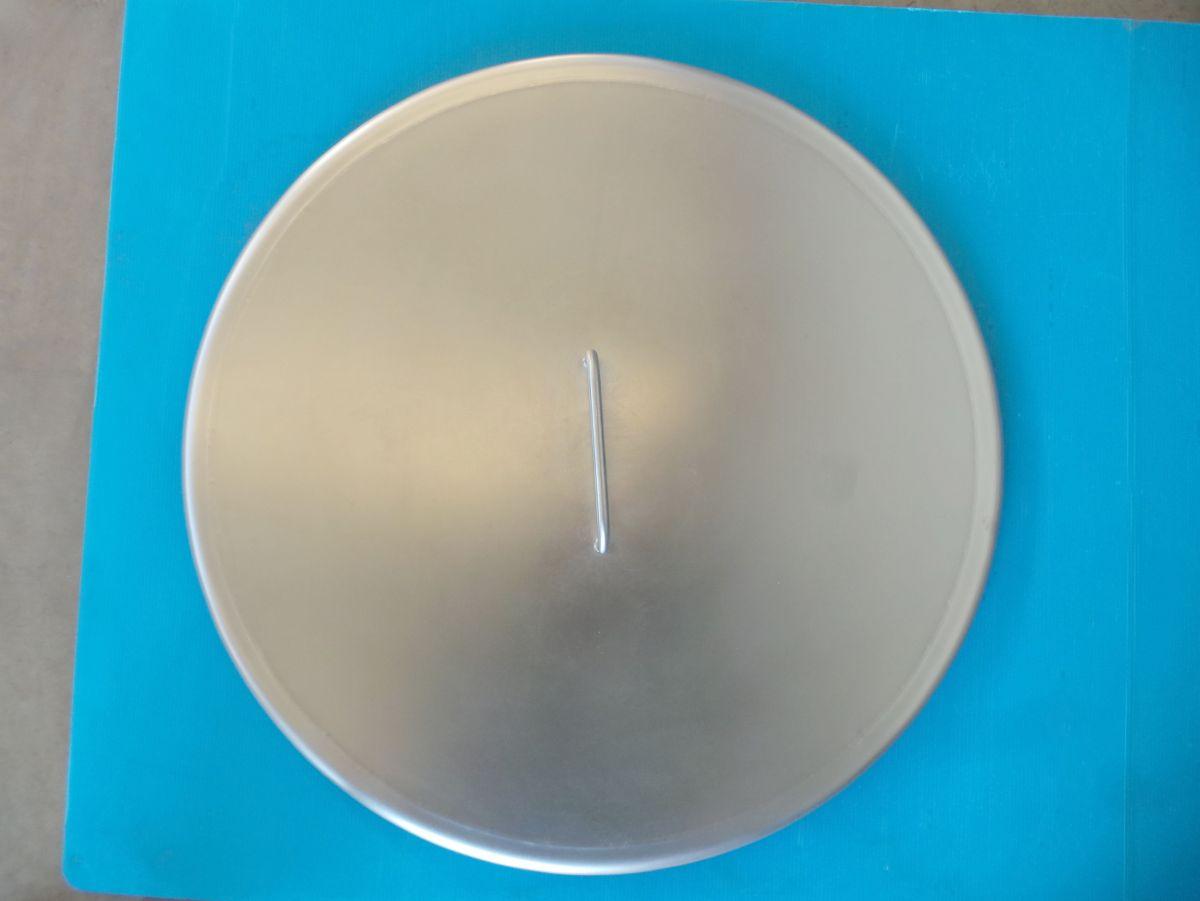

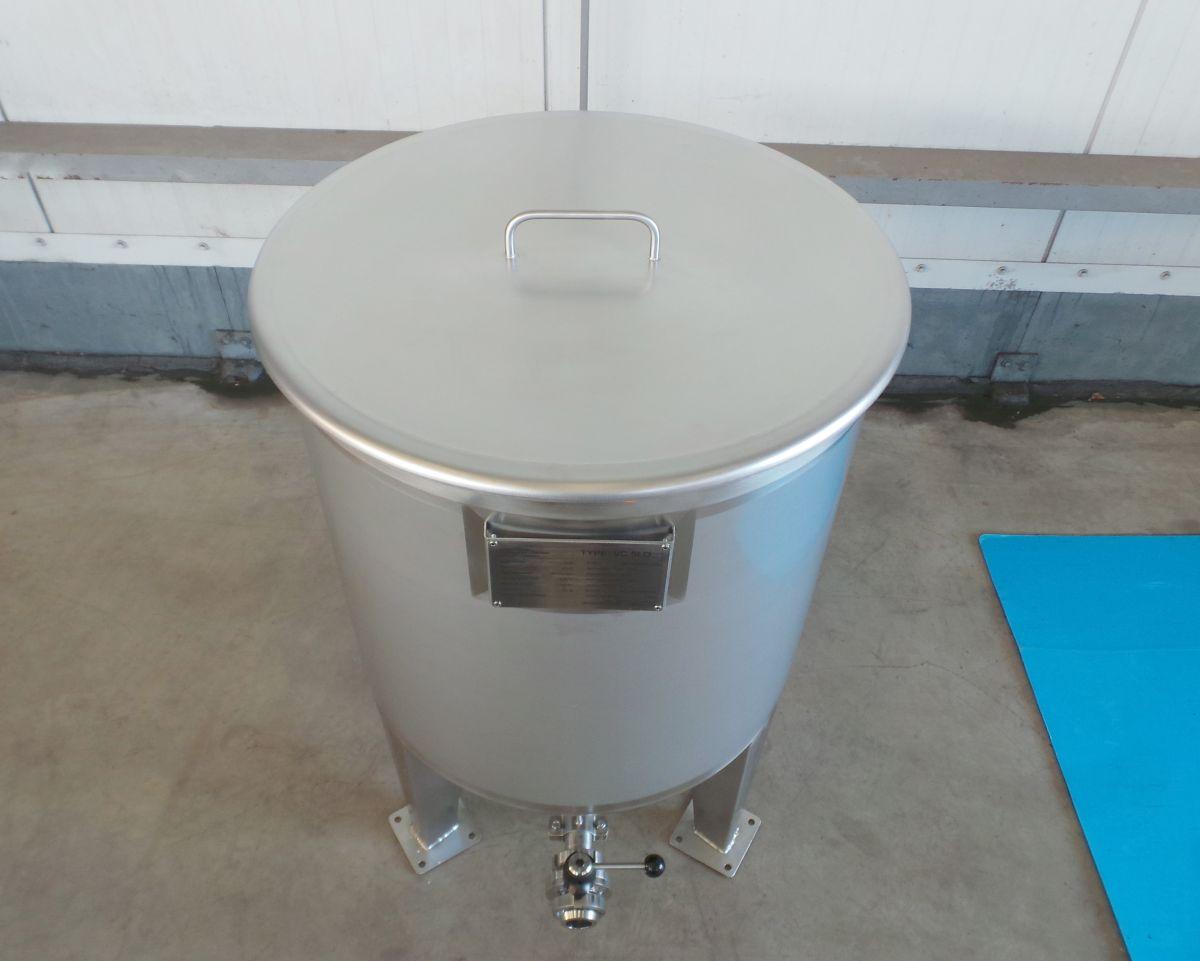

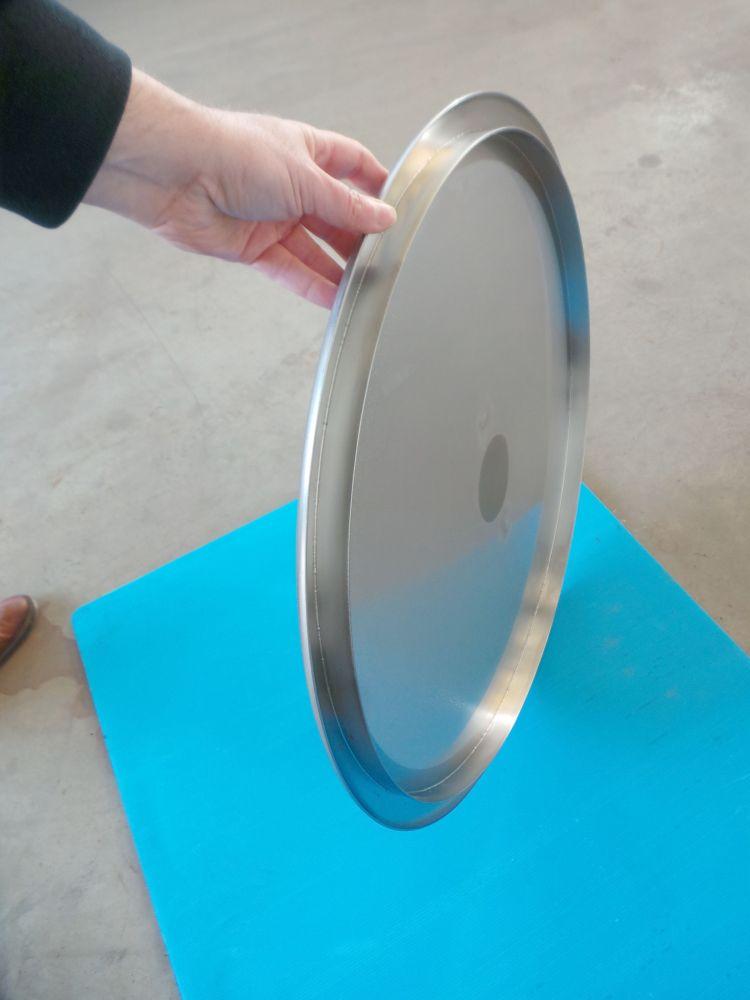

Top type: large seperat lid
Shape of tank: cylindrical

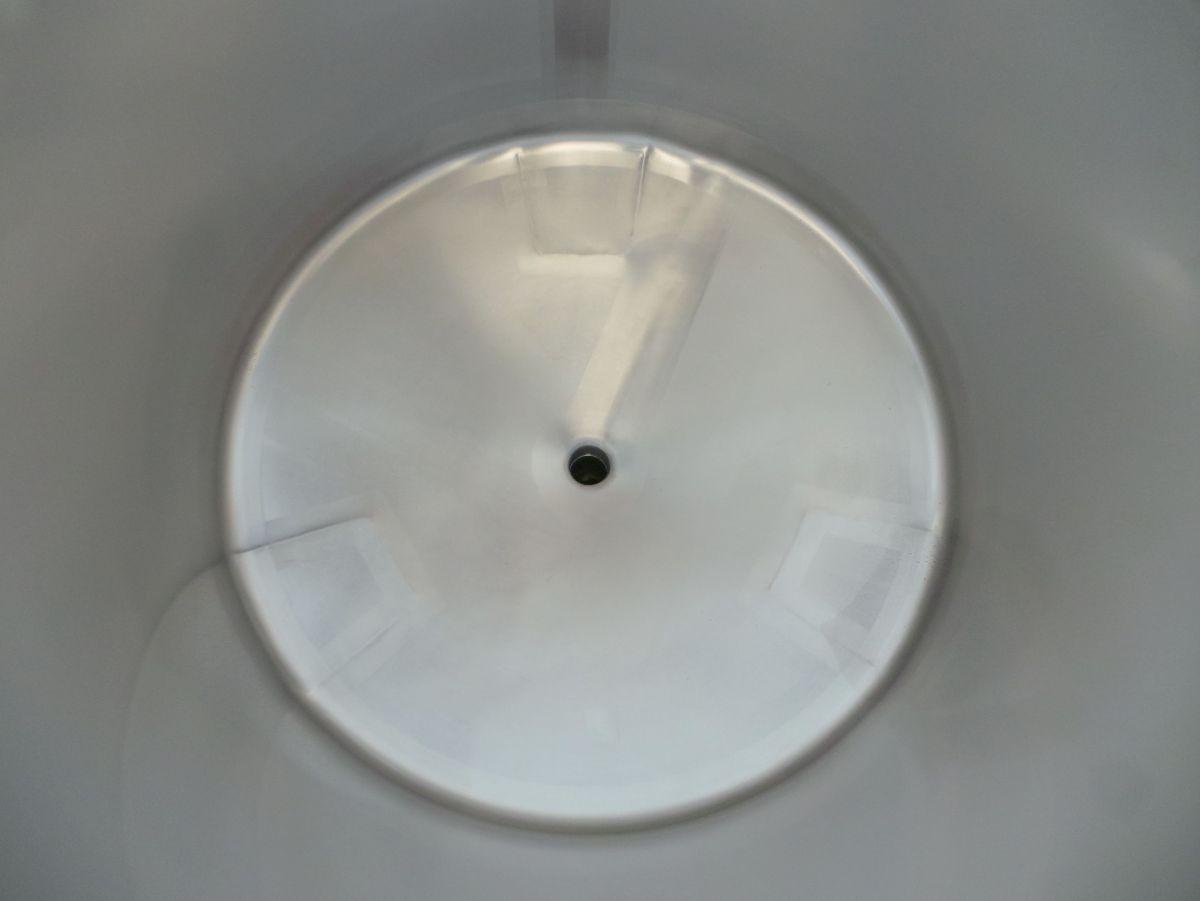

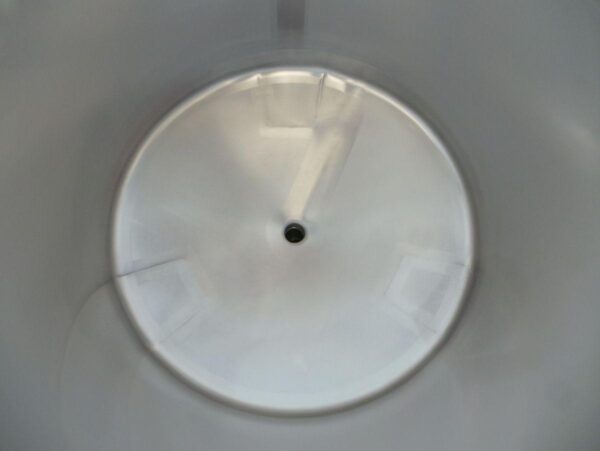

Bottom type: conical 20 °
Total discharge: yes

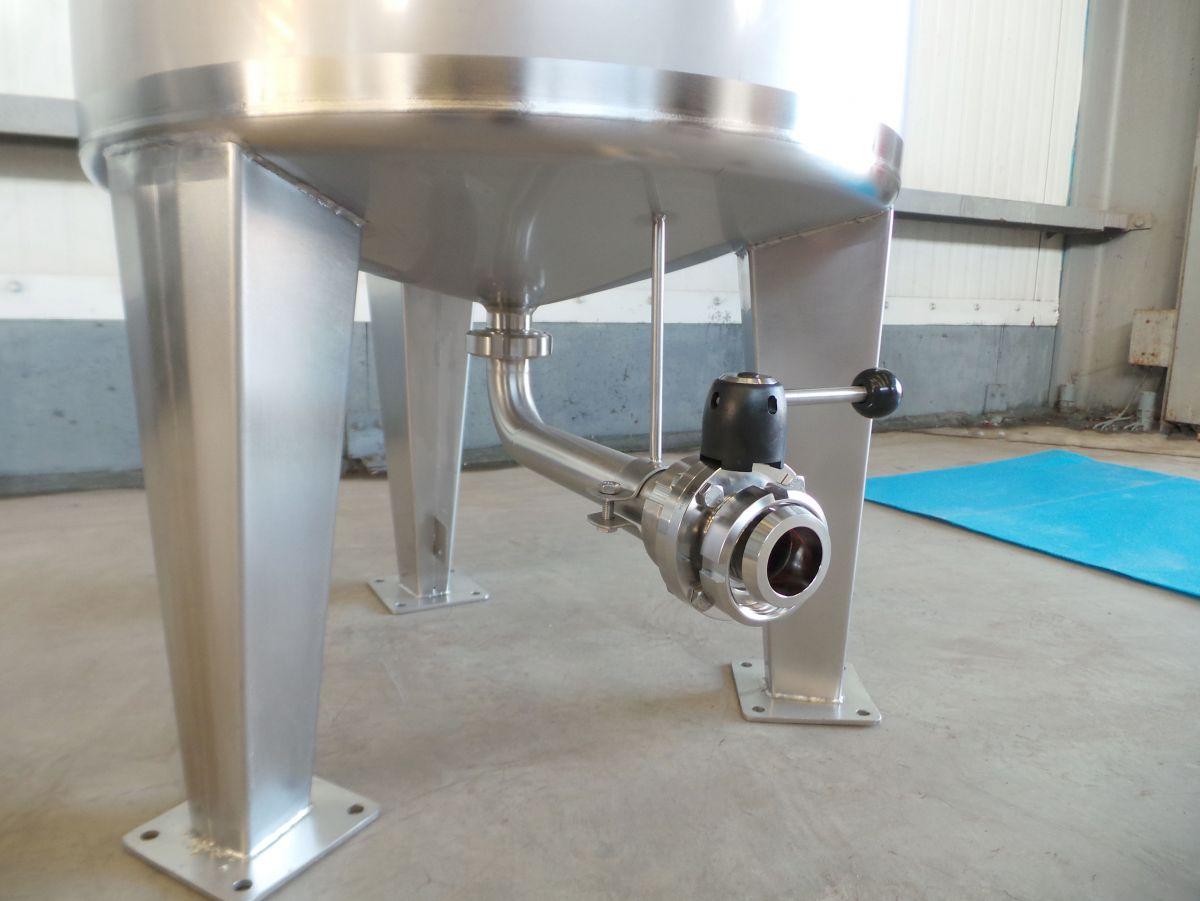

Fixation points: 3 non adjustable feet
Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional

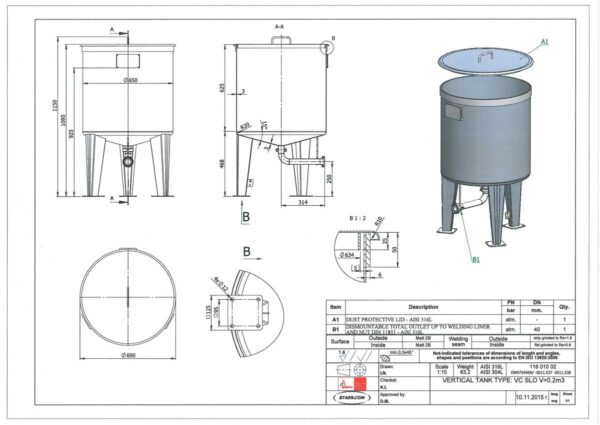

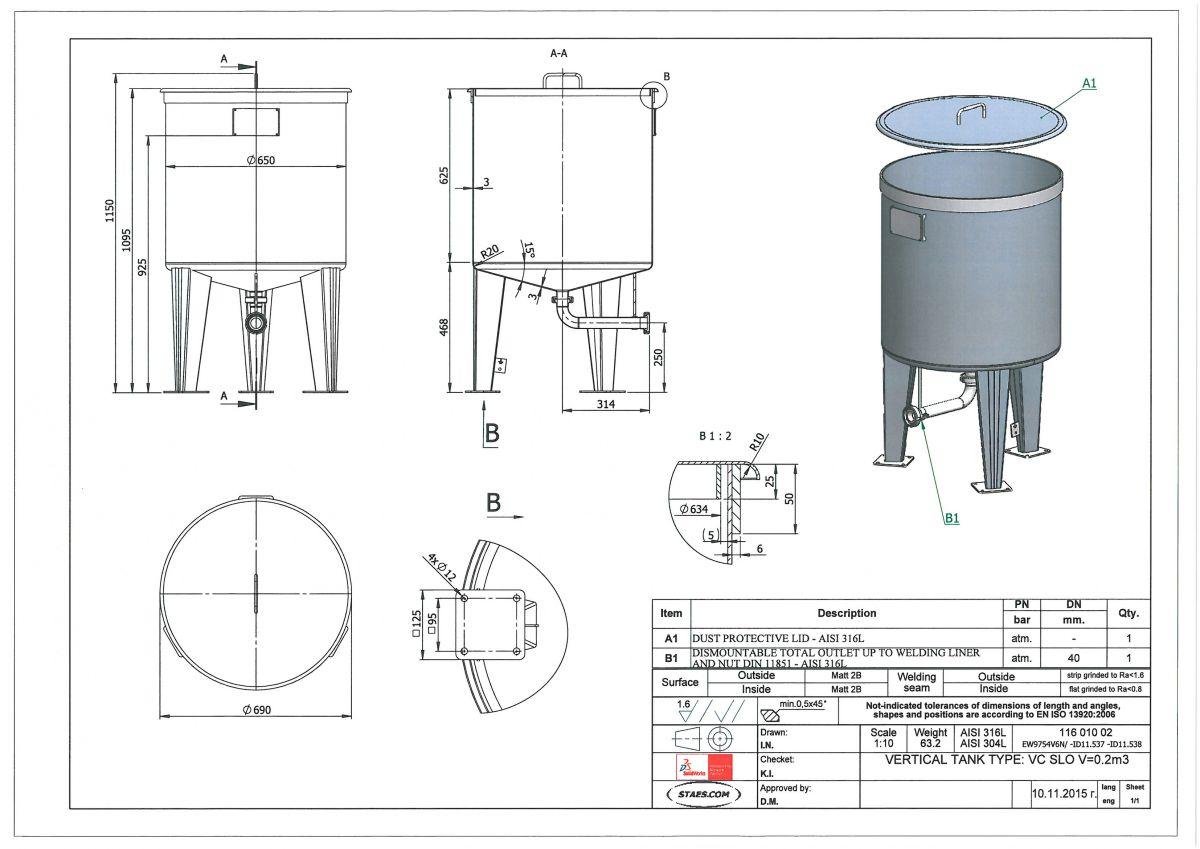

Technical drawing included: yes

Registration plate on the tank: yes
Flange for agitator: no
Spray ball: no
Tank outlet: inside Ø 40 mm
Outlet type: DIN11851 female

Total outlet valve: yes, optional

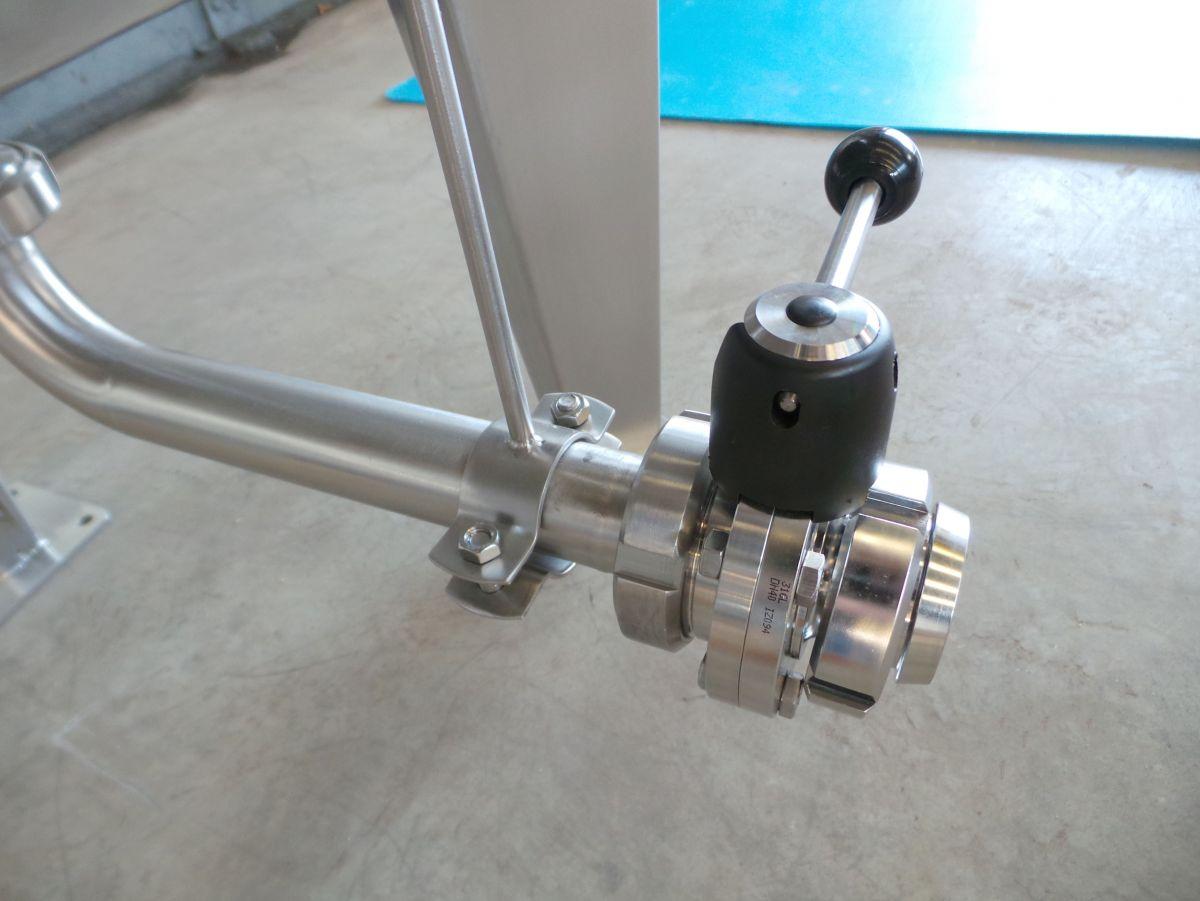

Type shut-off valve: butterfly valve
Top: 2 mm
Cylinder: 3 mm
Bottom: 3 mm

Distance from outlet to ground: 250 mm
Outer diameter tank: 650 mm
Cylinder height: 625 mm
Total height of tank: 1.150 mm
Empty weight tank: 65
