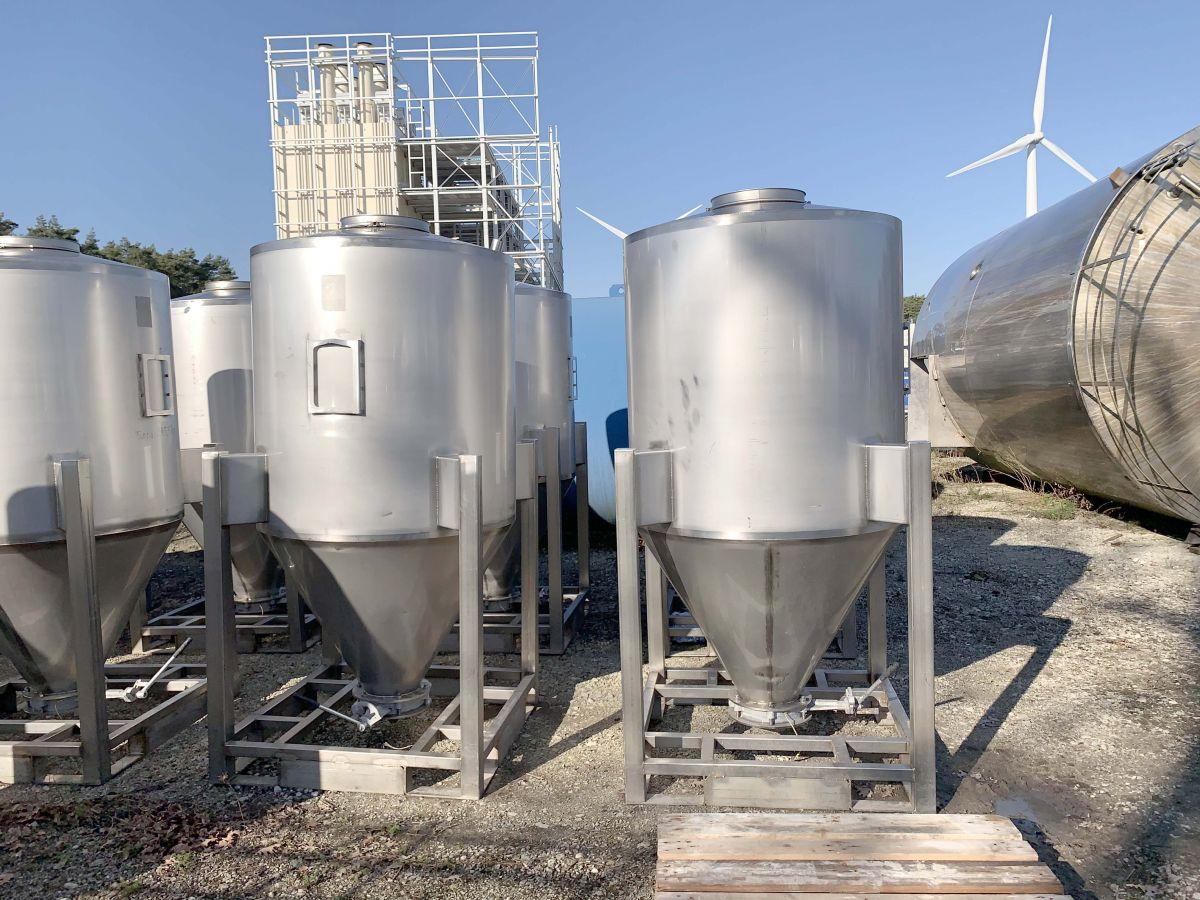

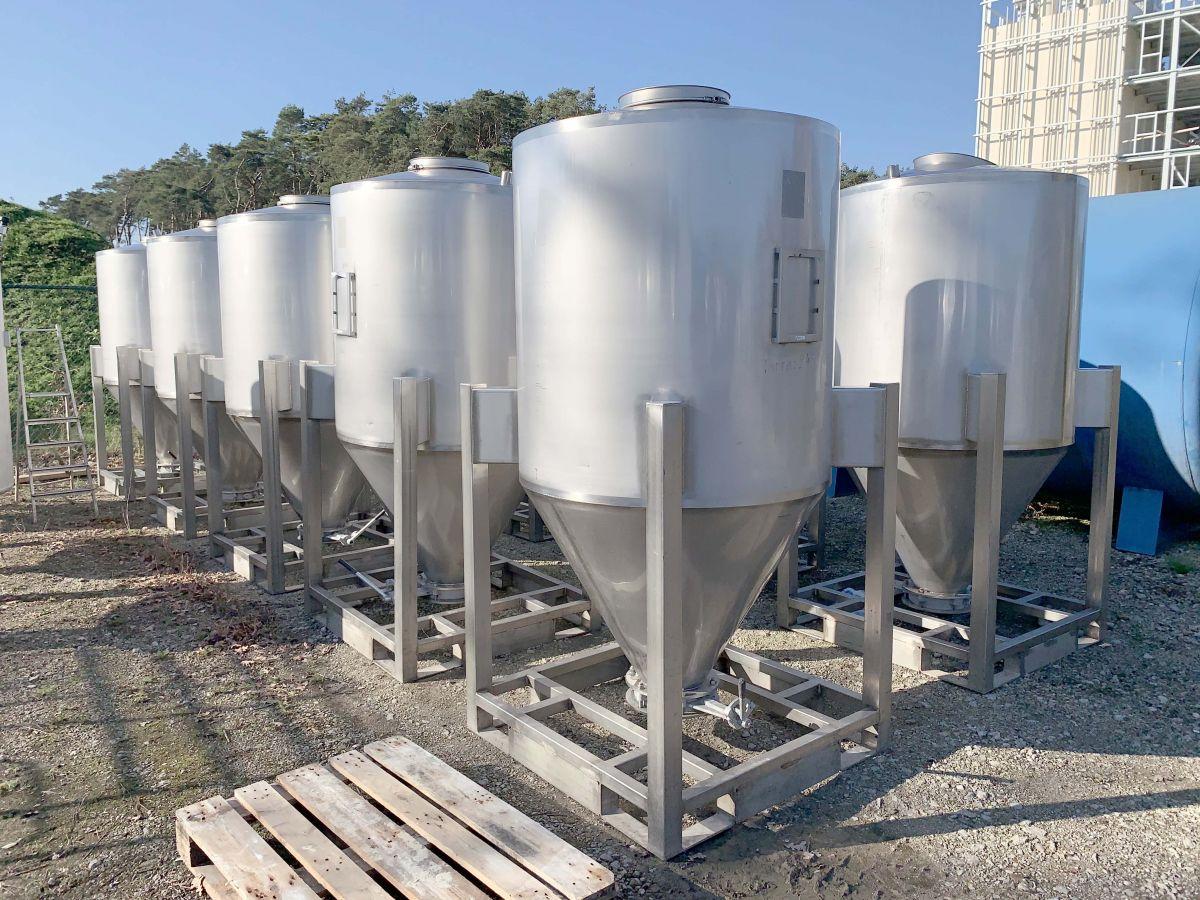

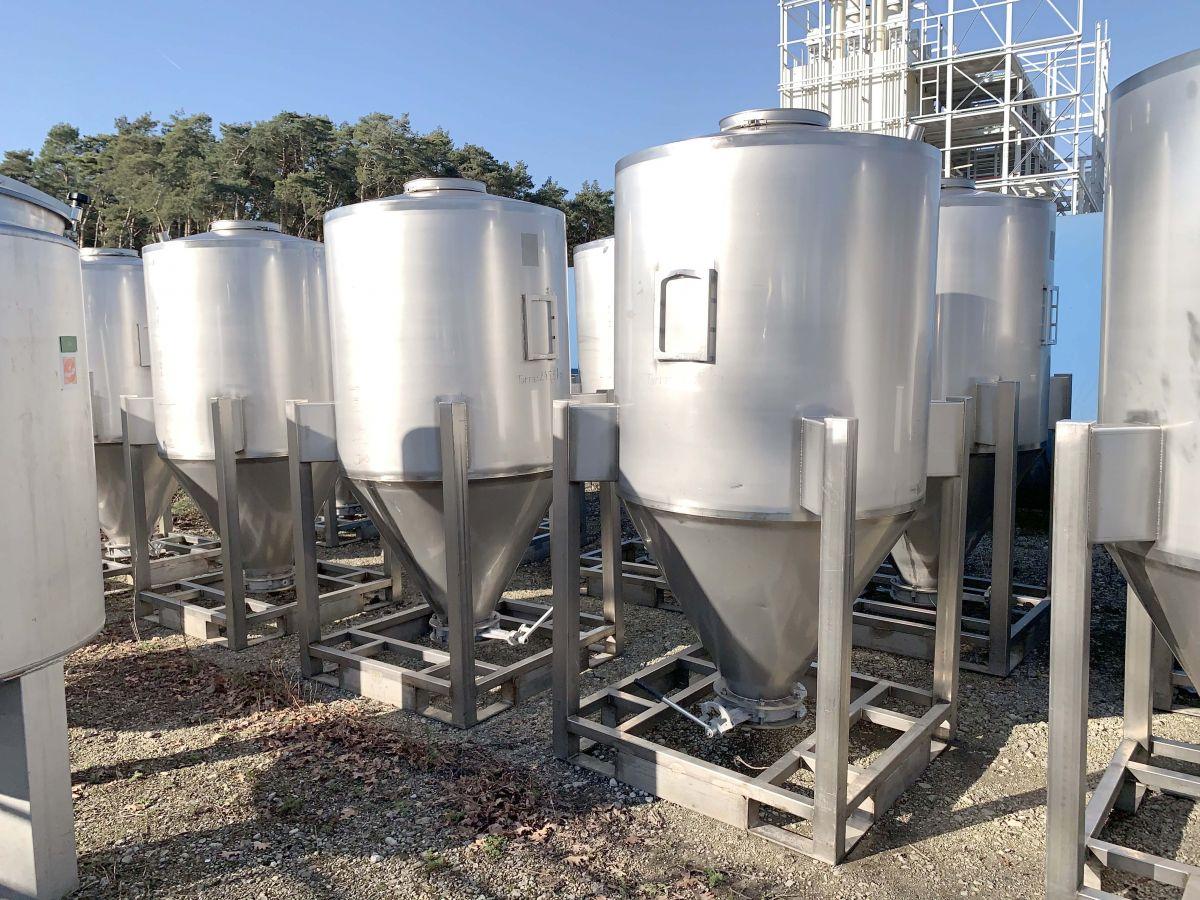

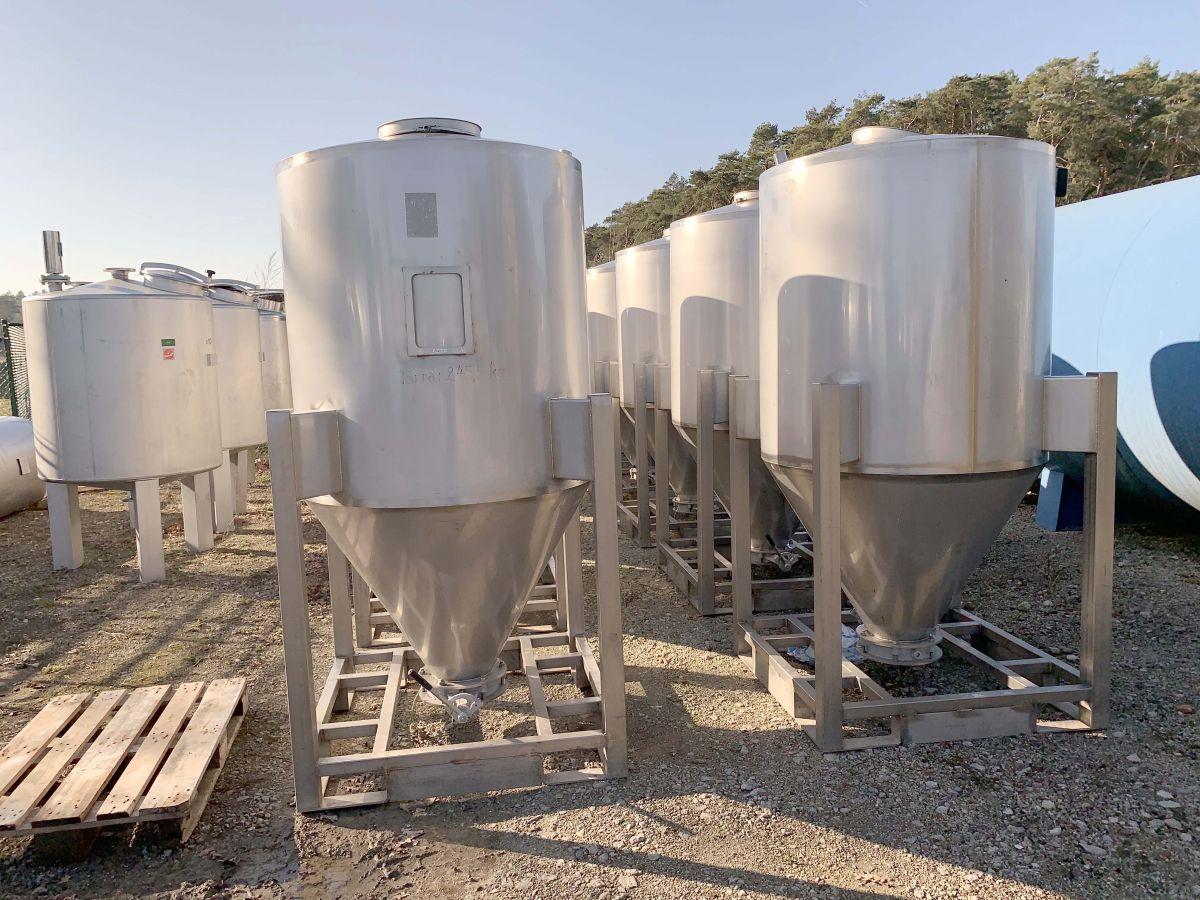

1800 liter i rostfritt 304

Description of the article

• Article type: second-hand transport tank
• Capacity: 1.800 L
• Working pressure in tank: ATM – atmosferic
• In contact with the product: SS AISI 304L (V2A)
• Model: vertical
• Configuration: single-skin
• Heat exchanger: no
• Insulation: no
• Agitator: no
• Mobile tank: no
• Top type: conical
• Shape of tank: cylindrical

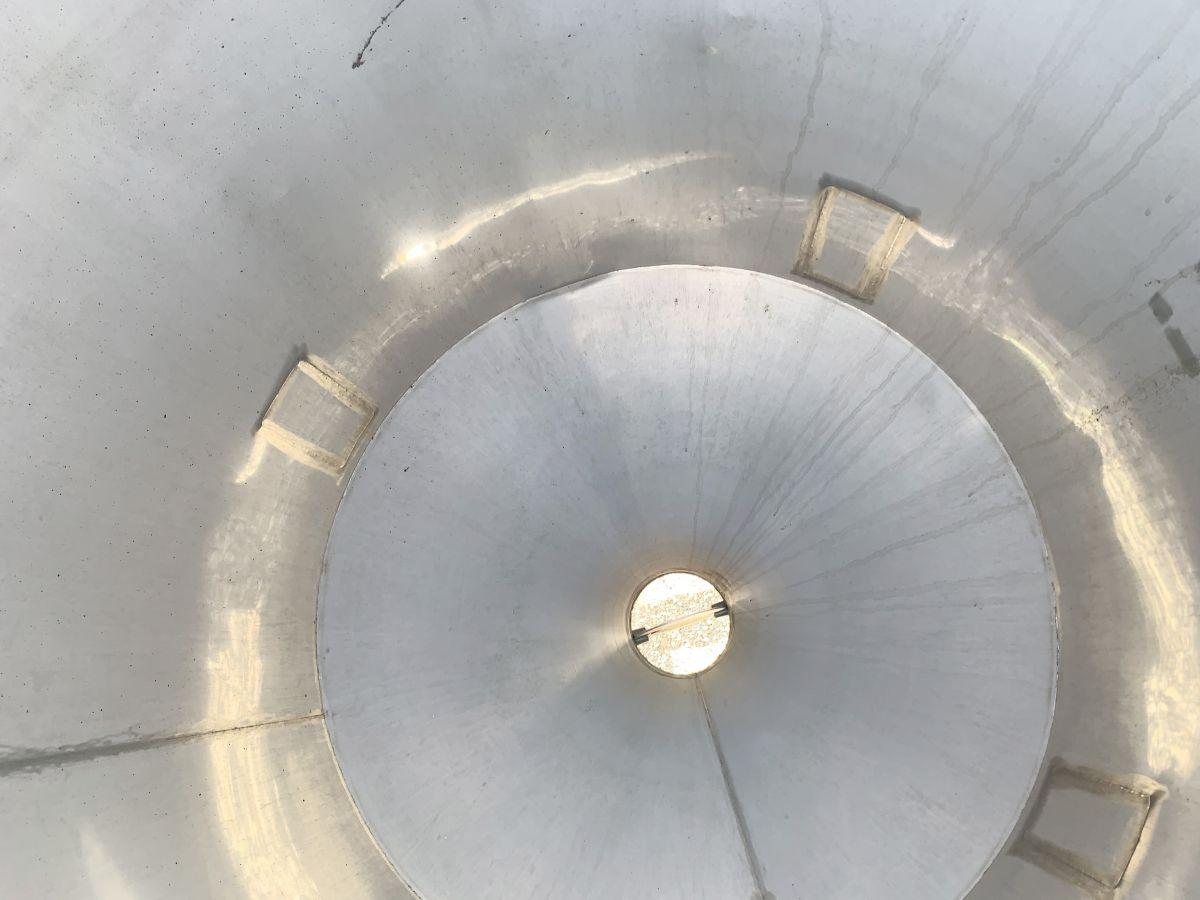

• Bottom type: strong conical 60 °
• Total discharge: yes

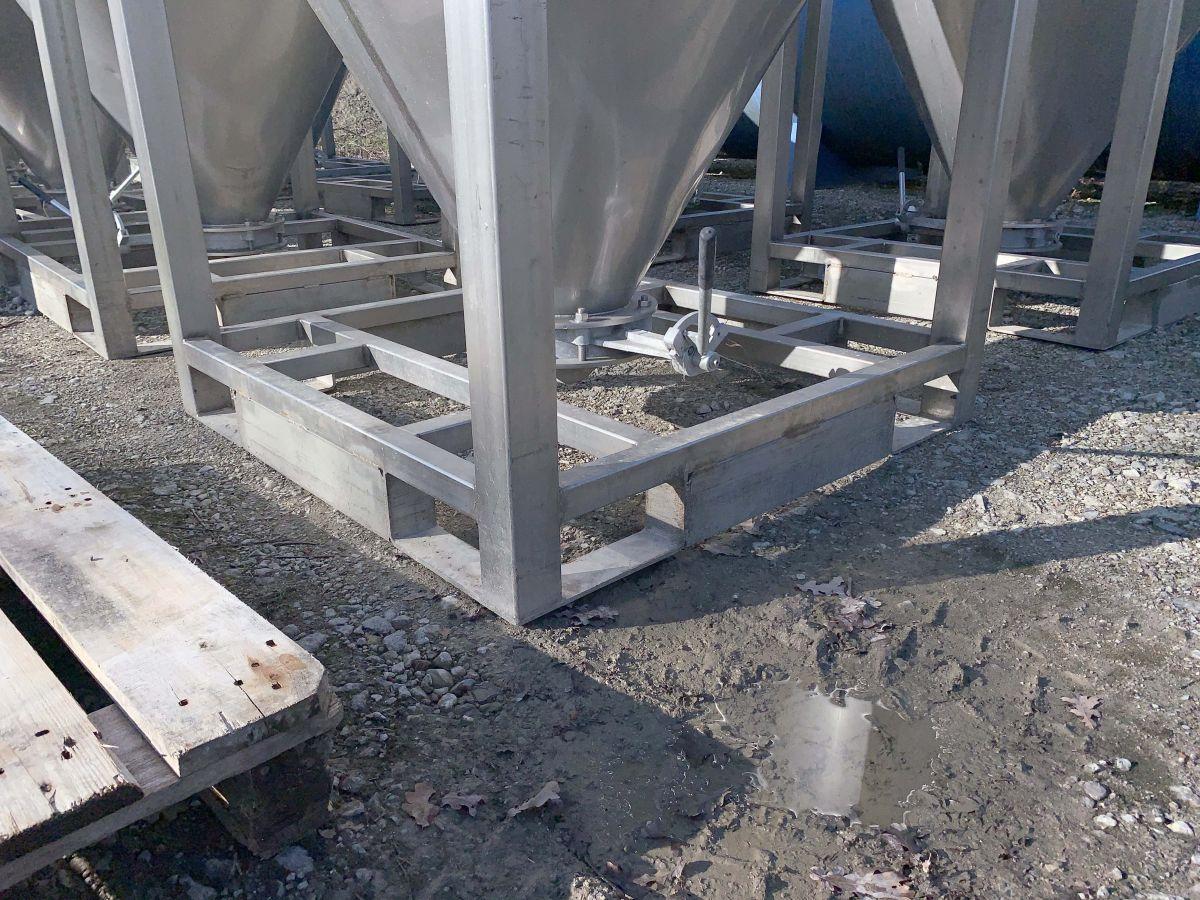

• Fixation points: 4 non adjustable feet

Overview materials

• Mat. wet parts: SS AISI 304L (V2A)
• Manway(s): RVS 304L
• Gasket manway(s): unknown
• Valve: RVS 304L
• Gasket shut-off valve (mat): unknown
• Fixation point(s): RVS 304L

Equipment

• Suitable for food industry: yes
• Documents included: no
• Technical drawing included: no
• Registration plate on the tank: no
• Flange for agitator: no
• Number of manways: 1

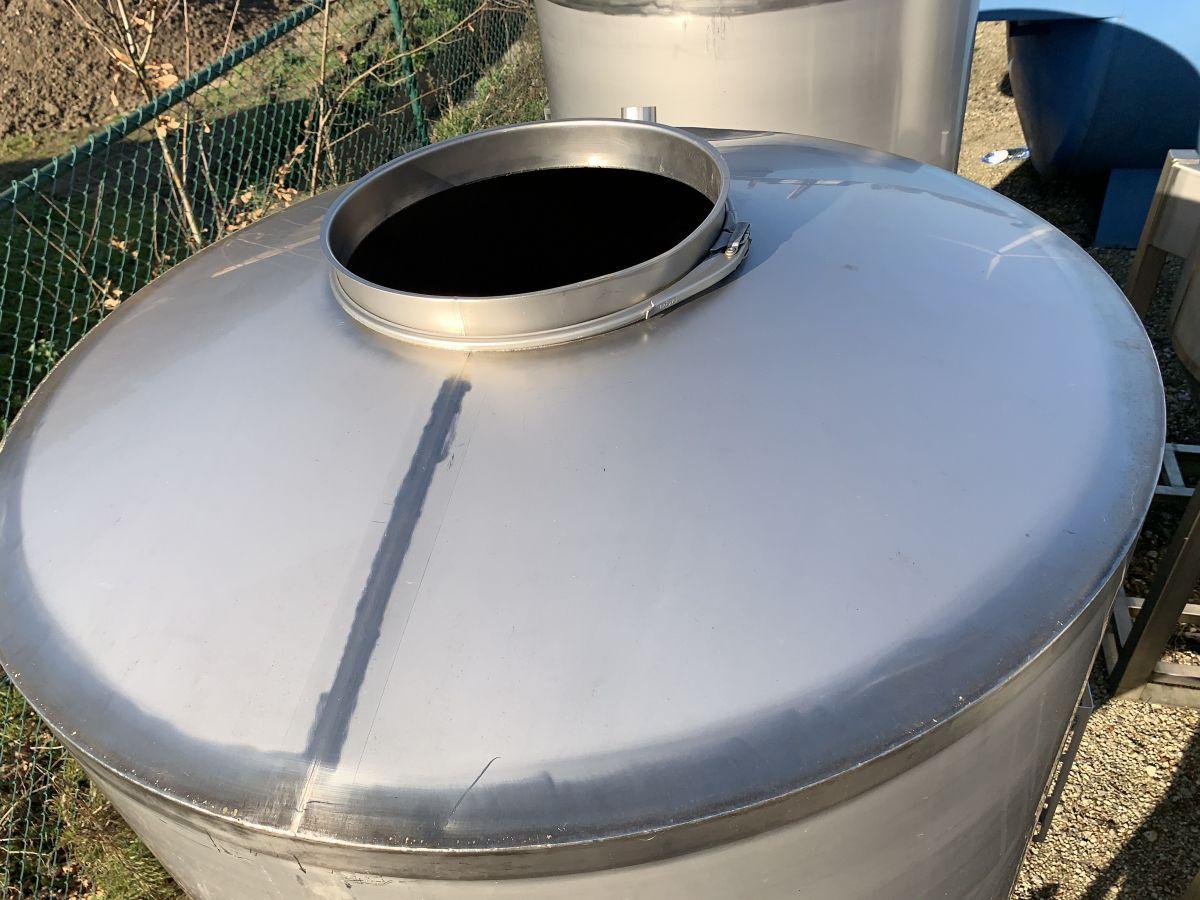

• Position manway: at the top
• Manway 1: Ø 400 mm
• Tank outlet: inside Ø 250 mm
• Total outlet valve: yes

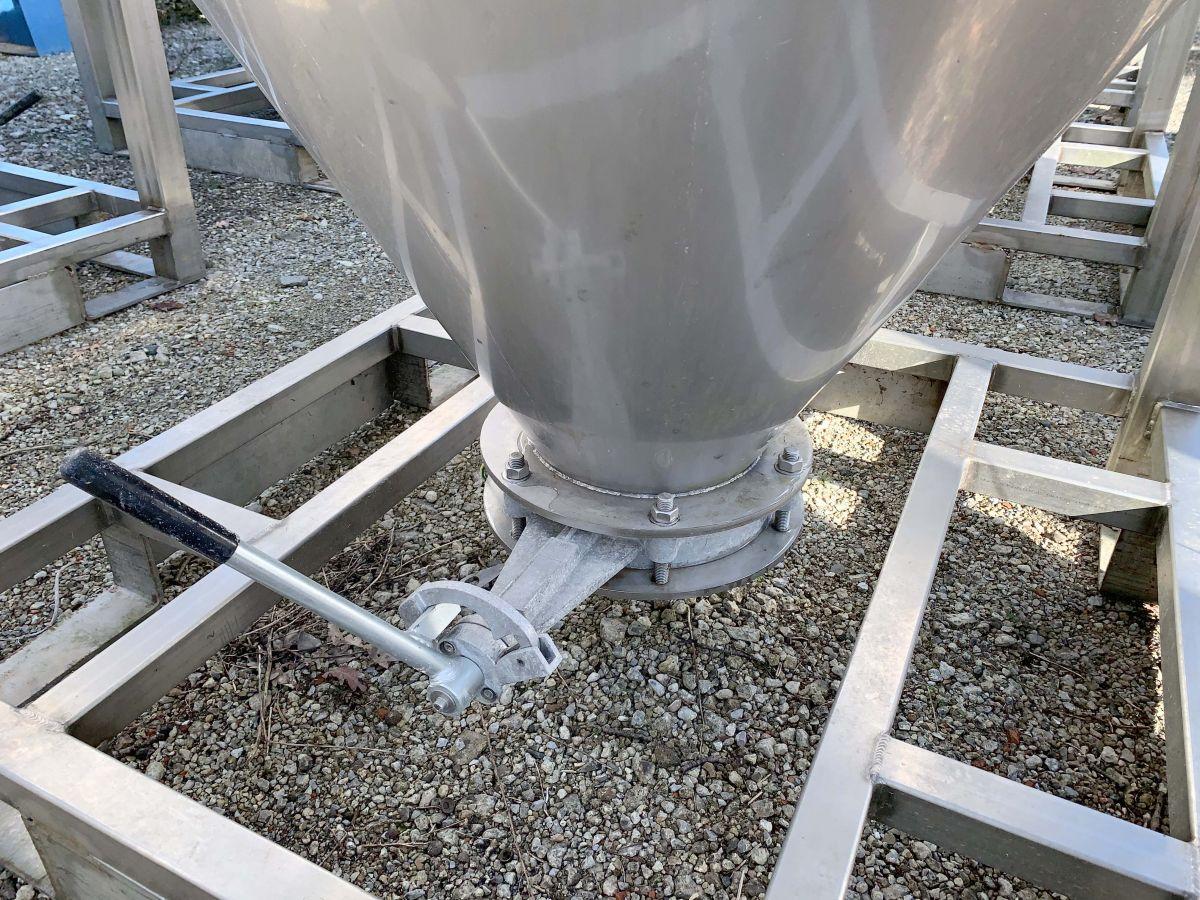

• Type shut-off valve: butterfly valve

Wall thicknesses of the inner tank

• Top: 2 mm
• Cylinder: 2 mm
• Bottom: 2 mm

Dimensions of the tank

• Distance from outlet to ground: 300 mm
• Outer diameter tank: 1.195 mm
• Cylinder height: 1.250 mm
• Height of bottom: 800 mm
• Total height of tank: 2.500 mm
• Total outer width: 1.195 mm
• Total outer length: 1.195 mm
• Empty weight tank: 250 Kg
