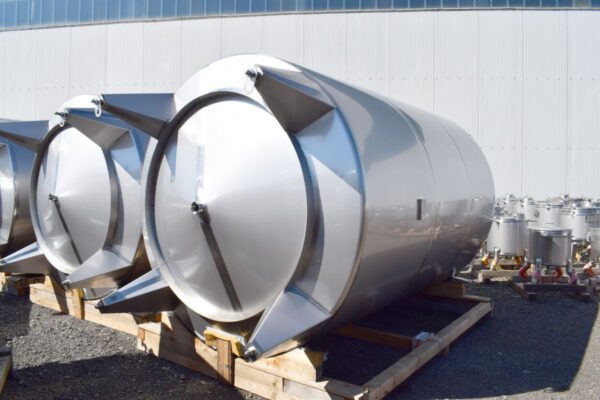

15300 liter i Syrafast 316

item available on order

Article type: brand new storage tank – type K5-SL
Capacity: 15.300 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Finish stainless steel: 2B

Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical

Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no

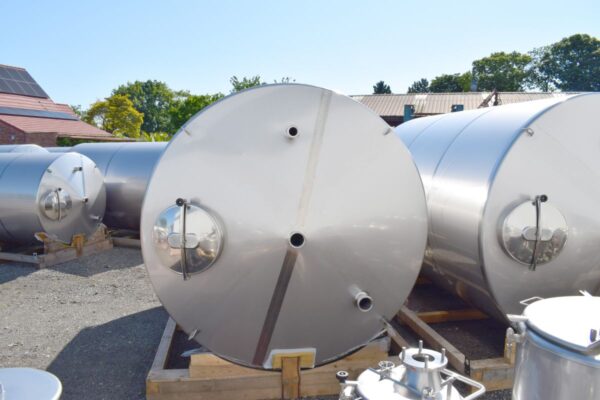

Top type: conical 15 °
Shape of tank: cylindrical

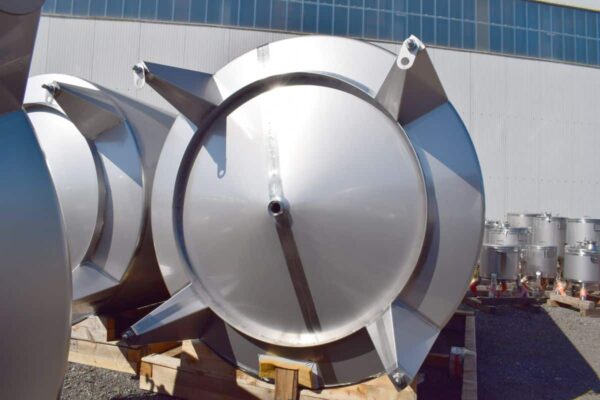

Bottom type: conical 15 °
Total discharge: yes
Fixation points: 4 adjustable feet

Manway(s): RVS 316
Gasket manway(s): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional

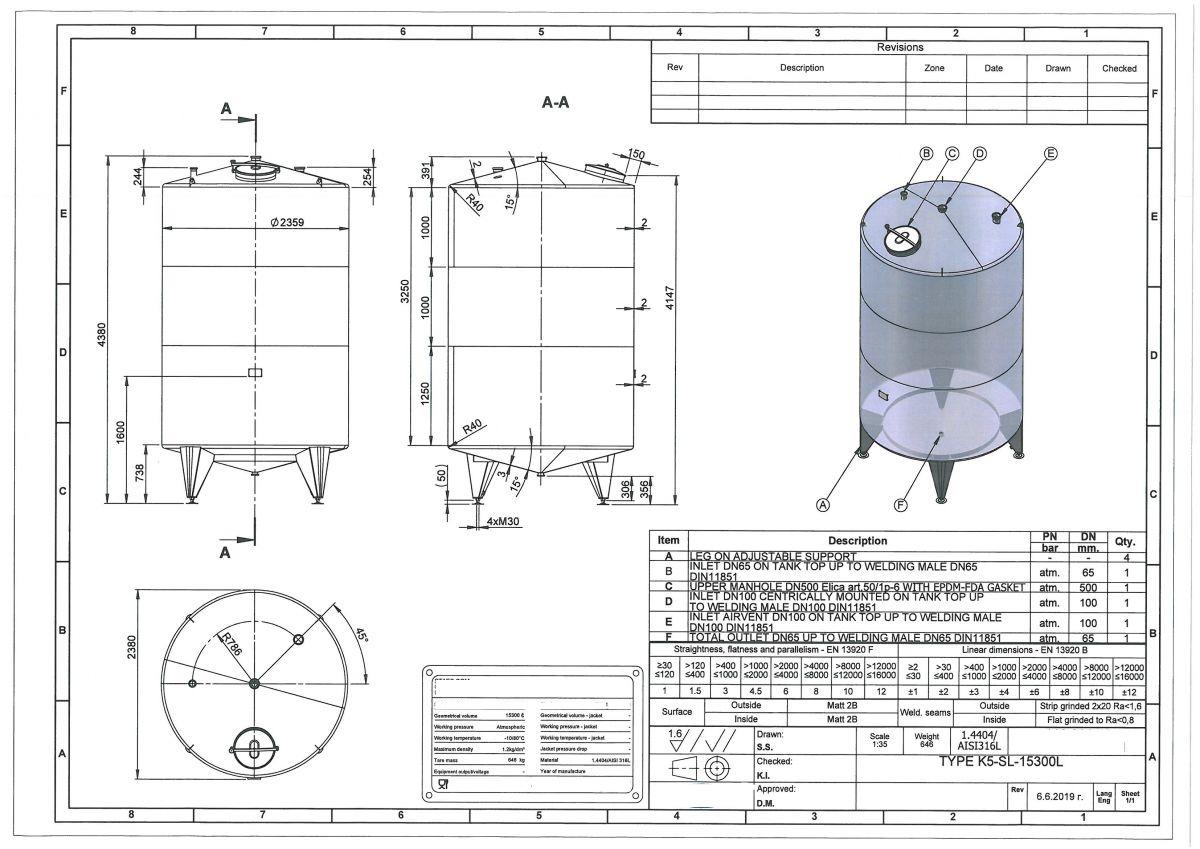

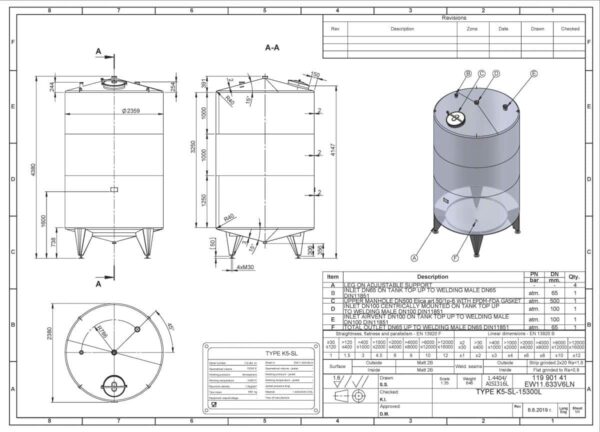

Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no
Number of manways: 1

Position manway: at the top
Manway 1: 500 mm
Tank outlet: inside Ø 65 mm
Outlet type: DIN11851 male
Total outlet valve: yes, optional

Top: 2 mm
Cylinder: 2 mm
Bottom: 3 mm
Outer diameter tank: 2.359 mm
Cylinder height: 3.250 mm

Feet height: 738 mm
Total height of tank: 4.380 mm
Empty weight tank: 700
