15300 liter i Rostfritt 304

item available on order

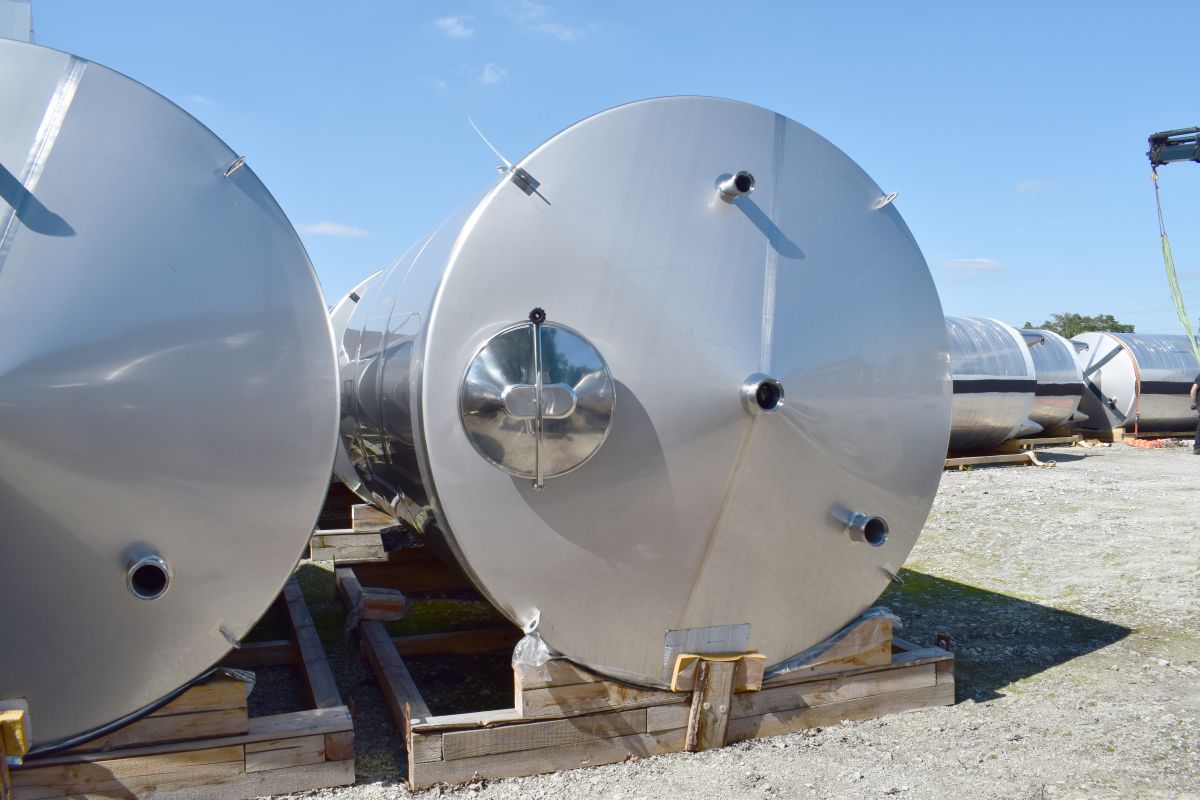

Article type: brand new storage tank – type K3-SL
Capacity: 15.300 L
Maximal density of the product: 1.200
Ra inner weld: 1,60
Finish stainless steel: 2b

Working pressure in tank: ATM – atmosferic
Max. working temperature: 80 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 304L (V2A)
Model: vertical

Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no

Top type: conical 15 °
Shape of tank: cylindrical

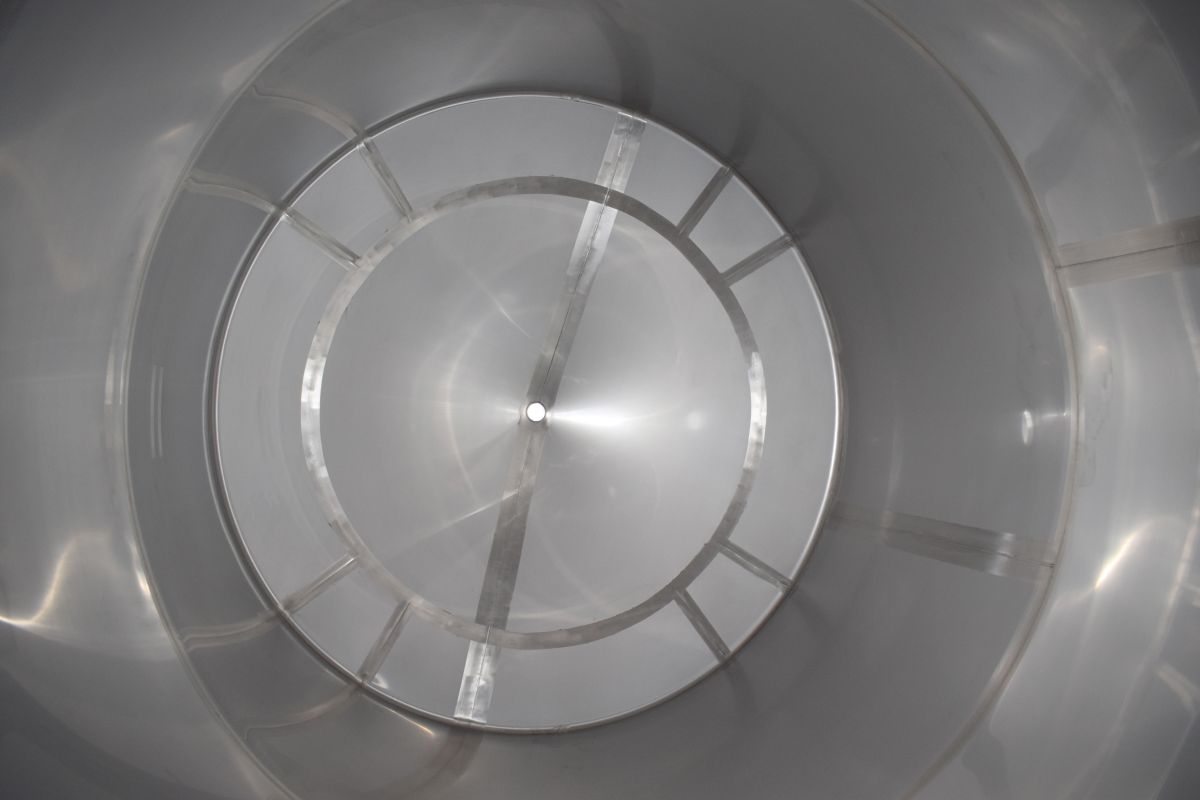

Bottom type: conical 15 °
Total discharge: yes
Fixation points: 4 adjustable feet

Legs: Set of baseplates and adjusting pieces included
Manway(s): RVS 304L
Gasket manway(s): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes

Documents included: yes, optional

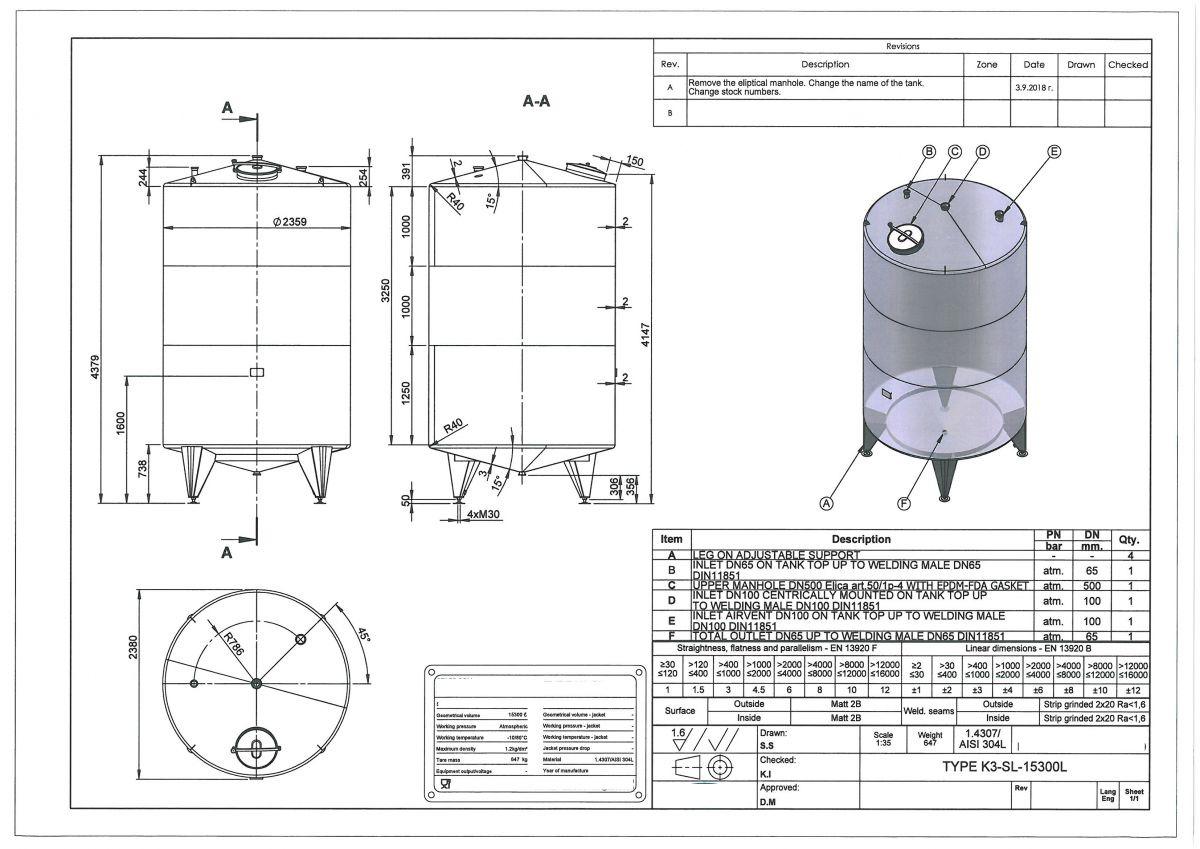

Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no

Number of manways: 1
Position manway: at the top
Manway 1: 500 mm
Spray ball: yes, optional
Tank outlet: inside Ø 65 mm

Outlet type: DIN11851 male
Total outlet valve: yes, optional
Top: 2 mm
Cylinder: 2 mm
Bottom: 3 mm

Distance from outlet to ground: 306 mm
Outer diameter tank: 2.359 mm
Cylinder height: 3.250 mm
Feet height: 738 mm
Total height of tank: 4.379 mm

Empty weight tank: 647
