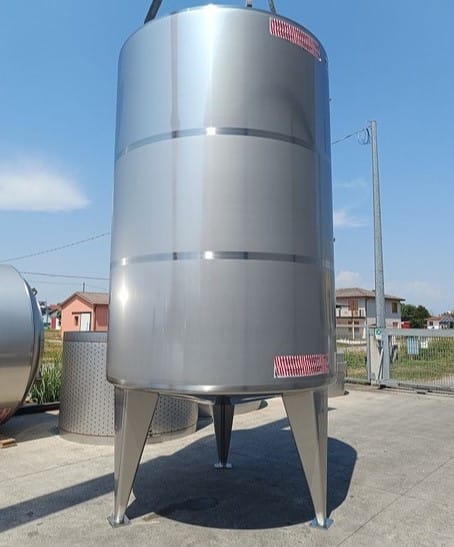

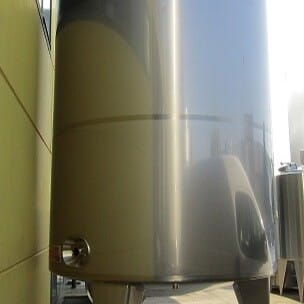

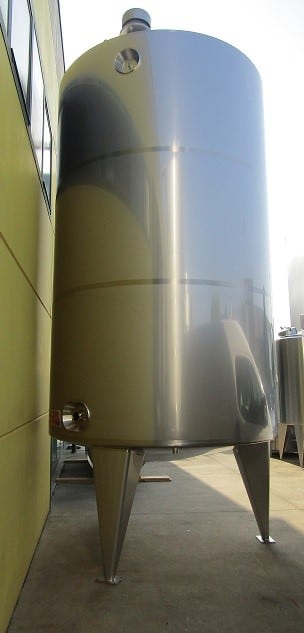

15000 liter tank i Syrafast 316

Additional information: Total height as per drawing Volumetric volume (L): 15.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 90 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 48 L Max Overpressure: 3 Bar Max. working temperature: 90 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: yes Position of manway: headside Outlet of tank: 76 Internal diameter tank: 2.300 mm Outer diameter tank: 2.450 mm Cylinder height: 3.750 mm Total height of tank: 5.610 mm
