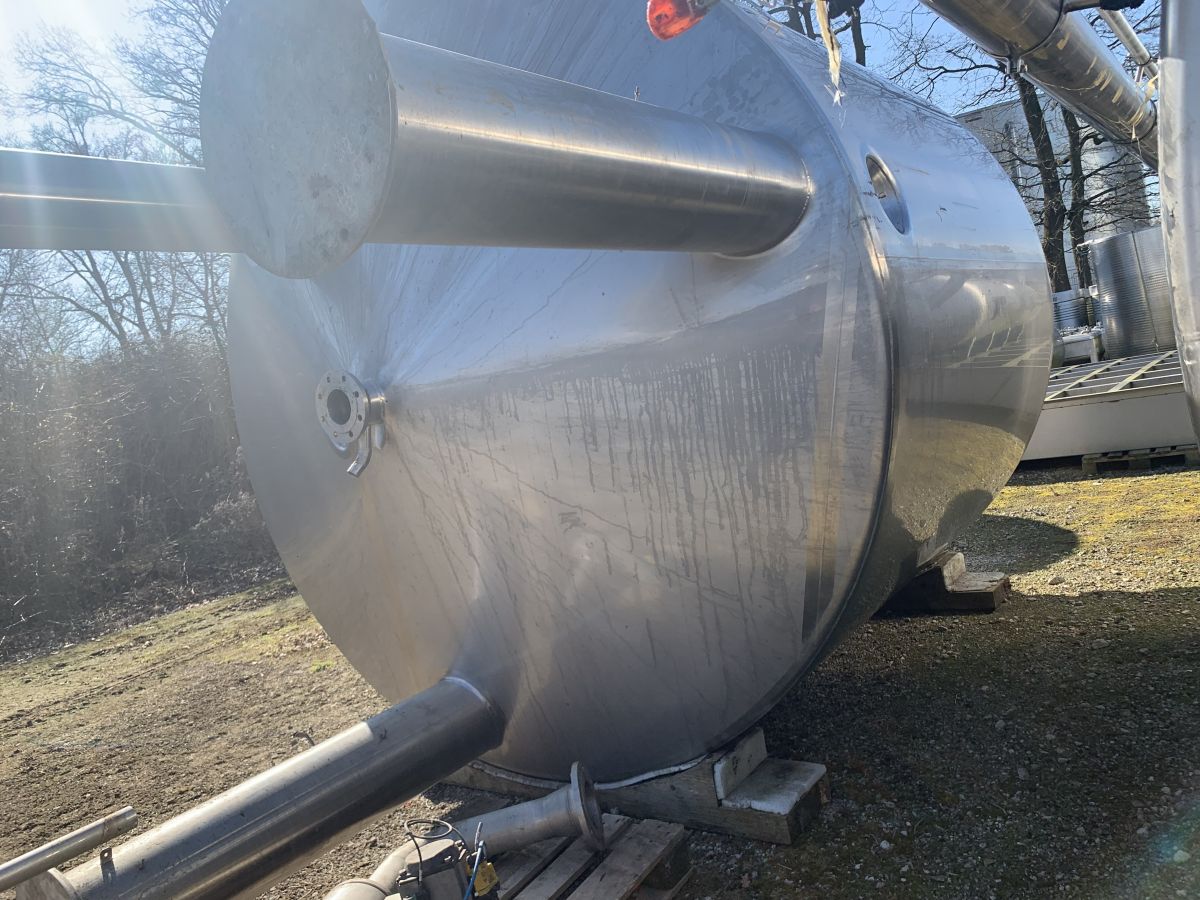

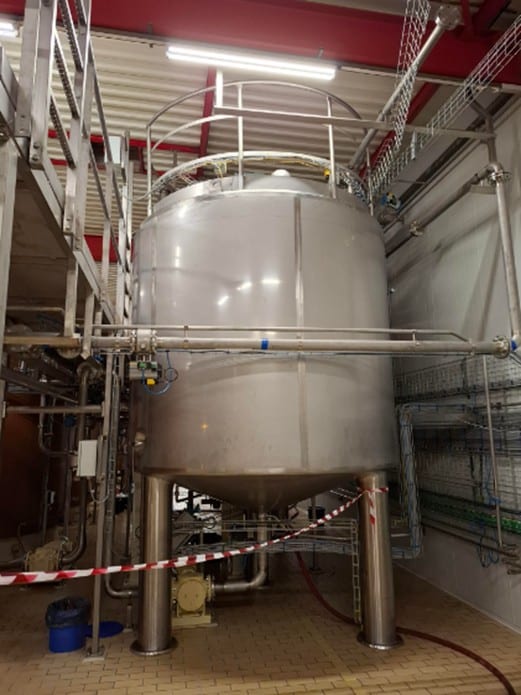

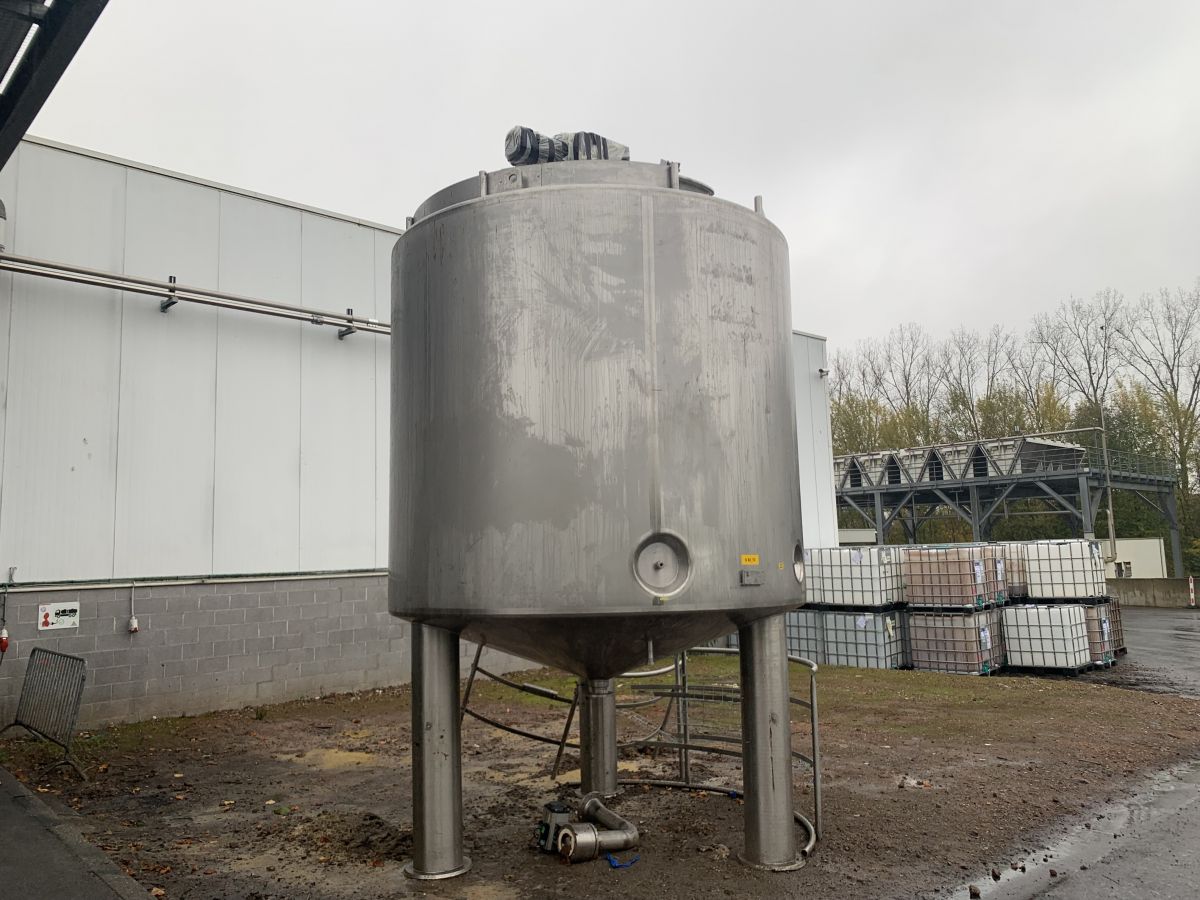

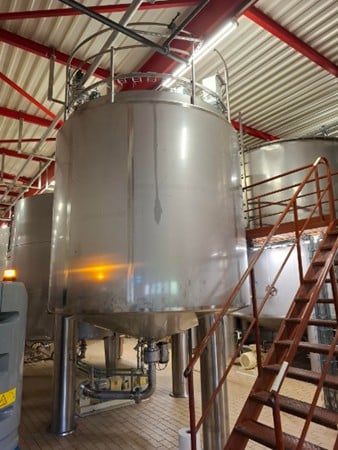

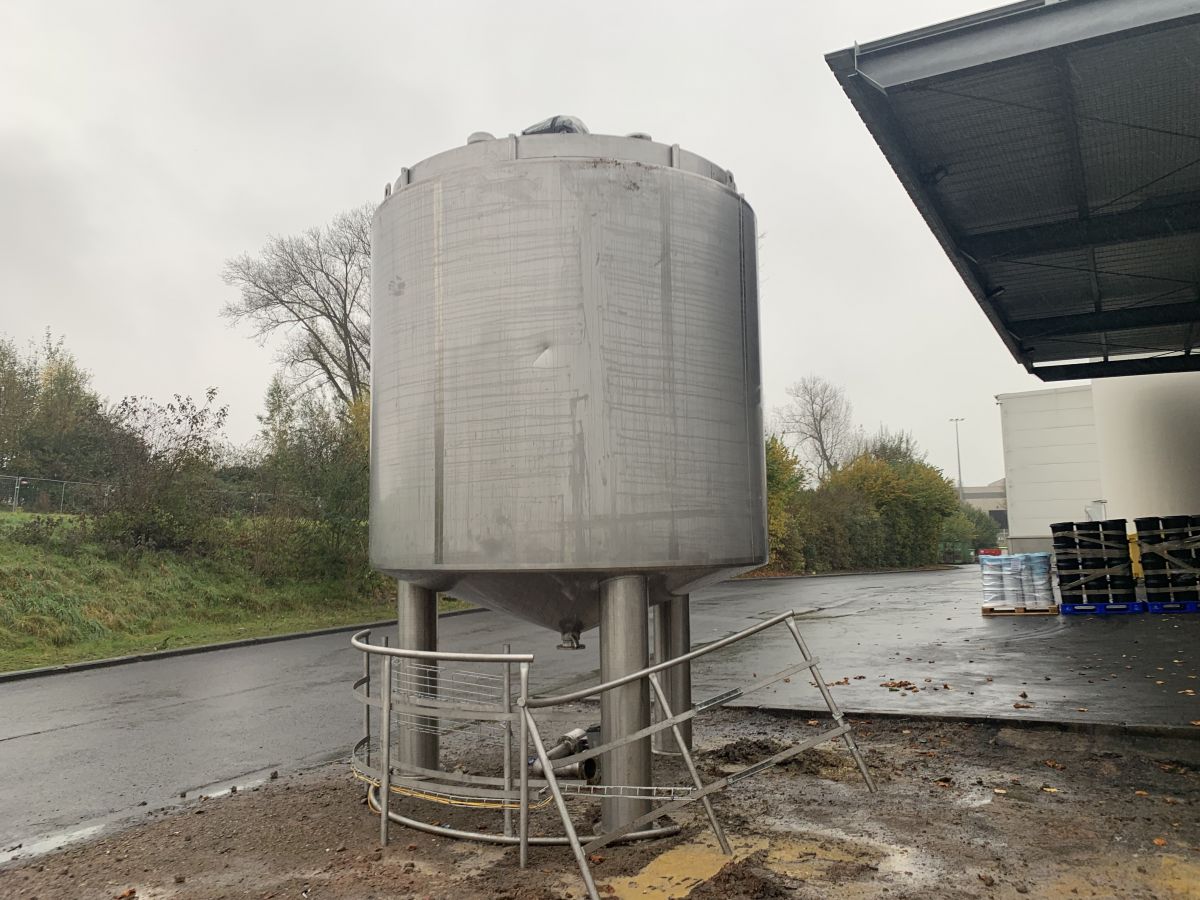

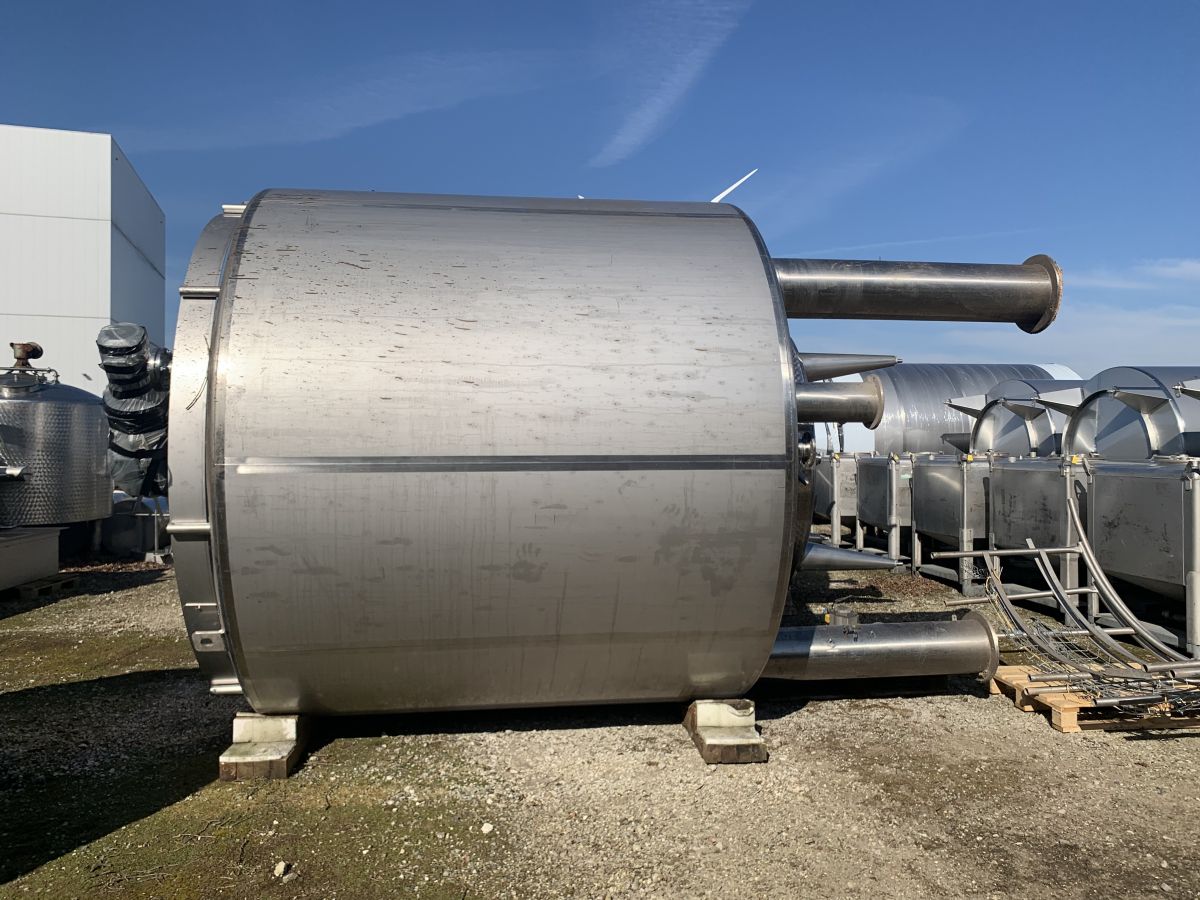

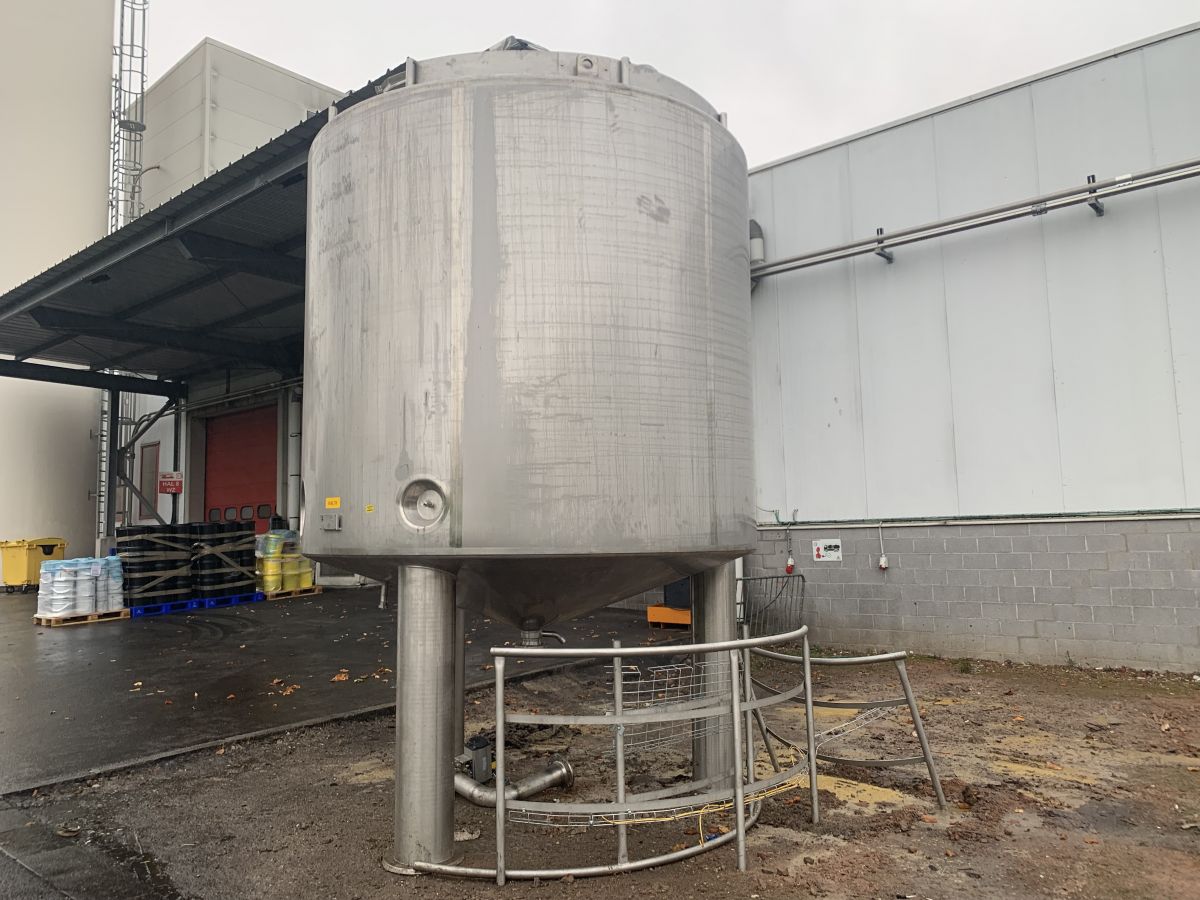

15000 liter tank i Rostfritt 304

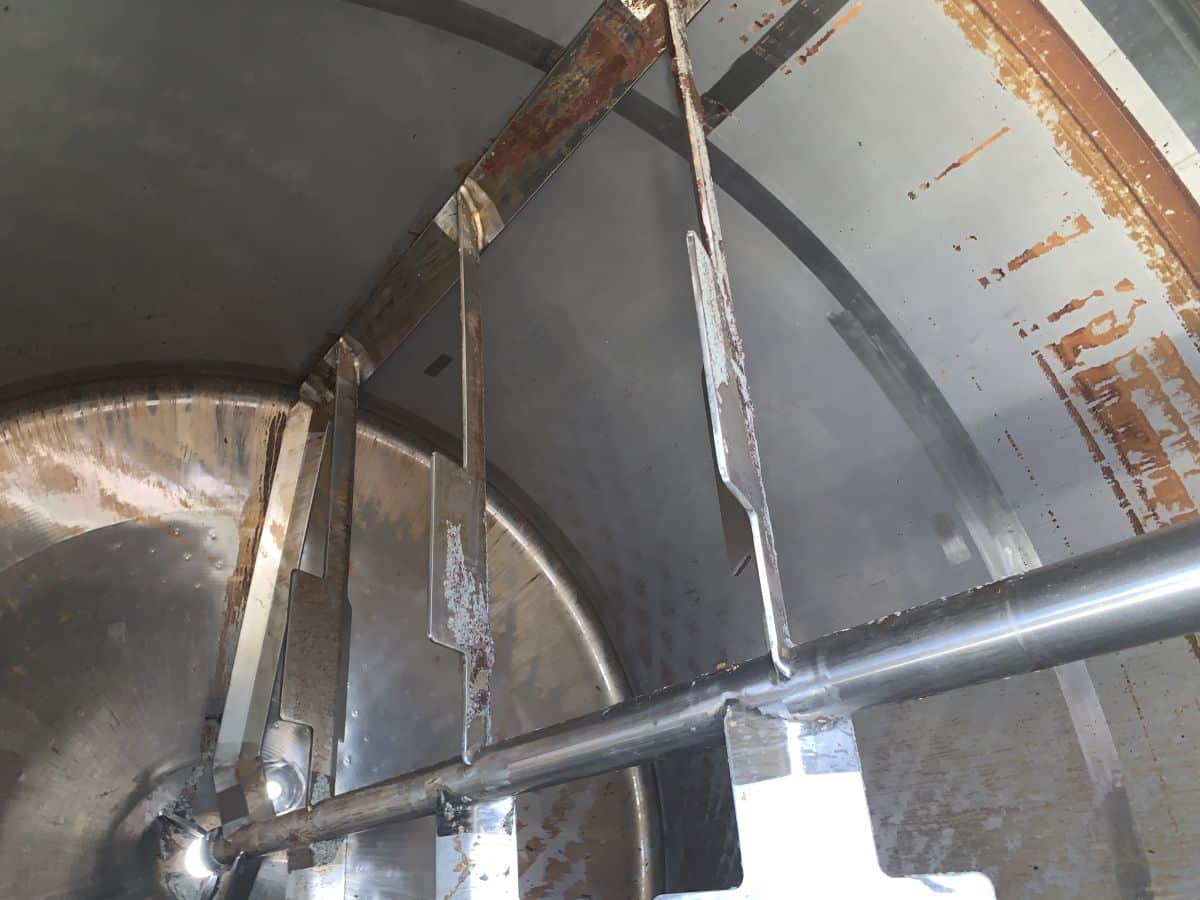

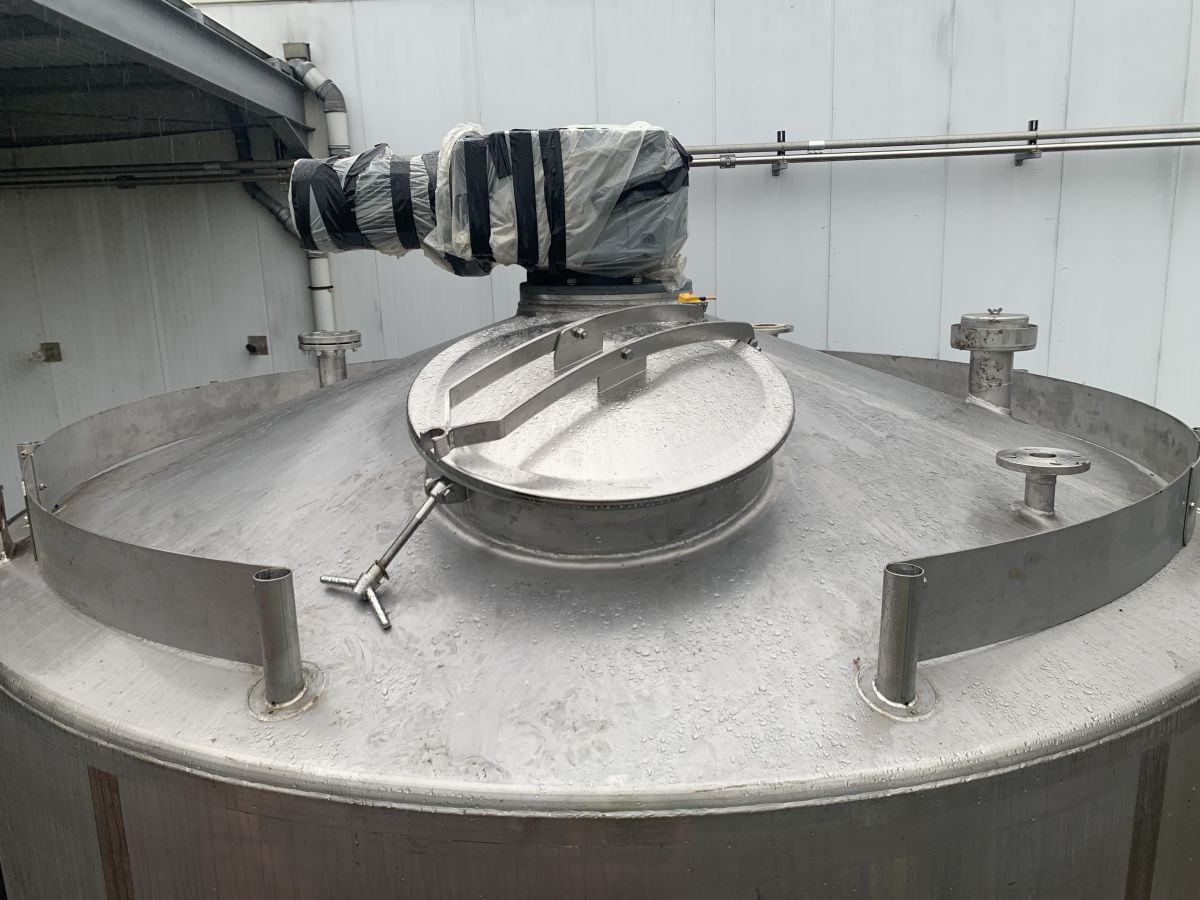

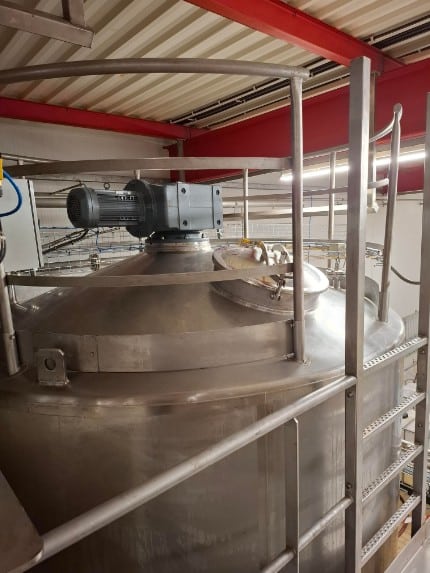

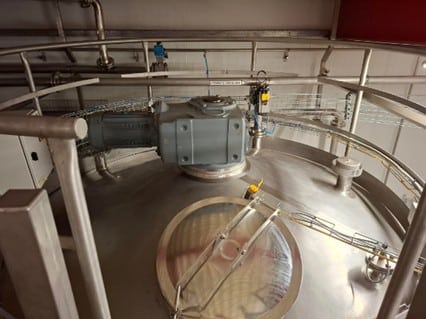

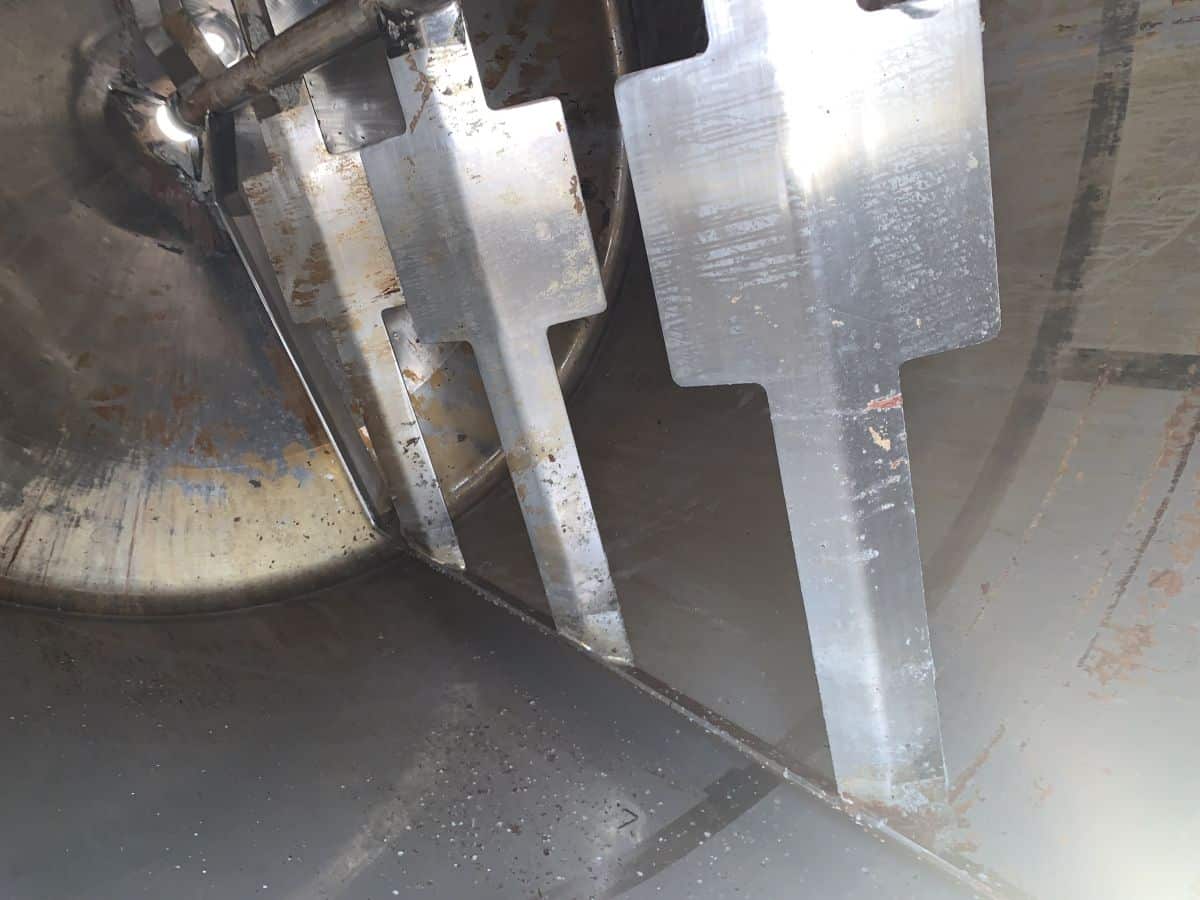

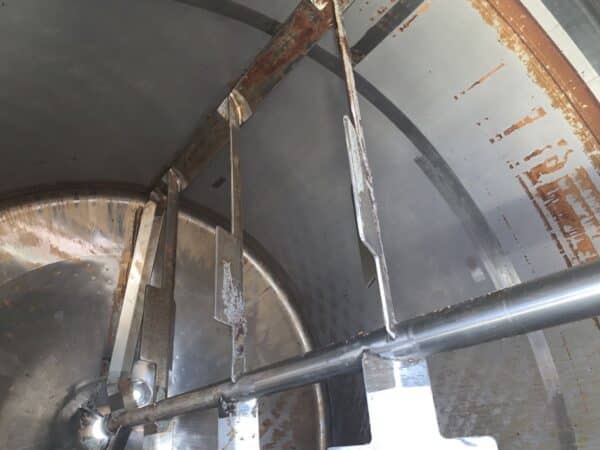

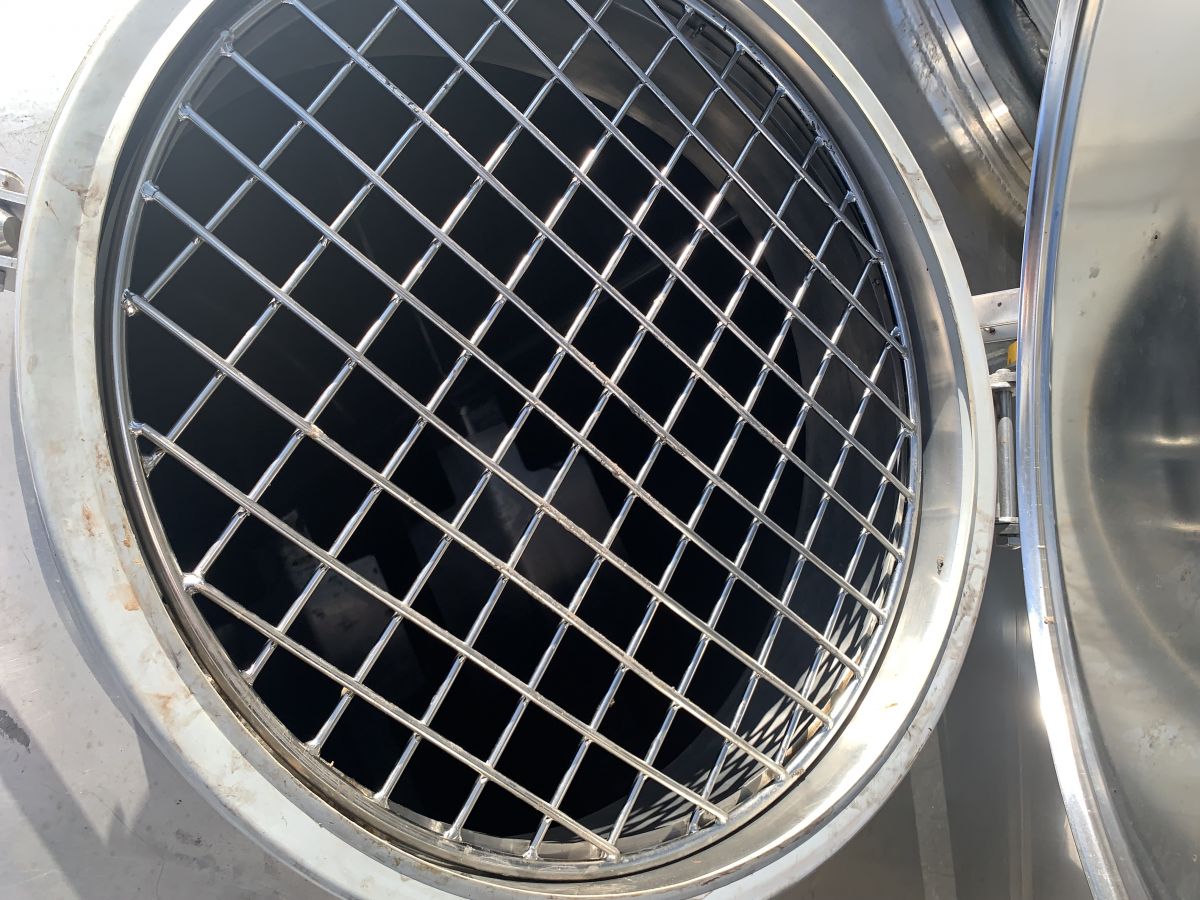

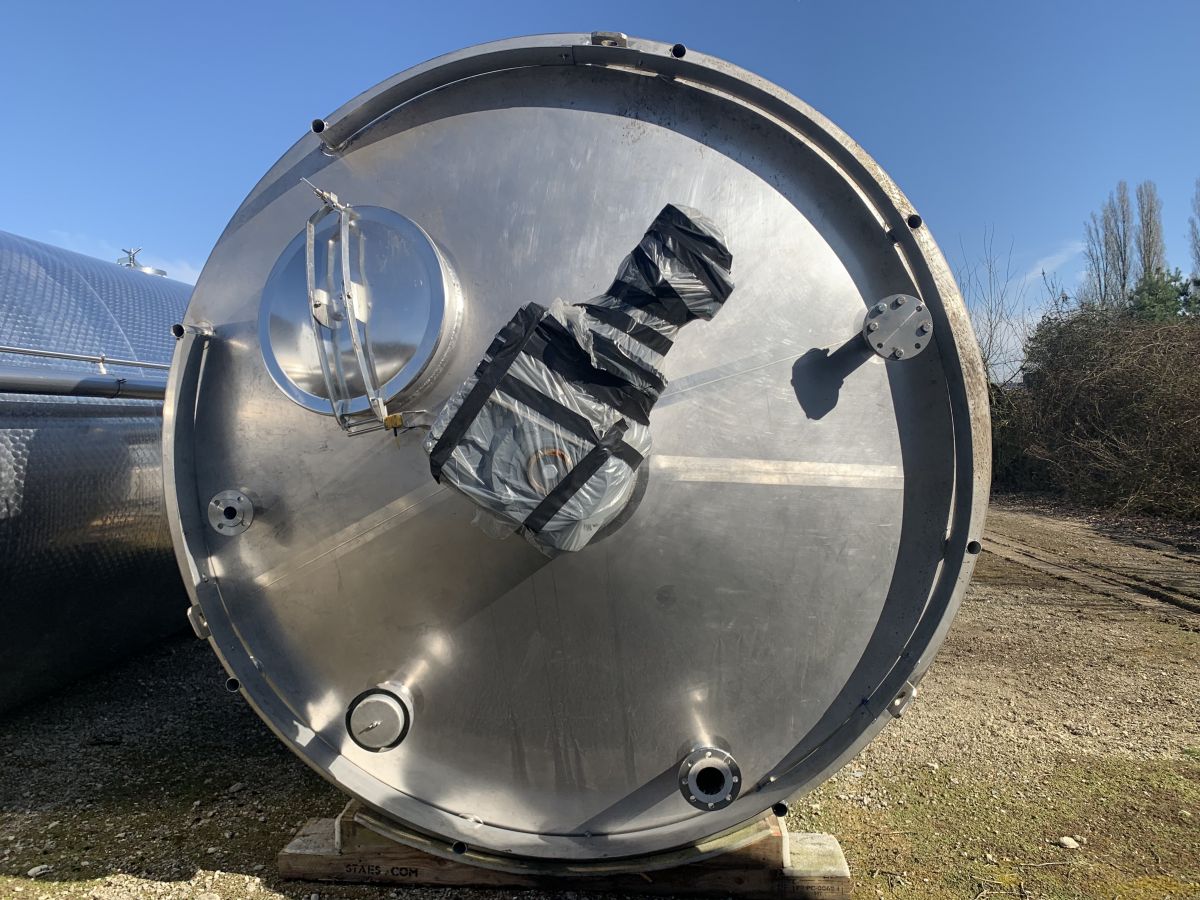

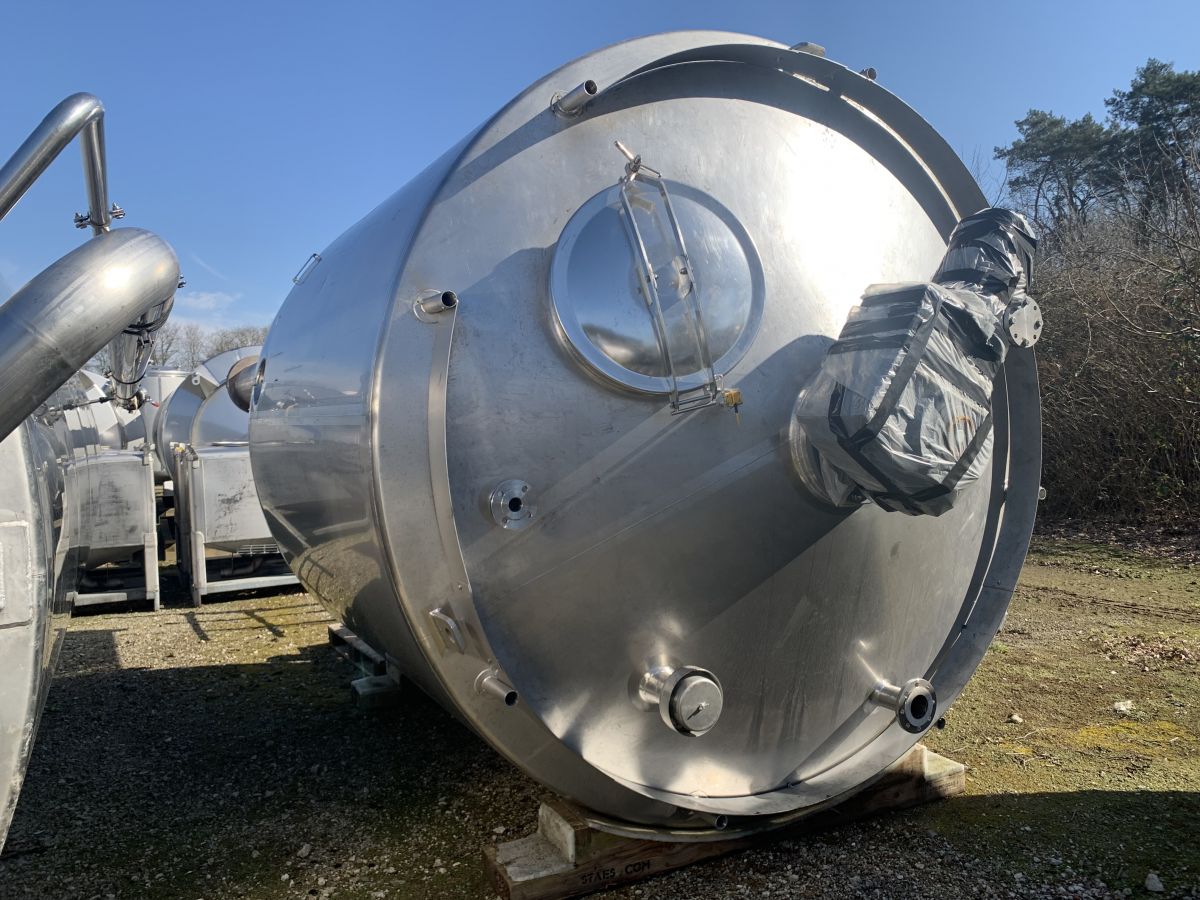

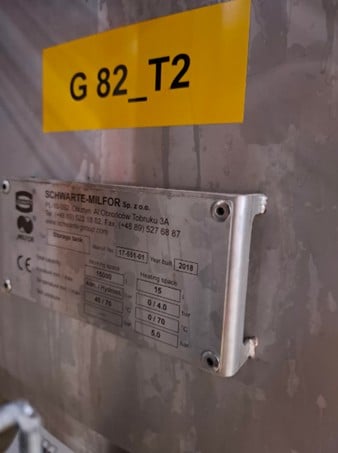

Article type: second-hand mixing tank Additional information: ex choclate tank; we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator Volumetric volume (L): 15.000 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 304L (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: conical 20 Shape of tank: cylindrical Bottom type: conical 20 Total discharge: yes Fixation points: 3 non adjustable feet Type of HE on the bottom: dimple-jacket Water pressure HE: 4 Bar Hydraulic test pressure: 5 Bar Working temperature HE bottom: 70 °C Heat exchanger: RVS 304 Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304L Manway(s): RVS 304L Fixation point(s): RVS 304L Wet parts agitator(s): SS AISI 304L (V2A) Suitable for food industry: yes Documents included: no Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 600 mm Tank outlet: inside Ø 100 mm Agitator: yes Agitator type: gate Position engine: at the top Number of revolutions: 12 Power: 5,50 Voltage: 380 V - three-phase Top: 5 mm Cylinder: 3 mm Bottom: 4 mm Insulation body: yes Insulation bottom/sides: yes Insulation thickness: 80 Internal diameter tank: 2.750 mm Distance from outlet to ground: 930 mm Outer diameter tank: 2.950 mm Cylinder height: 2.280 mm Total height of tank: 5.300 mm Empty weight tank: 3.500
