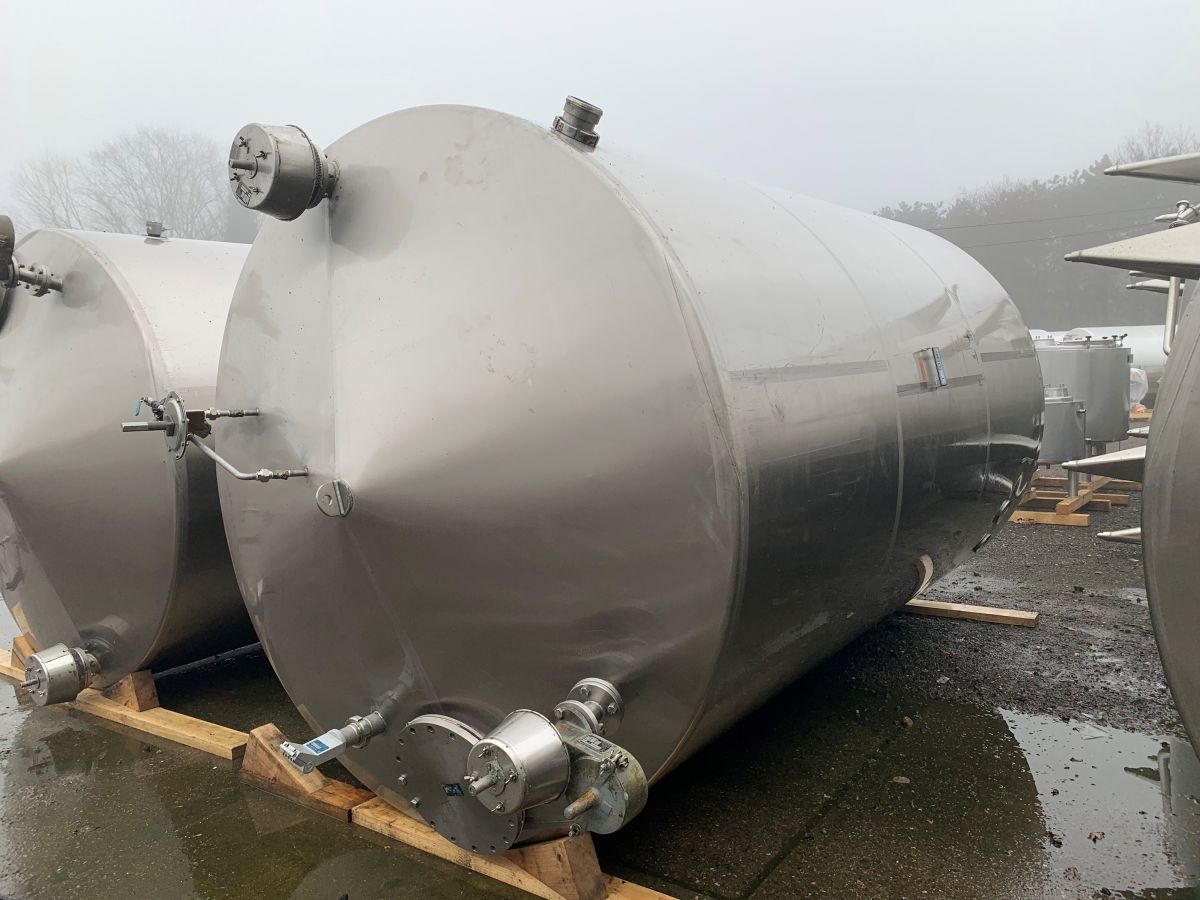

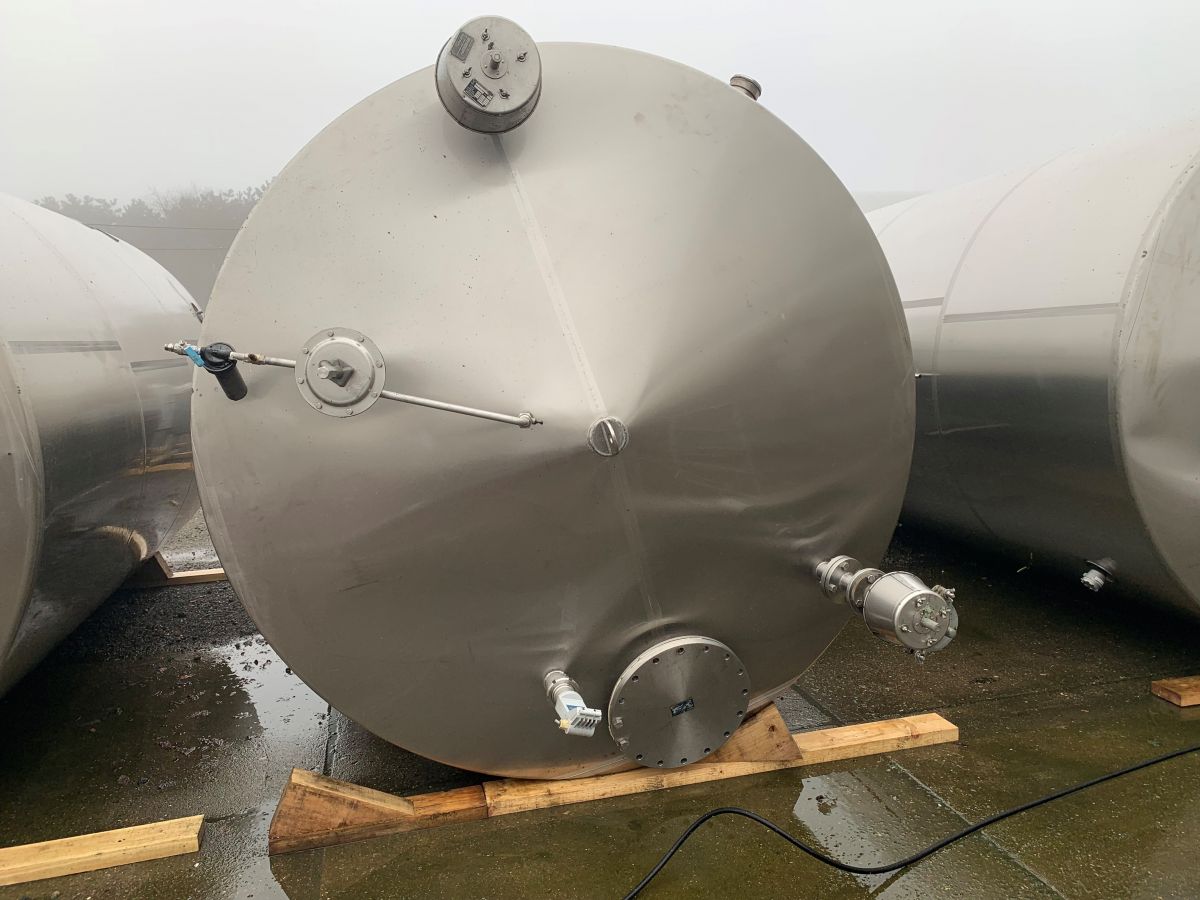

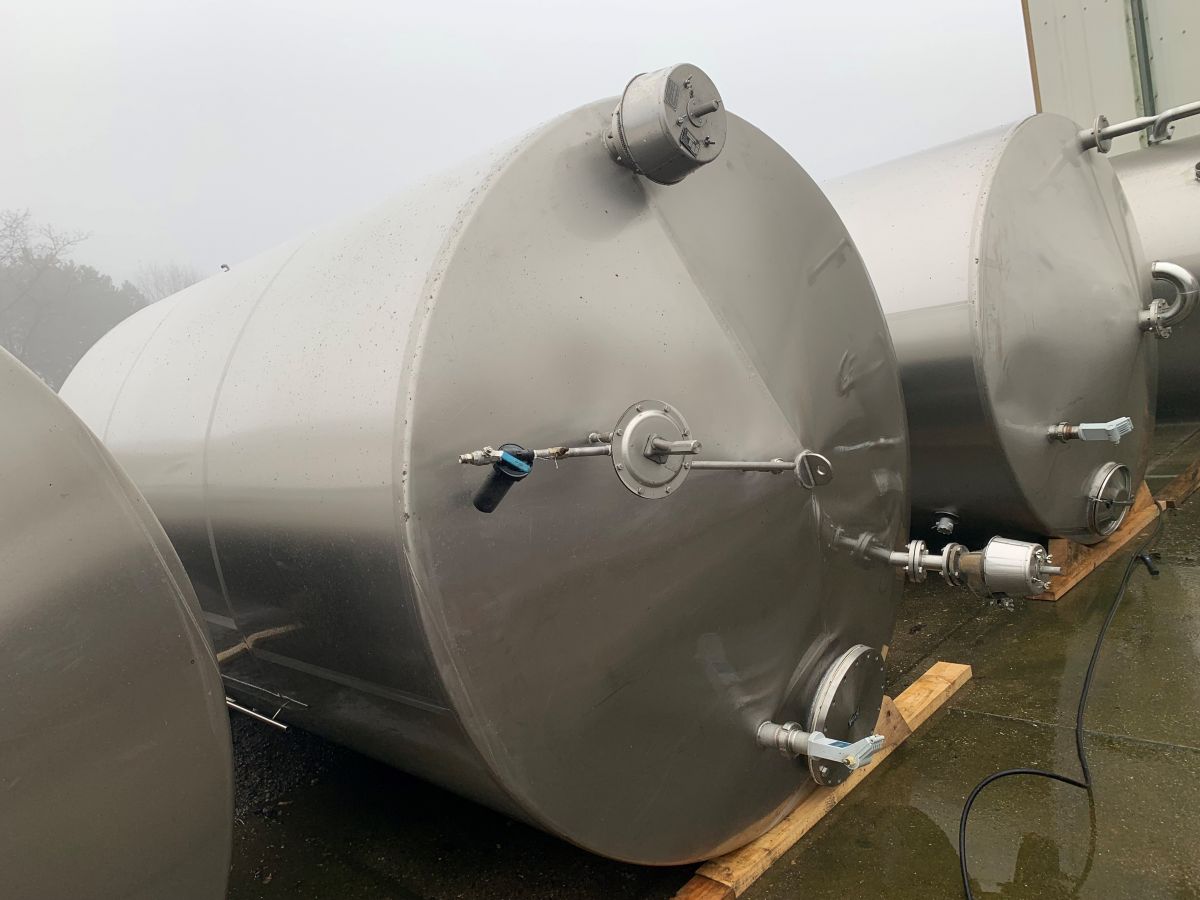

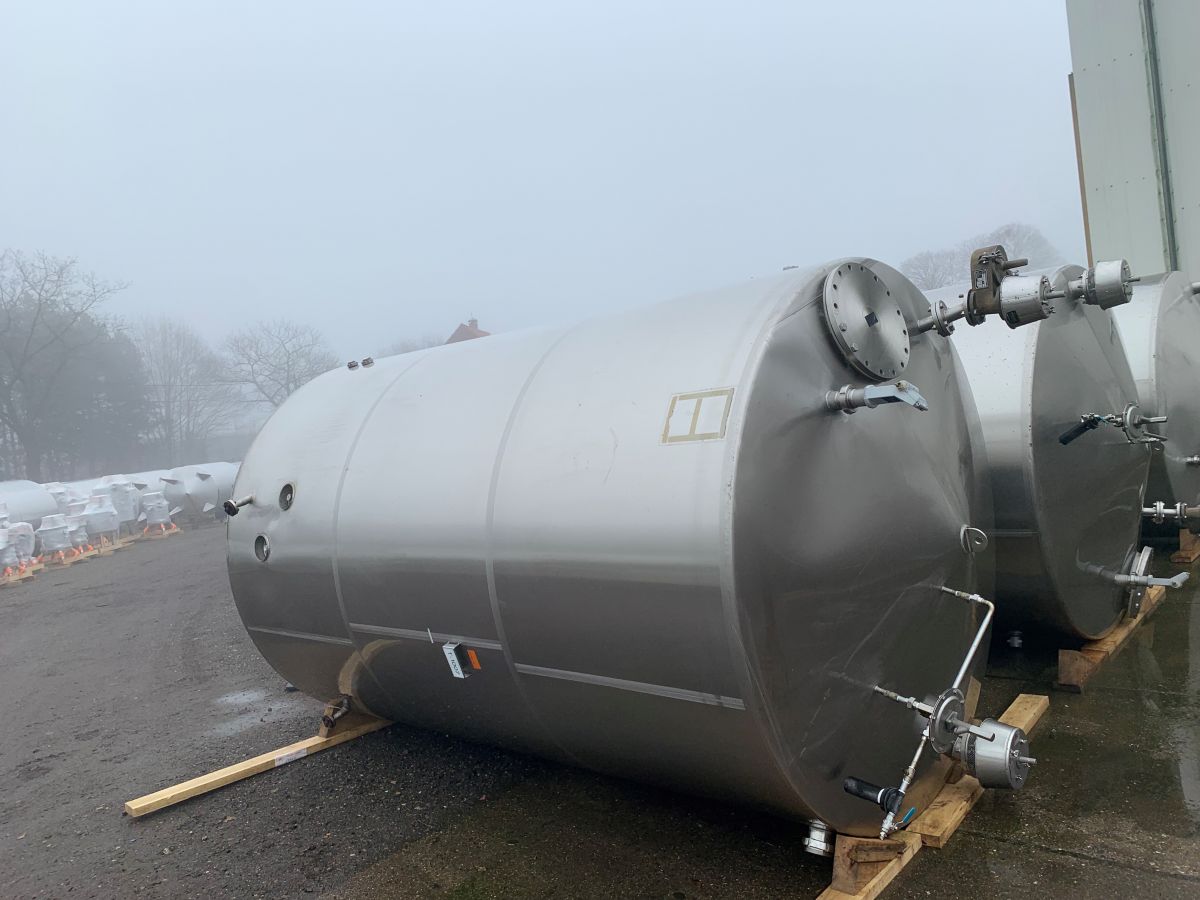

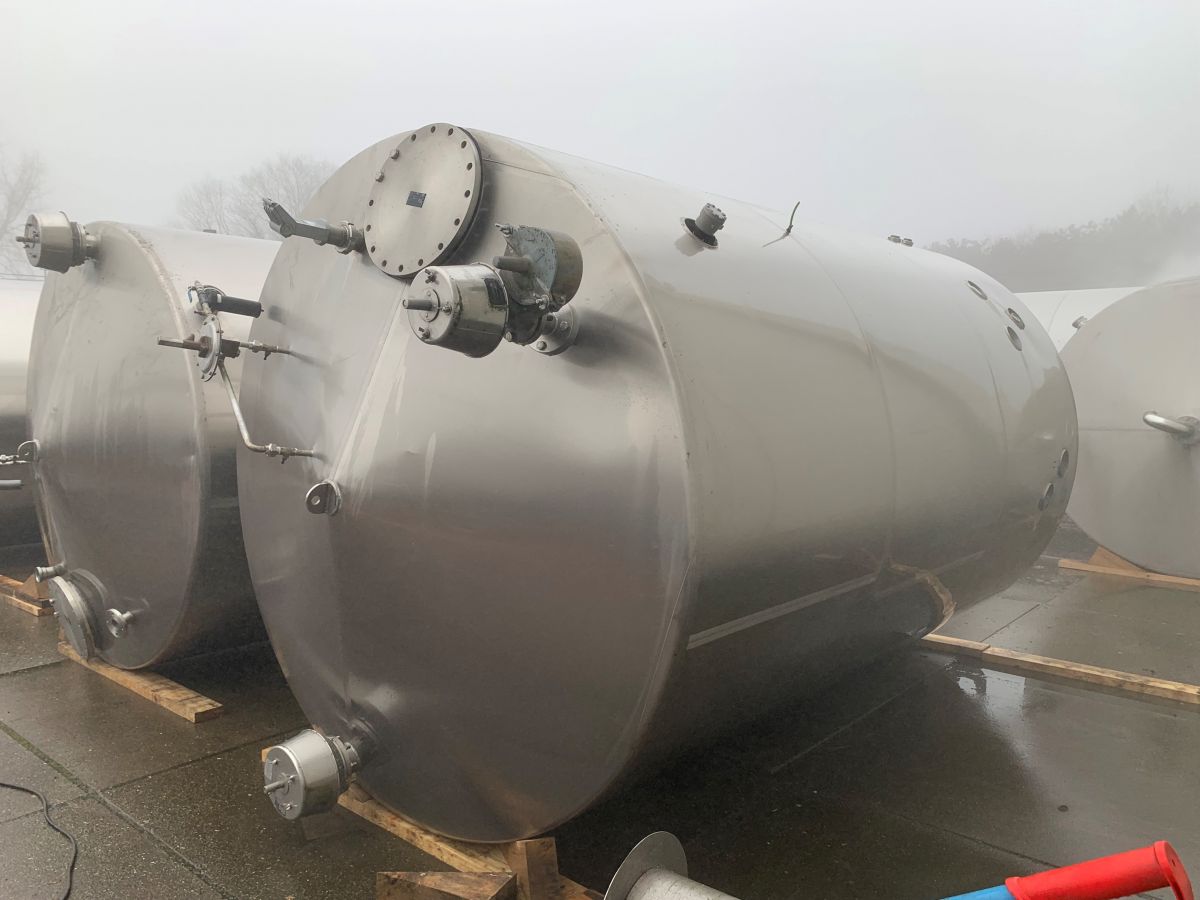

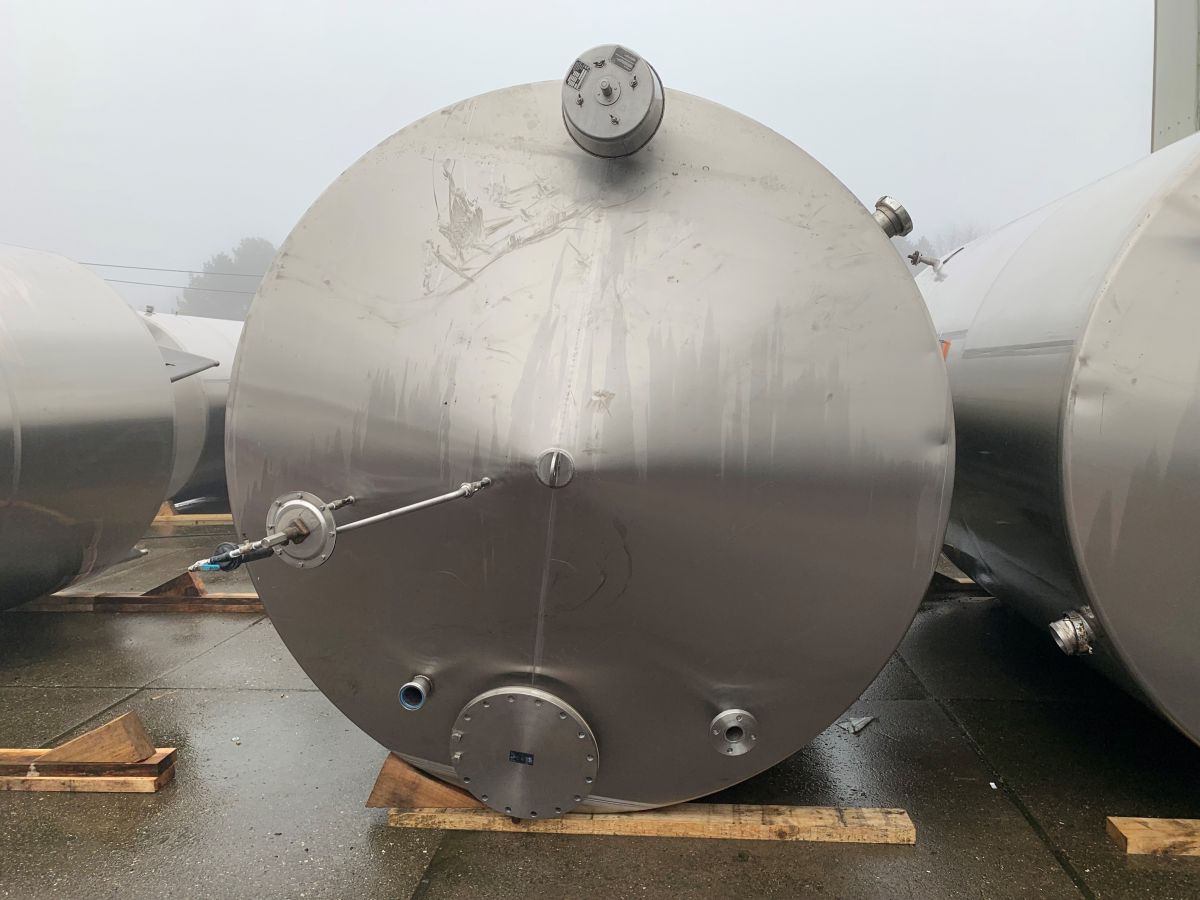

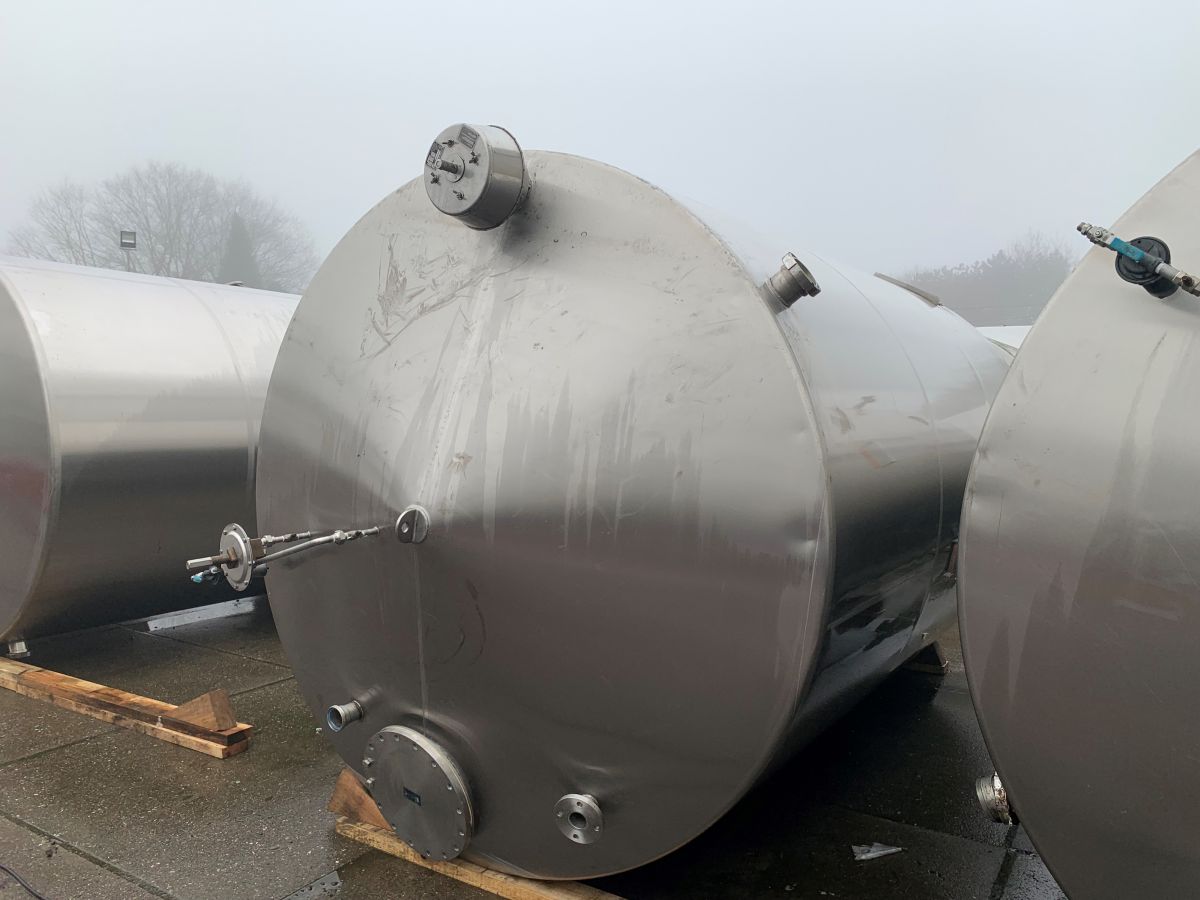

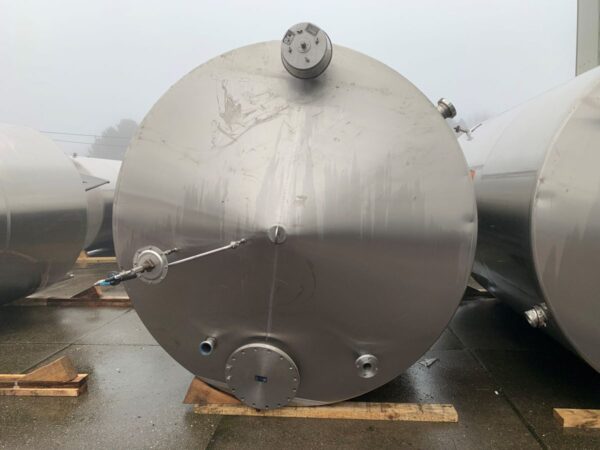

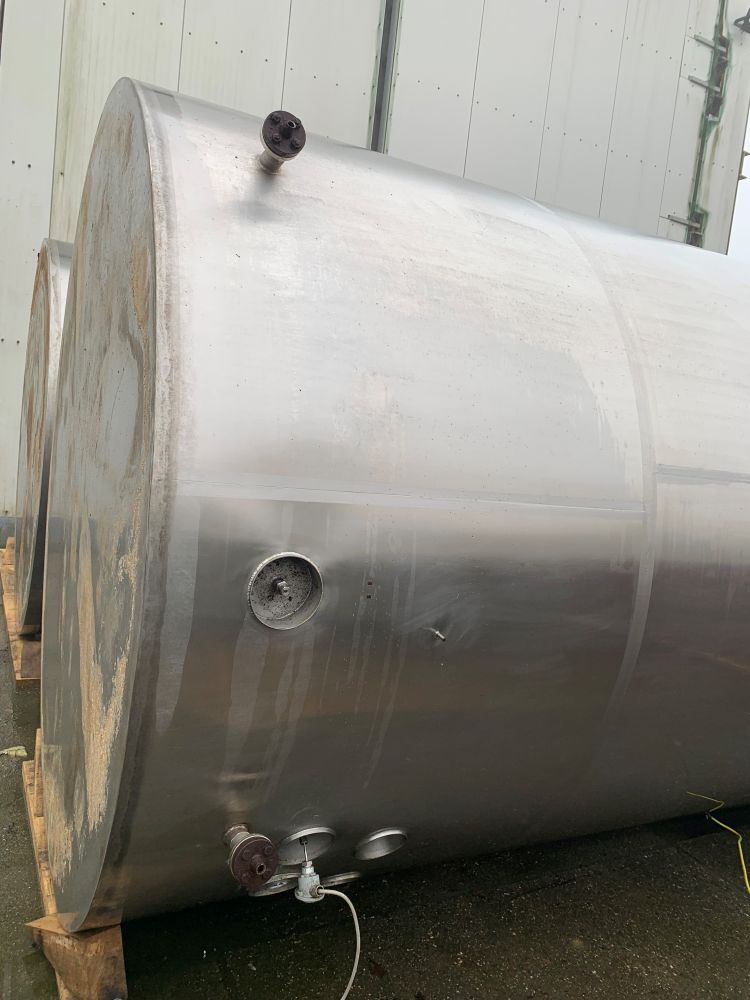

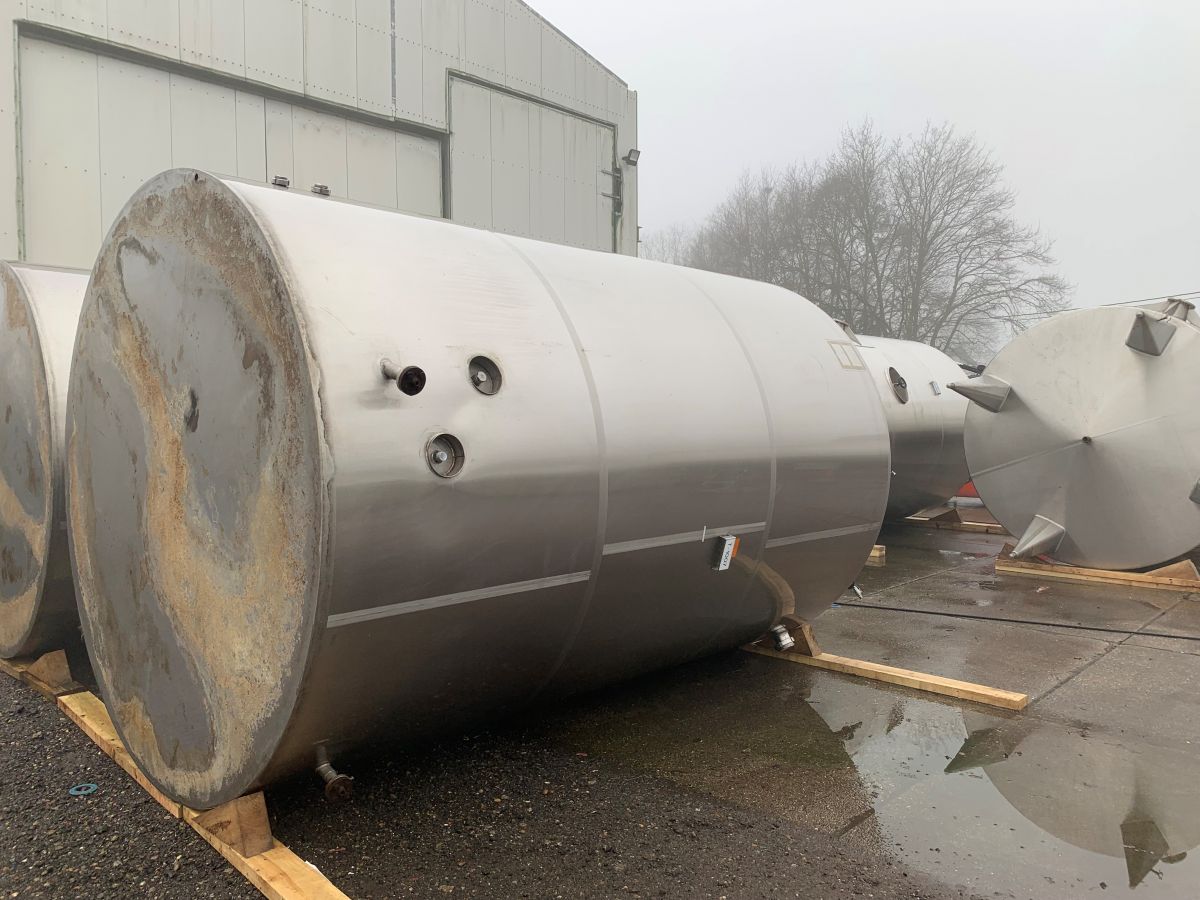

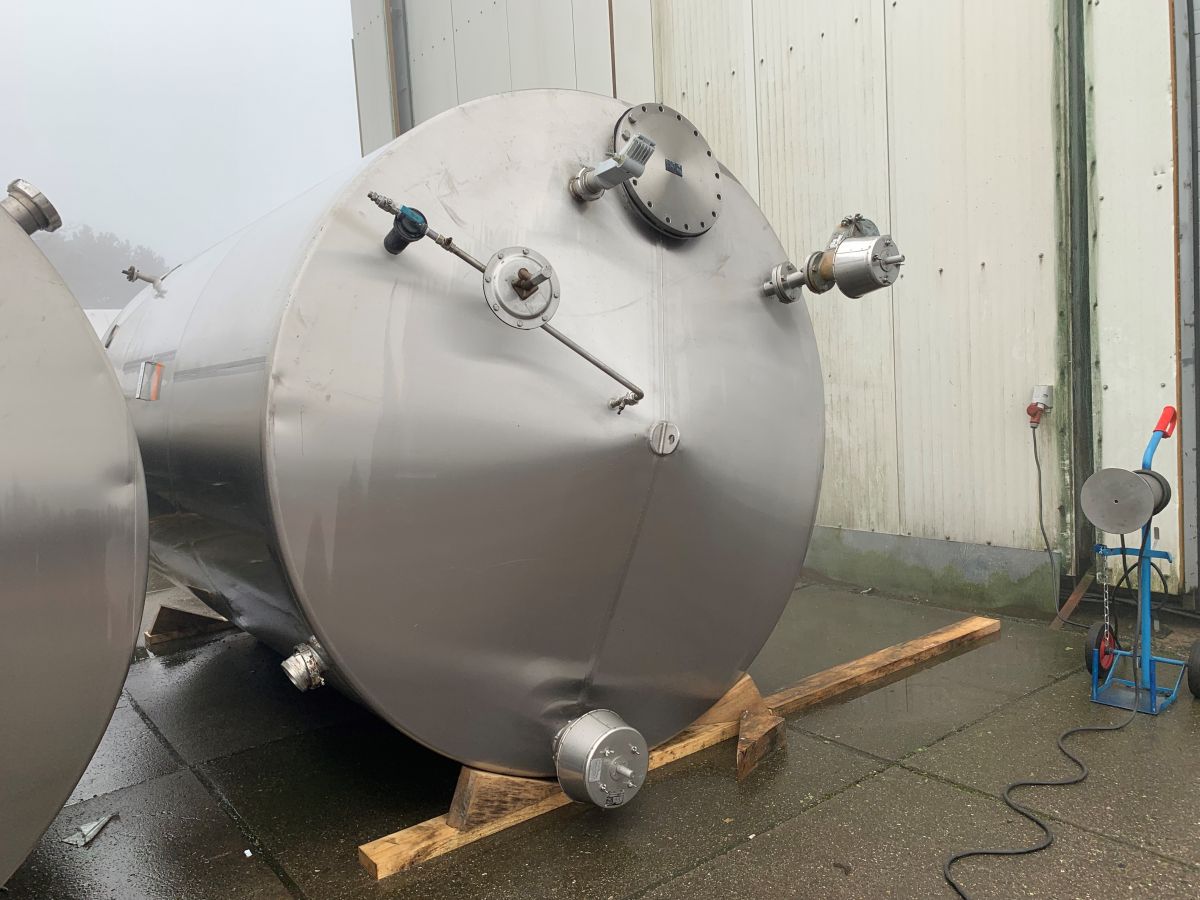

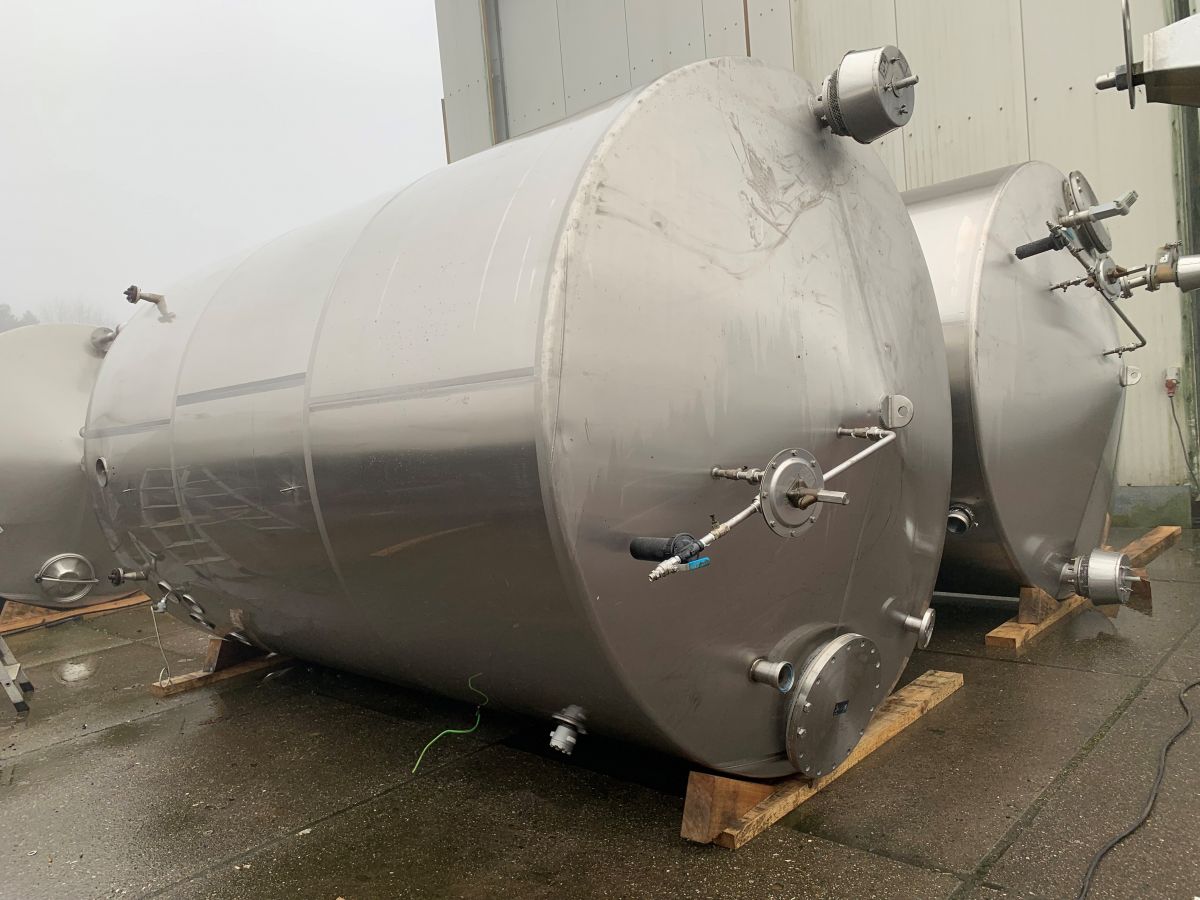

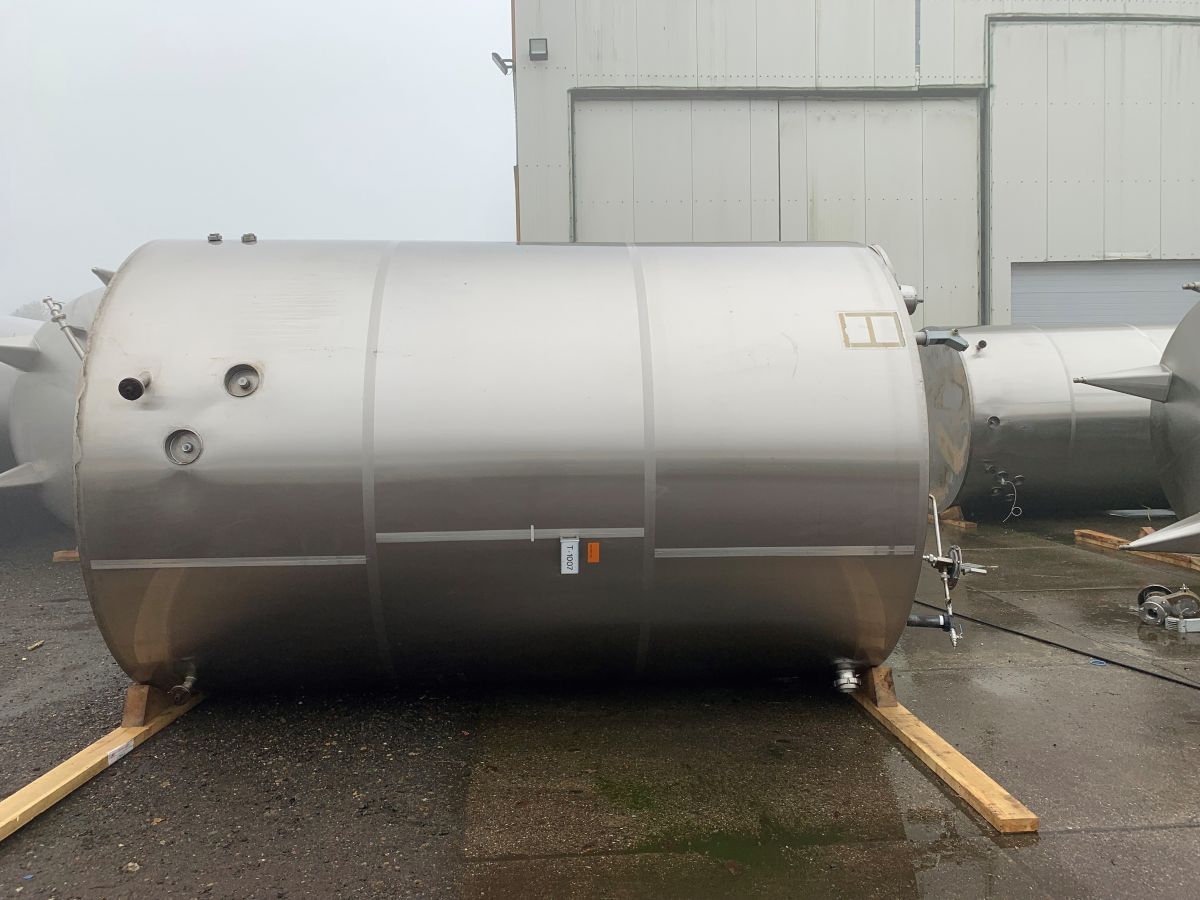

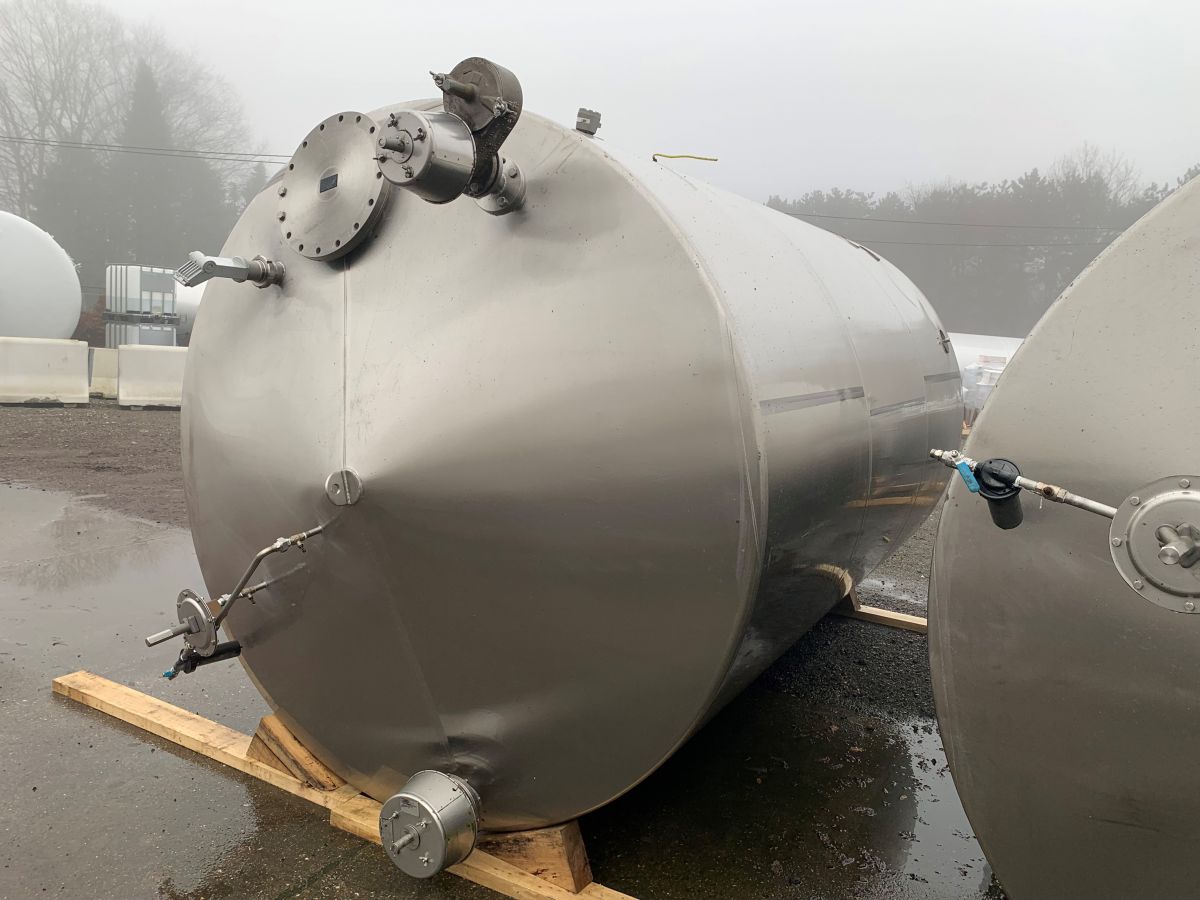

15000 liter tank i Rostfritt 304

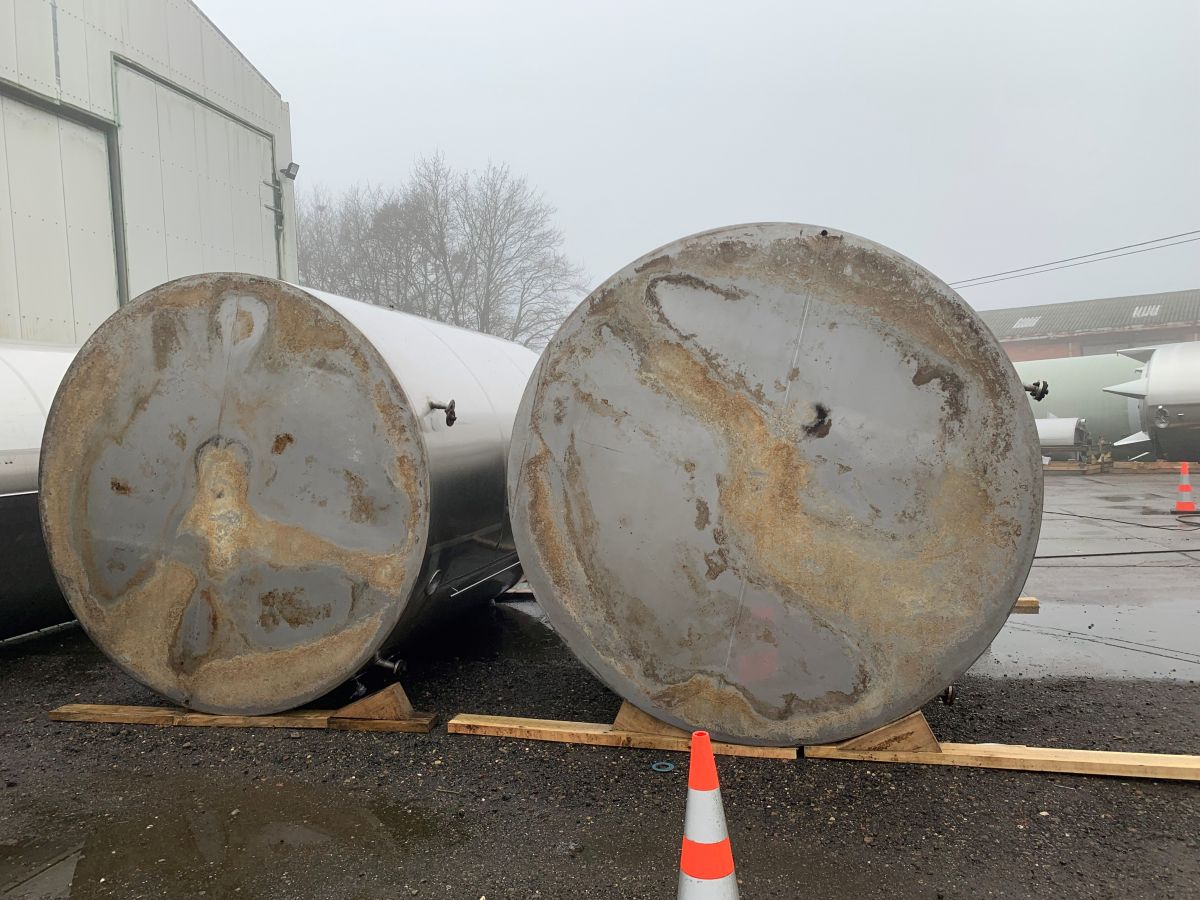

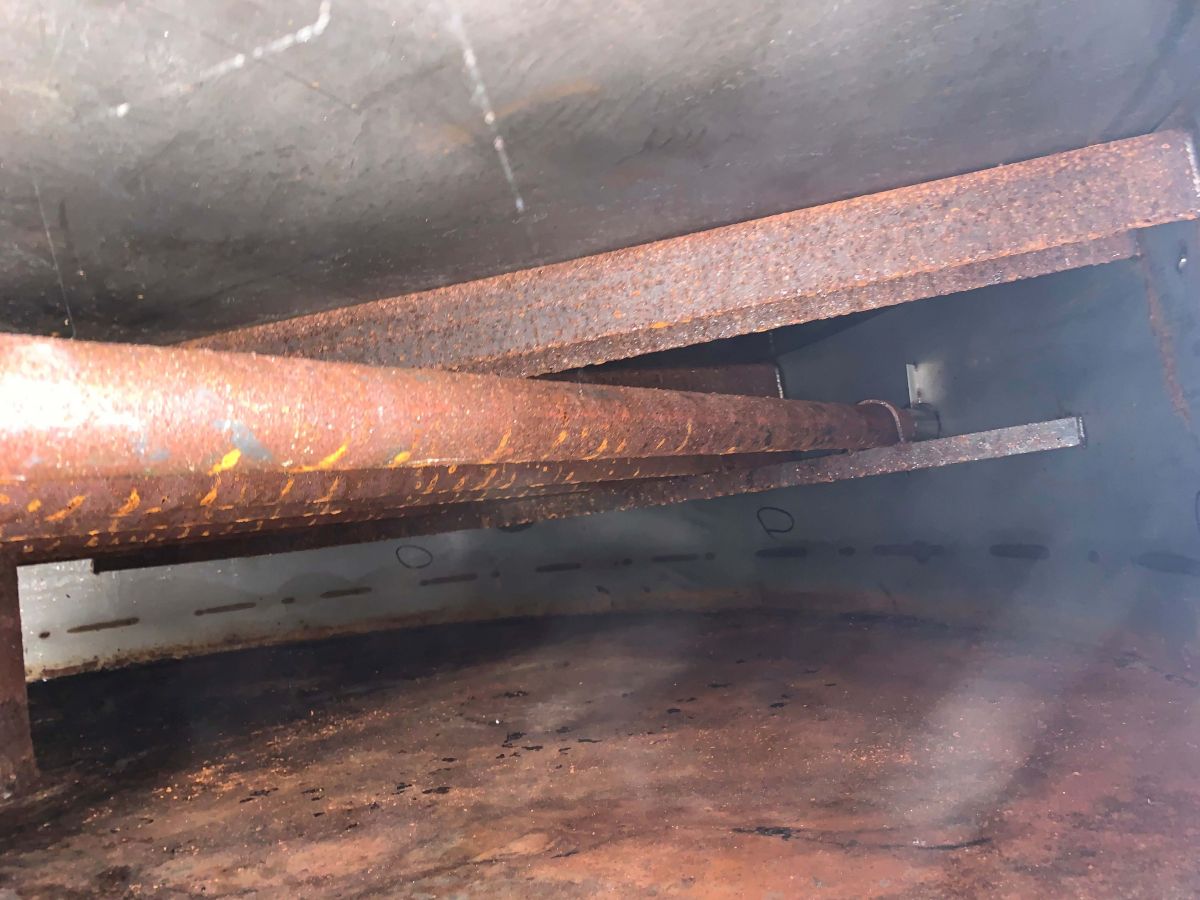

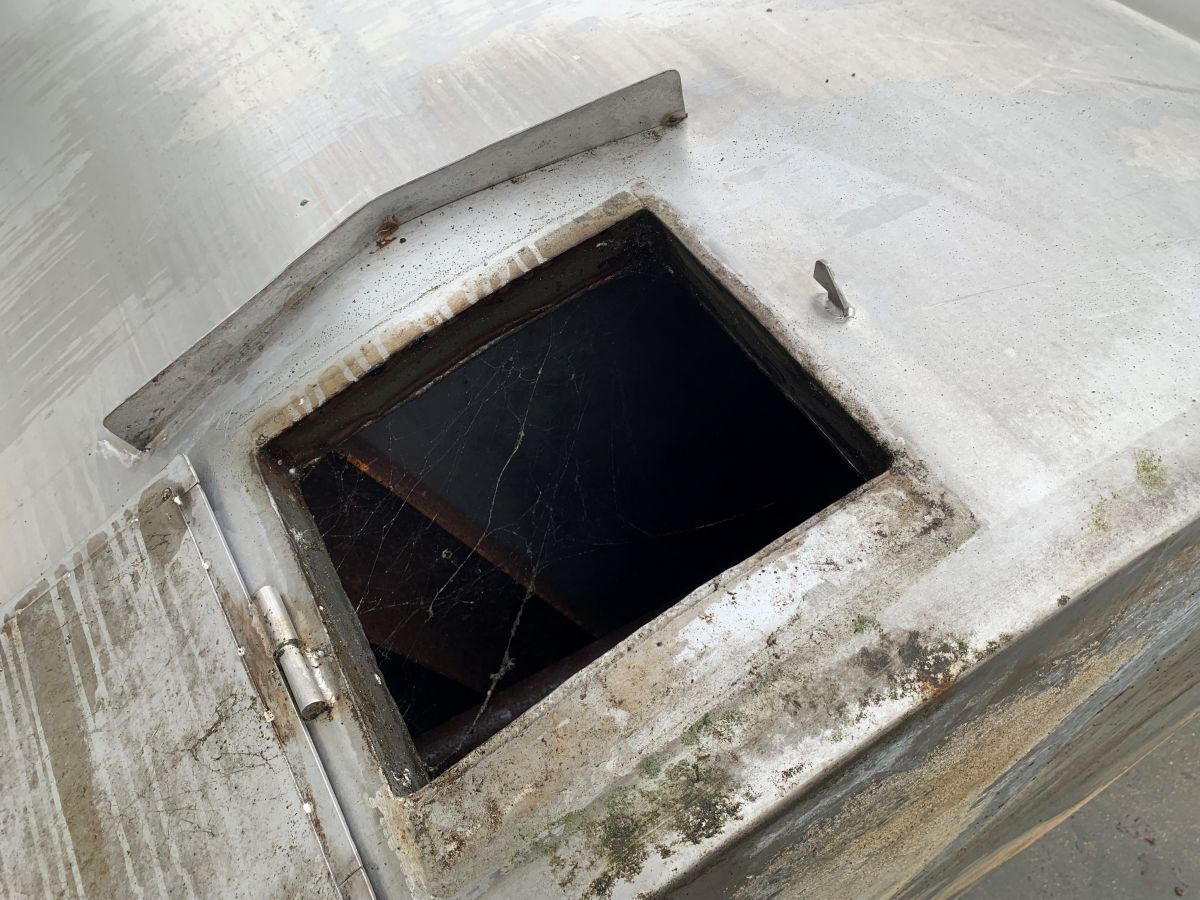

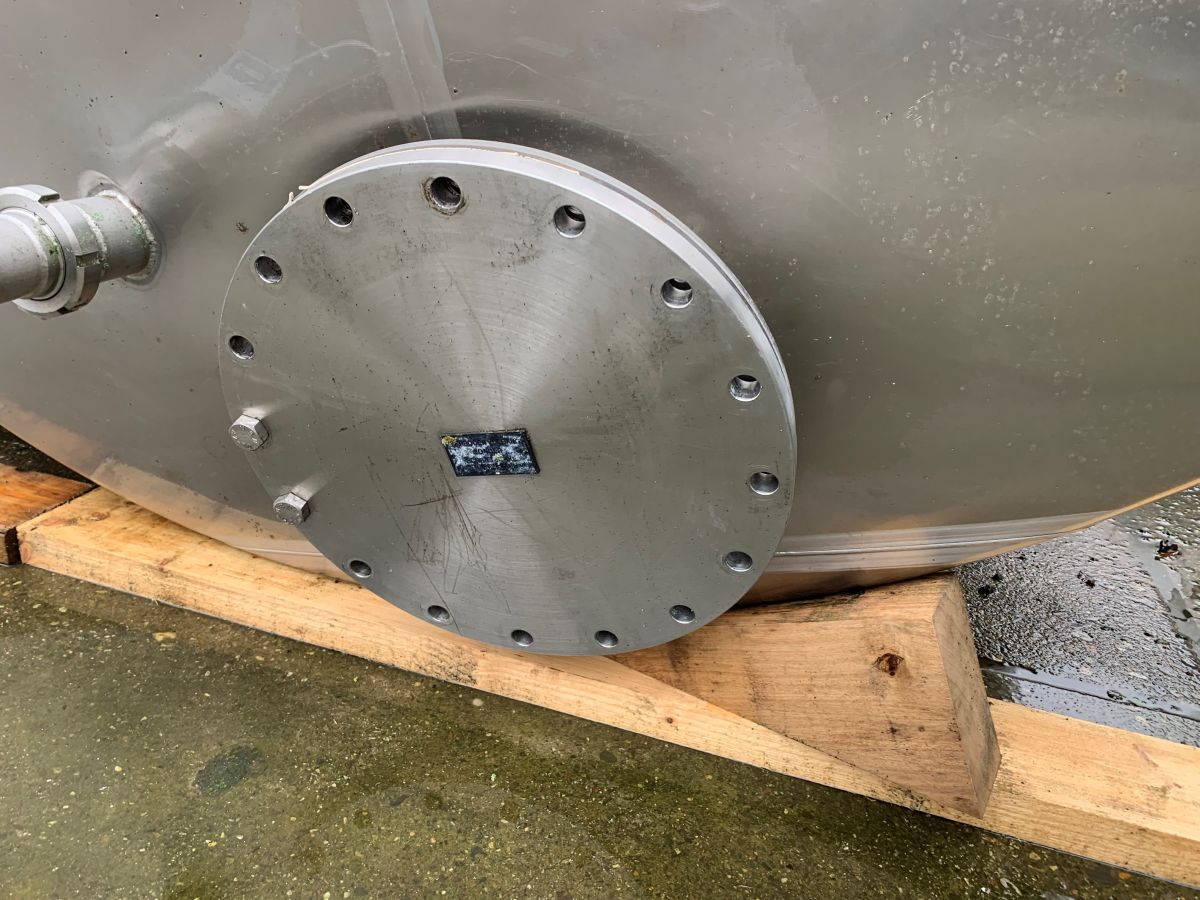

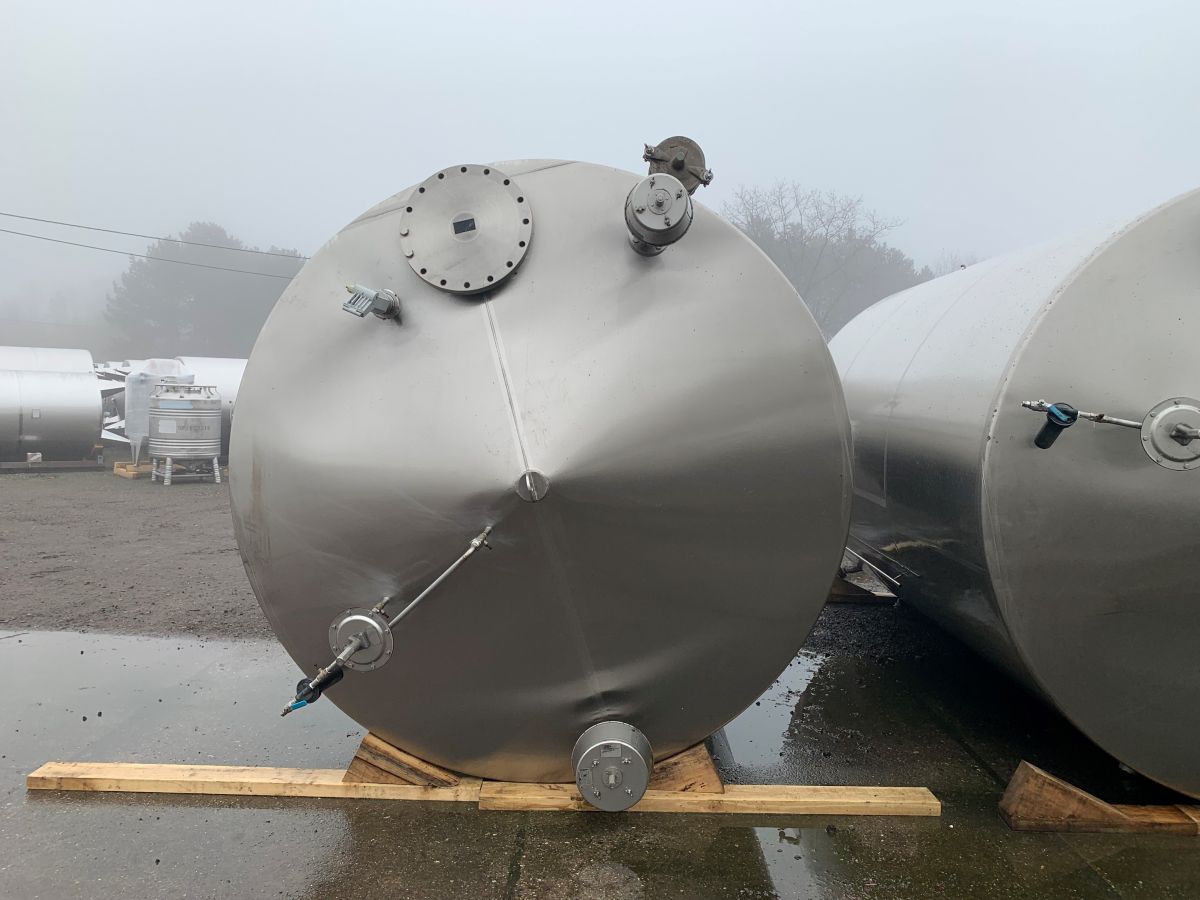

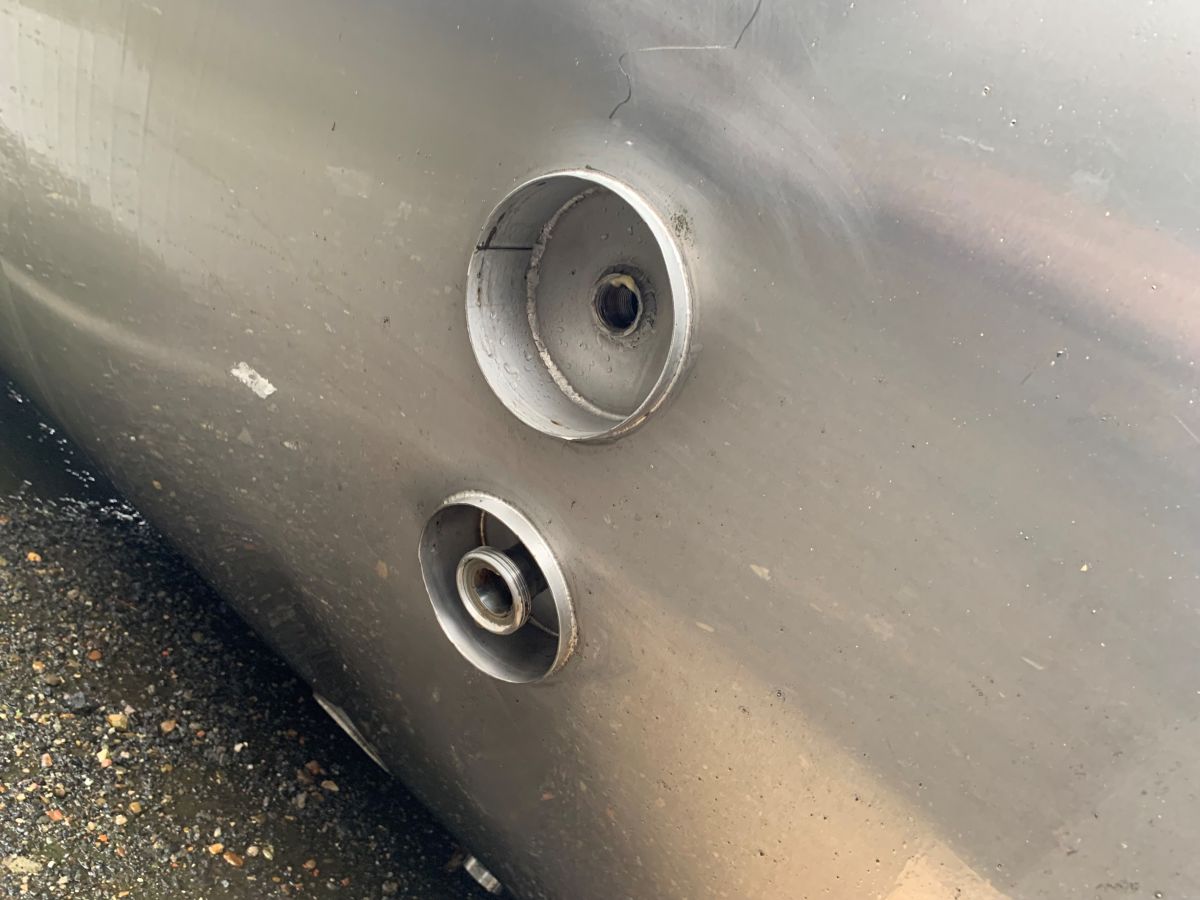

Article type: second-hand storage tank Additional information: Steel heating pipes 2" in the skirt below the bottom of the tank; Volumetric volume (L): 15.000 L Pressure in tank: pressure Max. pressure (Bar): 0,20 Bar Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: flat Total discharge: no Fixation points: on skirt Insulation material: rockwool Outer jacket (ornamental wall): RVS 304 Manway(s): RVS 304 Gasket manway(s): unknown Suitable for food industry: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Position of manway: headside Height manhole 1 (mm): 400 mm Tank outlet: inside Ø 40 mm Outlet type: DIN11851 female Insulation top: yes Insulation body: yes Insulation thickness: 50 Internal diameter tank: 2.400 mm Distance from outlet to ground: 300 mm Outer diameter tank: 2.500 mm Cylinder height: 3.325 mm Total height of tank: 4.200 mm Empty weight tank: 2.500
