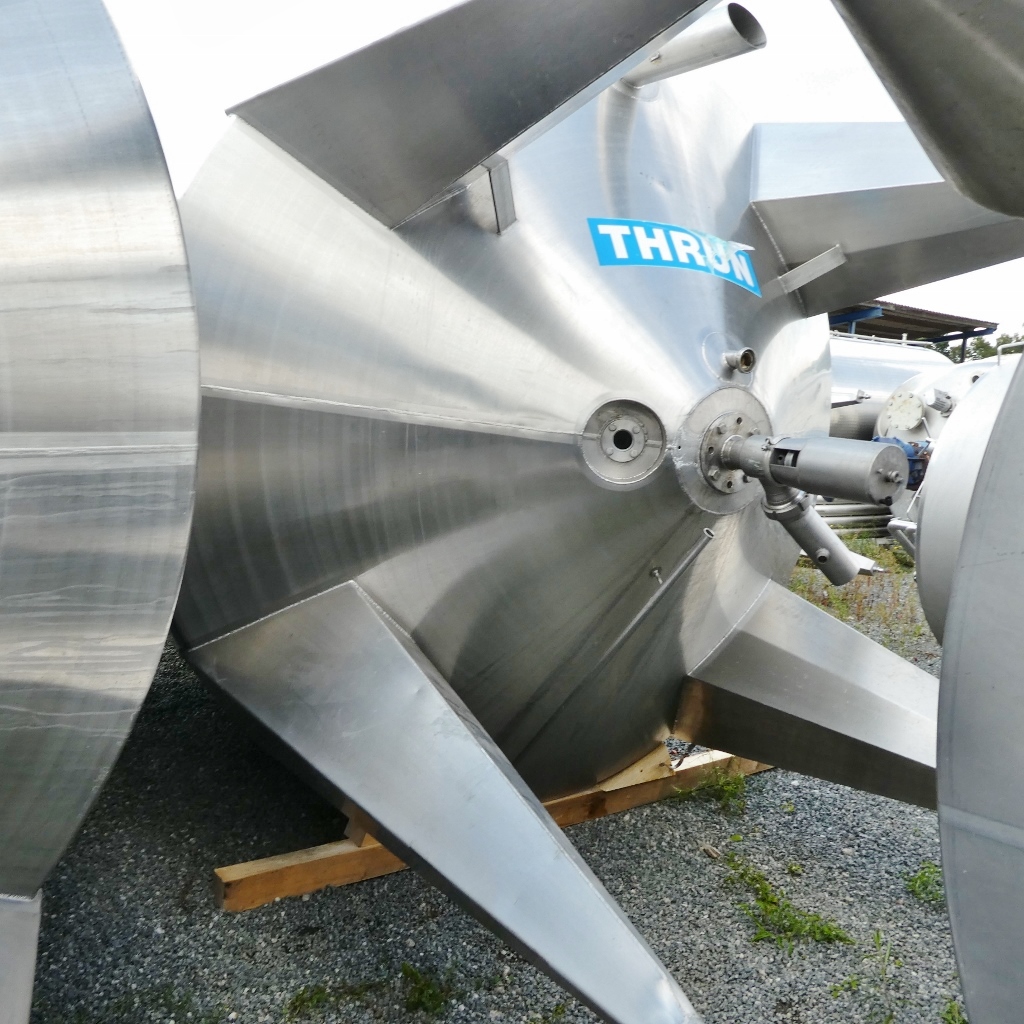

15000 liter tank i Rostfritt 304

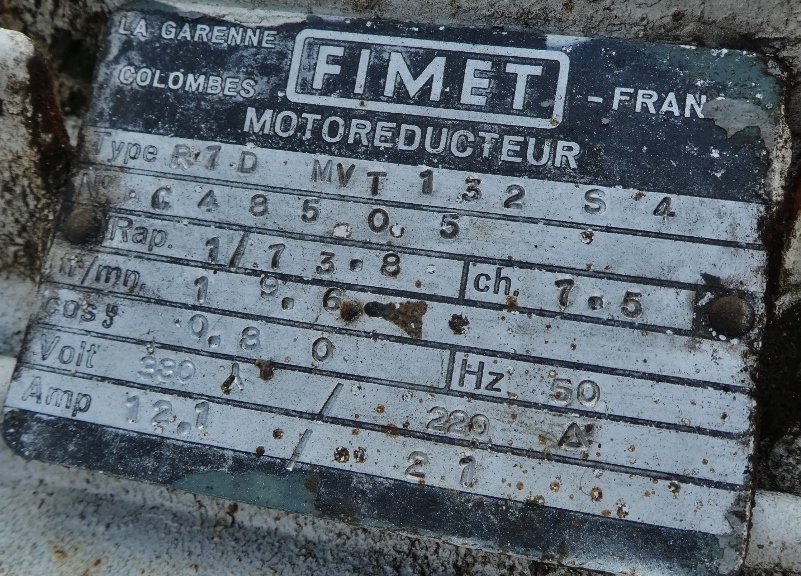

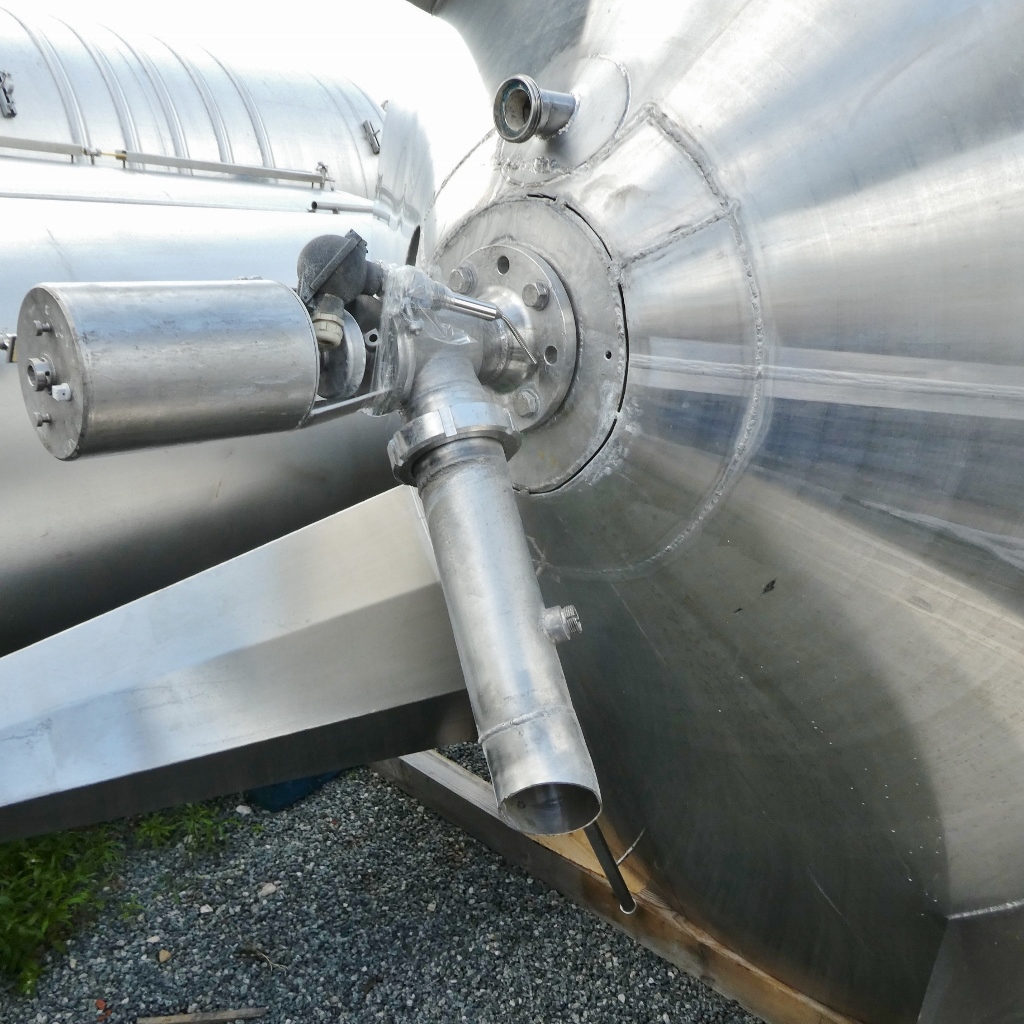

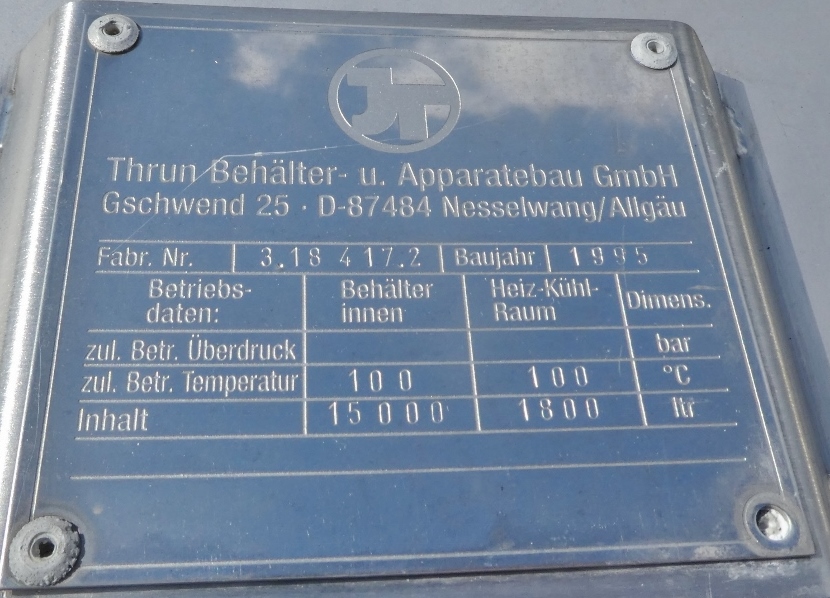

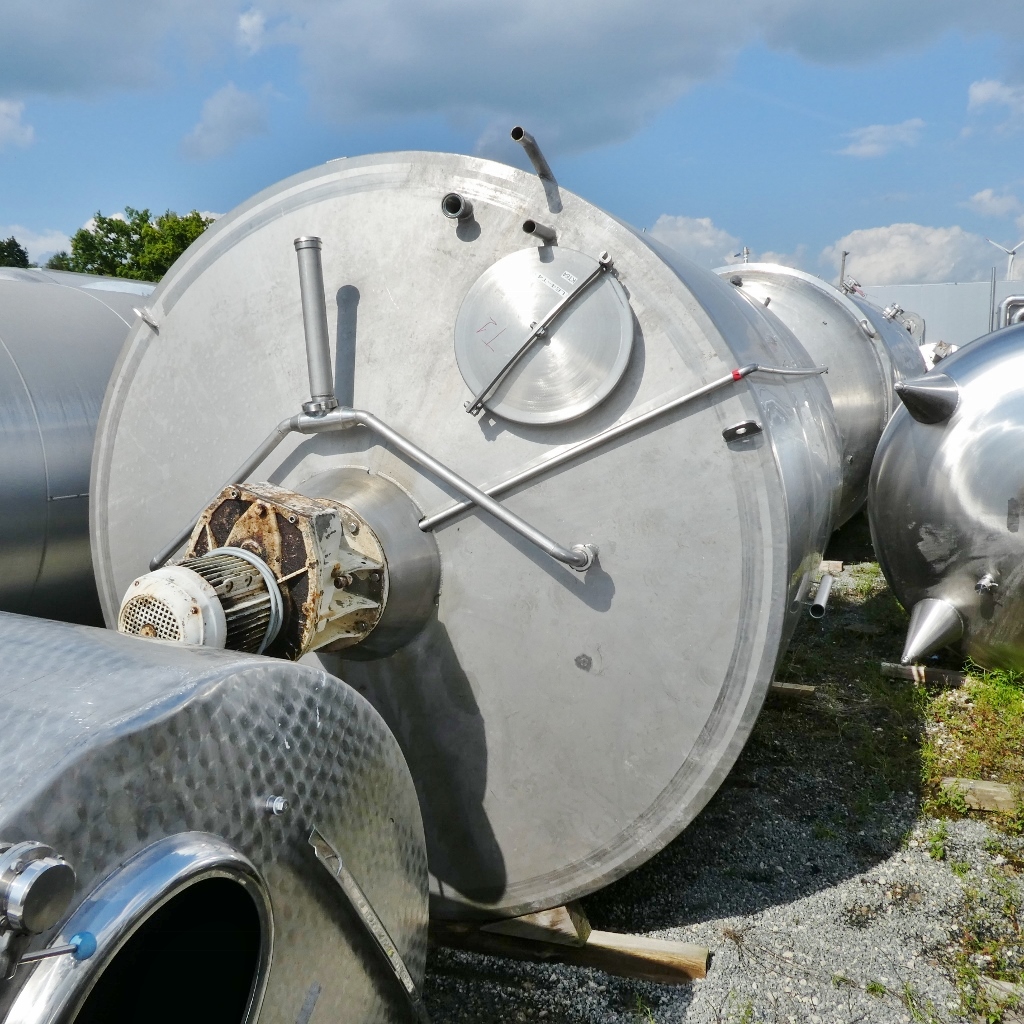

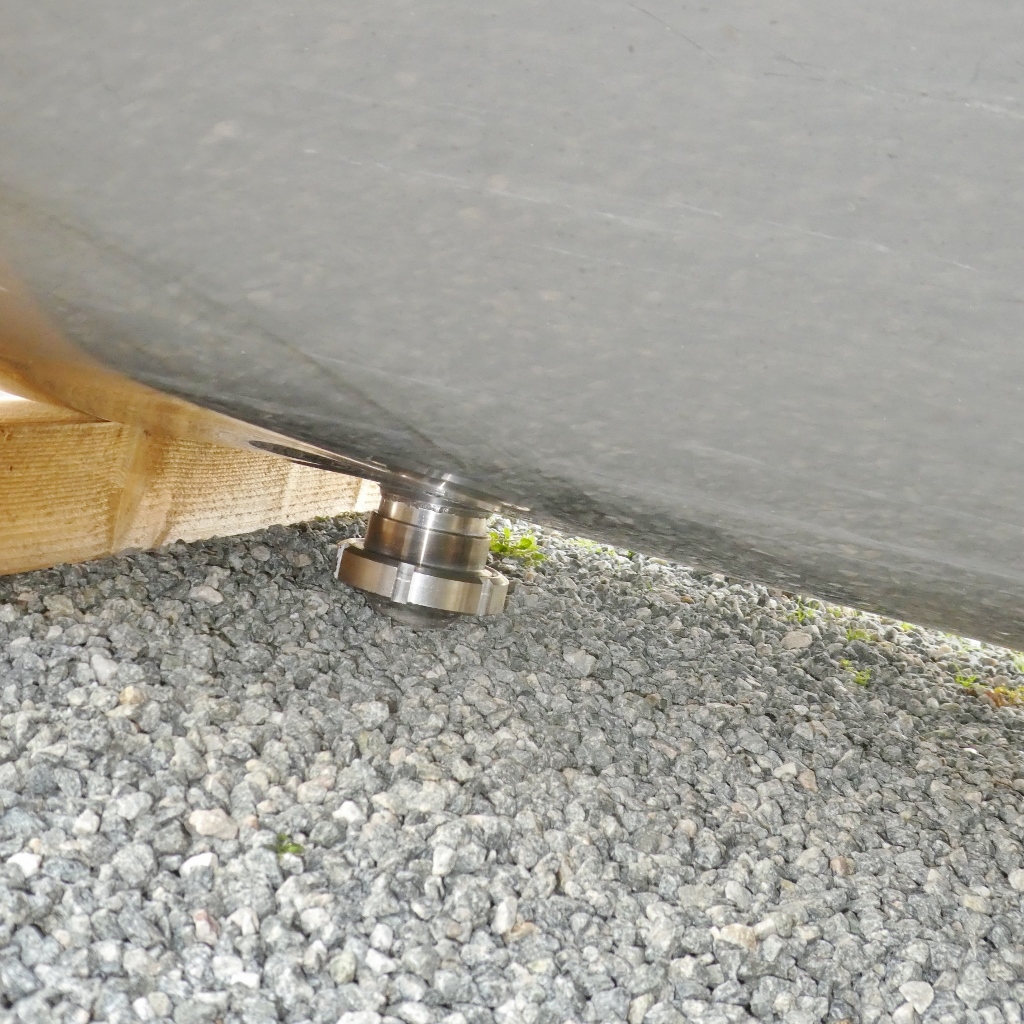

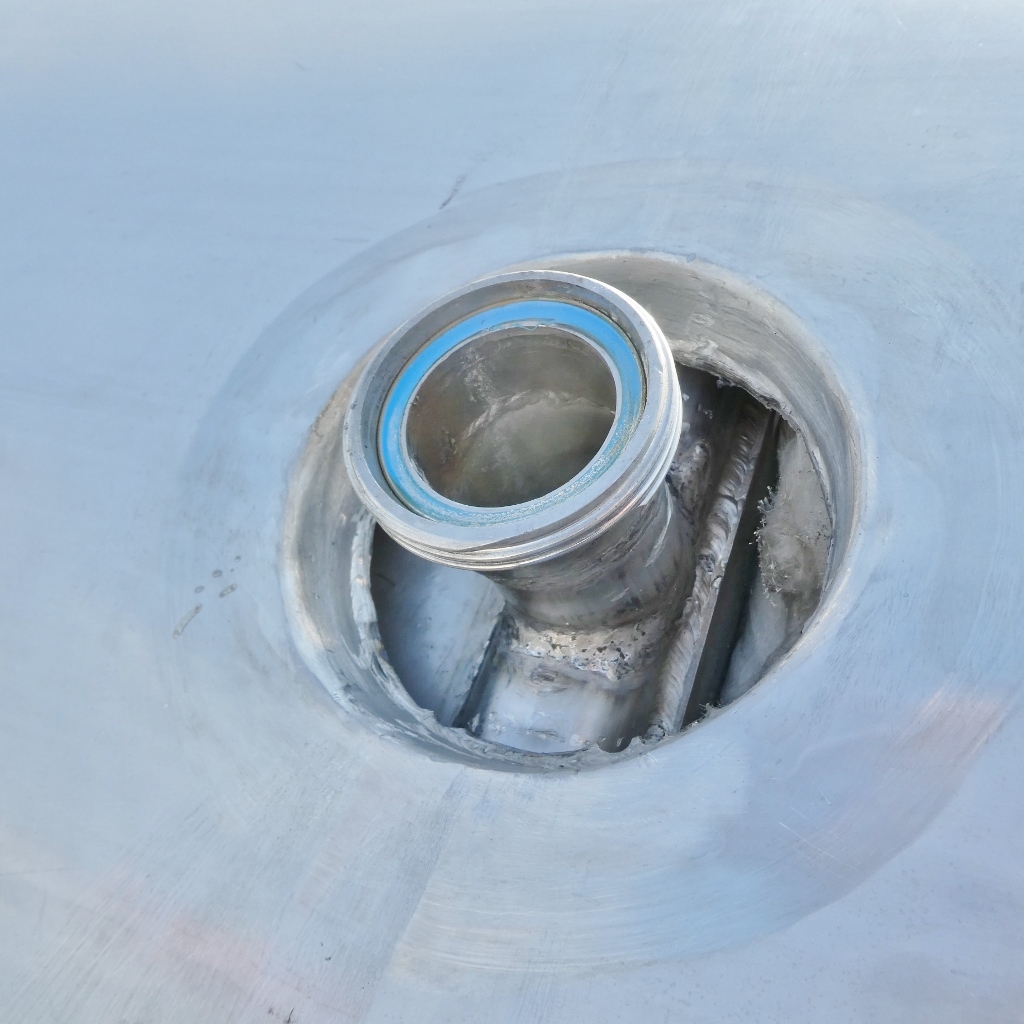

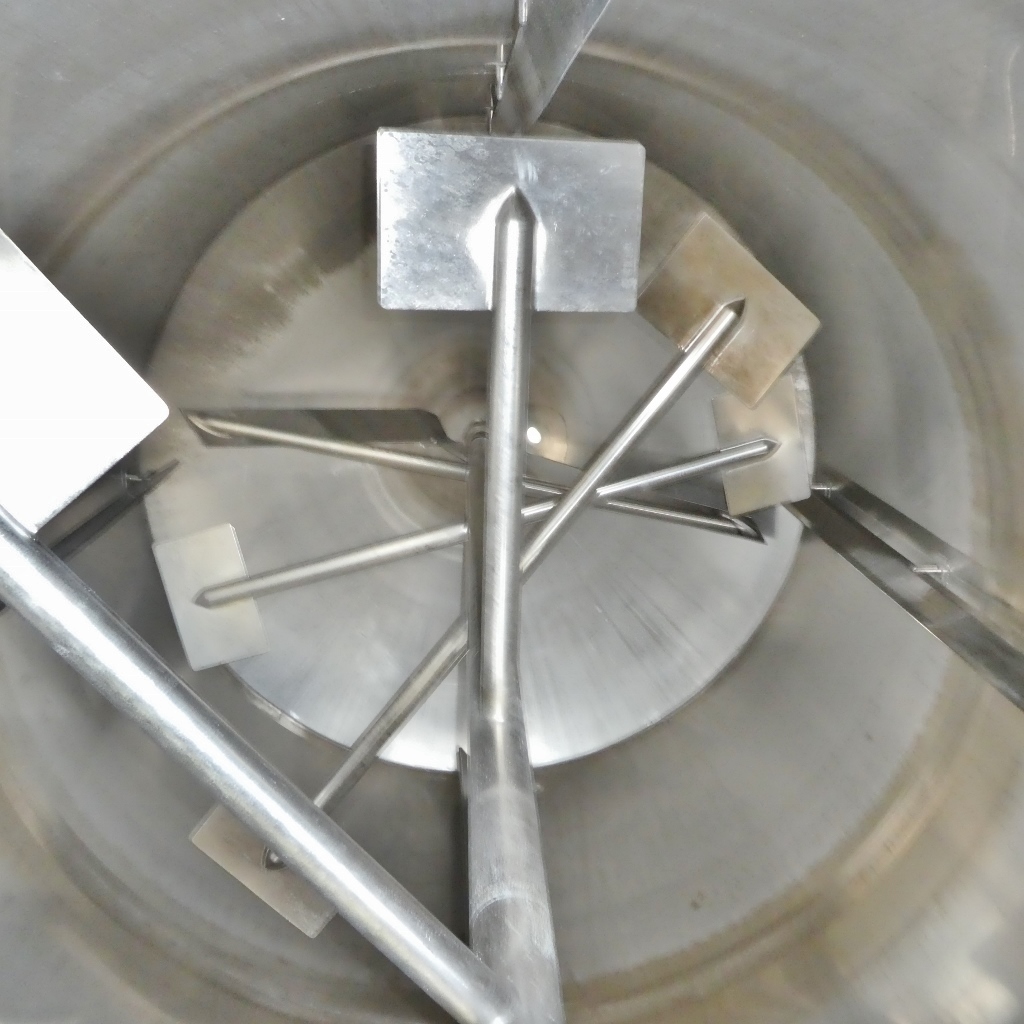

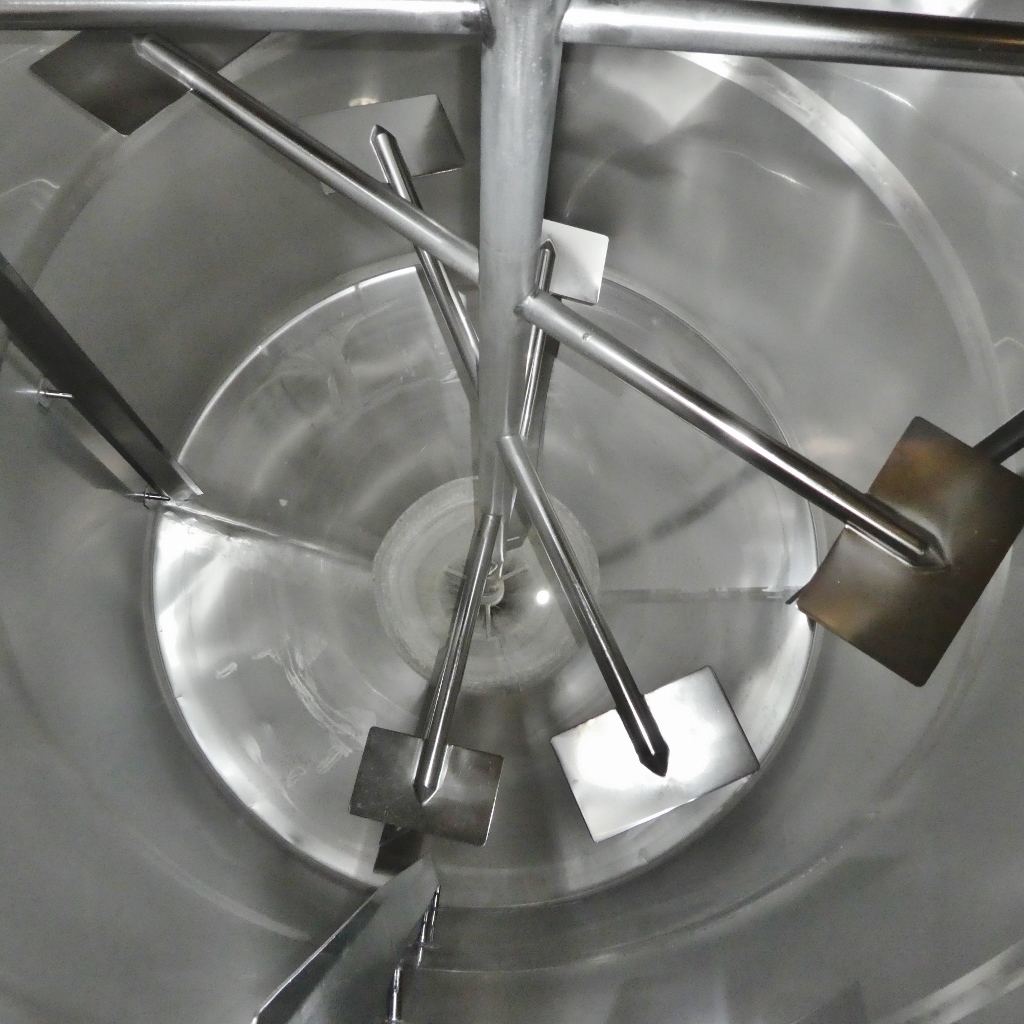

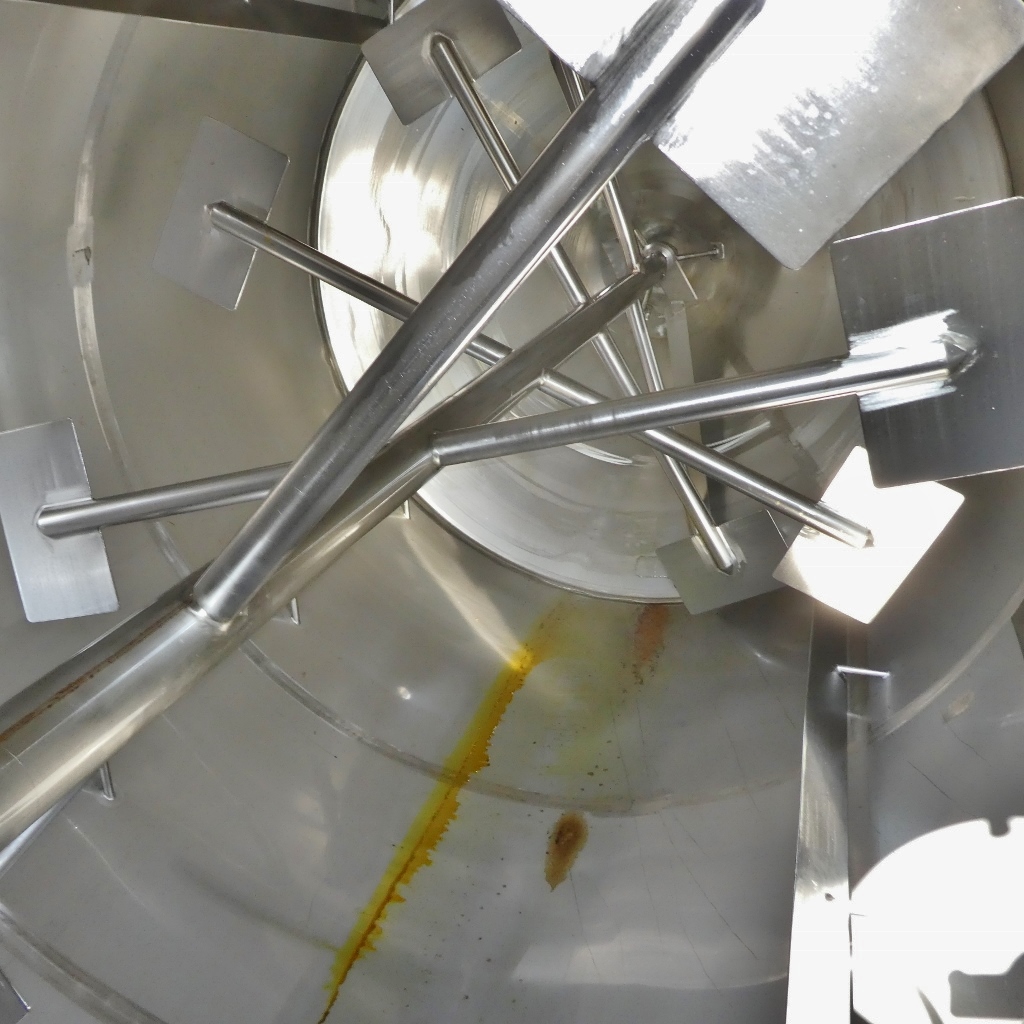

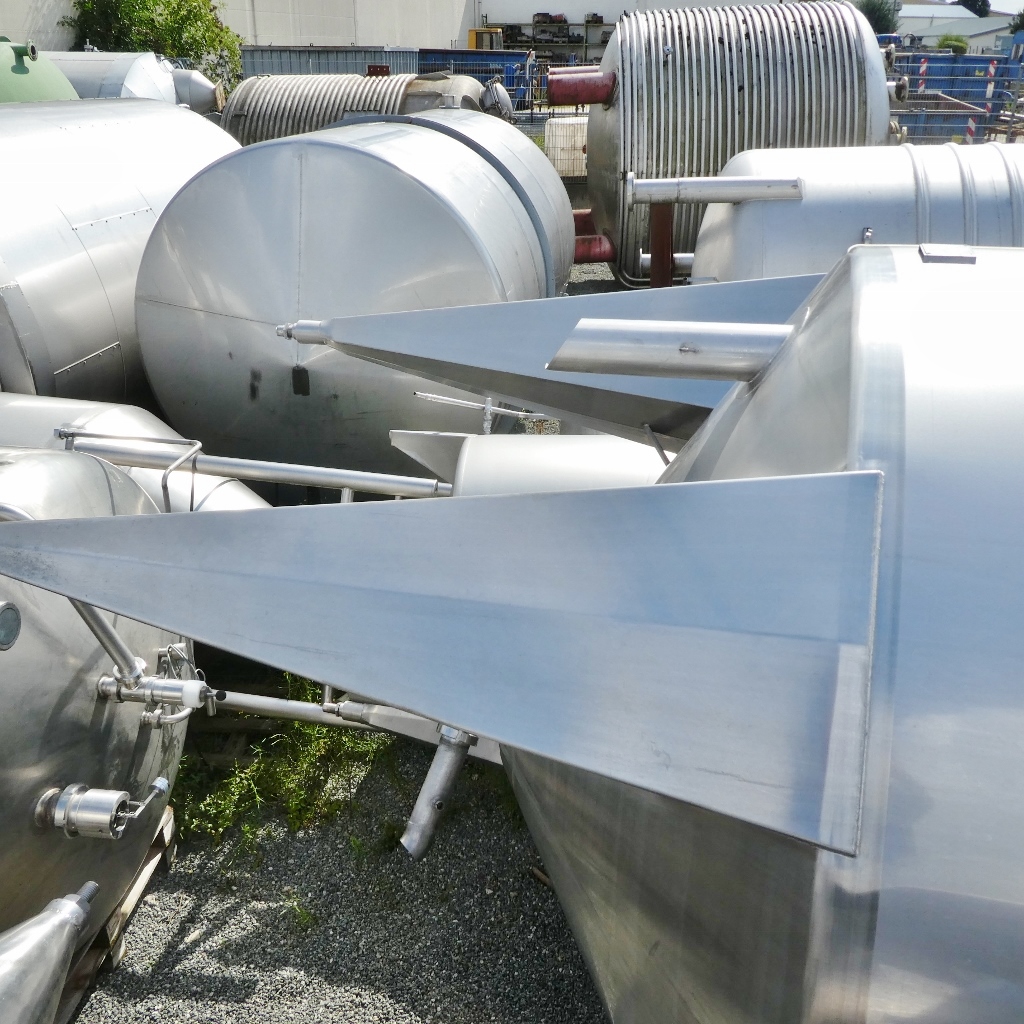

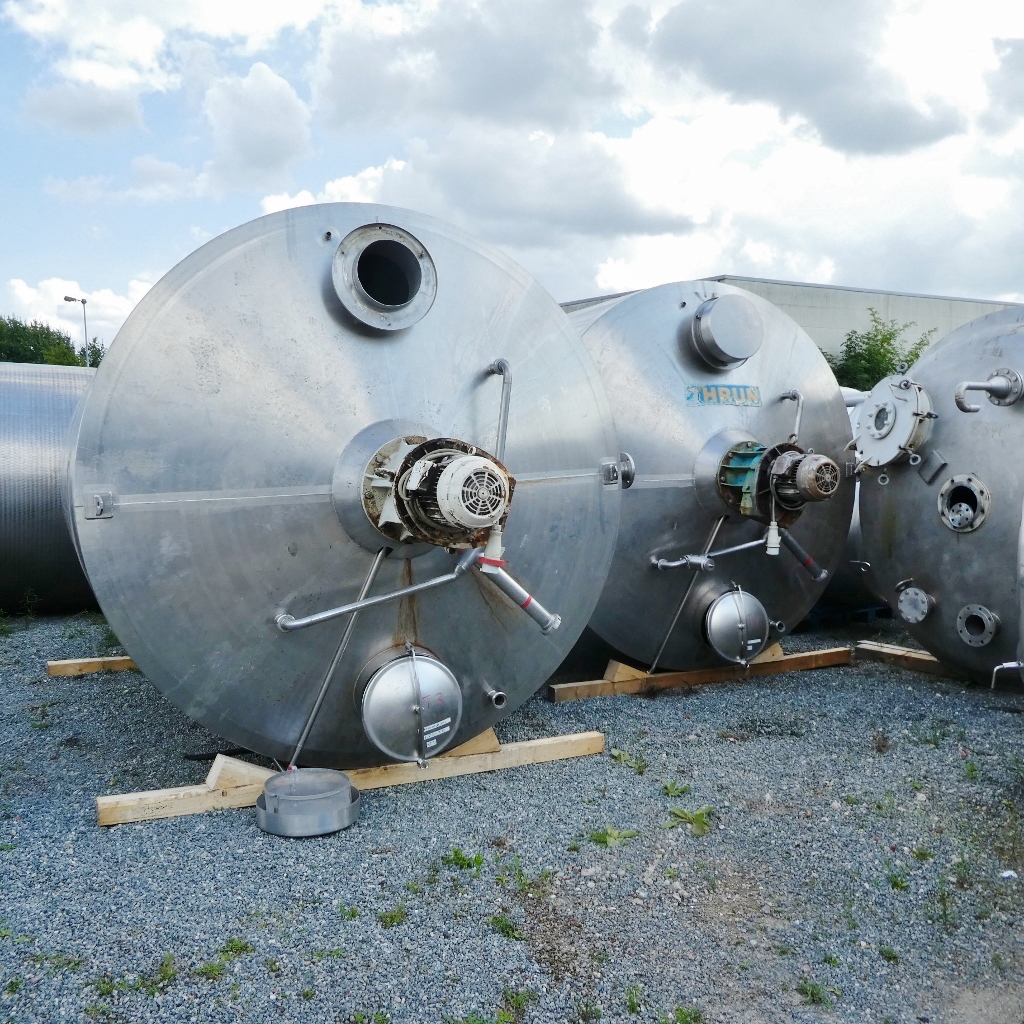

Additional information: Crystallization tank in a dairy; Double jacket of 1 tank with a drip ring - only suitable for cooling; 2 tanks may not have a drip ring; smaller dents and sometimes small cracks in the insulation jacket, 1 tank with stronger dents in the insulation jacket (this tank is probably damaged in the gearbox bearing of the agitator); tank drawing partially different from the tanks; If you are looking for tanks that are identical to this item, we can offer you 3 identical or similar models from an external warehouse (no guarantee); pipe end cut flush Volumetric volume (L): 15.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 1.800 L Max. working temperature: 100 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 80 Agitator: yes Number of revolutions: 19,60 Internal diameter tank: 2.400 mm Outer diameter tank: 2.550 mm Total height of tank: 6.400 mm
