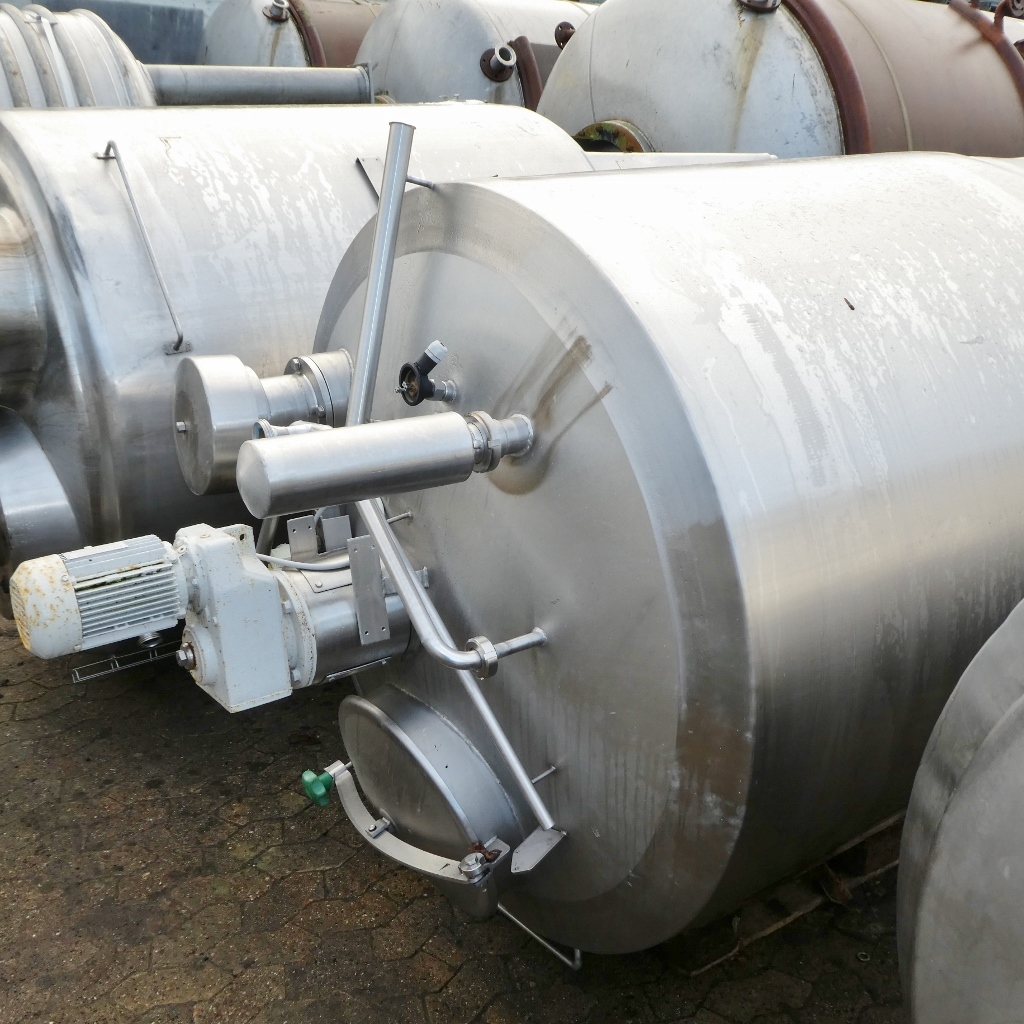

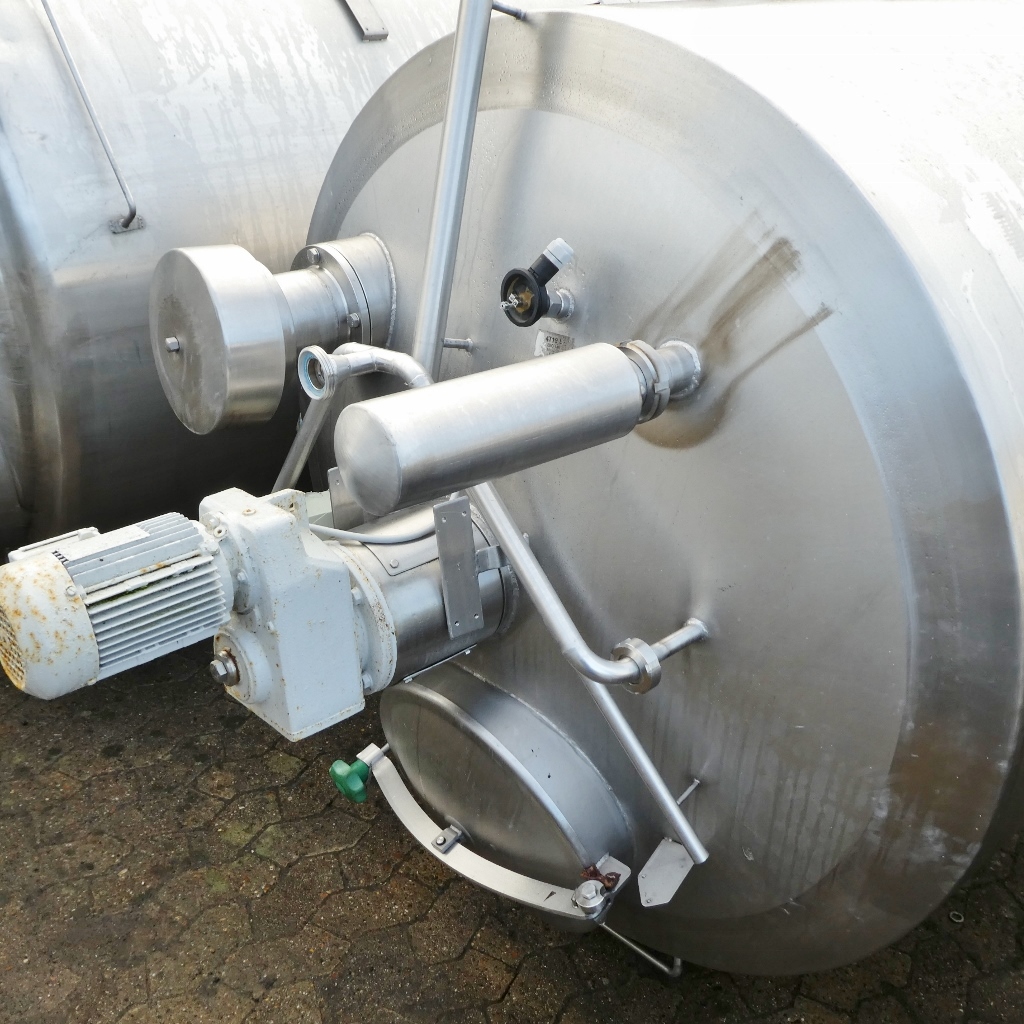

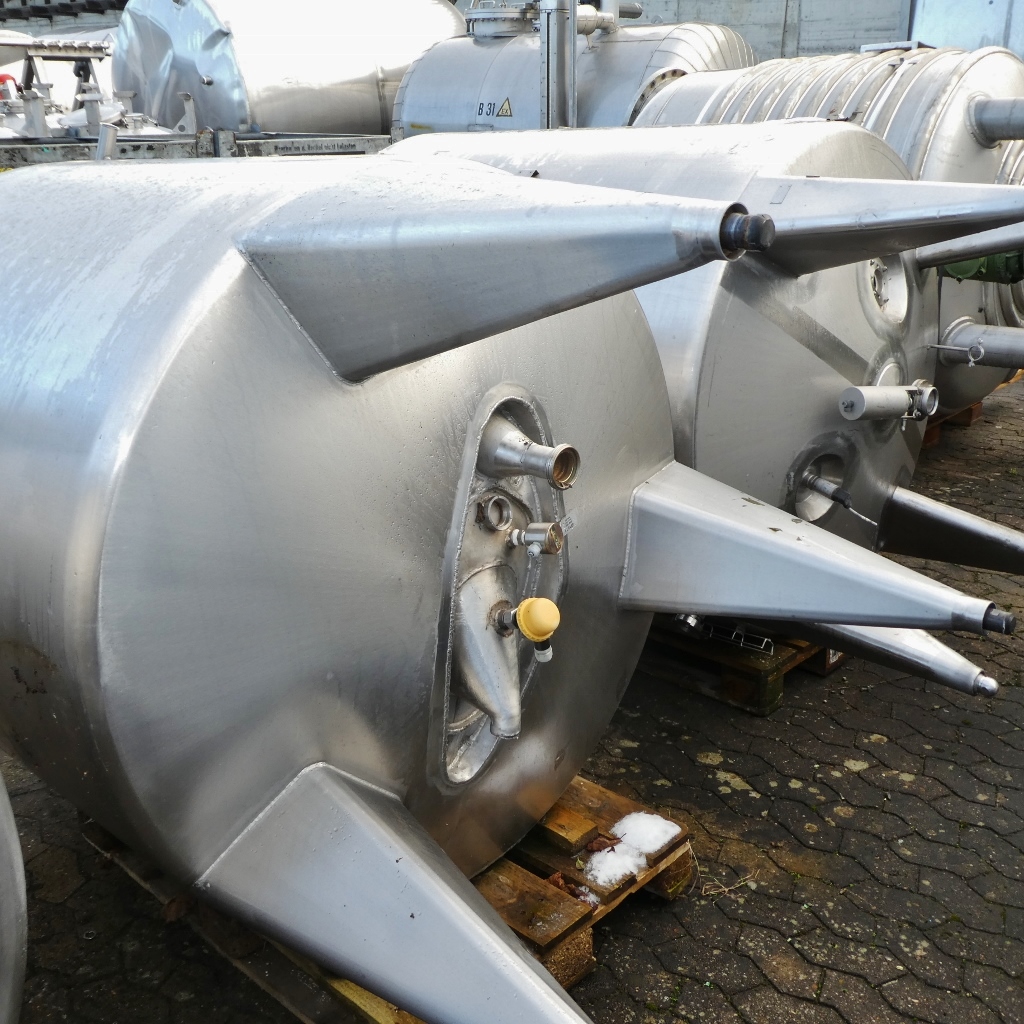

1500 liter tank i Rostfritt 304

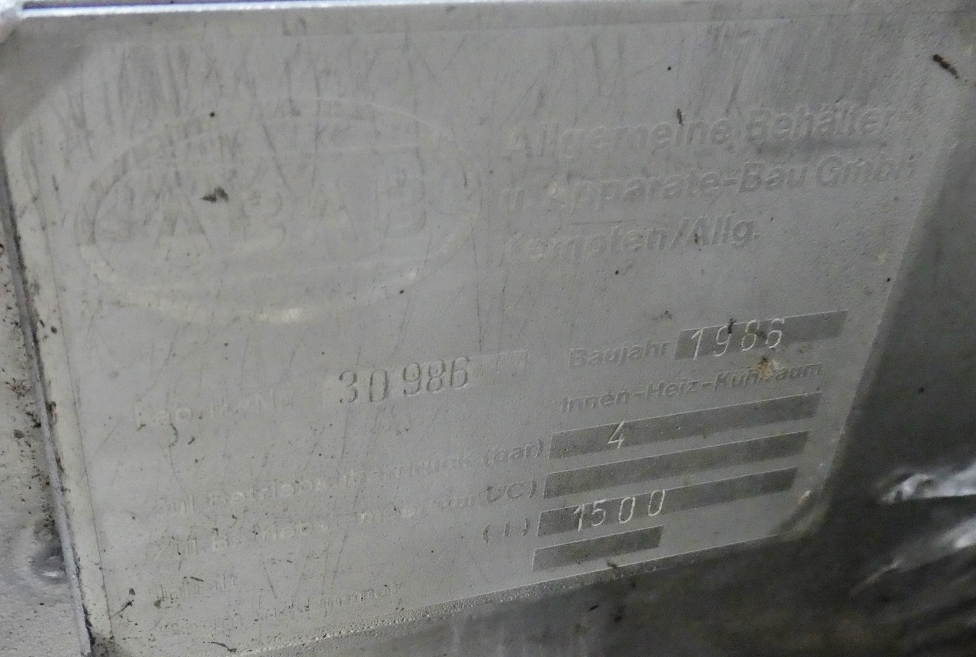

Additional information: Dairy; Smaller dents in the insulation jacket; height-adjustable screws of the feet made of Fe; pipe end cut flush Volumetric volume (L): 1.500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: no Max Overpressure: 4 Bar Type HE on the cylinder: half pipe welded onto the outside of the innertank Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Agitator: yes Internal diameter tank: 1.230 mm Outer diameter tank: 1.390 mm Cylinder height: 1.180 mm Total height of tank: 2.800 mm
