150 liter i Syrafast 316
63,000.00 SEK/st exkl moms
Mer information
Volym i liter | 150 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Ja |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Ritning
Öppnaitem available on order

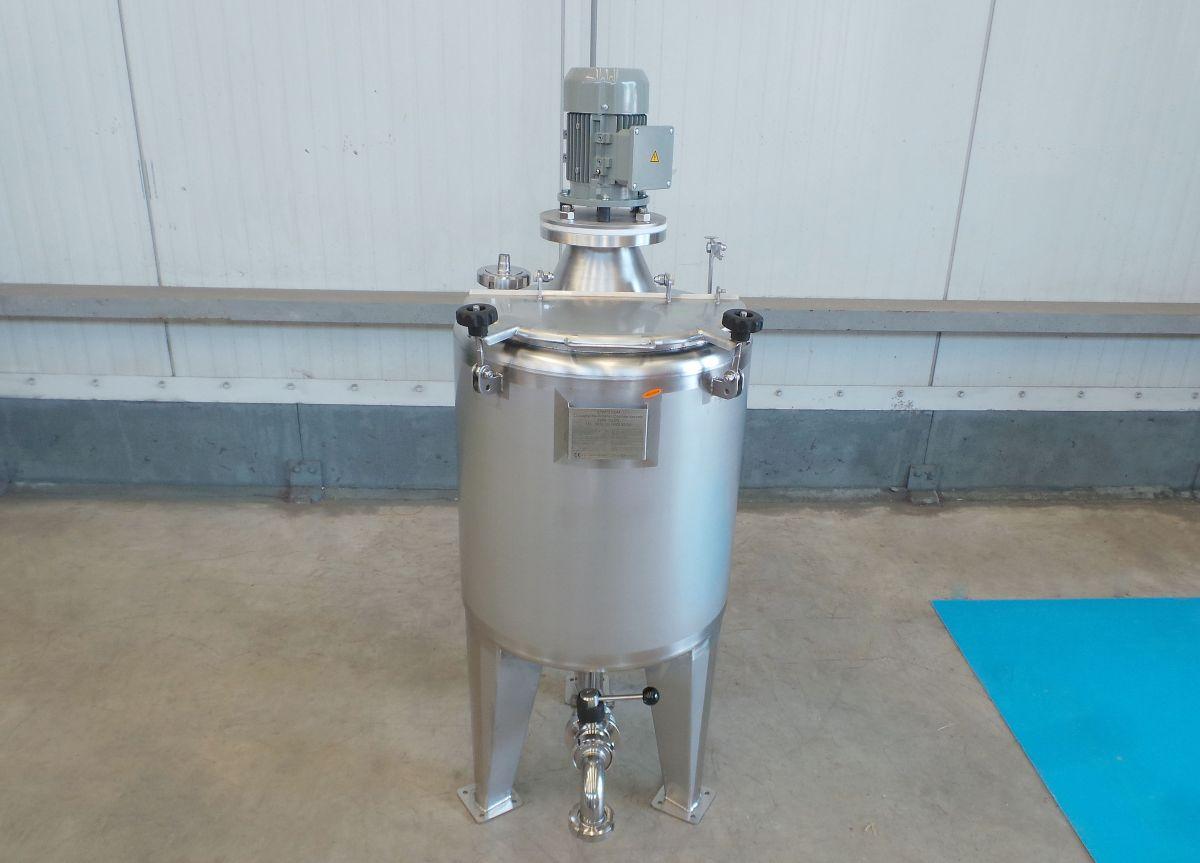

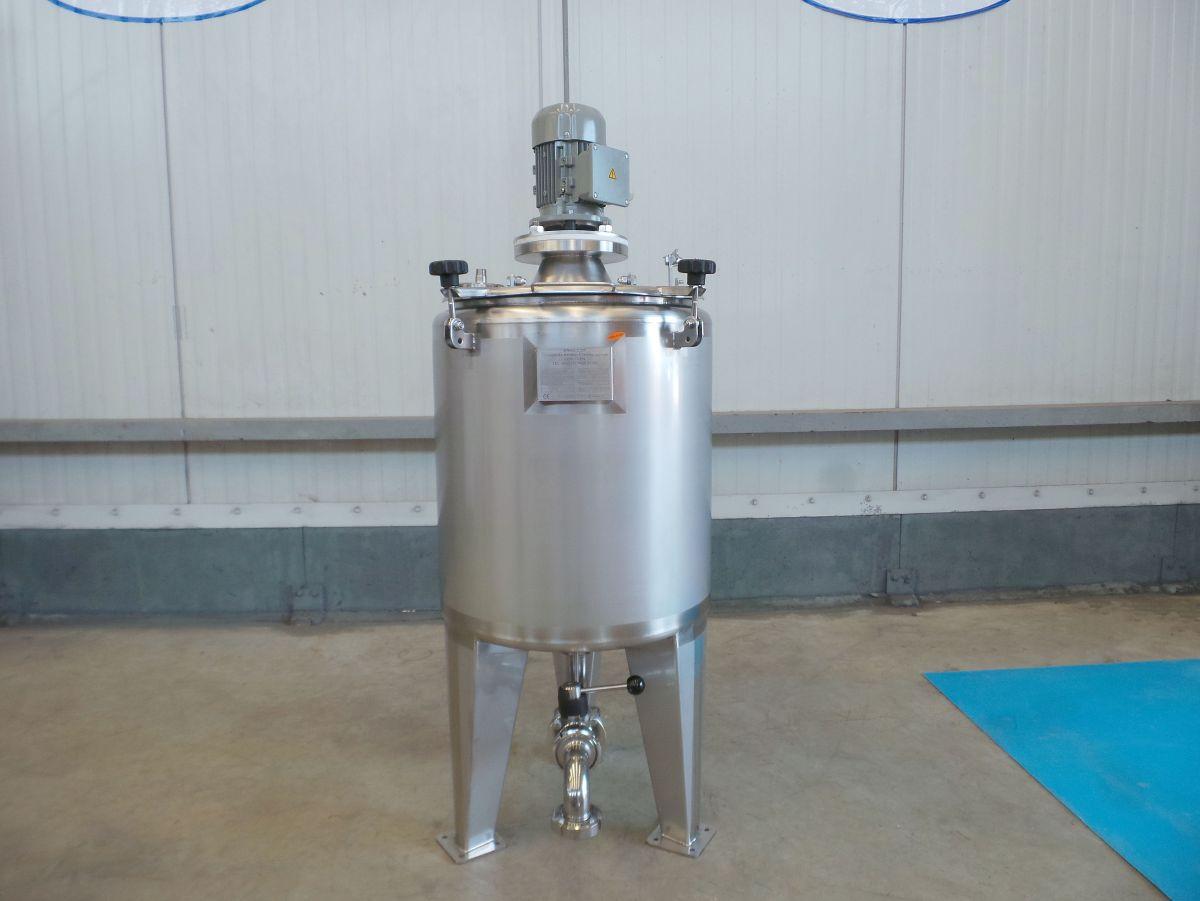

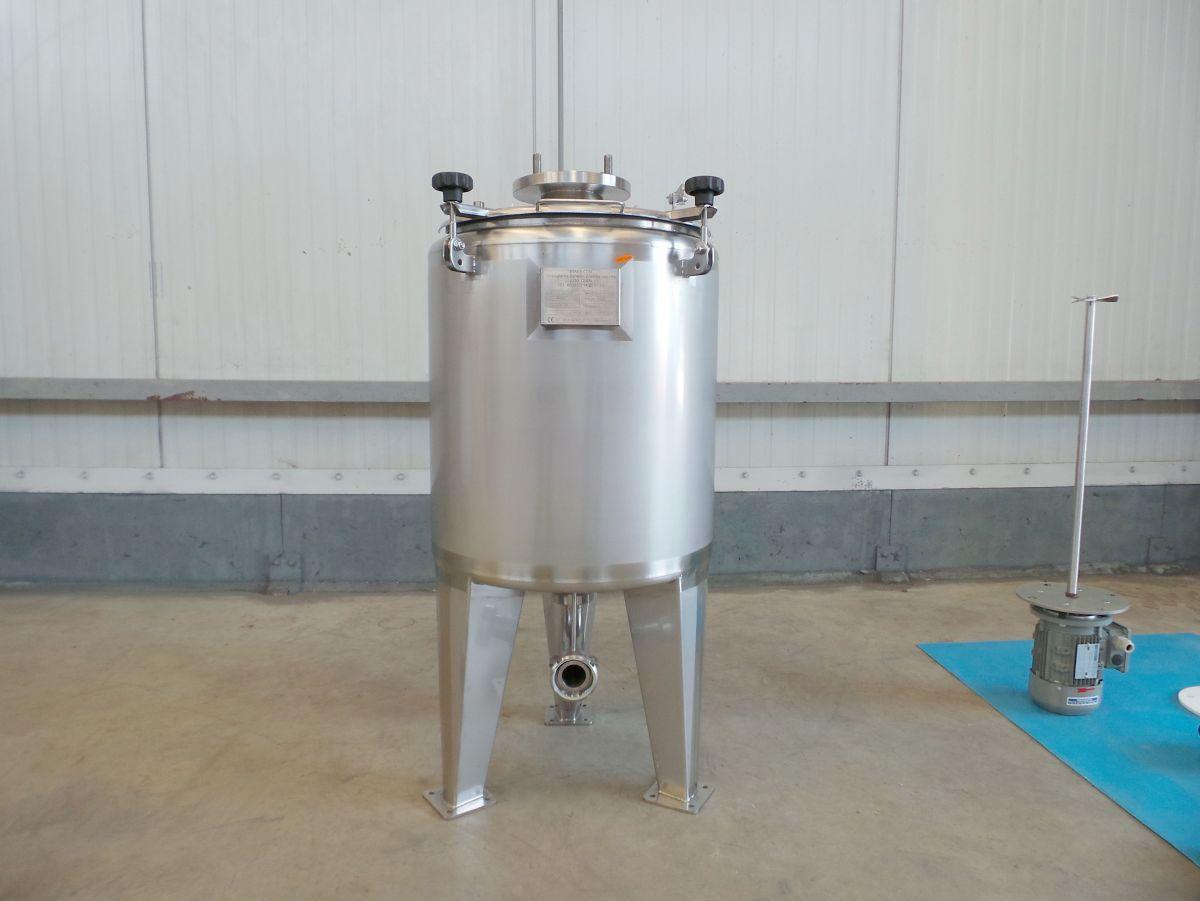

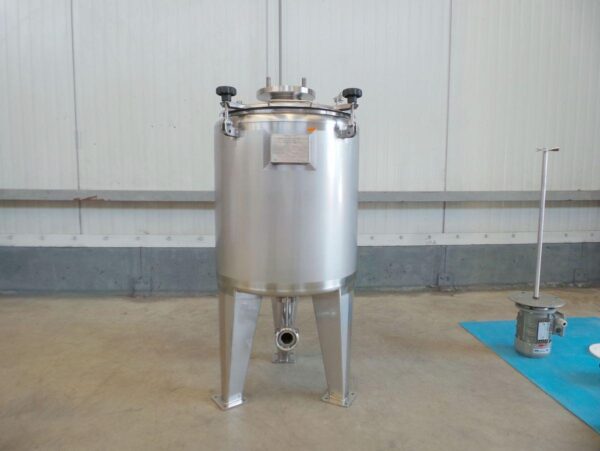

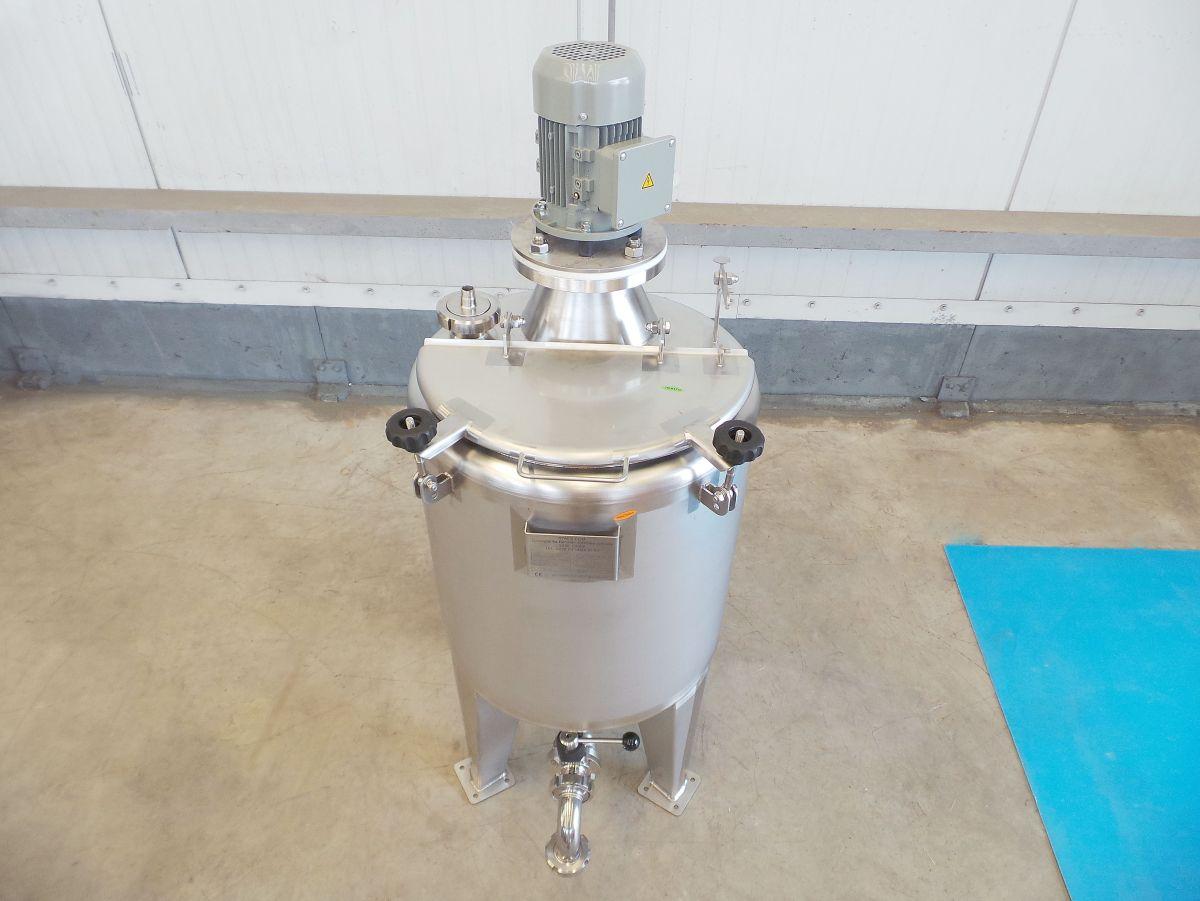

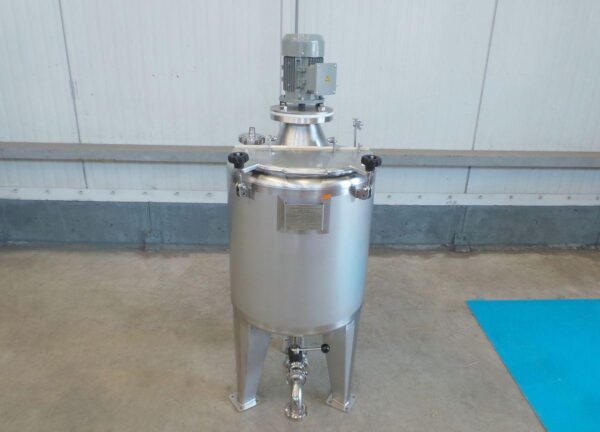

Article type: brand new mixing tank – type VC-SLA
Additional information: delivered with food certificate; article price without agitator; choice of 2 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm
Capacity: 150 L
Maximal density of the product: 1.300
Ra inner weld: 0,80
Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 80 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes
Mobile tank: no

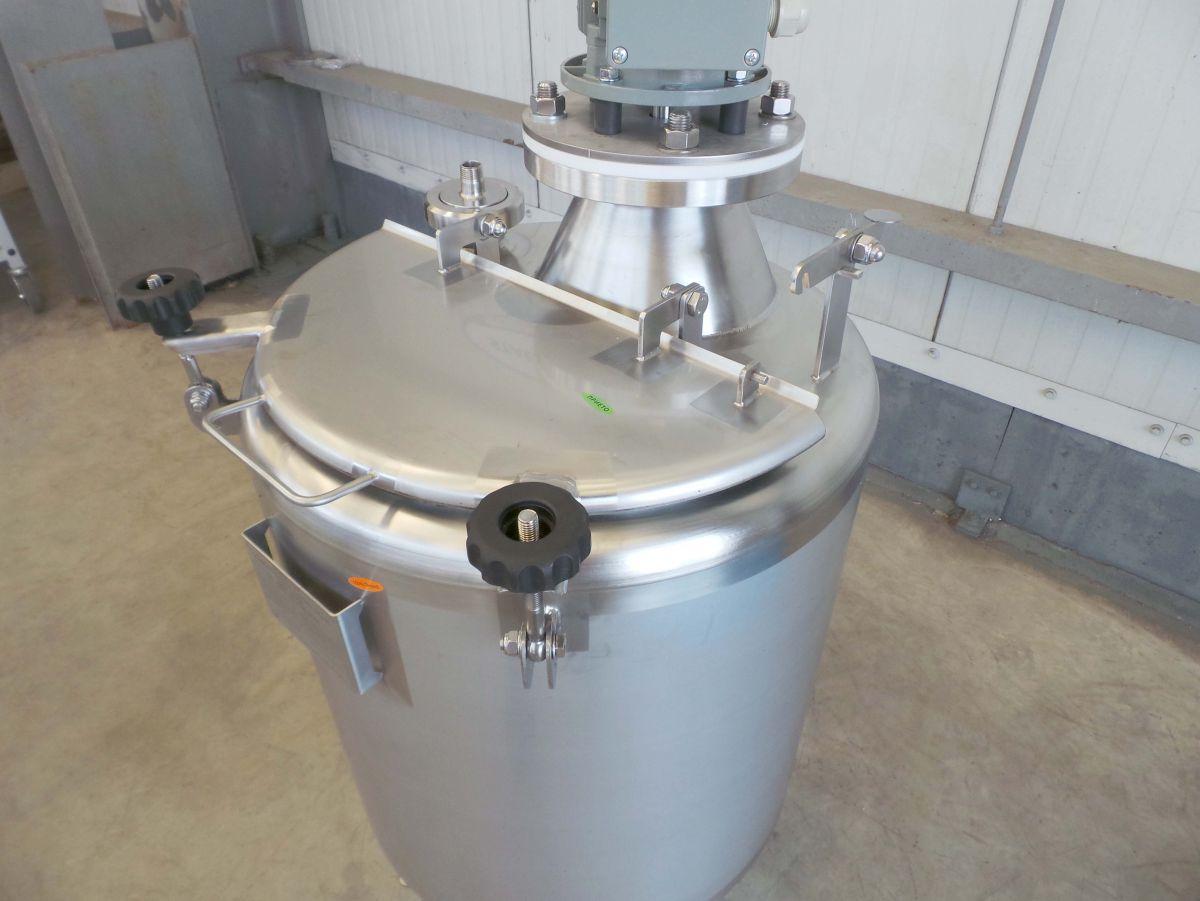

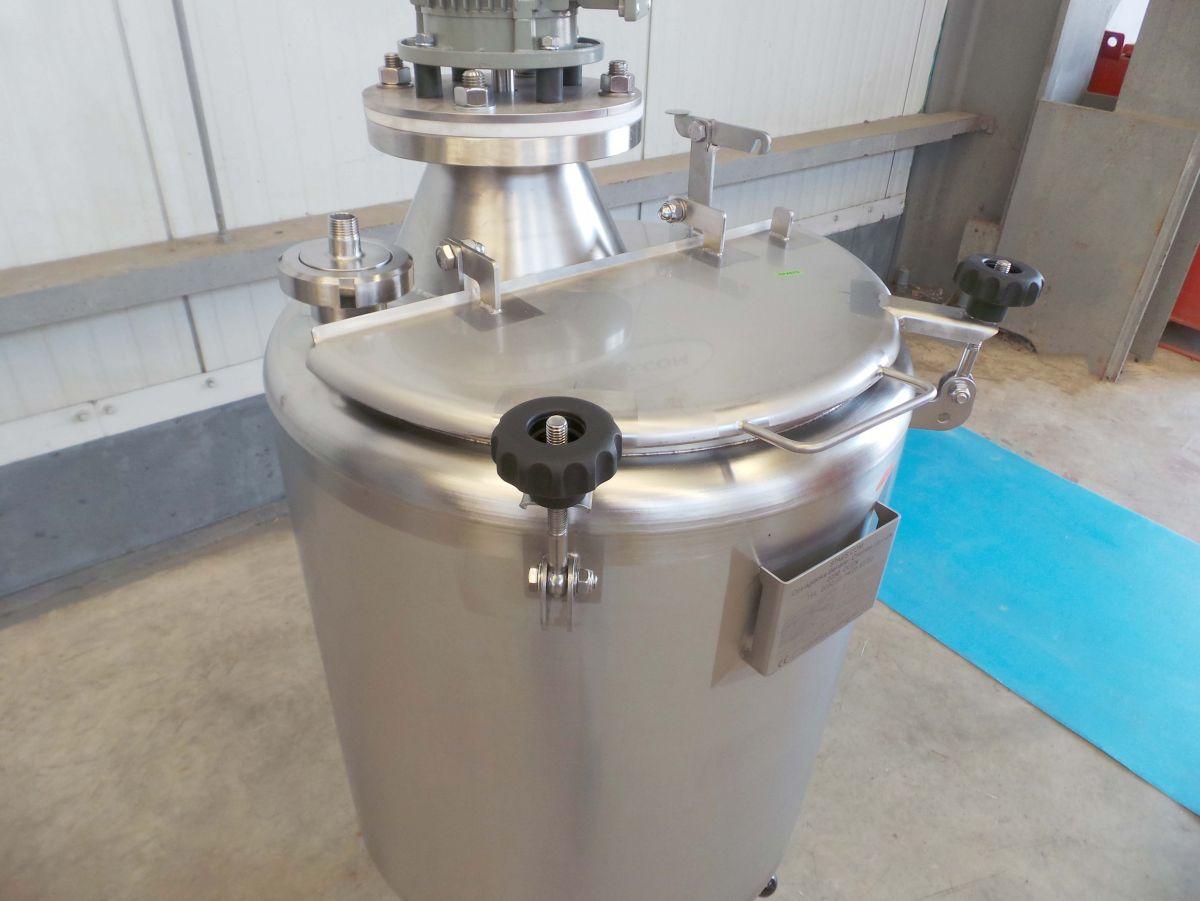

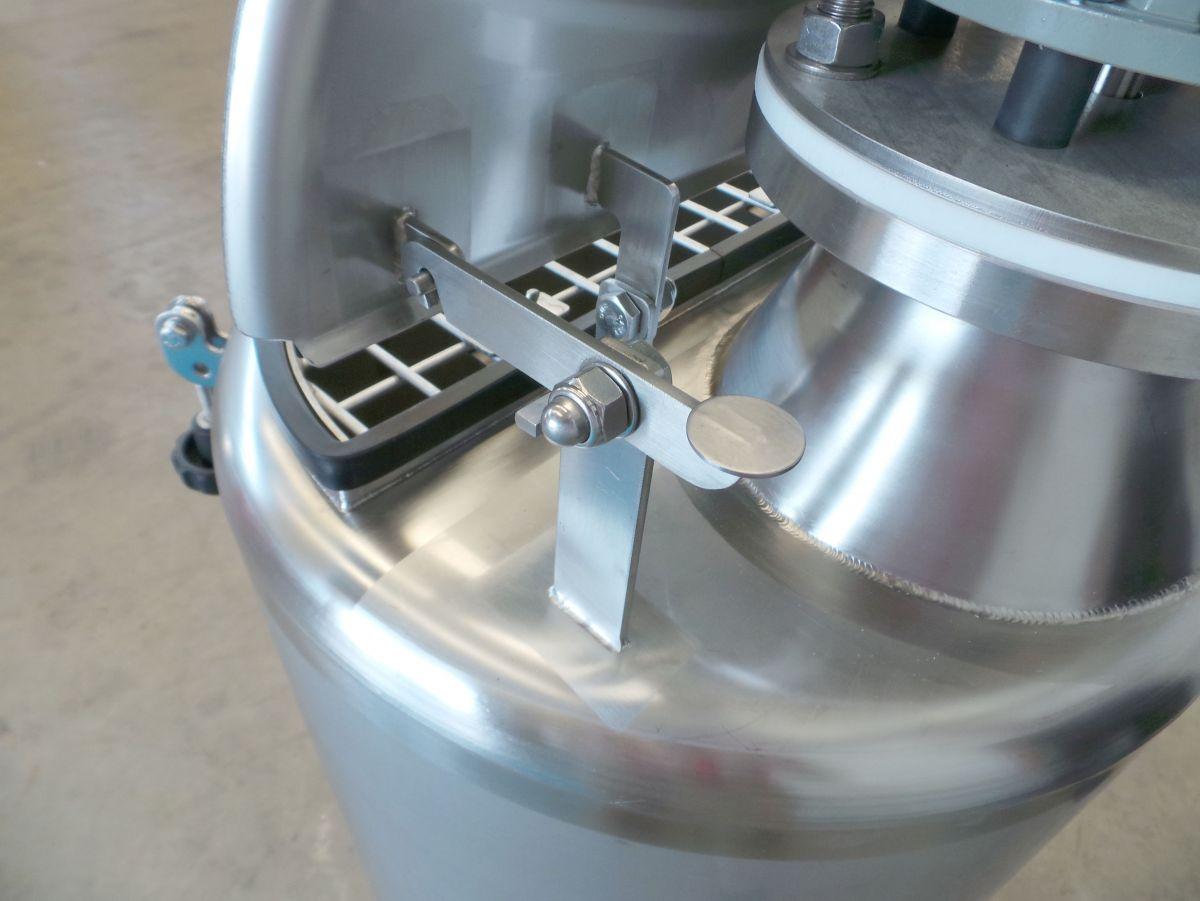

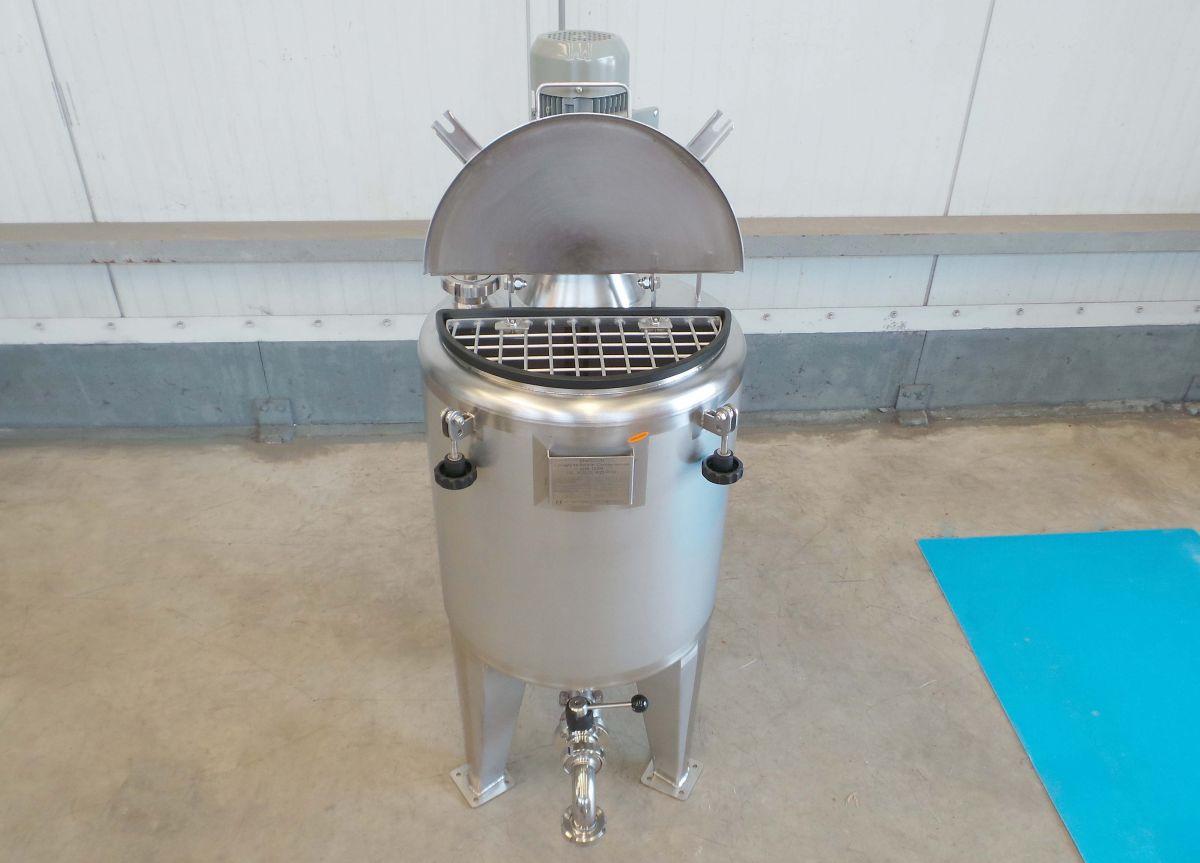

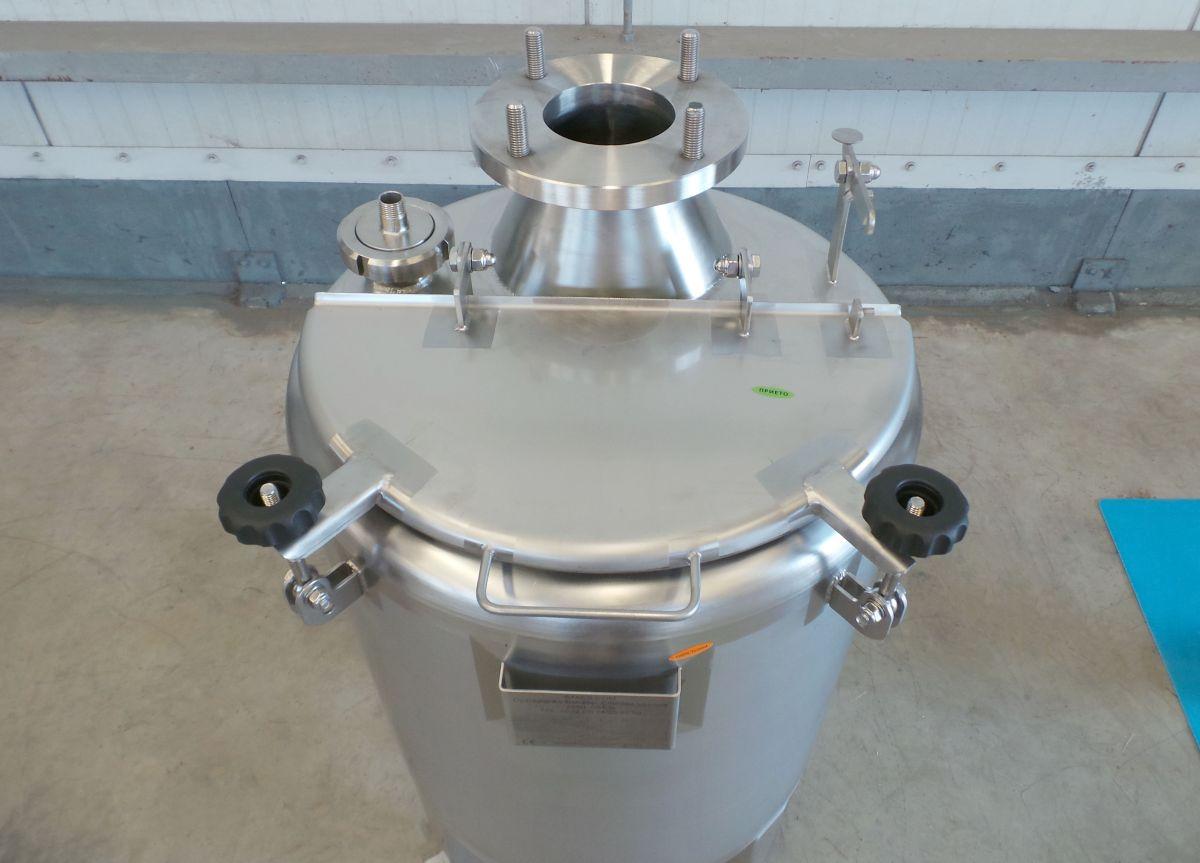

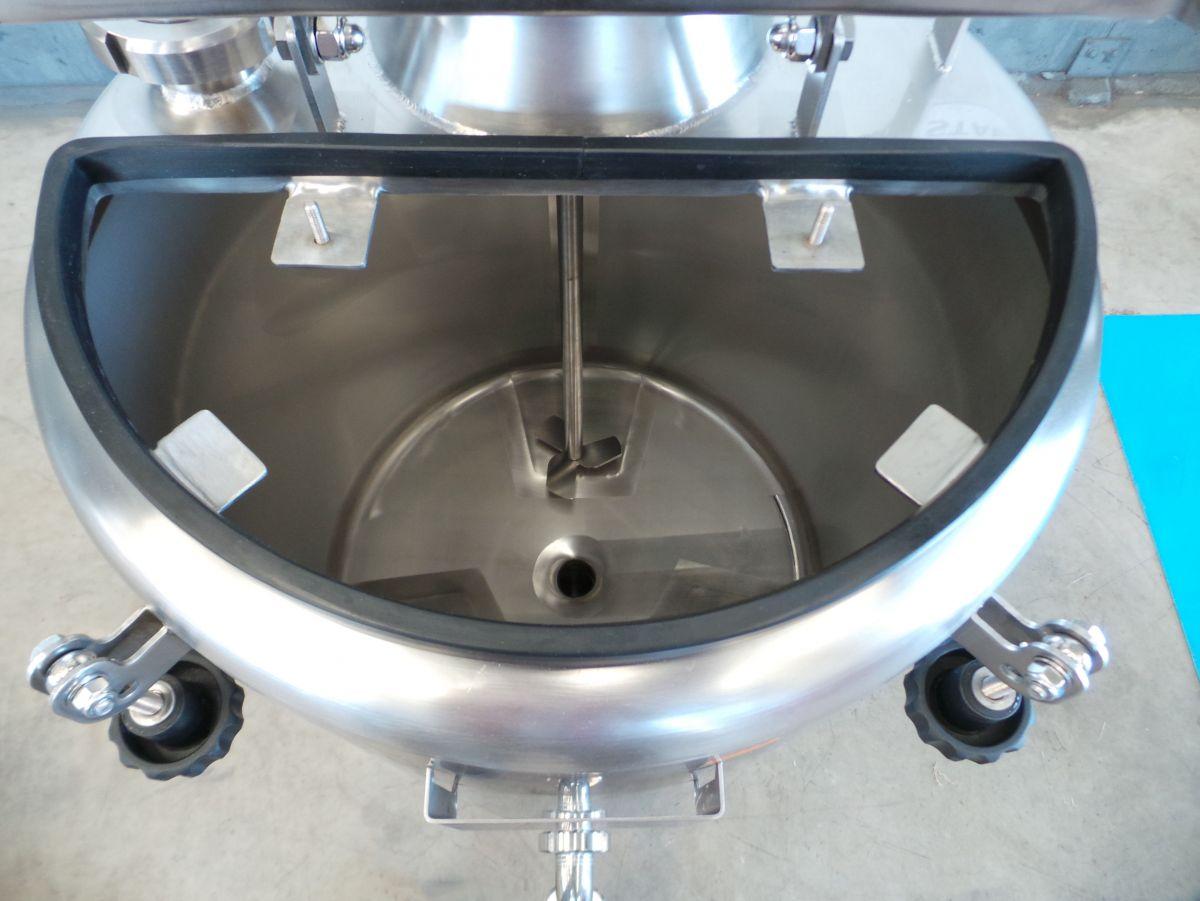

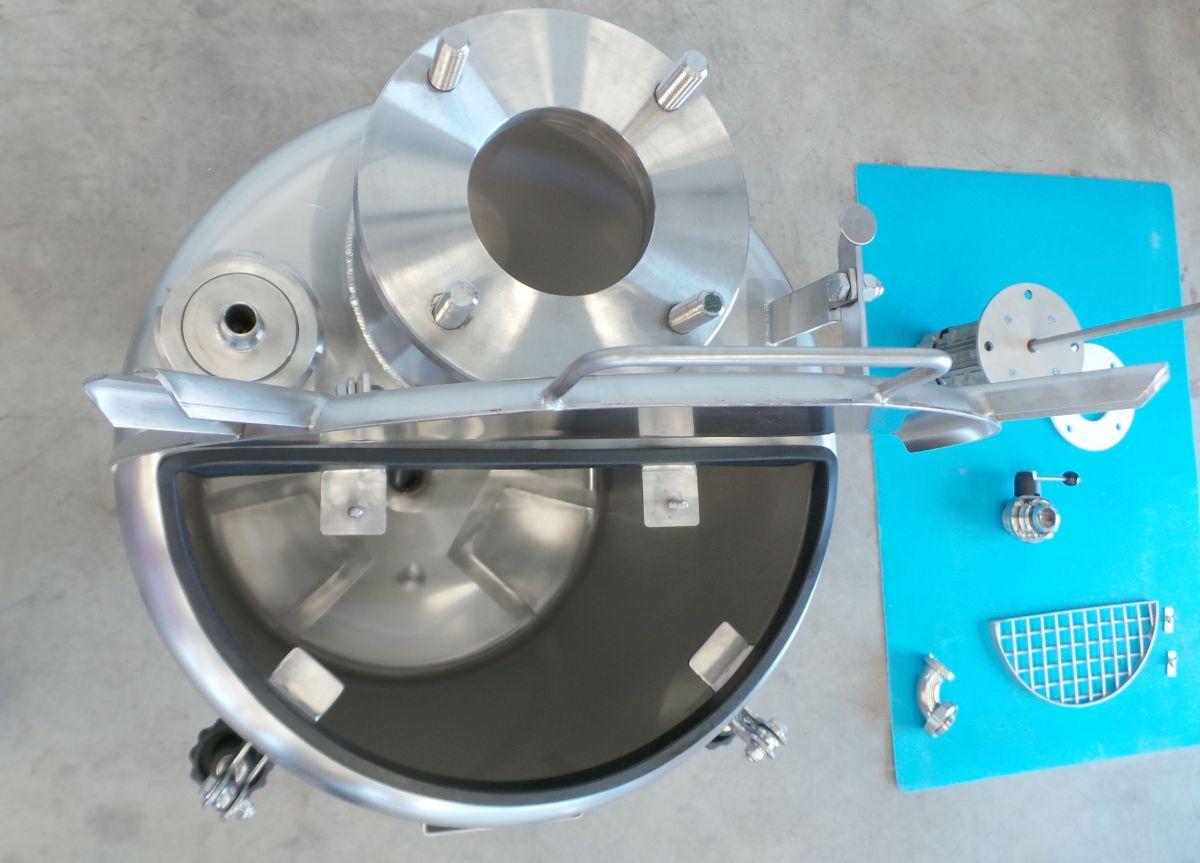

Top type: half hinging lid °
Shape of tank: cylindrical

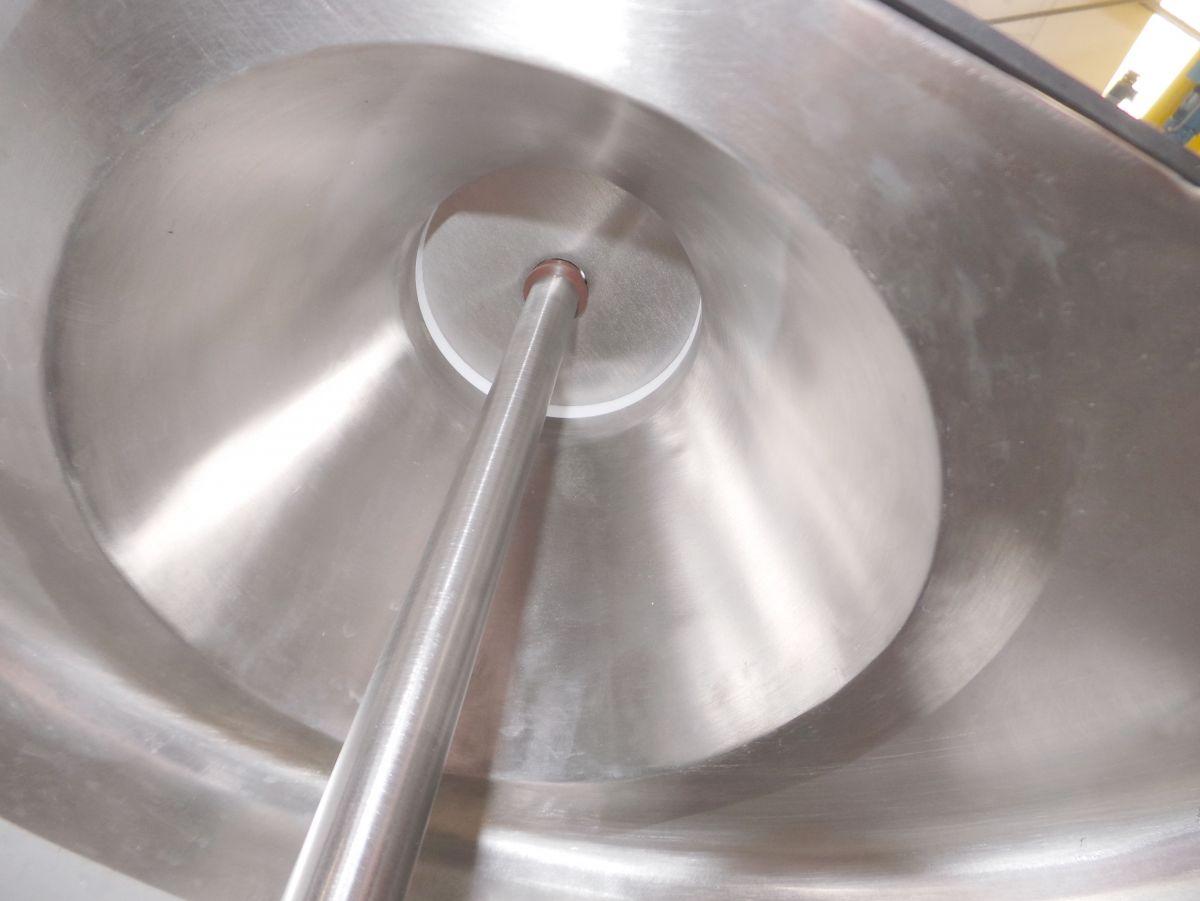

Bottom type: conical 10 °
Total discharge: yes

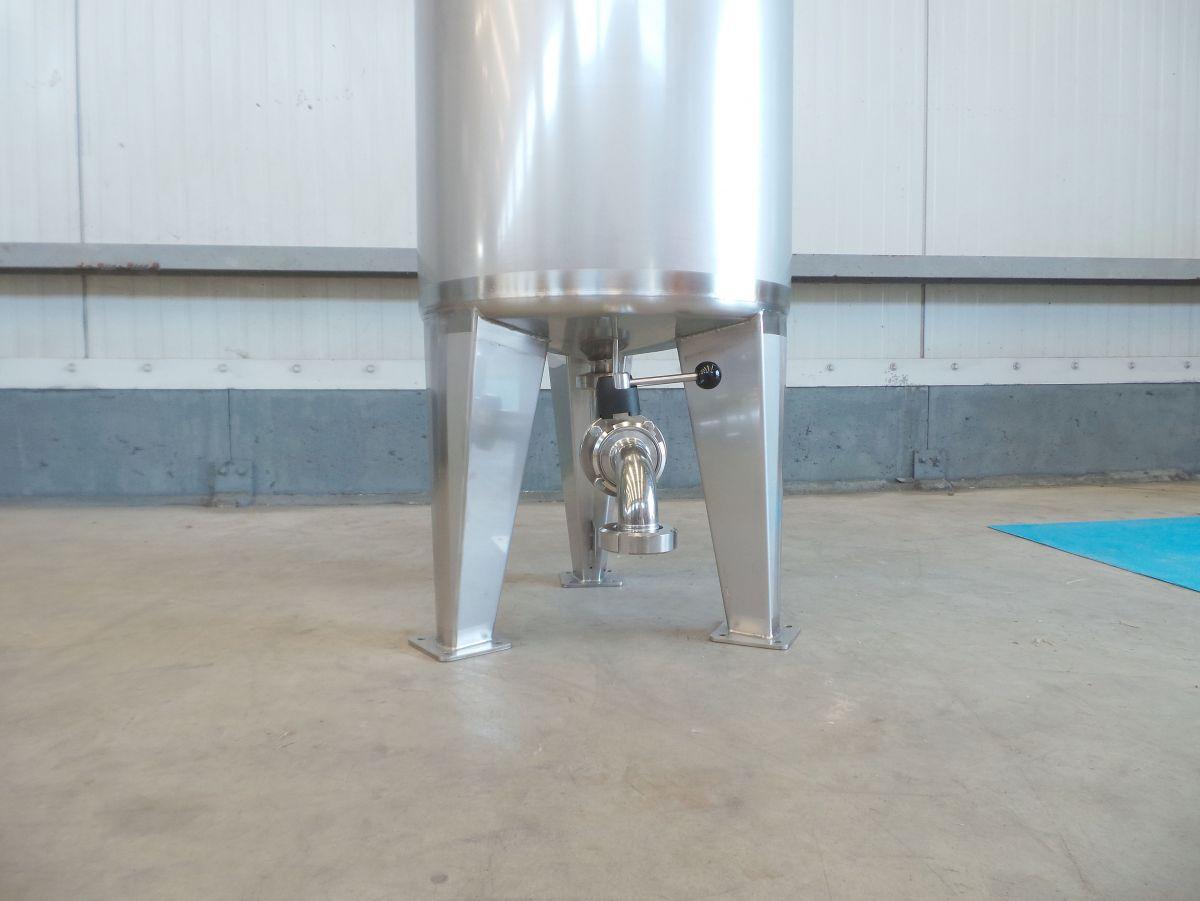

Fixation points: 3 non adjustable feet
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: yes
Registration plate on the tank: no
Flange for agitator: no

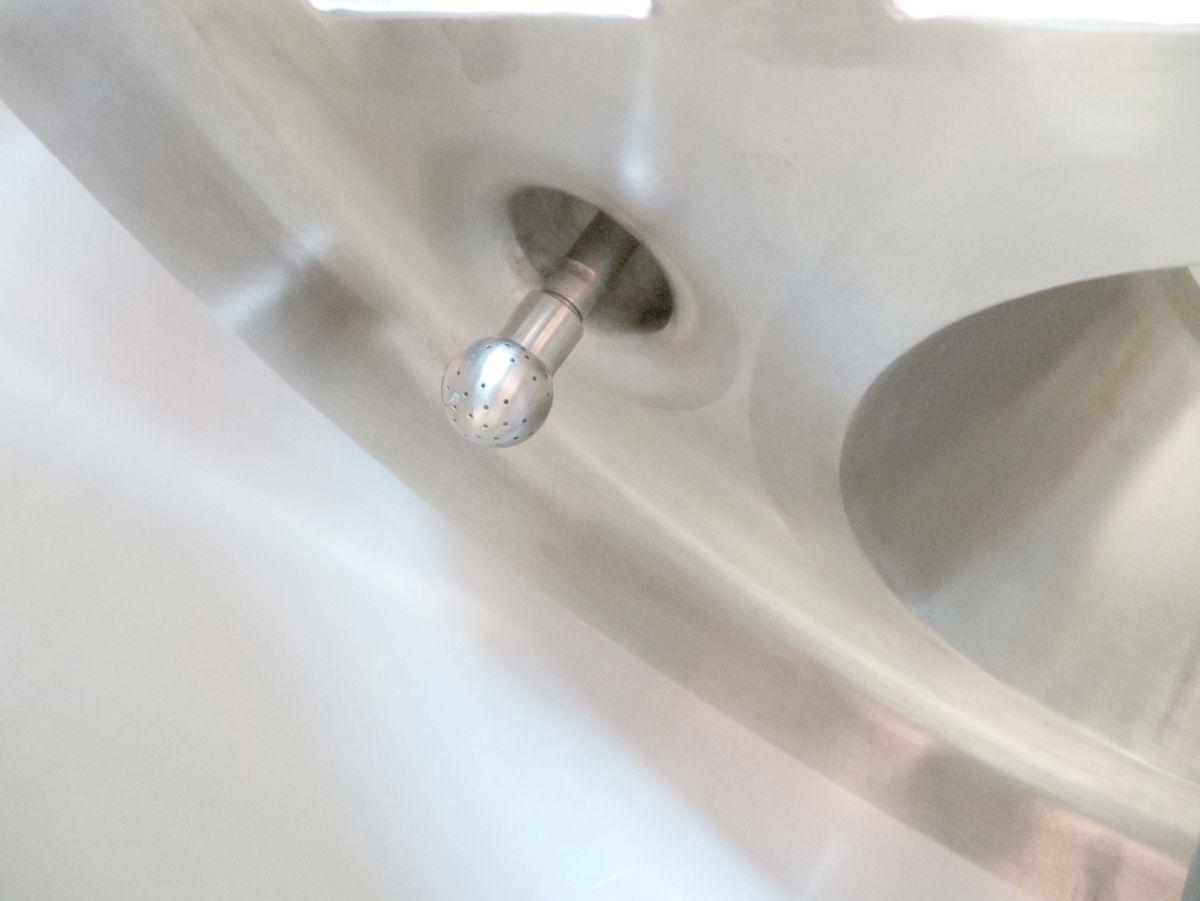

Type: spray ball
Tank outlet: inside Ø 40 mm
Outlet type: DIN11851
Type shut-off valve: butterfly valve

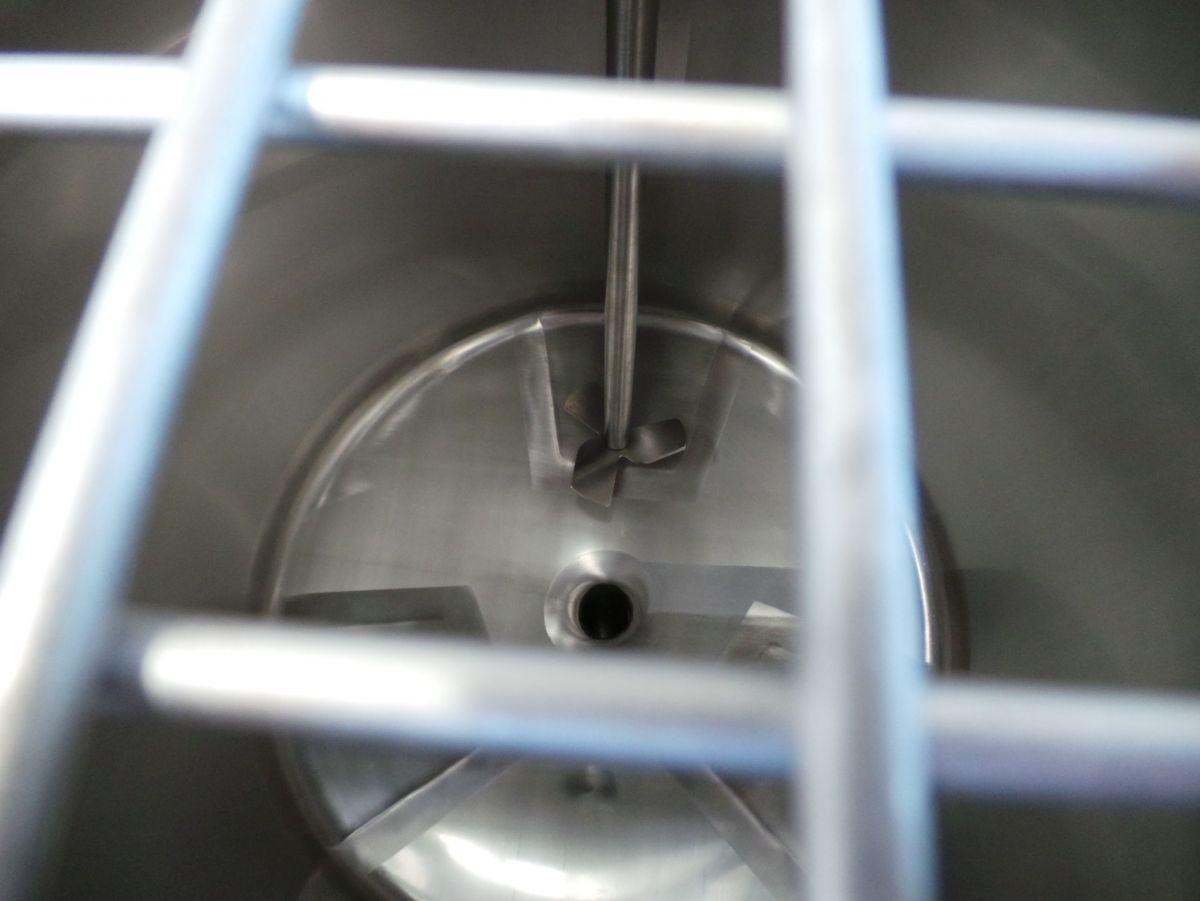

Agitator type: propeller agitator

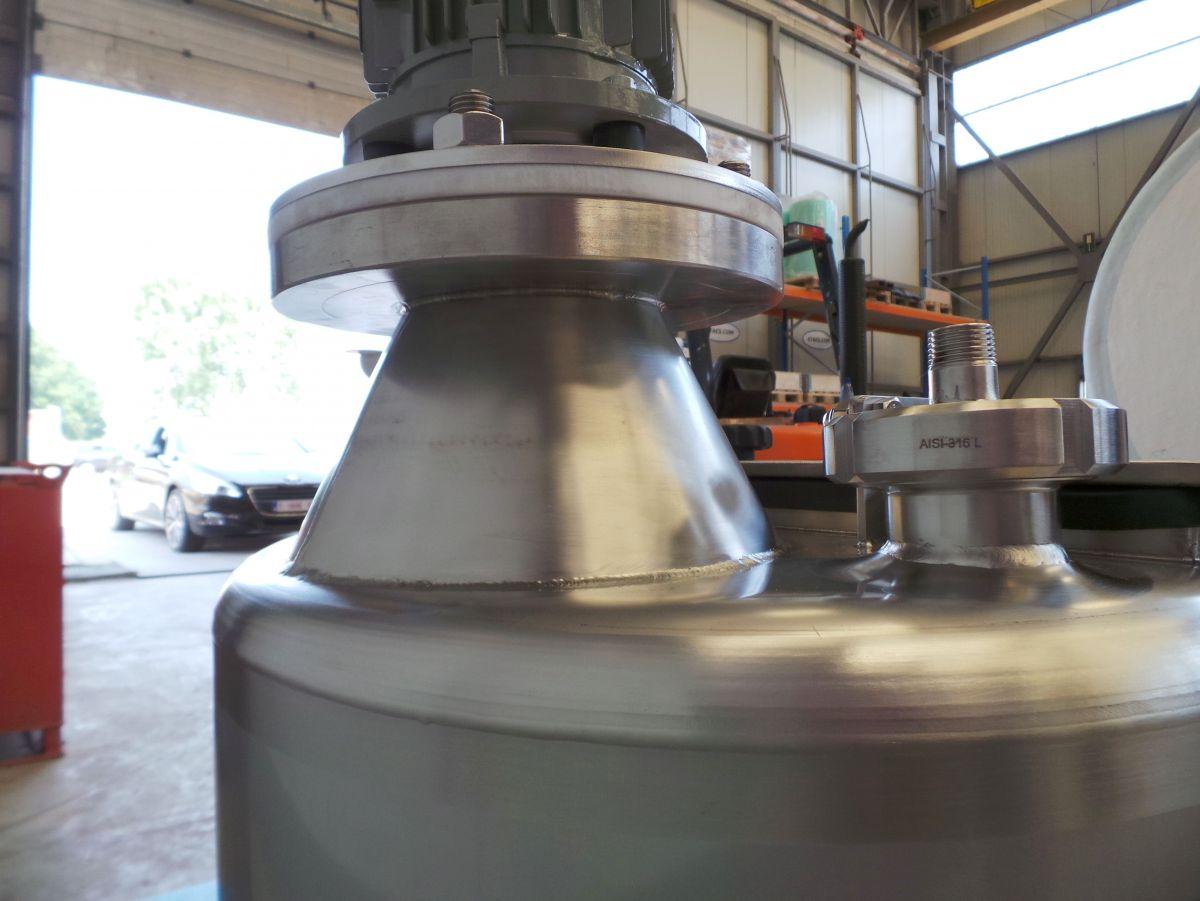

Position engine: at the top
Number of revolutions: 1.410
Voltage: three-phase
Agitator type 2: propeller agitator
Position engine: at the top
Number of revolutions: 680
Voltage: three-phase
Empty weight tank: 70
