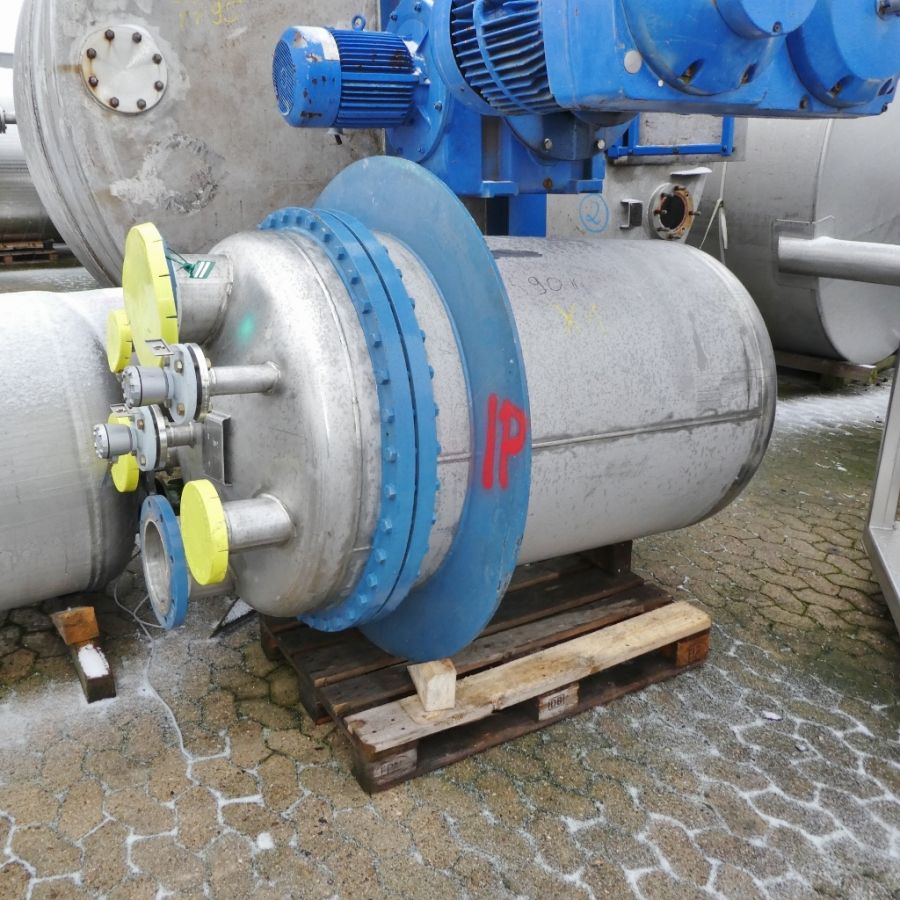

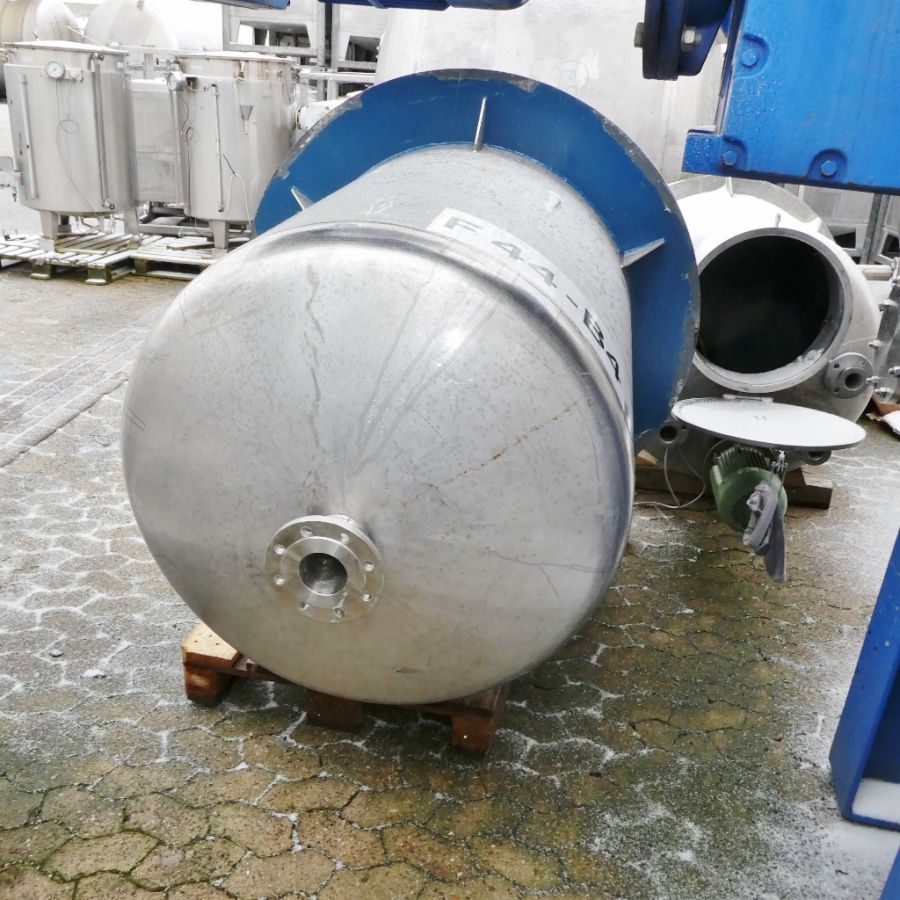

1300 liter tank i Syrafast 316

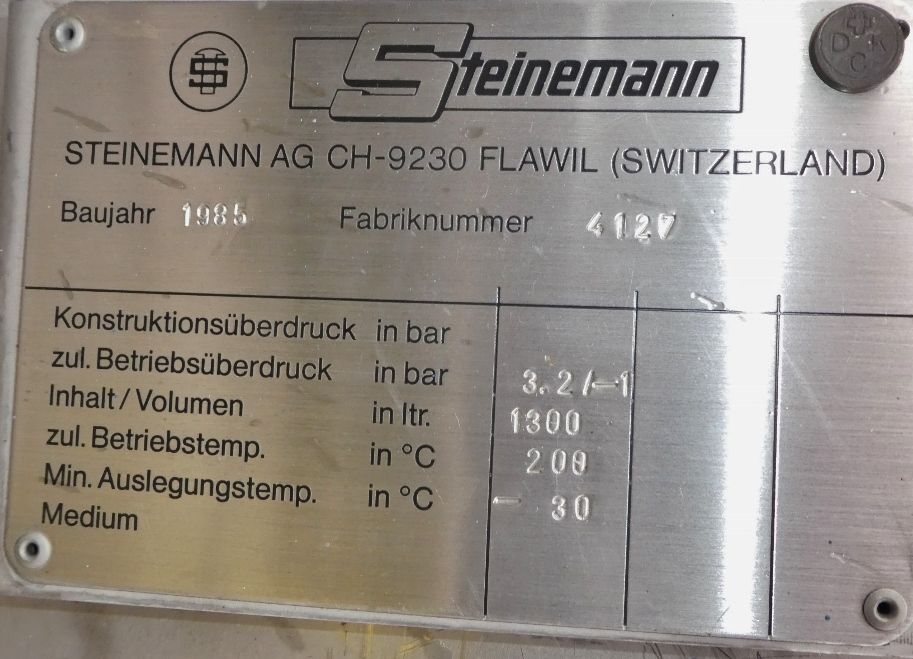

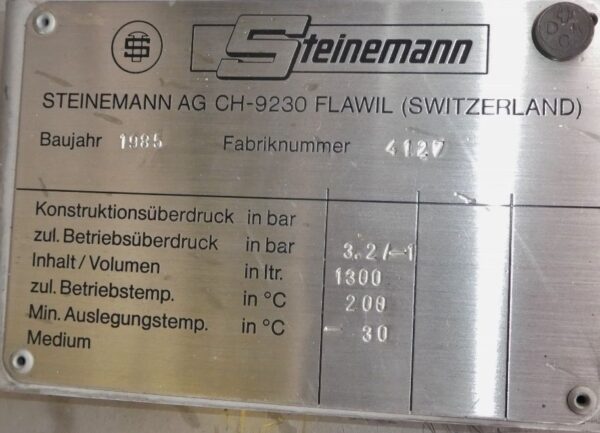

Additional information: Pharmaceutical Chemistry; Support ring made of Fe; flanges partly made of Fe Volumetric volume (L): 1.300 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 3,20 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: flange DN80 Top: 4,10 mm Cylinder: 5 mm Bottom: 3 mm Internal diameter tank: 990 mm Cylinder height: 1.240 mm Total height of tank: 2.250 mm
