1300 liter i Rostfritt 304
58,000.00 SEK/st exkl moms
Mer information
Volym i liter | 1300 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Rostfritt 304 |
Omrörare | Nej |
Uppvärmning/kylning | Ja |
Isolerad | Nej |
Trycktank | Ja |

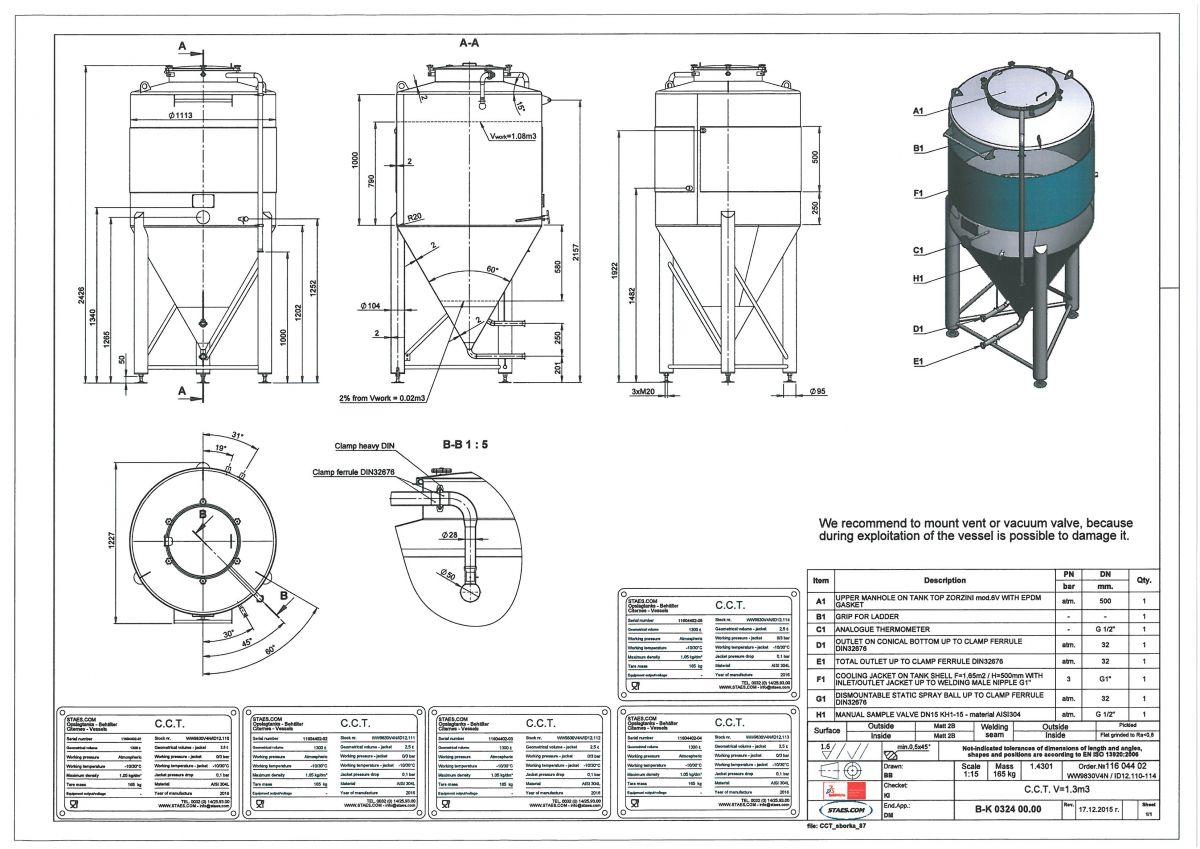

Ritning
Öppnaitem available on order

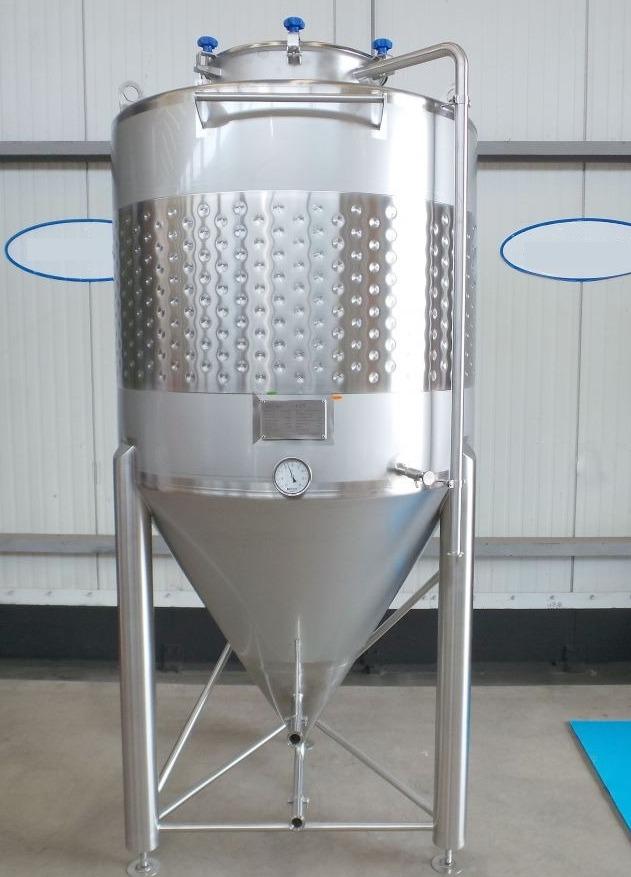

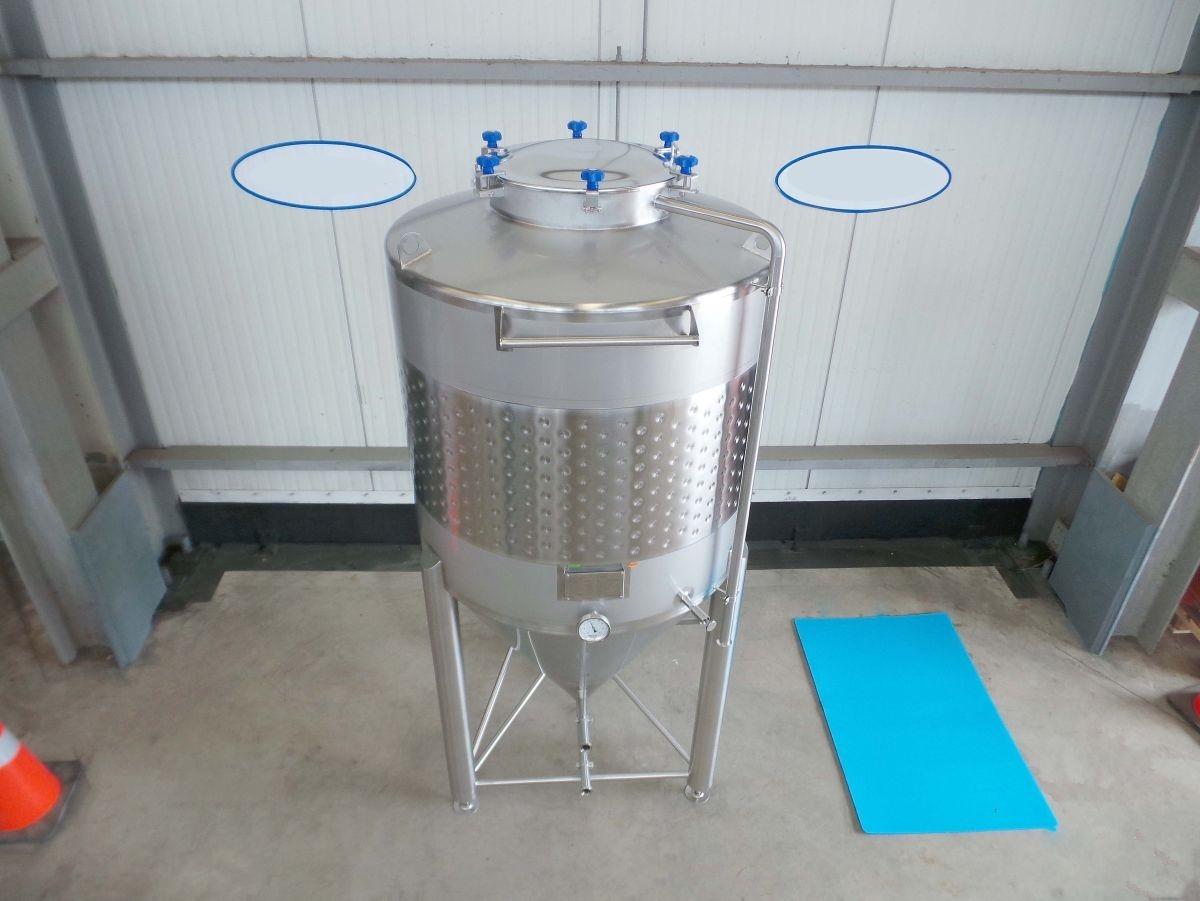

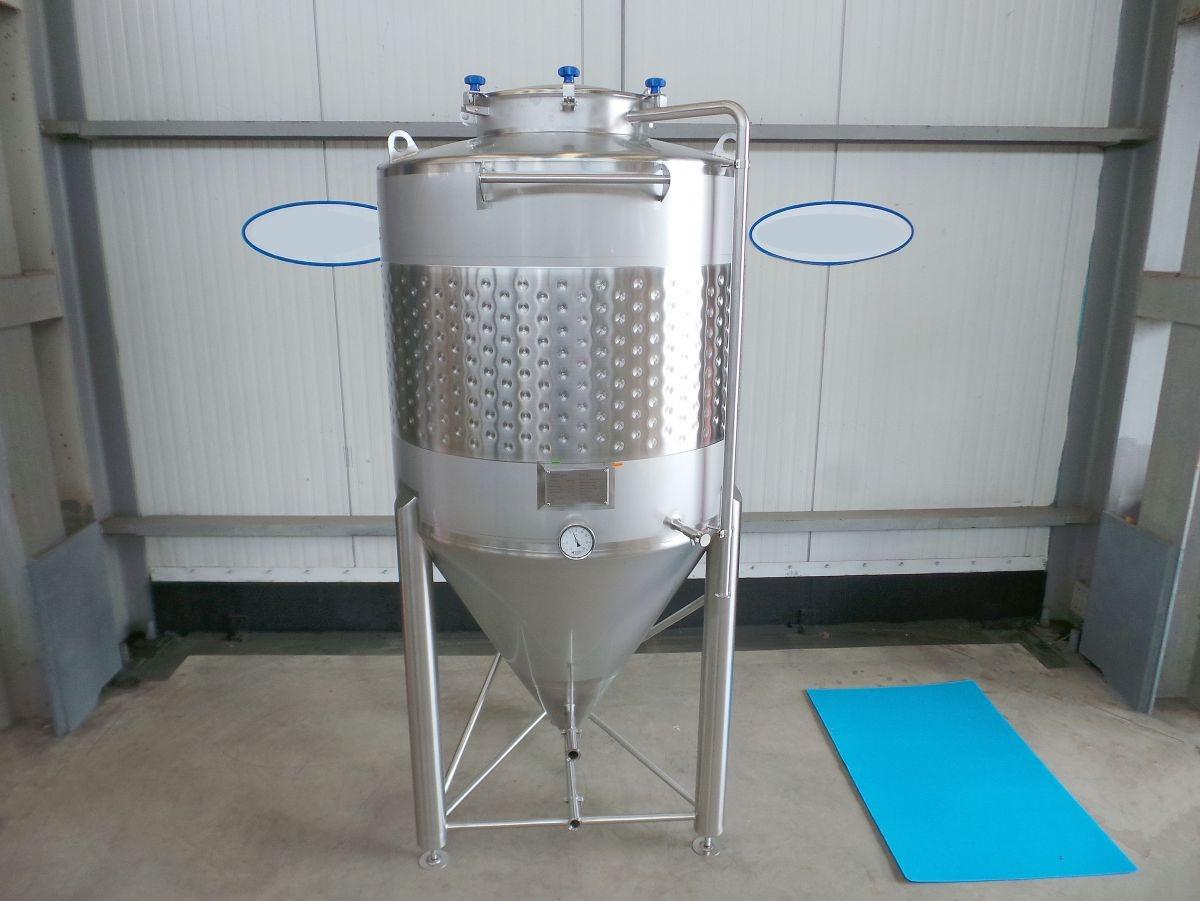

Article type: brand new fermentation tank – type CCT-HL

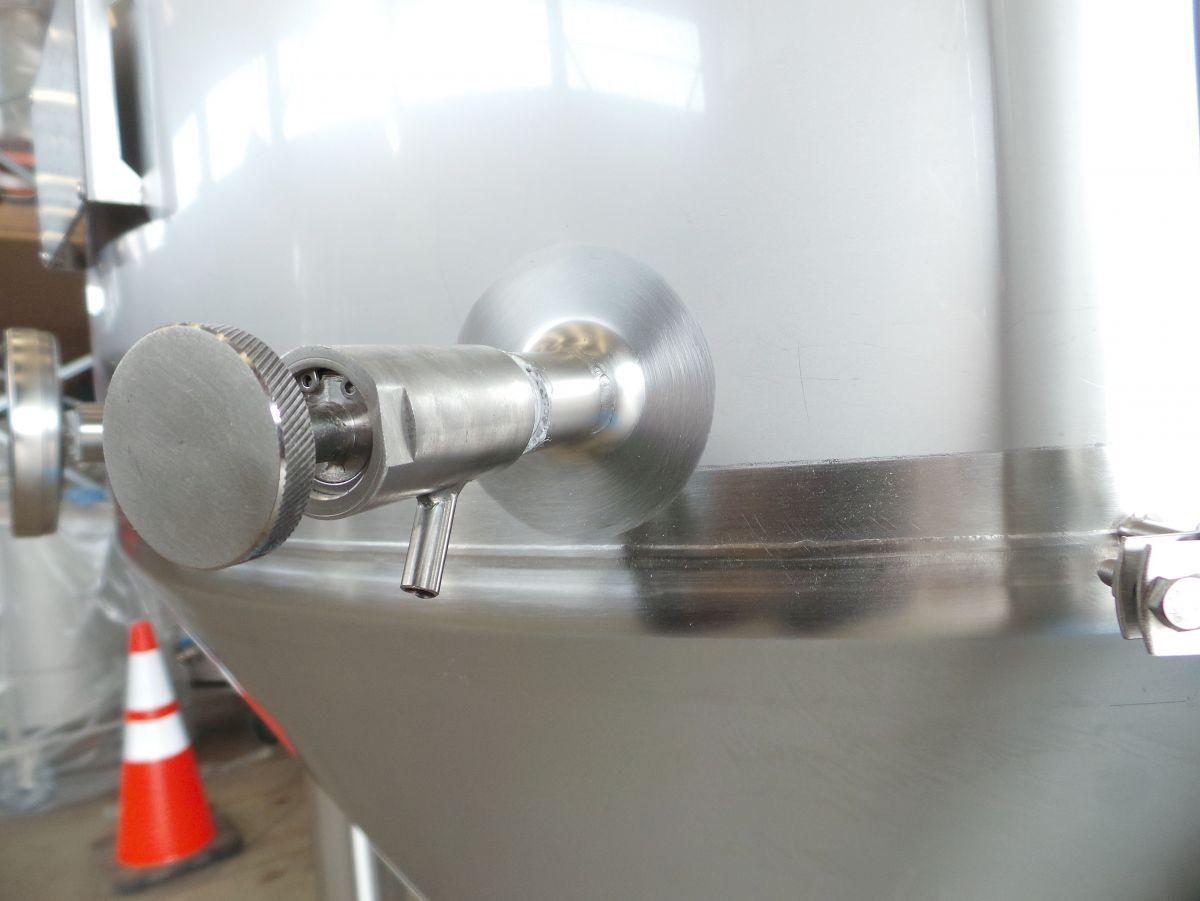

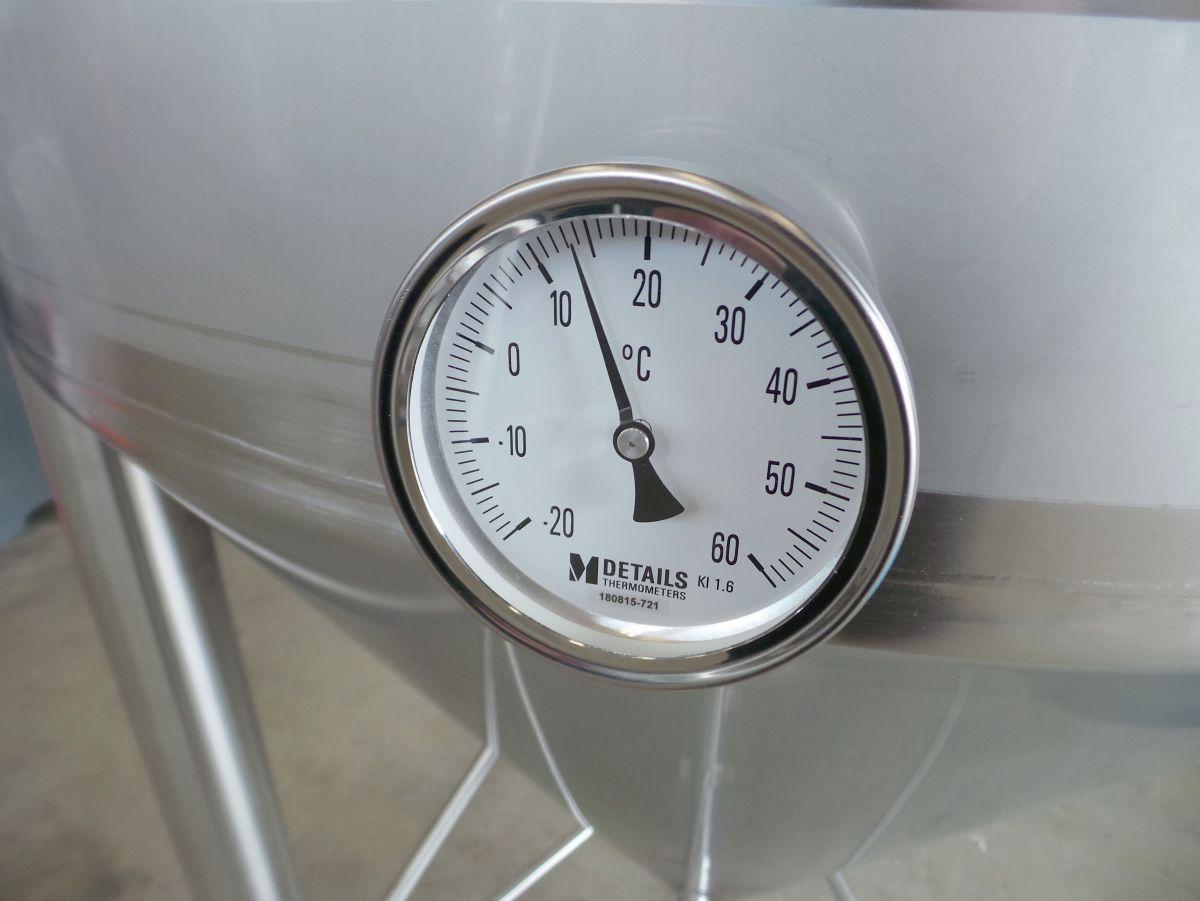

Additional information: Included in the price: cip spraybol, thermometer, sample valve. In option: butterfly valve, airlock (see options).
Capacity: 1.300 L
Maximal density of the product: 1.050
Ra inner weld: 0,80
Finish stainless steel: 2b
Working pressure in tank: pressure
Overpressure: 0,50 Bar
Max. working temperature: 30 °C
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single jacketed with heat-exchanger
Heat exchanger: yes
Insulation: no
Agitator: no
Mobile tank: no
Top type: conical
Shape of tank: cylindrical
Bottom type: strong conical
Total discharge: yes

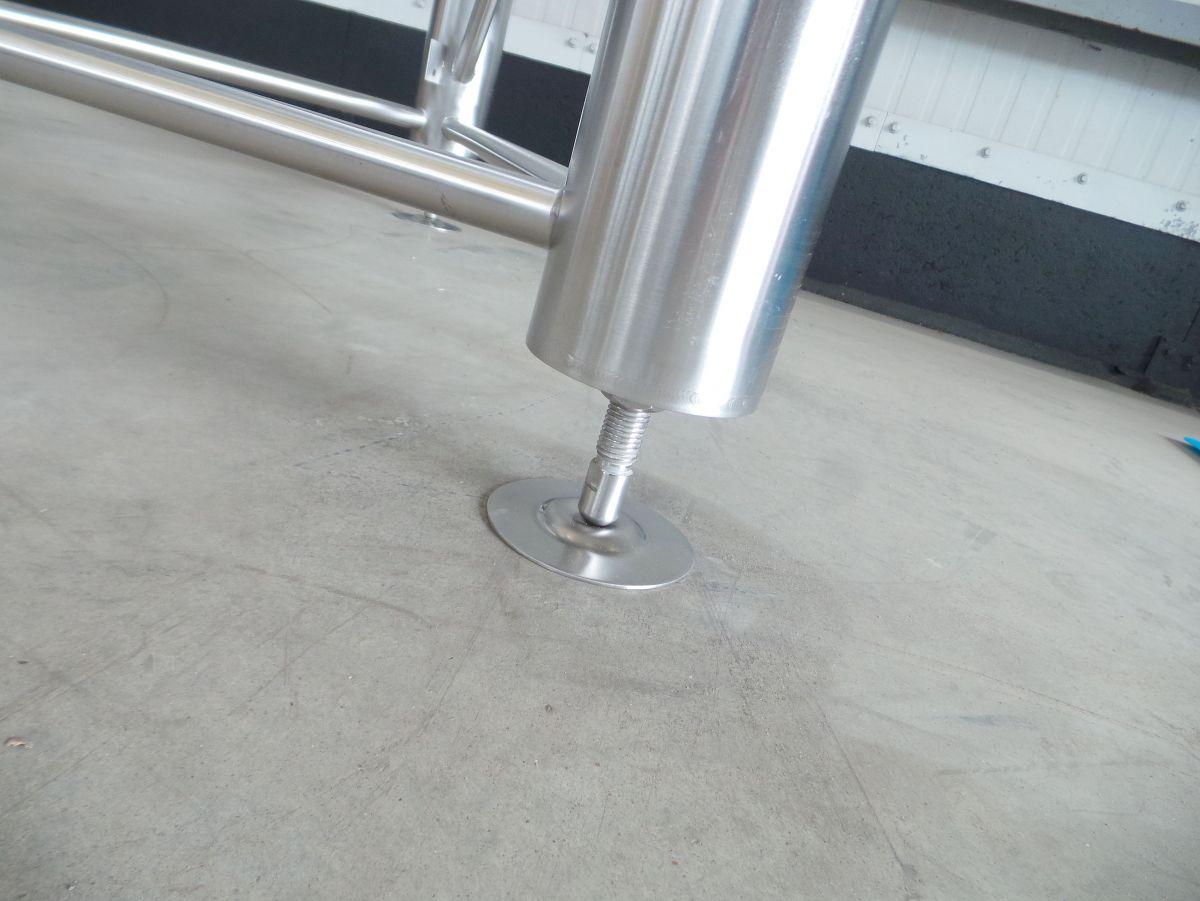

Fixation points: 3 adjustable feet
Legs: Set of baseplates and adjusting pieces included

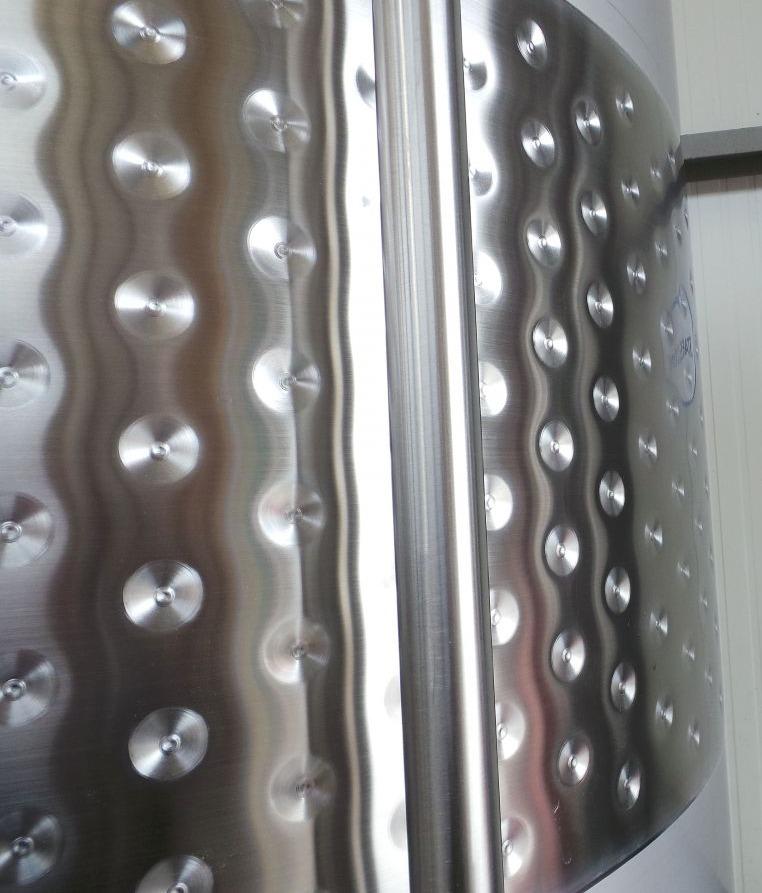

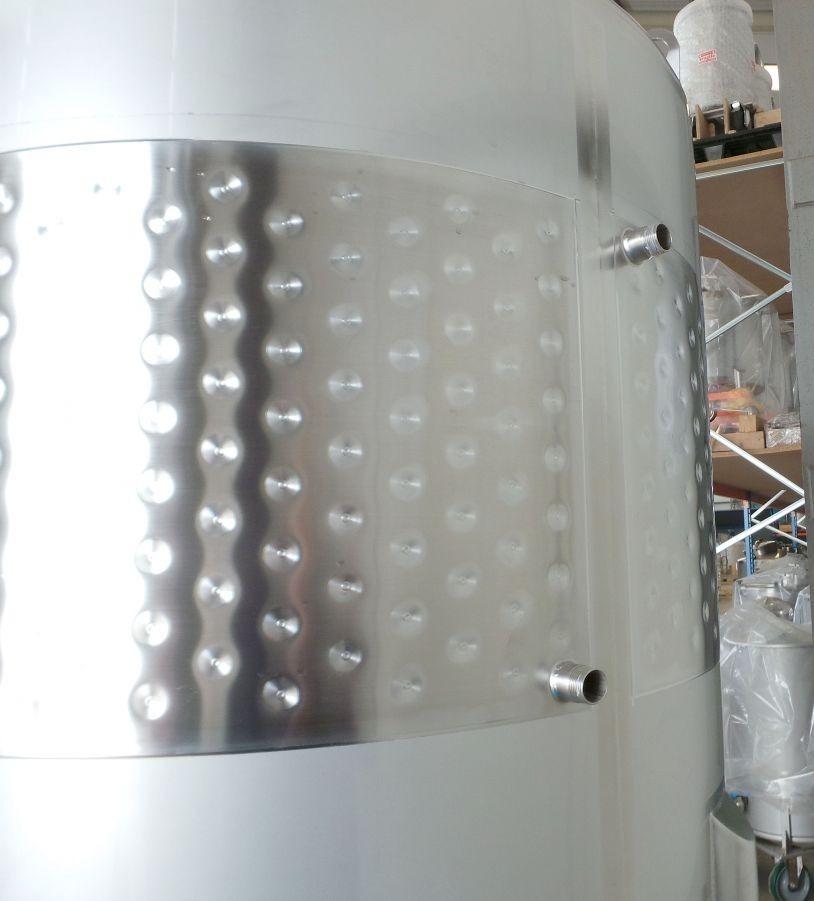

Type of HE on the cylinder: dimple-jacket
Position HE: the middle part of the cilinder
Height HE: 500 mm
Number of sections: 1
Water pressure HE: 3 Bar
Contact surface cylinder: 1,65 m²

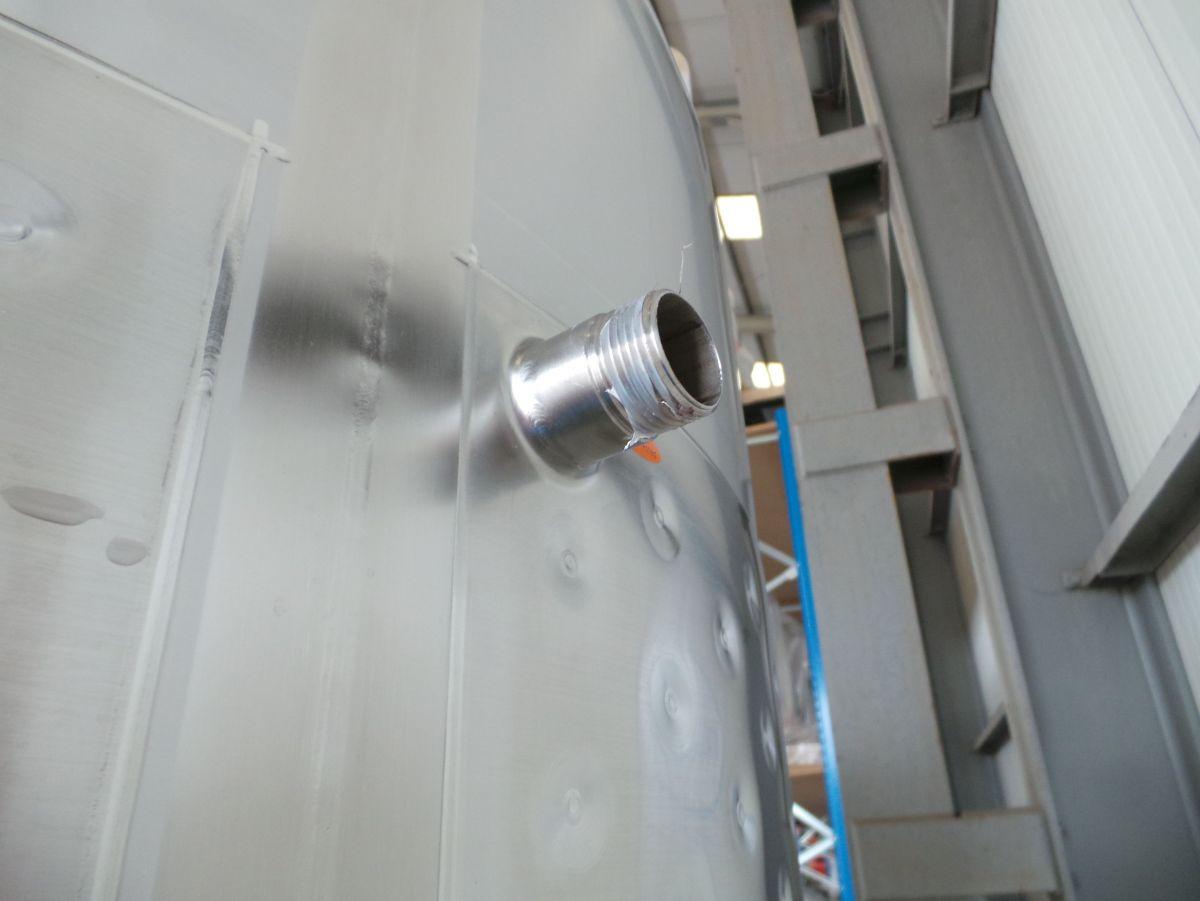

Connection HE: 1″ BSP
Working temperature HE cylinder: -10 °C
Heat exchanger: RVS 304
Manway(s): RVS 304
Gasket manway(s): EPDM
Valve: RVS 316L
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no
Number of manways: 1
Position manway: at the top
Manway 1: 500 mm
Spray ball: no

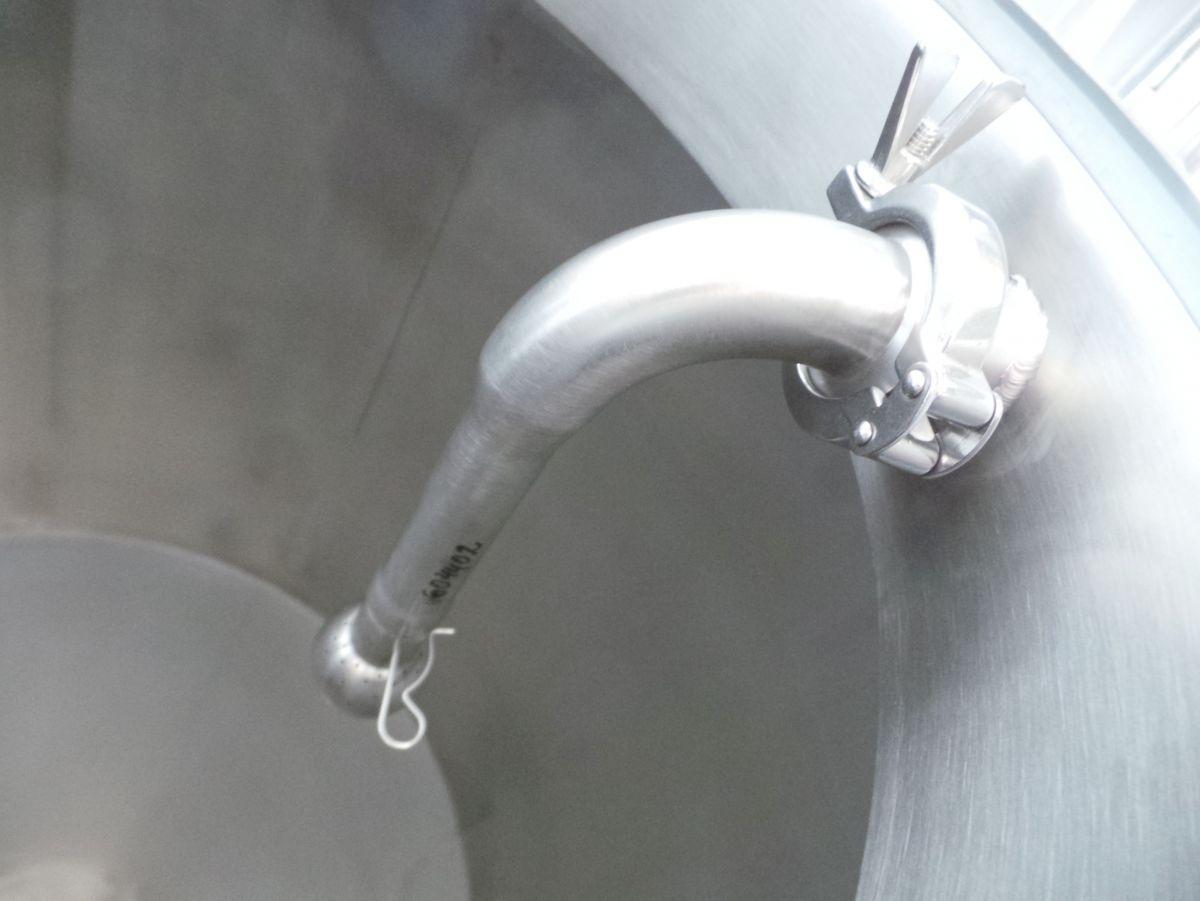

Type: spray ball
Number: 1

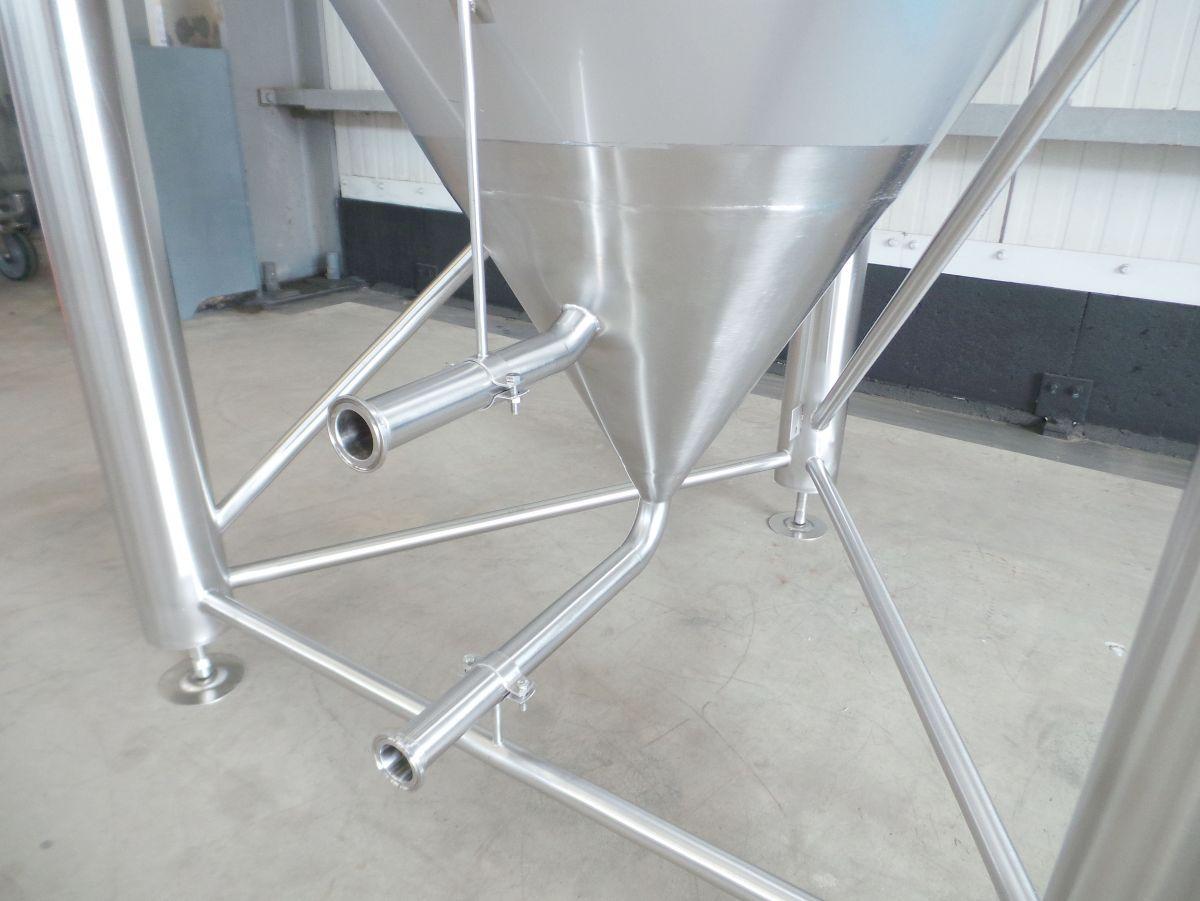

Tank outlet: inside Ø 32 mm
Outlet type: DIN32676 CLAMP FERULLE
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve
Adjustable legs: yes
Top: 3 mm
Cylinder: 2 mm
Bottom: 2 mm
Internal diameter tank: 1.113 mm
Distance from outlet to ground: 200 mm
Outer diameter tank: 1.120 mm
Cylinder height: 1.000 mm
Height of bottom: 1.000 mm
Feet height: 1.202 mm
Total height of tank: 2.426 mm
Empty weight tank: 165
