1200 liter tank i Syrafast 316
Art.nr: 484871
96,000,00 kr /st exkl moms
Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:
Lagersaldo:
Slut i lager

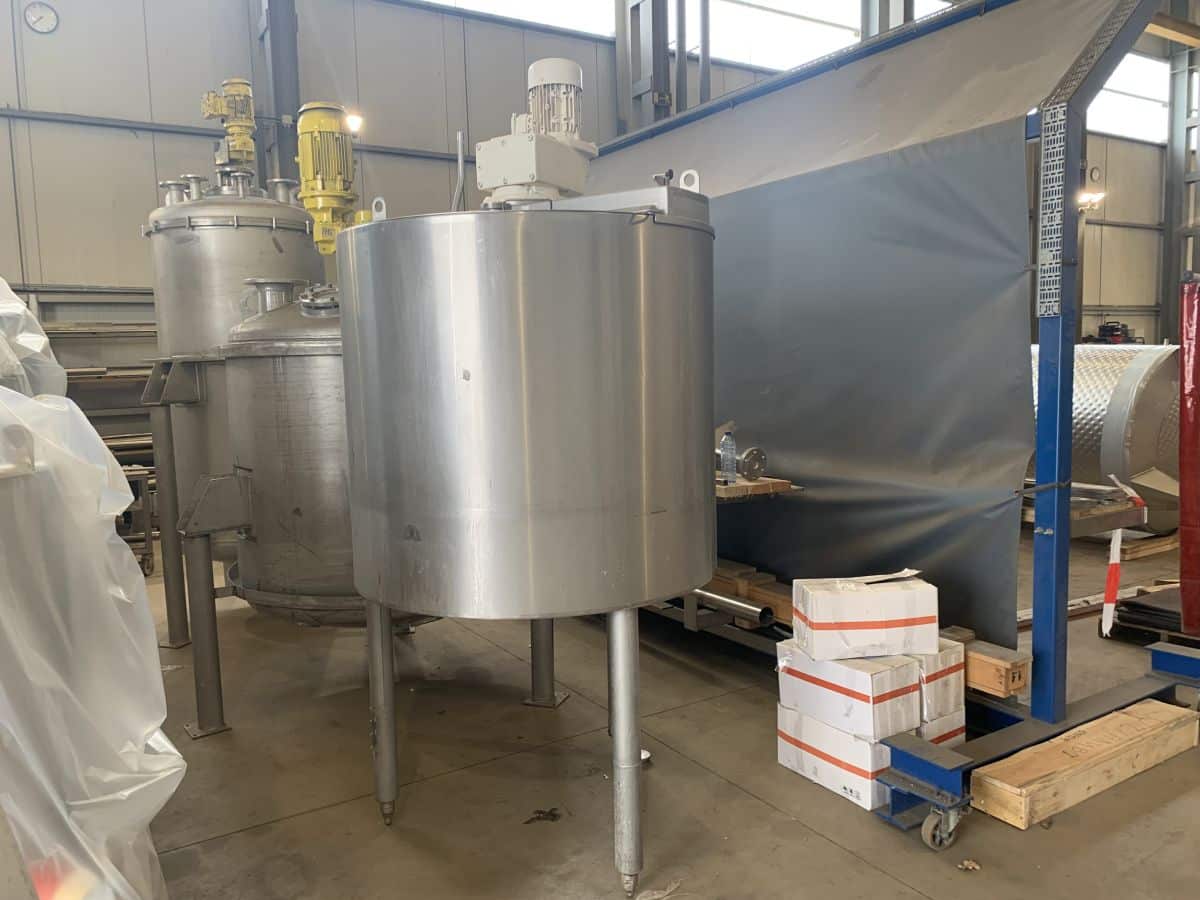

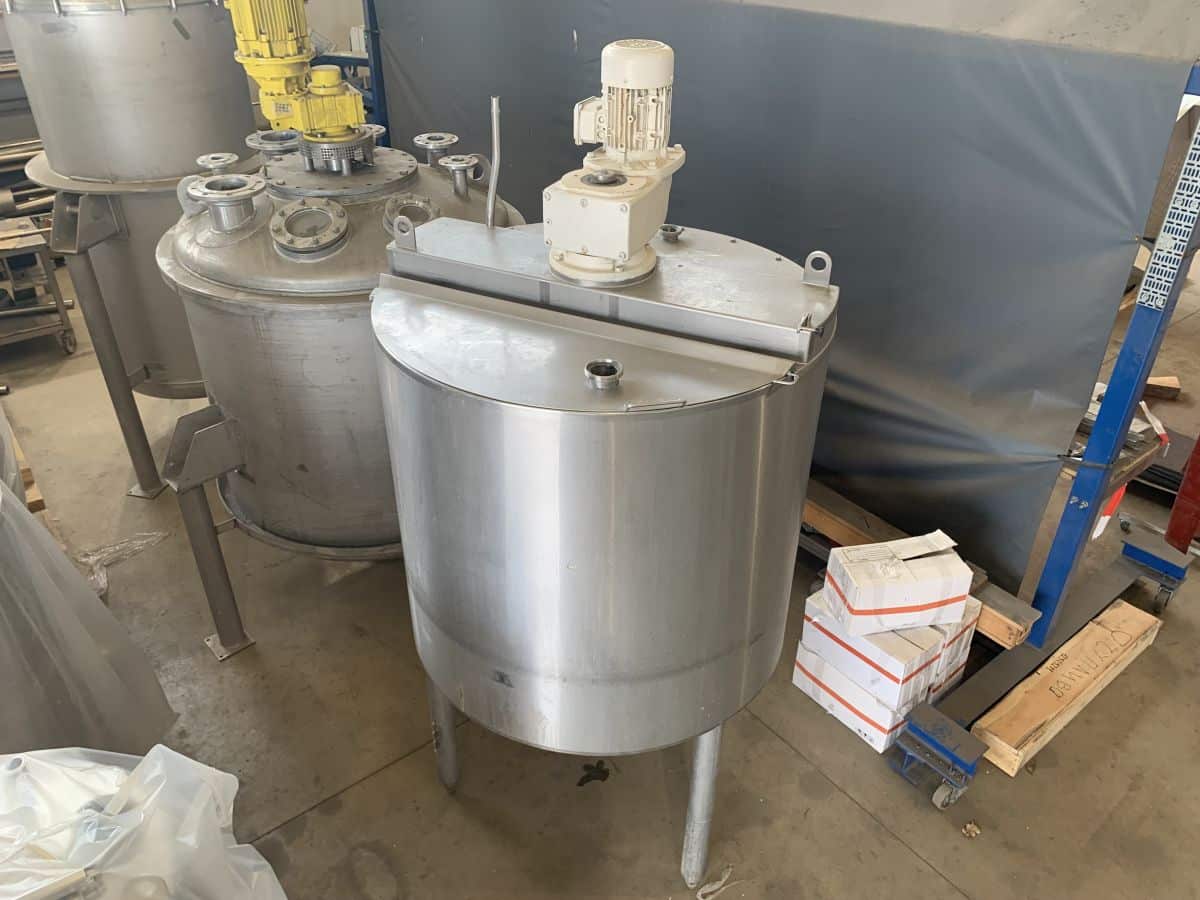

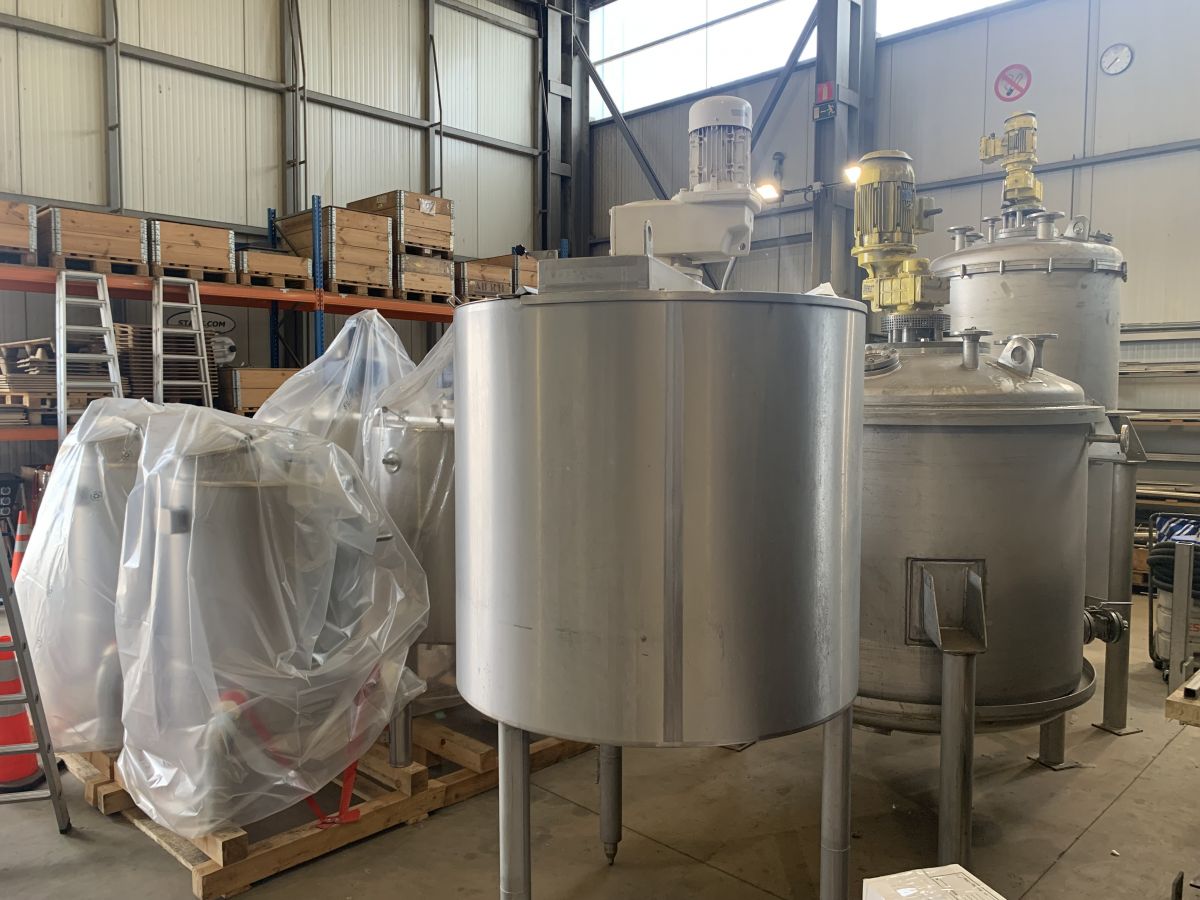

1200 liter tank i Syrafast 316
Article type: second-hand mixing tank
Additional information: Previous product was various sauces; the tank was in use when purchased; the customer sold the tank because he needed a larger capacity; originally the agitator was equipped with scrapers but these are no longer included.; we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator
Volumetric volume (L): 1.200 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Mobile tank: no

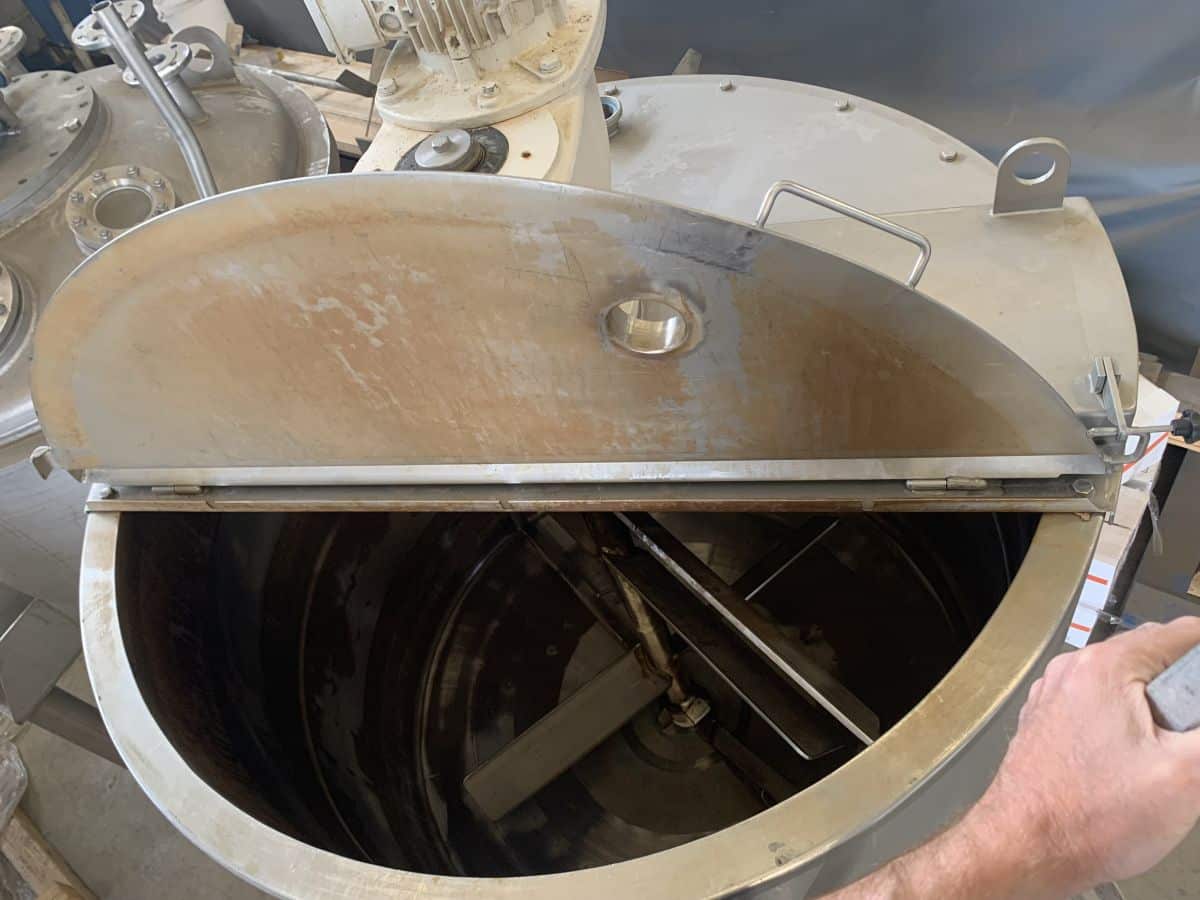

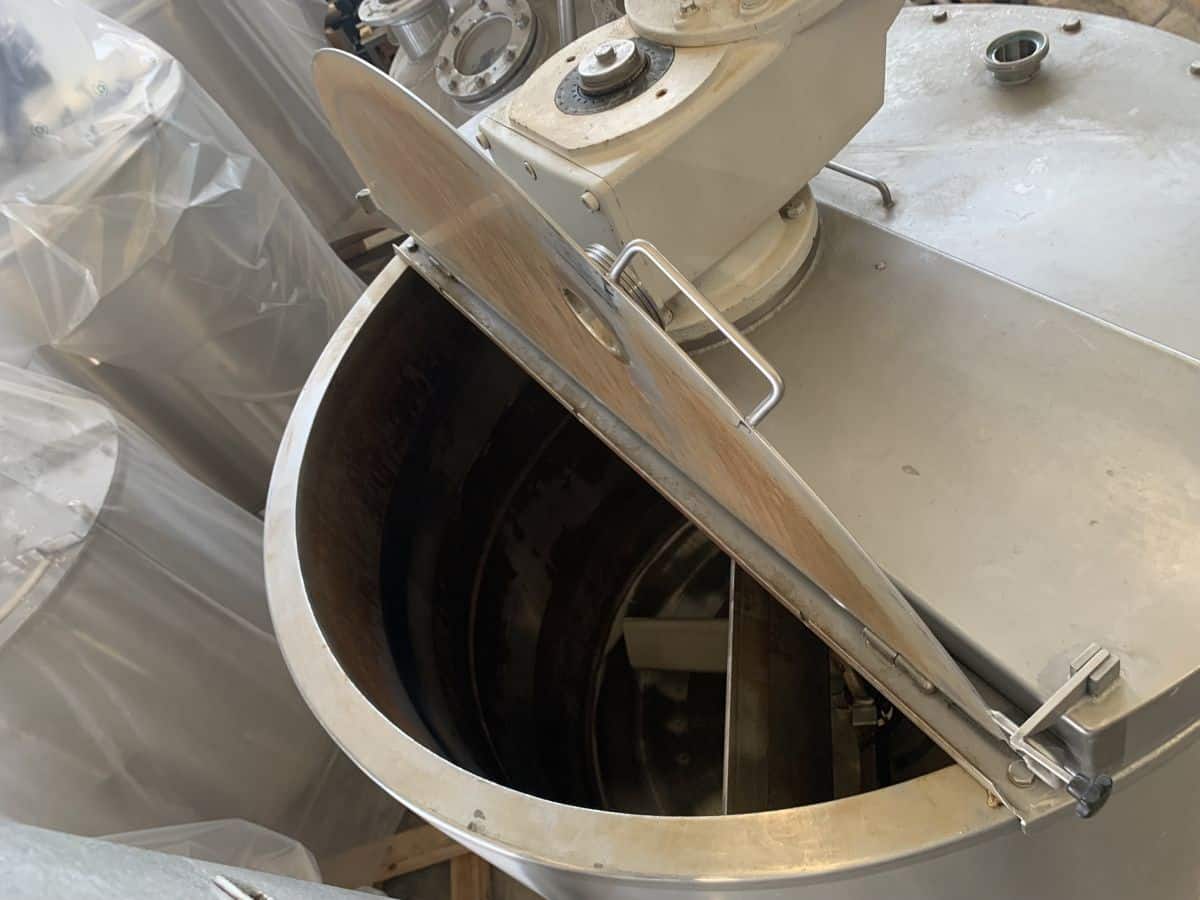

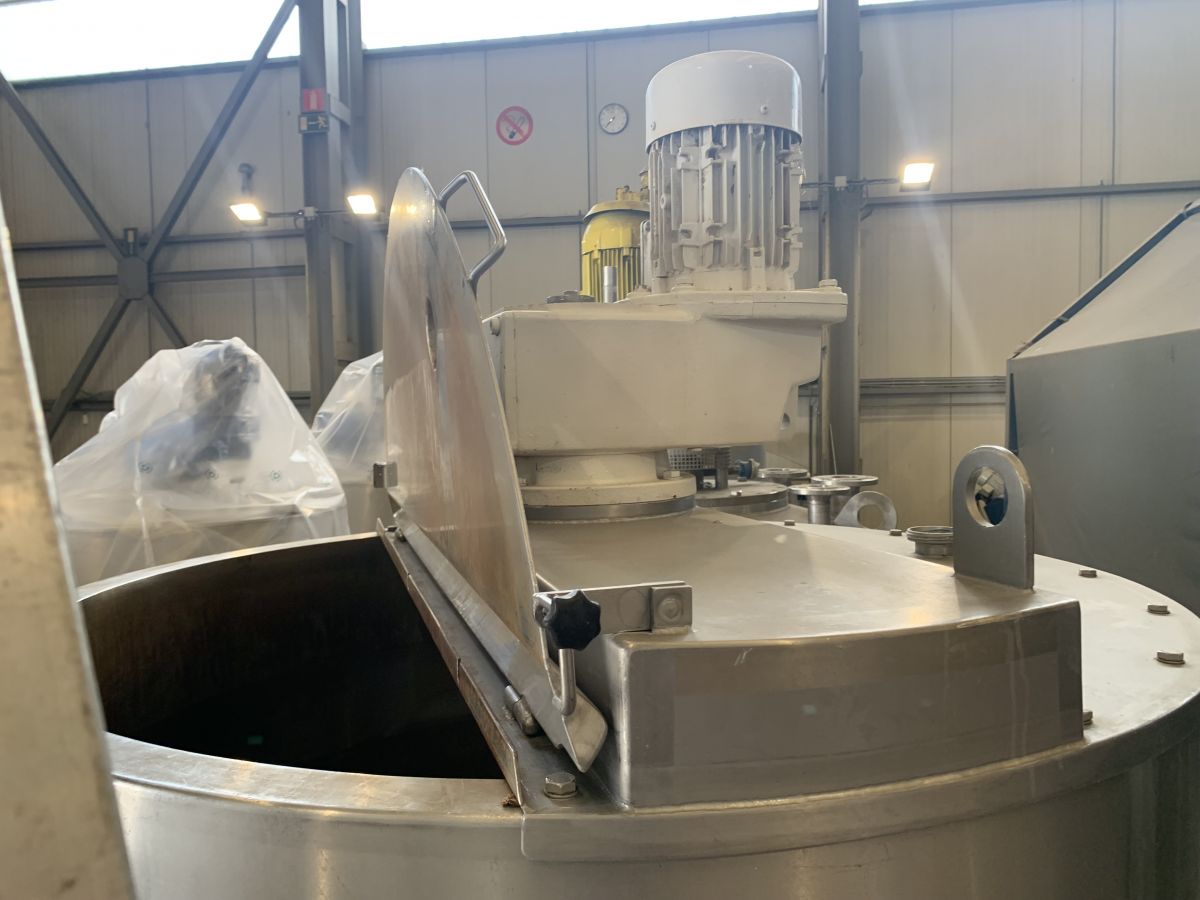

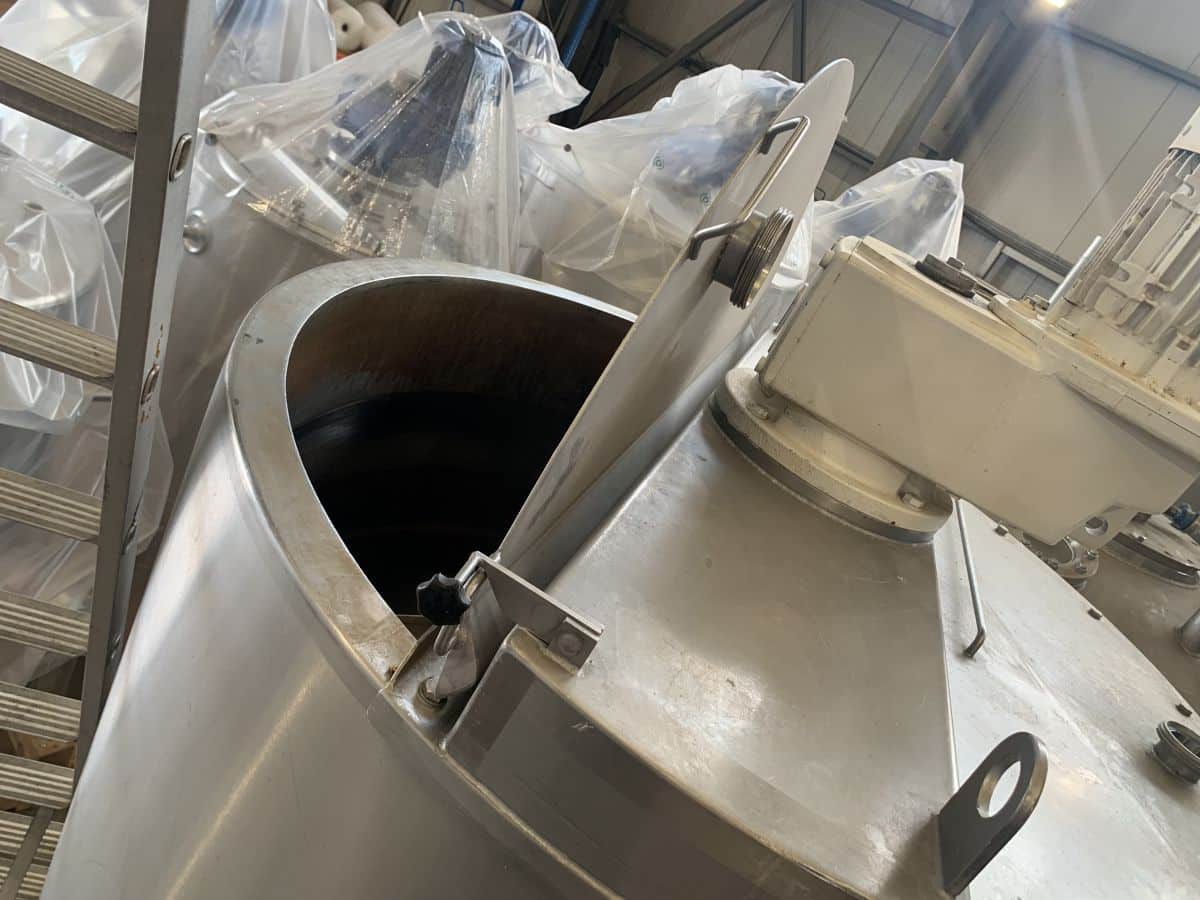

Top type: half hinging lid
Shape of tank: cylindrical

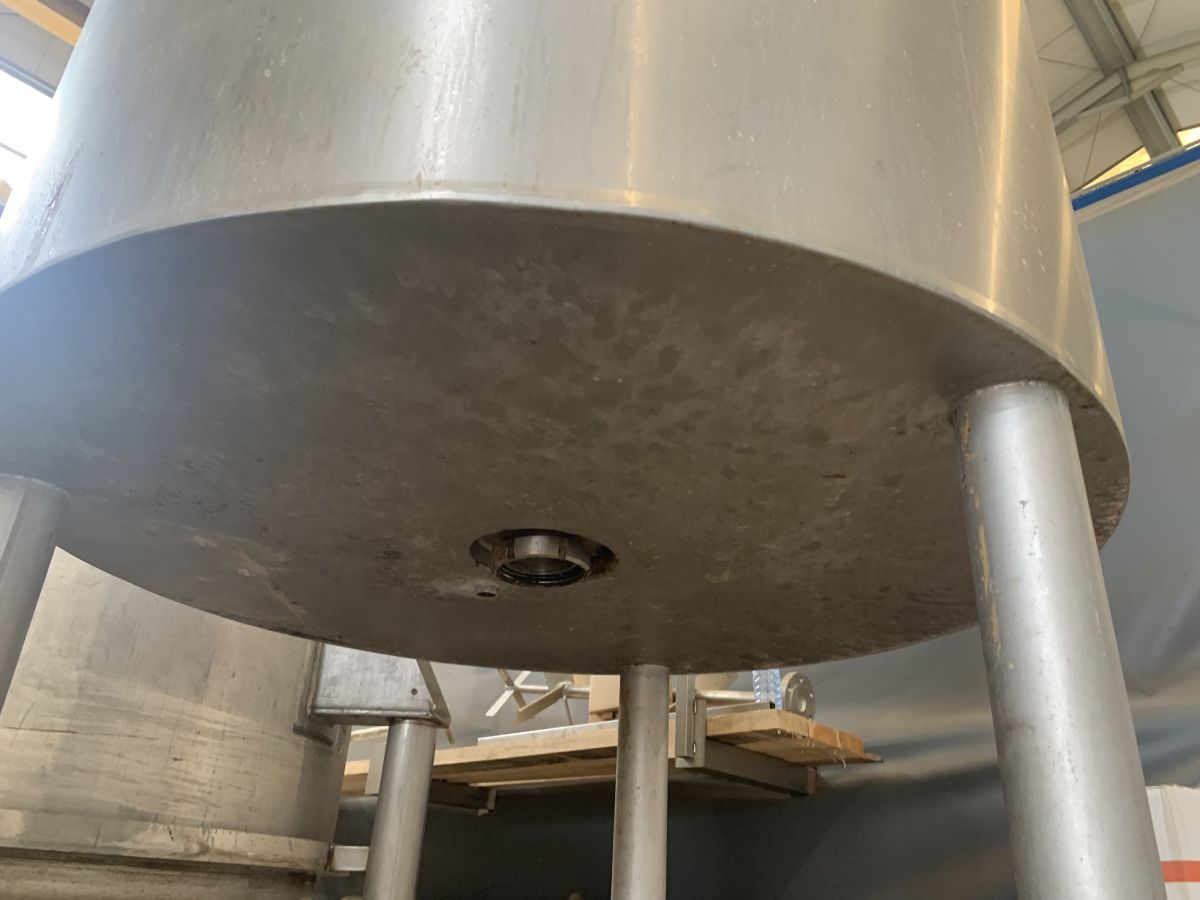

Bottom type: conical
Total discharge: yes
Fixation points: 3 adjustable feet
Type of HE on the cylinder: dimple-jacket
Water pressure HE: 3 Bar
Steam pressure HE: 3 Bar
Type of HE on the bottom: dimple-jacket
Water pressure HE: 3 Bar
Steam pressure HE: 3 Bar
Heat exchanger: RVS 304
Insulation material: rockwool
Outer jacket (ornamental wall): RVS 304
Fixation point(s): RVS 304
Wet parts agitator(s): SS AISI 316 (V4A)
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no

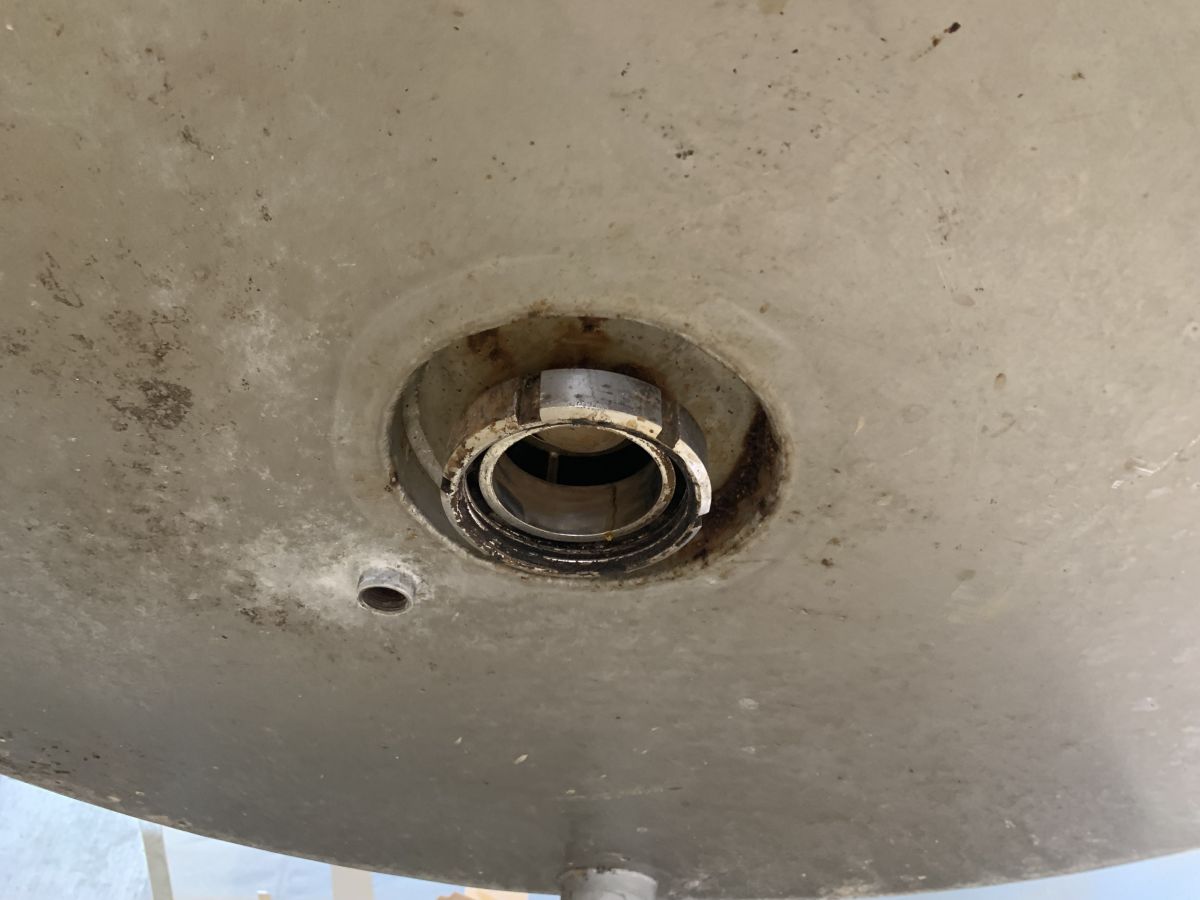

Outlet type: DIN11851

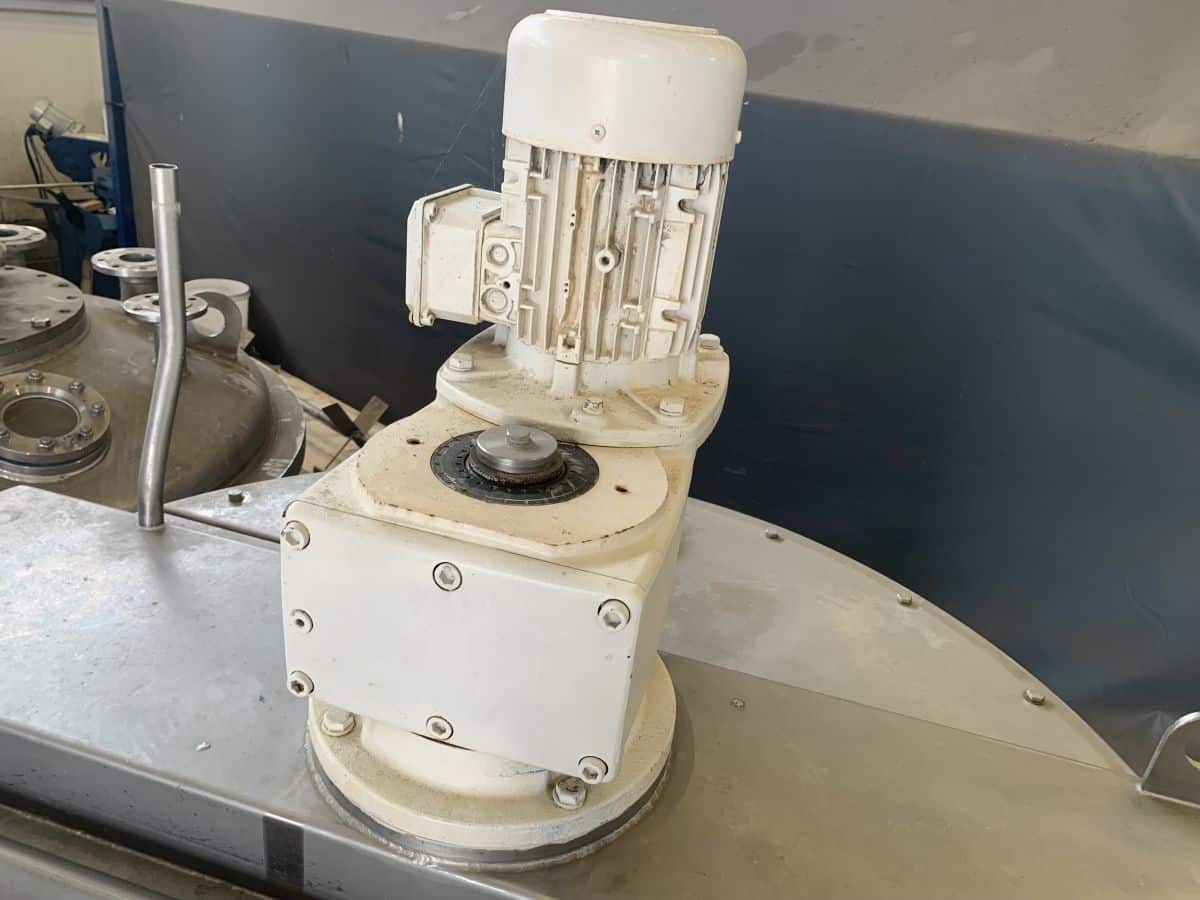

Agitator: yes

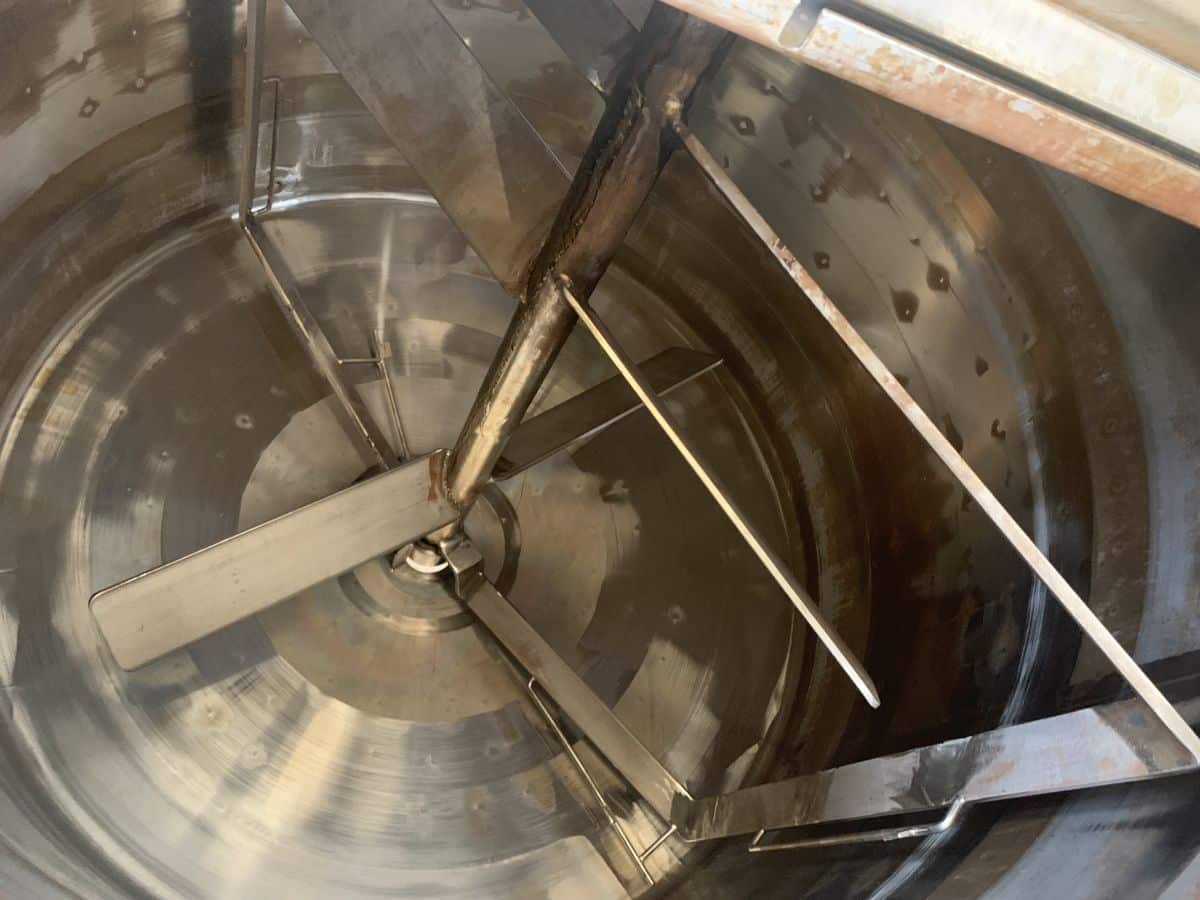

Agitator type: gate

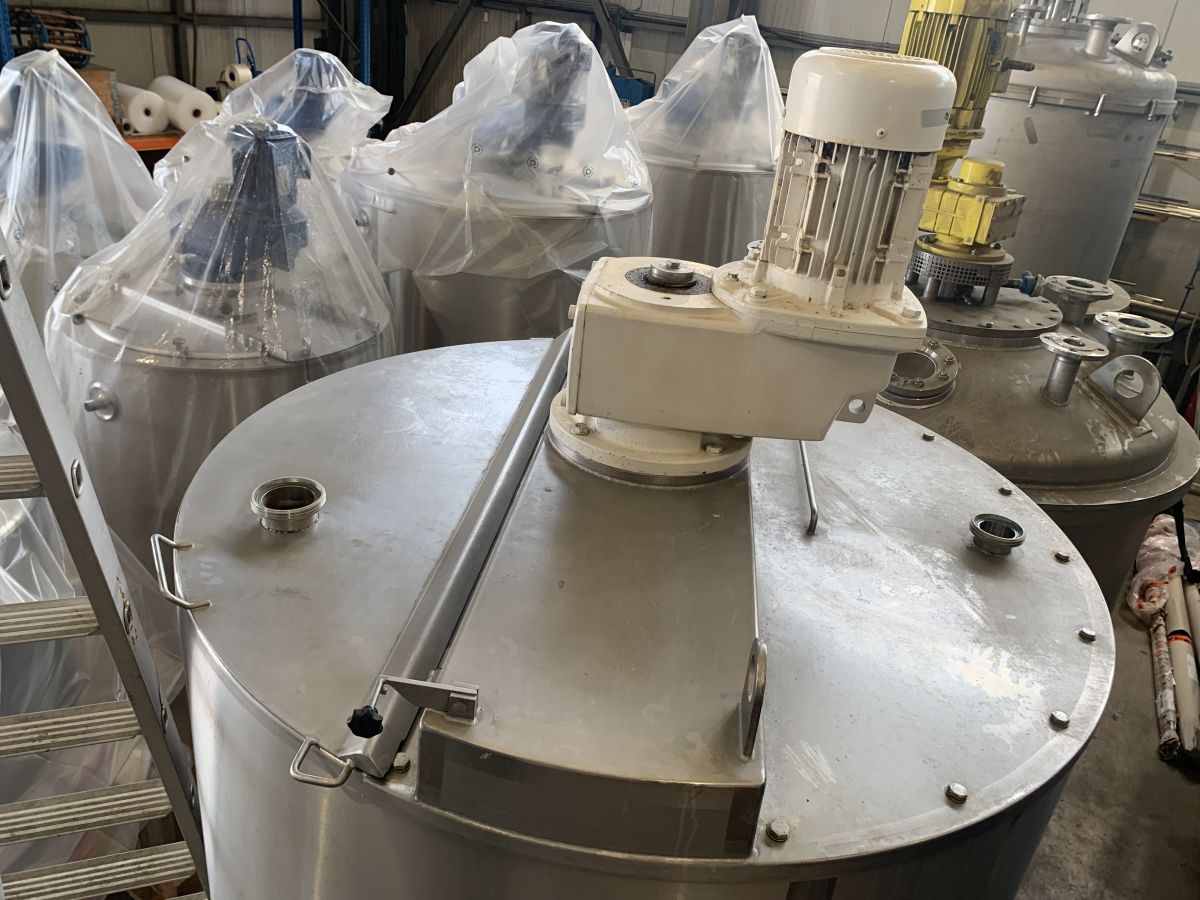

Position engine: at the top
Number of revolutions: ca 12
Cylinder: 3 mm
Bottom: 3 mm
Cylinder: 2
Insulation body: yes
Bottom: 2
Insulation bottom/sides: yes
finish of the outer jacket: welded
Insulation thickness: 50
Internal diameter tank: 1.200 mm
Distance from outlet to ground: 940 mm
Outer diameter tank: 1.300 mm
Cylinder height: 1.000 mm
Height of top: 2.150 mm
Total height of tank: 2.800 mm
Empty weight tank: 700
